チュートリアル: Gemini Code Assist を使用して Apigee で API を設計、開発、テストする
コレクションでコンテンツを整理
必要に応じて、コンテンツの保存と分類を行います。
このページの内容は Apigee と Apigee ハイブリッドに該当します。
概要
このチュートリアルでは、Gemini Code Assist の @Apigee ツールを使用して API 仕様を作成、編集するプロセスについて説明します。歯科医院の予約を管理する API を設計して作成するために、自然言語プロンプトを使用します。仕様が準備できたら、テストして Apigee API プロキシを作成することもできます。
Gemini Code Assist を使用した API 仕様の作成と編集の詳細については、API の設計と編集をご覧ください。

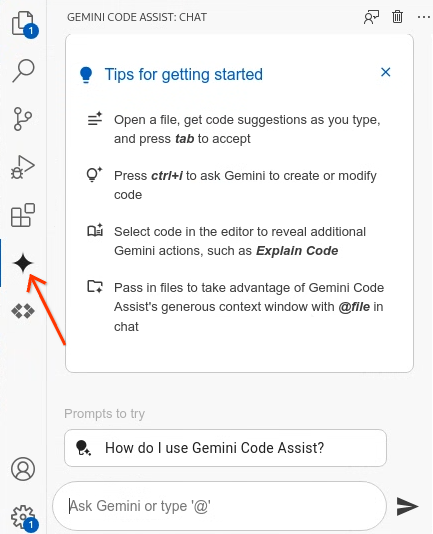

VS Code を開き、Gemini Code Assist のチャット アイコンをクリックします。チャット ウィンドウが表示されます。
ステップ 2: Apigee ハンドルを入力して Apigee ツールを使用する
チャット ウィンドウに「@Apigee」と入力します。Apigee プロンプトのリストが表示されます。[Create an API specification] を選択します。
ステップ 3: プロンプトを入力する

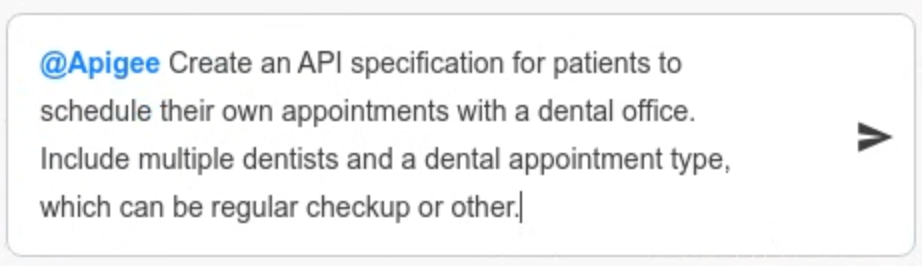

入力フィールドに次の説明を入力して送信し、プロンプトを完了します。
@Apigee Create an API specification for patients to schedule their own appointments with a dental
office. Include multiple dentists and a dental appointment type, which can be regular checkup or
other.
ステップ 4: 仕様を表示する

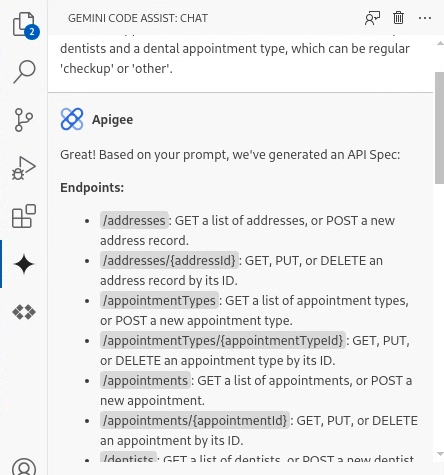

Gemini Code Assist が仕様を生成するまで待ちます。仕様が利用可能になると、API Hub と API エンドポイントから取得したエンタープライズ コンテキストの要約など、生成された仕様に関する情報がチャット ウィンドウに表示されます。Cloud Code の他のタブには、仕様コードと、エンドポイント、スキーマ、新しい API 仕様に関するその他の情報を含む Swagger インターフェースが表示されます。
