Depois de concluir o desenvolvimento e os testes locais com a Apigee no VS Code, você estará pronto para implantar a API como um arquivo em um ambiente

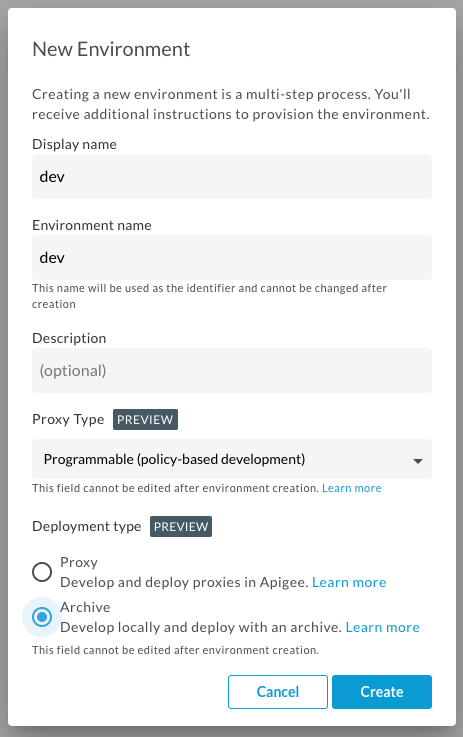

da Apigee. Nesta etapa, você criará um ambiente da Apigee compatível com a implantação de arquivos e implantará um arquivo da configuração do proxy de API no ambiente da Apigee.
Anexar um ambiente ao grupo deixa os proxies nesse ambiente
roteáveis pelos nomes dos hosts no grupo. Isso aciona uma operação de longa duração que pode levar vários minutos para ser concluída. Recomendamos
que você aguarde um ou dois minutos antes de prosseguir para a próxima etapa. Enquanto isso,
verifique o status da operação como antes.
Implante um arquivo da configuração do proxy de API no ambiente da Apigee.
Na guia Terminal no VS Code na Apigee, navegue até o diretório myapigeeworkspace.
cd myapigeeworkspace
Para executar ls, o diretório precisa conter a pasta src.
Para mais informações sobre as variáveis neste exemplo e como configurar o acesso à API, consulte Implantar um exemplo de proxy.
A seguinte mensagem de erro é exibida:
{"fault":{"faultstring":"Failed to resolve API Key variable request.queryparam.apikey",
"detail":{"errorcode":"steps.oauth.v2.FailedToResolveAPIKey"}}}
Você precisa criar um produto de API que inclua a API helloworld e, em seguida, criar e registrar um desenvolvedor com o produto da API para receber uma chave de API.
Receber uma chave de API.
Criar um produto da API usando a IU da Apigee:
Selecione Publicar > Produtos da API.
Clique em + Criar.
Insira os detalhes do produto do produto de API.
Digite as seguintes informações nos campos:
Campo
Configuração
Name:
myproduct
Display name:
myproduct
Environment:
dev
Access:
Público
Quota:
Deixar em branco
Allowed OAuth scope:
Deixar em branco
Na seção Operações, clique em + Adicionar uma operação.
Em Origem, selecione helloworld no menu suspenso Proxy de API.
Em Operação, no campo "Caminho", digite /.
Não altere os outros campos.
Clique em Salvar para salvar a operação.
Clique em Salvar para salvar o produto da API.
Crie um desenvolvedor na sua organização:
Selecione Publicar > Desenvolvedores no menu de navegação.
Clique em + Desenvolvedor.
Digite as seguintes informações nos campos:
Campo
Configuração
First Name:
Alex
Last Name:
Hamilton
Username:
ahamilton
Email:
ahamilton@example.com
Clique em Criar.
Registrar um aplicativo:
Selecione Publicar > Apps.
Clique em + App.
Digite as seguintes informações nos campos:
Campo
Configuração
Name:
myapp
Display name:
myapp
Developer:
ahamilton@example.com
Callback URL:
Deixar em branco
Notes:
Deixar em branco
Expiry:
Nunca
Product:
Clique em Adicionar produto.
Selecione myproduct.
Clique em Adicionar.
Custom attributes:
Deixar em branco
Copie a chave de API.
Na página Apps (Publicar > Apps), clique em myapp.
Na página myapp, clique em Mostrar ao lado de Chave na
seção Credenciais. A chave de API está associada ao produto de API que você criou.
Selecione e copie a chave de API.
Execute a chamada de curl novamente transmitindo a chave de API usando o parâmetro de consulta apikey da seguinte maneira:
