Editing an API proxy (create a proxy revision)

This page applies to Apigee and Apigee hybrid.

View Apigee Edge documentation.

Use the Apigee UI or API to edit an API proxy. When you edit an API proxy, you can decide which of the following to do with the resulting changes:

Save your changes on the server but do not create a new revision. You do this when you do not want to deploy your saved changes, but just want to ensure that they are not lost if you end the session.

OR
Create a new API proxy revision and deploy it to the cluster. You cannot deploy changes to an API proxy without creating a new revision of it.

New Proxy Editor

To edit an API proxy and save your changes using the new Proxy Editor:

If you are using the Apigee UI in Cloud console: Select Proxy development > API Proxies.

If you are using the classic Apigee UI: Select Develop > API Proxies and in the Proxies pane, select the environment for the proxy.
Select the proxy that you want to edit from the list of proxies. The UI displays the Overview tab for that proxy in the Proxy Editor.
Click the Develop tab.

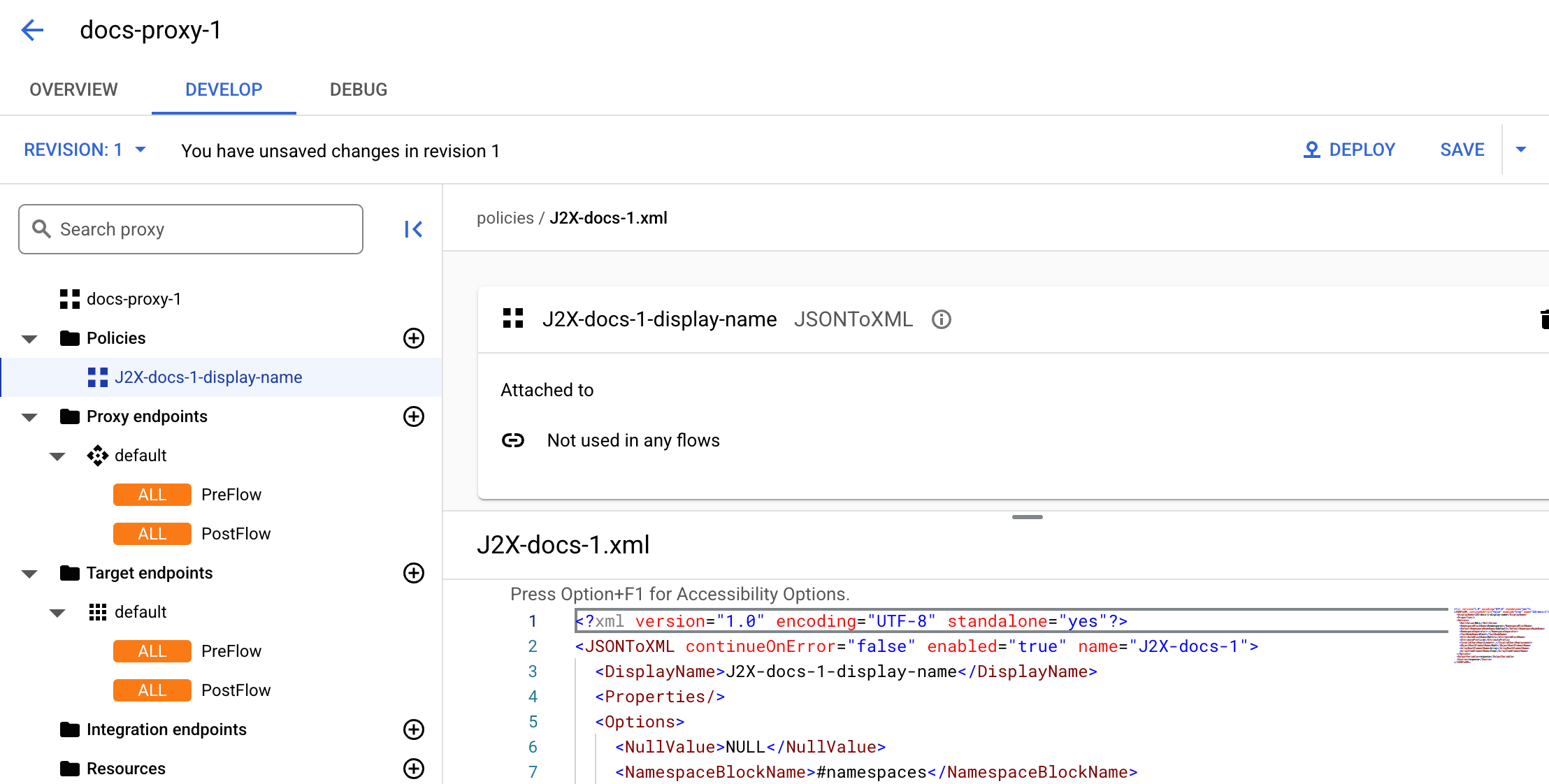

Use the Proxy Editor to make your changes to the proxy. When you are done making changes, you can do one of the following:
- To save your changes but not create a new revision, click the Save button. (You should do this periodically to ensure that your changes are not lost if you end the session).
- To save your changes as a new revision (when you are getting ready to deploy and test), click the drop-down menu next to the Save button and select Save as new revision:

  The Apigee UI saves your changes and generates a new revision of the proxy for you. It does not deploy the new bundle to the runtime; you must explicitly do that, as described in Deploying an API proxy.

Classic Proxy Editor

To edit an API proxy and save your changes using the classic Proxy Editor:

Sign in to the Apigee UI.
Click API Proxies in the main view.
Alternatively, you can select Develop > API Proxies in the left navigation menu.
Select the environment that contains the proxy you want to edit.

The Apigee UI displays a list of API proxies for the selected environment:
Click the proxy that you want to edit. The UI displays the Overview tab for that proxy in the Proxy Editor:
Click the Develop tab in the upper right of the view.
Use the proxy editor to make your changes to the proxy. When you are done making changes, you can do one of the following:
- Save your changes but do not create a new revision (most common; you should do this periodically to ensure that your changes are not lost if you end the session).
- Save your changes as a new revision (when you are getting ready to deploy and test).
To save but not create a new revision, click Save in the upper right of the UI:

The Apigee UI saves your changes so that you can leave the page and resume working later.
To save your changes as a new revision, click the drop-down arrow next to Save and select Save as new revision:

The Apigee UI saves your changes and generates a new proxy bundle for you. It does not deploy the new bundle to the runtime; you must explicitly do that, as described in Deploying an API proxy.
The UI displays a New revision saved message:

After you create a new revision, you typically deploy it to your cluster, as described in Deploying an API proxy.

Apigee API

Edit an API proxy to create a revision in your Apigee organization by issuing a POST request to the following resource:

https://apigee.googleapis.com/v1/organizations/$ORG/apis

You must define the name of the API proxy using the name query parameter. Restrict the characters used in the name to the following: A-Za-z0-9._\-$ %

Optionally, you can import an API proxy configuration bundle by performing the following steps:

Set the action query parameter to import
Set the Content-type header to multipart/form-data
Pass the name of the API proxy configuration bundle on your local file system

The following example demonstrates how to edit an API proxy by importing an API proxy configuration bundle (helloworld-config.zip) on your local file system using the API.

export TOKEN=$(gcloud auth print-access-token)
export ORG=ORGANIZATION_NAME
curl "https://apigee.googleapis.com/v1/organizations/$ORG/apis?name=helloworld&action=import" \
  -X POST \
  -H "Authorization: Bearer $TOKEN" \
  -H "Content-type: multipart/form-data" \
  -F "file=@helloworld-config.zip"

Where $TOKEN is set to your OAuth 2.0 access token, as described in Obtaining an OAuth 2.0 access token. For information about the curl options used in this example, see Using curl. For a description of the environment variables used, see Setting environment variables for Apigee API requests.

The following provides an example of the response output:

{
  "basepaths": [
    "/helloworld"
  ],
  "configurationVersion": {
    "majorVersion": 4
  },
  "createdAt": "1559145292799",
  "displayName": "helloworld",
  "entityMetaDataAsProperties": {
    "bundle_type": "zip",
    "subType": "Proxy",
    "lastModifiedAt": "1559145292799",
    "createdAt": "1559145292799"
  },
  "lastModifiedAt": "1559145292799",
  "name": "helloworld",
  "policies": [
    "verify-api-key",
    "remove-query-param-apikey",
    "OAuth-v20-1"
  ],
  "proxies": [
    "default"
  ],
  "proxyEndpoints": [
    "default"
  ],
  "resourceFiles": {},
  "targetEndpoints": [
    "default"
  ],
  "targets": [
    "default"
  ],
  "type": "Application",
  "revision": "1",
  "description": "Hello world"
}

For more information on editing an API proxy, see the apis.create method in the Apigee API. To see all the methods available for API proxies, see the API proxies API.
