Troubleshooting Windows VMs

This page describes how to troubleshoot Windows VMs.

Connecting to the EMS console

Use the Emergency Management Services (EMS) console to troubleshoot problems with your Windows VMs.

To connect to the EMS console:

  1. From your terminal or in Cloud Shell, enable connections to the serial ports on your VM:

    gcloud compute instances add-metadata vm-name --metadata=serial-port-enable=1


    Replacing vm-name with the name of the VM on which to enable the serial ports.

  2. Connect to the EMS console on serial port 2 of your VM:

    gcloud compute connect-to-serial-port vm-name --port 2


    Replacing vm-name with the name of the VM with the serial port to connect to.

  3. Verify that you see output similar to the following:

    Computer is booting, SAC started and initialized.

    Use the "ch -?" command for information about using channels.
    Use the "?" command for general help.

    SAC>
    EVENT: The CMD command is now available.
    SAC>

  4. Create a new command prompt session by using the cmd command. and verify output similar to the following:

    The Command Prompt session was successfully launched.
    SAC>
    EVENT:   A new channel has been created.  Use "ch -?" for channel help.
    Channel: Cmd0001
    SAC>

  5. Connect to the new command prompt session by using the ch -si 1 command and verify output similar to the following:

    Name:                  Cmd0001
    Description:           Command
    Type:                  VT-UTF8
    Channel GUID:          28de7392-5413-11ea-bb03-c9656a2ed613
    Application Type GUID: 63d02271-8aa4-11d5-bccf-00b0d014a2d0

    Press <esc><tab> for next channel.
    Press <esc><tab>0 to return to the SAC channel.
    Use any other key to view this channel.

  6. Press Enter to connect to the session.

  7. Sign in to the session by entering your login credentials for this VM, after which the EMS console opens in the C:\Windows\system32 directory.

    • Type help for a list of available commands in the EMS console.

Troubleshooting RDP connections

If you cannot connect to your VM by using Remote Desk Protocol (RDP), try the following:

  1. Connect to the EMS console.

  2. In the EMS console, enter the following commands:

    reg add "HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\Terminal Server" /v fDenyTSConnections /t REG_DWORD /d 0 /f

    net stop TermService

    net start TermService


Enabling advanced boot options

Use the Windows Boot Manager (BOOTMGR) to enter Safe Mode and access advanced boot options.

To enable advanced boot options:

  1. From your terminal or in Cloud Shell, enable connections to the serial ports on your VM:

    gcloud compute instances add-metadata vm-name --metadata serial-port-enable=1


    Replacing vm-name with the name of the VM on which to enable the serial ports.

  2. Connect to the Windows VM by using RDP.

    If you cannot access the instance by using RDP, you can reset the instance by using the Cloud Console or gcloud tool.

  3. From an administrative command prompt, run the following commands:

    bcdedit /set {bootmgr} displaybootmenu yes

    bcdedit /set {bootmgr} timeout 10

    bcdedit /set {bootmgr} bootems yes

  4. Use the Cloud Console or the gcloud command-line tool to connect to the interactive serial console on serial port 2:

    gcloud compute connect-to-serial-port vm-name --port 2


    Replacing vm-name with the name of the VM with the serial port to connect to.

  5. Restart the instance through the user interface or from a command prompt:

    shutdown /r /f

  6. Verify in the interactive serial console that the Windows Boot Manager appears:

    Windows Boot Manager screen.

  7. From the Windows Boot Manager, choose which operating system to start.

  8. Press Esc + 8 to open the Advanced Boot Options.

    Advanced Boot Options screen.

Troubleshooting blue screen errors

When a Windows OS crashes, it might display an error on a blue screen. This blue screen is also known as the blue screen of death (BSoD). During a blue screen error, a list of the currently loaded modules and a stack trace is sent to serial port 1.

  1. Windows images later than version 20191112 contain the driver that enables sending the list of loaded modules and the stack trace to serial port 1. If the Windows VM that experienced a crash is running a Windows image that is earlier than version 20191112, run the following command from an elevated command prompt on the Windows VM to install the driver:

    googet install google-compute-engine-driver-pvpanic

  2. From your terminal or in Cloud Shell, enable connections to the serial ports on your VM:

    gcloud compute instances add-metadata vm-name --metadata serial-port-enable=1


    Replacing vm-name with the name of the VM on which to enable the serial ports.

  3. Connect to serial port 1 of your VM:

    gcloud compute instances get-serial-port-output vm-name --port 1


    Replacing vm-name with the name of the VM with the serial port to connect to.

  4. When a blue screen error occurs, the list of loaded modules and the stack trace is sent to serial port 1. In this output, the following indicates the end of the list of loaded modules and the beginning of the stack trace:

    Dumping stack trace:

  5. Narrow down the issue by checking the Bug Check Code Reference.

Licensing issues

By default, Compute Engine Windows VMs renew their licenses every seven days by automatically connecting to the KMS server through TCP port 1688. If you receive messages about license expiration or any other issues related to licenses on your Windows VMs, do the following:

  1. Confirm that your Windows VM has an IP address that is configured to allow communication with the KMS.

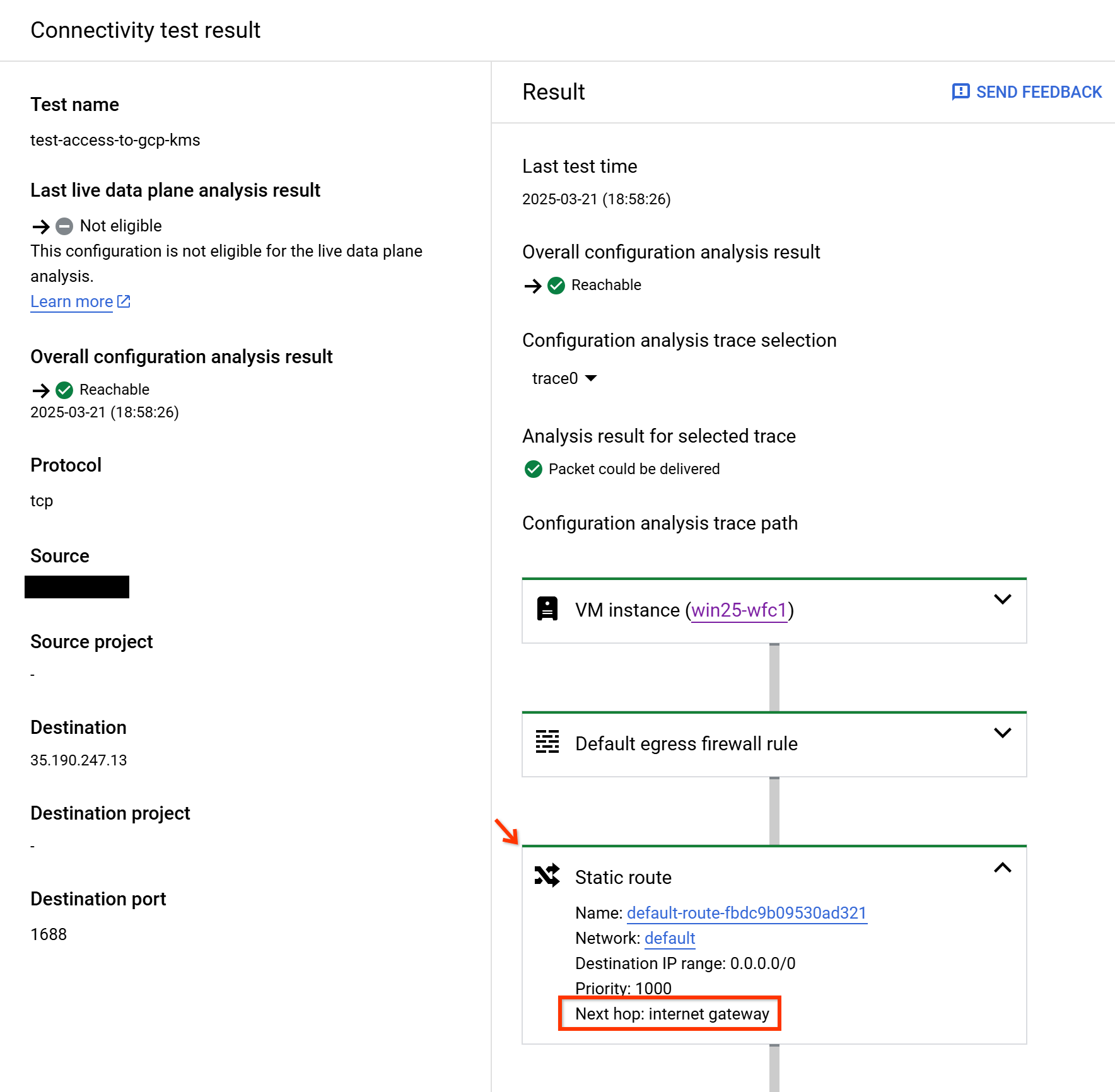

  2. Confirm that there are no firewall egress rules blocking connections to kms.windows.googlecloud.com through TCP port 1688.

  3. If you still have licensing issues, run the following commands from an elevated command prompt to forcibly set the IP address of the KMS and force an activation:

    cscript \windows\system32\slmgr.vbs /skms 35.190.247.13:1688

    cscript \windows\system32\slmgr.vbs /ato
