Visualize graphs using BigQuery DataFrames

This document demonstrates how to plot various types of graphs by using the BigQuery DataFrames visualization library.

The bigframes.pandas API provides a full ecosystem of tools for Python. The API supports advanced statistical operations, and you can visualize the aggregations generated from BigQuery DataFrames. You can also switch from BigQuery DataFrames to a pandas DataFrame with built-in sampling operations.

Histogram

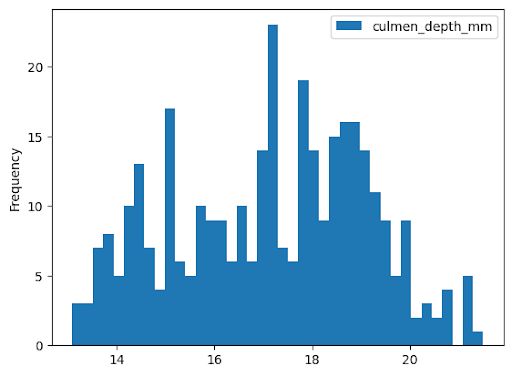

The following example reads data from the bigquery-public-data.ml_datasets.penguins table to plot a histogram on the distribution of penguin culmen depths:

import bigframes.pandas as bpd

penguins = bpd.read_gbq("bigquery-public-data.ml_datasets.penguins")
penguins["culmen_depth_mm"].plot.hist(bins=40)

Line chart

The following example uses data from the bigquery-public-data.noaa_gsod.gsod2021 table to plot a line chart of median temperature changes throughout the year:

import bigframes.pandas as bpd

noaa_surface = bpd.read_gbq("bigquery-public-data.noaa_gsod.gsod2021")

# Calculate median temperature for each day
noaa_surface_median_temps = noaa_surface[["date", "temp"]].groupby("date").median()

noaa_surface_median_temps.plot.line()

Area chart

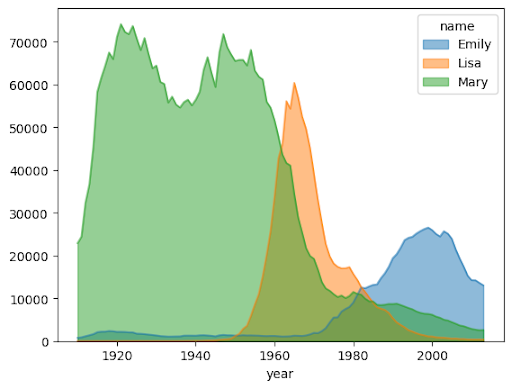

The following example uses the bigquery-public-data.usa_names.usa_1910_2013 table to track name popularity in US history and focuses on the names Mary, Emily, and Lisa:

import bigframes.pandas as bpd

usa_names = bpd.read_gbq("bigquery-public-data.usa_names.usa_1910_2013")

# Count the occurences of the target names each year. The result is a dataframe with a multi-index.
name_counts = (
    usa_names[usa_names["name"].isin(("Mary", "Emily", "Lisa"))]
    .groupby(("year", "name"))["number"]
    .sum()
)

# Flatten the index of the dataframe so that the counts for each name has their own columns.
name_counts = name_counts.unstack(level=1).fillna(0)

name_counts.plot.area(stacked=False, alpha=0.5)

Bar chart

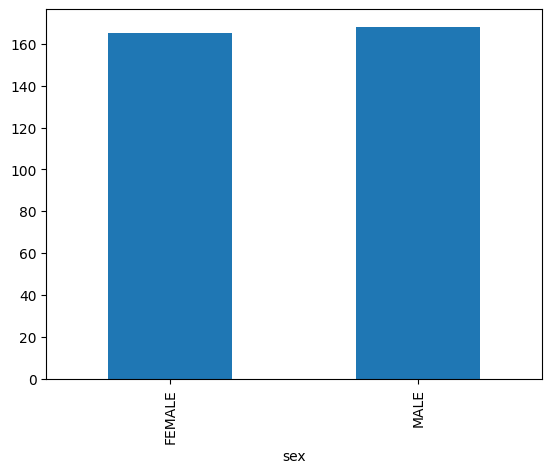

The following example uses the bigquery-public-data.ml_datasets.penguins table to visualize the distribution of penguin sexes:

import bigframes.pandas as bpd

penguins = bpd.read_gbq("bigquery-public-data.ml_datasets.penguins")

penguin_count_by_sex = (
    penguins[penguins["sex"].isin(("MALE", "FEMALE"))]
    .groupby("sex")["species"]
    .count()
)
penguin_count_by_sex.plot.bar()

Scatter plot

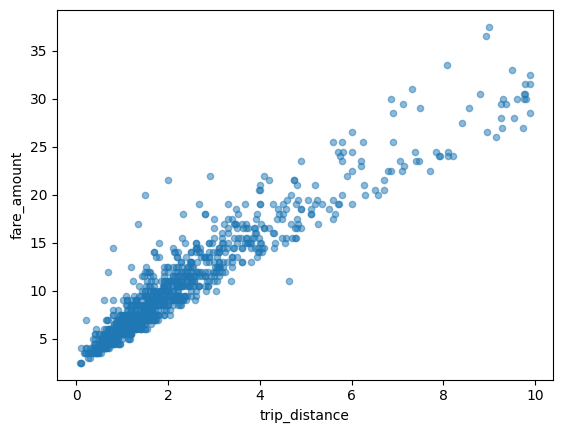

The following example uses the bigquery-public-data.new_york_taxi_trips.tlc_yellow_trips_2021 table to explore the relationship between taxi fare amounts and trip distances:

import bigframes.pandas as bpd

taxi_trips = bpd.read_gbq(
    "bigquery-public-data.new_york_taxi_trips.tlc_yellow_trips_2021"
).dropna()

# Data Cleaning
taxi_trips = taxi_trips[
    taxi_trips["trip_distance"].between(0, 10, inclusive="right")
]
taxi_trips = taxi_trips[taxi_trips["fare_amount"].between(0, 50, inclusive="right")]

# If you are using partial ordering mode, you will also need to assign an order to your dataset.
# Otherwise, the next line can be skipped.
taxi_trips = taxi_trips.sort_values("pickup_datetime")

taxi_trips.plot.scatter(x="trip_distance", y="fare_amount", alpha=0.5)

Visualizing a large dataset

BigQuery DataFrames downloads data to your local machine for visualization. The number of data points to be downloaded is capped at 1,000 by default. If the number of data points exceeds the cap, BigQuery DataFrames randomly samples the number of data points equal to the cap.

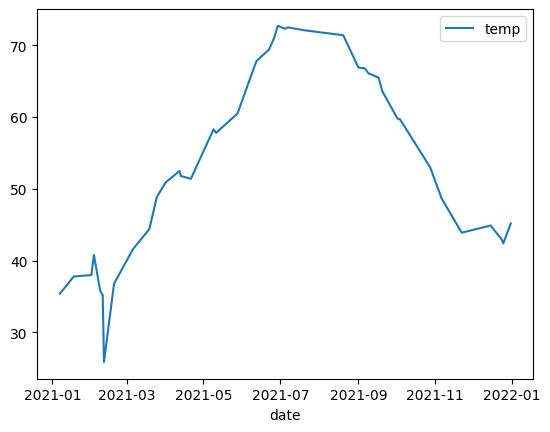

You can override this cap by setting the sampling_n parameter when plotting a graph, as shown in the following example:

import bigframes.pandas as bpd

noaa_surface = bpd.read_gbq("bigquery-public-data.noaa_gsod.gsod2021")

# Calculate median temperature for each day
noaa_surface_median_temps = noaa_surface[["date", "temp"]].groupby("date").median()

noaa_surface_median_temps.plot.line(sampling_n=40)

Note: The sampling_n parameter has no effect on histograms because BigQuery DataFrames bucketizes the data on the server side for histograms.

Advanced plotting with pandas and Matplotlib parameters

You can pass in more parameters to fine tune your graph like you can with pandas, because the plotting library of BigQuery DataFrames is powered by pandas and Matplotlib. The following sections describe examples.

Name popularity trend with subplots

Using the name history data from the area chart example, the following example creates individual graphs for each name by setting subplots=True in the plot.area() function call:

import bigframes.pandas as bpd

usa_names = bpd.read_gbq("bigquery-public-data.usa_names.usa_1910_2013")

# Count the occurences of the target names each year. The result is a dataframe with a multi-index.
name_counts = (
    usa_names[usa_names["name"].isin(("Mary", "Emily", "Lisa"))]
    .groupby(("year", "name"))["number"]
    .sum()
)

# Flatten the index of the dataframe so that the counts for each name has their own columns.
name_counts = name_counts.unstack(level=1).fillna(0)

name_counts.plot.area(subplots=True, alpha=0.5)

Taxi trip scatter plot with multiple dimensions

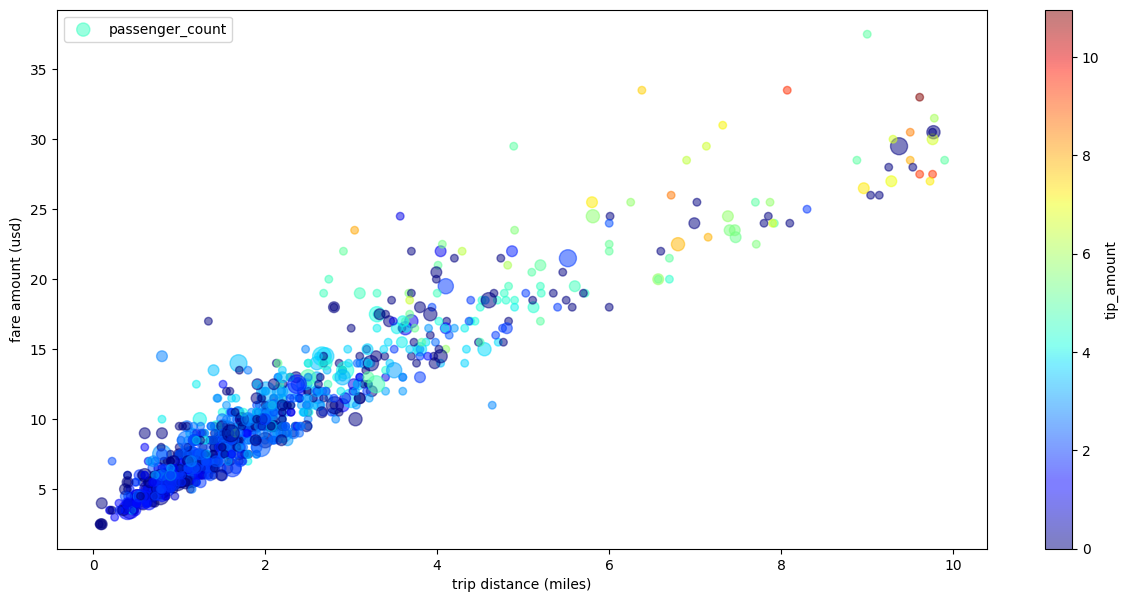

Using data from the scatter plot example, the following example renames the labels for the x-axis and y-axis, uses the passenger_count parameter for point sizes, uses color points with the tip_amount parameter, and resizes the figure:

import bigframes.pandas as bpd

taxi_trips = bpd.read_gbq(
    "bigquery-public-data.new_york_taxi_trips.tlc_yellow_trips_2021"
).dropna()

# Data Cleaning
taxi_trips = taxi_trips[
    taxi_trips["trip_distance"].between(0, 10, inclusive="right")
]
taxi_trips = taxi_trips[taxi_trips["fare_amount"].between(0, 50, inclusive="right")]

# If you are using partial ordering mode, you also need to assign an order to your dataset.
# Otherwise, the next line can be skipped.
taxi_trips = taxi_trips.sort_values("pickup_datetime")

taxi_trips["passenger_count_scaled"] = taxi_trips["passenger_count"] * 30

taxi_trips.plot.scatter(
    x="trip_distance",
    xlabel="trip distance (miles)",
    y="fare_amount",
    ylabel="fare amount (usd)",
    alpha=0.5,
    s="passenger_count_scaled",
    label="passenger_count",
    c="tip_amount",
    cmap="jet",
    colorbar=True,
    legend=True,
    figsize=(15, 7),
    sampling_n=1000,
)
