Query data in BigQuery from within JupyterLab

Query data in BigQuery from within JupyterLab

Vertex AI Workbench managed notebooks is deprecated. On January 30, 2025, support for managed notebooks will end and the ability to create managed notebooks instances will be removed. Existing instances will continue to function but patches, updates, and upgrades won't be available. To continue using Vertex AI Workbench, we recommend that you migrate your managed notebooks instances to Vertex AI Workbench instances.

This page shows you how to query data that is stored in BigQuery from within the JupyterLab interface of your Vertex AI Workbench managed notebooks instance.

Methods for querying BigQuery data in notebook (IPYNB) files

To query BigQuery data from within a JupyterLab notebook file, you can use the %%bigquery magic command and the BigQuery client library for Python.

Managed notebooks instances also include a BigQuery integration that lets you browse and query data from within the JupyterLab interface.

This page describes how to use each of these methods.

Before you begin

If you haven't already, create a managed notebooks instance.

Open JupyterLab

1. In the Google Cloud console, go to the Managed notebooks page.

   Go to Managed notebooks

2. Next to your managed notebooks instance's name, click Open JupyterLab.

   Your managed notebooks instance opens JupyterLab.

Browse BigQuery resources

The BigQuery integration provides a pane for browsing the BigQuery resources that you have access to.

1. In the JupyterLab navigation menu, click  BigQuery in Notebooks.

   The BigQuery pane lists available projects and datasets, where you can perform tasks as follows:

   • To view a description of a dataset, double-click the dataset name.
   • To show a dataset's tables, views, and models, expand the dataset.
   • To open a summary description as a tab in JupyterLab, double-click a table, view, or model.

   Note: On the summary description for a table, click the Preview tab to preview a table's data. The following image shows a preview of the international_top_terms table found in the google_trends dataset in the bigquery-public-data project:



Query data by using the %%bigquery magic command

In this section, you write SQL directly in notebook cells and read data from BigQuery into the Python notebook.

Magic commands that use a single or double percentage character (% or %%) let you use minimal syntax to interact with BigQuery within the notebook. The BigQuery client library for Python is automatically installed in a managed notebooks instance. Behind the scenes, the %%bigquery magic command uses the BigQuery client library for Python to run the given query, convert the results to a pandas DataFrame, optionally save the results to a variable, and then display the results.

Note: As of version 1.26.0 of the google-cloud-bigquery Python package, the BigQuery Storage API is used by default to download results from the %%bigquery magics.

1. To open a notebook file, select File > New > Notebook.

2. In the Select Kernel dialog, select Python (Local), and then click Select.

   Your new IPYNB file opens.

3. To get the number of regions by country in the international_top_terms dataset, enter the following statement:

   %%bigquery
   SELECT
     country_code,
     country_name,
     COUNT(DISTINCT region_code) AS num_regions
   FROM
     `bigquery-public-data.google_trends.international_top_terms`
   WHERE
     refresh_date = DATE_SUB(CURRENT_DATE, INTERVAL 1 DAY)
   GROUP BY
     country_code,
     country_name
   ORDER BY
     num_regions DESC;


4. Click  Run cell.

   The output is similar to the following:

   Query complete after 0.07s: 100%|██████████| 4/4 [00:00<00:00, 1440.60query/s]
   Downloading: 100%|██████████| 41/41 [00:02<00:00, 20.21rows/s]
   country_code      country_name    num_regions
   0   TR  Turkey         81
   1   TH  Thailand       77
   2   VN  Vietnam        63
   3   JP  Japan          47
   4   RO  Romania        42
   5   NG  Nigeria        37
   6   IN  India          36
   7   ID  Indonesia      34
   8   CO  Colombia       33
   9   MX  Mexico         32
   10  BR  Brazil         27
   11  EG  Egypt          27
   12  UA  Ukraine        27
   13  CH  Switzerland    26
   14  AR  Argentina      24
   15  FR  France         22
   16  SE  Sweden         21
   17  HU  Hungary        20
   18  IT  Italy          20
   19  PT  Portugal       20
   20  NO  Norway         19
   21  FI  Finland        18
   22  NZ  New Zealand    17
   23  PH  Philippines    17
   ...


   Note: Your results might differ from what is above as the google_trends dataset being queried is refreshed with new data on an ongoing basis.

5. In the next cell (below the output from the previous cell), enter the following command to run the same query, but this time save the results to a new pandas DataFrame that's named regions_by_country. You provide that name by using an argument with the %%bigquery magic command.

   %%bigquery regions_by_country
   SELECT
     country_code,
     country_name,
     COUNT(DISTINCT region_code) AS num_regions
   FROM
     `bigquery-public-data.google_trends.international_top_terms`
   WHERE
     refresh_date = DATE_SUB(CURRENT_DATE, INTERVAL 1 DAY)
   GROUP BY
     country_code, country_name
   ORDER BY
     num_regions DESC;


   Note: For more information about available arguments for the %%bigquery command, see the client library magics documentation.

6. Click  Run cell.

7. In the next cell, enter the following command to look at the first few rows of the query results that you just read in:

   regions_by_country.head()


8. Click  Run cell.

   The pandas DataFrame regions_by_country is ready to plot.

Query data by using the BigQuery client library directly

In this section, you use the BigQuery client library for Python directly to read data into the Python notebook.

The client library gives you more control over your queries and lets you use more complex configurations for queries and jobs. The library's integrations with pandas enable you to combine the power of declarative SQL with imperative code (Python) to help you analyze, visualize, and transform your data.

Note: You can use a number of Python data analysis, data wrangling, and visualization libraries, such as numpy, pandas, matplotlib, and many others. Several of these libraries are built on top of a DataFrame object.

1. In the next cell, enter the following Python code to import the BigQuery client library for Python and initialize a client:

   from google.cloud import bigquery

   client = bigquery.Client()


   The BigQuery client is used to send and receive messages from the BigQuery API.

2. Click  Run cell.

3. In the next cell, enter the following code to retrieve the percentage of daily top terms in the US top_terms that overlap across time by number of days apart. The idea here is to look at each day's top terms and see what percentage of them overlap with the top terms from the day before, 2 days prior, 3 days prior, and so on (for all pairs of dates over about a month span).

   sql = """
   WITH
     TopTermsByDate AS (
       SELECT DISTINCT refresh_date AS date, term
       FROM `bigquery-public-data.google_trends.top_terms`
     ),
     DistinctDates AS (
       SELECT DISTINCT date
       FROM TopTermsByDate
     )
   SELECT
     DATE_DIFF(Dates2.date, Date1Terms.date, DAY)
       AS days_apart,
     COUNT(DISTINCT (Dates2.date || Date1Terms.date))
       AS num_date_pairs,
     COUNT(Date1Terms.term) AS num_date1_terms,
     SUM(IF(Date2Terms.term IS NOT NULL, 1, 0))
       AS overlap_terms,
     SAFE_DIVIDE(
       SUM(IF(Date2Terms.term IS NOT NULL, 1, 0)),
       COUNT(Date1Terms.term)
       ) AS pct_overlap_terms
   FROM
     TopTermsByDate AS Date1Terms
   CROSS JOIN
     DistinctDates AS Dates2
   LEFT JOIN
     TopTermsByDate AS Date2Terms
     ON
       Dates2.date = Date2Terms.date
       AND Date1Terms.term = Date2Terms.term
   WHERE
     Date1Terms.date <= Dates2.date
   GROUP BY
     days_apart

   ORDER BY
     days_apart;
   """
   pct_overlap_terms_by_days_apart = client.query(sql).to_dataframe()

   pct_overlap_terms_by_days_apart.head()


   The SQL being used is encapsulated in a Python string and then passed to the query() method to run a query. The to_dataframe method waits for the query to finish and downloads the results to a pandas DataFrame by using the BigQuery Storage API.

4. Click  Run cell.

   The first few rows of query results appear below the code cell.

      days_apart   num_date_pairs  num_date1_terms overlap_terms   pct_overlap_terms
    0          0             32               800            800            1.000000
    1          1             31               775            203            0.261935
    2          2             30               750             73            0.097333
    3          3             29               725             31            0.042759
    4          4             28               700             23            0.032857


   Note: Your results might differ from what is above as the google_trends dataset being queried is refreshed with new data on an ongoing basis.

For more information about using BigQuery client libraries, see the quickstart Using client libraries.

Query data by using the BigQuery integration in managed notebooks

The BigQuery integration provides two additional methods for querying data. These methods are different from using the %%bigquery magic command.

• The In-cell query editor is a cell type that you can use within your notebook files.

• The Stand-alone query editor opens as a separate tab in JupyterLab.

In-cell

To use the in-cell query editor to query data in a BigQuery table, complete the following steps:

1. In JupyterLab, open a notebook (IPYNB) file or create a new one.

2. To create an in-cell query editor, click the cell, and then to the right of the cell, click the  BigQuery Integration button. Or in a markdown cell, enter #@BigQuery.

   The BigQuery integration converts the cell into an in-cell query editor.

3. On a new line below #@BigQuery, write your query using the supported statements and SQL dialects of BigQuery. If errors are detected in your query, an error message appears in the top right corner of the query editor. If the query is valid, the estimated number of bytes to be processed appears.

4. Click Submit Query. Your query results appear. By default, query results are paginated at 100 rows per page and limited to 1,000 rows total, but you can change these settings at the bottom of the results table. In the query editor, keep the query limited to only the data you need to verify your query. You'll run this query again in a notebook cell, where you can adjust the limit to retrieve the full results set if you want.

   Note: Query text and results persist after closing and reopening the notebook file.

5. You can click Query and load as DataFrame to automatically add a new cell that contains a code segment that imports the BigQuery client library for Python, runs your query in a notebook cell, and stores the results in a pandas dataframe named df.

Stand-alone

To use the stand-alone query editor to query data in a BigQuery table, complete the following steps:

1. In JupyterLab, in the BigQuery in Notebooks pane, right-click a table, and select Query table, or double-click a table to open a description in a separate tab, and then click the Query table link.

2. Write your query using the supported statements and SQL dialects of BigQuery. If errors are detected in your query, an error message appears in the top right corner of the query editor. If the query is valid, the estimated number of bytes to be processed appears.

3. Click Submit Query. Your query results appear. By default, query results are paginated at 100 rows per page and limited to 1,000 rows total, but you can change these settings at the bottom of the results table. In the query editor, keep the query limited to only the data you need to verify your query. You'll run this query again in a notebook cell, where you can adjust the limit to retrieve the full results set if you want.

4. You can click Copy code for DataFrame to copy a code segment that imports the BigQuery client library for Python, runs your query in a notebook cell, and stores the results in a pandas dataframe named df. Paste this code into a notebook cell where you want to run it.

View query history and reuse queries

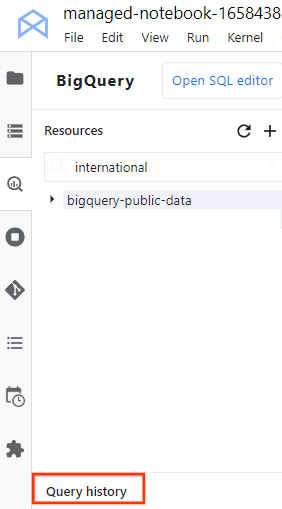

To view your query history as a tab in JupyterLab, perform the following steps:

1. In the JupyterLab navigation menu, click  BigQuery in Notebooks to open the BigQuery pane.

2. In the BigQuery pane, scroll down and click Query history.



   A list of your queries opens in a new tab, where you can perform tasks such as the following:

   • To view the details of a query such as its Job ID, when the query was run, and how long it took, click the query.
   • To revise the query, run it again, or copy it into your notebook for future use, click Open query in editor.

Note: If you run queries after opening this tab, click  Refresh to show the most recent queries.

What's next

• To see examples of how to visualize the data from your BigQuery tables, see Explore and visualize data in BigQuery from within JupyterLab.

• To learn more about writing queries for BigQuery, see Running interactive and batch query jobs.

• Learn how to control access to BigQuery datasets.

• Learn how to access Cloud Storage buckets and files from within JupyterLab.
