使用 Google Cloud 控制台或 Python 適用的 Vertex AI SDK,啟用 Ray 叢集的自動調度資源功能。
Ray on Vertex AI SDK
fromgoogle.cloudimportaiplatformimportvertex_rayfromvertex_rayimportAutoscalingSpecautoscaling_spec=AutoscalingSpec(min_replica_count=1,max_replica_count=3,)head_node_type=Resources(machine_type="n1-standard-16",node_count=1,)worker_node_types=[Resources(machine_type="n1-standard-16",accelerator_type="NVIDIA_TESLA_T4",accelerator_count=1,autoscaling_spec=autoscaling_spec,)]# Create the Ray cluster on Vertex AICLUSTER_RESOURCE_NAME=vertex_ray.create_ray_cluster(head_node_type=head_node_type,worker_node_types=worker_node_types,...)

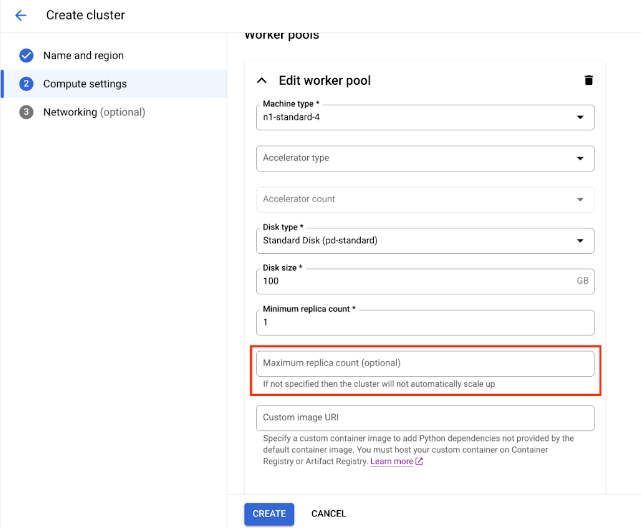

主控台
根據 OSS Ray 最佳做法建議,系統會強制將 Ray 頭部節點的邏輯 CPU 數量設為 0,避免在頭部節點上執行任何工作負載。
您可以擴充的 Ray on Vertex AI 叢集節點總數上限 (M),取決於您設定的初始節點總數 (N)。建立 Ray on Vertex AI 叢集後,您可以將節點總數擴充至 P 到 M 之間 (含兩者),其中 P 是叢集中的集區數量。
叢集的初始節點總數和擴充目標節點數必須位於同一個顏色方塊中。
更新備用資源數量
使用 Google Cloud 控制台或 Python 適用的 Vertex AI SDK,更新工作站集區的副本數量。如果叢集包含多個工作站集區,您可以在單一要求中個別變更每個集區的副本數量。
Ray on Vertex AI SDK
importvertexaiimportvertex_rayvertexai.init()cluster=vertex_ray.get_ray_cluster("CLUSTER_NAME")# Get the resource name.cluster_resource_name=cluster.cluster_resource_name# Create the new worker poolsnew_worker_node_types=[]forworker_node_typeincluster.worker_node_types:worker_node_type.node_count=REPLICA_COUNT# new worker pool sizenew_worker_node_types.append(worker_node_type)# Make update callupdated_cluster_resource_name=vertex_ray.update_ray_cluster(cluster_resource_name=cluster_resource_name,worker_node_types=new_worker_node_types,)
