创建 Private Service Connect 接口时，系统还会创建至少有两个网络接口的虚拟机实例。第一个接口连接到提供方 VPC 网络中的子网。第二个接口用于请求与使用方网络中的网络连接子网的连接。如果接受连接，系统会为此接口分配使用方子网中的内部 IP 地址。
在专用连接的服务提供方一端有一个 VPC 网络，您可以在其中预配服务资源。此影音平台专门为您创建，仅包含您的资源。提供方网络与使用方网络之间的连接是通过 Private Service Connect 接口建立的。

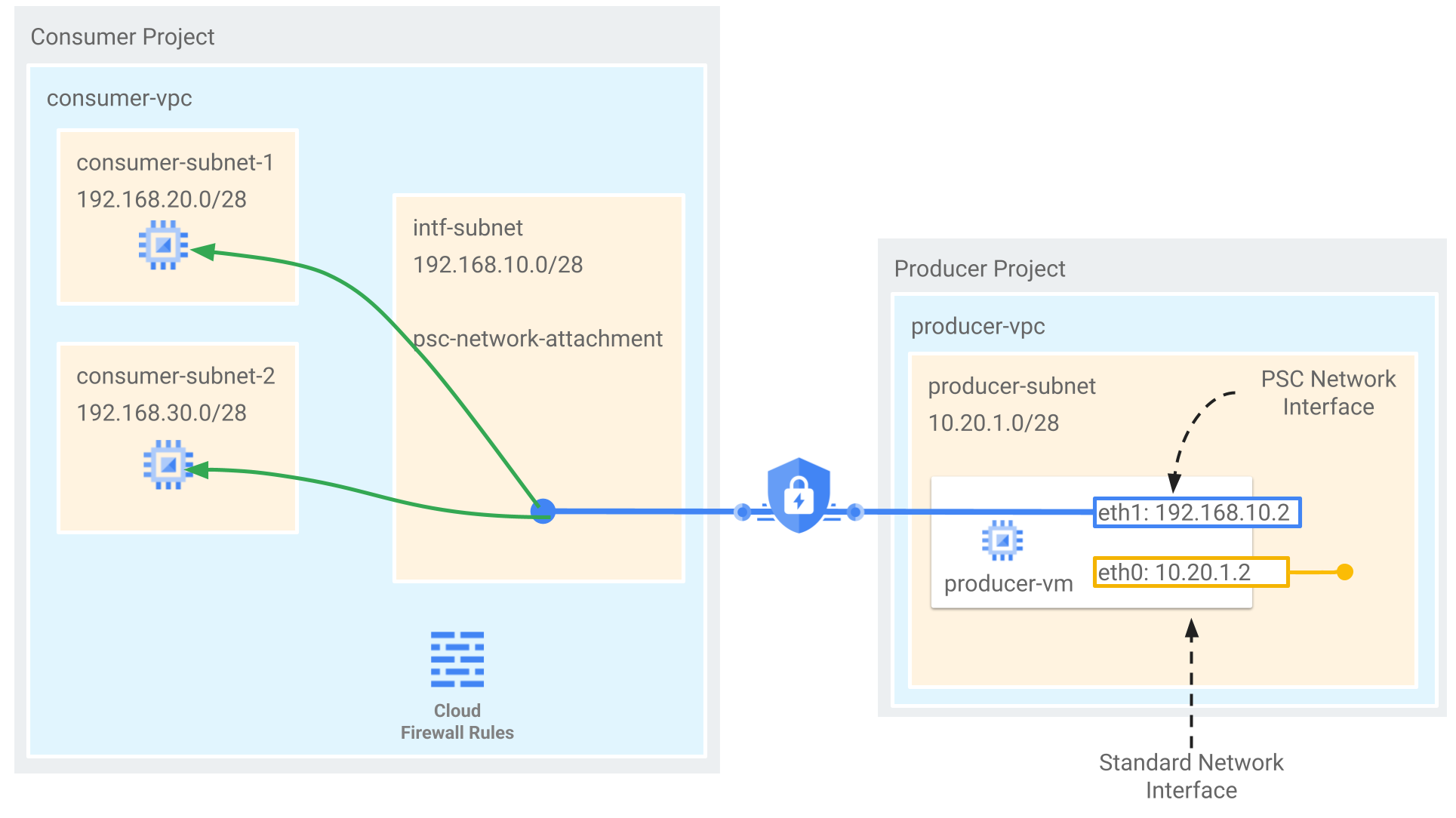

下图展示了一个 Vertex AI Pipelines 架构，其中的使用方网络中启用并管理 Vertex AI API。Vertex AI Pipelines 资源以 Google 管理的基础架构即服务 (IaaS) 的形式部署在服务提供方的 VPC 网络中。由于 Private Service Connect 接口是使用使用方子网中的 IP 地址部署的，因此提供方的网络可以访问使用方学到的路由，这些路由可以跨 VPC 网络、多云环境和本地网络。
Private Service Connect 接口部署选项
如需创建 Private Service Connect 接口，请先在使用方 VPC 中部署与提供方服务位于同一区域的子网。请查看具体服务要求，确保没有您应避免的子网范围。然后，创建一个引用该子网的网络连接。我们建议您将为网络连接分配的子网专用于 Private Service Connect 接口部署。
以下页面介绍了 Vertex AI Private Service Connect 接口的具体用例：
