在 Google Distributed Cloud 网闸隔离配置中分发 Oracle 映像

适用于 Google Distributed Cloud (GDC) 的数据库服务（气隙）可以管理 Oracle 数据库，但 Oracle 软件或许可不会随该服务一起分发。作为用户，您有责任确保自己已获得使用 Oracle 软件的许可。您还必须提供并上传与服务搭配使用的软件。

您可以执行以下任务：

下载 Oracle 数据库二进制文件。
构建 Oracle 数据库容器映像。
将数据库容器映像上传到 Harbor 容器注册表。

您需要拥有有效的 Oracle 数据库许可才能执行此页面中的任务。

检查数据库服务支持的 Oracle 数据库版本

在继续操作之前，请使用以下命令检查数据库服务支持哪些数据库版本。在管理员组织集群上运行以下命令：

kubectl get SoftwareLibrary -o=jsonpath='{.items[0].databaseEngines[?(@.name=="Oracle")]}.databaseVersions'

输出将类似以下内容：

[{
  "edition":"enterprise",
  "isDisabled":false,
  "majorVersion":"19",
  "minorVersion":"10.0.0.0",
  "versionDisplayName":"Oracle 19.10.0.0.0"
}]

此输出表示数据库服务支持从主要版本为 19、次要版本为 10.0.0.0 且版本为 Enterprise 的 Oracle 数据库映像创建新的数据库集群。

下载 Oracle 二进制文件

从 Oracle 的网站下载 Oracle 二进制文件。您需要有效的 Oracle 许可才能执行此操作。您可以从 Oracle 网站下载以下三款软件：

Oracle 数据库二进制文件。
最新的补丁集更新 (PSU)。
最新的可用 OPatch。

例如，Oracle Database 19.3.0.0.0 Enterprise 的二进制文件如下所示：

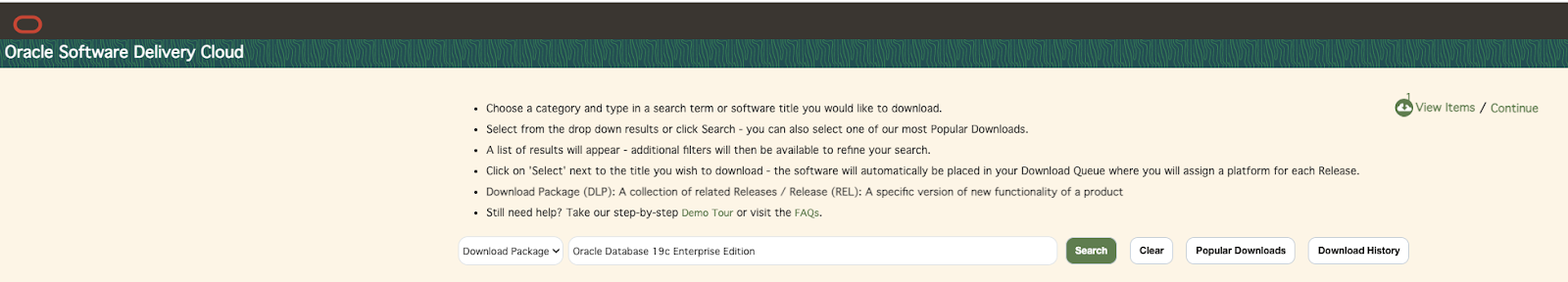

适用于 Linux x86-64 的 Oracle Database 19c (19.3.0.0.0)（企业版）。从 Oracle eDelivery Cloud 下载此二进制文件：https://edelivery.oracle.com/。在下载页面上，从列表中选择下载软件包，在搜索字段中输入 Oracle Database 19 Enterprise Edition，然后点击搜索。

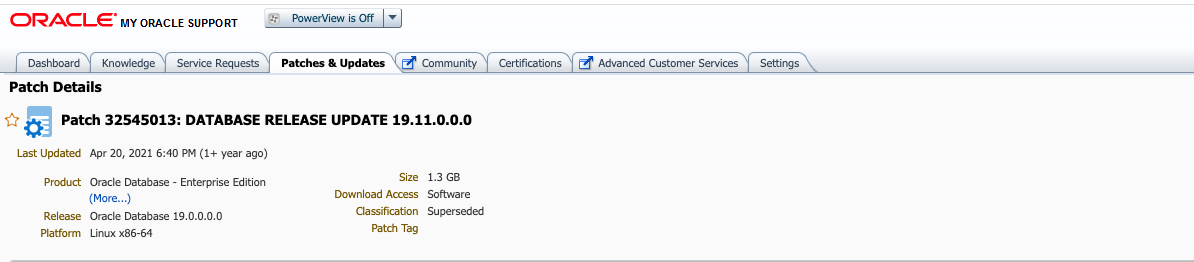

补丁集更新 (PSU)。查看 2021 年 4 月的 PSU：https://support.oracle.com/epmos/faces/PatchDetail?patchId=32545013&languageId=0&platformId=226&patch_name=32545013&releaseId=600000000018520&_adf.ctrl-state=7pbau4y2d_4&_afrLoop=470976018798075。请记下补丁版本（在此示例中为 32545013），您稍后在构建映像时会用到此版本。

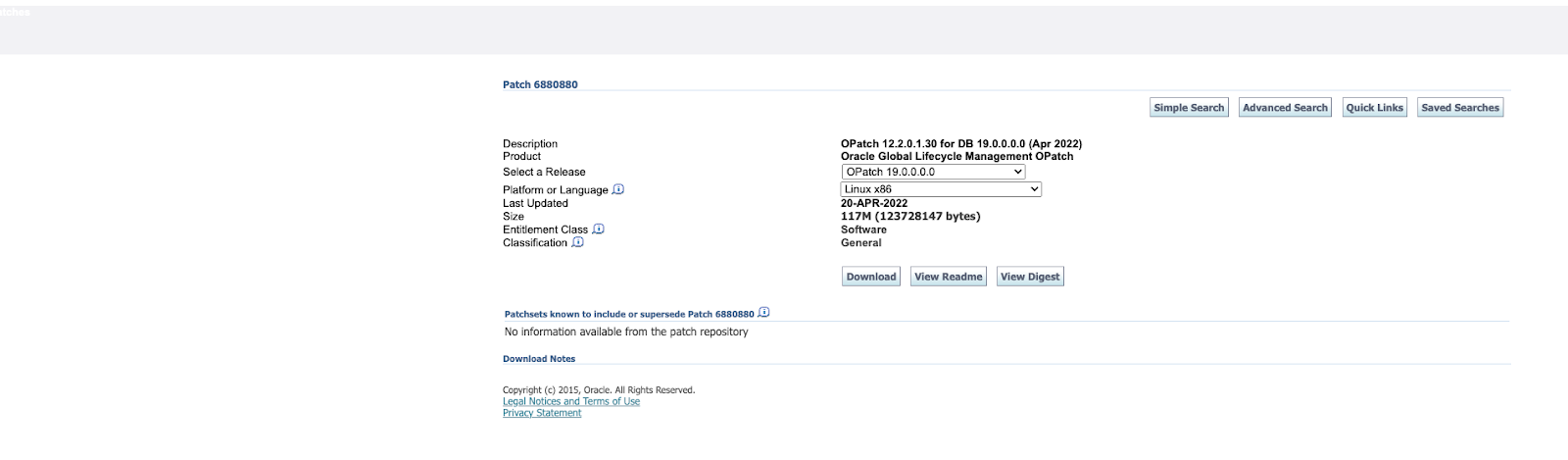

最新的可用 OPatch：https://updates.oracle.com/download/6880880.html。选择以下下载参数：
1. 在选择版本列表中，选择 OPatch 19.0.0.0.0。
2. 在平台或语言列表中，选择 Linux x86_64。

构建 Oracle 数据库容器映像

您必须先安装 Docker，然后才能继续执行以下步骤。您必须在 Linux 系统上执行这些步骤。

创建一个目录，其中包含您在上一步中下载的二进制文件。在您的环境中设置 PATH_TO_IMAGE_BUILD 变量：
```
export PATH_TO_IMAGE_BUILD=PATH
```
将 PATH 替换为包含 Oracle 二进制文件的目录的完整路径。
将本文档附录中的映像构建脚本复制到 PATH_TO_IMAGE_BUILD 目录。

将您之前下载的 Oracle 二进制文件复制到 build 脚本所在的 PATH_TO_IMAGE_BUILD 目录。验证 PATH_TO_IMAGE_BUILD 目录是否包含正确的文件：

ls -1X
Dockerfile
README.md
image_build.sh
install-oracle-18c-xe.sh
install-oracle.sh
ora12-config.sh
ora19-config.sh
oracle-preinstall.sh
cloudbuild.yaml
p32545013_190000_Linux-x86-64.zip
p6880880_200000_Linux-x86-64.zip

运行映像创建脚本：
```
cd $PATH_TO_IMAGE_BUILD
chmod +x ./image_build.sh

./image_build.sh --local_build=true --db_version=19.3 --patch_version=32545013 \
--create_cdb=true --cdb_name=GCLOUD --mem_pct=45 --no_dry_run --project_id=local-build
```
该脚本大约需要 40 分钟才能运行完毕。

该脚本会创建一个包含容器数据库 (CDB) 的种子映像。数据库服务要求您预先提供 Oracle 映像，因为这会大幅缩短预配时间。

运行以下命令，验证您是否已成功创建容器化数据库映像：

docker images

您会看到类似的输出，其中列出了相应映像：

REPOSITORY
gcr.io/local-build/oracle-database-images/oracle-19.3-ee-seeded-GCLOUD

TAG       IMAGE ID       CREATED       SIZE
latest    c18d81c3cf6e   3 hours ago   13.5GB

使用上一步输出中的映像名称和标记，将构建的映像保存到 tar 文件中：
```
docker save <image name>:<tag name> | gzip > gdch_db_oracle_image.tar.gz
```

将映像上传到 Harbor 注册表

在项目中设置存储桶，并将 tar 文件上传到该存储桶。
为基础设施运维人员创建工单，请求将映像上传到 Artifact Registry。请在工单中包含以下信息：
请求为数据库服务上传 Oracle 映像。
- 组织名称：<organization name>
- 文件位置：
  - 项目名称：<name of project owning the bucket>
  - 存储分区名称：<name of the bucket>
  - 路径：<gdch_db_oracle_image.tar.gz>
- 图片位置：
  - 映像名称：gpc-system-container-images/ods-database-images/oracle.db.anthosapis.com/oracle-enterprise
  - 图片标签：majorVersion-minorVersion
注意：映像名称和标记必须遵循该确切模式，才能供 GDC 数据库服务使用。
工单解决后，您就可以使用 Oracle 作为数据库引擎了。

后续步骤

选择数据库引擎类型并创建数据库集群

附录：映像 build 脚本

此部分包含构建 Oracle 数据库容器映像中引用的映像构建脚本。

Dockerfile

# Copyright 2021 Google LLC
#
# Licensed under the Apache License, Version 2.0 (the &quot;License&quot;);
# you may not use this file except in compliance with the License.
# You may obtain a copy of the License at
#
#      http://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an &quot;AS IS&quot; BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.

# Base image can be either RHEL8 UBI or OEL8 slim
# BASE_IMAGE=registry.access.redhat.com/ubi8/ubi
# ARG BASE_IMAGE=oraclelinux:8-slim
# Oracle 8 does not support 12c.
# ARG BASE_IMAGE=oraclelinux:7-slim

FROM docker.io/oraclelinux:7-slim as base

ARG DB_VERSION
ARG ORACLE_HOME
ARG ORACLE_BASE
ARG CREATE_CDB
ARG CDB_NAME
ENV STAGE_DIR=/tmp/stage/
COPY oracle-preinstall.sh $STAGE_DIR
RUN /bin/bash -c $STAGE_DIR/oracle-preinstall.sh

FROM base as installer

ARG DB_VERSION
ARG CREATE_CDB
ARG CDB_NAME
ARG CHARACTER_SET
ARG MEM_PCT
ARG EDITION
ARG PATCH_VERSION
ARG INSTALL_SCRIPT

ADD ./* $STAGE_DIR
RUN /bin/bash -c \
    'if [ "${DB_VERSION}" = "18c" ] && [ "${EDITION}" = "xe" ]; then \
      export INSTALL_SCRIPT=install-oracle-18c-xe.sh; \
      chmod +x $STAGE_DIR$INSTALL_SCRIPT; \
      $STAGE_DIR/$INSTALL_SCRIPT "${CDB_NAME}" "${CHARACTER_SET}" && \
      rm -rf $INSTALL_SCRIPT && \
      rm -rf $STAGE_DIR; \
    else \
      export INSTALL_SCRIPT=install-oracle.sh; \
      chmod +x $STAGE_DIR$INSTALL_SCRIPT; \
      $STAGE_DIR/$INSTALL_SCRIPT "${DB_VERSION}" "${EDITION}" "${CREATE_CDB}" "${CDB_NAME}" "${CHARACTER_SET}" "${MEM_PCT}" "${PATCH_VERSION}" && \
      rm -rf $INSTALL_SCRIPT && \
      rm -rf $STAGE_DIR; \
    fi'

FROM base as database_image

ARG ORACLE_HOME
ARG ORACLE_BASE
ARG CDB_NAME

ENV ORACLE_HOME=$ORACLE_HOME
ENV ORACLE_BASE=$ORACLE_BASE
ENV ORACLE_SID=$CDB_NAME
ENV LD_LIBRARY_PATH=$ORACLE_HOME/lib:/usr/lib

USER oracle
COPY --chown=oracle:dba --from=installer $ORACLE_BASE $ORACLE_BASE
COPY --chown=oracle:dba --from=installer /etc/oratab /etc/oratab
COPY --chown=oracle:dba --from=installer /etc/oraInst.loc /etc/oraInst.loc

USER root
RUN $ORACLE_HOME/root.sh && rm $STAGE_DIR/oracle-preinstall.sh

VOLUME ["/u02", "/u03"]
# TODO: make the port number configurable
EXPOSE 1521

# Define default command to start Oracle Database.
CMD exec /bin/bash

README.md

# Cloud Build for DB Image
This tooling picks up the software from Cloud Storage bucket and then creates a container
image with the RDBMS software preinstalled. At present, it supports Oracle 19c
and Oracle 12.2. The docker container does not contain the database, and needs
to be created separately.

The base container OS is Oracle Enterprise Linux (OEL7-slim).

## How to run

Oracle 19c EE

```shell
$ GCS_PATH=
$ gcloud builds submit --config=cloudbuild.yaml  --substitutions=_INSTALL_PATH=$GCS_PATH,_DB_VERSION=19c
```

Oracle 12.2 EE

```shell
$ GCS_PATH=
$ gcloud builds submit --config=cloudbuild.yaml  --substitutions=_INSTALL_PATH=$GCS_PATH,_DB_VERSION=12.2
```

Oracle 18c XE

```shell
$ GCS_PATH=
$ gcloud builds submit --config=cloudbuild.yaml  --substitutions=_INSTALL_PATH=$GCS_PATH,_DB_VERSION=18c,_CREATE_CDB=true,_CDB_NAME=MYDB
```

## Access

When running the command, mentioned in Oracle 18c XE, you might see failures if the cloudbuilder
service account does not have 'Storage Viewer' access to the Cloud Storage bucket that
stores the software.

```shell
export PROJECT_NUMBER=
export BUCKET_NAME=
gcloud storage buckets add-iam-policy-binding gs://$BUCKET_NAME --member=serviceAccount:$PROJECT_NUMBER@cloudbuild.gserviceaccount.com --role=roles/storage.objectViewer
```

image_build.sh

#!/bin/bash
# Copyright 2021 Google LLC
#
# Licensed under the Apache License, Version 2.0 (the &quot;License&quot;);
# you may not use this file except in compliance with the License.
# You may obtain a copy of the License at
#
#      http://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an &quot;AS IS&quot; BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.


readonly ORACLE_12="12.2"
readonly ORACLE_19="19.3"
readonly ORACLE_18="18c"
readonly DUMMY_VALUE="-1"

DB_VERSION=''
EDITION='ee'
CREATE_CDB=false
CDB_NAME=''
CHARACTER_SET='AL32UTF8'
MEM_PCT=25
IMAGE_NAME_SUFFIX=''
INSTALL_PATH=''
NO_DRY_RUN=false
ORACLE_HOME=''
ORACLE_BASE=''
PROJECT_ID=''
LOCAL_BUILD=false
TAG=''

sanity_check_params() {

  if [[ "${CREATE_CDB}" == true ]]; then
    if [ -z "${CDB_NAME}" ]; then
      CDB_NAME="GCLOUD"
    fi
    db_name_len="${#CDB_NAME}"
    if [[ "${db_name_len}" -le 0 || "${db_name_len}" -gt 8 ]]; then
      echo "CDB_NAME should be less than or equal to 8 characters"
      usage
    fi
  else
    db_name_len="${#CDB_NAME}"
    if [[ "${db_name_len}" -gt 0 ]]; then
      echo "CDB_NAME is set but CREATE_CDB is not"
      usage
    fi
  fi

  if [[ -z "${DB_VERSION}" ]]; then
    echo "Version DB_VERSION parameter is required to create images"
    usage
  fi

  if [[ "${DB_VERSION}" != "${ORACLE_12}" && "${DB_VERSION}" != "${ORACLE_18}" && "${DB_VERSION}" != "${ORACLE_19}" ]]; then
    echo "${DB_VERSION} is not supported, the supported versions are ${ORACLE_12} and ${ORACLE_19}"
    usage
  fi

  if [ -z "${INSTALL_PATH}" ] && [ "${DB_VERSION}" != "${ORACLE_18}" ] && [ "${LOCAL_BUILD}" != true ]; then
    echo "Cloud Storage path containing Oracle installation files is not provided"
    usage
  fi

  if [[ "${MEM_PCT}" -le 0 || "${MEM_PCT}" -gt 100 ]]; then
    echo "MEM_PCT should be between 0 and 100"
    usage
  fi

  if [[ "${DB_VERSION}" == "${ORACLE_18}" ]]; then
    EDITION="xe"
  fi
}

usage() {
  echo "------USAGE------
  This tool allows you to build oracle database container images.
  You have the option of using the Google Cloud build script or performing a local build by setting the --local_build flag to true.
  Sanity checks are conducted on your inputs and safe defaults are used as necessary.

  image_build.sh --db_version [12.2, 19.3 or 18c] --create_cdb [true or false] --cdb_name [CDB_NAME] --install_path [INSTALL_PATH]

  REQUIRED FLAGS
     --install_path
       Cloud Storage path containing Oracle Database EE installation files.
       This flag is only required when using Google Cloud Build.
       You do not need to specify this parameter for Oracle 18c XE.

     --db_version
       Version of the Oracle database.

     --create_cdb
       Specifies whether a CDB should be created. Must be set to 'true' if using Oracle 18c.

  OPTIONAL FLAGS
     --cdb_name
       Name of the CDB to create. Defaults to 'GCLOUD' if unspecified.

     --edition
       Edition of the Oracle database. ee is used if unspecified.
       This flag is not supported for Oracle 18c and will be ignored.

     --patch_version
       Version of the Oracle database PSU.
       If unspecified, 31741641 is used as the default value for 12.2 ,
       32545013 is used as the default value for 19.3 .
       This flag is not supported for Oracle 18c and will be ignored.

     --local_build
       if true, docker is used to build an image locally. If false or unspecified, Google Cloud Build is used to build the image.

     --project_id
       project_id Google Cloud project to use for image build. If unspecified, your default gcloud project will be used.
       For local builds, this flag can be set to 'local-build'.

     --mem_pct
       Percentage of memory.
       This flag is not supported for Oracle 18c and will be ignored.

     --character_set
       Character set for the newly created CDB

     --tag
       Tag that should be applied to the image.
       If a tag is not specified, 'gcr.io/\$GCR_PROJECT_ID/oracle-database-images/oracle-\${DB_VERSION}-\${EDITION}-\${IMAGE_NAME_SUFFIX}:latest' is used.

     --no_dry_run
       Run command in full mode.  Will execute actions.
       "
    exit 1
}

function parse_arguments() {
  opts=$(getopt -o i:v:c:n:p:m:c:h \
    --longoptions install_path:,db_version:,edition:,create_cdb:,cdb_name:,mem_pct:,character_set:,help:,project_id:,patch_version:,local_build:,tag:,no_dry_run,help \
    -n "$(basename "$0")" -- "$@")
  eval set -- "$opts"
  while true; do
    case "$1" in
    -i | --install_path)
      shift
      INSTALL_PATH=$1
      shift
      ;;
    -v | --db_version)
      shift
      DB_VERSION=$1
      shift
      ;;
    -e | --edition)
      shift
      EDITION=$1
      shift
      ;;
    -c | --create_cdb)
      shift
      CREATE_CDB=$1
      shift
      ;;
    -n | --cdb_name)
      shift
      CDB_NAME=$1
      shift
      ;;
    -m | --mem_pct)
      shift
      MEM_PCT=$1
      shift
      ;;
    --character_set)
      shift
      CHARACTER_SET=$1
      shift
      ;;
    --patch_version)
      shift
      PATCH_VERSION=$1
      shift
      ;;
    --project_id)
      shift
      PROJECT_ID=$1
      shift
      ;;
    --local_build)
      shift
      LOCAL_BUILD=$1
      shift
      ;;
    -t | --tag)
      shift
      TAG=$1
      shift
      ;;
    -h | --help)
      usage
      return 1
      ;;
    --no_dry_run)
      NO_DRY_RUN=true
      shift
      ;;
    --)
      shift
      break
      ;;
    *)
      echo Invalid argument "$1"
      usage
      exit 1
      ;;
    esac
  done

}

execute_command() {
  IMAGE_NAME_SUFFIX=$(echo "$CDB_NAME" | tr '[:upper:]' '[:lower:]')
  if [ -z "${PROJECT_ID}" ]; then
    PROJECT_ID=$(gcloud config get-value project 2>/dev/null)
    echo "Project not specified, falling back on current gcloud default:"
    echo "$PROJECT_ID"
  fi

  if [ -z "${PATCH_VERSION}" ]; then
    PATCH_VERSION="${DUMMY_VALUE}"
  fi

  GCR_PROJECT_ID=$(echo "$PROJECT_ID" | tr : /)

  if [[ "${CREATE_CDB}" == true ]]; then
    IMAGE_NAME_SUFFIX="seeded-${IMAGE_NAME_SUFFIX}"
  else
    IMAGE_NAME_SUFFIX="unseeded"
    CDB_NAME=""
  fi

  if [ "${DB_VERSION}" == "${ORACLE_18}" ] && [ "${EDITION}" == "xe" ]; then
    ORACLE_HOME="/opt/oracle/product/18c/dbhomeXE"
    ORACLE_BASE="/opt/oracle"
  else
    ORACLE_HOME="/u01/app/oracle/product/${DB_VERSION}/db"
    ORACLE_BASE="/u01/app/oracle"
  fi

  if [ -z "${TAG}" ]; then
    TAG="gcr.io/${GCR_PROJECT_ID}/oracle-database-images/oracle-${DB_VERSION}-${EDITION}-${IMAGE_NAME_SUFFIX}:latest"
  fi

  if [ "${LOCAL_BUILD}" == true ]; then
    BUILD_CMD=$(echo docker build --no-cache --build-arg=DB_VERSION="${DB_VERSION}" --build-arg=ORACLE_HOME="${ORACLE_HOME}" --build-arg=ORACLE_BASE="${ORACLE_BASE}" --build-arg=CREATE_CDB="${CREATE_CDB}" --build-arg=CDB_NAME="${CDB_NAME}" --build-arg=CHARACTER_SET="${CHARACTER_SET}" --build-arg=MEM_PCT="${MEM_PCT}" --build-arg=EDITION="${EDITION}" --build-arg=PATCH_VERSION="${PATCH_VERSION}" --tag="$TAG" .)
  else
    if [ "${DB_VERSION}" == "${ORACLE_18}" ]; then
      BUILD_CMD=$(echo gcloud builds submit --project=${PROJECT_ID} --config=cloudbuild-18c-xe.yaml --substitutions=_ORACLE_HOME="${ORACLE_HOME}",_ORACLE_BASE="${ORACLE_BASE}",_CDB_NAME="${CDB_NAME}",_CHARACTER_SET="${CHARACTER_SET}",_TAG="${TAG}")
    else
      BUILD_CMD=$(echo gcloud builds submit --project=${PROJECT_ID} --config=cloudbuild.yaml --substitutions=_INSTALL_PATH="${INSTALL_PATH}",_DB_VERSION="${DB_VERSION}",_EDITION="${EDITION}",_ORACLE_HOME="${ORACLE_HOME}",_ORACLE_BASE="${ORACLE_BASE}",_CREATE_CDB="${CREATE_CDB}",_CDB_NAME="${CDB_NAME}",_CHARACTER_SET="${CHARACTER_SET}",_MEM_PCT="${MEM_PCT}",_TAG="${TAG}",_PATCH_VERSION="${PATCH_VERSION}")
    fi
  fi

  if [[ "$NO_DRY_RUN" == true ]]; then
    echo "Executing the following command:"
    echo "$BUILD_CMD"
    ${BUILD_CMD}
  else
    echo "Dry run mode: the command would have executed as follows:"
    echo "$BUILD_CMD"
  fi
}

main() {
  parse_arguments "$@"
  sanity_check_params
  date
  time execute_command
}

main "$@"

install-oracle-18c-xe.sh

#!/bin/bash
# Copyright 2021 Google LLC
#
# Licensed under the Apache License, Version 2.0 (the &quot;License&quot;);
# you may not use this file except in compliance with the License.
# You may obtain a copy of the License at
#
#      http://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an &quot;AS IS&quot; BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.

# shellcheck disable=2153

set -x
set -e
set -u
export PATH="/bin:/sbin:/usr/bin:/usr/sbin:/usr/local/bin:/usr/local/sbin"
readonly CDB_NAME=${1:-GCLOUD}
readonly CHARACTER_SET=${2:-AL32UTF8}
readonly USER="oracle"
readonly GROUP="dba"
readonly OHOME="/opt/oracle/product/18c/dbhomeXE"
readonly DB_VERSION="18c"

set_environment() {
  export ORACLE_DOCKER_INSTALL=true
  source "/home/oracle/${CDB_NAME}.env"
}


install_oracle() {
  yum -y localinstall https://download.oracle.com/otn-pub/otn_software/db-express/oracle-database-xe-18c-1.0-1.x86_64.rpm
}

write_oracle_config() {
  echo "\
CHARSET=${CHARACTER_SET}
ORACLE_SID=${CDB_NAME}
SKIP_VALIDATIONS=FALSE" > /etc/sysconfig/oracle-xe-18c.conf
}

create_cdb() {
  local syspass="$(openssl rand -base64 16 | tr -dc a-zA-Z0-9)"
  (echo "${syspass}"; echo "${syspass}";) | /etc/init.d/oracle-xe-18c configure
}

set_file_ownership() {
  chown -R "${USER}:${GROUP}" "${OHOME}"
  chown -R "${USER}:${GROUP}" "/home/${USER}"
  chown "${USER}:${GROUP}" /etc/oraInst.loc
  chown -R "${USER}:${GROUP}" /opt
}

shutdown_oracle() {
  run_sql "shutdown immediate;"
  echo "Oracle Database Shutdown"
}

delete_xe_pdb() {
  run_sql "ALTER PLUGGABLE DATABASE XEPDB1 CLOSE;"
  run_sql "DROP PLUGGABLE DATABASE XEPDB1 INCLUDING DATAFILES;"
}

run_sql() {
  echo "${1}" | sudo -E -u oracle "${ORACLE_HOME}/bin/sqlplus" -S / as sysdba
}

main() {
  echo "Running Oracle 18c XE install script..."
  set_environment
  install_oracle
  write_oracle_config
  create_cdb
  set_file_ownership
  delete_xe_pdb
  shutdown_oracle
  echo "Oracle 18c XE installation succeeded!"
}

main

install-oracle.sh

#!/bin/bash
# Copyright 2021 Google LLC
#
# Licensed under the Apache License, Version 2.0 (the &quot;License&quot;);
# you may not use this file except in compliance with the License.
# You may obtain a copy of the License at
#
#      http://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an &quot;AS IS&quot; BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.

# shellcheck disable=2153

set -x
set -e
set -u
export PATH="/bin:/sbin:/usr/bin:/usr/sbin:/usr/local/bin:/usr/local/sbin"
readonly DB_VERSION="$1"
readonly EDITION="$2"
readonly CREATE_CDB="$3"
readonly CDB_NAME="$4"
readonly CHARACTER_SET=${5:-AL32UTF8}
readonly MEM_PCT=${6:-25}
PATCH_VERSION="$7"
readonly INIT_PARAMS="log_archive_dest_1='LOCATION=USE_DB_RECOVERY_FILE_DEST',enable_pluggable_database=TRUE,common_user_prefix='gcsql$'"
readonly USER='oracle'
readonly GROUP='dba'
readonly OCM_FILE="ocm.rsp"
readonly OHOME="/u01/app/oracle/product/${DB_VERSION}/db"
readonly ORACLE_12="12.2"
readonly ORACLE_19="19.3"

setup_patching() {
  if [[ "${PATCH_VERSION}" == "-1" ]]; then
    if [[ "${DB_VERSION}" == "${ORACLE_12}" ]]; then
      PATCH_VERSION="31741641"
    elif [[ "${DB_VERSION}" == "${ORACLE_19}" ]]; then
      PATCH_VERSION="32545013"
    fi
  fi
  local patch_suffix
  if [[ "${DB_VERSION}" == "${ORACLE_12}" ]]; then
    patch_suffix="_122010_Linux-x86-64.zip"
  elif [[ "${DB_VERSION}" == "${ORACLE_19}" ]]; then
    patch_suffix="_190000_Linux-x86-64.zip"
  fi
  PATCH_ZIP="p${PATCH_VERSION}${patch_suffix}"

  if [[ ! -f "${STAGE_DIR}"/"${PATCH_ZIP}" ]]; then
    echo "could not find the PSU zip in ${STAGE_DIR}/${PATCH_ZIP}, possible fixes:
if '--local_build' is enabled, try stage ${PATCH_ZIP} to the same directory with image_build.sh.
if '--local_build' is disabled, try stage ${PATCH_ZIP} to the gcs bucket.
Update '--patch_version' when running image_build.sh, the script assumes the file name is 'p<var>patch_version</var>${patch_suffix}'."
    exit 1
  fi
}

setup_installers() {
  if [[ "${DB_VERSION}" == "${ORACLE_12}" ]]; then
    local -g INSTALL_CONFIG="ora12-config.sh"
    # shellcheck source=ora12-config.sh
    source "${STAGE_DIR}"/"${INSTALL_CONFIG}"
    local -g CHECKSUM_FILE="checksum.sha256.12"
  elif [[ "${DB_VERSION}" == "${ORACLE_19}" ]]; then
    local -g INSTALL_CONFIG="ora19-config.sh"
    # shellcheck source=ora19-config.sh
    source "${STAGE_DIR}"/"${INSTALL_CONFIG}"
    local -g CHECKSUM_FILE="checksum.sha256.19"
  else
    echo "DB version ${DB_VERSION} not supported"
    exit 1
  fi
  _fallback_install_file
  _fallback_opatch_file
}

_fallback_install_file() {
  if [[ -f "${STAGE_DIR}"/"${INSTALL_ZIP}" ]]; then
    echo "found DB installer zip ${STAGE_DIR}/${INSTALL_ZIP}, install will use ${INSTALL_ZIP}"
    return
  fi
  # installer zip can be downloaded either from OTN or edelivery
  # default file name for edelivery: V839960-01.zip
  # default file name for OTN: linuxx64_12201_database.zip
  local candidates=("linuxx64_12201_database.zip")
  if [[ "${DB_VERSION}" == "${ORACLE_19}" ]]; then
    candidates=("LINUX.X64_193000_db_home.zip")
  fi
  echo "could not find the specified DB installer zip. Will try falling back to one of these possible names:" "${candidates[@]}"

  for f in "${candidates[@]}"; do
    if [[ -f "${STAGE_DIR}"/"${f}" ]]; then
      echo "found DB installer zip ${STAGE_DIR}/${f},install will use ${f}"
      INSTALL_ZIP="${f}"
      break
    else
      echo "could not find fallback DB installer zip ${STAGE_DIR}/${f}, try specifying an installer from one of these possible names:" "${candidates[@]}"
    fi
  done
}

_fallback_opatch_file() {
  if [[ -f "${STAGE_DIR}"/"${OPATCH_ZIP}" ]]; then
    echo "found opatch zip ${STAGE_DIR}/${OPATCH_ZIP}, install will use ${OPATCH_ZIP}"
    return
  fi
  # OPATCH_ZIP can be p6880880_200000_Linux-x86-64.zip, p6880880_190000_Linux-x86-64.zip
  # p6880880_180000_Linux-x86-64.zip, p6880880_122010_Linux-x86-64.zip
  # for 04302020 OPATCH, their sha256sum are identical "B08320195434559D9662729C5E02ABC8436A5C602B4355CC33A673F24D9D174"
  local candidates=(
    "p6880880_200000_Linux-x86-64.zip"
    "p6880880_190000_Linux-x86-64.zip"
    "p6880880_180000_Linux-x86-64.zip"
    "p6880880_122010_Linux-x86-64.zip"
  )
  echo "cannot find opatch zip from config, try one of possible names" "${candidates[@]}"

  for f in "${candidates[@]}"; do
    if [[ -f "${STAGE_DIR}"/"${f}" ]]; then
      echo "found opatch zip ${STAGE_DIR}/${f},install will use ${f}"
      OPATCH_ZIP="${f}"
      break
    else
      echo "cannot find opatch zip ${STAGE_DIR}/${f}, try fallback to other possible names"
    fi
  done
}

setup_ocm() {
  if [[ "${DB_VERSION}" == "${ORACLE_19}" ]]; then
    echo "oracle.install.responseFileVersion=/oracle/install/rspfmt_dbinstall_response_schema_v19.0.0" >"${STAGE_DIR}/${OCM_FILE}"
  elif [[ "${DB_VERSION}" == "${ORACLE_12}" ]]; then
    echo "oracle.install.responseFileVersion=/oracle/install/rspfmt_dbinstall_response_schema_v12.2.0" >"${STAGE_DIR}/${OCM_FILE}"
  else
    echo "Unsupported version ${DB_VERSION}"
    exit 1
  fi
  echo "oracle.install.option=INSTALL_DB_SWONLY" >>"${STAGE_DIR}/${OCM_FILE}"
  echo "UNIX_GROUP_NAME=dba" >>"${STAGE_DIR}/${OCM_FILE}"
  echo "INVENTORY_LOCATION=/u01/app/oracle/oraInventory" >>"${STAGE_DIR}/${OCM_FILE}"
  echo "ORACLE_HOME=${OHOME}" >>"${STAGE_DIR}/${OCM_FILE}"
  echo "ORACLE_BASE=/u01/app/oracle" >>"${STAGE_DIR}/${OCM_FILE}"
  echo "oracle.install.db.InstallEdition=${EDITION}" >>"${STAGE_DIR}/${OCM_FILE}"
  echo "oracle.install.db.OSDBA_GROUP=dba" >>"${STAGE_DIR}/${OCM_FILE}"
  echo "oracle.install.db.OSOPER_GROUP=dba" >>"${STAGE_DIR}/${OCM_FILE}"
  echo "oracle.install.db.OSBACKUPDBA_GROUP=dba" >>"${STAGE_DIR}/${OCM_FILE}"
  echo "oracle.install.db.OSDGDBA_GROUP=dba" >>"${STAGE_DIR}/${OCM_FILE}"
  echo "oracle.install.db.OSKMDBA_GROUP=dba" >>"${STAGE_DIR}/${OCM_FILE}"
  echo "oracle.install.db.OSRACDBA_GROUP=dba" >>"${STAGE_DIR}/${OCM_FILE}"
  echo "SECURITY_UPDATES_VIA_MYORACLESUPPORT=false" >>"${STAGE_DIR}/${OCM_FILE}"
  echo "DECLINE_SECURITY_UPDATES=true" >>"${STAGE_DIR}/${OCM_FILE}"
}

setup_directories() {
  mkdir -p "${STAGE_DIR}/patches"
  chown "${USER}:${GROUP}" "${STAGE_DIR}/patches"
}

patch_oracle() {
  cd "${STAGE_DIR}/patches/${PATCH_VERSION}/${PATCH_VERSION}"
  sudo -E -u oracle "${OHOME}/OPatch/opatch" \
    apply -silent -ocmrf "${STAGE_DIR}/${OCM_FILE}"
}

checksum_files() {
  cd "${STAGE_DIR}"
  cat >"${CHECKSUM_FILE}" <<EOF
${INSTALL_ZIP_SHA256} ${INSTALL_ZIP}
EOF
  cat "${CHECKSUM_FILE}"
  if ! sha256sum -c "${STAGE_DIR}/${CHECKSUM_FILE}" --quiet; then
    echo "Checksum failure of installables."
    echo "try double check ${INSTALL_CONFIG} DB install/OPatch/PSUs filename and sha256, ensure they are matched with Cloud Storage bucket staged zip files"
    exit 1
  fi
}

install_oracle() {
  if [[ "${DB_VERSION}" == "${ORACLE_12}" ]]; then
    install_oracle12
  elif [[ "${DB_VERSION}" == "${ORACLE_19}" ]]; then
    install_oracle19
  fi
}

install_oracle19() {
  printf "inventory_loc=/u01/app/oracle/oraInventory\ninst_group=dba\n" \
    >>/etc/oraInst.loc
  chown "${USER}:${GROUP}" /etc/oraInst.loc
  cd "${OHOME}"
  export CV_ASSUME_DISTID=OL7
  sudo -E -u oracle "${OHOME}/runInstaller" \
    -silent \
    -waitforcompletion \
    -ignorePrereqFailure \
    INVENTORY_LOCATION=/etc/oraInst.loc \
    UNIX_GROUP_NAME=dba \
    ORACLE_HOME="${OHOME}" \
    ORACLE_BASE=/u01/app/oracle \
    oracle.install.db.InstallEdition="${EDITION}" \
    oracle.install.db.OSDBA_GROUP="${GROUP}" \
    oracle.install.db.OSOPER_GROUP="${GROUP}" \
    oracle.install.db.OSBACKUPDBA_GROUP="${GROUP}" \
    oracle.install.db.OSDGDBA_GROUP="${GROUP}" \
    oracle.install.db.OSKMDBA_GROUP="${GROUP}" \
    oracle.install.db.OSRACDBA_GROUP="${GROUP}" \
    oracle.install.option=INSTALL_DB_SWONLY ||
    (($? == 6)) # Check for successful install with warning suppressed.

  enable_unified_auditing

  "${OHOME}/root.sh"
}

install_oracle12() {
  printf "inventory_loc=/u01/app/oracle/oraInventory\ninst_group=dba\n" \
    >>/etc/oraInst.loc
  chown "${USER}:${GROUP}" /etc/oraInst.loc
  sudo -u oracle "${STAGE_DIR}/database/runInstaller" \
    -silent \
    -force \
    -invptrloc /etc/oraInst.loc \
    -waitforcompletion \
    -ignoresysprereqs \
    -ignoreprereq \
    UNIX_GROUP_NAME=dba \
    ORACLE_HOME="${OHOME}" \
    ORACLE_BASE=/u01/app/oracle \
    oracle.install.db.InstallEdition="${EDITION}" \
    oracle.install.db.OSDBA_GROUP="${GROUP}" \
    oracle.install.db.OSOPER_GROUP="${GROUP}" \
    oracle.install.db.OSBACKUPDBA_GROUP="${GROUP}" \
    oracle.install.db.OSDGDBA_GROUP="${GROUP}" \
    oracle.install.db.OSKMDBA_GROUP="${GROUP}" \
    oracle.install.db.OSRACDBA_GROUP="${GROUP}" \
    oracle.install.option=INSTALL_DB_SWONLY ||
    (($? == 6)) # Check for successful install with warning suppressed.

  enable_unified_auditing

  "${OHOME}/root.sh"

}

enable_unified_auditing() {
  cd "${OHOME}/rdbms/lib"
  sudo -u oracle \
    make -f ins_rdbms.mk uniaud_on ioracle ORACLE_HOME="${OHOME}"
}

create_cdb() {
  local syspass="$(openssl rand -base64 16 | tr -dc a-zA-Z0-9)"
  sudo -u oracle "${OHOME}/bin/dbca" \
    -silent \
    -createDatabase \
    -templateName General_Purpose.dbc \
    -gdbname "${CDB_NAME}" \
    -createAsContainerDatabase true \
    -sid "${CDB_NAME}" \
    -responseFile NO_VALUE \
    -characterSet "${CHARACTER_SET}" \
    -memoryPercentage "${MEM_PCT}" \
    -emConfiguration NONE \
    -datafileDestination "/u01/app/oracle/oradata" \
    -storageType FS \
    -initParams "${INIT_PARAMS}" \
    -databaseType MULTIPURPOSE \
    -recoveryAreaDestination /u01/app/oracle/fast_recovery_area \
    -sysPassword "${syspass}" \
    -systemPassword "${syspass}"
}

set_environment() {
  source "/home/oracle/${CDB_NAME}.env"
}

cleanup_post_success() {
  # ORDS
  rm -rf "${OHOME}/ords" &&
    # SQL Developer
    rm -rf "${OHOME}/sqldeveloper" &&
    # UCP connection pool
    rm -rf "${OHOME}/ucp" &&
    # All installer files
    rm -rf "${OHOME}/lib/*.zip" &&
    # OUI backup
    rm -rf "${OHOME}/inventory/backup/*" &&
    # Network tools help
    rm -rf "${OHOME}/network/tools/help" &&
    # Database upgrade assistant
    rm -rf "${OHOME}/assistants/dbua" &&
    # Database migration assistant
    rm -rf "${OHOME}/dmu" &&
    # Remove pilot workflow installer
    rm -rf "${OHOME}/install/pilot" &&
    # Support tools
    rm -rf "${OHOME}/suptools" &&
    # Temp location
    rm -rf /tmp/* &&
    # Install files
    rm -rf "${STAGE_DIR}"
}

unzip_binaries() {
  if [[ "${DB_VERSION}" == "${ORACLE_12}" ]]; then
    chown -R "${USER}:${GROUP}" "${STAGE_DIR}"
    sudo -u oracle unzip "${STAGE_DIR}/${INSTALL_ZIP}" -d "${STAGE_DIR}"
  elif [[ "${DB_VERSION}" == "${ORACLE_19}" ]]; then
    sudo -u oracle unzip "${STAGE_DIR}/${INSTALL_ZIP}" -d "${OHOME}"
  fi
  sudo -u oracle unzip "${STAGE_DIR}/${PATCH_ZIP}" -d "${STAGE_DIR}/patches/${PATCH_VERSION}"
  rm "${STAGE_DIR}/${INSTALL_ZIP}"
  rm "${STAGE_DIR}/${PATCH_ZIP}"
}

shutdown_oracle() {
  run_sql "shutdown immediate;"
  echo "Oracle Database Shutdown"
}

run_sql() {
  echo "${1}" | sudo -E -u oracle "${OHOME}/bin/sqlplus" -S / as sysdba
}

patch_log4j(){
  # Delete Jndi classes from log4j jars as part of CVE-2021-44228
  # While waiting for oracle patches.
  for f in $(find "${OHOME}" -type f -name "log4j-core*.jar"); do
    sudo -u oracle zip -q -d "$f" org/apache/logging/log4j/core/lookup/JndiLookup.class || true
  done
}

main() {
  setup_patching
  setup_installers
  checksum_files
  setup_directories
  setup_ocm
  if [[ "${CREATE_CDB}" == true ]]; then
    set_environment
  fi
  chown -R "${USER}:${GROUP}" /u01
  unzip_binaries
  install_oracle
  rm -rf "${OHOME}/OPatch"
  sudo -u oracle unzip "${STAGE_DIR}/${OPATCH_ZIP}" -d "${OHOME}"
  patch_oracle
  if [[ "${CREATE_CDB}" == true ]]; then
    create_cdb
    shutdown_oracle
  fi
  chown "${USER}:${GROUP}" /etc/oratab
  cleanup_post_success
  patch_log4j
  echo "Oracle installation success"
}
main

ora12-config.sh

#!/bin/bash
# Copyright 2021 Google LLC
#
# Licensed under the Apache License, Version 2.0 (the &quot;License&quot;);
# you may not use this file except in compliance with the License.
# You may obtain a copy of the License at
#
#      http://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an &quot;AS IS&quot; BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.

INSTALL_ZIP="V839960-01.zip"
INSTALL_ZIP_SHA256="96ed97d21f15c1ac0cce3749da6c3dac7059bb60672d76b008103fc754d22dde"
OPATCH_ZIP="p6880880_122010_Linux-x86-64.zip"
OPATCH_ZIP_SHA256="b08320195434559d9662729c5e02abc8436a5c602b4355cc33a673f24d9d1740"

ora19-config.sh

#!/bin/bash
# Copyright 2021 Google LLC
#
# Licensed under the Apache License, Version 2.0 (the &quot;License&quot;);
# you may not use this file except in compliance with the License.
# You may obtain a copy of the License at
#
#      http://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an &quot;AS IS&quot; BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.

INSTALL_ZIP="V982063-01.zip"
INSTALL_ZIP_SHA256="ba8329c757133da313ed3b6d7f86c5ac42cd9970a28bf2e6233f3235233aa8d8"
OPATCH_ZIP="p6880880_190000_Linux-x86-64.zip"
OPATCH_ZIP_SHA256="b08320195434559d9662729c5e02abc8436a5c602b4355cc33a673f24d9d1740"

oracle-preinstall.sh

#!/bin/bash
# Copyright 2021 Google LLC
#
# Licensed under the Apache License, Version 2.0 (the "License");
# you may not use this file except in compliance with the License.
# You may obtain a copy of the License at
#
#      http://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.

set -x
set -e
set -u
readonly ORACLE_12="12.2"
readonly ORACLE_18="18c"
readonly ORACLE_19="19.3"
readonly USER='oracle'
readonly GROUP='dba'

install_packages() {
  yum install -y shadow-utils openssl sudo zip
  yum install -y nmap-ncat.x86_64
  yum install -y strace.x86_64
  yum install -y net-tools.x86_64
  yum install -y lsof.x86_64
  yum install -y "${PREINSTALL_RPM}"
  echo "#%PAM-1.0
auth       include      system-auth
account    include      system-auth
password   include      system-auth
" >/etc/pam.d/sudo
  if [[ "${DB_VERSION}" == "${ORACLE_18}" ]]; then
        echo "#%PAM-1.0
auth        sufficient  pam_rootok.so
auth        substack    system-auth
auth        include     postlogin
account     sufficient  pam_succeed_if.so uid = 0 use_uid quiet
account     include     system-auth
password    include     system-auth
session     include     postlogin
session     optional    pam_xauth.so
" >/etc/pam.d/su
  fi
}

# Update cryptographic modules from ol7_u8_security_validation repository
# https://docs.oracle.com/en/operating-systems/oracle-linux/7/security/security-FIPS1402ComplianceinOracleLinux7.html#ol7-fips
update_packages_fips() {
  yum-config-manager --enable ol7_u8_security_validation ol7_latest

  # To ensure that packages are updated from the security repo, disable other repos and only
  # enable the security repo.
  yum -y --disablerepo="*" --enablerepo="ol7_u8_security_validation" update \
    openssl-libs\
    openssh-clients\
    openssh-server\
    libgcrypt\
    nss-softokn\
    libreswan\
    gnutls\
    kernel-uek
}

pick_pre_installer() {
  if [[ "${DB_VERSION}" == "${ORACLE_12}" ]]; then
    local -g PREINSTALL_RPM="oracle-database-server-12cR2-preinstall.x86_64"
  elif [[ "${DB_VERSION}" == "${ORACLE_18}" ]]; then
    local -g PREINSTALL_RPM="oracle-database-preinstall-18c.x86_64"
  elif [[ "${DB_VERSION}" == "${ORACLE_19}" ]]; then
    local -g PREINSTALL_RPM="oracle-database-preinstall-19c.x86_64"
  else
    echo "DB version ${DB_VERSION} not supported"
    exit 1
  fi
}

setup_directories() {
  mkdir -p "${ORACLE_HOME}"
  #use oinstall instead of dba to allow the script to work for 18c XE.
  #This is harmless because we always revert ownership of $ORACLE_BASE to oracle:dba in the Dockerfile.
  chown -R "${USER}:oinstall" "${ORACLE_BASE}"
  chown -R "${USER}:${GROUP}" "/home/${USER}"
}

create_env_file() {
  echo "export ORACLE_HOME=${ORACLE_HOME}" >>"/home/oracle/${CDB_NAME}.env"
  echo "export ORACLE_BASE=${ORACLE_BASE}" >>"/home/oracle/${CDB_NAME}.env"
  echo "export ORACLE_SID=${CDB_NAME}" >>"/home/oracle/${CDB_NAME}.env"
  echo "export PATH=${ORACLE_HOME}/bin:${ORACLE_HOME}/OPatch:/usr/local/bin:/usr/local/sbin:/sbin:/bin:/usr/sbin:/usr/bin:/root/bin" >>"/home/oracle/${CDB_NAME}.env"
  echo "export LD_LIBRARY_PATH=${ORACLE_HOME}/lib:/usr/lib" >>"/home/oracle/${CDB_NAME}.env"
  chown "${USER}:${GROUP}" "/home/oracle/${CDB_NAME}.env"
}

pick_pre_installer
install_packages
update_packages_fips
setup_directories
if [[ "${CREATE_CDB}" == true ]]; then
  create_env_file
fi

cloudbuild.yaml

# Copyright 2021 Google LLC
#
# Licensed under the Apache License, Version 2.0 (the &quot;License&quot;);
# you may not use this file except in compliance with the License.
# You may obtain a copy of the License at
#
#      http://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an &quot;AS IS&quot; BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.

substitutions:
  "_DB_VERSION": "12.2"
  "_EDITION": "ee"
options:
  diskSizeGb: 1000
  machineType: 'E2_HIGHCPU_8'
timeout: 7200s
steps:
- name: 'gcr.io/cloud-builders/gsutil'
  id: 'install_zip'
  args: ['-m', 'cp', "-r", '${_INSTALL_PATH}/*', '.']

- name: 'gcr.io/cloud-builders/docker'
  waitFor:
  - 'install_zip'
  args:
  - 'build'
  - '--no-cache'
  - '--build-arg=DB_VERSION=$_DB_VERSION'
  - '--build-arg=ORACLE_HOME=$_ORACLE_HOME'
  - '--build-arg=ORACLE_BASE=$_ORACLE_BASE'
  - '--build-arg=CREATE_CDB=$_CREATE_CDB'
  - '--build-arg=CDB_NAME=$_CDB_NAME'
  - '--build-arg=CHARACTER_SET=$_CHARACTER_SET'
  - '--build-arg=MEM_PCT=$_MEM_PCT'
  - '--build-arg=EDITION=$_EDITION'
  - '--build-arg=PATCH_VERSION=$_PATCH_VERSION'
  - '--tag=$_TAG'
  - '--file=Dockerfile'
  - '.'

images:
- '$_TAG'
