Corelight 센서 로그 수집

다음에서 지원:

이 문서에서는 Corelight 센서 및 Google Security Operations 전달자를 구성하여 Corelight 센서 로그를 수집하는 방법을 설명합니다. 이 문서에는 Corelight 센서에서 생성되는 지원되는 로그 유형과 지원되는 Corelight 버전도 나와 있습니다.

자세한 내용은 Google Security Operations에 데이터 수집을 참조하세요.

시작하기 전에

  • Corelight 센서의 버전을 확인합니다. Corelight Google SecOps 파서는 버전 27.12 이하용으로 설계되었습니다. 이후 버전의 Corelight 센서에는 파서가 인식하지 못하는 추가 로그가 있을 수 있으며, 이러한 로그는 필드 파싱이 제한되거나 받지 못할 수 있습니다. 하지만 로그 콘텐츠는 Google SecOps에서 원시 로그 형식으로 계속 사용할 수 있습니다.
  • 배포 아키텍처의 모든 시스템이 UTC 시간대로 구성되었는지 확인합니다.
  • Corelight 문서의 사용자 인증 정보가 있는지 확인합니다.

배포 및 로그 수집 방법

다음 배포 아키텍처 다이어그램은 두 가지 다른 수집 아키텍처를 사용하여 Google Security Operations로 로그를 전송하도록 Corelight 센서를 설정하는 방법을 보여줍니다. 각 고객 배포는 이 표현과 다를 수 있고 더 복잡할 수 있습니다.

수집 라벨은 원시 로그 데이터를 구조화된 UDM 형식으로 정규화하는 파서를 식별합니다. 이 문서의 정보는 CORELIGHT 수집 라벨이 있는 파서에 적용됩니다.

Corelight 내보내기 도구를 사용하여 Google SecOps에 로그 수집

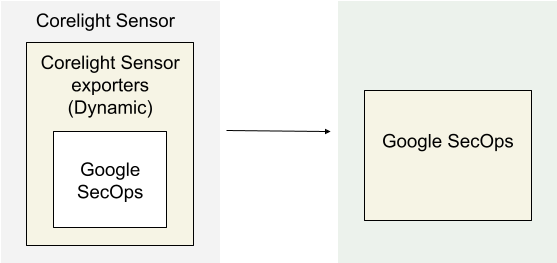

배포 아키텍처

이 아키텍처 다이어그램은 다음 구성요소를 보여줍니다.

  • Corelight 센서: Corelight 센서를 실행하는 시스템입니다.

  • Corelight 센서 내보내기: Corelight 센서 내보내기는 센서에서 로그 데이터를 수집하여 Google Security Operations로 전달합니다.

  • Google Security Operations: Google Security Operations는 Corelight 센서의 로그를 보관하고 분석합니다.

Google SecOps용 Corelight 로그 내보내기 도구 구성

  1. 관리자로 Corelight Sensor에 로그인합니다.

  2. 내보내기 도구 (동적) 탭을 선택하고 Google SecOps를 선택합니다.

  3. 다음 입력 매개변수를 구성합니다.

    • 내보내기 도구 이름: 내보내기 도구의 이름입니다.
    • Google SecOps 고객 ID: Google SecOps의 고객 ID입니다.
    • Google SecOps 네임스페이스: 데이터를 정리하고 관리하기 위해 Google SecOps와 연결된 고유한 네임스페이스입니다.
    • Google SecOps 라벨: 라벨을 나타내는 키-값 쌍의 집합입니다.
    • 리전: Google SecOps가 배포된 지리적 리전입니다.
    • 사용자 인증 정보: Google SecOps에 안전하게 연결하고 데이터를 내보내는 데 필요한 인증 세부정보입니다.
    • 프록시 URL: 내보내기 도구와 Google SecOps 간에 트래픽을 라우팅하는 데 사용되는 프록시 서버의 URL입니다.
    • 로그 유형 필터: 특정 로그 유형을 포함할지 제외할지 지정합니다.
    • Zeek 로그: 적용 가능한 옵션을 모두 선택하여 포함하거나 제외할 로그 유형을 선택합니다.

  4. 완료를 클릭합니다.

포워더를 사용하여 Google SecOps에 로그 수집

배포 아키텍처

이 아키텍처 다이어그램은 다음 구성요소를 보여줍니다.

  • Corelight 센서: Corelight 센서를 실행하는 시스템입니다.

  • Corelight 센서 내보내기: Corelight 센서 내보내기는 센서에서 로그 데이터를 수집하여 Google Security Operations 전달자에게 전달합니다.

  • Google Security Operations 전달자: Google Security Operations 전달자는 syslog를 지원하는 고객의 네트워크에 배포된 경량 소프트웨어 구성요소입니다. Google Security Operations 전달자는 로그를 Google Security Operations로 전달합니다.

  • Google Security Operations: Google Security Operations는 Corelight 센서의 로그를 보관하고 분석합니다.

Google Security Operations 전달자 구성

Google Security Operations 전달자를 구성하려면 다음을 수행합니다.

  1. Google Security Operations 전달자를 설정합니다. Linux에서 전달자 설치 및 구성을 참조하세요.

  2. Google Security Operations 전달자를 구성하여 로그를 Google Security Operations에 전송합니다.

      collectors:
    - syslog:
        common:
          enabled: true
          data_type:  CORELIGHT
          data_hint:
          batch_n_seconds: 10
          batch_n_bytes: 1048576
        tcp_address: <Chronicle forwarder listening IP:Port>
        tcp_buffer_size: 524288
        udp_address: <Chronicle forwarder listening IP:Port>
        connection_timeout_sec: 60

Corelight 센서 내보내기 도구 구성

  1. 관리자로 Corelight Sensor에 로그인합니다.
  2. Export 탭을 선택합니다.
  3. EXPORT TO SYSLOG 옵션을 찾아 사용 설정합니다.
  4. EXPORT TO SYSLOG에서 다음 필드를 구성합니다.
    • SYSLOG SERVER: Google Security Operations 전달자 syslog 리스너의 IP 주소와 포트를 지정합니다.
    • Advanced Settings > SYSLOG FORMAT으로 이동하고 설정을 Legacy로 변경합니다.
  5. Apply Changes를 클릭합니다.

지원되는 Corelight 로그 유형

Corelight 파서는 Corelight 센서에서 생성된 다음 로그 유형을 지원합니다.

Log Type

  • conn
  • conn_long
  • conn_red
  • dce_rpc
  • dns
  • dns_red
  • files
  • files_red
  • http
  • http2
  • http_red
  • intel
  • irc
  • notice
  • rdp
  • sip
  • smb_files
  • smb_mapping
  • smtp
  • smtp_links
  • ssh
  • ssl
  • ssl_red
  • suricata_corelight
  • bacnet
  • cip
  • corelight_burst
  • corelight_overall_capture_loss
  • corelight_profiling
  • datared
  • dga
  • dhcp
  • dnp3
  • dpd
  • encrypted_dns
  • enip
  • enip_debug
  • enip_list_identity
  • etc_viz
  • ftp
  • generic_dns_tunnels
  • generic_icmp_tunnels
  • icmp_specific_tunnels
  • ipsec
  • iso_cotp
  • kerberos
  • known_certs
  • known_devices
  • known_domains
  • known_hosts
  • known_names
  • known_remotes
  • known_services
  • known_users
  • ldap
  • ldap_search
  • local_subnets
  • local_subnets_dj
  • local_subnets_graphs
  • log4shell
  • modbus
  • mqtt_connect
  • mqtt_publish
  • mqtt_subscribe
  • mysql
  • napatech_shunting
  • ntlm
  • ntp
  • pe
  • profinet
  • profinet_dce_rpc
  • profinet_debug
  • radius
  • reporter
  • rfb
  • s7comm
  • smartpcap
  • snmp
  • socks
  • software
  • specific_dns_tunnels
  • stepping
  • stun
  • stun_nat
  • suricata_eve
  • suricata_stats
  • syslog
  • tds
  • tds_rpc
  • tds_sql_batch
  • traceroute
  • tunnel
  • unknown-smartpcap
  • vpn
  • weird
  • weird_red
  • wireguard
  • x509
  • x509_red
  • conn_agg
  • dns_agg
  • files_agg
  • http_agg
  • ssl_agg
  • weird_agg

필드 매핑 참조

이 섹션에서는 Google Security Operations 파서에서 Corelight 필드를 Google Security Operations 통합 데이터 모델(UDM) 필드에 매핑하는 방법을 설명합니다.

필드 매핑 참조: CORELIGHT - 공통 필드

다음 표에는 CORELIGHT 로그의 공통 필드와 해당 UDM 필드가 나와 있습니다.

Log field UDM mapping Logic
metadata.vendor_name The metadata.vendor_name UDM field is set to Corelight.
_path (string) metadata.product_event_type
_system_name (string) observer.hostname
ts (time) metadata.event_timestamp
uid (string) about.labels [uid], additional.fields [uid]
id.orig_h (string - addr) principal.ip
id.orig_p (integer - port) principal.port
id.resp_h (string - addr) target.ip
id.resp_p (integer - port) target.port
_write_ts metadata.collected_timestamp
id.vlan (integer - int) additional.fields [id_vlan]
id.vlan_inner (integer - int) additional.fields [id_vlan_inner]
id.orig_ep_cid (string) additional.fields [id_orig_ep_cid]
id.orig_ep_source (string) additional.fields [id_orig_ep_source]
id.orig_ep_status (string) additional.fields [id_orig_ep_status]
id.orig_ep_uid (string) additional.fields [id_orig_ep_uid]
id.resp_ep_cid (string) additional.fields [id_resp_ep_cid]
id.resp_ep_source (string) additional.fields [id_resp_ep_source]
id.resp_ep_status (string) additional.fields [id_resp_ep_status]
id.resp_ep_uid (string) additional.fields [id_resp_ep_uid]
uids (array[string] - vector of string) additional.fields [uid]
count (integer - int) additional.fields [count]
ts_last additional.fields [ts_last]

필드 매핑 참조: CORELIGHT - conn, conn_red, conn_long, conn_agg

다음 표에는 conn, conn_red, conn_long, conn_agg 로그 유형의 로그 필드와 해당 UDM 필드가 나와 있습니다.

Log field UDM mapping Logic
metadata.event_type The metadata.event_type UDM field is set to NETWORK_CONNECTION.
metadata.product_name The metadata.product_name UDM field is set to Zeek.
proto (string - enum) network.ip_protocol
service (string) network.application_protocol
duration (number - interval) network.session_duration
orig_bytes (integer - count) network.sent_bytes
resp_bytes (integer - count) network.received_bytes
conn_state (string) metadata.description If the conn_state log field value is equal to S0, then the metadata.description UDM field is set to S0: Connection attempt seen, no reply.

Else, if the conn_state log field value is equal to S1, then the metadata.description UDM field is set to S1: Connection established, not terminated.

Else, if the conn_state log field value is equal to S2, then the metadata.description UDM field is set to S2: Connection established and close attempt by originator seen (but no reply from responder).

Else, if the conn_state log field value is equal to S3, then the metadata.description UDM field is set to S3: Connection established and close attempt by responder seen (but no reply from originator).

Else, if the conn_state log field value is equal to SF, then the metadata.description UDM field is set to SF: Normal SYN/FIN completion.

Else, if the conn_state log field value is equal to REJ, then the metadata.description UDM field is set to REJ: Connection attempt rejected.

Else, if the conn_state log field value is equal to RSTO, then the metadata.description UDM field is set to RSTO: Connection established, originator aborted (sent a RST).

Else, if the conn_state log field value is equal to RSTOS0, then the metadata.description UDM field is set to RSTOS0: Originator sent a SYN followed by a RST, we never saw a SYN-ACK from the responder.

Else, if the conn_state log field value is equal to RSTOSH, then the metadata.description UDM field is set to RSTOSH: Responder sent a SYN ACK followed by a RST, we never saw a SYN from the (purported) originator.

Else, if the conn_state log field value is equal to RSTR, then the metadata.description UDM field is set to RSTR: Established, responder aborted.

Else, if the conn_state log field value is equal to SH, then the metadata.description UDM field is set to SH: Originator sent a SYN followed by a FIN, we never saw a SYN ACK from the responder (hence the connection was "half" open).

Else, if the conn_state log field value is equal to SHR, then the metadata.description UDM field is set to SHR: Responder sent a SYN ACK followed by a FIN, we never saw a SYN from the originator.

Else, if the conn_state log field value is equal to OTH, then the metadata.description UDM field is set to OTH: No SYN seen, just midstream traffic (a partial connection that was not later closed).
local_orig (boolean - bool) about.labels [local_orig]
local_resp (boolean - bool) about.labels [local_resp]
missed_bytes (integer - count) about.labels [missed_bytes]
history (string) about.labels [history]
orig_pkts (integer - count) network.sent_packets
orig_ip_bytes (integer - count) principal.labels [orig_ip_bytes]
resp_pkts (integer - count) network.received_packets
resp_ip_bytes (integer - count) target.labels [resp_ip_bytes]
tunnel_parents (array[string] - set[string]) intermediary.labels [tunnel_parent]
orig_cc (string) principal.ip_geo_artifact.location.country_or_region
resp_cc (string) target.ip_geo_artifact.location.country_or_region
suri_ids (array[string] - set[string]) security_result.rule_id
spcap.url (string) security_result.url_back_to_product
spcap.rule (integer - count) security_result.rule_labels [spcap_rule]
spcap.trigger (string) security_result.detection_fields [spcap_trigger]
app (array[string] - vector of string) about.application
corelight_shunted (boolean - bool) about.labels [corelight_shunted]
orig_shunted_pkts (integer - count) principal.labels [orig_shunted_pkts]
orig_shunted_bytes (integer - count) principal.labels [orig_shunted_bytes]
resp_shunted_pkts (integer - count) target.labels [resp_shunted_pkts]
resp_shunted_bytes (integer - count) target.labels [resp_shunted_bytes]
orig_l2_addr (string) principal.mac
resp_l2_addr (string) target.mac
id_orig_h_n.src (string) principal.labels [id_orig_h_n_src]
id_orig_h_n.vals (array[string] - set[string]) principal.labels [id_orig_h_n_val]
id_resp_h_n.src (string) target.labels [id_resp_h_n_src]
id_resp_h_n.vals (array[string] - set[string]) target.labels [id_resp_h_n_val]
vlan (integer - int) intermediary.labels [vlan]
inner_vlan (integer - int) intermediary.labels [inner_vlan]
community_id (string) network.community_id
security_result.severity The security_result.severity UDM field is set to INFORMATIONAL.
service (string) about.labels [service]
orig_ep_cid (string) additional.fields [orig_ep_cid]
orig_ep_source (string) additional.fields [orig_ep_source]
orig_ep_status (string) additional.fields [orig_ep_status]
orig_ep_uid (string) additional.fields [orig_ep_uid]
resp_ep_cid (string) additional.fields [resp_ep_cid]
resp_ep_source (string) additional.fields [resp_ep_source]
resp_ep_status (string) additional.fields [resp_ep_status]
resp_ep_uid (string) additional.fields [resp_ep_uid]
id_orig_h_n principal.ip
id_resp_h_n target.ip
netskope_site_ids additional.fields[netskope_site_ids] Iterate through log field netskope_site_ids, then
netskope_site_id_%{index} log field is mapped to the additional.fields.key UDM field and netskope_site_id log field is mapped to the additional.fields.value UDM field.
netskope_user_ids additional.fields[netskope_user_ids] Iterate through log field netskope_user_ids, then
netskope_user_id_%{index} log field is mapped to the additional.fields.key UDM field and netskope_user_id log field is mapped to the additional.fields.value UDM field.
write_ts additional.fields[write_ts]
spcap.urls (array[string] - vector of string) security_result.url_back_to_product Iterate through log field spcap.urls, then
spcap.urls log field is mapped to the security_result.url_back_to_product UDM field.
community_ids (array[string] - vector of string) network.community_id Iterate through log field community_ids, then
if index is equal to 0 then, community_id log field is mapped to the network.community_id UDM field.
Else, community_id_%{index} log field is mapped to the additional.fields.key UDM field and community_id log field is mapped to the additional.fields.value UDM field.

필드 매핑 참조: CORELIGHT - dce_rpc

다음 표에는 dce_rpc 로그 유형의 로그 필드와 해당 UDM 필드가 나와 있습니다.

Log field UDM mapping Logic
metadata.event_type The metadata.event_type UDM field is set to NETWORK_CONNECTION.
metadata.product_name The metadata.product_name UDM field is set to Zeek.
rtt (number - interval) network.session_duration
named_pipe (string) intermediary.resource.name
intermediary.resource.resource_type If the named_pipe log field value is not empty, then the intermediary.resource.resource_type UDM field is set to PIPE.
endpoint (string) target.labels [endpoint]
operation (string) target.labels [operation]
network.application_protocol The network.application_protocol UDM field is set to DCERPC.
security_result.severity The security_result.severity UDM field is set to INFORMATIONAL.
operation, endpoint, named_pipe (string) metadata.description The metadata.description UDM field is set with operation, endpoint, named_pipe log fields as "operation operation on endpoint using named pipe named_pipe".
network.ip_protocol The network.ip_protocol UDM field is set to TCP.

필드 매핑 참조: CORELIGHT - dns, dns_red, dns_agg

다음 표에는 dns, dns_red, dns_agg 로그 유형의 로그 필드와 해당 UDM 필드가 나와 있습니다.

Log field UDM mapping Logic
metadata.product_name The metadata.product_name UDM field is set to Zeek.
metadata.event_type The metadata.event_type UDM field is set to NETWORK_DNS.
network.application_protocol The network.application_protocol UDM field is set to DNS.
proto (string - enum) network.ip_protocol
trans_id (integer - count) network.dns.id
rtt (number - interval) network.session_duration
query (string) network.dns.questions.name
qclass (integer - count) network.dns.questions.class
qclass_name (string) about.labels [qclass_name]
qtype (integer - count) network.dns.questions.type
qtype_name (string) about.labels [qtype_name]
rcode (integer - count) network.dns.response_code
rcode (integer - count) network.dns.response If the rcode log field value is not empty, then the network.dns.response UDM field is set to true.
rcode_name (string) about.labels [rcode_name]
AA (boolean - bool) network.dns.authoritative
TC (boolean - bool) network.dns.truncated
RD (boolean - bool) network.dns.recursion_desired
RA (boolean - bool) network.dns.recursion_available
Z (integer - count) about.labels [Z]
answers (array[string] - vector of string) network.dns.answers.name
TTLs (array[number] - vector of interval) network.dns.answers.ttl
rejected (boolean - bool) about.labels [rejected]
is_trusted_domain (string) about.labels [is_trusted_domain]
icann_host_subdomain (string) about.labels [icann_host_subdomain]
icann_domain (string) network.dns_domain
icann_tld (string) about.labels [icann_tld]
num (integer - count) security_result.detection_fields [num]

필드 매핑 참조: CORELIGHT - http, http_red, http2, http_agg

다음 표에는 http, http_red, http2, http_agg 로그 유형의 로그 필드와 해당 UDM 필드가 나와 있습니다.

Log field UDM mapping Logic
metadata.event_type The metadata.event_type UDM field is set to NETWORK_HTTP.
metadata.product_name The metadata.product_name UDM field is set to Zeek.
trans_depth (integer - count) about.labels [trans_depth]
method (string) network.http.method
host (string) target.hostname
uri (string) target.url
referrer (string) network.http.referral_url
version (string) network.application_protocol_version
user_agent (string) network.http.user_agent
origin (string) principal.hostname
request_body_len (integer - count) network.sent_bytes
response_body_len (integer - count) network.received_bytes
status_code (integer - count) network.http.response_code
status_msg (string) about.labels [status_msg]
info_code (integer - count) about.labels [info_code]
info_msg (string) about.labels [info_msg]
tags (array[string] - set[enum]) about.labels [tags]
username (string) principal.user.user_display_name
password (string) extensions.auth.auth_details
proxied (array[string] - set[string]) intermediary.hostname
orig_fuids (array[string] - vector of string) about.labels [orig_fuid]
orig_filenames (array[string] - vector of string) src.file.names The orig_filenames log field is mapped to src.file.names UDM field when index value in orig_filenames is equal to 0.

For every other index value, orig_filenames log field is mapped to the about.file.names.
orig_mime_types (array[string] - vector of string) src.file.mime_type The orig_mime_types log field is mapped to src.file.mime_type UDM field when index value in orig_mime_types is equal to 0.

For every other index value, orig_mime_types log field is mapped to the about.file.mime_type.
resp_fuids (array[string] - vector of string) about.labels [resp_fuid]
resp_filenames (array[string] - vector of string) target.file.names The resp_filenames log field is mapped to target.file.names UDM field when index value in resp_filenames is equal to 0.

For every other index value, resp_filenames log field is mapped to the about.file.names.
resp_mime_types (array[string] - vector of string) target.file.mime_type The resp_mime_types log field is mapped to target.file.mime_type UDM field when index value in resp_mime_types is equal to 0.

For every other index value, resp_mime_types log field is mapped to the about.file.mime_type.
post_body (string) about.labels [post_body]
stream_id (integer - count) about.labels [stream_id]
encoding (string) about.labels [encoding]
push (boolean - bool) about.labels [push]
versions (array[float] - vector of float) network.application_protocol_version Iterate through log field versions, then
if index is equal to 0 then, version log field is mapped to the network.application_protocol_version UDM field.
Else, version_%{index} log field is mapped to the additional.fields.key UDM field and version log field is mapped to the additional.fields.value UDM field.
user_agents (array[string] - vector of string) network.http.user_agent Iterate through log field user_agents, then
if index is equal to 0 then, user_agent log field is mapped to the network.http.user_agent UDM field.
Else, user_agent_%{index} log field is mapped to the additional.fields.key UDM field and user_agent log field is mapped to the additional.fields.value UDM field.

필드 매핑 참조: CORELIGHT - smtp_links

다음 표에는 smtp_links 로그 유형의 로그 필드와 해당 UDM 필드가 나와 있습니다.

Log field UDM mapping Logic
metadata.event_type The metadata.event_type UDM field is set to NETWORK_SMTP.
metadata.product_name The metadata.product_name UDM field is set to Zeek.
network.application_protocol The network.application_protocol UDM field is set to SMTP.
fuid (string) about.labels [fuid]
link (string) about.url
domain (string) about.domain.name

필드 매핑 참조: CORELIGHT - irc

다음 표에는 irc 로그 유형의 로그 필드와 해당 UDM 필드가 나와 있습니다.

Log field UDM mapping Logic
metadata.event_type The metadata.event_type UDM field is set to NETWORK_UNCATEGORIZED.
metadata.product_name The metadata.product_name UDM field is set to Zeek.
nick (string) principal.user.user_display_name
user (string) principal.user.userid If the user log field value is less than or equal to 255, then the user log field is mapped to the principal.user.userid UDM field.

Else, the user log field is mapped to the about.labels UDM field.
command, value, addl principal.process.command_line
dcc_file_name (string) src.file.names
dcc_file_size (integer - count) src.file.size
dcc_mime_type (string) src.file.mime_type
fuid (string) about.labels [fuid]

필드 매핑 참조: CORELIGHT - files, files_red, files_agg

다음 표에는 files, files_red, files_agg 로그 유형의 로그 필드와 해당 UDM 필드가 나와 있습니다.

Log field UDM mapping Logic
metadata.event_type The metadata.event_type UDM field is set to NETWORK_UNCATEGORIZED.
metadata.product_name The metadata.product_name UDM field is set to Zeek.
fuid (string) about.labels [fuid]
tx_hosts (array[string] - set[addr]) principal.ip
rx_hosts (array[string] - set[addr]) target.ip
conn_uids (array[string] - set[string]) about.labels [conn_uid]
source (string) about.labels [source]
depth (integer - count) about.labels [depth]
analyzers (array[string] - set[string]) about.labels [analyzer]
mime_type (string) about.file.mime_type
filename (string) about.file.names
duration (number - interval) about.labels [duration]
local_orig (boolean - bool) about.labels [local_orig]
is_orig (boolean - bool) about.labels [is_orig]
seen_bytes (integer - count) about.file.size
total_bytes (integer - count) about.labels [total_bytes]
missing_bytes (integer - count) about.labels [missing_bytes]
overflow_bytes (integer - count) about.labels [overflow_bytes]
timedout (boolean - bool) about.labels [timedout]
parent_fuid (string) about.labels [parent_fuid]
md5 (string) about.file.md5
sha1 (string) about.file.sha1
sha256 (string) about.file.sha256
md5 (string) network.tls.client.certificate.md5 If the source log field value is equal to ssl and the mime_type log field value is equal to application/x-x509-user-cert and the _path log field value is equal to files, then the network.tls.client.certificate.md5 UDM field is set to md5.
sha1 (string) network.tls.client.certificate.sha1 If the source log field value is equal to ssl and the mime_type log field value is equal to application/x-x509-user-cert and the _path log field value is equal to files, then the network.tls.client.certificate.sha1 UDM field is set to sha1.
sha256 (string) network.tls.client.certificate.sha256 If the source log field value is equal to ssl and the mime_type log field value is equal to application/x-x509-user-cert and the _path log field value is equal to files, then the network.tls.client.certificate.sha256 UDM field is set to sha256.
md5 (string) network.tls.server.certificate.md5 If the source log field value is equal to ssl and the mime_type log field value is equal to application/x-x509-ca-cert and the _path log field value is equal to files, then the network.tls.server.certificate.md5 UDM field is set to md5.
sha1 (string) network.tls.server.certificate.sha1 If the source log field value is equal to ssl and the mime_type log field value is equal to application/x-x509-ca-cert and the _path log field value is equal to files, then the network.tls.server.certificate.sha1 UDM field is set to sha1.
sha256 (string) network.tls.server.certificate.sha256 If the source log field value is equal to ssl and the mime_type log field value is equal to application/x-x509-ca-cert and the _path log field value is equal to files, then the network.tls.server.certificate.sha256 UDM field is set to sha256.
extracted (array[string] - set[string]) about.file.names
extracted_cutoff (boolean - bool) about.labels [extracted_cutoff]
extracted_size (integer - count) about.labels [extracted_size]
num (integer - count) about.labels [num]
vlan (integer - int) additional.fields [vlan]
vlan_inner (integer - int) additional.fields [vlan_inner]
mime_types (array[string] - vector of string) target.file.mime_type Iterate through log field mime_type, then
if index is equal to 0 then, mime_type log field is mapped to the target.file.mime_type UDM field.
Else, mime_type_%{index} log field is mapped to the additional.fields.key UDM field and mime_type log field is mapped to the additional.fields.value UDM field.
timedouts (array[boolean] - vector of bool) additional.fields[timedouts] Iterate through log field timedouts, then
timedout_%{index} log field is mapped to the additional.fields.key UDM field and timedouts log field is mapped to the additional.fields.value UDM field.

필드 매핑 참조: CORELIGHT - notice

다음 표에는 notice 로그 유형의 로그 필드와 해당 UDM 필드가 나와 있습니다.

Log field UDM mapping Logic
metadata.event_type The metadata.event_type UDM field is set to NETWORK_UNCATEGORIZED.
metadata.product_name The metadata.product_name UDM field is set to Zeek.
fuid (string) about.labels [fuid]
file_mime_type (string) target.file.mime_type
file_desc (string) about.labels [file_desc]
proto (string - enum) network.ip_protocol
note (string - enum) security_result.description
msg (string) metadata.description
sub (string) about.labels [sub]
src (string - addr) principal.ip
dst (string - addr) target.ip
p (integer - port) about.port
n (integer - count) about.labels [n]
peer_descr (string) about.labels [peer_descr]
security_result.action The security_result.action UDM field is set to ALLOW.
actions (array[string] - set[enum]) security_result.action_details
suppress_for (number - interval) about.labels [suppress_for]
remote_location.country_code (string) about.location.country_or_region The about.location.country_or_region UDM field is set with remote_location.country_code, remote_location.region log fields as "remote_location.country_code: remote_location.region".
remote_location.region (string) about.location.country_or_region The about.location.country_or_region UDM field is set with remote_location.country_code, remote_location.region log fields as "remote_location.country_code: remote_location.region".
remote_location.city (string) about.location.city
remote_location.latitude (number - double) about.location.region_coordinates.latitude
remote_location.longitude (number - double) about.location.region_coordinates.longitude
security_result.severity
If the severity.level log field value contain one of the following values
  • 0
  • 1
then, the security_result.severity UDM field is set to HIGH.
Else, If severity.level log field value is equal to 2 then, the security_result.severity UDM field is set to CRITICAL.
Else, If severity.level log field value is equal to 3 then, the security_result.severity UDM field is set to ERROR.
Else, If severity.level log field value contain one of the following values
  • 4
  • 5
  • 6
then, the security_result.severity UDM field is set to INFORMATIONAL.
Else, If severity.level log field value is equal to 7 then, the security_result.severity UDM field is set to LOW.
Else The security_result.severity UDM field is set to UNKNOWN_SEVERITY.
severity.name security_result.severity_details
severity.level security_result.detection_fields [severity_level]
resp_vulnerable_host.criticality (string) target.asset.vulnerabilities.severity
If the resp_vulnerable_host.criticality log field value matches the regular expression pattern "(?i)Critical" or the resp_vulnerable_host.criticality log field value is equal to "4 " then, the "target.asset.vulnerabilities.severity" UDM field is set to CRITICAL.
Else, If resp_vulnerable_host.criticality log field value matches the regular expression pattern "(?i)High" or the resp_vulnerable_host.criticality log field value is equal to "3 " then, the "target.asset.vulnerabilities.severity" UDM field is set to HIGH.
Else, If resp_vulnerable_host.criticality log field value matches the regular expression pattern "(?i)Low" or the resp_vulnerable_host.criticality log field value is equal to "1 " then, the "target.asset.vulnerabilities.severity" UDM field is set to LOW.
Else, If resp_vulnerable_host.criticality log field value matches the regular expression pattern "(?i)Medium" or the resp_vulnerable_host.criticality log field value is equal to "2 " then, the "target.asset.vulnerabilities.severity" UDM field is set to MEDIUM.
Else, If resp_vulnerable_host.criticality log field value matches the regular expression pattern "(?i)Unknown_Severity" or the resp_vulnerable_host.criticality log field value is equal to "0 " then, the "target.asset.vulnerabilities.severity" UDM field is set to UNKNOWN_SEVERITY.
resp_vulnerable_host.criticality (string) target.asset.vulnerabilities.severity_details
resp_vulnerable_host.cve (string) target.asset.vulnerabilities.cve_id
resp_vulnerable_host.host_uid (string) additional.fields [resp_vulnerable_host_uid]
resp_vulnerable_host.hostname (string) target.asset.hostname
resp_vulnerable_host.machine_domain (string) target.asset.network_domain
resp_vulnerable_host.os_version (string) target.asset.platform_software.platform_version
resp_vulnerable_host.source (string) target.asset.vulnerabilities.cve_description
orig_vulnerable_host.criticality (string) principal.asset.vulnerabilities.severity
If the orig_vulnerable_host.criticality log field value matches the regular expression pattern "(?i)Critical" or the orig_vulnerable_host.criticality log field value is equal to "4 " then, the "principal.asset.vulnerabilities.severity" UDM field is set to CRITICAL.
Else, If orig_vulnerable_host.criticality log field value matches the regular expression pattern "(?i)High" or the orig_vulnerable_host.criticality log field value is equal to "3 " then, the "principal.asset.vulnerabilities.severity" UDM field is set to HIGH.
Else, If orig_vulnerable_host.criticality log field value matches the regular expression pattern "(?i)Low" or the orig_vulnerable_host.criticality log field value is equal to "1 " then, the "principal.asset.vulnerabilities.severity" UDM field is set to LOW.
Else, If orig_vulnerable_host.criticality log field value matches the regular expression pattern "(?i)Medium" or the orig_vulnerable_host.criticality log field value is equal to "2 " then, the "principal.asset.vulnerabilities.severity" UDM field is set to MEDIUM.
Else, If orig_vulnerable_host.criticality log field value matches the regular expression pattern "(?i)Unknown_Severity" or the orig_vulnerable_host.criticality log field value is equal to "0 " then, the "principal.asset.vulnerabilities.severity" UDM field is set to UNKNOWN_SEVERITY.
orig_vulnerable_host.criticality (string) principal.asset.vulnerabilities.severity_details
orig_vulnerable_host.cve (array[string] - vector of string) principal.asset.vulnerabilities.cve_id
orig_vulnerable_host.host_uid (string) additional.fields [orig_vulnerable_host_uid]
orig_vulnerable_host.hostname (string) principal.asset.hostname
orig_vulnerable_host.machine_domain (string) principal.asset.network_domain
orig_vulnerable_host.os_version (string) principal.asset.platform_software.platform_version
orig_vulnerable_host.source (string) principal.asset.vulnerabilities.cve_description

필드 매핑 참조: CORELIGHT - smb_files

다음 표에는 smb_files 로그 유형의 로그 필드와 해당 UDM 필드가 나와 있습니다.

Log field UDM mapping Logic
metadata.event_type If the action log field value is equal to SMB::FILE_READ, then the metadata.event_type UDM field is set to FILE_READ.

Else, if the action log field value is equal to SMB::FILE_WRITE, then the metadata.event_type UDM field is set to FILE_MODIFICATION.

Else, if the action log field value is equal to SMB::FILE_OPEN, then the metadata.event_type UDM field is set to FILE_OPEN.

Else, if the action log field value is equal to SMB::FILE_CLOSE, then the metadata.event_type UDM field is set to FILE_UNCATEGORIZED.

Else, if the action log field value is equal to SMB::FILE_DELETE, then the metadata.event_type UDM field is set to FILE_DELETION.

Else, if the action log field value is equal to SMB::FILE_RENAME, then the metadata.event_type UDM field is set to FILE_MOVE.

Else, if the action log field value is equal to SMB::FILE_SET_ATTRIBUTE, then the metadata.event_type UDM field is set to FILE_UNCATEGORIZED.

Else, the metadata.event_type UDM field is set to FILE_UNCATEGORIZED.
metadata.product_name The metadata.product_name UDM field is set to Zeek.
network.application_protocol The network.application_protocol UDM field is set to SMB.
network.ip_protocol The network.ip_protocol UDM field is set to TCP.
action, name metadata.description The metadata.description UDM field is set with action, name log fields as "action: action on: name".
security_result.severity The security_result.severity UDM field is set to INFORMATIONAL.
security_result.action The security_result.action UDM field is set to ALLOW.
fuid (string) about.labels [fuid]
action (string - enum) target.labels [action]
path (string) target.file.full_path
name (string) target.file.names
size (integer - count) target.file.size
prev_name (string) src.file.names
times.modified (time) target.file.last_modification_time
times.accessed (time) target.file.last_seen_time
times.created (time) target.file.first_seen_time
times.changed (time) target.labels [times_changed]
data_offset_req (integer - count) target.labels [data_offset_req]
data_len_req (integer - count) target.labels [data_len_req]
data_len_rsp (integer - count) target.labels [data_len_rsp]

필드 매핑 참조: CORELIGHT - smb_mapping

다음 표에는 smb_mapping 로그 유형의 로그 필드와 해당 UDM 필드가 나와 있습니다.

Log field UDM mapping Logic
metadata.event_type The metadata.event_type UDM field is set to NETWORK_CONNECTION.
metadata.product_name The metadata.product_name UDM field is set to Zeek.
network.application_protocol The network.application_protocol UDM field is set to SMB.
network.ip_protocol The network.ip_protocol UDM field is set to TCP.
security_result.severity The security_result.severity UDM field is set to INFORMATIONAL.
security_result.action The security_result.action UDM field is set to ALLOW.
path (string) target.resource.attribute.labels [path]
service (string) target.application
native_file_system (string) target.resource.attribute.labels [native_file_system]
share_type (string) target.resource.resource_type If the share_type log field value is equal to DISK, then the target.resource.resource_type UDM field is set to STORAGE_OBJECT.

Else, if the share_type log field value is equal to PIPE, then the target.resource.resource_type UDM field is set to PIPE.

Else, the target.resource.resource_type UDM field is set to UNSPECIFIED.
share_type (string) target.resource.resource_subtype

필드 매핑 참조: CORELIGHT - ssl, ssl_red, ssl_agg

다음 표에는 ssl, ssl_red, ssl_agg 로그 유형의 로그 필드와 해당 UDM 필드가 나와 있습니다.

Log field UDM mapping Logic
metadata.event_type The metadata.event_type UDM field is set to NETWORK_CONNECTION.
metadata.product_name The metadata.product_name UDM field is set to Zeek.
network.application_protocol The network.application_protocol UDM field is set to HTTPS.
network.ip_protocol The network.ip_protocol UDM field is set to TCP.
security_result.severity The security_result.severity UDM field is set to INFORMATIONAL.
security_result.action The security_result.action UDM field is set to ALLOW.
version (string) network.tls.version
cipher (string) network.tls.cipher
curve (string) network.tls.curve
server_name (string) network.tls.client.server_name
resumed (boolean - bool) network.tls.resumed
last_alert (string) security_result.description
next_protocol (string) network.tls.next_protocol
established (boolean - bool) network.tls.established
ssl_history (string) about.labels [ssl_history]
cert_chain_fps (array[string] - vector of string) target.labels [cert_chain_fps]
client_cert_chain_fps (array[string] - vector of string) principal.labels [client_cert_chain_fps]
sni_matches_cert (boolean - bool) about.labels [sni_matches_cert]
validation_status (string) security_result.detection_fields [validation_status]
ja3 (string) network.tls.client.ja3
ja3s (string) network.tls.server.ja3s

필드 매핑 참조: CORELIGHT - rdp

다음 표에는 rdp 로그 유형의 로그 필드와 해당 UDM 필드가 나와 있습니다.

Log field UDM mapping Logic
metadata.event_type The metadata.event_type UDM field is set to NETWORK_CONNECTION.
metadata.product_name The metadata.product_name UDM field is set to Zeek.
cookie (string) about.labels [cookie]
result (string) about.labels [result]
security_protocol (string) target.labels [security_protocol]
client_channels (array[string] - vector of string) intermediary.labels [client_channels]
keyboard_layout (string) principal.labels [keyboard_layout]
client_build (string) principal.labels [client_build]
client_name (string) principal.hostname
client_dig_product_id (string) principal.labels [client_dig_product_id ]
desktop_width (integer - count) principal.labels [desktop_width]
desktop_height (integer - count) principal.labels [desktop_height]
requested_color_depth (string) principal.labels [requested_color_depth]
cert_type (string) about.labels [cert_type]
cert_count (integer - count) about.labels [cert_count]
cert_permanent (boolean - bool) about.labels [cert_permanent ]
encryption_level (string) about.labels [encryption_level]
encryption_method (string) about.labels [encryption_method]
auth_success (boolean - bool) about.labels [auth_success]
channels_joined (integer - int) intermediary.labels [channels_joined]
inferences (array[string] - set[string]) about.labels [inferences]
rdpeudp_uid (string) about.labels [rdpeudp_uid]
network.ip_protocol The network.ip_protocol UDM field is set to TCP.
rdfp_string (string) principal.labels [rdfp_string]
rdfp_hash (string) principal.labels [rdfp_hash]
result, security_protocol security_result.description The security_result.description UDM field is set with result, security_protocol log fields as "result connection with security protocol security_protocol".
security_result.severity The security_result.severity UDM field is set to INFORMATIONAL.

필드 매핑 참조: CORELIGHT - sip

다음 표에는 sip 로그 유형의 로그 필드와 해당 UDM 필드가 나와 있습니다.

Log field UDM mapping Logic
metadata.event_type The metadata.event_type UDM field is set to NETWORK_UNCATEGORIZED.
metadata.product_name The metadata.product_name UDM field is set to Zeek.
network.application_protocol The network.application_protocol UDM field is set to SIP.
trans_depth (integer - count) about.labels [trans_depth]
method (string) about.labels [method]
uri (string) target.url
date (string) about.labels [date]
request_from (string) principal.labels [request_from]
request_to (string) target.labels [request_to]
response_from principal.labels [response_from]
response_to (string) target.labels [response_to]
reply_to (string) about.labels [reply_to]
call_id (string) network.session_id
seq (string) about.labels [seq]
subject (string) about.labels [subject]
request_path (array[string] - vector of string) about.labels [request_path]
response_path (array[string] - vector of string) about.labels [response_path]
user_agent (string) about.labels [user_agent]
status_code (integer - count) about.labels [status_code]
status_msg (string) security_result.description
warning (string) security_result.summary
request_body_len (integer - count) network.sent_bytes
response_body_len (integer - count) network.received_bytes
content_type (string) about.labels [content_type]

필드 매핑 참조: CORELIGHT - intel

다음 표에는 intel 로그 유형의 로그 필드와 해당 UDM 필드가 나와 있습니다.

Log field UDM mapping Logic
metadata.event_type The metadata.event_type UDM field is set to SCAN_NETWORK.
metadata.product_name The metadata.product_name UDM field is set to Zeek.
seen.indicator_type (string - enum) entity.metadata.entity_type If the indicator.type log field value is equal to Intel::ADDR, then the metadata.entity_type UDM field is set to IP_ADDRESS.

Else, if the indicator.type log field value is equal to Intel::SUBNET or Intel::SOFTWARE or Intel::CERT_HASH or Intel::PUBKEY_HASH, then the metadata.entity_type UDM field is set to RESOURCE.

Else, if the indicator.type log field value is equal to Intel::URL, then the metadata.entity_type UDM field is set to URL.

Else, if the indicator.type log field value is equal to the Intel::EMAIL or Intel::USER_NAME, then the metadata.entity_type UDM field is set to USER.

Else, if the indicator.type log field value is equal to Intel::DOMAIN, then the metadata.entity_type UDM field is set to DOMAIN_NAME.

Else, if the indicator.type log field value is equal to the Intel::FILE_HASH or Intel::FILE_NAME, then the metadata.entity_type UDM field is set to FILE.

Else, the metadata.entity_type UDM field is set to RESOURCE.
seen.indicator (string) entity.ip If the indicator.type log field value is equal to Intel::ADDR, then the seen.indicator log field is mapped to the entity.ip UDM field.
seen.indicator (string) entity.url If the indicator.type log field value is equal to Intel::URL, then the seen.indicator log field is mapped to the entity.url UDM field.
seen.indicator (string) entity.domain.name If the indicator.type log field value is equal to Intel::DOMAIN, then the seen.indicator log field is mapped to the entity.domain.name UDM field.
seen.indicator (string) entity.user.email_address If the indicator.type log field value is equal to Intel::USER_NAME or Intel::EMAIL, then the seen.indicator log field is mapped to the entity.user.email_address UDM field.
seen.indicator (string) entity.file.names If the indicator.type log field value is equal to Intel::FILE_HASH or Intel::FILE_NAME, then the seen.indicator log field is mapped to the entity.file.full_path UDM field.
seen.indicator (string) entity.resource.name If the metadata.entity_type log field value is equal to RESOURCE, then the seen.indicator log field is mapped to the entity.resource.name UDM field.
entity.resource.resource_type If the indicator.type log field value is equal to Intel::SUBNET, then the entity.resource.resource_name UDM field is set to VPC_NETWORK.
seen.indicator_type (string - enum) entity.resource.resource_sub_type If the metadata.entity_type log field value is equal to RESOURCE, then the seen.indicator_type log field is mapped to the entity.resource.resource_sub_type UDM field.
seen.where (string - enum) entity.metadata.source_labels [seen_where]
matched (array[string] - set[enum]) entity.labels [matched]
sources (array[string] - set[string]) entity.metadata.source_labels [source]
fuid (string) about.labels [fuid]
file_mime_type (string) entity.file.mime_type
file_desc (string) metadata.threat.detection_fields [file_desc]
desc (array[string] - set[string]) ioc.description The desc log field is mapped to ioc.description UDM field when index value in desc is equal to 0.

For every other index value, entity.labels.key UDM field is set to desc and desc log field is mapped to the entity.labels.value.
url (array[string] - set[string]) metadata.threat.url_back_to_product
confidence (array[number] - set[double]) ioc.confidence_score The confidence log field is mapped to ioc.confidence_score UDM field when index value in confidence is equal to 0.

For every other index value, entity.labels.key UDM field is set to confidence and confidence log field is mapped to the entity.labels.value.
firstseen (array[string] - set[string]) ioc.active_timerange.start The firstseen log field is mapped to ioc.active_timerange.start UDM field when index value in firstseen is equal to 0.

For every other index value, entity.labels.key UDM field is set to firstseen and firstseen log field is mapped to the entity.labels.value.
lastseen (array[string] - set[string]) ioc.active_timerange.end The lastseen log field is mapped to ioc.active_timerange.end UDM field when index value in lastseen is equal to 0.

For every other index value, entity.labels.key UDM field is set to lastseen and lastseen log field is mapped to the entity.labels.value.
associated (array[string] - set[string]) entity.labels [associated]
category (array[string] - set[string]) ioc.categorization The category log field is mapped to ioc.categorization UDM field when index value in category is equal to 0.

For every other index value, entity.labels.key UDM field is set to category and category log field is mapped to the entity.labels.value.
campaigns (array[string] - set[string]) entity.labels [campaign]
reports (array[string] - set[string]) entity.labels [report]
seen.indicator (string) about.labels [indicator]
seen.indicator_type (string - enum) about.labels [indicator_type]
seen.where (string - enum) about.labels [where]
sources (array[string] - set[string]) about.labels [sources]
confidence (array[number] - set[double]) about.labels [confidence]
category (array[string] - set[string]) about.labels [category]
threat_score (array[number] - set[double]) entity.security_result.detection_fields[threat_score]
verdict (array[string] - set[string]) entity.security_result.verdict_info.verdict_response Iterate through verdict,
If the verdict log field value matches the regular expression pattern "(?i)Malicious" or the verdict log field value is equal to "1" then, the "entity.security_result.verdict_info.verdict_response" UDM field is set to MALICIOUS.
Else, If verdict log field value matches the regular expression pattern "(?i)Benign" or the verdict log field value is equal to "2" then, the "entity.security_result.verdict_info.verdict_response" UDM field is set to BENIGN.
Else The "entity.security_result.verdict_info.verdict_response" UDM field is set to VERDICT_RESPONSE_UNSPECIFIED.
verdict_source (array[string] - set[string]) entity.security_result.verdict_info.source_provider Iterate through verdict_source,
verdict_source log field is mapped to the entity.security_result.VerdictInfo.source_provider UDM field.

필드 매핑 참조: CORELIGHT - smtp

다음 표에는 smtp 로그 유형의 로그 필드와 해당 UDM 필드가 나와 있습니다.

Log field UDM mapping Logic
metadata.event_type The metadata.event_type UDM field is set to NETWORK_SMTP.
metadata.product_name The metadata.product_name UDM field is set to Zeek.
network.application_protocol The network.application_protocol UDM field is set to SMTP.
trans_depth (integer - count) about.labels [trans_depth]
helo (string) target.domain.name
mailfrom (string) network.smtp.mail_from
rcptto (array[string] - set[string]) network.smtp.rcpt_to
date (string) about.labels [date]
from (string) network.email.from
to (array[string] - set[string]) network.email.to
cc (array[string] - set[string]) network.email.cc
reply_to (string) network.email.reply_to
msg_id (string) network.email.mail_id
in_reply_to (string) about.labels [in_reply_to]
subject (string) network.email.subject
x_originating_ip (string - addr) principal.ip
first_received (string) about.labels [first_received]
second_received (string) about.labels [second_received]
last_reply (string) network.smtp.server_response
path (array[string] - vector of addr) intermediary.ip
user_agent (string) about.labels [user_agent]
tls (boolean - bool) network.smtp.is_tls
fuids (array[string] - vector of string) about.labels [fuid]
is_webmail (boolean - bool) network.smtp.is_webmail
urls (array[string] - set[string]) about.url
domains (array[string] - set[string]) about.domain.name

필드 매핑 참조: CORELIGHT - ssh

다음 표에는 ssh 로그 유형의 로그 필드와 해당 UDM 필드가 나와 있습니다.

Log field UDM mapping Logic
metadata.event_type The metadata.event_type UDM field is set to NETWORK_UNCATEGORIZED.
metadata.product_name The metadata.product_name UDM field is set to Zeek.
network.application_protocol The network.application_protocol UDM field is set to SSH.
version (integer - count) network.application_protocol_version The network.application_protocol_version UDM field is set with version log field as "SSH version".
auth_success (boolean - bool) security_result.action_details
auth_success (boolean - bool) security_result.action If the auth_success log field value is not equal to true, then the security_result.action UDM field is set to ALLOW.

Else, the security_result.action UDM field is set to BLOCK.
auth_attempts (integer - count) extensions.auth.auth_details The extensions.auth.auth_details UDM field is set with auth_attempts log field as "auth_attempts: auth_attempts".
direction (string - enum) network.direction If the direction log field value is equal to INBOUND, then the network.direction UDM field is set to INBOUND.

Else, if the direction log field value is equal to OUTBOUND, then the network.direction UDM field is set to OUTBOUND.
client (string) principal.application
server (string) target.application
cipher_alg (string) network.tls.cipher
mac_alg (string) security_result.detection_fields [mac_alg]
compression_alg (string) security_result.detection_fields [compression_alg]
kex_alg (string) security_result.detection_fields [kex_alg]
host_key_alg (string) security_result.detection_fields [host_key_alg]
host_key (string) security_result.detection_fields [host_key]
remote_location.country_code (string) target.location.country_or_region
remote_location.region (string) target.location.country_or_region
remote_location.city (string) target.location.city
remote_location.latitude (number - double) target.location.region_coordinates.latitude
remote_location.longitude (number - double) target.location.region_coordinates.longitude
hasshVersion (string) about.labels [hassh_version]
hassh (string) principal.labels [hassh]
hasshServer (string) target.labels [hassh_server]
cshka (string) about.labels [cshka]
hasshAlgorithms (string) about.labels [hassh_algorithms]
sshka (string) about.labels [sshka]
hasshServerAlgorithms (string) about.labels [hassh_server_algorithms]
inferences (array[string] - set[string]) security_result.summary, security_result.description If the inferences log field value is equal to ABP, then the security_result.summary UDM field is set to Client Authentication Bypass and the security_result.description UDM field is set to A client wasn't adhering to expectations of SSH either through server exploit or by the client and server switching to a protocol other than SSH after enctyption begins.

If the inferences log field value is equal to AFR, then the security_result.summary UDM field is set to SSH Agent Forwarding Requested and the security_result.description UDM field is set to Agent Forwarding is requested by tge Client.

If the inferences log field value is equal to APWA, then the security_result.summary UDM field is set to Automated Password Authentication and the security_result.description UDM field is set to The client authenticated with an automated password tool (like sshpass).

If the inferences log field value is equal to AUTO, then the security_result.summary UDM field is set to Automated Interaction and the security_result.description UDM field is set to The client is a script automated utility and not driven by a user.

If the inferences log field value is equal to BAN, then the security_result.summary UDM field is set to Server Banner and the security_result.description UDM field is set to The server sent the client a pre-authentication banner, likely for legal reasons.

If the inferences log field value is equal to BF, then the security_result.summary UDM field is set to Client Brute Force Guessing and the security_result.description UDM field is set to A client made a number of authentication attempts that exceeded some configured, pre-connection threshold.

If the inferences log field value is equal to BFS, then the security_result.summary UDM field is set to Client Brute Force Success and the security_result.description UDM field is set to A client made a number of authentication attempts that exceeded some configured, pre-connection threshold.

If the inferences log field value is equal to CTS, then the security_result.summary UDM field is set to Client Trusted Server and the security_result.description UDM field is set to The client already has an entry in its known_hosts file for this server.

If the inferences log field value is equal to CUS, then the security_result.summary UDM field is set to Client Untrusted Server and the security_result.description UDM field is set to The client did not have an entry in its known_hosts file for this server.

If the inferences log field value is equal to IPWA, then the security_result.summary UDM field is set to Interactive Password Authentication and the security_result.description UDM field is set to The client interactively typed their password to authenticate.

If the inferences log field value is equal to KS, then the security_result.summary UDM field is set to Keystrokes and the security_result.description UDM field is set to An interactive session occurred in which the client set user-driven keystrokes to the server.

If the inferences log field value is equal to LFD, then the security_result.summary UDM field is set to Large Client File Download and the security_result.description UDM field is set to A file transfer occurred in which the server sent a sequence of bytes to the client.

If the inferences log field value is equal to LFU, then the security_result.summary UDM field is set to Large Client File Upload and the security_result.description UDM field is set to A file transfer occurred in which the client sent a sequence of bytes to the server. Large file are identified dynamically based on trains of MTU-sized packets.

If the inferences log field value is equal to MFA, then the security_result.summary UDM field is set to Multifactor Authentication and the security_result.description UDM field is set to The server required a second form of authentication (a code) after password or public key was accepted, and the client successfully provided it.

If the inferences log field value is equal to NA, then the security_result.summary UDM field is set to None Authentication and the security_result.description UDM field is set to The client successfully authenticated using the None method.

If the inferences log field value is equal to NRC, then the security_result.summary UDM field is set to No Remote Command and the security_result.description UDM field is set to The -N flag was used in SSH authentication.

If the inferences log field value is equal to PKA, then the security_result.summary UDM field is set to Public Key Authentication and the security_result.description UDM field is set to The client automatically authenticated using pubkey authentication.

If the inferences log field value is equal to RSI, then the security_result.summary UDM field is set to Reverse SSH Initiated and the security_result.description UDM field is set to The Reverse session is initiated from the server back to the client.

If the inferences log field value is equal to RSIA, then the security_result.summary UDM field is set to Reverse SSH Initiated Automated and the security_result.description UDM field is set to The inititation of the Reverse session happened very early in the packet stream, indicating automation.

If the inferences log field value is equal to RSK, then the security_result.summary UDM field is set to Reverse SSH Keystrokes and the security_result.description UDM field is set to Keystrokes are detected within the Reverse tunnel.

If the inferences log field value is equal to RSL, then the security_result.summary UDM field is set to Reverse SSH Logged In and the security_result.description UDM field is set to The Reverse Tunnel login has succeeded.

If the inferences log field value is equal to RSP, then the security_result.summary UDM field is set to Reverse SSH Provisioned and the security_result.description UDM field is set to The client connected with -R flag, which provisions the port to be used for a Reverse Session set up at any future time.

If the inferences log field value is equal to SA, then the security_result.summary UDM field is set to Authentication Scanning and the security_result.description UDM field is set to The client scanned authentication method with the server and then disconnected.

If the inferences log field value is equal to SC, then the security_result.summary UDM field is set to Capabilities Scanning and the security_result.description UDM field is set to The client exchanged capabilities with the server and then disconnected.

If the inferences log field value is equal to SFD, then the security_result.summary UDM field is set to Small Client File Download and the security_result.description UDM field is set to A file transfer occurred in which the server sent a sequence of bytes to the client.

If the inferences log field value is equal to SFU, then the security_result.summary UDM field is set to Small Client File Upload and the security_result.description UDM field is set to A file transfer occurred in which the client sent a sequence of bytes to the server.

If the inferences log field value is equal to SP, then the security_result.summary UDM field is set to Other Scanning and the security_result.description UDM field is set to A client and server didn't exchange encrypted packets but the client wasn't a version or capabilities scanner.

If the inferences log field value is equal to SV, then the security_result.summary UDM field is set to Version Scanning and the security_result.description UDM field is set to A client exchanged version strings with the server and than disconnected.

If the inferences log field value is equal to UA, then the security_result.summary UDM field is set to Unknown Authentication and the security_result.description UDM field is set to The authentication method is not determinated or is unknown.

필드 매핑 참조: CORELIGHT - suricata_corelight

다음 표에는 suricata_corelight 로그 유형의 로그 필드와 해당 UDM 필드가 나와 있습니다.

Log field UDM mapping Logic
metadata.event_type The metadata.event_type UDM field is set to SCAN_NETWORK.
metadata.product_name The metadata.product_name UDM field is set to Suricata.
id.vlan (integer - count) intermediary.labels [id_vlan]
id.vlan_inner (integer - count) intermediary.labels [id_vlan_inner]
icmp_type (integer - count) about.labels [icmp_type]
icmp_code (integer - count) about.labels [icmp_code]
suri_id (string) metadata.product_log_id
service (string) network.application_protocol
flow_id (integer - count) network.session_id
tx_id (integer - count) about.labels [tx_id]
pcap_cnt (integer - count) about.labels [pcap_cnt]
alert.action (string) security_result.action_details
alert.gid (integer - count) security_result.detection_fields [alert_gid]
alert.signature_id (integer - count) security_result.rule_id
alert.rev (integer - count) security_result.detection_fields [alert_rev]
alert.signature (string) security_result.summary
alert.signature (string) security_result.rule_name
alert.category (string) security_result.category_details
alert.severity (integer - count) security_result.severity_details
alert.metadata (array[string] - vector of string) security_result.detection_fields [alert_metadata]
community_id (string) network.community_id
payload (string) about.labels [payload]
payload (string) about.labels [payload_decoded]
packet (string) about.labels [packet]
packet (string) about.labels [packet_decoded]
metadata (array[string] - vector of string) security_result.detection_fields [metadata]
orig_cve (string) extensions.vulns.vulnerabilities.cve_id
resp_cve (string) extensions.vulns.vulnerabilities.cve_id
signature_severity security_result.severity If alert.rule log field value matches the grok pattern signature_severity (?Critical|Major|Minor|Informational) then
If the signature_severity extracted field value is equal to Critical then, the security_result.severity UDM field is set to CRITICAL and signature_severity extracted field is mapped to the security_result.severity_details UDM field.
Else, If signature_severity extracted field value is equal to Major then, the security_result.severity UDM field is set to MEDIUM and signature_severity extracted field is mapped to the security_result.severity_details UDM field.
Else, If signature_severity extracted field value is equal to Minor then, the security_result.severity UDM field is set to LOW and signature_severity extracted field is mapped to the security_result.severity_details UDM field.
Else, If signature_severity extracted field value is equal to Informational then, the security_result.severity UDM field is set to INFORMATIONAL and signature_severity extracted field is mapped to the security_result.severity_details UDM field.
orig_vulnerable_host.cve (array[string] - vector of string) principal.asset.vulnerabilities.cve_id
orig_vulnerable_host.hostname(string) principal.asset.hostname
orig_vulnerable_host.host_uid(string) about.labels [orig_vulnerable_host_uid]
orig_vulnerable_host.machine_domain(string) principal.asset.network_domain
orig_vulnerable_host.os_version(string) principal.asset.platform_software.platform_version
orig_vulnerable_host.source(string) principal.asset.vulnerabilities.cve_description
resp_vulnerable_host.cve(string) target.asset.vulnerabilities.cve_id
resp_vulnerable_host.hostname(string) target.asset.hostname
resp_vulnerable_host.host_uid(string) about.labels [resp_vulnerable_host_uid]
resp_vulnerable_host.machine_domain(string) target.asset.network_domain
resp_vulnerable_host.os_version(string) target.asset.platform_software.platform_version
resp_vulnerable_host.source(string) target.asset.vulnerabilities.cve_description
service (string) about.labels [service]
alert.rule (string) security_result.description
alert.references (array[string] - vector of string) security_result.detection_fields[alert_references] iterate through alert.references,
alert.references log field is mapped to the security_result.detection_fields.alert_references UDM field.
payload_printable (string) security_result.detection_fields[payload_printable]
references (array[string] - vector of string) security_result.detection_fields[references] iterate through references,
references log field is mapped to the security_result.detection_fields.references UDM field.
orig_vulnerable_host.criticality (string) principal.asset.vulnerabilities.severity
If the orig_vulnerable_host.criticality log field value matches the regular expression pattern "(?i)Critical" or the orig_vulnerable_host.criticality log field value is equal to "4" then, the "principal.asset.vulnerabilities.severity" UDM field is set to CRITICAL.
Else, If orig_vulnerable_host.criticality log field value matches the regular expression pattern "(?i)High" or the orig_vulnerable_host.criticality log field value is equal to "3" then, the "principal.asset.vulnerabilities.severity" UDM field is set to HIGH.
Else, If orig_vulnerable_host.criticality log field value matches the regular expression pattern "(?i)Low" or the orig_vulnerable_host.criticality log field value is equal to "1" then, the "principal.asset.vulnerabilities.severity" UDM field is set to LOW.
Else, If orig_vulnerable_host.criticality log field value matches the regular expression pattern "(?i)Medium" or the orig_vulnerable_host.criticality log field value is equal to "2" then, the "principal.asset.vulnerabilities.severity" UDM field is set to MEDIUM.
Else, If orig_vulnerable_host.criticality log field value matches the regular expression pattern "(?i)Unknown_Severity" or the orig_vulnerable_host.criticality log field value is equal to "0" then, the "principal.asset.vulnerabilities.severity" UDM field is set to UNKNOWN_SEVERITY.
orig_vulnerable_host.criticality (string) principal.asset.vulnerabilities.severity_details
resp_vulnerable_host.criticality (string) target.asset.vulnerabilities.severity
If the resp_vulnerable_host.criticality log field value matches the regular expression pattern "(?i)Critical" or the resp_vulnerable_host.criticality log field value is equal to "4 " then, the "target.asset.vulnerabilities.severity" UDM field is set to CRITICAL.
Else, If resp_vulnerable_host.criticality log field value matches the regular expression pattern "(?i)High" or the resp_vulnerable_host.criticality log field value is equal to "3 " then, the "target.asset.vulnerabilities.severity" UDM field is set to HIGH.
Else, If resp_vulnerable_host.criticality log field value matches the regular expression pattern "(?i)Low" or the resp_vulnerable_host.criticality log field value is equal to "1 " then, the "target.asset.vulnerabilities.severity" UDM field is set to LOW.
Else, If resp_vulnerable_host.criticality log field value matches the regular expression pattern "(?i)Medium" or the resp_vulnerable_host.criticality log field value is equal to "2 " then, the "target.asset.vulnerabilities.severity" UDM field is set to MEDIUM.
Else, If resp_vulnerable_host.criticality log field value matches the regular expression pattern "(?i)Unknown_Severity" or the resp_vulnerable_host.criticality log field value is equal to "0 " then, the "target.asset.vulnerabilities.severity" UDM field is set to UNKNOWN_SEVERITY.
resp_vulnerable_host.criticality (string) target.asset.vulnerabilities.severity_details
rule_content security_result.detection_fields[alert_rule_content] If alert.rule log field value matches the grok pattern %{GREEDYDATA:_}content:\\"%{GREEDYDATA:rule_content}\\" then, the rule_content extracted field is mapped to security_result.detection_fields [alert_rule_content] UDM field.
rule_classtype security_result.detection_fields [alert_rule_classtype] If alert.rule log field value matches the grok pattern %{GREEDYDATA:_}classtype:%{DATA:rule_classtype}; then, the rule_classtype extracted field is mapped to security_result.detection_fields [alert_rule_classtype] UDM field.
reference_url security_result.detection_fields[alert_rule_reference_url] If alert.rule log field value matches the grok pattern %{GREEDYDATA:_}reference:url,%{DATA:reference_url}; then, the reference_url extracted field is mapped to security_result.detection_fields [alert_rule_reference_url] UDM field.
attack_target security_result.detection_fields[alert_rule_attack_target] If alert.rule log field value matches the grok pattern %{GREEDYDATA:_}metadata:%{DATA:rule_metadata}; and, The attack_target is extracted from rule_metadata using kv filter then the extracted attack_target field is mapped to security_result.detection_fields [alert_rule_attack_target] UDM field.
created_at security_result.detection_fields[alert_rule_created_at] If alert.rule log field value matches the grok pattern %{GREEDYDATA:_}metadata:%{DATA:rule_metadata}; and, The created_at is extracted from rule_metadata using kv filter then the extracted created_at field is mapped to security_result.detection_fields [alert_rule_created_at] UDM field.
deployment security_result.detection_fields[alert_rule_deployment] If alert.rule log field value matches the grok pattern %{GREEDYDATA:_}metadata:%{DATA:rule_metadata}; and, The deployment is extracted from rule_metadata using kv filter then the extracted deployment field is mapped to security_result.detection_fields [alert_rule_deployment] UDM field.
performance_impact security_result.detection_fields[alert_rule_performance_impact] If alert.rule log field value matches the grok pattern %{GREEDYDATA:_}metadata:%{DATA:rule_metadata}; and, The performance_impact is extracted from rule_metadata using kv filter then the extracted performance_impact field is mapped to security_result.detection_fields [alert_rule_performance_impact] UDM field.
updated_at security_result.detection_fields[alert_rule_updated_at] If alert.rule log field value matches the grok pattern %{GREEDYDATA:_}metadata:%{DATA:rule_metadata}; and, The updated_at is extracted from rule_metadata using kv filter then the extracted updated_at field is mapped to security_result.detection_fields [alert_rule_updated_at] UDM field.
uri target.url If the payload_printable log field is not empty then, If payload_printable log field value matches the grok pattern %{WORD:http_method} %{NOTSPACE:uri} HTTP/%{NOTSPACE:proto_version} then, the uri extracted field is mapped to target.url UDM field.

Else If the payload log field is not empty then, If payload log field value matches the grok pattern %{WORD:http_method} %{NOTSPACE:uri} HTTP/%{NOTSPACE:proto_version} then, the uri extracted field is mapped to target.url UDM field.
http_method network.http.method If the payload_printable log field is not empty then, If payload_printable log field value matches the grok pattern %{WORD:http_method} %{NOTSPACE:uri} HTTP/%{NOTSPACE:proto_version} then, the http_method extracted field is mapped to network.http.method UDM field.

Else If the payload log field is not empty then, If payload log field value matches the grok pattern %{WORD:http_method} %{NOTSPACE:uri} HTTP/%{NOTSPACE:proto_version} then, the http_method extracted field is mapped to network.http.method UDM field.
proto_version network.application_protocol_version If the payload_printable log field is not empty then, If payload_printable log field value matches the grok pattern %{WORD:http_method} %{NOTSPACE:uri} HTTP/%{NOTSPACE:proto_version} then, the proto_version extracted field is mapped to network.application_protocol_version UDM field.

Else If the payload log field is not empty then, If payload log field value matches the grok pattern %{WORD:http_method} %{NOTSPACE:uri} HTTP/%{NOTSPACE:proto_version} then, the proto_version extracted field is mapped to network.application_protocol_version UDM field.
user_agent target.http.useragent If the payload_printable log field is not empty then, If payload_printable log field value matches the grok pattern ^User-Agent: %{GREEDYDATA:user_agent} then, the user_agent extracted field is mapped to target.http.useragent UDM field.

Else If the payload log field is not empty then, If payload log field value matches the grok pattern ^User-Agent: %{GREEDYDATA:user_agent} then, the user_agent extracted field is mapped to target.http.useragent UDM field.
hostname target.hostname If the payload_printable log field is not empty then, If payload_printable log field value matches the grok pattern ^Host: %{IPORHOST:hostname} then, the hostname extracted field is mapped to target.hostname UDM field.

Else If the payload log field is not empty then, If payload log field value matches the grok pattern ^Host: %{IPORHOST:hostname} then, the hostname extracted field is mapped to target.hostname UDM field.
meta (array[string] - vector of string) additional.fields [meta]

필드 매핑 참조: CORELIGHT - bacnet

다음 표에는 bacnet 로그 유형의 로그 필드와 해당 UDM 필드가 나와 있습니다.

Log field UDM mapping Logic
metadata.event_type The metadata.event_type UDM field is set to NETWORK_UNCATEGORIZED.
metadata.product_name The metadata.product_name UDM field is set to Zeek.
bvlc_function (string) about.labels [bvlc_function]
bvlc_len (integer - count) about.labels [bvlc_len]
apdu_type (string) about.labels [apdu_type]
service_choice (string) about.labels [service_choice]
data (array[string] - vector of string) about.labels [data]
invoke_id (integer - count) additional.fields [invoke_id]
is_orig (boolean - bool) additional.fields [is_orig]
pdu_service (string) additional.fields [pdu_service]
pdu_type (string) additional.fields [pdu_type]
result_code (string) additional.fields [result_code]

필드 매핑 참조: CORELIGHT - cip

다음 표에는 cip 로그 유형의 로그 필드와 해당 UDM 필드가 나와 있습니다.

Log field UDM mapping Logic
metadata.event_type The metadata.event_type UDM field is set to NETWORK_UNCATEGORIZED.
metadata.product_name The metadata.product_name UDM field is set to Zeek.
service (string) about.labels [service]
status (string) about.labels [status]
tags (string) about.labels [tag]
attribute_id (string) additional.fields [attribute_id]
cip_extended_status (string) additional.fields [cip_extended_status]
cip_extended_status_code (string) additional.fields [cip_extended_status_code]
cip_sequence_count (integer - count) additional.fields [cip_sequence_count]
cip_service (string) additional.fields [cip_service]
cip_service_code (string) additional.fields [cip_service_code]
cip_status (string) additional.fields [cip_status]
cip_status_code (string) additional.fields [cip_status_code]
class_id (string) additional.fields [class_id]
class_name (string) additional.fields [class_name]
direction (string) additional.fields [direction]
instance_id (string) additional.fields [instance_id]
is_orig (boolean - bool) additional.fields [is_orig]

필드 매핑 참조: CORELIGHT - corelight_buster

다음 표에는 corelight_burst 로그 유형의 로그 필드와 해당 UDM 필드가 나와 있습니다.

Log field UDM mapping Logic
metadata.event_type The metadata.event_type UDM field is set to SCAN_NETWORK.
metadata.product_name The metadata.product_name UDM field is set to Zeek.
proto (string - enum) network.ip_protocol
orig_size (integer - count) network.sent_bytes
resp_size (integer - count) network.received_bytes
mbps (number - double) about.labels [mbps]
age_of_conn (number - interval) about.labels [age_of_conn]

필드 매핑 참조: CORELIGHT - corelight_overall_capture_loss

다음 표에는 corelight_overall_capture_loss 로그 유형의 로그 필드와 해당 UDM 필드가 나와 있습니다.

Log field UDM mapping Logic
metadata.event_type The metadata.event_type UDM field is set to GENERIC_EVENT.
metadata.product_name The metadata.product_name UDM field is set to Zeek.
gaps (number - double) security_result.detection_fields [gaps]
acks (number - double) security_result.detection_fields [acks]
percent_lost (number - double) security_result.detection_fields [percent_lost]
metadata.description The metadata.description UDM field is set with _system_name, percent_lost, ts. log fields as "node _system_name experienced percent_lost% packet loss at ts.".

필드 매핑 참조: CORELIGHT - corelight_profiling

다음 표에는 corelight_profiling 로그 유형의 로그 필드와 해당 UDM 필드가 나와 있습니다.

Log field UDM mapping Logic
metadata.event_type The metadata.event_type UDM field is set to SCAN_NETWORK.
metadata.product_name The metadata.product_name UDM field is set to Zeek.
node (string) principal.hostname
prof.core_stack (string) about.labels [prof_core_stack]
prof.script_stack (string) about.labels [prof_script_stack]
prof.sched_wait_ns (integer - count) about.labels [prof_sched_wait_ns]

필드 매핑 참조: CORELIGHT - datared

다음 표에는 datared 로그 유형의 로그 필드와 해당 UDM 필드가 나와 있습니다.

Log field UDM mapping Logic
metadata.event_type The metadata.event_type UDM field is set to GENERIC_EVENT.
metadata.product_name The metadata.product_name UDM field is set to Zeek.
conn_red (integer - count) about.labels [conn_red]
conn_total (integer - count) about.labels [conn_total]
dns_red (integer - count) about.labels [dns_red]
dns_total (integer - count) about.labels [dns_total]
dns_coal_miss (integer - count) about.labels [dns_coal_miss]
files_red (integer - count) about.labels [files_red]
files_total (integer - count) about.labels [files_total]
files_coal_miss (integer - count) about.labels [files_coal_miss]
http_red (integer - count) about.labels [http_red]
http_total (integer - count) about.labels [http_total]
ssl_red (integer - count) about.labels [ssl_red]
ssl_total (integer - count) about.labels [ssl_total]
ssl_coal_miss (integer - count) about.labels [ssl_coal_miss]
weird_red (integer - count) about.labels [weird_red]
weird_total (integer - count) about.labels [weird_total]
x509_red (integer - count) about.labels [x509_red]
x509_total (integer - count) about.labels [x509_total]
x509_coal_miss (integer - count) about.labels [x509_coal_miss]

필드 매핑 참조: CORELIGHT - dhcp

다음 표에는 dhcp 로그 유형의 로그 필드와 해당 UDM 필드가 나와 있습니다.

Log field UDM mapping Logic
metadata.event_type The metadata.event_type UDM field is set to NETWORK_DHCP.
metadata.product_name The metadata.product_name UDM field is set to Zeek.
network.application_protocol The network.application_protocol UDM field is set to DHCP.
uids (array[string] - set[string]) about.labels [uid]
client_addr (string - addr) network.dhcp.ciaddr
server_addr (string - addr) network.dhcp.siaddr
mac (string) network.dhcp.chaddr
host_name (string) network.dhcp.client_hostname
client_fqdn (string) principal.domain.name
domain (string) target.domain.name
requested_addr (string - addr) network.dhcp.requested_address
assigned_addr (string - addr) network.dhcp.yiaddr
lease_time (number - interval) network.dhcp.lease_time_seconds
client_message (string) security_result.description
server_message (string) security_result.description
msg_types (array[string] - vector of string) network.dhcp.type The msg_types log field is mapped to network.dhcp.type UDM field when index value in msg_types is equal to 0.

For every other index value, about.labels.key UDM field is set to msg_types and msg_types log field is mapped to the about.labels.value.
duration (number - interval) about.labels [duration]

필드 매핑 참조: CORELIGHT - dga

다음 표에는 dga 로그 유형의 로그 필드와 해당 UDM 필드가 나와 있습니다.

Log field UDM mapping Logic
metadata.event_type The metadata.event_type UDM field is set to NETWORK_DNS.
metadata.product_name The metadata.product_name UDM field is set to Zeek.
network.application_protocol The network.application_protocol UDM field is set to DNS.
query (string) network.dns.questions.name
family (string) about.labels [family]
qtype_name (string) about.labels [qtype_name]
rcode (integer - count) network.dns.response_code
is_collision_heavy (boolean - bool) security_result.detection_fields [is_collision_heavy]
ruse (boolean - bool) about.labels [ruse]

필드 매핑 참조: CORELIGHT - dnp3

다음 표에는 dnp3 로그 유형의 로그 필드와 해당 UDM 필드가 나와 있습니다.

Log field UDM mapping Logic
metadata.event_type The metadata.event_type UDM field is set to NETWORK_UNCATEGORIZED.
metadata.product_name The metadata.product_name UDM field is set to Zeek.
fc_request (string) about.labels [fc_request]
fc_reply (string) about.labels [fc_reply]
iin (integer - count) about.labels [iin]

필드 매핑 참조: CORELIGHT - iso_cotp

다음 표에는 iso_cotp 로그 유형의 로그 필드와 해당 UDM 필드가 나와 있습니다.

Log field UDM mapping Logic
metadata.event_type The metadata.event_type UDM field is set to NETWORK_UNCATEGORIZED.
metadata.product_name The metadata.product_name UDM field is set to Zeek.
pdu_type (string) about.labels [pdu_type]

필드 매핑 참조: CORELIGHT - kerberos

다음 표에는 kerberos 로그 유형의 로그 필드와 해당 UDM 필드가 나와 있습니다.

Log field UDM mapping Logic
metadata.event_type The metadata.event_type UDM field is set to NETWORK_UNCATEGORIZED.
metadata.product_name The metadata.product_name UDM field is set to Zeek.
network.application_protocol The network.application_protocol UDM field is set to KRB5.
request_type (string) principal.application
client (string) principal.hostname
service (string) target.application
success (boolean - bool) security_result.action If the success log field value is equal to true, then the security_result.action UDM field is set to ALLOW.

Else, the security_result.action UDM field is set to FAIL.
error_msg (string) security_result.action_details
from (time) about.labels [from]
till (time) about.labels [till]
cipher (string) about.labels [cipher]
forwardable (boolean - bool) about.labels [forwardable]
renewable (boolean - bool) about.labels [renewable]
client_cert_subject (string) about.labels [client_cert_subject]
client_cert_fuid (string) about.labels [client_cert_fuid]
server_cert_subject (string) about.labels [server_cert_subject]
server_cert_fuid (string) about.labels [server_cert_fuid]

필드 매핑 참조: CORELIGHT - ldap

다음 표에는 ldap 로그 유형의 로그 필드와 해당 UDM 필드가 나와 있습니다.

Log field UDM mapping Logic
metadata.event_type The metadata.event_type UDM field is set to NETWORK_UNCATEGORIZED.
metadata.product_name The metadata.product_name UDM field is set to Zeek.
network.application_protocol The network.application_protocol UDM field is set to LDAP.
proto (string) about.labels [proto]
message_id (integer - int) about.labels [message_id]
version (integer - int) network.application_protocol_version
opcode (array[string] - set[string]) security_result.detection_fields [opcode]
result (array[string] - set[string]) security_result.detection_fields [result]
diagnostic_message (array[string] - vector of string) security_result.description
object (array[string] - vector of string) about.labels [object]
argument (array[string] - vector of string) about.labels [argument]

필드 매핑 참조: CORELIGHT - ldap_search

다음 표에는 ldap_search 로그 유형의 로그 필드와 해당 UDM 필드가 나와 있습니다.

Log field UDM mapping Logic
metadata.event_type The metadata.event_type UDM field is set to NETWORK_UNCATEGORIZED.
metadata.product_name The metadata.product_name UDM field is set to Zeek.
network.application_protocol The network.application_protocol UDM field is set to LDAP.
proto (string) about.labels [proto]
message_id (integer - int) about.labels [message_id]
scope (array[string] - set[string]) about.labels [scope]
deref (array[string] - set[string]) about.labels [deref]
base_object (array[string] - vector of string) about.labels [base_object]
result_count (integer - count) security_result.detection_fields [result_count]
result (array[string] - set[string]) security_result.detection_fields [result]
diagnostic_message (array[string] - vector of string) security_result.description
filter (string) about.labels [filter]
attributes (array[string] - vector of string) about.labels [attributes]

필드 매핑 참조: CORELIGHT - local_subnets

다음 표에는 local_subnets 로그 유형의 로그 필드와 해당 UDM 필드가 나와 있습니다.

Log field UDM mapping Logic
metadata.event_type The metadata.event_type UDM field is set to GENERIC_EVENT.
metadata.product_name The metadata.product_name UDM field is set to Zeek.
round (integer - count) about.labels [round]
ip_version (integer - count) about.labels [ip_version]
subnets (array[string] - set[subnet]) about.labels [subnet]
component_ids (array[integer] - set[count]) about.labels [component_id]
size_of_component (integer - count) about.labels [size_of_component]
bipartite (boolean - bool) about.labels [bipartite]
inferred_site (boolean - bool) about.labels [inferred_site]
other_ips (array[string] - set[addr]) about.ip

필드 매핑 참조: CORELIGHT - local_subnets_dj

다음 표에는 local_subnets_dj 로그 유형의 로그 필드와 해당 UDM 필드가 나와 있습니다.

Log field UDM mapping Logic
metadata.event_type The metadata.event_type UDM field is set to GENERIC_EVENT.
metadata.product_name The metadata.product_name UDM field is set to Zeek.
ip_version (integer - count) about.labels [ip_version]
v (string - addr) about.ip
side (string) about.labels [side]
component_id (integer - count) additional.fields [component_id]
round (integer - count) additional.fields [round]

필드 매핑 참조: CORELIGHT - local_subnets_graphs

다음 표에는 local_subnets_graphs 로그 유형의 로그 필드와 해당 UDM 필드가 나와 있습니다.

Log field UDM mapping Logic
metadata.event_type The metadata.event_type UDM field is set to GENERIC_EVENT.
metadata.product_name The metadata.product_name UDM field is set to Zeek.
ip_version (integer - count) about.labels [ip_version]
v1 (string - addr) about.ip
v2 (string - addr) about.ip

필드 매핑 참조: CORELIGHT - syslog

다음 표에는 syslog 로그 유형의 로그 필드와 해당 UDM 필드가 나와 있습니다.

Log field UDM mapping Logic
metadata.product_name The metadata.product_name UDM field is set to Zeek.
metadata.event_type The metadata.event_type UDM field is set to STATUS_UPDATE.
proto (string - enum) network.ip_protocol
facility (string) about.labels [facility]
severity (string) about.labels [severity]
message (string) metadata.description

필드 매핑 참조: CORELIGHT - tds

다음 표에는 tds 로그 유형의 로그 필드와 해당 UDM 필드가 나와 있습니다.

Log field UDM mapping Logic
metadata.product_name The metadata.product_name UDM field is set to Zeek.
metadata.event_type The metadata.event_type UDM field is set to NETWORK_UNCATEGORIZED.
command (string) principal.process.command_line

필드 매핑 참조: CORELIGHT - tds_rpc

다음 표에는 tds_rpc 로그 유형의 로그 필드와 해당 UDM 필드가 나와 있습니다.

Log field UDM mapping Logic
metadata.product_name The metadata.product_name UDM field is set to Zeek.
metadata.event_type The metadata.event_type UDM field is set to NETWORK_UNCATEGORIZED.
procedure_name (string) about.labels [procedure_name]
parameters (array[string] - vector of string) about.labels [parameter]

필드 매핑 참조: CORELIGHT - tds_sql_batch

다음 표에는 tds_sql_batch 로그 유형의 로그 필드와 해당 UDM 필드가 나와 있습니다.

Log field UDM mapping Logic
metadata.product_name The metadata.product_name UDM field is set to Zeek.
metadata.event_type The metadata.event_type UDM field is set to STATUS_UPDATE.
target.resource.resource_type The target.resource.resource_type UDM field is set to DATABASE.
header_type (string) target.resource.attribute.labels [header_type]
query (string) target.resource.attribute.labels [query]

필드 매핑 참조: CORELIGHT - traceroute

다음 표에는 traceroute 로그 유형의 로그 필드와 해당 UDM 필드가 나와 있습니다.

Log field UDM mapping Logic
metadata.product_name The metadata.product_name UDM field is set to Zeek.
metadata.event_type The metadata.event_type UDM field is set to NETWORK_UNCATEGORIZED.
src (string - addr) principal.ip
dst (string - addr) target.ip
proto (string) network.ip_protocol

필드 매핑 참조: CORELIGHT - tunnel

다음 표에는 tunnel 로그 유형의 로그 필드와 해당 UDM 필드가 나와 있습니다.

Log field UDM mapping Logic
metadata.product_name The metadata.product_name UDM field is set to Zeek.
metadata.event_type The metadata.event_type UDM field is set to NETWORK_CONNECTION.
tunnel_type (string - enum) intermediary.labels [tunnel_type]
action (string - enum) security_result.action_details
security_result.description The security_result.description UDM field is set with action, tunnel_type log fields as "action action on tunnel type tunnel_type".

필드 매핑 참조: CORELIGHT - weird, weird_red, weird_agg

다음 표에는 weird, weird_red, weird_agg 로그 유형의 로그 필드와 해당 UDM 필드가 나와 있습니다.

Log field UDM mapping Logic
metadata.product_name The metadata.product_name UDM field is set to Zeek.
metadata.event_type The metadata.event_type UDM field is set to NETWORK_UNCATEGORIZED.
name (string) about.labels [name]
addl (string) about.labels [addl]
notice (boolean - bool) about.labels [notice]
source (string) about.labels [source]
peer (string) about.labels [peer]

필드 매핑 참조: CORELOW - wireguard

다음 표에는 wireguard 로그 유형의 로그 필드와 해당 UDM 필드가 나와 있습니다.

Log field UDM mapping Logic
metadata.product_name The metadata.product_name UDM field is set to Zeek.
metadata.event_type The metadata.event_type UDM field is set to NETWORK_CONNECTION.
established (boolean - bool) about.labels [established]
initiations (integer - count) about.labels [initiations]
responses (integer - count) about.labels [responses]

필드 매핑 참조: CORELIGHT - vpn

다음 표에는 vpn 로그 유형의 로그 필드와 해당 UDM 필드가 나와 있습니다.

Log field UDM mapping Logic
metadata.event_type The metadata.event_type UDM field is set to NETWORK_CONNECTION.
metadata.product_name The metadata.product_name UDM field is set to Zeek.
proto (string - enum) network.ip_protocol
vpn_type (string - enum) about.labels [vpn_type]
service (string) target.application
inferences (array[string] - set[string]) about.labels [inference]
server_name (string) network.tls.client.server_name
client_info (string) principal.labels [client_info]
duration (number - interval) network.session_duration
orig_bytes (integer - count) network.sent_bytes
resp_bytes (integer - count) network.received_bytes
orig_cc (string) principal.location.country_or_region
orig_region (string) principal.location.country_or_region
orig_city (string) principal.location.city
resp_cc (string) target.location.country_or_region
resp_region (string) target.location.country_or_region
resp_city (string) target.location.city
subject (string) network.tls.client.certificate.subject
issuer (string) network.tls.client.certificate.issuer
ja3 (string) network.tls.client.ja3
ja3s (string) network.tls.server.ja3s

필드 매핑 참조: CORELIGHT - x509, x509_red

다음 표에는 x509, x509_red 로그 유형의 로그 필드와 해당 UDM 필드가 나와 있습니다.

Log field UDM mapping Logic
metadata.event_type The metadata.event_type UDM field is set to GENERIC_EVENT.
metadata.product_name The metadata.product_name UDM field is set to Zeek.
fingerprint (string) about.labels [fingerprint]
certificate.version (integer - count) network.tls.server.certificate.version
certificate.serial (string) network.tls.server.certificate.serial
certificate.subject (string) network.tls.server.certificate.subject
certificate.issuer (string) network.tls.server.certificate.issuer
certificate.not_valid_before (time) network.tls.server.certificate.not_before
certificate.not_valid_after (time) network.tls.server.certificate.not_after
certificate.key_alg (string) about.labels [certificate_key_alg]
certificate.sig_alg (string) about.labels [certificate_sig_alg]
certificate.key_type (string) about.labels [certificate_key_type]
certificate.key_length (integer - count) about.labels [certificate_key_length]
certificate.exponent (string) about.labels [certificate_exponent]
certificate.curve (string) network.tls.curve
san.dns (array[string] - vector of string) about.labels [san_dns]
san.uri (array[string] - vector of string) about.url
san.email (array[string] - vector of string) about.labels [san_email]
san.ip (array[string] - vector of addr) about.ip
basic_constraints.ca (boolean - bool) about.labels [basic_constraints_ca]
basic_constraints.path_len (integer - count) about.labels [basic_constraints_path_len]
host_cert (boolean - bool) about.labels [host_cert]
client_cert (boolean - bool) about.labels [client_cert]
vlan (integer - int) additional.fields [vlan]
vlan_inner (integer - int) additional.fields [vlan_inner]

필드 매핑 참조: CORELIGHT - unknown-smartpcap

다음 표에는 unknown-smartpcap 로그 유형의 로그 필드와 해당 UDM 필드가 나와 있습니다.

Log field UDM mapping Logic
metadata.event_type The metadata.event_type UDM field is set to GENERIC_EVENT.
metadata.product_name The metadata.product_name UDM field is set to Smartpcap.
tid (string) about.labels [tid]
pkts (integer - count) about.labels [pkts]
url (string) security_result.url_back_to_product

필드 매핑 참조: CORELIGHT - mysql

다음 표에는 mysql 로그 유형의 로그 필드와 해당 UDM 필드가 나와 있습니다.

Log field UDM mapping Logic
metadata.event_type The metadata.event_type UDM field is set to USER_RESOURCE_ACCESS.
metadata.product_name The metadata.product_name UDM field is set to Zeek.
cmd (string) target.resource.attribute.labels [cmd]
arg (string) principal.process.command_line
success (boolean - bool) target.resource.attribute.labels [success]
rows (integer - count) target.resource.attribute.labels [rows]
response (string) target.resource.attribute.labels [response]
target.resource.resource_type The target.resource.resource_type UDM field is set to DATABASE.

필드 매핑 참조: CORELIGHT - napatech_shunting

다음 표에는 napatech_shunting 로그 유형의 로그 필드와 해당 UDM 필드가 나와 있습니다.

Log field UDM mapping Logic
metadata.event_type The metadata.event_type UDM field is set to GENERIC_EVENT.
metadata.product_name The metadata.product_name UDM field is set to Zeek.
peer (string) about.labels [peer]
terminated_flows (integer - count) about.labels [terminated_flows]
shunted_flows (integer - count) security_result.detection_fields [shunted_flows]

필드 매핑 참조: CORELIGHT - ntlm

다음 표에는 ntlm 로그 유형의 로그 필드와 해당 UDM 필드가 나와 있습니다.

Log field UDM mapping Logic
metadata.event_type The metadata.event_type UDM field is set to USER_LOGIN.
metadata.product_name The metadata.product_name UDM field is set to Zeek.
username (string) target.user.userid
hostname (string) principal.hostname
domainname (string) principal.domain.name
server_nb_computer_name (string) target.hostname
server_dns_computer_name (string) target.domain.name
server_tree_name (string) target.labels [server_tree_name]
success (boolean - bool) extensions.auth.auth_details If the success log field value is equal to true, then the extensions.auth.auth_details UDM field is set to Authentication successful.

Else, the extensions.auth.auth_details UDM field is set to Authentication failed.

필드 매핑 참조: CORELIGHT - pe

다음 표에는 pe 로그 유형의 로그 필드와 해당 UDM 필드가 나와 있습니다.

Log field UDM mapping Logic
metadata.event_type The metadata.event_type UDM field is set to GENERIC_EVENT.
metadata.product_name The metadata.product_name UDM field is set to Zeek.
id (string) about.labels [id]
machine (string) target.labels [machine]
compile_ts (time) about.labels [compile_ts]
os (string) target.platform If the os log field value is equal to windows, then the target.platform UDM field is set to WINDOWS.

Else, if is equal to linux, then the target.platform UDM field is set to LINUX.

Else, if the os log field value is equal to mac or the os log field value is equal to osx, then the target.platform UDM field is set to MAC.
subsystem (string) target.application
is_exe (boolean - bool) about.file.file_type If the is_exe log field value is equal to true, then the about.file.file_type UDM field is set to FILE_TYPE_PE_EXE.
is_64bit (boolean - bool) about.labels [is_64bit]
uses_aslr (boolean - bool) about.labels [uses_aslr]
uses_dep (boolean - bool) about.labels [uses_dep]
uses_code_integrity (boolean - bool) about.labels [uses_code_integrity]
uses_seh (boolean - bool) about.labels [uses_seh ]
has_import_table (boolean - bool) about.labels [has_import_table]
has_export_table (boolean - bool) about.labels [has_export_table]
has_cert_table (boolean - bool) about.labels [has_cert_table]
has_debug_data (boolean - bool) about.labels [has_debug_data]
section_names (array[string] - vector of string) about.labels [section_names]

필드 매핑 참조: CORELIGHT - ntp

다음 표에는 ntp 로그 유형의 로그 필드와 해당 UDM 필드가 나와 있습니다.

Log field UDM mapping Logic
metadata.event_type The metadata.event_type UDM field is set to NETWORK_UNCATEGORIZED.
metadata.product_name The metadata.product_name UDM field is set to Zeek.
network.application_protocol The network.application_protocol UDM field is set to NTP.
network.ip_protocol The network.ip_protocol UDM field is set to UDP.
version (integer - count) network.application_protocol_version
mode (integer - count) about.labels [mode]
stratum (integer - count) about.labels [stratum]
poll (number - interval) about.labels [poll]
precision (number - interval) about.labels [precision]
root_delay (number - interval) about.labels [root_delay]
root_disp (number - interval) about.labels [root_disp]
ref_id (string) target.ip If the ref_idlog field value is matched with regex of IP, then the ref_idlog field is mapped to the target.ip UDM field.

Else, the ref_idlog field is mapped to the target.labels UDM field.
ref_id (string) target.labels [ref_id] If the ref_idlog field value is matched with regex of IP, then the ref_idlog field is mapped to the target.ip UDM field.

Else, the ref_idlog field is mapped to the target.labels UDM field.
ref_time (time) about.labels [ref_time]
org_time (time) about.labels [org_time]
rec_time (time) about.labels [rec_time]
xmt_time (time) about.labels [rec_time]
num_exts (integer - count) about.labels [num_exts]

필드 매핑 참조: CORELIGHT - radius

다음 표에는 radius 로그 유형의 로그 필드와 해당 UDM 필드가 나와 있습니다.

Log field UDM mapping Logic
metadata.event_type The metadata.event_type UDM field is set to USER_LOGIN.
metadata.product_name The metadata.product_name UDM field is set to Zeek.
username (string) target.user.userid
mac (string) principal.mac
framed_addr (string - addr) intermediary.ip
tunnel_client (string) intermediary.ip If the tunnel_client log field value is matched with regex of IP, then the tunnel_client log field is mapped to the intermediary.ip UDM field.

Else, the tunnel_client log field is mapped to the intermediary.domain.name UDM field.
tunnel_client (string) intermediary.domain.name If the tunnel_client log field value is matched with regex of IP, then the tunnel_client log field is mapped to the intermediary.ip UDM field.

Else, the tunnel_client log field is mapped to the intermediary.domain.name UDM field.
connect_info (string) about.labels [connect_info]
reply_msg (string) about.labels [reply_msg]
result (string) extensions.auth.auth_details
ttl (number - interval) network.session_duration

필드 매핑 참조: CORELIGHT - reporter

다음 표에는 reporter 로그 유형의 로그 필드와 해당 UDM 필드가 나와 있습니다.

Log field UDM mapping Logic
metadata.event_type The metadata.event_type UDM field is set to GENERIC_EVENT.
metadata.product_name The metadata.product_name UDM field is set to Zeek.
level (string - enum) security_result.severity If the level log field value is equal to CRITICAL or ERROR or HIGH or INFORMATIONAL or LOW or MEDIUM, then the level log field is mapped to the security_result.severity UDM field.
level (string - enum) security_result.severity_details
message (string) security_result.description
location (string) about.labels [location]

필드 매핑 참조: CORELIGHT - log4shell

다음 표에는 log4shell 로그 유형의 로그 필드와 해당 UDM 필드가 나와 있습니다.

Log field UDM mapping Logic
metadata.event_type The metadata.event_type UDM field is set to SCAN_HOST.
metadata.product_name The metadata.product_name UDM field is set to Zeek.
extensions.vulns.vulnerabilities.cve_id The extensions.vulns.vulnerabilities.cve_id UDM field is set to CVE-2021-44228.
http_uri (string) about.labels [http_uri]
uri (string) target.url
stem (string) target.labels [stem]
target_host (string) target.hostname
target_port (string) target.port
method (string) network.http.method
is_orig (boolean - bool) about.labels [is_orig]
name (string) about.labels.key
value (string) about.labels.value
matched_name (boolean - bool) about.labels [matched_name]
matched_value (boolean - bool) about.labels [matched_value]

필드 매핑 참조: CORELIGHT - modbus

다음 표에는 modbus 로그 유형의 로그 필드와 해당 UDM 필드가 나와 있습니다.

Log field UDM mapping Logic
metadata.event_type The metadata.event_type UDM field is set to NETWORK_UNCATEGORIZED.
metadata.product_name The metadata.product_name UDM field is set to Zeek.
network.application_protocol The network.application_protocol UDM field is set to MODBUS.
func (string) about.labels [func]
exception (string) security_result.description
pdu_type (string) additional.fields [pdu_type]
tid (integer - count) additional.fields [tid]
unit (integer - count) additional.fields [unit]

필드 매핑 참조: CORELIGHT - mqtt_connect

다음 표에는 mqtt_connect 로그 유형의 로그 필드와 해당 UDM 필드가 나와 있습니다.

Log field UDM mapping Logic
metadata.event_type The metadata.event_type UDM field is set to NETWORK_CONNECTION.
metadata.product_name The metadata.product_name UDM field is set to Zeek.
network.application_protocol The network.application_protocol UDM field is set to MQTT.
proto_name (string) about.labels [proto_name]
proto_version (string) network.application_protocol_version
client_id (string) principal.labels [client_id]
connect_status (string) security_result.description
will_topic (string) about.labels [will_topic]
will_payload (string) about.labels [will_payload]

필드 매핑 참조: CORELIGHT - mqtt_publish

다음 표에는 mqtt_publish 로그 유형의 로그 필드와 해당 UDM 필드가 나와 있습니다.

Log field UDM mapping Logic
metadata.event_type The metadata.event_type UDM field is set to NETWORK_UNCATEGORIZED.
metadata.product_name The metadata.product_name UDM field is set to Zeek.
network.application_protocol The network.application_protocol UDM field is set to MQTT.
from_client (boolean - bool) about.labels [from_client]
retain (boolean - bool) target.labels [retain]
qos (string) about.labels [qos]
status (string) security_result.description
topic (string) about.labels [topic]
payload (string) about.labels [payload]
payload_len (integer - count) about.labels [payload_len]

필드 매핑 참조: CORELIGHT - mqtt_subscribe

다음 표에는 mqtt_subscribe 로그 유형의 로그 필드와 해당 UDM 필드가 나와 있습니다.

Log field UDM mapping Logic
metadata.event_type The metadata.event_type UDM field is set to NETWORK_UNCATEGORIZED.
metadata.product_name The metadata.product_name UDM field is set to Zeek.
network.application_protocol The network.application_protocol UDM field is set to MQTT.
action (string - enum) security_result.action_details
topics (array[string] - vector of string) about.labels [topics]
qos_levels (array[integer] - vector of count) about.labels [qos_levels]
granted_qos_level (integer - count) about.labels [granted_qos_level]
ack (boolean - bool) security_result.detection_fields [ack]

필드 매핑 참조: CORELIGHT - dpd

다음 표에는 dpd 로그 유형의 로그 필드와 해당 UDM 필드가 나와 있습니다.

Log field UDM mapping Logic
metadata.event_type The metadata.event_type UDM field is set to NETWORK_UNCATEGORIZED.
metadata.product_name The metadata.product_name UDM field is set to Zeek.
proto (string - enum) network.ip_protocol
analyzer (string) about.labels [analyzer]
failure_reason (string) about.labels [failure_reason]

필드 매핑 참조: CORELIGHT - encrypted_dns

다음 표에는 encrypted_dns 로그 유형의 로그 필드와 해당 UDM 필드가 나와 있습니다.

Log field UDM mapping Logic
metadata.event_type The metadata.event_type UDM field is set to GENERIC_EVENT.
metadata.product_name The metadata.product_name UDM field is set to Zeek.
network.application_protocol The network.application_protocol UDM field is set to DNS.
resp_h (string - addr) target.ip
cert.cn (string) about.labels [cert_cn]
cert.sans (array[string] - set[string]) about.labels [cert_sans]
sni (string) network.tls.client.server_name
match (string) about.labels [match]

필드 매핑 참조: CORELIGHT - enip

다음 표에는 enip 로그 유형의 로그 필드와 해당 UDM 필드가 나와 있습니다.

Log field UDM mapping Logic
metadata.event_type The metadata.event_type UDM field is set to NETWORK_UNCATEGORIZED.
metadata.product_name The metadata.product_name UDM field is set to Zeek.
command (string) principal.process.command_line
length (integer - count) about.labels [length]
session_handle (string) network.session_id
status (string) about.labels [status]
sender_context (string) about.labels [sender_context]
options (string) about.labels [options]
enip_command (string) additional.fields [enip_command]
enip_command_code (string) additional.fields [enip_command_code]
enip_status (string) additional.fields [enip_status]
is_orig (boolean - bool) additional.fields [is_orig]

필드 매핑 참조: CORELIGHT - enip_debug

다음 표에는 enip_debug 로그 유형의 로그 필드와 해당 UDM 필드가 나와 있습니다.

Log field UDM mapping Logic
metadata.event_type The metadata.event_type UDM field is set to STATUS_UPDATE.
metadata.product_name The metadata.product_name UDM field is set to Zeek.
raw_data (string) about.labels [raw_data]

필드 매핑 참조: CORELIGHT - enip_list_identity

다음 표에는 enip_list_identity 로그 유형의 로그 필드와 해당 UDM 필드가 나와 있습니다.

Log field UDM mapping Logic
metadata.event_type The metadata.event_type UDM field is set to NETWORK_UNCATEGORIZED.
metadata.product_name The metadata.product_name UDM field is set to Zeek.
device_type (string) target.asset.attribute.labels [device_type]
vendor (string) target.asset.hardware.manufacturer
product_name (string) target.asset.attribute.labels [product_name]
serial_number (string) target.asset.asset_id The target.asset.asset_id UDM field is set with serial_number log fields as "CORELIGHT: serial_number".
product_code (integer - count) target.asset.attribute.labels [product_code]
revision (number - double) target.asset.attribute.labels [revision]
status (string) about.labels [status]
state (string) target.asset.attribute.labels [state]
device_ip (string - addr) target.asset.ip

필드 매핑 참조: CORELIGHT - etc_viz

다음 표에는 etc_viz 로그 유형의 로그 필드와 해당 UDM 필드가 나와 있습니다.

Log field UDM mapping Logic
metadata.event_type The metadata.event_type UDM field is set to GENERIC_EVENT.
metadata.product_name The metadata.product_name UDM field is set to Zeek.
server_a (string - addr) target.ip
server_p (integer - port) target.port
service (array[string] - set[string]) target.application The service log field is mapped to target.application UDM field when index value in service is equal to 0.

For every other index value, target.labels.key UDM field is set to service and service log field is mapped to the target.labels.value.
viz_stat (string) about.labels [viz_stat]
c2s_viz.size (integer - count) about.labels [c2s_viz_size]
c2s_viz.enc_dev (number - double) about.labels [c2s_viz_enc_dev]
c2s_viz.enc_frac (number - double) about.labels [c2s_viz_enc_frac]
c2s_viz.pdu1_enc (boolean - bool) about.labels [c2s_viz_pdu1_enc]
c2s_viz.clr_frac (number - double) about.labels [c2s_viz_clr_frac]
c2s_viz.clr_ex (string) about.labels [c2s_viz_clr_ex]
s2c_viz.size (integer - count) about.labels [s2c_viz_size]
s2c_viz.enc_dev (number - double) about.labels [s2c_viz_enc_dev]
s2c_viz.enc_frac (number - double) about.labels [s2c_viz_enc_frac]
s2c_viz.pdu1_enc (boolean - bool) about.labels [s2c_viz_pdu1_enc]
s2c_viz.clr_frac (number - double) about.labels [s2c_viz_clr_frac]
s2c_viz.clr_ex (string) about.labels [s2c_viz_clr_ex]

필드 매핑 참조: CORELIGHT - ftp

다음 표에는 ftp 로그 유형의 로그 필드와 해당 UDM 필드가 나와 있습니다.

Log field UDM mapping Logic
metadata.event_type The metadata.event_type UDM field is set to NETWORK_FTP.
metadata.product_name The metadata.product_name UDM field is set to Zeek.
user (string) principal.user.user_display_name
password (string) extensions.auth.auth_details
command (string), arg (string) network.ftp.command The network.ftp.command UDM field is set with command, arg log fields as "command arg".
mime_type (string) target.file.mime_type
file_size (integer - count) target.file.size
reply_code (integer - count) about.labels [reply_code]
reply_msg (string) about.labels [reply_msg]
data_channel.passive (boolean - bool) about.labels [data_channel_passive]
data_channel.orig_h (string - addr) principal.ip
data_channel.resp_h (string - addr) target.ip
data_channel.resp_p (integer - port) target.labels [data_channel_resp_p]
fuid (string) about.labels [fuid]

필드 매핑 참조: CORELIGHT - generic_dns_tunnels

다음 표에는 generic_dns_tunnels 로그 유형의 로그 필드와 해당 UDM 필드가 나와 있습니다.

Log field UDM mapping Logic
metadata.event_type The metadata.event_type UDM field is set to NETWORK_DNS.
metadata.product_name The metadata.product_name UDM field is set to Zeek.
network.application_protocol The network.application_protocol UDM field is set to DNS.
dns_client (string - addr) principal.ip
domain (string) network.dns_domain
domain (string) network.dns.questions.name
bytes (integer - int) about.labels [bytes]
capture_secs (number - interval) about.labels [capture_secs]

필드 매핑 참조: CORELIGHT - generic_icmp_tunnels

다음 표에는 generic_icmp_tunnels 로그 유형의 로그 필드와 해당 UDM 필드가 나와 있습니다.

Log field UDM mapping Logic
metadata.event_type The metadata.event_type UDM field is set to NETWORK_UNCATEGORIZED.
metadata.product_name The metadata.product_name UDM field is set to Zeek.
network.ip_protocol The network.ip_protocol UDM field is set to ICMP.
detection (string) security_result.detection_fields [detection]
orig (string - addr) principal.ip
resp (string - addr) target.ip
id (integer - count) about.labels [id]
seq (integer - count) about.labels [seq]
bytes (integer - count) about.labels [bytes]
payload_len (integer - count) about.labels [payload_len]
payload (string) about.labels [payload]

필드 매핑 참조: CORELIGHT - icmp_specific_tunnels

다음 표에는 icmp_specific_tunnels 로그 유형의 로그 필드와 해당 UDM 필드가 나와 있습니다.

Log field UDM mapping Logic
metadata.event_type The metadata.event_type UDM field is set to NETWORK_UNCATEGORIZED.
metadata.product_name The metadata.product_name UDM field is set to Zeek.
network.ip_protocol The network.ip_protocol UDM field is set to ICMP.
start_time (time) about.labels [start_time]
duration (number - interval) network.session_duration
tunnel (string) intermediary.labels [tunnel]
seq (integer - count) about.labels [seq]
icmp_id (integer - count) about.labels [icmp_id]
payload (string) about.labels [payload]

필드 매핑 참조: CORELIGHT - ipsec

다음 표에는 ipsec 로그 유형의 로그 필드와 해당 UDM 필드가 나와 있습니다.

Log field UDM mapping Logic
metadata.event_type The metadata.event_type UDM field is set to NETWORK_UNCATEGORIZED.
metadata.product_name The metadata.product_name UDM field is set to Zeek.
initiator_spi (string) principal.labels [initiator_spi]
responder_spi (string) target.labels [responder_spi]
maj_ver (integer - count) about.labels [maj_ver]
min_ver (integer - count) about.labels [min_ver]
exchange_type (integer - count) about.labels [exchange_type]
flag_e (boolean - bool) about.labels [flag_e]
flag_c (boolean - bool) about.labels [flag_c]
flag_a (boolean - bool) about.labels [flag_a]
flag_i (boolean - bool) about.labels [flag_i]
flag_v (boolean - bool) about.labels [flag_v]
flag_r (boolean - bool) about.labels [flag_r]
message_id (integer - count) about.labels [message_id]
vendor_ids (array[string] - vector of string) about.labels [vendor_id]
notify_messages (array[string] - vector of string) about.labels [notify_message]
transforms (array[string] - vector of string) about.labels [transform]
ke_dh_groups (array[integer] - vector of count) about.labels [ke_dh_group]
proposals (array[integer] - vector of count) about.labels [proposal]
protocol_id (integer - count) about.labels [protocol_id]
certificates (array[string] - vector of string) about.labels [certificate]
transform_attributes (array[string] - vector of string) about.labels [transform_attribute]
length (integer - count) about.labels [length]
hash (string) about.labels [hash]
doi (integer - count) about.labels [doi]
situation (string) about.labels [situation]
is_orig (boolean - bool) additional.fields [is_orig]

필드 매핑 참조: CORELIGHT - profinet

다음 표에는 profinet 로그 유형의 로그 필드와 해당 UDM 필드가 나와 있습니다.

Log field UDM mapping Logic
metadata.event_type The metadata.event_type UDM field is set to NETWORK_UNCATEGORIZED.
metadata.product_name The metadata.product_name UDM field is set to Zeek.
operation_type (string) about.labels [operation_type]
block_version (string) about.labels [block_version]
slot_number (integer - count) about.labels [slot_number]
subslot_number (integer - count) about.labels [subslot_number]
index (string) about.labels [index]

필드 매핑 참조: CORELIGHT - profinet_dce_rpc

다음 표에는 profinet_dce_rpc 로그 유형의 로그 필드와 해당 UDM 필드가 나와 있습니다.

Log field UDM mapping Logic
metadata.event_type The metadata.event_type UDM field is set to NETWORK_UNCATEGORIZED.
metadata.product_name The metadata.product_name UDM field is set to Zeek.
network.application_protocol The network.application_protocol UDM field is set to DCERPC.
version (integer - count) about.labels [version]
packet_type (integer - count) about.labels [packet_type]
object_uuid (string) about.labels [object_uuid]
interface_uuid (string) about.labels [interface_uuid]
activity_uuid (string) about.labels [activity_uuid]
server_boot_time (integer - count) about.labels [server_boot_time]
operation (string) about.labels [operation]

필드 매핑 참조: CORELIGHT - profinet_debug

다음 표에는 profinet_debug 로그 유형의 로그 필드와 해당 UDM 필드가 나와 있습니다.

Log field UDM mapping Logic
metadata.event_type The metadata.event_type UDM field is set to NETWORK_UNCATEGORIZED.
metadata.product_name The metadata.product_name UDM field is set to Zeek.
raw_data (string) about.labels [raw_data]

필드 매핑 참조: CORELIGHT - rfb

다음 표에는 rfb 로그 유형의 로그 필드와 해당 UDM 필드가 나와 있습니다.

Log field UDM mapping Logic
metadata.event_type The metadata.event_type UDM field is set to NETWORK_UNCATEGORIZED.
metadata.product_name The metadata.product_name UDM field is set to Zeek.
client_major_version (string) principal.labels [client_major_version]
client_minor_version (string) principal.labels [client_minor_version]
server_major_version (string) target.labels [server_major_version]
server_minor_version (string) target.labels [server_minor_version]
authentication_method (string) extension.auth.mechanism If the authentication_method log field value is equal to VNC, then the extension.auth.mechanism UDM field is set to REMOTE_INTERACTIVE.

Else, the extensions.auth.mechanism UDM field is set to MECHANISM_OTHER.
authentication_method (string) extension.auth.auth_details
auth (boolean - bool) security_result.action If the auth log field value is equal to true, then the security_result.action UDM field is set to ALLOW.

Else, the security_result.action UDM field is set to FAIL.
share_flag (boolean - bool) about.labels [share_flag]
desktop_name (string) principal.labels [desktop_name]
width (integer - count) principal.labels [width]
height (integer - count) principal.labels [height]

필드 매핑 참조: CORELIGHT - known_certs

다음 표에는 known_certs 로그 유형의 로그 필드와 해당 UDM 필드가 나와 있습니다.

Log field UDM mapping Logic
metadata.product_name The metadata.product_name UDM field is set to Zeek.
metadata.entity_type The metadata.entity_type UDM field is set to RESOURCE.
entity.resource.resource_subtype The entity.resource.resource_subtype UDM field is set to CERTIFICATE.
ts (time) metadata.interval.start_time
duration (number - interval) entity.labels [duration]
kuid (string) entity.labels [kuid]
host_ip (string - addr) entity.ip
hash (string) entity.resource.attribute.labels [hash]
port (integer - port) entity.port
protocol (string - enum) entity.labels [protocol]
serial (string) entity.resource.attribute.labels [serial]
subject (string) entity.resource.attribute.labels [subject]
issuer_subject (string) entity.resource.attribute.labels [issuer_subject]
num_conns (integer - count) metadata.threat.detection_fields [num_conns]
annotations (array[string] - vector of string) metadata.threat.detection_fields [annotations]
last_active_session (string) entity.labels [last_active_session]
last_active_interval (number - interval) entity.labels [last_active_interval]
host_inner_vlan (integer - int) additional.fields [host_inner_vlan]
host_vlan (integer - int) additional.fields [host_vlan]
long_conns (integer - count) metadata.threat.detection_fields [long_conns]
port_num (integer - port) entity.port

필드 매핑 참조: CORELIGHT - known_devices

다음 표에는 known_devices 로그 유형의 로그 필드와 해당 UDM 필드가 나와 있습니다.

Log field UDM mapping Logic
metadata.product_name The metadata.product_name UDM field is set to Zeek.
metadata.entity_type The metadata.entity_type UDM field is set to RESOURCE.
ts (time) metadata.interval.start_time
ts (time) entity.asset.first_seen_time
duration (number - interval) entity.labels [duration]
kuid (string) entity.labels [kuid]
host_ip (string - addr) entity.asset.ip
mac (string) entity.asset.mac
vendor_mac (string) entity.asset.hardware.manufacturer
protocols (array[string] - set[string]) entity.labels [protocol]
num_conns (integer - count) metadata.threat.detection_fields [num_conns]
annotations (array[string] - vector of string) metadata.threat.detection_fields [annotations]
last_active_session (string) entity.labels [last_active_session]
last_active_interval (number - interval) entity.labels [last_active_interval]
host_inner_vlan (integer - int) additional.fields [host_inner_vlan]
host_vlan (integer - int) additional.fields [host_vlan]
long_conns (integer - count) metadata.threat.detection_fields [long_conns]

필드 매핑 참조: CORELIGHT - known_domains

다음 표에는 known_domains 로그 유형의 로그 필드와 해당 UDM 필드가 나와 있습니다.

Log field UDM mapping Logic
metadata.product_name The metadata.product_name UDM field is set to Zeek.
metadata.entity_type The metadata.entity_type UDM field is set to DOMAIN_NAME.
ts (time) metadata.interval.start_time
ts (time) entity.domain.first_seen_time
duration (number - interval) entity.labels [duration]
kuid (string) entity.labels [kuid]
host_ip (string - addr) entity.ip
domain (string) entity.domain.name
protocols (array[string] - set[string]) entity.labels [protocol]
num_conns (integer - count) metadata.threat.detection_fields [num_conns]
annotations (array[string] - vector of string) metadata.threat.detection_fields [annotations]
last_active_session (string) entity.labels [last_active_session]
last_active_interval (number - interval) entity.labels [last_active_interval]
host_inner_vlan (integer - int) additional.fields [host_inner_vlan]
host_vlan (integer - int) additional.fields [host_vlan]
long_conns (integer - count) metadata.threat.detection_fields [long_conns]

필드 매핑 참조: CORELIGHT - known_hosts

다음 표에는 known_hosts 로그 유형의 로그 필드와 해당 UDM 필드가 나와 있습니다.

Log field UDM mapping Logic
metadata.product_name The metadata.product_name UDM field is set to Zeek.
metadata.entity_type The metadata.entity_type UDM field is set to IP_ADDRESS.
ts (time) metadata.interval.start_time
duration (number - interval) entity.labels [duration]
kuid (string) entity.labels [kuid]
host_ip (string - addr) entity.ip
conns_opened (integer - count) metadata.threat.detection_fields [conns_opened]
conns_closed (integer - count) metadata.threat.detection_fields [conns_closed]
conns_pending (integer - count) metadata.threat.detection_fields [conns_pending]
long_conns (integer - count) metadata.threat.detection_fields [long_conns]
annotations (array[string] - vector of string) metadata.threat.detection_fields [annotations]
last_active_session (string) entity.labels [last_active_session]
last_active_interval (number - interval) entity.labels [last_active_interval]
ep.cid (string) additional.fields [ep_cid]
ep.criticality (string) entity.security_result.detection_fields[ep_criticality]
ep.desc (string) metadata.description
ep.os_version (string) entity.platform_version
ep.source (string) additional.fields [ep_source]
ep.status (string) additional.fields [ep_status]
ep.uid (string) additional.fields [ep_uid]
host_inner_vlan (integer - int) additional.fields [host_inner_vlan]
host_vlan (integer - int) additional.fields [host_vlan]

필드 매핑 참조: CORELIGHT - known_names

다음 표에는 known_names 로그 유형의 로그 필드와 해당 UDM 필드가 나와 있습니다.

Log field UDM mapping Logic
metadata.product_name The metadata.product_name UDM field is set to Zeek.
metadata.entity_type The metadata.entity_type UDM field is set to RESOURCE.
ts (time) metadata.interval.start_time
duration (number - interval) entity.labels [duration]
kuid (string) entity.labels [kuid]
host_ip (string - addr) entity.ip
hostname (string) entity.hostname
protocols (array[string] - set[string]) entity.labels [protocol]
num_conns (integer - count) metadata.threat.detection_fields [num_conns]
annotations (array[string] - vector of string) metadata.threat.detection_fields [annotations]
last_active_session (string) entity.labels [last_active_session]
last_active_interval (number - interval) entity.labels [last_active_interval]
host_inner_vlan (integer - int) additional.fields [host_inner_vlan]
host_vlan (integer - int) additional.fields [host_vlan]
long_conns (integer - count) metadata.threat.detection_fields [long_conns]

필드 매핑 참조: CORELIGHT - known_remotes

다음 표에는 known_remotes 로그 유형의 로그 필드와 해당 UDM 필드가 나와 있습니다.

Log field UDM mapping Logic
metadata.product_name The metadata.product_name UDM field is set to Zeek.
metadata.entity_type The metadata.entity_type UDM field is set to IP_ADDRESS.
ts (time) metadata.interval.start_time
duration (number - interval) entity.labels [duration]
kuid (string) entity.labels [kuid]
host_ip (string - addr) entity.ip
num_conns (integer - count) metadata.threat.detection_fields [num_conns]
annotations (array[string] - vector of string) metadata.threat.detection_fields [annotations]
host_inner_vlan (integer - int) additional.fields [host_inner_vlan]
host_vlan (integer - int) additional.fields [host_vlan]
long_conns (integer - count) metadata.threat.detection_fields [long_conns]

필드 매핑 참조: CORELIGHT - known_services

다음 표에는 known_services 로그 유형의 로그 필드와 해당 UDM 필드가 나와 있습니다.

Log field UDM mapping Logic
metadata.product_name The metadata.product_name UDM field is set to Zeek.
metadata.entity_type The metadata.entity_type UDM field is set to RESOURCE.
ts (time) metadata.interval.start_time
duration (number - interval) entity.labels [duration]
kuid (string) entity.labels [kuid]
host_ip (string - addr) entity.ip
port (integer - port) entity.port
protocol (string - enum) entity.labels [protocol]
service (array[string] - vector of string) entity.labels [service]
software (array[string] - set[string]) entity.asset.software.name
app (array[string] - set[string]) entity.application The app log field is mapped to entity.application UDM field when index value in app is equal to 0.

For every other index value, entity.labels.key UDM field is set to app and app log field is mapped to the entity.labels.value.
num_conns (integer - count) metadata.threat.detection_fields [num_conns]
annotations (array[string] - vector of string) metadata.threat.detection_fields [annotations]
last_active_session (string) entity.labels [last_active_session]
last_active_interval (number - interval) entity.labels [last_active_interval]
host_inner_vlan (integer - int) additional.fields [host_inner_vlan]
host_vlan (integer - int) additional.fields [host_vlan]
long_conns (integer - count) metadata.threat.detection_fields [long_conns]
num_conns_complete (integer - count) entity.security_result.detection_fields[num_conns_complete]
num_conns_pending (integer - int) entity.security_result.detection_fields[num_conns_pending]
port_num (integer - port) entity.port

필드 매핑 참조: CORELIGHT - known_users

다음 표에는 known_users 로그 유형의 로그 필드와 해당 UDM 필드가 나와 있습니다.

Log field UDM mapping Logic
metadata.product_name The metadata.product_name UDM field is set to Zeek.
metadata.entity_type The metadata.entity_type UDM field is set to RESOURCE.
ts (time) metadata.interval.start_time
duration (number - interval) entity.labels [duration]
kuid (string) entity.labels [kuid]
host_ip (string - addr) entity.ip
remote_ip (string - addr) entity.ip
user (string) entity.user.user_display_name
protocol (string) entity.labels [protocol]
num_conns (integer - count) metadata.threat.detection_fields [num_conns]
annotations (array[string] - vector of string) metadata.threat.detection_fields [annotations]
last_active_session (string) entity.labels [last_active_session]
last_active_interval (number - interval) entity.labels [last_active_interval]
host_inner_vlan (integer - int) additional.fields [host_inner_vlan]
host_vlan (integer - int) additional.fields [host_vlan]
remote_inner_vlan (integer - int) additional.fields [remote_inner_vlan]
remote_vlan (integer - int) additional.fields [remote_vlan]
long_conns (integer - count) metadata.threat.detection_fields [long_conns]

필드 매핑 참조: CORELIGHT - s7comm

다음 표에는 s7comm 로그 유형의 로그 필드와 해당 UDM 필드가 나와 있습니다.

Log field UDM mapping Logic
metadata.event_type The metadata.event_type UDM field is set to NETWORK_UNCATEGORIZED.
metadata.product_name The metadata.product_name UDM field is set to Zeek.
rosctr (string) about.labels [rosctr]
parameter (array[string] - vector of string) about.labels [parameter]
item_count (integer - count) about.labels [item_count]
data_info (array[string] - vector of string) about.labels [data_info]
error_class (string) additional.fields [error_class]
error_code (string) additional.fields [error_code]
function_code (string) additional.fields [function_code]
function_name (string) additional.fields [function_name]
is_orig (boolean - bool) additional.fields [is_orig]
pdu_reference (integer - count) additional.fields [pdu_reference]
rosctr_code (integer - count) additional.fields [rosctr_code]
rosctr_name (string) additional.fields [rosctr_name]
subfunction_code (string) additional.fields [subfunction_code]
subfunction_name (string) additional.fields [subfunction_name]

필드 매핑 참조: CORELIGHT - smartpcap

다음 표에는 smartpcap 로그 유형의 로그 필드와 해당 UDM 필드가 나와 있습니다.

Log field UDM mapping Logic
metadata.event_type The metadata.event_type UDM field is set to GENERIC_EVENT.
metadata.product_name The metadata.product_name UDM field is set to Smartpcap.
logstr (string) metadata.description

필드 매핑 참조: CORELIGHT - snmp

다음 표에는 snmp 로그 유형의 로그 필드와 해당 UDM 필드가 나와 있습니다.

Log field UDM mapping Logic
metadata.event_type The metadata.event_type UDM field is set to NETWORK_UNCATEGORIZED.
metadata.product_name The metadata.product_name UDM field is set to zeek.
duration (number - interval) network.session_duration
version (string) network.application_protocol_version
community (string) about.labels [community]
get_requests (integer - count) about.labels [get_requests]
get_bulk_requests (integer - count) about.labels [get_bulk_requests]
get_responses (integer - count) about.labels [get_responses]
set_requests (integer - count) about.labels [set_requests]
display_string (string) about.labels [display_string]
up_since (time) about.labels [up_since]

필드 매핑 참조: CORELIGHT - socks

다음 표에는 socks 로그 유형의 로그 필드와 해당 UDM 필드가 나와 있습니다.

Log field UDM mapping Logic
metadata.event_type The metadata.event_type UDM field is set to NETWORK_CONNECTION.
metadata.product_name The metadata.product_name UDM field is set to zeek.
version (integer - count) about.labels [version]
user (string) principal.user.userid
password (string) extensions.auth.auth_details
status (string) about.labels [status]
request.host (string - addr) target.ip
request.name (string) target.hostname
request_p (integer - port) target.labels [request_p]
bound.host (string - addr) intermediary.ip
bound.name (string) intermediary.hostname
bound_p (integer - port) intermediary.port

필드 매핑 참조: CORELIGHT - software

다음 표에는 software 로그 유형의 로그 필드와 해당 UDM 필드가 나와 있습니다.

Log field UDM mapping Logic
metadata.event_type The metadata.event_type UDM field is set to GENERIC_EVENT.
metadata.product_name The metadata.product_name UDM field is set to zeek.
host (string - addr) target.asset.ip
host_p (integer - port) target.port
software_type (string - enum) target.asset.software.description
name (string) target.asset.software.name
version.major (integer - count) target.asset.software.version
version.minor (integer - count) target.asset.attribute.labels [version_minor]
version.minor2 (integer - count) target.asset.attribute.labels [version_minor2]
version.minor3 (integer - count) target.asset.attribute.labels [version_minor3]
version.addl (string) target.asset.attribute.labels [version_addl]
unparsed_version (string) target.asset.attribute.labels [unparsed_version]

필드 매핑 참조: CORELIGHT - specific_dns_tunnels

다음 표에는 specific_dns_tunnels 로그 유형의 로그 필드와 해당 UDM 필드가 나와 있습니다.

Log field UDM mapping Logic
metadata.event_type The metadata.event_type UDM field is set to NETWORK_DNS.
metadata.product_name The metadata.product_name UDM field is set to zeek.
network.application_protocol The network.application_protocol UDM field is set to DNS.
trans_id (integer - count) network.dns.id
dns_client (string - addr) principal.ip
resolver (string - addr) target.ip
query (string) network.dns.questions.name
program (string - enum) principal.application
session_id (integer - count) network.session_id
detection (string) security_result.detection_fields [detection]
sods_id (integer - count) about.labels [sods_id]

필드 매핑 참조: CORELIGHT - stepping

다음 표에는 stepping 로그 유형의 로그 필드와 해당 UDM 필드가 나와 있습니다.

Log field UDM mapping Logic
metadata.event_type The metadata.event_type UDM field is set to NETWORK_CONNECTION.
metadata.product_name The metadata.product_name UDM field is set to zeek.
dt (number - interval) about.labels [dt]
uid1 (string) about.labels [uid1]
uid2 (string) about.labels [uid2]
direct (boolean - bool) about.labels [direct]
client1_h (string - addr) principal.ip
client1_p (integer - port) principal.port
server1_h (string - addr) target.ip
server1_p (integer - port) target.port
client2_h (string - addr) principal.ip
client2_p (integer - port) principal.labels [client2_p]
server2_h (string - addr) target.labels [server2_h]
server2_p (integer - port) target.labels [server2_p]

필드 매핑 참조: CORELIGHT - stun

다음 표에는 stun 로그 유형의 로그 필드와 해당 UDM 필드가 나와 있습니다.

Log field UDM mapping Logic
metadata.event_type The metadata.event_type UDM field is set to NETWORK_CONNECTION.
metadata.product_name The metadata.product_name UDM field is set to zeek.
proto (string - enum) network.ip_protocol
is_orig (boolean - bool) about.labels [is_orig]
trans_id (string) network.session_id
method (string) about.labels [method]
class (string) about.labels [class]
attr_types (array[string] - vector of string) about.labels.key
attr_vals (array[string] - vector of string) about.labels.value

필드 매핑 참조: CORELIGHT - stun_nat

다음 표에는 stun_nat 로그 유형의 로그 필드와 해당 UDM 필드가 나와 있습니다.

Log field UDM mapping Logic
metadata.event_type The metadata.event_type UDM field is set to NETWORK_CONNECTION.
metadata.product_name The metadata.product_name UDM field is set to zeek.
proto (string - enum) network.ip_protocol
is_orig (boolean - bool) about.labels [is_orig]
wan_addrs (array[string] - vector of addr) principal.nat_ip
wan_ports (array[integer] - vector of count) principal.nat_port The wan_ports log field is mapped to principal.nat_port UDM field when index value in wan_ports is equal to 0.

For every other index value, principal.labels.key UDM field is set to wan_port and wan_ports log field is mapped to the principal.labels.value.
lan_addrs (array[string] - vector of addr) principal.ip

필드 매핑 참조: CORELIGHT - suricata_stats

다음 표에는 suricata_stats 로그 유형의 로그 필드와 해당 UDM 필드가 나와 있습니다.

Log field UDM mapping Logic
metadata.event_type The metadata.event_type UDM field is set to GENERIC_EVENT.
metadata.product_name The metadata.product_name UDM field is set to Suricata.
raw_mgmt about.labels [raw_mgmt]
timestamp(time) metadata.event_timestamp
event_type(string) about.labels [event_type]
stats.uptime(integer) about.labels [stats_uptime]
stats.napa_total.pkts(integer) about.labels [stats_napa_total_pkts]
stats.napa_total.byte(integer) about.labels [stats_napa_total_byte]
stats.napa_total.overflow_drop_pkts(integer) about.labels [stats_napa_total_overflow_drop_pkts]
stats.napa_total.overflow_drop_byte(integer) about.labels [stats_napa_total_overflow_drop_byte]
stats.napa_dispatch_host.pkts(integer) about.labels [stats_napa_dispatch_host_pkts]
stats.napa_dispatch_host.byte(integer) about.labels [stats_napa_dispatch_host_byte]
stats.napa_dispatch_drop.pkts(integer) about.labels [stats_napa_dispatch_drop_pkts]
stats.napa_dispatch_drop.byte(integer) about.labels [stats_napa_dispatch_drop_byte]
stats.decoder.pkts(integer) about.labels [stats_decoder_pkts]
stats.decoder.bytes(integer) about.labels [stats_decoder_bytes]
stats.decoder.invalid(integer) about.labels [stats_decoder_invalid]
stats.decoder.ipv4(integer) about.labels [stats_decoder_ipv4]
stats.decoder.ipv6(integer) about.labels [stats_decoder_ipv6]
stats.decoder.ethernet(integer) about.labels [stats_decoder_ethernet]
stats.decoder.chdlc(integer) about.labels [stats_decoder_chdlc]
stats.decoder.raw(integer) about.labels [stats_decoder_raw]
stats.decoder.null(integer) about.labels [stats_decoder_null]
stats.decoder.sll(integer) about.labels [stats_decoder_sll]
stats.decoder.tcp(integer) about.labels [stats_decoder_tcp]
stats.decoder.udp(integer) about.labels [stats_decoder_udp]
stats.decoder.sctp(integer) about.labels [stats_decoder_sctp]
stats.decoder.icmpv4(integer) about.labels [stats_decoder_icmpv4]
stats.decoder.icmpv6(integer) about.labels [stats_decoder_icmpv6]
stats.decoder.ppp(integer) about.labels [stats_decoder_ppp]
stats.decoder.pppoe(integer) about.labels [stats_decoder_pppoe]
stats.decoder.geneve(integer) about.labels [stats_decoder_geneve]
stats.decoder.gre(integer) about.labels [stats_decoder_gre]
stats.decoder.vlan(integer) about.labels [stats_decoder_vlan]
stats.decoder.vlan_qinq(integer) about.labels [stats_decoder_vlan_qinq]
stats.decoder.vxlan(integer) about.labels [stats_decoder_vxlan]
stats.decoder.vntag(integer) about.labels [stats_decoder_vntag]
stats.decoder.ieee8021ah(integer) about.labels [stats_decoder_ieee8021ah]
stats.decoder.teredo(integer) about.labels [stats_decoder_teredo]
stats.decoder.ipv4_in_ipv6(integer) about.labels [stats_decoder_ipv4_in_ipv6]
stats.decoder.ipv6_in_ipv6(integer) about.labels [stats_decoder_ipv6_in_ipv6]
stats.decoder.mpls(integer) about.labels [stats_decoder_mpls]
stats.decoder.avg_pkt_size(integer) about.labels [stats_decoder_avg_pkt_size]
stats.decoder.max_pkt_size(integer) about.labels [stats_decoder_max_pkt_size]
stats.decoder.max_mac_addrs_src(integer) about.labels [stats_decoder_max_mac_addrs_src]
stats.decoder.max_mac_addrs_dst(integer) about.labels [stats_decoder_max_mac_addrs_dst]
stats.decoder.erspan(integer) about.labels [stats_decoder_erspan]
stats.decoder.event.ipv4.pkt_too_small(integer) about.labels [stats_decoder_event_ipv4_pkt_too_small]
stats.decoder.event.ipv4.hlen_too_small(integer) about.labels [stats_decoder_event_ipv4_hlen_too_small]
stats.decoder.event.ipv4.iplen_smaller_than_hlen(integer) about.labels [stats_decoder_event_ipv4_iplen_smaller_than_hlen]
stats.decoder.event.ipv4.trunc_pkt(integer) about.labels [stats_decoder_event_ipv4_trunc_pkt]
stats.decoder.event.ipv4.opt_invalid(integer) about.labels [stats_decoder_event_ipv4_opt_invalid]
stats.decoder.event.ipv4.opt_invalid_len(integer) about.labels [stats_decoder_event_ipv4_opt_invalid_len]
stats.decoder.event.ipv4.opt_malformed(integer) about.labels [stats_decoder_event_ipv4_opt_malformed]
stats.decoder.event.ipv4.opt_pad_required(integer) about.labels [stats_decoder_event_ipv4_opt_pad_required]
stats.decoder.event.ipv4.opt_eol_required(integer) about.labels [stats_decoder_event_ipv4_opt_eol_required]
stats.decoder.event.ipv4.opt_duplicate(integer) about.labels [stats_decoder_event_ipv4_opt_duplicate]
stats.decoder.event.ipv4.opt_unknown(integer) about.labels [stats_decoder_event_ipv4_opt_unknown]
stats.decoder.event.ipv4.wrong_ip_version(integer) about.labels [stats_decoder_event_ipv4_wrong_ip_version]
stats.decoder.event.ipv4.icmpv6(integer) about.labels [stats_decoder_event_ipv4_icmpv6]
stats.decoder.event.ipv4.frag_pkt_too_large(integer) about.labels [stats_decoder_event_ipv4_frag_pkt_too_large]
stats.decoder.event.ipv4.frag_overlap(integer) about.labels [stats_decoder_event_ipv4_frag_overlap]
stats.decoder.event.ipv4.frag_ignored(integer) about.labels [stats_decoder_event_ipv4_frag_ignored]
stats.decoder.event.icmpv4.pkt_too_small(integer) about.labels [stats_decoder_event_icmpv4_pkt_too_small]
stats.decoder.event.icmpv4.unknown_type(integer) about.labels [stats_decoder_event_icmpv4_unknown_type]
stats.decoder.event.icmpv4.unknown_code(integer) about.labels [stats_decoder_event_icmpv4_unknown_code]
stats.decoder.event.icmpv4.ipv4_trunc_pkt(integer) about.labels [stats_decoder_event_icmpv4_ipv4_trunc_pkt]
stats.decoder.event.icmpv4.ipv4_unknown_ver(integer) about.labels [stats_decoder_event_icmpv4_ipv4_unknown_ver]
stats.decoder.event.icmpv6.unknown_type(integer) about.labels [stats_decoder_event_icmpv6_unknown_type]
stats.decoder.event.icmpv6.unknown_code(integer) about.labels [stats_decoder_event_icmpv6_unknown_code]
stats.decoder.event.icmpv6.pkt_too_small(integer) about.labels [stats_decoder_event_icmpv6_pkt_too_small]
stats.decoder.event.icmpv6.ipv6_unknown_version(integer) about.labels [stats_decoder_event_icmpv6_ipv6_unknown_version]
stats.decoder.event.icmpv6.ipv6_trunc_pkt(integer) about.labels [stats_decoder_event_icmpv6_ipv6_trunc_pkt]
stats.decoder.event.icmpv6.mld_message_with_invalid_hl(integer) about.labels [stats_decoder_event_icmpv6_mld_message_with_invalid_hl]
stats.decoder.event.icmpv6.unassigned_type(integer) about.labels [stats_decoder_event_icmpv6_unassigned_type]
stats.decoder.event.icmpv6.experimentation_type(integer) about.labels [stats_decoder_event_icmpv6_experimentation_type]
stats.decoder.event.ipv6.pkt_too_small(integer) about.labels [stats_decoder_event_ipv6_pkt_too_small]
stats.decoder.event.ipv6.trunc_pkt(integer) about.labels [stats_decoder_event_ipv6_trunc_pkt]
stats.decoder.event.ipv6.trunc_exthdr(integer) about.labels [stats_decoder_event_ipv6_trunc_exthdr]
stats.decoder.event.ipv6.exthdr_dupl_fh(integer) about.labels [stats_decoder_event_ipv6_exthdr_dupl_fh]
stats.decoder.event.ipv6.exthdr_useless_fh(integer) about.labels [stats_decoder_event_ipv6_exthdr_useless_fh]
stats.decoder.event.ipv6.exthdr_dupl_rh(integer) about.labels [stats_decoder_event_ipv6_exthdr_dupl_rh]
stats.decoder.event.ipv6.exthdr_dupl_hh(integer) about.labels [stats_decoder_event_ipv6_exthdr_dupl_hh]
stats.decoder.event.ipv6.exthdr_dupl_dh(integer) about.labels [stats_decoder_event_ipv6_exthdr_dupl_dh]
stats.decoder.event.ipv6.exthdr_dupl_ah(integer) about.labels [stats_decoder_event_ipv6_exthdr_dupl_ah]
stats.decoder.event.ipv6.exthdr_dupl_eh(integer) about.labels [stats_decoder_event_ipv6_exthdr_dupl_eh]
stats.decoder.event.ipv6.exthdr_invalid_optlen(integer) about.labels [stats_decoder_event_ipv6_exthdr_invalid_optlen]
stats.decoder.event.ipv6.wrong_ip_version(integer) about.labels [stats_decoder_event_ipv6_wrong_ip_version]
stats.decoder.event.ipv6.exthdr_ah_res_not_null(integer) about.labels [stats_decoder_event_ipv6_exthdr_ah_res_not_null]
stats.decoder.event.ipv6.hopopts_unknown_opt(integer) about.labels [stats_decoder_event_ipv6_hopopts_unknown_opt]
stats.decoder.event.ipv6.hopopts_only_padding(integer) about.labels [stats_decoder_event_ipv6_hopopts_only_padding]
stats.decoder.event.ipv6.dstopts_unknown_opt(integer) about.labels [stats_decoder_event_ipv6_dstopts_unknown_opt]
stats.decoder.event.ipv6.dstopts_only_padding(integer) about.labels [stats_decoder_event_ipv6_dstopts_only_padding]
stats.decoder.event.ipv6.rh_type_0(integer) about.labels [stats_decoder_event_ipv6_rh_type_0]
stats.decoder.event.ipv6.zero_len_padn(integer) about.labels [stats_decoder_event_ipv6_zero_len_padn]
stats.decoder.event.ipv6.fh_non_zero_reserved_field(integer) about.labels [stats_decoder_event_ipv6_fh_non_zero_reserved_field]
stats.decoder.event.ipv6.data_after_none_header(integer) about.labels [stats_decoder_event_ipv6_data_after_none_header]
stats.decoder.event.ipv6.unknown_next_header(integer) about.labels [stats_decoder_event_ipv6_unknown_next_header]
stats.decoder.event.ipv6.icmpv4(integer) about.labels [stats_decoder_event_ipv6_icmpv4]
stats.decoder.event.ipv6.frag_pkt_too_large(integer) about.labels [stats_decoder_event_ipv6_frag_pkt_too_large]
stats.decoder.event.ipv6.frag_overlap(integer) about.labels [stats_decoder_event_ipv6_frag_overlap]
stats.decoder.event.ipv6.frag_invalid_length(integer) about.labels [stats_decoder_event_ipv6_frag_invalid_length]
stats.decoder.event.ipv6.frag_ignored(integer) about.labels [stats_decoder_event_ipv6_frag_ignored]
stats.decoder.event.ipv6.ipv4_in_ipv6_too_small(integer) about.labels [stats_decoder_event_ipv6_ipv4_in_ipv6_too_small]
stats.decoder.event.ipv6.ipv4_in_ipv6_wrong_version(integer) about.labels [stats_decoder_event_ipv6_ipv4_in_ipv6_wrong_version]
stats.decoder.event.ipv6.ipv6_in_ipv6_too_small(integer) about.labels [stats_decoder_event_ipv6_ipv6_in_ipv6_too_small]
stats.decoder.event.ipv6.ipv6_in_ipv6_wrong_version(integer) about.labels [stats_decoder_event_ipv6_ipv6_in_ipv6_wrong_version]
stats.decoder.event.tcp.pkt_too_small(integer) about.labels [stats_decoder_event_tcp_pkt_too_small]
stats.decoder.event.tcp.hlen_too_small(integer) about.labels [stats_decoder_event_tcp_hlen_too_small]
stats.decoder.event.tcp.invalid_optlen(integer) about.labels [stats_decoder_event_tcp_invalid_optlen]
stats.decoder.event.tcp.opt_invalid_len(integer) about.labels [stats_decoder_event_tcp_opt_invalid_len]
stats.decoder.event.tcp.opt_duplicate(integer) about.labels [stats_decoder_event_tcp_opt_duplicate]
stats.decoder.event.udp.pkt_too_small(integer) about.labels [stats_decoder_event_udp_pkt_too_small]
stats.decoder.event.udp.hlen_too_small(integer) about.labels [stats_decoder_event_udp_hlen_too_small]
stats.decoder.event.udp.hlen_invalid(integer) about.labels [stats_decoder_event_udp_hlen_invalid]
stats.decoder.event.udp.len_invalid(integer) about.labels [stats_decoder_event_udp_len_invalid]
stats.decoder.event.sll.pkt_too_small(integer) about.labels [stats_decoder_event_sll_pkt_too_small]
stats.decoder.event.ethernet.pkt_too_small(integer) about.labels [stats_decoder_event_ethernet_pkt_too_small]
stats.decoder.event.ppp.pkt_too_small(integer) about.labels [stats_decoder_event_ppp_pkt_too_small]
stats.decoder.event.ppp.vju_pkt_too_small(integer) about.labels [stats_decoder_event_ppp_vju_pkt_too_small]
stats.decoder.event.ppp.ip4_pkt_too_small(integer) about.labels [stats_decoder_event_ppp_ip4_pkt_too_small]
stats.decoder.event.ppp.ip6_pkt_too_small(integer) about.labels [stats_decoder_event_ppp_ip6_pkt_too_small]
stats.decoder.event.ppp.wrong_type(integer) about.labels [stats_decoder_event_ppp_wrong_type]
stats.decoder.event.ppp.unsup_proto(integer) about.labels [stats_decoder_event_ppp_unsup_proto]
stats.decoder.event.pppoe.pkt_too_small(integer) about.labels [stats_decoder_event_pppoe_pkt_too_small]
stats.decoder.event.pppoe.wrong_code(integer) about.labels [stats_decoder_event_pppoe_wrong_code]
stats.decoder.event.pppoe.malformed_tags(integer) about.labels [stats_decoder_event_pppoe_malformed_tags]
stats.decoder.event.gre.pkt_too_small(integer) about.labels [stats_decoder_event_gre_pkt_too_small]
stats.decoder.event.gre.wrong_version(integer) about.labels [stats_decoder_event_gre_wrong_version]
stats.decoder.event.gre.version0_recur(integer) about.labels [stats_decoder_event_gre_version0_recur]
stats.decoder.event.gre.version0_flags(integer) about.labels [stats_decoder_event_gre_version0_flags]
stats.decoder.event.gre.version0_hdr_too_big(integer) about.labels [stats_decoder_event_gre_version0_hdr_too_big]
stats.decoder.event.gre.version0_malformed_sre_hdr(integer) about.labels [stats_decoder_event_gre_version0_malformed_sre_hdr]
stats.decoder.event.gre.version1_chksum(integer) about.labels [stats_decoder_event_gre_version1_chksum]
stats.decoder.event.gre.version1_route(integer) about.labels [stats_decoder_event_gre_version1_route]
stats.decoder.event.gre.version1_ssr(integer) about.labels [stats_decoder_event_gre_version1_ssr]
stats.decoder.event.gre.version1_recur(integer) about.labels [stats_decoder_event_gre_version1_recur]
stats.decoder.event.gre.version1_flags(integer) about.labels [stats_decoder_event_gre_version1_flags]
stats.decoder.event.gre.version1_no_key(integer) about.labels [stats_decoder_event_gre_version1_no_key]
stats.decoder.event.gre.version1_wrong_protocol(integer) about.labels [stats_decoder_event_gre_version1_wrong_protocol]
stats.decoder.event.gre.version1_malformed_sre_hdr(integer) about.labels [stats_decoder_event_gre_version1_malformed_sre_hdr]
stats.decoder.event.gre.version1_hdr_too_big(integer) about.labels [stats_decoder_event_gre_version1_hdr_too_big]
stats.decoder.event.vlan.header_too_small(integer) about.labels [stats_decoder_event_vlan_header_too_small]
stats.decoder.event.vlan.unknown_type(integer) about.labels [stats_decoder_event_vlan_unknown_type]
stats.decoder.event.vlan.too_many_layers(integer) about.labels [stats_decoder_event_vlan_too_many_layers]
stats.decoder.event.ieee8021ah.header_too_small(integer) about.labels [stats_decoder_event_ieee8021ah_header_too_small]
stats.decoder.event.vntag.header_too_small(integer) about.labels [stats_decoder_event_vntag_header_too_small]
stats.decoder.event.vntag.unknown_type(integer) about.labels [stats_decoder_event_vntag_unknown_type]
stats.decoder.event.ipraw.invalid_ip_version(integer) about.labels [stats_decoder_event_ipraw_invalid_ip_version]
stats.decoder.event.ltnull.pkt_too_small(integer) about.labels [stats_decoder_event_ltnull_pkt_too_small]
stats.decoder.event.ltnull.unsupported_type(integer) about.labels [stats_decoder_event_ltnull_unsupported_type]
stats.decoder.event.sctp.pkt_too_small(integer) about.labels [stats_decoder_event_sctp_pkt_too_small]
stats.decoder.event.mpls.header_too_small(integer) about.labels [stats_decoder_event_mpls_header_too_small]
stats.decoder.event.mpls.pkt_too_small(integer) about.labels [stats_decoder_event_mpls_pkt_too_small]
stats.decoder.event.mpls.bad_label_router_alert(integer) about.labels [stats_decoder_event_mpls_bad_label_router_alert]
stats.decoder.event.mpls.bad_label_implicit_null(integer) about.labels [stats_decoder_event_mpls_bad_label_implicit_null]
stats.decoder.event.mpls.bad_label_reserved(integer) about.labels [stats_decoder_event_mpls_bad_label_reserved]
stats.decoder.event.mpls.unknown_payload_type(integer) about.labels [stats_decoder_event_mpls_unknown_payload_type]
stats.decoder.event.vxlan.unknown_payload_type(integer) about.labels [stats_decoder_event_vxlan_unknown_payload_type]
stats.decoder.event.geneve.unknown_payload_type(integer) about.labels [stats_decoder_event_geneve_unknown_payload_type]
stats.decoder.event.erspan.header_too_small(integer) about.labels [stats_decoder_event_erspan_header_too_small]
stats.decoder.event.erspan.unsupported_version(integer) about.labels [stats_decoder_event_erspan_unsupported_version]
stats.decoder.event.erspan.too_many_vlan_layers(integer) about.labels [stats_decoder_event_erspan_too_many_vlan_layers]
stats.decoder.event.dce.pkt_too_small(integer) about.labels [stats_decoder_event_dce_pkt_too_small]
stats.decoder.event.chdlc.pkt_too_small(integer) about.labels [stats_decoder_event_chdlc_pkt_too_small]
stats.decoder.too_many_layers(integer) about.labels [stats_decoder_too_many_layers]
stats.flow.memcap(integer) about.labels [stats_flow_memcap]
stats.flow.tcp(integer) about.labels [stats_flow_tcp]
stats.flow.udp(integer) about.labels [stats_flow_udp]
stats.flow.icmpv4(integer) about.labels [stats_flow_icmpv4]
stats.flow.icmpv6(integer) about.labels [stats_flow_icmpv6]
stats.flow.tcp_reuse(integer) about.labels [stats_flow_tcp_reuse]
stats.flow.get_used(integer) about.labels [stats_flow_get_used]
stats.flow.get_used_eval(integer) about.labels [stats_flow_get_used_eval]
stats.flow.get_used_eval_reject(integer) about.labels [stats_flow_get_used_eval_reject]
stats.flow.get_used_eval_busy(integer) about.labels [stats_flow_get_used_eval_busy]
stats.flow.get_used_failed(integer) about.labels [stats_flow_get_used_failed]
stats.flow.wrk.spare_sync_avg(integer) about.labels [stats_flow_wrk_spare_sync_avg]
stats.flow.wrk.spare_sync(integer) about.labels [stats_flow_wrk_spare_sync]
stats.flow.wrk.spare_sync_incomplete(integer) about.labels [stats_flow_wrk_spare_sync_incomplete]
stats.flow.wrk.spare_sync_empty(integer) about.labels [stats_flow_wrk_spare_sync_empty]
stats.flow.wrk.flows_evicted_needs_work(integer) about.labels [stats_flow_wrk_flows_evicted_needs_work]
stats.flow.wrk.flows_evicted_pkt_inject(integer) about.labels [stats_flow_wrk_flows_evicted_pkt_inject]
stats.flow.wrk.flows_evicted(integer) about.labels [stats_flow_wrk_flows_evicted]
stats.flow.wrk.flows_injected(integer) about.labels [stats_flow_wrk_flows_injected]
stats.flow.mgr.full_hash_pass(integer) about.labels [stats_flow_mgr_full_hash_pass]
stats.flow.mgr.closed_pruned(integer) about.labels [stats_flow_mgr_closed_pruned]
stats.flow.mgr.new_pruned(integer) about.labels [stats_flow_mgr_new_pruned]
stats.flow.mgr.est_pruned(integer) about.labels [stats_flow_mgr_est_pruned]
stats.flow.mgr.bypassed_pruned(integer) about.labels [stats_flow_mgr_bypassed_pruned]
stats.flow.mgr.rows_maxlen(integer) about.labels [stats_flow_mgr_rows_maxlen]
stats.flow.mgr.flows_checked(integer) about.labels [stats_flow_mgr_flows_checked]
stats.flow.mgr.flows_notimeout(integer) about.labels [stats_flow_mgr_flows_notimeout]
stats.flow.mgr.flows_timeout(integer) about.labels [stats_flow_mgr_flows_timeout]
stats.flow.mgr.flows_timeout_inuse(integer) about.labels [stats_flow_mgr_flows_timeout_inuse]
stats.flow.mgr.flows_evicted(integer) about.labels [stats_flow_mgr_flows_evicted]
stats.flow.mgr.flows_evicted_needs_work(integer) about.labels [stats_flow_mgr_flows_evicted_needs_work]
stats.flow.spare(integer) about.labels [stats_flow_spare]
stats.flow.emerg_mode_entered(integer) about.labels [stats_flow_emerg_mode_entered]
stats.flow.emerg_mode_over(integer) about.labels [stats_flow_emerg_mode_over]
stats.flow.memuse(integer) about.labels [stats_flow_memuse]
stats.defrag.ipv4.fragments(integer) about.labels [stats_defrag_ipv4_fragments]
stats.defrag.ipv4.reassembled(integer) about.labels [stats_defrag_ipv4_reassembled]
stats.defrag.ipv4.timeouts(integer) about.labels [stats_defrag_ipv4_timeouts]
stats.defrag.ipv6.fragments(integer) about.labels [stats_defrag_ipv6_fragments]
stats.defrag.ipv6.reassembled(integer) about.labels [stats_defrag_ipv6_reassembled]
stats.defrag.ipv6.timeouts(integer) about.labels [stats_defrag_ipv6_timeouts]
stats.defrag.max_frag_hits(integer) about.labels [stats_defrag_max_frag_hits]
stats.flow_bypassed.local_pkts(integer) about.labels [stats_flow_bypassed_local_pkts]
stats.flow_bypassed.local_bytes(integer) about.labels [stats_flow_bypassed_local_bytes]
stats.flow_bypassed.local_capture_pkts(integer) about.labels [stats_flow_bypassed_local_capture_pkts]
stats.flow_bypassed.local_capture_bytes(integer) about.labels [stats_flow_bypassed_local_capture_bytes]
stats.flow_bypassed.closed(integer) about.labels [stats_flow_bypassed_closed]
stats.flow_bypassed.pkts(integer) about.labels [stats_flow_bypassed_pkts]
stats.flow_bypassed.bytes(integer) about.labels [stats_flow_bypassed_bytes]
stats.tcp.sessions(integer) about.labels [stats_tcp_sessions]
stats.tcp.ssn_memcap_drop(integer) about.labels [stats_tcp_ssn_memcap_drop]
stats.tcp.pseudo(integer) about.labels [stats_tcp_pseudo]
stats.tcp.pseudo_failed(integer) about.labels [stats_tcp_pseudo_failed]
stats.tcp.invalid_checksum(integer) about.labels [stats_tcp_invalid_checksum]
stats.tcp.no_flow(integer) about.labels [stats_tcp_no_flow]
stats.tcp.syn(integer) about.labels [stats_tcp_syn]
stats.tcp.synack(integer) about.labels [stats_tcp_synack]
stats.tcp.rst(integer) about.labels [stats_tcp_rst]
stats.tcp.midstream_pickups(integer) about.labels [stats_tcp_midstream_pickups]
stats.tcp.pkt_on_wrong_thread(integer) about.labels [stats_tcp_pkt_on_wrong_thread]
stats.tcp.segment_memcap_drop(integer) about.labels [stats_tcp_segment_memcap_drop]
stats.tcp.stream_depth_reached(integer) about.labels [stats_tcp_stream_depth_reached]
stats.tcp.reassembly_gap(integer) about.labels [stats_tcp_reassembly_gap]
stats.tcp.overlap(integer) about.labels [stats_tcp_overlap]
stats.tcp.overlap_diff_data(integer) about.labels [stats_tcp_overlap_diff_data]
stats.tcp.insert_data_normal_fail(integer) about.labels [stats_tcp_insert_data_normal_fail]
stats.tcp.insert_data_overlap_fail(integer) about.labels [stats_tcp_insert_data_overlap_fail]
stats.tcp.insert_list_fail(integer) about.labels [stats_tcp_insert_list_fail]
stats.tcp.memuse(integer) about.labels [stats_tcp_memuse]
stats.tcp.reassembly_memuse(integer) about.labels [stats_tcp_reassembly_memuse]
stats.detect.engines.id(array) about.labels [stats_detect_engines_id]
stats.detect.engines.last_reload(array) about.labels [stats_detect_engines_last_reload]
stats.detect.engines.rules_loaded(array) about.labels [stats_detect_engines_rules_loaded]
stats.detect.engines.rules_failed(array) about.labels [stats_detect_engines_rules_failed]
stats.detect.alert(integer) about.labels [stats_detect_alert]
stats.detect.alert_queue_overflow(integer) about.labels [stats_detect_alert_queue_overflow]
stats.detect.alerts_suppressed(integer) about.labels [stats_detect_alerts_suppressed]
stats.app_layer.flow.http(integer) about.labels [stats_app_layer_flow_http]
stats.app_layer.flow.ftp(integer) about.labels [stats_app_layer_flow_ftp]
stats.app_layer.flow.smtp(integer) about.labels [stats_app_layer_flow_smtp]
stats.app_layer.flow.tls(integer) about.labels [stats_app_layer_flow_tls]
stats.app_layer.flow.ssh(integer) about.labels [stats_app_layer_flow_ssh]
stats.app_layer.flow.imap(integer) about.labels [stats_app_layer_flow_imap]
stats.app_layer.flow.smb(integer) about.labels [stats_app_layer_flow_smb]
stats.app_layer.flow.dcerpc_tcp(integer) about.labels [stats_app_layer_flow_dcerpc_tcp]
stats.app_layer.flow.dns_tcp(integer) about.labels [stats_app_layer_flow_dns_tcp]
stats.app_layer.flow.nfs_tcp(integer) about.labels [stats_app_layer_flow_nfs_tcp]
stats.app_layer.flow.ntp(integer) about.labels [stats_app_layer_flow_ntp]
stats.app_layer.flow.ftp-data(integer) about.labels [stats_app_layer_flow_ftp-data]
stats.app_layer.flow.tftp(integer) about.labels [stats_app_layer_flow_tftp]
stats.app_layer.flow.ikev2(integer) about.labels [stats_app_layer_flow_ikev2]
stats.app_layer.flow.krb5_tcp(integer) about.labels [stats_app_layer_flow_krb5_tcp]
stats.app_layer.flow.dhcp(integer) about.labels [stats_app_layer_flow_dhcp]
stats.app_layer.flow.rfb(integer) about.labels [stats_app_layer_flow_rfb]
stats.app_layer.flow.rdp(integer) about.labels [stats_app_layer_flow_rdp]
stats.app_layer.flow.failed_tcp(integer) about.labels [stats_app_layer_flow_failed_tcp]
stats.app_layer.flow.dcerpc_udp(integer) about.labels [stats_app_layer_flow_dcerpc_udp]
stats.app_layer.flow.dns_udp(integer) about.labels [stats_app_layer_flow_dns_udp]
stats.app_layer.flow.nfs_udp(integer) about.labels [stats_app_layer_flow_nfs_udp]
stats.app_layer.flow.krb5_udp(integer) about.labels [stats_app_layer_flow_krb5_udp]
stats.app_layer.flow.failed_udp(integer) about.labels [stats_app_layer_flow_failed_udp]
stats.app_layer.tx.http(integer) about.labels [stats_app_layer_tx_http]
stats.app_layer.tx.ftp(integer) about.labels [stats_app_layer_tx_ftp]
stats.app_layer.tx.smtp(integer) about.labels [stats_app_layer_tx_smtp]
stats.app_layer.tx.tls(integer) about.labels [stats_app_layer_tx_tls]
stats.app_layer.tx.ssh(integer) about.labels [stats_app_layer_tx_ssh]
stats.app_layer.tx.imap(integer) about.labels [stats_app_layer_tx_imap]
stats.app_layer.tx.smb(integer) about.labels [stats_app_layer_tx_smb]
stats.app_layer.tx.dcerpc_tcp(integer) about.labels [stats_app_layer_tx_dcerpc_tcp]
stats.app_layer.tx.dns_tcp(integer) about.labels [stats_app_layer_tx_dns_tcp]
stats.app_layer.tx.nfs_tcp(integer) about.labels [stats_app_layer_tx_nfs_tcp]
stats.app_layer.tx.ntp(integer) about.labels [stats_app_layer_tx_ntp]
stats.app_layer.tx.ftp-data(integer) about.labels [stats_app_layer_tx_ftp-data]
stats.app_layer.tx.tftp(integer) about.labels [stats_app_layer_tx_tftp]
stats.app_layer.tx.ikev2(integer) about.labels [stats_app_layer_tx_ikev2]
stats.app_layer.tx.krb5_tcp(integer) about.labels [stats_app_layer_tx_krb5_tcp]
stats.app_layer.tx.dhcp(integer) about.labels [stats_app_layer_tx_dhcp]
stats.app_layer.tx.rfb(integer) about.labels [stats_app_layer_tx_rfb]
stats.app_layer.tx.rdp(integer) about.labels [stats_app_layer_tx_rdp]
stats.app_layer.tx.dcerpc_udp(integer) about.labels [stats_app_layer_tx_dcerpc_udp]
stats.app_layer.tx.dns_udp(integer) about.labels [stats_app_layer_tx_dns_udp]
stats.app_layer.tx.nfs_udp(integer) about.labels [stats_app_layer_tx_nfs_udp]
stats.app_layer.tx.krb5_udp(integer) about.labels [stats_app_layer_tx_krb5_udp]
stats.app_layer.expectations(integer) about.labels [stats_app_layer_expectations]
stats.http.memuse(integer) about.labels [stats_http_memuse]
stats.http.memcap(integer) about.labels [stats_http_memcap]
stats.ftp.memuse(integer) about.labels [stats_ftp_memuse]
stats.ftp.memcap(integer) about.labels [stats_ftp_memcap]

필드 매핑 참조: CORELIGHT - logschema

다음 표에는 logschema 로그 유형의 로그 필드와 해당 UDM 필드가 나와 있습니다.

Log field UDM mapping Logic
metadata.event_type The metadata.event_type UDM field is set to GENERIC_EVENT.
name(string) about.labels [name]
text(string) about.labels [text]
schema(string) about.labels [schema]
avro(string) about.labels [avro]

다음 단계

도움이 더 필요하신가요? 커뮤니티 회원 및 Google SecOps 전문가로부터 답변을 받으세요.
