El reconocimiento óptico de caracteres (OCR) es una de las tres APIs previamente entrenadas de Vertex AI en Google Distributed Cloud (GDC) con aislamiento físico. El servicio de OCR detecta texto en varios tipos de archivos, como imágenes, archivos de documentos y texto escrito a mano.
El OCR ofrece los siguientes métodos disponibles en Distributed Cloud para reconocer texto:
Detecta texto en un lote de archivos PDF o TIFF en un bucket de almacenamiento para solicitudes sin conexión.
Obtén más información sobre los idiomas compatibles que detecta la función de reconocimiento de texto.
Funciones de reconocimiento óptico de caracteres
La API de OCR puede detectar y extraer texto de las imágenes. Las siguientes dos funciones de anotación admiten el reconocimiento óptico de caracteres:
TEXT_DETECTION detecta y extrae el texto de cualquier imagen. Por ejemplo, una fotografía que contenga una señal de tránsito. El servicio de OCR devuelve un archivo JSON con la cadena extraída, las palabras individuales y sus cuadros de límite.

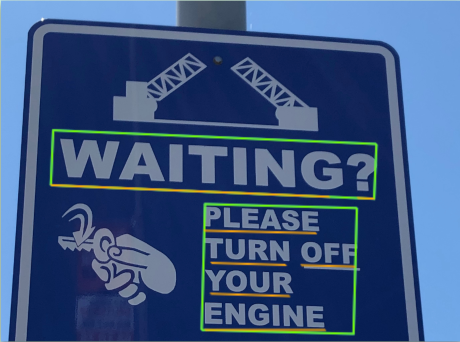

Figura 1. Fotografía de una señal de ruta en la que la API de OCR detecta palabras y sus cuadros de límite.
DOCUMENT_TEXT_DETECTION también extrae el texto de una imagen, pero el servicio optimiza la respuesta para textos y documentos densos. Por ejemplo, una imagen escaneada de texto escrito a máquina puede contener varios párrafos y encabezados. El servicio de OCR devuelve un archivo JSON con información de la página, el bloque, el párrafo, la palabra y la división.
Figura 2. Imagen escaneada de texto escrito a máquina en la que la API de OCR detecta información como palabras, páginas y párrafos.
Texto escrito a mano
La figura 3 es una imagen de texto escrito a mano. La API de OCR detecta y extrae texto de estas imágenes. Para obtener una lista de las secuencias de comandos de escritura a mano que admiten el reconocimiento de escritura a mano, consulta Secuencias de comandos de escritura a mano.
Figura 3. Imagen de escritura a mano en la que la API de OCR detecta texto.
Límites del reconocimiento óptico de caracteres
Los métodos de API BatchAnnotateImages y BatchAnnotateFiles solo admiten una solicitud por llamada por lotes.
En la siguiente tabla, se indican los límites actuales del servicio de OCR en Distributed Cloud.
Límite de archivos para el OCR
Valor
Cantidad máxima de páginas
Cinco
Tamaño máximo de archivo
20 MB
Tamaño máximo de la imagen
20 millones de píxeles (largo x ancho)
Los archivos enviados a la API de OCR que superan la cantidad máxima de páginas o el tamaño máximo de archivo devuelven un error. Los archivos enviados que superan el tamaño máximo de imagen se reducen a 20 millones de píxeles.
Tipos de archivos admitidos para el OCR
La API previamente entrenada de OCR detecta y transcribe texto de los siguientes tipos de archivos:
PDF
TIFF
JPG
PNG
Debes almacenar los archivos de forma local en tu entorno de Distributed Cloud. No puedes acceder a los archivos alojados en Cloud Storage ni a los archivos disponibles públicamente para la detección de texto.
