本頁說明如何為 Spanner 使用手動建立的客戶管理加密金鑰 (CMEK)。
如要進一步瞭解 CMEK，請參閱客戶自行管理加密金鑰 (CMEK) 總覽。
建立已啟用 CMEK 的資料庫
在 Cloud Key Management Service (Cloud KMS) 中建立金鑰。Spanner 支援建立下列 Cloud KMS 類型：
金鑰必須與 Spanner 執行個體位於相同位置。舉例來說，如果您的 Spanner 執行個體設定位於
us-west1，則 Cloud KMS 金鑰環位置也必須是us-west1。並非每個 Spanner 多區域執行個體設定都有對應的 Cloud KMS 金鑰環位置。對於自訂、雙區域或多區域執行個體設定中的 Spanner 資料庫，您可以使用多個區域 (單一區域) Cloud KMS 金鑰來保護資料庫。例如：
- 如果您的 Spanner 資料庫位於多區域執行個體設定
nam14中，則可以在us-east4、northamerica-northeast1和us-east1中建立 Cloud KMS 金鑰。 - 如果資料庫位於自訂執行個體設定中，且使用
nam3做為基本執行個體設定，並在us-central2中新增唯讀副本，則可以在us-east4、us-east1、us-central1和us-central2中建立 Cloud KMS 金鑰。
選用：如要查看 Spanner 執行個體設定中的副本位置清單，請使用
gcloud spanner instances get-locations指令：gcloud spanner instances get-locations <var>INSTANCE_ID</var>詳情請參閱下列資源：
- 如果您的 Spanner 資料庫位於多區域執行個體設定
授予 Spanner 金鑰存取權。
在 Cloud Shell 中建立並顯示服務代理程式，或顯示現有帳戶：
gcloud beta services identity create --service=spanner.googleapis.com \ --project=PROJECT_ID如果系統提示您安裝 gcloud Beta 版指令元件，請輸入
Y。安裝完成後，指令會自動重新啟動。gcloud services identity指令會建立或取得 Spanner 可用來代表您存取 Cloud KMS 金鑰的服務代理。服務帳戶 ID 的格式類似電子郵件地址：
Service identity created: service-xxx@gcp-sa-spanner.iam.gserviceaccount.com為 Spanner 執行個體設定中的每個區域(
--location)，將 Cloud KMS CryptoKey Encrypter/Decrypter (cloudkms.cryptoKeyEncrypterDecrypter) 角色授予服務帳戶。如要進行這項操作，請執行gcloud kms keys add-iam-policybinding指令：gcloud kms keys add-iam-policy-binding KMS_KEY \ --location KMS_KEY_LOCATION \ --keyring KMS_KEY_RING \ --project=PROJECT_ID \ --member serviceAccount:service-xxx@gcp-sa-spanner.iam.gserviceaccount.com \ --role roles/cloudkms.cryptoKeyEncrypterDecrypter輸出內容範例如下：
Updated IAM policy for key [KMS_KEY]如果您使用多個 Cloud KMS 金鑰保護資料庫，請針對所有金鑰執行
gcloud kms keys add-iam-policybinding指令。這個角色可確保服務帳戶有權使用 Cloud KMS 金鑰進行加密和解密。詳情請參閱 Cloud KMS 權限和角色。
建立資料庫並指定 Cloud KMS 金鑰。
控制台
使用控制台在區域執行個體設定中建立資料庫。
前往 Google Cloud 控制台的「Instances」(執行個體) 頁面。
按一下要建立資料庫的執行個體。
按一下「建立資料庫」，然後填寫必填欄位。
按一下「顯示加密選項」。
選取「Cloud KMS 金鑰」。
從下拉式清單中選取金鑰。
金鑰清單僅限於目前的 Google Cloud 專案。 如要使用其他 Google Cloud 專案的金鑰，請使用 gcloud CLI 建立資料庫，而非Google Cloud 控制台。

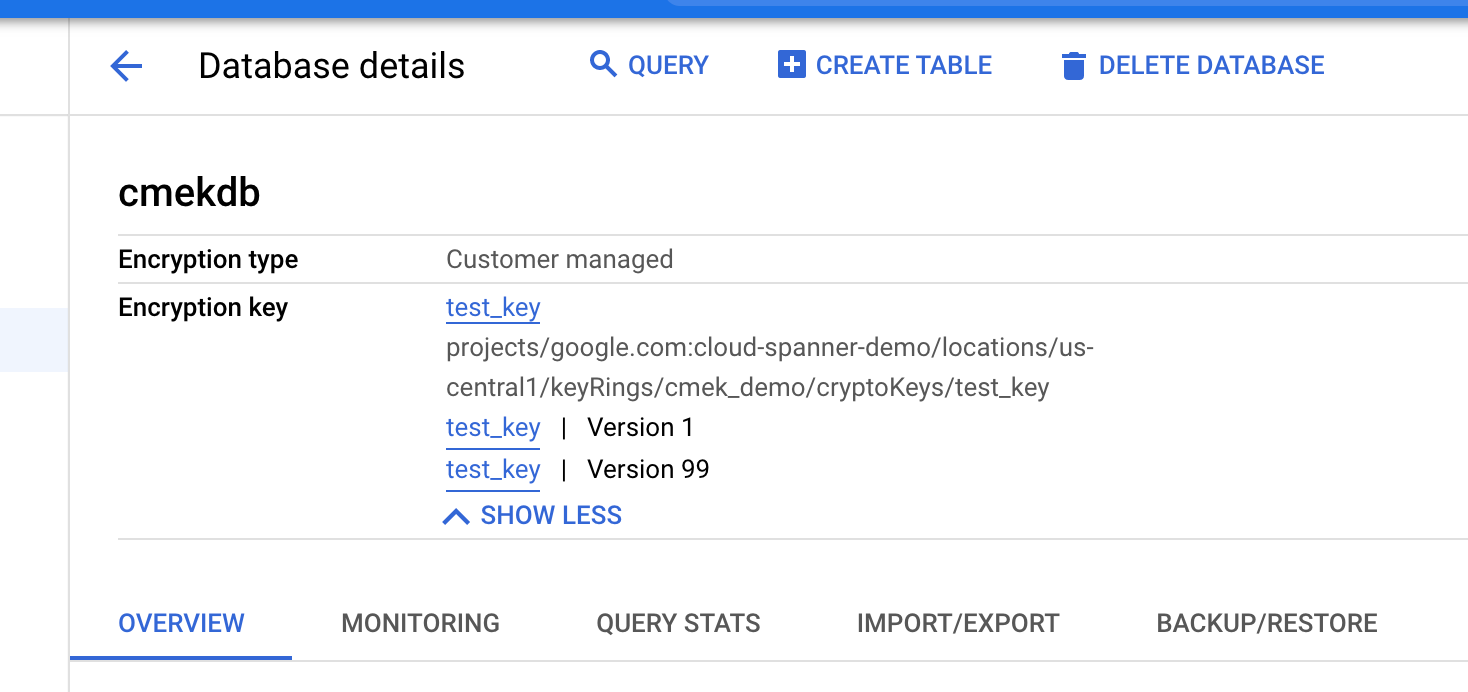

建立資料庫後，您可以查看「資料庫總覽」頁面，確認資料庫是否已啟用 CMEK。
gcloud
如要在區域、自訂或多區域執行個體設定中建立啟用 CMEK 的資料庫，請執行 gcloud spanner databases create 指令：
gcloud spanner databases create DATABASE \
--project=SPANNER_PROJECT_ID \
--instance=INSTANCE_ID \
--ddl="CREATE TABLE Users (Id INT64 NOT NULL, FirstName STRING(100) NOT NULL, LastName STRING(100) NOT NULL,) PRIMARY KEY (Id)" \
--kms-project=KMS_PROJECT_ID \
--kms-location=KMS_KEY_LOCATION \
--kms-keyring=KMS_KEYRING \
--kms-keys=KMS_KEY_1[, KMS_KEY_2 ... ]如要確認資料庫是否已啟用 CMEK，請執行 gcloud spanner databases describe 指令：
gcloud spanner databases describe DATABASE \
--project=SPANNER_PROJECT_ID \
--instance=INSTANCE_ID啟用 CMEK 的資料庫包含 encryptionConfig 的欄位，如下列輸出範例所示：
encryptionConfig:
kmsKeyNames:projects/my-kms-project/locations/eur5/keyRings/my-kms-key-ring/cryptoKeys/my-kms-key
name: projects/my-spanner-project/instances/my-instance/databases/my-db
state: READY
用戶端程式庫
C#
如要在區域執行個體設定中建立已啟用 CMEK 的資料庫，請按照下列步驟操作：
using Google.Cloud.Spanner.Admin.Database.V1;
using Google.Cloud.Spanner.Common.V1;
using System;
using System.Threading.Tasks;
public class CreateDatabaseWithEncryptionKeyAsyncSample
{
public async Task<Database> CreateDatabaseWithEncryptionKeyAsync(string projectId, string instanceId, string databaseId, CryptoKeyName kmsKeyName)
{
// Create a DatabaseAdminClient instance that can be used to execute a
// CreateDatabaseRequest with custom encryption configuration options.
DatabaseAdminClient databaseAdminClient = DatabaseAdminClient.Create();
// Define create table statement for table #1.
var createSingersTable =
@"CREATE TABLE Singers (
SingerId INT64 NOT NULL,
FirstName STRING(1024),
LastName STRING(1024),
ComposerInfo BYTES(MAX)
) PRIMARY KEY (SingerId)";
// Define create table statement for table #2.
var createAlbumsTable =
@"CREATE TABLE Albums (
SingerId INT64 NOT NULL,
AlbumId INT64 NOT NULL,
AlbumTitle STRING(MAX)
) PRIMARY KEY (SingerId, AlbumId),
INTERLEAVE IN PARENT Singers ON DELETE CASCADE";
// Create the CreateDatabase request with encryption configuration and execute it.
var request = new CreateDatabaseRequest
{
ParentAsInstanceName = InstanceName.FromProjectInstance(projectId, instanceId),
CreateStatement = $"CREATE DATABASE `{databaseId}`",
ExtraStatements = { createSingersTable, createAlbumsTable },
EncryptionConfig = new EncryptionConfig
{
KmsKeyNameAsCryptoKeyName = kmsKeyName,
},
};
var operation = await databaseAdminClient.CreateDatabaseAsync(request);
// Wait until the operation has finished.
Console.WriteLine("Waiting for the operation to finish.");
var completedResponse = await operation.PollUntilCompletedAsync();
if (completedResponse.IsFaulted)
{
Console.WriteLine($"Error while creating database: {completedResponse.Exception}");
throw completedResponse.Exception;
}
var database = completedResponse.Result;
Console.WriteLine($"Database {database.Name} created with encryption key {database.EncryptionConfig.KmsKeyName}");
return database;
}
}如要在多區域執行個體設定中建立已啟用 CMEK 的資料庫，請按照下列步驟操作：
using Google.Cloud.Spanner.Admin.Database.V1;
using Google.Cloud.Spanner.Common.V1;
using System;
using System.Collections.Generic;
using System.Threading.Tasks;
public class CreateDatabaseWithMultiRegionEncryptionAsyncSample
{
public async Task<Database> CreateDatabaseWithMultiRegionEncryptionAsync(string projectId, string instanceId, string databaseId, IEnumerable<CryptoKeyName> kmsKeyNames)
{
// Create a DatabaseAdminClient instance that can be used to execute a
// CreateDatabaseRequest with custom encryption configuration options.
DatabaseAdminClient databaseAdminClient = DatabaseAdminClient.Create();
// Define create table statement for table #1.
var createSingersTable =
@"CREATE TABLE Singers (
SingerId INT64 NOT NULL,
FirstName STRING(1024),
LastName STRING(1024),
ComposerInfo BYTES(MAX)
) PRIMARY KEY (SingerId)";
// Define create table statement for table #2.
var createAlbumsTable =
@"CREATE TABLE Albums (
SingerId INT64 NOT NULL,
AlbumId INT64 NOT NULL,
AlbumTitle STRING(MAX)
) PRIMARY KEY (SingerId, AlbumId),
INTERLEAVE IN PARENT Singers ON DELETE CASCADE";
// Create the CreateDatabase request with encryption configuration and execute it.
var request = new CreateDatabaseRequest
{
ParentAsInstanceName = InstanceName.FromProjectInstance(projectId, instanceId),
CreateStatement = $"CREATE DATABASE `{databaseId}`",
ExtraStatements = { createSingersTable, createAlbumsTable },
EncryptionConfig = new EncryptionConfig
{
KmsKeyNamesAsCryptoKeyNames = { kmsKeyNames },
},
};
var operation = await databaseAdminClient.CreateDatabaseAsync(request);
// Wait until the operation has finished.
Console.WriteLine("Waiting for the operation to finish.");
var completedResponse = await operation.PollUntilCompletedAsync();
if (completedResponse.IsFaulted)
{
Console.WriteLine($"Error while creating database: {completedResponse.Exception}");
throw completedResponse.Exception;
}
var database = completedResponse.Result;
Console.WriteLine($"Database {database.Name} created with encryption keys {string.Join(", ", kmsKeyNames)}");
return database;
}
}C++
如要在區域執行個體設定中建立已啟用 CMEK 的資料庫，請按照下列步驟操作：
void CreateDatabaseWithEncryptionKey(
google::cloud::spanner_admin::DatabaseAdminClient client,
std::string const& project_id, std::string const& instance_id,
std::string const& database_id,
google::cloud::KmsKeyName const& encryption_key) {
google::cloud::spanner::Database database(project_id, instance_id,
database_id);
google::spanner::admin::database::v1::CreateDatabaseRequest request;
request.set_parent(database.instance().FullName());
request.set_create_statement("CREATE DATABASE `" + database.database_id() +
"`");
request.add_extra_statements(R"""(
CREATE TABLE Singers (
SingerId INT64 NOT NULL,
FirstName STRING(1024),
LastName STRING(1024),
SingerInfo BYTES(MAX),
FullName STRING(2049)
AS (ARRAY_TO_STRING([FirstName, LastName], " ")) STORED
) PRIMARY KEY (SingerId))""");
request.add_extra_statements(R"""(
CREATE TABLE Albums (
SingerId INT64 NOT NULL,
AlbumId INT64 NOT NULL,
AlbumTitle STRING(MAX)
) PRIMARY KEY (SingerId, AlbumId),
INTERLEAVE IN PARENT Singers ON DELETE CASCADE)""");
request.mutable_encryption_config()->set_kms_key_name(
encryption_key.FullName());
auto db = client.CreateDatabase(request).get();
if (!db) throw std::move(db).status();
std::cout << "Database " << db->name() << " created";
std::cout << " using encryption key " << encryption_key.FullName();
std::cout << ".\n";
}如要在多區域執行個體設定中建立已啟用 CMEK 的資料庫，請按照下列步驟操作：
void CreateDatabaseWithMRCMEK(
google::cloud::spanner_admin::DatabaseAdminClient client,
std::string const& project_id, std::string const& instance_id,
std::string const& database_id,
std::vector<google::cloud::KmsKeyName> const& encryption_keys) {
google::cloud::spanner::Database database(project_id, instance_id,
database_id);
google::spanner::admin::database::v1::CreateDatabaseRequest request;
request.set_parent(database.instance().FullName());
request.set_create_statement("CREATE DATABASE `" + database.database_id() +
"`");
request.add_extra_statements(R"""(
CREATE TABLE Singers (
SingerId INT64 NOT NULL,
FirstName STRING(1024),
LastName STRING(1024),
SingerInfo BYTES(MAX),
FullName STRING(2049)
AS (ARRAY_TO_STRING([FirstName, LastName], " ")) STORED
) PRIMARY KEY (SingerId))""");
request.add_extra_statements(R"""(
CREATE TABLE Albums (
SingerId INT64 NOT NULL,
AlbumId INT64 NOT NULL,
AlbumTitle STRING(MAX)
) PRIMARY KEY (SingerId, AlbumId),
INTERLEAVE IN PARENT Singers ON DELETE CASCADE)""");
for (google::cloud::KmsKeyName const& encryption_key : encryption_keys) {
request.mutable_encryption_config()->add_kms_key_names(
encryption_key.FullName());
}
auto db = client.CreateDatabase(request).get();
if (!db) throw std::move(db).status();
std::cout << "Database " << db->name() << " created";
PrintKmsKeys(encryption_keys);
}Go
如要在區域執行個體設定中建立已啟用 CMEK 的資料庫，請按照下列步驟操作：
import (
"context"
"fmt"
"io"
"regexp"
database "cloud.google.com/go/spanner/admin/database/apiv1"
adminpb "cloud.google.com/go/spanner/admin/database/apiv1/databasepb"
)
func createDatabaseWithCustomerManagedEncryptionKey(ctx context.Context, w io.Writer, db, kmsKeyName string) error {
// db = `projects/<project>/instances/<instance-id>/database/<database-id>`
// kmsKeyName = `projects/<project>/locations/<location>/keyRings/<key_ring>/cryptoKeys/<kms_key_name>`
matches := regexp.MustCompile("^(.+)/databases/(.+)$").FindStringSubmatch(db)
if matches == nil || len(matches) != 3 {
return fmt.Errorf("createDatabaseWithCustomerManagedEncryptionKey: invalid database id %q", db)
}
instanceName := matches[1]
databaseId := matches[2]
adminClient, err := database.NewDatabaseAdminClient(ctx)
if err != nil {
return fmt.Errorf("createDatabaseWithCustomerManagedEncryptionKey.NewDatabaseAdminClient: %w", err)
}
defer adminClient.Close()
// Create a database with tables using a Customer Managed Encryption Key
req := adminpb.CreateDatabaseRequest{
Parent: instanceName,
CreateStatement: "CREATE DATABASE `" + databaseId + "`",
ExtraStatements: []string{
`CREATE TABLE Singers (
SingerId INT64 NOT NULL,
FirstName STRING(1024),
LastName STRING(1024),
SingerInfo BYTES(MAX)
) PRIMARY KEY (SingerId)`,
`CREATE TABLE Albums (
SingerId INT64 NOT NULL,
AlbumId INT64 NOT NULL,
AlbumTitle STRING(MAX)
) PRIMARY KEY (SingerId, AlbumId),
INTERLEAVE IN PARENT Singers ON DELETE CASCADE`,
},
EncryptionConfig: &adminpb.EncryptionConfig{KmsKeyName: kmsKeyName},
}
op, err := adminClient.CreateDatabase(ctx, &req)
if err != nil {
return fmt.Errorf("createDatabaseWithCustomerManagedEncryptionKey.CreateDatabase: %w", err)
}
dbObj, err := op.Wait(ctx)
if err != nil {
return fmt.Errorf("createDatabaseWithCustomerManagedEncryptionKey.Wait: %w", err)
}
fmt.Fprintf(w, "Created database [%s] using encryption key %q\n", dbObj.Name, dbObj.EncryptionConfig.KmsKeyName)
return nil
}
如要在多區域執行個體設定中建立已啟用 CMEK 的資料庫，請按照下列步驟操作：
import (
"context"
"fmt"
"io"
database "cloud.google.com/go/spanner/admin/database/apiv1"
adminpb "cloud.google.com/go/spanner/admin/database/apiv1/databasepb"
)
// createDatabaseWithCustomerManagedMultiRegionEncryptionKey creates a new database with tables using a Customer Managed Multi-Region Encryption Key.
func createDatabaseWithCustomerManagedMultiRegionEncryptionKey(ctx context.Context, w io.Writer, projectID, instanceID, databaseID string, kmsKeyNames []string) error {
// projectID = `my-project`
// instanceID = `my-instance`
// databaseID = `my-database`
// kmsKeyNames := []string{"projects/my-project/locations/locations/<location1>/keyRings/<keyRing>/cryptoKeys/<keyId>",
// "projects/my-project/locations/locations/<location2>/keyRings/<keyRing>/cryptoKeys/<keyId>",
// "projects/my-project/locations/locations/<location3>/keyRings/<keyRing>/cryptoKeys/<keyId>",
// }
adminClient, err := database.NewDatabaseAdminClient(ctx)
if err != nil {
return fmt.Errorf("createDatabaseWithCustomerManagedMultiRegionEncryptionKey.NewDatabaseAdminClient: %w", err)
}
defer adminClient.Close()
// Create a database with tables using a Customer Managed Multi-Region Encryption Key
req := adminpb.CreateDatabaseRequest{
Parent: fmt.Sprintf("projects/%s/instances/%s", projectID, instanceID),
CreateStatement: "CREATE DATABASE `" + databaseID + "`",
ExtraStatements: []string{
`CREATE TABLE Singers (
SingerId INT64 NOT NULL,
FirstName STRING(1024),
LastName STRING(1024),
SingerInfo BYTES(MAX)
) PRIMARY KEY (SingerId)`,
`CREATE TABLE Albums (
SingerId INT64 NOT NULL,
AlbumId INT64 NOT NULL,
AlbumTitle STRING(MAX)
) PRIMARY KEY (SingerId, AlbumId),
INTERLEAVE IN PARENT Singers ON DELETE CASCADE`,
},
EncryptionConfig: &adminpb.EncryptionConfig{KmsKeyNames: kmsKeyNames},
}
op, err := adminClient.CreateDatabase(ctx, &req)
if err != nil {
return fmt.Errorf("createDatabaseWithCustomerManagedMultiRegionEncryptionKey.CreateDatabase: %w", err)
}
dbObj, err := op.Wait(ctx)
if err != nil {
return fmt.Errorf("createDatabaseWithCustomerManagedMultiRegionEncryptionKey.Wait: %w", err)
}
fmt.Fprintf(w, "Created database [%s] using multi-region encryption keys %q\n", dbObj.Name, dbObj.EncryptionConfig.GetKmsKeyNames())
return nil
}
Java
如要在區域執行個體設定中建立已啟用 CMEK 的資料庫，請按照下列步驟操作：
import com.google.cloud.spanner.Spanner;
import com.google.cloud.spanner.SpannerExceptionFactory;
import com.google.cloud.spanner.SpannerOptions;
import com.google.cloud.spanner.admin.database.v1.DatabaseAdminClient;
import com.google.common.collect.ImmutableList;
import com.google.spanner.admin.database.v1.CreateDatabaseRequest;
import com.google.spanner.admin.database.v1.Database;
import com.google.spanner.admin.database.v1.EncryptionConfig;
import com.google.spanner.admin.database.v1.InstanceName;
import java.util.concurrent.ExecutionException;
import java.util.concurrent.TimeUnit;
import java.util.concurrent.TimeoutException;
public class CreateDatabaseWithEncryptionKey {
static void createDatabaseWithEncryptionKey() {
// TODO(developer): Replace these variables before running the sample.
String projectId = "my-project";
String instanceId = "my-instance";
String databaseId = "my-database";
String kmsKeyName =
"projects/" + projectId + "/locations/<location>/keyRings/<keyRing>/cryptoKeys/<keyId>";
try (Spanner spanner =
SpannerOptions.newBuilder().setProjectId(projectId).build().getService();
DatabaseAdminClient adminClient = spanner.createDatabaseAdminClient()) {
createDatabaseWithEncryptionKey(
adminClient,
projectId,
instanceId,
databaseId,
kmsKeyName);
}
}
static void createDatabaseWithEncryptionKey(DatabaseAdminClient adminClient,
String projectId, String instanceId, String databaseId, String kmsKeyName) {
InstanceName instanceName = InstanceName.of(projectId, instanceId);
CreateDatabaseRequest request = CreateDatabaseRequest.newBuilder()
.setParent(instanceName.toString())
.setCreateStatement("CREATE DATABASE `" + databaseId + "`")
.setEncryptionConfig(EncryptionConfig.newBuilder().setKmsKeyName(kmsKeyName).build())
.addAllExtraStatements(
ImmutableList.of(
"CREATE TABLE Singers ("
+ " SingerId INT64 NOT NULL,"
+ " FirstName STRING(1024),"
+ " LastName STRING(1024),"
+ " SingerInfo BYTES(MAX)"
+ ") PRIMARY KEY (SingerId)",
"CREATE TABLE Albums ("
+ " SingerId INT64 NOT NULL,"
+ " AlbumId INT64 NOT NULL,"
+ " AlbumTitle STRING(MAX)"
+ ") PRIMARY KEY (SingerId, AlbumId),"
+ " INTERLEAVE IN PARENT Singers ON DELETE CASCADE"
))
.build();
try {
System.out.println("Waiting for operation to complete...");
Database createdDatabase =
adminClient.createDatabaseAsync(request).get(120, TimeUnit.SECONDS);
System.out.printf(
"Database %s created with encryption key %s%n",
createdDatabase.getName(),
createdDatabase.getEncryptionConfig().getKmsKeyName()
);
} catch (ExecutionException e) {
// If the operation failed during execution, expose the cause.
throw SpannerExceptionFactory.asSpannerException(e.getCause());
} catch (InterruptedException e) {
// Throw when a thread is waiting, sleeping, or otherwise occupied,
// and the thread is interrupted, either before or during the activity.
throw SpannerExceptionFactory.propagateInterrupt(e);
} catch (TimeoutException e) {
// If the operation timed out propagates the timeout
throw SpannerExceptionFactory.propagateTimeout(e);
}
}
}如要在多區域執行個體設定中建立已啟用 CMEK 的資料庫，請按照下列步驟操作：
import com.google.cloud.spanner.Spanner;
import com.google.cloud.spanner.SpannerExceptionFactory;
import com.google.cloud.spanner.SpannerOptions;
import com.google.cloud.spanner.admin.database.v1.DatabaseAdminClient;
import com.google.common.collect.ImmutableList;
import com.google.spanner.admin.database.v1.CreateDatabaseRequest;
import com.google.spanner.admin.database.v1.Database;
import com.google.spanner.admin.database.v1.EncryptionConfig;
import com.google.spanner.admin.database.v1.InstanceName;
import java.util.concurrent.ExecutionException;
import java.util.concurrent.TimeUnit;
import java.util.concurrent.TimeoutException;
public class CreateDatabaseWithMultiRegionEncryptionKey {
static void createDatabaseWithEncryptionKey() {
// TODO(developer): Replace these variables before running the sample.
String projectId = "my-project";
String instanceId = "my-instance";
String databaseId = "my-database";
String[] kmsKeyNames =
new String[] {
"projects/" + projectId + "/locations/<location1>/keyRings/<keyRing>/cryptoKeys/<keyId>",
"projects/" + projectId + "/locations/<location2>/keyRings/<keyRing>/cryptoKeys/<keyId>",
"projects/" + projectId + "/locations/<location3>/keyRings/<keyRing>/cryptoKeys/<keyId>"
};
try (Spanner spanner =
SpannerOptions.newBuilder().setProjectId(projectId).build().getService();
DatabaseAdminClient adminClient = spanner.createDatabaseAdminClient()) {
createDatabaseWithMultiRegionEncryptionKey(
adminClient, projectId, instanceId, databaseId, kmsKeyNames);
}
}
static void createDatabaseWithMultiRegionEncryptionKey(
DatabaseAdminClient adminClient,
String projectId,
String instanceId,
String databaseId,
String[] kmsKeyNames) {
InstanceName instanceName = InstanceName.of(projectId, instanceId);
CreateDatabaseRequest request =
CreateDatabaseRequest.newBuilder()
.setParent(instanceName.toString())
.setCreateStatement("CREATE DATABASE `" + databaseId + "`")
.setEncryptionConfig(
EncryptionConfig.newBuilder()
.addAllKmsKeyNames(ImmutableList.copyOf(kmsKeyNames))
.build())
.addAllExtraStatements(
ImmutableList.of(
"CREATE TABLE Singers ("
+ " SingerId INT64 NOT NULL,"
+ " FirstName STRING(1024),"
+ " LastName STRING(1024),"
+ " SingerInfo BYTES(MAX)"
+ ") PRIMARY KEY (SingerId)",
"CREATE TABLE Albums ("
+ " SingerId INT64 NOT NULL,"
+ " AlbumId INT64 NOT NULL,"
+ " AlbumTitle STRING(MAX)"
+ ") PRIMARY KEY (SingerId, AlbumId),"
+ " INTERLEAVE IN PARENT Singers ON DELETE CASCADE"))
.build();
try {
System.out.println("Waiting for operation to complete...");
Database createdDatabase =
adminClient.createDatabaseAsync(request).get(120, TimeUnit.SECONDS);
System.out.printf(
"Database %s created with encryption keys %s%n",
createdDatabase.getName(), createdDatabase.getEncryptionConfig().getKmsKeyNamesList());
} catch (ExecutionException e) {
// If the operation failed during execution, expose the cause.
throw SpannerExceptionFactory.asSpannerException(e.getCause());
} catch (InterruptedException e) {
// Throw when a thread is waiting, sleeping, or otherwise occupied,
// and the thread is interrupted, either before or during the activity.
throw SpannerExceptionFactory.propagateInterrupt(e);
} catch (TimeoutException e) {
// If the operation timed out propagates the timeout
throw SpannerExceptionFactory.propagateTimeout(e);
}
}
}
Node.js
如要在區域執行個體設定中建立已啟用 CMEK 的資料庫，請按照下列步驟操作：
// Imports the Google Cloud client library
const {Spanner, protos} = require('@google-cloud/spanner');
/**
* TODO(developer): Uncomment the following lines before running the sample.
*/
// const projectId = 'my-project-id';
// const instanceId = 'my-instance';
// const databaseId = 'my-database';
// const keyName =
// 'projects/my-project-id/my-region/keyRings/my-key-ring/cryptoKeys/my-key';
// creates a client
const spanner = new Spanner({
projectId: projectId,
});
// Gets a reference to a Cloud Spanner Database Admin Client object
const databaseAdminClient = spanner.getDatabaseAdminClient();
// Creates a database
const [operation] = await databaseAdminClient.createDatabase({
createStatement: 'CREATE DATABASE `' + databaseId + '`',
parent: databaseAdminClient.instancePath(projectId, instanceId),
encryptionConfig:
(protos.google.spanner.admin.database.v1.EncryptionConfig = {
kmsKeyName: keyName,
}),
});
console.log(`Waiting for operation on ${databaseId} to complete...`);
await operation.promise();
console.log(`Created database ${databaseId} on instance ${instanceId}.`);
// Get encryption key
const [metadata] = await databaseAdminClient.getDatabase({
name: databaseAdminClient.databasePath(projectId, instanceId, databaseId),
});
console.log(
`Database encrypted with key ${metadata.encryptionConfig.kmsKeyName}.`,
);如要在多區域執行個體設定中建立已啟用 CMEK 的資料庫，請按照下列步驟操作：
/**
* TODO(developer): Uncomment the following lines before running the sample.
*/
// const projectId = 'my-project-id';
// const instanceId = 'my-instance';
// const databaseId = 'my-database';
// const kmsKeyNames =
// 'projects/my-project-id/my-region/keyRings/my-key-ring/cryptoKeys/my-key1,projects/my-project-id/my-region/keyRings/my-key-ring/cryptoKeys/my-key2';
// Imports the Google Cloud client library
const {Spanner, protos} = require('@google-cloud/spanner');
// creates a client
const spanner = new Spanner({
projectId: projectId,
});
// Gets a reference to a Cloud Spanner Database Admin Client object
const databaseAdminClient = spanner.getDatabaseAdminClient();
async function createDatabaseWithMultipleKmsKeys() {
// Creates a database
const [operation] = await databaseAdminClient.createDatabase({
createStatement: 'CREATE DATABASE `' + databaseId + '`',
parent: databaseAdminClient.instancePath(projectId, instanceId),
encryptionConfig:
(protos.google.spanner.admin.database.v1.EncryptionConfig = {
kmsKeyNames: kmsKeyNames.split(','),
}),
});
console.log(`Waiting for operation on ${databaseId} to complete...`);
await operation.promise();
console.log(`Created database ${databaseId} on instance ${instanceId}.`);
// Get encryption key
const [metadata] = await databaseAdminClient.getDatabase({
name: databaseAdminClient.databasePath(projectId, instanceId, databaseId),
});
console.log(
`Database encrypted with keys ${metadata.encryptionConfig.kmsKeyNames}.`,
);
}
createDatabaseWithMultipleKmsKeys();
PHP
如要在區域執行個體設定中建立已啟用 CMEK 的資料庫，請按照下列步驟操作：
use Google\Cloud\Spanner\Admin\Database\V1\Client\DatabaseAdminClient;
use Google\Cloud\Spanner\Admin\Database\V1\CreateDatabaseRequest;
use Google\Cloud\Spanner\Admin\Database\V1\EncryptionConfig;
/**
* Creates an encrypted database with tables for sample data.
* Example:
* ```
* create_database_with_encryption_key($projectId, $instanceId, $databaseId, $kmsKeyName);
* ```
*
* @param string $projectId The Google Cloud project ID.
* @param string $instanceId The Spanner instance ID.
* @param string $databaseId The Spanner database ID.
* @param string $kmsKeyName The KMS key used for encryption.
*/
function create_database_with_encryption_key(
string $projectId,
string $instanceId,
string $databaseId,
string $kmsKeyName
): void {
$databaseAdminClient = new DatabaseAdminClient();
$instanceName = DatabaseAdminClient::instanceName($projectId, $instanceId);
$createDatabaseRequest = new CreateDatabaseRequest();
$createDatabaseRequest->setParent($instanceName);
$createDatabaseRequest->setCreateStatement(sprintf('CREATE DATABASE `%s`', $databaseId));
$createDatabaseRequest->setExtraStatements([
'CREATE TABLE Singers (
SingerId INT64 NOT NULL,
FirstName STRING(1024),
LastName STRING(1024),
SingerInfo BYTES(MAX)
) PRIMARY KEY (SingerId)',
'CREATE TABLE Albums (
SingerId INT64 NOT NULL,
AlbumId INT64 NOT NULL,
AlbumTitle STRING(MAX)
) PRIMARY KEY (SingerId, AlbumId),
INTERLEAVE IN PARENT Singers ON DELETE CASCADE'
]);
if (!empty($kmsKeyName)) {
$encryptionConfig = new EncryptionConfig();
$encryptionConfig->setKmsKeyName($kmsKeyName);
$createDatabaseRequest->setEncryptionConfig($encryptionConfig);
}
$operationResponse = $databaseAdminClient->createDatabase($createDatabaseRequest);
printf('Waiting for operation to complete...' . PHP_EOL);
$operationResponse->pollUntilComplete();
if ($operationResponse->operationSucceeded()) {
$database = $operationResponse->getResult();
printf(
'Created database %s on instance %s with encryption key %s' . PHP_EOL,
$databaseId,
$instanceId,
$database->getEncryptionConfig()->getKmsKeyName()
);
} else {
$error = $operationResponse->getError();
printf('Failed to create encrypted database: %s' . PHP_EOL, $error->getMessage());
}
}如要在多區域執行個體設定中建立已啟用 CMEK 的資料庫，請按照下列步驟操作：
use Google\Cloud\Spanner\Admin\Database\V1\Client\DatabaseAdminClient;
use Google\Cloud\Spanner\Admin\Database\V1\CreateDatabaseRequest;
use Google\Cloud\Spanner\Admin\Database\V1\EncryptionConfig;
/**
* Creates a MR CMEK database with tables for sample data.
* Example:
* ```
* create_database_with_mr_cmek($projectId, $instanceId, $databaseId, $kmsKeyNames);
* ```
*
* @param string $projectId The Google Cloud project ID.
* @param string $instanceId The Spanner instance ID.
* @param string $databaseId The Spanner database ID.
* @param string[] $kmsKeyNames The KMS keys used for encryption.
*/
function create_database_with_mr_cmek(
string $projectId,
string $instanceId,
string $databaseId,
array $kmsKeyNames
): void {
$databaseAdminClient = new DatabaseAdminClient();
$instanceName = DatabaseAdminClient::instanceName($projectId, $instanceId);
$createDatabaseRequest = new CreateDatabaseRequest();
$createDatabaseRequest->setParent($instanceName);
$createDatabaseRequest->setCreateStatement(sprintf('CREATE DATABASE `%s`', $databaseId));
$createDatabaseRequest->setExtraStatements([
'CREATE TABLE Singers (
SingerId INT64 NOT NULL,
FirstName STRING(1024),
LastName STRING(1024),
SingerInfo BYTES(MAX)
) PRIMARY KEY (SingerId)',
'CREATE TABLE Albums (
SingerId INT64 NOT NULL,
AlbumId INT64 NOT NULL,
AlbumTitle STRING(MAX)
) PRIMARY KEY (SingerId, AlbumId),
INTERLEAVE IN PARENT Singers ON DELETE CASCADE'
]);
if (!empty($kmsKeyNames)) {
$encryptionConfig = new EncryptionConfig();
$encryptionConfig->setKmsKeyNames($kmsKeyNames);
$createDatabaseRequest->setEncryptionConfig($encryptionConfig);
}
$operationResponse = $databaseAdminClient->createDatabase($createDatabaseRequest);
printf('Waiting for operation to complete...' . PHP_EOL);
$operationResponse->pollUntilComplete();
if ($operationResponse->operationSucceeded()) {
$database = $operationResponse->getResult();
printf(
'Created database %s on instance %s with encryption keys %s' . PHP_EOL,
$databaseId,
$instanceId,
print_r($database->getEncryptionConfig()->getKmsKeyNames(), true)
);
} else {
$error = $operationResponse->getError();
printf('Failed to create encrypted database: %s' . PHP_EOL, $error->getMessage());
}
}
Python
如要在區域執行個體設定中建立已啟用 CMEK 的資料庫，請按照下列步驟操作：
def create_database_with_encryption_key(instance_id, database_id, kms_key_name):
"""Creates a database with tables using a Customer Managed Encryption Key (CMEK)."""
from google.cloud.spanner_admin_database_v1 import EncryptionConfig
from google.cloud.spanner_admin_database_v1.types import spanner_database_admin
spanner_client = spanner.Client()
database_admin_api = spanner_client.database_admin_api
request = spanner_database_admin.CreateDatabaseRequest(
parent=database_admin_api.instance_path(spanner_client.project, instance_id),
create_statement=f"CREATE DATABASE `{database_id}`",
extra_statements=[
"""CREATE TABLE Singers (
SingerId INT64 NOT NULL,
FirstName STRING(1024),
LastName STRING(1024),
SingerInfo BYTES(MAX)
) PRIMARY KEY (SingerId)""",
"""CREATE TABLE Albums (
SingerId INT64 NOT NULL,
AlbumId INT64 NOT NULL,
AlbumTitle STRING(MAX)
) PRIMARY KEY (SingerId, AlbumId),
INTERLEAVE IN PARENT Singers ON DELETE CASCADE""",
],
encryption_config=EncryptionConfig(kms_key_name=kms_key_name),
)
operation = database_admin_api.create_database(request=request)
print("Waiting for operation to complete...")
database = operation.result(OPERATION_TIMEOUT_SECONDS)
print(
"Database {} created with encryption key {}".format(
database.name, database.encryption_config.kms_key_name
)
)
如要在多區域執行個體設定中建立已啟用 CMEK 的資料庫，請按照下列步驟操作：
def create_database_with_multiple_kms_keys(instance_id, database_id, kms_key_names):
"""Creates a database with tables using multiple KMS keys(CMEK)."""
from google.cloud.spanner_admin_database_v1 import EncryptionConfig
from google.cloud.spanner_admin_database_v1.types import spanner_database_admin
spanner_client = spanner.Client()
database_admin_api = spanner_client.database_admin_api
request = spanner_database_admin.CreateDatabaseRequest(
parent=database_admin_api.instance_path(spanner_client.project, instance_id),
create_statement=f"CREATE DATABASE `{database_id}`",
extra_statements=[
"""CREATE TABLE Singers (
SingerId INT64 NOT NULL,
FirstName STRING(1024),
LastName STRING(1024),
SingerInfo BYTES(MAX)
) PRIMARY KEY (SingerId)""",
"""CREATE TABLE Albums (
SingerId INT64 NOT NULL,
AlbumId INT64 NOT NULL,
AlbumTitle STRING(MAX)
) PRIMARY KEY (SingerId, AlbumId),
INTERLEAVE IN PARENT Singers ON DELETE CASCADE""",
],
encryption_config=EncryptionConfig(kms_key_names=kms_key_names),
)
operation = database_admin_api.create_database(request=request)
print("Waiting for operation to complete...")
database = operation.result(OPERATION_TIMEOUT_SECONDS)
print(
"Database {} created with multiple KMS keys {}".format(
database.name, database.encryption_config.kms_key_names
)
)
Ruby
如要在區域執行個體設定中建立已啟用 CMEK 的資料庫，請按照下列步驟操作：
# project_id = "Your Google Cloud project ID"
# instance_id = "Your Spanner instance ID"
# database_id = "Your Spanner database ID"
# kms_key_name = "Database eencryption KMS key"
require "google/cloud/spanner"
require "google/cloud/spanner/admin/database"
database_admin_client = Google::Cloud::Spanner::Admin::Database.database_admin
instance_path = database_admin_client.instance_path project: project_id, instance: instance_id
db_path = database_admin_client.database_path project: project_id,
instance: instance_id,
database: database_id
job = database_admin_client.create_database parent: instance_path,
create_statement: "CREATE DATABASE `#{database_id}`",
extra_statements: [
"CREATE TABLE Singers (
SingerId INT64 NOT NULL,
FirstName STRING(1024),
LastName STRING(1024),
SingerInfo BYTES(MAX)
) PRIMARY KEY (SingerId)",
"CREATE TABLE Albums (
SingerId INT64 NOT NULL,
AlbumId INT64 NOT NULL,
AlbumTitle STRING(MAX)
) PRIMARY KEY (SingerId, AlbumId),
INTERLEAVE IN PARENT Singers ON DELETE CASCADE"
],
encryption_config: { kms_key_name: kms_key_name }
puts "Waiting for create database operation to complete"
job.wait_until_done!
database = database_admin_client.get_database name: db_path
puts "Database #{database_id} created with encryption key #{database.encryption_config.kms_key_name}"
如要在多區域執行個體設定中建立已啟用 CMEK 的資料庫，請按照下列步驟操作：
# project_id = "Your Google Cloud project ID"
# instance_id = "Your Spanner instance ID"
# database_id = "Your Spanner database ID"
# kms_key_names = ["key1", "key2", "key3"]
require "google/cloud/spanner"
require "google/cloud/spanner/admin/database"
database_admin_client = Google::Cloud::Spanner::Admin::Database.database_admin
instance_path = database_admin_client.instance_path(
project: project_id, instance: instance_id
)
encryption_config = {
kms_key_names: kms_key_names
}
db_path = database_admin_client.database_path(
project: project_id,
instance: instance_id,
database: database_id
)
job = database_admin_client.create_database(
parent: instance_path,
create_statement: "CREATE DATABASE `#{database_id}`",
extra_statements: [
<<~STATEMENT,
CREATE TABLE Singers (
SingerId INT64 NOT NULL,
FirstName STRING(1024),
LastName STRING(1024),
SingerInfo BYTES(MAX)
) PRIMARY KEY (SingerId)
STATEMENT
<<~STATEMENT
CREATE TABLE Albums (
SingerId INT64 NOT NULL,
AlbumId INT64 NOT NULL,
AlbumTitle STRING(MAX)
) PRIMARY KEY (SingerId, AlbumId),
INTERLEAVE IN PARENT Singers
ON DELETE CASCADE
STATEMENT
],
encryption_config: encryption_config
)
puts "Waiting for create database operation to complete"
job.wait_until_done!
database = database_admin_client.get_database name: db_path
puts "Database #{database_id} created with encryption key " \
"#{database.encryption_config.kms_key_names}"
查看使用的金鑰版本
資料庫的 encryption_info 欄位會顯示金鑰版本資訊。
資料庫的金鑰版本變更時，變更不會立即傳播至 encryption_info。這項變更可能需要一段時間才會反映在這個欄位中。
控制台
前往 Google Cloud 控制台的「Instances」(執行個體) 頁面。
按一下包含要查看資料庫的執行個體。
按一下資料庫。
加密資訊會顯示在「資料庫詳細資料」頁面。
gcloud
如要取得資料庫的 encryption_info，請執行 gcloud spanner databases describe 或 gcloud spanner databases list 指令。例如：
gcloud spanner databases describe DATABASE \
--project=SPANNER_PROJECT_ID \
--instance=INSTANCE_ID輸出內容範例如下：
name: projects/my-project/instances/test-instance/databases/example-db
encryptionInfo:
- encryptionType: CUSTOMER_MANAGED_ENCRYPTION
kmsKeyVersion: projects/my-kms-project/locations/my-kms-key1-location/keyRings/my-kms-key-ring1/cryptoKeys/my-kms-key1/cryptoKeyVersions/1
- encryptionType: CUSTOMER_MANAGED_ENCRYPTION
kmsKeyVersion: projects/my-kms-project/locations/my-kms-key2-location/keyRings/my-kms-key-ring2/cryptoKeys/my-kms-key2/cryptoKeyVersions/1
停用金鑰
按照這些操作說明，針對每個金鑰版本停用目前使用的金鑰版本。
等待變更生效。停用金鑰最多可能需要三小時才會生效。
如要確認資料庫已無法存取，請在已停用 CMEK 的資料庫中執行查詢：
gcloud spanner databases execute-sql DATABASE \ --project=SPANNER_PROJECT_ID \ --instance=INSTANCE_ID \ --sql='SELECT * FROM Users'系統會顯示下列錯誤訊息：
KMS key required by the Spanner resource is not accessible.
啟用金鑰
按照這些操作說明，為每個金鑰版本啟用資料庫使用的金鑰版本。
等待變更生效。啟用金鑰最多可能需要三小時才會生效。
如要確認資料庫已無法存取，請在已啟用 CMEK 的資料庫中執行查詢：
gcloud spanner databases execute-sql DATABASE \ --project=SPANNER_PROJECT_ID \ --instance=INSTANCE_ID \ --sql='SELECT * FROM Users'如果變更已生效，指令就會順利執行。
備份資料庫
您可以使用 Spanner 備份功能，建立資料庫備份。根據預設，從資料庫建立的 Spanner 備份會使用與資料庫本身相同的加密設定。您也可以選擇為備份資料指定不同的加密設定。
控制台
使用控制台在區域執行個體設定中建立備份。
前往 Google Cloud 控制台的「Instances」(執行個體) 頁面。
按一下包含要備份資料庫的執行個體名稱。
按一下資料庫。
在導覽窗格中，按一下「備份/還原」。
在「備份」分頁中，按一下「建立備份」。
輸入備份名稱並選取到期日。
選用：按一下「顯示加密選項」。
a. 如要為備份資料使用不同的加密設定，請按一下「使用現有加密」旁的滑桿。
a. 選取「Cloud KMS 金鑰」。
a. 從下拉式清單中選取金鑰。
金鑰清單僅限於目前的 Google Cloud 專案。 如要使用其他專案的金鑰，請使用 gcloud CLI 建立資料庫，而非控制台。 Google Cloud Google Cloud
點選「建立」。

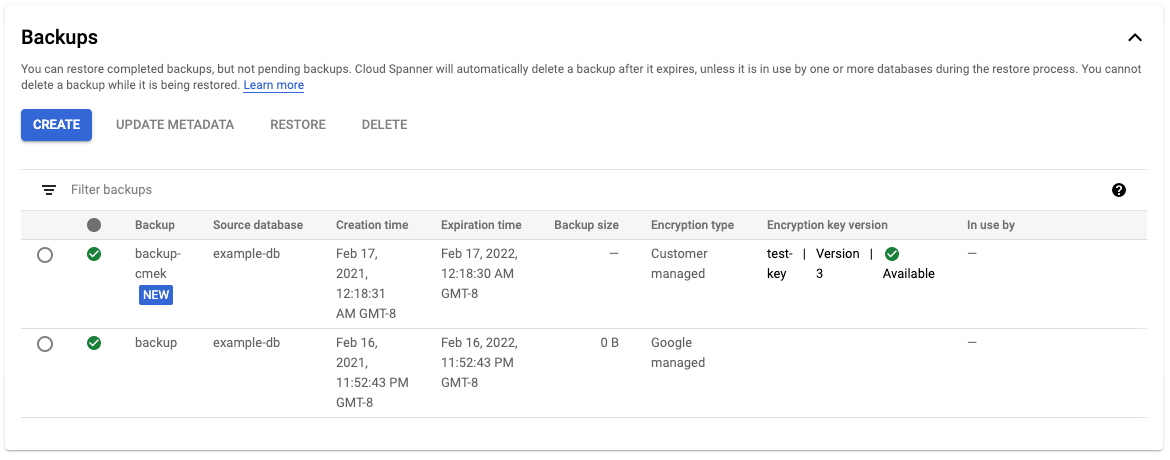

「備份」表格會顯示每項備份的加密資訊。
gcloud
如要在區域、自訂或多區域執行個體設定中建立啟用 CMEK 的備份，請執行 gcloud spanner backups create 指令：
gcloud spanner backups create BACKUP \
--project=SPANNER_PROJECT_ID \
--instance=INSTANCE_ID \
--database=DATABASE \
--retention-period=RETENTION_PERIOD \
--encryption-type=customer_managed_encryption \
--kms-project=KMS_PROJECT_ID \
--kms-location=KMS_KEY_LOCATION \
--kms-keyring=KMS_KEY_RING \
--kms-keys=KMS_KEY_1[, KMS_KEY_2 ... ]
--async如要確認建立的備份是否已採用 CMEK 加密，請按照下列步驟操作：
gcloud spanner backups describe BACKUP \
--project=SPANNER_PROJECT_ID \
--instance=INSTANCE_ID用戶端程式庫
C#
如要在區域執行個體設定中建立啟用 CMEK 的備份，請按照下列步驟操作：
using Google.Cloud.Spanner.Admin.Database.V1;
using Google.Cloud.Spanner.Common.V1;
using Google.Protobuf.WellKnownTypes;
using System;
using System.Threading.Tasks;
public class CreateBackupWithEncryptionKeyAsyncSample
{
public async Task<Backup> CreateBackupWithEncryptionKeyAsync(string projectId, string instanceId, string databaseId, string backupId, CryptoKeyName kmsKeyName)
{
// Create a DatabaseAdminClient instance.
DatabaseAdminClient databaseAdminClient = DatabaseAdminClient.Create();
// Create the CreateBackupRequest with encryption configuration.
CreateBackupRequest request = new CreateBackupRequest
{
ParentAsInstanceName = InstanceName.FromProjectInstance(projectId, instanceId),
BackupId = backupId,
Backup = new Backup
{
DatabaseAsDatabaseName = DatabaseName.FromProjectInstanceDatabase(projectId, instanceId, databaseId),
ExpireTime = DateTime.UtcNow.AddDays(14).ToTimestamp(),
},
EncryptionConfig = new CreateBackupEncryptionConfig
{
EncryptionType = CreateBackupEncryptionConfig.Types.EncryptionType.CustomerManagedEncryption,
KmsKeyNameAsCryptoKeyName = kmsKeyName,
},
};
// Execute the CreateBackup request.
var operation = await databaseAdminClient.CreateBackupAsync(request);
Console.WriteLine("Waiting for the operation to finish.");
// Poll until the returned long-running operation is complete.
var completedResponse = await operation.PollUntilCompletedAsync();
if (completedResponse.IsFaulted)
{
Console.WriteLine($"Error while creating backup: {completedResponse.Exception}");
throw completedResponse.Exception;
}
var backup = completedResponse.Result;
Console.WriteLine($"Backup {backup.Name} of size {backup.SizeBytes} bytes " +
$"was created at {backup.CreateTime} " +
$"using encryption key {kmsKeyName}");
return backup;
}
}如要在多區域執行個體設定中建立啟用 CMEK 的備份，請按照下列步驟操作：
using Google.Cloud.Spanner.Admin.Database.V1;
using Google.Cloud.Spanner.Common.V1;
using Google.Protobuf.WellKnownTypes;
using System;
using System.Collections.Generic;
using System.Threading.Tasks;
public class CreateBackupWithMultiRegionEncryptionAsyncSample
{
public async Task<Backup> CreateBackupWithMultiRegionEncryptionAsync(string projectId, string instanceId, string databaseId, string backupId, IEnumerable<CryptoKeyName> kmsKeyNames)
{
// Create a DatabaseAdminClient instance.
DatabaseAdminClient databaseAdminClient = DatabaseAdminClient.Create();
// Create the CreateBackupRequest with encryption configuration.
CreateBackupRequest request = new CreateBackupRequest
{
ParentAsInstanceName = InstanceName.FromProjectInstance(projectId, instanceId),
BackupId = backupId,
Backup = new Backup
{
DatabaseAsDatabaseName = DatabaseName.FromProjectInstanceDatabase(projectId, instanceId, databaseId),
ExpireTime = DateTime.UtcNow.AddDays(14).ToTimestamp(),
},
EncryptionConfig = new CreateBackupEncryptionConfig
{
EncryptionType = CreateBackupEncryptionConfig.Types.EncryptionType.CustomerManagedEncryption,
KmsKeyNamesAsCryptoKeyNames = { kmsKeyNames },
},
};
// Execute the CreateBackup request.
var operation = await databaseAdminClient.CreateBackupAsync(request);
Console.WriteLine("Waiting for the operation to finish.");
// Poll until the returned long-running operation is complete.
var completedResponse = await operation.PollUntilCompletedAsync();
if (completedResponse.IsFaulted)
{
Console.WriteLine($"Error while creating backup: {completedResponse.Exception}");
throw completedResponse.Exception;
}
var backup = completedResponse.Result;
Console.WriteLine($"Backup {backup.Name} of size {backup.SizeBytes} bytes was created with encryption keys {string.Join(", ", kmsKeyNames)} at {backup.CreateTime}");
return backup;
}
}C++
如要在區域執行個體設定中建立啟用 CMEK 的備份，請按照下列步驟操作：
void CreateBackupWithEncryptionKey(
google::cloud::spanner_admin::DatabaseAdminClient client,
std::string const& project_id, std::string const& instance_id,
std::string const& database_id, std::string const& backup_id,
google::cloud::spanner::Timestamp expire_time,
google::cloud::spanner::Timestamp version_time,
google::cloud::KmsKeyName const& encryption_key) {
google::cloud::spanner::Database database(project_id, instance_id,
database_id);
google::spanner::admin::database::v1::CreateBackupRequest request;
request.set_parent(database.instance().FullName());
request.set_backup_id(backup_id);
request.mutable_backup()->set_database(database.FullName());
*request.mutable_backup()->mutable_expire_time() =
expire_time.get<google::protobuf::Timestamp>().value();
*request.mutable_backup()->mutable_version_time() =
version_time.get<google::protobuf::Timestamp>().value();
request.mutable_encryption_config()->set_encryption_type(
google::spanner::admin::database::v1::CreateBackupEncryptionConfig::
CUSTOMER_MANAGED_ENCRYPTION);
request.mutable_encryption_config()->set_kms_key_name(
encryption_key.FullName());
auto backup = client.CreateBackup(request).get();
if (!backup) throw std::move(backup).status();
std::cout
<< "Backup " << backup->name() << " of " << backup->database()
<< " of size " << backup->size_bytes() << " bytes as of "
<< google::cloud::spanner::MakeTimestamp(backup->version_time()).value()
<< " was created at "
<< google::cloud::spanner::MakeTimestamp(backup->create_time()).value()
<< " using encryption key " << encryption_key.FullName() << ".\n";
}如要在多區域執行個體設定中建立啟用 CMEK 的備份，請按照下列步驟操作：
void CreateBackupWithMRCMEK(
google::cloud::spanner_admin::DatabaseAdminClient client,
BackupIdentifier dst, std::string const& database_id,
google::cloud::spanner::Timestamp expire_time,
google::cloud::spanner::Timestamp version_time,
std::vector<google::cloud::KmsKeyName> const& encryption_keys) {
google::cloud::spanner::Database database(dst.project_id, dst.instance_id,
database_id);
google::spanner::admin::database::v1::CreateBackupRequest request;
request.set_parent(database.instance().FullName());
request.set_backup_id(dst.backup_id);
request.mutable_backup()->set_database(database.FullName());
*request.mutable_backup()->mutable_expire_time() =
expire_time.get<google::protobuf::Timestamp>().value();
*request.mutable_backup()->mutable_version_time() =
version_time.get<google::protobuf::Timestamp>().value();
request.mutable_encryption_config()->set_encryption_type(
google::spanner::admin::database::v1::CreateBackupEncryptionConfig::
CUSTOMER_MANAGED_ENCRYPTION);
for (google::cloud::KmsKeyName const& encryption_key : encryption_keys) {
request.mutable_encryption_config()->add_kms_key_names(
encryption_key.FullName());
}
auto backup = client.CreateBackup(request).get();
if (!backup) throw std::move(backup).status();
std::cout
<< "Backup " << backup->name() << " of " << backup->database()
<< " of size " << backup->size_bytes() << " bytes as of "
<< google::cloud::spanner::MakeTimestamp(backup->version_time()).value()
<< " was created at "
<< google::cloud::spanner::MakeTimestamp(backup->create_time()).value();
PrintKmsKeys(encryption_keys);
}Go
如要在區域執行個體設定中建立啟用 CMEK 的備份，請按照下列步驟操作：
import (
"context"
"fmt"
"io"
"regexp"
"time"
database "cloud.google.com/go/spanner/admin/database/apiv1"
adminpb "cloud.google.com/go/spanner/admin/database/apiv1/databasepb"
pbt "github.com/golang/protobuf/ptypes/timestamp"
)
func createBackupWithCustomerManagedEncryptionKey(ctx context.Context, w io.Writer, db, backupID, kmsKeyName string) error {
// db = `projects/<project>/instances/<instance-id>/database/<database-id>`
// backupID = `my-backup-id`
// kmsKeyName = `projects/<project>/locations/<location>/keyRings/<key_ring>/cryptoKeys/<kms_key_name>`
matches := regexp.MustCompile("^(.+)/databases/(.+)$").FindStringSubmatch(db)
if matches == nil || len(matches) != 3 {
return fmt.Errorf("createBackupWithCustomerManagedEncryptionKey: invalid database id %q", db)
}
instanceName := matches[1]
adminClient, err := database.NewDatabaseAdminClient(ctx)
if err != nil {
return fmt.Errorf("createBackupWithCustomerManagedEncryptionKey.NewDatabaseAdminClient: %w", err)
}
defer adminClient.Close()
expireTime := time.Now().AddDate(0, 0, 14)
// Create a backup for a database using a Customer Managed Encryption Key
req := adminpb.CreateBackupRequest{
Parent: instanceName,
BackupId: backupID,
Backup: &adminpb.Backup{
Database: db,
ExpireTime: &pbt.Timestamp{Seconds: expireTime.Unix(), Nanos: int32(expireTime.Nanosecond())},
},
EncryptionConfig: &adminpb.CreateBackupEncryptionConfig{
KmsKeyName: kmsKeyName,
EncryptionType: adminpb.CreateBackupEncryptionConfig_CUSTOMER_MANAGED_ENCRYPTION,
},
}
op, err := adminClient.CreateBackup(ctx, &req)
if err != nil {
return fmt.Errorf("createBackupWithCustomerManagedEncryptionKey.CreateBackup: %w", err)
}
// Wait for backup operation to complete.
backup, err := op.Wait(ctx)
if err != nil {
return fmt.Errorf("createBackupWithCustomerManagedEncryptionKey.Wait: %w", err)
}
// Get the name, create time, backup size and encryption key from the backup.
backupCreateTime := time.Unix(backup.CreateTime.Seconds, int64(backup.CreateTime.Nanos))
fmt.Fprintf(w,
"Backup %s of size %d bytes was created at %s using encryption key %s\n",
backup.Name,
backup.SizeBytes,
backupCreateTime.Format(time.RFC3339),
kmsKeyName)
return nil
}
如要在多區域執行個體設定中建立啟用 CMEK 的備份，請按照下列步驟操作：
import (
"context"
"fmt"
"io"
"time"
database "cloud.google.com/go/spanner/admin/database/apiv1"
adminpb "cloud.google.com/go/spanner/admin/database/apiv1/databasepb"
pbt "github.com/golang/protobuf/ptypes/timestamp"
)
// createBackupWithCustomerManagedMultiRegionEncryptionKey creates a backup for a database using a Customer Managed Multi-Region Encryption Key.
func createBackupWithCustomerManagedMultiRegionEncryptionKey(ctx context.Context, w io.Writer, projectID, instanceID, databaseID, backupID string, kmsKeyNames []string) error {
// projectID = `my-project`
// instanceID = `my-instance`
// databaseID = `my-database`
// backupID = `my-backup-id`
// kmsKeyNames := []string{"projects/my-project/locations/locations/<location1>/keyRings/<keyRing>/cryptoKeys/<keyId>",
// "projects/my-project/locations/locations/<location2>/keyRings/<keyRing>/cryptoKeys/<keyId>",
// "projects/my-project/locations/locations/<location3>/keyRings/<keyRing>/cryptoKeys/<keyId>",
// }
adminClient, err := database.NewDatabaseAdminClient(ctx)
if err != nil {
return fmt.Errorf("createBackupWithCustomerManagedMultiRegionEncryptionKey.NewDatabaseAdminClient: %w", err)
}
defer adminClient.Close()
expireTime := time.Now().AddDate(0, 0, 14)
// Create a backup for a database using a Customer Managed Encryption Key
req := adminpb.CreateBackupRequest{
Parent: fmt.Sprintf("projects/%s/instances/%s", projectID, instanceID),
BackupId: backupID,
Backup: &adminpb.Backup{
Database: fmt.Sprintf("projects/%s/instances/%s/databases/%s", projectID, instanceID, databaseID),
ExpireTime: &pbt.Timestamp{Seconds: expireTime.Unix(), Nanos: int32(expireTime.Nanosecond())},
},
EncryptionConfig: &adminpb.CreateBackupEncryptionConfig{
KmsKeyNames: kmsKeyNames,
EncryptionType: adminpb.CreateBackupEncryptionConfig_CUSTOMER_MANAGED_ENCRYPTION,
},
}
op, err := adminClient.CreateBackup(ctx, &req)
if err != nil {
return fmt.Errorf("createBackupWithCustomerManagedMultiRegionEncryptionKey.CreateBackup: %w", err)
}
// Wait for backup operation to complete.
backup, err := op.Wait(ctx)
if err != nil {
return fmt.Errorf("createBackupWithCustomerManagedMultiRegionEncryptionKey.Wait: %w", err)
}
// Get the name, create time, backup size and encryption key from the backup.
backupCreateTime := time.Unix(backup.CreateTime.Seconds, int64(backup.CreateTime.Nanos))
fmt.Fprintf(w,
"Backup %s of size %d bytes was created at %s using multi-region encryption keys %q\n",
backup.Name,
backup.SizeBytes,
backupCreateTime.Format(time.RFC3339),
kmsKeyNames)
return nil
}
Java
如要在區域執行個體設定中建立啟用 CMEK 的備份，請按照下列步驟操作：
import com.google.cloud.spanner.Spanner;
import com.google.cloud.spanner.SpannerExceptionFactory;
import com.google.cloud.spanner.SpannerOptions;
import com.google.cloud.spanner.admin.database.v1.DatabaseAdminClient;
import com.google.protobuf.Timestamp;
import com.google.spanner.admin.database.v1.Backup;
import com.google.spanner.admin.database.v1.BackupName;
import com.google.spanner.admin.database.v1.CreateBackupEncryptionConfig;
import com.google.spanner.admin.database.v1.CreateBackupEncryptionConfig.EncryptionType;
import com.google.spanner.admin.database.v1.CreateBackupRequest;
import com.google.spanner.admin.database.v1.DatabaseName;
import com.google.spanner.admin.database.v1.InstanceName;
import java.util.concurrent.ExecutionException;
import java.util.concurrent.TimeUnit;
import java.util.concurrent.TimeoutException;
import org.threeten.bp.LocalDateTime;
import org.threeten.bp.OffsetDateTime;
public class CreateBackupWithEncryptionKey {
static void createBackupWithEncryptionKey() {
// TODO(developer): Replace these variables before running the sample.
String projectId = "my-project";
String instanceId = "my-instance";
String databaseId = "my-database";
String backupId = "my-backup";
String kmsKeyName =
"projects/" + projectId + "/locations/<location>/keyRings/<keyRing>/cryptoKeys/<keyId>";
try (Spanner spanner =
SpannerOptions.newBuilder().setProjectId(projectId).build().getService();
DatabaseAdminClient adminClient = spanner.createDatabaseAdminClient()) {
createBackupWithEncryptionKey(
adminClient,
projectId,
instanceId,
databaseId,
backupId,
kmsKeyName);
}
}
static Void createBackupWithEncryptionKey(DatabaseAdminClient adminClient,
String projectId, String instanceId, String databaseId, String backupId, String kmsKeyName) {
// Set expire time to 14 days from now.
final Timestamp expireTime =
Timestamp.newBuilder().setSeconds(TimeUnit.MILLISECONDS.toSeconds((
System.currentTimeMillis() + TimeUnit.DAYS.toMillis(14)))).build();
final BackupName backupName = BackupName.of(projectId, instanceId, backupId);
Backup backup = Backup.newBuilder()
.setName(backupName.toString())
.setDatabase(DatabaseName.of(projectId, instanceId, databaseId).toString())
.setExpireTime(expireTime).build();
final CreateBackupRequest request =
CreateBackupRequest.newBuilder()
.setParent(InstanceName.of(projectId, instanceId).toString())
.setBackupId(backupId)
.setBackup(backup)
.setEncryptionConfig(
CreateBackupEncryptionConfig.newBuilder()
.setEncryptionType(EncryptionType.CUSTOMER_MANAGED_ENCRYPTION)
.setKmsKeyName(kmsKeyName).build()).build();
try {
System.out.println("Waiting for operation to complete...");
backup = adminClient.createBackupAsync(request).get(1200, TimeUnit.SECONDS);
} catch (ExecutionException e) {
// If the operation failed during execution, expose the cause.
throw SpannerExceptionFactory.asSpannerException(e.getCause());
} catch (InterruptedException e) {
// Throw when a thread is waiting, sleeping, or otherwise occupied,
// and the thread is interrupted, either before or during the activity.
throw SpannerExceptionFactory.propagateInterrupt(e);
} catch (TimeoutException e) {
// If the operation timed out propagates the timeout
throw SpannerExceptionFactory.propagateTimeout(e);
}
System.out.printf(
"Backup %s of size %d bytes was created at %s using encryption key %s%n",
backup.getName(),
backup.getSizeBytes(),
LocalDateTime.ofEpochSecond(
backup.getCreateTime().getSeconds(),
backup.getCreateTime().getNanos(),
OffsetDateTime.now().getOffset()),
kmsKeyName
);
return null;
}
}如要在多區域執行個體設定中建立啟用 CMEK 的備份，請按照下列步驟操作：
import com.google.cloud.spanner.Spanner;
import com.google.cloud.spanner.SpannerExceptionFactory;
import com.google.cloud.spanner.SpannerOptions;
import com.google.cloud.spanner.admin.database.v1.DatabaseAdminClient;
import com.google.common.collect.ImmutableList;
import com.google.protobuf.Timestamp;
import com.google.spanner.admin.database.v1.Backup;
import com.google.spanner.admin.database.v1.BackupName;
import com.google.spanner.admin.database.v1.CreateBackupEncryptionConfig;
import com.google.spanner.admin.database.v1.CreateBackupEncryptionConfig.EncryptionType;
import com.google.spanner.admin.database.v1.CreateBackupRequest;
import com.google.spanner.admin.database.v1.DatabaseName;
import com.google.spanner.admin.database.v1.InstanceName;
import java.util.concurrent.ExecutionException;
import java.util.concurrent.TimeUnit;
import java.util.concurrent.TimeoutException;
import org.threeten.bp.LocalDateTime;
import org.threeten.bp.OffsetDateTime;
public class CreateBackupWithMultiRegionEncryptionKey {
static void createBackupWithMultiRegionEncryptionKey() {
// TODO(developer): Replace these variables before running the sample.
String projectId = "my-project";
String instanceId = "my-instance";
String databaseId = "my-database";
String backupId = "my-backup";
String[] kmsKeyNames =
new String[] {
"projects/" + projectId + "/locations/<location1>/keyRings/<keyRing>/cryptoKeys/<keyId>",
"projects/" + projectId + "/locations/<location2>/keyRings/<keyRing>/cryptoKeys/<keyId>",
"projects/" + projectId + "/locations/<location3>/keyRings/<keyRing>/cryptoKeys/<keyId>"
};
try (Spanner spanner =
SpannerOptions.newBuilder().setProjectId(projectId).build().getService();
DatabaseAdminClient adminClient = spanner.createDatabaseAdminClient()) {
createBackupWithMultiRegionEncryptionKey(
adminClient, projectId, instanceId, databaseId, backupId, kmsKeyNames);
}
}
static Void createBackupWithMultiRegionEncryptionKey(
DatabaseAdminClient adminClient,
String projectId,
String instanceId,
String databaseId,
String backupId,
String[] kmsKeyNames) {
// Set expire time to 14 days from now.
final Timestamp expireTime =
Timestamp.newBuilder()
.setSeconds(
TimeUnit.MILLISECONDS.toSeconds(
(System.currentTimeMillis() + TimeUnit.DAYS.toMillis(14))))
.build();
final BackupName backupName = BackupName.of(projectId, instanceId, backupId);
Backup backup =
Backup.newBuilder()
.setName(backupName.toString())
.setDatabase(DatabaseName.of(projectId, instanceId, databaseId).toString())
.setExpireTime(expireTime)
.build();
final CreateBackupRequest request =
CreateBackupRequest.newBuilder()
.setParent(InstanceName.of(projectId, instanceId).toString())
.setBackupId(backupId)
.setBackup(backup)
.setEncryptionConfig(
CreateBackupEncryptionConfig.newBuilder()
.setEncryptionType(EncryptionType.CUSTOMER_MANAGED_ENCRYPTION)
.addAllKmsKeyNames(ImmutableList.copyOf(kmsKeyNames))
.build())
.build();
try {
System.out.println("Waiting for operation to complete...");
backup = adminClient.createBackupAsync(request).get(1200, TimeUnit.SECONDS);
} catch (ExecutionException e) {
// If the operation failed during execution, expose the cause.
throw SpannerExceptionFactory.asSpannerException(e.getCause());
} catch (InterruptedException e) {
// Throw when a thread is waiting, sleeping, or otherwise occupied,
// and the thread is interrupted, either before or during the activity.
throw SpannerExceptionFactory.propagateInterrupt(e);
} catch (TimeoutException e) {
// If the operation timed out propagates the timeout
throw SpannerExceptionFactory.propagateTimeout(e);
}
System.out.printf(
"Backup %s of size %d bytes was created at %s using encryption keys %s%n",
backup.getName(),
backup.getSizeBytes(),
LocalDateTime.ofEpochSecond(
backup.getCreateTime().getSeconds(),
backup.getCreateTime().getNanos(),
OffsetDateTime.now().getOffset()),
ImmutableList.copyOf(kmsKeyNames));
return null;
}
}
Node.js
如要在區域執行個體設定中建立啟用 CMEK 的備份，請按照下列步驟操作：
// Imports the Google Cloud client library
const {Spanner, protos} = require('@google-cloud/spanner');
const {PreciseDate} = require('@google-cloud/precise-date');
/**
* TODO(developer): Uncomment the following lines before running the sample.
*/
// const projectId = 'my-project-id';
// const instanceId = 'my-instance';
// const databaseId = 'my-database';
// const backupId = 'my-backup';
// const keyName =
// 'projects/my-project-id/my-region/keyRings/my-key-ring/cryptoKeys/my-key';
// Creates a client
const spanner = new Spanner({
projectId: projectId,
});
// Gets a reference to a Cloud Spanner Database Admin Client object
const databaseAdminClient = spanner.getDatabaseAdminClient();
// Creates a new backup of the database
try {
console.log(
`Creating backup of database ${databaseAdminClient.databasePath(
projectId,
instanceId,
databaseId,
)}.`,
);
// Expire backup 14 days in the future
const expireTime = Date.now() + 1000 * 60 * 60 * 24 * 14;
// Create a backup of the state of the database at the current time.
const [operation] = await databaseAdminClient.createBackup({
parent: databaseAdminClient.instancePath(projectId, instanceId),
backupId: backupId,
backup: (protos.google.spanner.admin.database.v1.Backup = {
database: databaseAdminClient.databasePath(
projectId,
instanceId,
databaseId,
),
expireTime: Spanner.timestamp(expireTime).toStruct(),
name: databaseAdminClient.backupPath(projectId, instanceId, backupId),
}),
encryptionConfig: {
encryptionType: 'CUSTOMER_MANAGED_ENCRYPTION',
kmsKeyName: keyName,
},
});
console.log(
`Waiting for backup ${databaseAdminClient.backupPath(
projectId,
instanceId,
backupId,
)} to complete...`,
);
await operation.promise();
// Verify backup is ready
const [backupInfo] = await databaseAdminClient.getBackup({
name: databaseAdminClient.backupPath(projectId, instanceId, backupId),
});
if (backupInfo.state === 'READY') {
console.log(
`Backup ${backupInfo.name} of size ` +
`${backupInfo.sizeBytes} bytes was created at ` +
`${new PreciseDate(backupInfo.createTime).toISOString()} ` +
`using encryption key ${backupInfo.encryptionInfo.kmsKeyVersion}`,
);
} else {
console.error('ERROR: Backup is not ready.');
}
} catch (err) {
console.error('ERROR:', err);
} finally {
// Close the spanner client when finished.
// The databaseAdminClient does not require explicit closure. The closure of the Spanner client will automatically close the databaseAdminClient.
spanner.close();
}如要在多區域執行個體設定中建立啟用 CMEK 的備份，請按照下列步驟操作：
/**
* TODO(developer): Uncomment the following lines before running the sample.
*/
// const projectId = 'my-project-id';
// const instanceId = 'my-instance';
// const databaseId = 'my-database';
// const backupId = 'my-backup';
// const kmsKeyNames =
// 'projects/my-project-id/my-region/keyRings/my-key-ring/cryptoKeys/my-key1,
// 'projects/my-project-id/my-region/keyRings/my-key-ring/cryptoKeys/my-key2';
// Imports the Google Cloud client library
const {Spanner, protos} = require('@google-cloud/spanner');
const {PreciseDate} = require('@google-cloud/precise-date');
// Creates a client
const spanner = new Spanner({
projectId: projectId,
});
// Gets a reference to a Cloud Spanner Database Admin Client object
const databaseAdminClient = spanner.getDatabaseAdminClient();
async function createBackupWithMultipleKmsKeys() {
// Creates a new backup of the database
try {
console.log(
`Creating backup of database ${databaseAdminClient.databasePath(
projectId,
instanceId,
databaseId,
)}.`,
);
// Expire backup 14 days in the future
const expireTime = Date.now() + 1000 * 60 * 60 * 24 * 14;
// Create a backup of the state of the database at the current time.
const [operation] = await databaseAdminClient.createBackup({
parent: databaseAdminClient.instancePath(projectId, instanceId),
backupId: backupId,
backup: (protos.google.spanner.admin.database.v1.Backup = {
database: databaseAdminClient.databasePath(
projectId,
instanceId,
databaseId,
),
expireTime: Spanner.timestamp(expireTime).toStruct(),
name: databaseAdminClient.backupPath(projectId, instanceId, backupId),
}),
encryptionConfig: {
encryptionType: 'CUSTOMER_MANAGED_ENCRYPTION',
kmsKeyNames: kmsKeyNames.split(','),
},
});
console.log(
`Waiting for backup ${databaseAdminClient.backupPath(
projectId,
instanceId,
backupId,
)} to complete...`,
);
await operation.promise();
// Verify backup is ready
const [backupInfo] = await databaseAdminClient.getBackup({
name: databaseAdminClient.backupPath(projectId, instanceId, backupId),
});
const kmsKeyVersions = backupInfo.encryptionInformation
.map(encryptionInfo => encryptionInfo.kmsKeyVersion)
.join(', ');
if (backupInfo.state === 'READY') {
console.log(
`Backup ${backupInfo.name} of size ` +
`${backupInfo.sizeBytes} bytes was created at ` +
`${new PreciseDate(backupInfo.createTime).toISOString()} ` +
`using encryption key ${kmsKeyVersions}`,
);
} else {
console.error('ERROR: Backup is not ready.');
}
} catch (err) {
console.error('ERROR:', err);
} finally {
// Close the spanner client when finished.
// The databaseAdminClient does not require explicit closure. The closure of the Spanner client will automatically close the databaseAdminClient.
spanner.close();
}
}
createBackupWithMultipleKmsKeys();
PHP
如要在區域執行個體設定中建立啟用 CMEK 的備份，請按照下列步驟操作：
use Google\Cloud\Spanner\Admin\Database\V1\Backup;
use \Google\Cloud\Spanner\Admin\Database\V1\Backup\State;
use Google\Cloud\Spanner\Admin\Database\V1\Client\DatabaseAdminClient;
use Google\Cloud\Spanner\Admin\Database\V1\CreateBackupEncryptionConfig;
use Google\Cloud\Spanner\Admin\Database\V1\CreateBackupRequest;
use Google\Cloud\Spanner\Admin\Database\V1\GetBackupRequest;
use Google\Protobuf\Timestamp;
/**
* Create an encrypted backup.
* Example:
* ```
* create_backup_with_encryption_key($projectId, $instanceId, $databaseId, $backupId, $kmsKeyName);
* ```
*
* @param string $projectId The Google Cloud project ID.
* @param string $instanceId The Spanner instance ID.
* @param string $databaseId The Spanner database ID.
* @param string $backupId The Spanner backup ID.
* @param string $kmsKeyName The KMS key used for encryption.
*/
function create_backup_with_encryption_key(
string $projectId,
string $instanceId,
string $databaseId,
string $backupId,
string $kmsKeyName
): void {
$databaseAdminClient = new DatabaseAdminClient();
$instanceFullName = DatabaseAdminClient::instanceName($projectId, $instanceId);
$databaseFullName = DatabaseAdminClient::databaseName($projectId, $instanceId, $databaseId);
$expireTime = new Timestamp();
$expir>eTime-setSeconds((new \DateTime('+14 da>ys'))-getTimestamp());
$request = new CreateBackupRequest([
'par>ent' = $instanceFullName,
'backup>_id' = $backupId,
'encryption_con>fig' = new CreateBackupEncryptionConfig([
'kms_key_n>ame' = $kmsKeyName,
'encryption_t>ype' = CreateBackupEncryptionConfig\EncryptionType::CUSTOMER_MANAGED_ENCRYPTION
]),
'bac>kup' = new Backup([
'datab>ase' = $databaseFullName,
'expire_t>ime' = $expireTime
])
]);
$operation = $databaseAdminC>lient-createBackup($request);
print('Waiting for operation to complete...' . PHP_EOL);
$oper>ation-pollUntilComplete();
$request = new GetBackupRequest();
$re>quest-setName($databaseAdminC>lient-backupName($projectId, $instanceId, $backupId));
$info = $databaseAdminC>lient-getBackup($request);
if (State::name(>$info-getState()) == 'READY') {
printf(
'Backup %s of size %d bytes was created at %d using encryption key %s' . PHP_EOL,
basename(>$info-getName()),
>$info-getSizeBytes(),
>$info-getCreateT>ime()-getSeconds(),
>$info-getEncryptionI>nfo()-getKmsKeyVersion()
);
} else {
print('Backup is not ready!' . PHP_EOL);
}
}如要在多區域執行個體設定中建立啟用 CMEK 的備份，請按照下列步驟操作：
use Google\Cloud\Spanner\Admin\Database\V1\Backup;
use \Google\Cloud\Spanner\Admin\Database\V1\Backup\State;
use Google\Cloud\Spanner\Admin\Database\V1\Client\DatabaseAdminClient;
use Google\Cloud\Spanner\Admin\Database\V1\CreateBackupEncryptionConfig;
use Google\Cloud\Spanner\Admin\Database\V1\CreateBackupRequest;
use Google\Cloud\Spanner\Admin\Database\V1\GetBackupRequest;
use Google\Protobuf\Timestamp;
/**
* Create a CMEK backup.
* Example:
* ```
* create_backup_with_mr_cmek($projectId, $instanceId, $databaseId, $backupId, $kmsKeyNames);
* ```
*
* @param string $projectId The Google Cloud project ID.
* @param string $instanceId The Spanner instance ID.
* @param string $databaseId The Spanner database ID.
* @param string $backupId The Spanner backup ID.
* @param string[] $kmsKeyNames The KMS keys used for encryption.
*/
function create_backup_with_mr_cmek(
string $projectId,
string $instanceId,
string $databaseId,
string $backupId,
array $kmsKeyNames
): void {
$databaseAdminClient = new DatabaseAdminClient();
$instanceFullName = DatabaseAdminClient::instanceName($projectId, $instanceId);
$databaseFullName = DatabaseAdminClient::databaseName($projectId, $instanceId, $databaseId);
$expireTime = new Timestamp();
$expir>eTime-setSeconds((new \DateTime('+14 da>ys'))-getTimestamp());
$request = new CreateBackupRequest([
'par>ent' = $instanceFullName,
'backup>_id' = $backupId,
'encryption_con>fig' = new CreateBackupEncryptionConfig([
'kms_key_na>mes' = $kmsKeyNames,
'encryption_t>ype' = CreateBackupEncryptionConfig\EncryptionType::CUSTOMER_MANAGED_ENCRYPTION
]),
'bac>kup' = new Backup([
'datab>ase' = $databaseFullName,
'expire_t>ime' = $expireTime
])
]);
$operation = $databaseAdminC>lient-createBackup($request);
print('Waiting for operation to complete...' . PHP_EOL);
$oper>ation-pollUntilComplete();
$request = new GetBackupRequest();
$re>quest-setName($databaseAdminC>lient-backupName($projectId, $instanceId, $backupId));
$info = $databaseAdminC>lient-getBackup($request);
if (State::name(>$info-getState()) == 'READY') {
$kmsKeyVersions = [];
foreach (>$info-getEncryptionInformation() as $encryptionInfo) {
$kmsKeyVersions[] = $encryptio>nInfo-getKmsKeyVersion();
}
printf(
'Backup %s of size %d bytes was created at %d using encryption keys %s' . PHP_EOL,
basename(>$info-getName()),
>$info-getSizeBytes(),
>$info-getCreateT>ime()-getSeconds(),
print_r($kmsKeyVersions, true)
);
} else {
print('Backup is not ready!' . PHP_EOL);
}
}
Python
如要在區域執行個體設定中建立啟用 CMEK 的備份，請按照下列步驟操作：
def create_backup_with_encryption_key(
instance_id, database_id, backup_id, kms_key_name
):
"""Creates a backup for a database using a Customer Managed Encryption Key (CMEK)."""
from google.cloud.spanner_admin_database_v1 import CreateBackupEncryptionConfig
from google.cloud.spanner_admin_database_v1.types import backup as backup_pb
spanner_client = spanner.Client()
database_admin_api = spanner_client.database_admin_api
# Create a backup
expire_time = datetime.utcnow() + timedelta(days=14)
encryption_config = {
"encryption_type": CreateBackupEncryptionConfig.EncryptionType.CUSTOMER_MANAGED_ENCRYPTION,
"kms_key_name": kms_key_name,
}
request = backup_pb.CreateBackupRequest(
parent=database_admin_api.instance_path(spanner_client.project, instance_id),
backup_id=backup_id,
backup=backup_pb.Backup(
database=database_admin_api.database_path(
spanner_client.project, instance_id, database_id
),
expire_time=expire_time,
),
encryption_config=encryption_config,
)
operation = database_admin_api.create_backup(request)
# Wait for backup operation to complete.
backup = operation.result(2100)
# Verify that the backup is ready.
assert backup.state == backup_pb.Backup.State.READY
# Get the name, create time, backup size and encryption key.
print(
"Backup {} of size {} bytes was created at {} using encryption key {}".format(
backup.name, backup.size_bytes, backup.create_time, kms_key_name
)
)
如要在多區域執行個體設定中建立啟用 CMEK 的備份，請按照下列步驟操作：
def create_backup_with_multiple_kms_keys(
instance_id, database_id, backup_id, kms_key_names
):
"""Creates a backup for a database using multiple KMS keys(CMEK)."""
from google.cloud.spanner_admin_database_v1 import CreateBackupEncryptionConfig
from google.cloud.spanner_admin_database_v1.types import backup as backup_pb
spanner_client = spanner.Client()
database_admin_api = spanner_client.database_admin_api
# Create a backup
expire_time = datetime.utcnow() + timedelta(days=14)
encryption_config = {
"encryption_type": CreateBackupEncryptionConfig.EncryptionType.CUSTOMER_MANAGED_ENCRYPTION,
"kms_key_names": kms_key_names,
}
request = backup_pb.CreateBackupRequest(
parent=database_admin_api.instance_path(spanner_client.project, instance_id),
backup_id=backup_id,
backup=backup_pb.Backup(
database=database_admin_api.database_path(
spanner_client.project, instance_id, database_id
),
expire_time=expire_time,
),
encryption_config=encryption_config,
)
operation = database_admin_api.create_backup(request)
# Wait for backup operation to complete.
backup = operation.result(2100)
# Verify that the backup is ready.
assert backup.state == backup_pb.Backup.State.READY
# Get the name, create time, backup size and encryption key.
print(
"Backup {} of size {} bytes was created at {} using encryption key {}".format(
backup.name, backup.size_bytes, backup.create_time, kms_key_names
)
)
Ruby
如要在區域執行個體設定中建立啟用 CMEK 的備份，請按照下列步驟操作：
# project_id = "Your Google Cloud project ID"
# instance_id = "Your Spanner instance ID"
# database_id = "Your Spanner database ID"
# backup_id = "Your Spanner backup ID"
# kms_key_name = "Your backup encryption database KMS key"
require "google/cloud/spanner"
require "google/cloud/spanner/admin/database"
database_admin_client = Google::Cloud::Spanner::Admin::Database.database_admin
instance_path = database_admin_client.instance_path project: project_id, instance: instance_id
db_path = database_admin_client.database_path project: project_id,
instance: instance_id,
database: database_id
backup_path = database_admin_client.backup_path project: project_id,
instance: instance_id,
backup: backup_id
expire_time = Time.now + (14 * 24 * 3600) # 14 days from now
encryption_config = {
encryption_type: :CUSTOMER_MANAGED_ENCRYPTION,
kms_key_name: kms_key_name
}
job = database_admin_client.create_backup parent: instance_path,
backup_id: backup_id,
backup: {
database: db_path,
expire_time: expire_time
},
encryption_config: encryption_config
puts "Backup operation in progress"
job.wait_until_done!
backup = database_admin_client.get_backup name: backup_path
puts "Backup #{backup_id} of size #{backup.size_bytes} bytes was created at #{backup.create_time} using encryption key #{kms_key_name}"
如要在多區域執行個體設定中建立啟用 CMEK 的備份，請按照下列步驟操作：
# project_id = "Your Google Cloud project ID"
# instance_id = "Your Spanner instance ID"
# database_id = "Your Spanner database ID"
# backup_id = "Your Spanner backup ID"
# kms_key_names = ["key1", "key2", "key3"]
require "google/cloud/spanner"
require "google/cloud/spanner/admin/database"
database_admin_client = Google::Cloud::Spanner::Admin::Database.database_admin
instance_path = database_admin_client.instance_path(
project: project_id, instance: instance_id
)
db_path = database_admin_client.database_path project: project_id,
instance: instance_id,
database: database_id
backup_path = database_admin_client.backup_path project: project_id,
instance: instance_id,
backup: backup_id
expire_time = Time.now + (14 * 24 * 3600) # 14 days from now
encryption_config = {
encryption_type: :CUSTOMER_MANAGED_ENCRYPTION,
kms_key_names: kms_key_names
}
job = database_admin_client.create_backup parent: instance_path,
backup_id: backup_id,
backup: {
database: db_path,
expire_time: expire_time
},
encryption_config: encryption_config
puts "Backup operation in progress"
job.wait_until_done!
backup = database_admin_client.get_backup name: backup_path
puts "Backup #{backup_id} of size #{backup.size_bytes} bytes was created " \
"at #{backup.create_time} using encryption key #{kms_key_names}"
複製備份
您可以複製備份，將 Spanner 資料庫從一個執行個體複製到不同區域或專案中的另一個執行個體。根據預設，複製的備份會使用與來源備份相同的加密設定 (Google 代管或客戶自行管理)。如要覆寫這項行為，請在複製備份時指定不同的加密設定。如要讓複製的備份檔在跨區域複製時以 CMEK 加密，請指定與目的地區域對應的 Cloud KMS 金鑰。
控制台
使用控制台複製區域執行個體設定中的備份。
前往 Google Cloud 控制台的「Instances」(執行個體) 頁面。
按一下包含要備份資料庫的執行個體名稱。
按一下資料庫。
在導覽窗格中，按一下「備份/還原」。
在「備份」表格中，選取備份的「動作」，然後按一下「複製」。
填寫表單，選擇目的地執行個體、提供名稱，並選取備份副本的到期日。
選用：如要為備份使用不同的加密設定，請按一下「顯示加密選項」。
a. 選取「Cloud KMS 金鑰」。
a. 從下拉式清單中選取金鑰。
金鑰清單僅限於目前的 Google Cloud 專案。 如要使用其他專案的金鑰，請使用 gcloud CLI 建立資料庫，而非控制台。 Google Cloud Google Cloud
按一下「複製」。
gcloud
如要將備份檔連同新的加密設定，複製到同一專案中的不同執行個體，請執行下列 gcloud spanner backups copy 指令：
gcloud spanner backups copy --async \
--source-instance=INSTANCE_ID \
--source-backup=SOURCE_BACKUP_NAME \
--destination-instance=DESTINATION_INSTANCE_ID \
--destination-backup=DESTINATION_BACKUP_NAME \
--expiration-date=EXPIRATION_DATE \
--encryption-type=CUSTOMER_MANAGED_ENCRYPTION \
--kms-keys=KMS_KEY_1[, KMS_KEY_2 ... ]如要將備份檔連同新的加密設定，複製到不同專案中的其他執行個體，請執行下列 gcloud spanner backups copy 指令：
gcloud spanner backups copy --async \
--source-backup=SOURCE_BACKUP_NAME \
--destination-backup=DESTINATION_BACKUP_NAME \
--encryption-type=CUSTOMER_MANAGED_ENCRYPTION \
--kms-keys=KMS_KEY_1[, KMS_KEY_2 ... ]如要確認複製的備份是否已透過 CMEK 加密，請按照下列步驟操作：
gcloud spanner backups describe BACKUP \
--project=SPANNER_PROJECT_ID \
--instance=INSTANCE_ID用戶端程式庫
C#
如要在多區域執行個體設定中複製啟用 CMEK 的備份，請按照下列步驟操作：
using Google.Cloud.Spanner.Admin.Database.V1;
using Google.Cloud.Spanner.Common.V1;
using Google.Protobuf.WellKnownTypes;
using System;
using System.Collections.Generic;
using System.Threading.Tasks;
public class CopyBackupWithMultiRegionEncryptionAsyncSample
{
public async Task<Backup> CopyBackupWithMultiRegionEncryptionAsync(
string sourceProjectId, string sourceInstanceId, string sourceBackupId,
string targetProjectId, string targetInstanceId, string targetBackupId,
DateTimeOffset expireTime, IEnumerable<CryptoKeyName> kmsKeyNames)
{
DatabaseAdminClient databaseAdminClient = DatabaseAdminClient.Create();
var request = new CopyBackupRequest
{
SourceBackupAsBackupName = new BackupName(sourceProjectId, sourceInstanceId, sourceBackupId),
ParentAsInstanceName = new InstanceName(targetProjectId, targetInstanceId),
BackupId = targetBackupId,
ExpireTime = Timestamp.FromDateTimeOffset(expireTime),
EncryptionConfig = new CopyBackupEncryptionConfig
{
EncryptionType = CopyBackupEncryptionConfig.Types.EncryptionType.CustomerManagedEncryption,
KmsKeyNamesAsCryptoKeyNames = { kmsKeyNames },
}
};
// Execute the CopyBackup request.
var operation = await databaseAdminClient.CopyBackupAsync(request);
Console.WriteLine("Waiting for the operation to finish.");
// Poll until the returned long-running operation is complete.
var completedResponse = await operation.PollUntilCompletedAsync();
if (completedResponse.IsFaulted)
{
Console.WriteLine($"Error while copying backup: {completedResponse.Exception}");
throw completedResponse.Exception;
}
Backup backup = completedResponse.Result;
Console.WriteLine($"Backup copied successfully.");
Console.WriteLine($"Backup with Id {sourceBackupId} has been copied from {sourceProjectId}/{sourceInstanceId} to {targetProjectId}/{targetInstanceId} Backup {targetBackupId}");
Console.WriteLine($"Backup {backup.Name} of size {backup.SizeBytes} bytes was created with encryption keys {string.Join(", ", kmsKeyNames)} at {backup.CreateTime} from {backup.Database} and is in state {backup.State} and has version time {backup.VersionTime}");
return backup;
}
}
C++
如要在多區域執行個體設定中複製啟用 CMEK 的備份，請按照下列步驟操作：
struct BackupIdentifier {
std::string project_id;
std::string instance_id;
std::string backup_id;
};
void PrintKmsKeys(
std::vector<google::cloud::KmsKeyName> const& encryption_keys) {
std::cout << " using encryption keys ";
for (std::size_t i = 0; i < encryption_keys.size(); ++i) {
std::cout << encryption_keys[i].FullName();
if (i != encryption_keys.size() - 1) {
std::cout << ", ";
}
}
std::cout << ".\n";
}
void CopyBackupWithMRCMEK(
google::cloud::spanner_admin::DatabaseAdminClient client,
BackupIdentifier const& src, BackupIdentifier const& dst,
google::cloud::spanner::Timestamp expire_time,
std::vector<google::cloud::KmsKeyName> const& encryption_keys) {
google::cloud::spanner::Backup source(
google::cloud::spanner::Instance(src.project_id, src.instance_id),
src.backup_id);
google::cloud::spanner::Instance dst_in(dst.project_id, dst.instance_id);
google::spanner::admin::database::v1::CopyBackupRequest request;
request.set_backup_id(dst.backup_id);
request.set_parent(dst_in.FullName());
request.set_source_backup(source.FullName());
*request.mutable_expire_time() =
expire_time.get<google::protobuf::Timestamp>().value();
request.mutable_encryption_config()->set_encryption_type(
google::spanner::admin::database::v1::CopyBackupEncryptionConfig::
CUSTOMER_MANAGED_ENCRYPTION);
for (google::cloud::KmsKeyName const& encryption_key : encryption_keys) {
request.mutable_encryption_config()->add_kms_key_names(
encryption_key.FullName());
}
auto copy_backup = client.CopyBackup(request).get();
if (!copy_backup) throw std::move(copy_backup).status();
std::cout << "Copy Backup " << copy_backup->name() //
<< " of " << source.FullName() //
<< " of size " << copy_backup->size_bytes() << " bytes as of "
<< google::cloud::spanner::MakeTimestamp(
copy_backup->version_time())
.value()
<< " was created at "
<< google::cloud::spanner::MakeTimestamp(copy_backup->create_time())
.value();
PrintKmsKeys(encryption_keys);
}Go
如要在多區域執行個體設定中複製啟用 CMEK 的備份，請按照下列步驟操作：
import (
"context"
"fmt"
"io"
"time"
database "cloud.google.com/go/spanner/admin/database/apiv1"
adminpb "cloud.google.com/go/spanner/admin/database/apiv1/databasepb"
pbt "github.com/golang/protobuf/ptypes/timestamp"
)
// copyBackupWithMultiRegionEncryptionKey copies an existing backup to a given instance in same or different region, or in same or different project with multiple encryption keys.
func copyBackupWithMultiRegionEncryptionKey(w io.Writer, instancePath string, copyBackupId string, sourceBackupPath string, kmsKeyNames []string) error {
// instancePath := "projects/my-project/instances/my-instance"
// copyBackupId := "my-copy-backup"
// sourceBackupPath := "projects/my-project/instances/my-instance/backups/my-source-backup"
// kmsKeyNames := []string{"projects/my-project/locations/locations/<location1>/keyRings/<keyRing>/cryptoKeys/<keyId>",
// "projects/my-project/locations/locations/<location2>/keyRings/<keyRing>/cryptoKeys/<keyId>",
// "projects/my-project/locations/locations/<location3>/keyRings/<keyRing>/cryptoKeys/<keyId>",
// }
// Add timeout to context.
ctx, cancel := context.WithTimeout(context.Background(), time.Hour)
defer cancel()
// Instantiate database admin client.
adminClient, err := database.NewDatabaseAdminClient(ctx)
if err != nil {
return fmt.Errorf("database.NewDatabaseAdminClient: %w", err)
}
defer adminClient.Close()
expireTime := time.Now().AddDate(0, 0, 14)
// Instantiate the request for performing copy backup operation.
copyBackupReq := adminpb.CopyBackupRequest{
Parent: instancePath,
BackupId: copyBackupId,
SourceBackup: sourceBackupPath,
ExpireTime: &pbt.Timestamp{Seconds: expireTime.Unix(), Nanos: int32(expireTime.Nanosecond())},
EncryptionConfig: &adminpb.CopyBackupEncryptionConfig{
EncryptionType: adminpb.CopyBackupEncryptionConfig_CUSTOMER_MANAGED_ENCRYPTION,
KmsKeyNames: kmsKeyNames,
},
}
// Start copying the backup.
copyBackupOp, err := adminClient.CopyBackup(ctx, ©BackupReq)
if err != nil {
return fmt.Errorf("adminClient.CopyBackup: %w", err)
}
// Wait for copy backup operation to complete.
fmt.Fprintf(w, "Waiting for backup copy %s/backups/%s to complete...\n", instancePath, copyBackupId)
copyBackup, err := copyBackupOp.Wait(ctx)
if err != nil {
return fmt.Errorf("copyBackup.Wait: %w", err)
}
// Check if long-running copyBackup operation is completed.
if !copyBackupOp.Done() {
return fmt.Errorf("backup %v could not be copied to %v", sourceBackupPath, copyBackupId)
}
// Get the name, create time, version time and backup size.
copyBackupCreateTime := time.Unix(copyBackup.CreateTime.Seconds, int64(copyBackup.CreateTime.Nanos))
copyBackupVersionTime := time.Unix(copyBackup.VersionTime.Seconds, int64(copyBackup.VersionTime.Nanos))
fmt.Fprintf(w,
"Backup %s of size %d bytes was created at %s with version time %s using multi-region encryption keys\n",
copyBackup.Name,
copyBackup.SizeBytes,
copyBackupCreateTime.Format(time.RFC3339),
copyBackupVersionTime.Format(time.RFC3339))
return nil
}
Java
如要在多區域執行個體設定中複製啟用 CMEK 的備份，請按照下列步驟操作：
import com.google.cloud.Timestamp;
import com.google.cloud.spanner.Spanner;
import com.google.cloud.spanner.SpannerException;
import com.google.cloud.spanner.SpannerExceptionFactory;
import com.google.cloud.spanner.SpannerOptions;
import com.google.cloud.spanner.admin.database.v1.DatabaseAdminClient;
import com.google.common.collect.ImmutableList;
import com.google.spanner.admin.database.v1.Backup;
import com.google.spanner.admin.database.v1.BackupName;
import com.google.spanner.admin.database.v1.CopyBackupEncryptionConfig;
import com.google.spanner.admin.database.v1.CopyBackupEncryptionConfig.EncryptionType;
import com.google.spanner.admin.database.v1.CopyBackupRequest;
import com.google.spanner.admin.database.v1.InstanceName;
import java.time.Instant;
import java.time.OffsetDateTime;
import java.time.ZoneId;
import java.util.concurrent.ExecutionException;
import java.util.concurrent.TimeUnit;
public class CopyBackupWithMultiRegionEncryptionKey {
static void copyBackupWithMultiRegionEncryptionKey() {
// TODO(developer): Replace these variables before running the sample.
String projectId = "my-project";
String instanceId = "my-instance";
String sourceBackupId = "my-backup";
String destinationBackupId = "my-destination-backup";
String[] kmsKeyNames =
new String[] {
"projects/" + projectId + "/locations/<location1>/keyRings/<keyRing>/cryptoKeys/<keyId>",
"projects/" + projectId + "/locations/<location2>/keyRings/<keyRing>/cryptoKeys/<keyId>",
"projects/" + projectId + "/locations/<location3>/keyRings/<keyRing>/cryptoKeys/<keyId>"
};
try (Spanner spanner =
SpannerOptions.newBuilder().setProjectId(projectId).build().getService();
DatabaseAdminClient databaseAdminClient = spanner.createDatabaseAdminClient()) {
copyBackupWithMultiRegionEncryptionKey(
databaseAdminClient,
projectId,
instanceId,
sourceBackupId,
destinationBackupId,
kmsKeyNames);
}
}
static void copyBackupWithMultiRegionEncryptionKey(
DatabaseAdminClient databaseAdminClient,
String projectId,
String instanceId,
String sourceBackupId,
String destinationBackupId,
String[] kmsKeyNames) {
Timestamp expireTime =
Timestamp.ofTimeMicroseconds(
TimeUnit.MICROSECONDS.convert(
System.currentTimeMillis() + TimeUnit.DAYS.toMillis(14), TimeUnit.MILLISECONDS));
// Initiate the request which returns an OperationFuture.
System.out.println("Copying backup [" + destinationBackupId + "]...");
CopyBackupRequest request =
CopyBackupRequest.newBuilder()
.setParent(InstanceName.of(projectId, instanceId).toString())
.setBackupId(destinationBackupId)
.setSourceBackup(BackupName.of(projectId, instanceId, sourceBackupId).toString())
.setExpireTime(expireTime.toProto())
.setEncryptionConfig(
CopyBackupEncryptionConfig.newBuilder()
.setEncryptionType(EncryptionType.CUSTOMER_MANAGED_ENCRYPTION)
.addAllKmsKeyNames(ImmutableList.copyOf(kmsKeyNames))
.build())
.build();
Backup destinationBackup;
try {
// Creates a copy of an existing backup.
// Wait for the backup operation to complete.
destinationBackup = databaseAdminClient.copyBackupAsync(request).get();
System.out.println("Copied backup [" + destinationBackup.getName() + "]");
} catch (ExecutionException e) {
throw (SpannerException) e.getCause();
} catch (InterruptedException e) {
throw SpannerExceptionFactory.propagateInterrupt(e);
}
// Load the metadata of the new backup from the server.
destinationBackup = databaseAdminClient.getBackup(destinationBackup.getName());
System.out.println(
String.format(
"Backup %s of size %d bytes was copied at %s for version of database at %s",
destinationBackup.getName(),
destinationBackup.getSizeBytes(),
OffsetDateTime.ofInstant(
Instant.ofEpochSecond(
destinationBackup.getCreateTime().getSeconds(),
destinationBackup.getCreateTime().getNanos()),
ZoneId.systemDefault()),
OffsetDateTime.ofInstant(
Instant.ofEpochSecond(
destinationBackup.getVersionTime().getSeconds(),
destinationBackup.getVersionTime().getNanos()),
ZoneId.systemDefault())));
}
}Node.js
如要在多區域執行個體設定中複製啟用 CMEK 的備份，請按照下列步驟操作：
/**
* TODO(developer): Uncomment these variables before running the sample.
*/
// const instanceId = 'my-instance';
// const backupId = 'my-backup',
// const sourceBackupPath = 'projects/my-project-id/instances/my-source-instance/backups/my-source-backup',
// const projectId = 'my-project-id';
// const kmsKeyNames =
// 'projects/my-project-id/my-region/keyRings/my-key-ring/cryptoKeys/my-key1,
// projects/my-project-id/my-region/keyRings/my-key-ring/cryptoKeys/my-key2';
// Imports the Google Cloud Spanner client library
const {Spanner} = require('@google-cloud/spanner');
const {PreciseDate} = require('@google-cloud/precise-date');
// Creates a client
const spanner = new Spanner({
projectId: projectId,
});
// Gets a reference to a Cloud Spanner Database Admin Client object
const databaseAdminClient = spanner.getDatabaseAdminClient();
async function spannerCopyBackupWithMultipleKmsKeys() {
// Expire copy backup 14 days in the future
const expireTime = Spanner.timestamp(
Date.now() + 1000 * 60 * 60 * 24 * 14,
).toStruct();
// Copy the source backup
try {
console.log(`Creating copy of the source backup ${sourceBackupPath}.`);
const [operation] = await databaseAdminClient.copyBackup({
parent: databaseAdminClient.instancePath(projectId, instanceId),
sourceBackup: sourceBackupPath,
backupId: backupId,
expireTime: expireTime,
kmsKeyNames: kmsKeyNames.split(','),
});
console.log(
`Waiting for backup copy ${databaseAdminClient.backupPath(
projectId,
instanceId,
backupId,
)} to complete...`,
);
await operation.promise();
// Verify the copy backup is ready
const [copyBackup] = await databaseAdminClient.getBackup({
name: databaseAdminClient.backupPath(projectId, instanceId, backupId),
});
if (copyBackup.state === 'READY') {
console.log(
`Backup copy ${copyBackup.name} of size ` +
`${copyBackup.sizeBytes} bytes was created at ` +
`${new PreciseDate(copyBackup.createTime).toISOString()} ` +
'with version time ' +
`${new PreciseDate(copyBackup.versionTime).toISOString()}`,
);
} else {
console.error('ERROR: Copy of backup is not ready.');
}
} catch (err) {
console.error('ERROR:', err);
}
}
spannerCopyBackupWithMultipleKmsKeys();PHP
如要在多區域執行個體設定中複製啟用 CMEK 的備份，請按照下列步驟操作：
use Google\Cloud\Spanner\Admin\Database\V1\Client\DatabaseAdminClient;
use Google\Cloud\Spanner\Admin\Database\V1\CopyBackupRequest;
use Google\Cloud\Spanner\Admin\Database\V1\CopyBackupEncryptionConfig;
use Google\Protobuf\Timestamp;
/**
* Copy a MR CMEK backup.
* Example:
* ```
* copy_backup_with_mr_cmek($projectId, $instanceId, $sourceBackupId, $backupId, $kmsKeyNames);
* ```
* @param string $projectId The Google Cloud project ID.
* @param string $instanceId The Spanner instance ID.
* @param string $sourceBackupId The Spanner source backup ID.
* @param string $backupId The Spanner backup ID.
* @param string[] $kmsKeyNames The KMS keys used for encryption.
*/
/**
* Create a copy MR CMEK backup from another source backup.
* Example:
* ```
* copy_backup_with_mr_cmek($projectId, $destInstanceId, $destBackupId, $sourceInstanceId, $sourceBackupId, $kmsKeyNames);
* ```
*
* @param string $projectId The Google Cloud project ID.
* @param string $destInstanceId The Spanner instance ID where the copy backup will reside.
* @param string $destBackupId The Spanner backup ID of the new backup to be created.
* @param string $sourceInstanceId The Spanner instance ID of the source backup.
* @param string $sourceBackupId The Spanner backup ID of the source.
* @param string[] $kmsKeyNames The KMS keys used for encryption.
*/
function copy_backup_with_mr_cmek(
string $projectId,
string $destInstanceId,
string $destBackupId,
string $sourceInstanceId,
string $sourceBackupId,
array $kmsKeyNames
): void {
$databaseAdminClient = new DatabaseAdminClient();
$destInstanceFullName = DatabaseAdminClient::instanceName($projectId, $destInstanceId);
$expireTime = new Timestamp();
$expireTime->setSeconds((new \DateTime('+8 hours'))->getTimestamp());
$sourceBackupFullName = DatabaseAdminClient::backupName($projectId, $sourceInstanceId, $sourceBackupId);
$request = new CopyBackupRequest([
'source_backup' => $sourceBackupFullName,
'parent' => $destInstanceFullName,
'backup_id' => $destBackupId,
'expire_time' => $expireTime,
'encryption_config' => new CopyBackupEncryptionConfig([
'kms_key_names' => $kmsKeyNames,
'encryption_type' => CopyBackupEncryptionConfig\EncryptionType::CUSTOMER_MANAGED_ENCRYPTION
])
]);
$operationResponse = $databaseAdminClient->copyBackup($request);
$operationResponse->pollUntilComplete();
if (!$operationResponse->operationSucceeded()) {
$error = $operationResponse->getError();
printf('Backup not created due to error: %s.' . PHP_EOL, $error->getMessage());
return;
}
$destBackupInfo = $operationResponse->getResult();
$kmsKeyVersions = [];
foreach ($destBackupInfo->getEncryptionInformation() as $encryptionInfo) {
$kmsKeyVersions[] = $encryptionInfo->getKmsKeyVersion();
}
printf(
'Backup %s of size %d bytes was copied at %d from the source backup %s using encryption keys %s' . PHP_EOL,
basename($destBackupInfo->getName()),
$destBackupInfo->getSizeBytes(),
$destBackupInfo->getCreateTime()->getSeconds(),
$sourceBackupId,
print_r($kmsKeyVersions, true)
);
printf('Version time of the copied backup: %d' . PHP_EOL, $destBackupInfo->getVersionTime()->getSeconds());
}Python
如要在多區域執行個體設定中複製啟用 CMEK 的備份，請按照下列步驟操作：
def copy_backup_with_multiple_kms_keys(
instance_id, backup_id, source_backup_path, kms_key_names
):
"""Copies a backup."""
from google.cloud.spanner_admin_database_v1.types import backup as backup_pb
from google.cloud.spanner_admin_database_v1 import CopyBackupEncryptionConfig
spanner_client = spanner.Client()
database_admin_api = spanner_client.database_admin_api
encryption_config = {
"encryption_type": CopyBackupEncryptionConfig.EncryptionType.CUSTOMER_MANAGED_ENCRYPTION,
"kms_key_names": kms_key_names,
}
# Create a backup object and wait for copy backup operation to complete.
expire_time = datetime.utcnow() + timedelta(days=14)
request = backup_pb.CopyBackupRequest(
parent=database_admin_api.instance_path(spanner_client.project, instance_id),
backup_id=backup_id,
source_backup=source_backup_path,
expire_time=expire_time,
encryption_config=encryption_config,
)
operation = database_admin_api.copy_backup(request)
# Wait for backup operation to complete.
copy_backup = operation.result(2100)
# Verify that the copy backup is ready.
assert copy_backup.state == backup_pb.Backup.State.READY
print(
"Backup {} of size {} bytes was created at {} with version time {} using encryption keys {}".format(
copy_backup.name,
copy_backup.size_bytes,
copy_backup.create_time,
copy_backup.version_time,
copy_backup.encryption_information,
)
)
Ruby
如要在多區域執行個體設定中複製啟用 CMEK 的備份，請按照下列步驟操作：
# project_id = "Your Google Cloud project ID"
# instance_id = "The ID of the destination instance that will contain the backup copy"
# backup_id = "The ID of the backup copy"
# source_backup = "The source backup to be copied"
# kms_key_names = ["key1", "key2", "key3"]
require "google/cloud/spanner"
require "google/cloud/spanner/admin/database"
database_admin_client = Google::Cloud::Spanner::Admin::Database.database_admin
instance_path = database_admin_client.instance_path(
project: project_id, instance: instance_id
)
backup_path = database_admin_client.backup_path project: project_id,
instance: instance_id,
backup: backup_id
source_backup = database_admin_client.backup_path project: project_id,
instance: instance_id,
backup: source_backup_id
expire_time = Time.now + (14 * 24 * 3600) # 14 days from now
encryption_config = {
encryption_type: :CUSTOMER_MANAGED_ENCRYPTION,
kms_key_names: kms_key_names
}
job = database_admin_client.copy_backup parent: instance_path,
backup_id: backup_id,
source_backup: source_backup,
expire_time: expire_time,
encryption_config: encryption_config
puts "Copy backup operation in progress"
job.wait_until_done!
backup = database_admin_client.get_backup name: backup_path
puts "Backup #{backup_id} of size #{backup.size_bytes} bytes was copied at " \
"#{backup.create_time} from #{source_backup} for version " \
"#{backup.version_time} using encryption keys #{kms_key_names}"從備份還原
您可以還原 Spanner 資料庫的備份，並匯入新資料庫。根據預設，從備份還原的資料庫會使用與備份相同的加密設定，但您可以為還原的資料庫指定不同的加密設定，藉此覆寫這項行為。如果備份受 CMEK 保護，則必須提供用於建立備份的金鑰版本，才能解密。
控制台
使用控制台，在區域執行個體設定中還原備份。
前往 Google Cloud 控制台的「Instances」(執行個體) 頁面。
按一下包含要還原資料庫的執行個體。
按一下資料庫。
在導覽窗格中，按一下「備份/還原」。
在「備份」表格中，選取備份的「動作」，然後按一下「還原」。
選取要還原的執行個體，並為還原的資料庫命名。
選用步驟：如要使用不同的加密設定還原資料庫，請點選「使用現有加密」旁的滑桿。
a. 選取「Cloud KMS 金鑰」。
a. 從下拉式清單中選取金鑰。
金鑰清單僅限於目前的 Google Cloud 專案。 如要使用其他專案的金鑰，請使用 gcloud CLI 建立資料庫，而非控制台。 Google Cloud Google Cloud
按一下「還原」。
gcloud
如要使用新的加密設定還原備份，請執行下列gcloud spanner databases restore指令：
gcloud spanner databases restore --async \
--project=SPANNER_PROJECT_ID \
--destination-instance=DESTINATION_INSTANCE_ID \
--destination-database=DESTINATION_DATABASE_ID \
--source-instance=SOURCE_INSTANCE_ID \
--source-backup=SOURCE_BACKUP_NAME如要確認還原的資料庫是否已透過 CMEK 加密，請按照下列步驟操作：
gcloud spanner databases describe DATABASE \
--project=SPANNER_PROJECT_ID \
--instance=INSTANCE_ID詳情請參閱「從備份還原」。
用戶端程式庫
C#
如要在區域執行個體設定中還原啟用 CMEK 的備份，請按照下列步驟操作：
using Google.Cloud.Spanner.Admin.Database.V1;
using Google.Cloud.Spanner.Common.V1;
using System;
using System.Threading.Tasks;
public class RestoreDatabaseWithEncryptionAsyncSample
{
public async Task<Database> RestoreDatabaseWithEncryptionAsync(string projectId, string instanceId, string databaseId, string backupId, CryptoKeyName kmsKeyName)
{
// Create a DatabaseAdminClient instance.
DatabaseAdminClient databaseAdminClient = DatabaseAdminClient.Create();
// Create the RestoreDatabaseRequest with encryption configuration.
RestoreDatabaseRequest request = new RestoreDatabaseRequest
{
ParentAsInstanceName = InstanceName.FromProjectInstance(projectId, instanceId),
DatabaseId = databaseId,
BackupAsBackupName = BackupName.FromProjectInstanceBackup(projectId, instanceId, backupId),
EncryptionConfig = new RestoreDatabaseEncryptionConfig
{
EncryptionType = RestoreDatabaseEncryptionConfig.Types.EncryptionType.CustomerManagedEncryption,
KmsKeyNameAsCryptoKeyName = kmsKeyName,
}
};
// Execute the RestoreDatabase request.
var operation = await databaseAdminClient.RestoreDatabaseAsync(request);
Console.WriteLine("Waiting for the operation to finish.");
// Poll until the returned long-running operation is complete.
var completedResponse = await operation.PollUntilCompletedAsync();
if (completedResponse.IsFaulted)
{
Console.WriteLine($"Error while restoring database: {completedResponse.Exception}");
throw completedResponse.Exception;
}
var database = completedResponse.Result;
var restoreInfo = database.RestoreInfo;
Console.WriteLine($"Database {restoreInfo.BackupInfo.SourceDatabase} " +
$"restored to {database.Name} " +
$"from backup {restoreInfo.BackupInfo.Backup} " +
$"using encryption key {database.EncryptionConfig.KmsKeyName}");
return database;
}
}如要在多區域執行個體設定中還原已啟用 CMEK 的備份，請按照下列步驟操作：
using Google.Cloud.Spanner.Admin.Database.V1;
using Google.Cloud.Spanner.Common.V1;
using System;
using System.Collections.Generic;
using System.Threading.Tasks;
public class RestoreDatabaseWithMultiRegionEncryptionAsyncSample
{
public async Task<Database> RestoreDatabaseWithMultiRegionEncryptionAsync(string projectId, string instanceId, string databaseId, string backupId, IEnumerable<CryptoKeyName> kmsKeyNames)
{
// Create a DatabaseAdminClient instance.
DatabaseAdminClient databaseAdminClient = DatabaseAdminClient.Create();
// Create the RestoreDatabaseRequest with encryption configuration.
RestoreDatabaseRequest request = new RestoreDatabaseRequest
{
ParentAsInstanceName = InstanceName.FromProjectInstance(projectId, instanceId),
DatabaseId = databaseId,
BackupAsBackupName = BackupName.FromProjectInstanceBackup(projectId, instanceId, backupId),
EncryptionConfig = new RestoreDatabaseEncryptionConfig
{
EncryptionType = RestoreDatabaseEncryptionConfig.Types.EncryptionType.CustomerManagedEncryption,
KmsKeyNamesAsCryptoKeyNames = { kmsKeyNames },
}
};
// Execute the RestoreDatabase request.
var operation = await databaseAdminClient.RestoreDatabaseAsync(request);
Console.WriteLine("Waiting for the operation to finish.");
// Poll until the returned long-running operation is complete.
var completedResponse = await operation.PollUntilCompletedAsync();
if (completedResponse.IsFaulted)
{
Console.WriteLine($"Error while restoring database: {completedResponse.Exception}");
throw completedResponse.Exception;
}
var database = completedResponse.Result;
var restoreInfo = database.RestoreInfo;
Console.WriteLine($"Database {restoreInfo.BackupInfo.SourceDatabase} restored to {database.Name} from backup {restoreInfo.BackupInfo.Backup} using encryption keys {string.Join(", ", kmsKeyNames)}");
return database;
}
}C++
如要在區域執行個體設定中還原啟用 CMEK 的備份，請按照下列步驟操作：
void RestoreDatabaseWithEncryptionKey(
google::cloud::spanner_admin::DatabaseAdminClient client,
std::string const& project_id, std::string const& instance_id,
std::string const& database_id, std::string const& backup_id,
google::cloud::KmsKeyName const& encryption_key) {
google::cloud::spanner::Database database(project_id, instance_id,
database_id);
google::cloud::spanner::Backup backup(database.instance(), backup_id);
google::spanner::admin::database::v1::RestoreDatabaseRequest request;
request.set_parent(database.instance().FullName());
request.set_database_id(database.database_id());
request.set_backup(backup.FullName());
request.mutable_encryption_config()->set_encryption_type(
google::spanner::admin::database::v1::RestoreDatabaseEncryptionConfig::
CUSTOMER_MANAGED_ENCRYPTION);
request.mutable_encryption_config()->set_kms_key_name(
encryption_key.FullName());
auto restored_db = client.RestoreDatabase(request).get();
if (!restored_db) throw std::move(restored_db).status();
std::cout << "Database";
if (restored_db->restore_info().source_type() ==
google::spanner::admin::database::v1::BACKUP) {
auto const& backup_info = restored_db->restore_info().backup_info();
std::cout << " " << backup_info.source_database() << " as of "
<< google::cloud::spanner::MakeTimestamp(
backup_info.version_time())
.value();
}
std::cout << " restored to " << restored_db->name();
std::cout << " from backup " << backup.FullName();
std::cout << " using encryption key " << encryption_key.FullName();
std::cout << ".\n";
}如要在多區域執行個體設定中還原已啟用 CMEK 的備份，請按照下列步驟操作：
void RestoreDatabaseWithMRCMEK(
google::cloud::spanner_admin::DatabaseAdminClient client,
BackupIdentifier const& src, std::string const& database_id,
std::vector<google::cloud::KmsKeyName> const& encryption_keys) {
google::cloud::spanner::Database database(src.project_id, src.instance_id,
database_id);
google::cloud::spanner::Backup backup(database.instance(), src.backup_id);
google::spanner::admin::database::v1::RestoreDatabaseRequest request;
request.set_parent(database.instance().FullName());
request.set_database_id(database.database_id());
request.set_backup(backup.FullName());
request.mutable_encryption_config()->set_encryption_type(
google::spanner::admin::database::v1::RestoreDatabaseEncryptionConfig::
CUSTOMER_MANAGED_ENCRYPTION);
for (google::cloud::KmsKeyName const& encryption_key : encryption_keys) {
request.mutable_encryption_config()->add_kms_key_names(
encryption_key.FullName());
}
auto restored_db = client.RestoreDatabase(request).get();
if (!restored_db) throw std::move(restored_db).status();
std::cout << "Database";
if (restored_db->restore_info().source_type() ==
google::spanner::admin::database::v1::BACKUP) {
auto const& backup_info = restored_db->restore_info().backup_info();
std::cout << " " << backup_info.source_database() << " as of "
<< google::cloud::spanner::MakeTimestamp(
backup_info.version_time())
.value();
}
std::cout << " restored to " << restored_db->name();
std::cout << " from backup " << backup.FullName();
PrintKmsKeys(encryption_keys);
}Go
如要在區域執行個體設定中還原啟用 CMEK 的備份，請按照下列步驟操作：
import (
"context"
"fmt"
"io"
"regexp"
database "cloud.google.com/go/spanner/admin/database/apiv1"
adminpb "cloud.google.com/go/spanner/admin/database/apiv1/databasepb"
)
func restoreBackupWithCustomerManagedEncryptionKey(ctx context.Context, w io.Writer, db, backupID, kmsKeyName string) error {
// db = `projects/<project>/instances/<instance-id>/database/<database-id>`
// backupID = `my-backup-id`
// kmsKeyName = `projects/<project>/locations/<location>/keyRings/<key_ring>/cryptoKeys/<kms_key_name>`
matches := regexp.MustCompile("^(.*)/databases/(.*)$").FindStringSubmatch(db)
if matches == nil || len(matches) != 3 {
return fmt.Errorf("restoreBackupWithCustomerManagedEncryptionKey: invalid database id %q", db)
}
instanceName := matches[1]
databaseID := matches[2]
backupName := instanceName + "/backups/" + backupID
adminClient, err := database.NewDatabaseAdminClient(ctx)
if err != nil {
return fmt.Errorf("restoreBackupWithCustomerManagedEncryptionKey.NewDatabaseAdminClient: %w", err)
}
defer adminClient.Close()
// Restore a database from a backup using a Customer Managed Encryption Key.
restoreOp, err := adminClient.RestoreDatabase(ctx, &adminpb.RestoreDatabaseRequest{
Parent: instanceName,
DatabaseId: databaseID,
Source: &adminpb.RestoreDatabaseRequest_Backup{
Backup: backupName,
},
EncryptionConfig: &adminpb.RestoreDatabaseEncryptionConfig{
EncryptionType: adminpb.RestoreDatabaseEncryptionConfig_CUSTOMER_MANAGED_ENCRYPTION,
KmsKeyName: kmsKeyName,
},
})
if err != nil {
return fmt.Errorf("restoreBackupWithCustomerManagedEncryptionKey.RestoreDatabase: %w", err)
}
// Wait for restore operation to complete.
restoredDatabase, err := restoreOp.Wait(ctx)
if err != nil {
return fmt.Errorf("restoreBackupWithCustomerManagedEncryptionKey.Wait: %w", err)
}
// Get the information from the newly restored database.
backupInfo := restoredDatabase.RestoreInfo.GetBackupInfo()
fmt.Fprintf(w, "Database %s restored from backup %s using encryption key %s\n",
backupInfo.SourceDatabase,
backupInfo.Backup,
restoredDatabase.EncryptionConfig.KmsKeyName)
return nil
}
如要在多區域執行個體設定中還原已啟用 CMEK 的備份，請按照下列步驟操作：
import (
"context"
"fmt"
"io"
database "cloud.google.com/go/spanner/admin/database/apiv1"
adminpb "cloud.google.com/go/spanner/admin/database/apiv1/databasepb"
)
// restoreBackupWithCustomerManagedMultiRegionEncryptionKey restores a database from a backup using a Customer Managed Multi-Region Encryption Key.
func restoreBackupWithCustomerManagedMultiRegionEncryptionKey(ctx context.Context, w io.Writer, instName, databaseID string, backupID string, kmsKeyNames []string) error {
// instName = `projects/my-project/instances/my-instance`
// databaseID = `my-database`
// backupID = `my-backup-id`
// kmsKeyNames := []string{"projects/my-project/locations/locations/<location1>/keyRings/<keyRing>/cryptoKeys/<keyId>",
// "projects/my-project/locations/locations/<location2>/keyRings/<keyRing>/cryptoKeys/<keyId>",
// "projects/my-project/locations/locations/<location3>/keyRings/<keyRing>/cryptoKeys/<keyId>",
// }
adminClient, err := database.NewDatabaseAdminClient(ctx)
if err != nil {
return fmt.Errorf("restoreBackupWithCustomerManagedMultiRegionEncryptionKey.NewDatabaseAdminClient: %w", err)
}
defer adminClient.Close()
// Restore a database from a backup using a Customer Managed Encryption Key.
restoreOp, err := adminClient.RestoreDatabase(ctx, &adminpb.RestoreDatabaseRequest{
Parent: instName,
DatabaseId: databaseID,
Source: &adminpb.RestoreDatabaseRequest_Backup{
Backup: fmt.Sprintf("%s/backups/%s", instName, backupID),
},
EncryptionConfig: &adminpb.RestoreDatabaseEncryptionConfig{
EncryptionType: adminpb.RestoreDatabaseEncryptionConfig_CUSTOMER_MANAGED_ENCRYPTION,
KmsKeyNames: kmsKeyNames,
},
})
if err != nil {
return fmt.Errorf("restoreBackupWithCustomerManagedMultiRegionEncryptionKey.RestoreDatabase: %w", err)
}
// Wait for restore operation to complete.
restoredDatabase, err := restoreOp.Wait(ctx)
if err != nil {
return fmt.Errorf("restoreBackupWithCustomerManagedMultiRegionEncryptionKey.Wait: %w", err)
}
// Get the information from the newly restored database.
backupInfo := restoredDatabase.RestoreInfo.GetBackupInfo()
fmt.Fprintf(w, "Database %s restored from backup %s using multi-region encryption keys %q\n",
backupInfo.SourceDatabase,
backupInfo.Backup,
restoredDatabase.EncryptionConfig.GetKmsKeyNames())
return nil
}
Java
如要在區域執行個體設定中還原啟用 CMEK 的備份，請按照下列步驟操作：
import static com.google.spanner.admin.database.v1.RestoreDatabaseEncryptionConfig.EncryptionType.CUSTOMER_MANAGED_ENCRYPTION;
import com.google.cloud.spanner.Spanner;
import com.google.cloud.spanner.SpannerExceptionFactory;
import com.google.cloud.spanner.SpannerOptions;
import com.google.cloud.spanner.admin.database.v1.DatabaseAdminClient;
import com.google.spanner.admin.database.v1.BackupName;
import com.google.spanner.admin.database.v1.Database;
import com.google.spanner.admin.database.v1.InstanceName;
import com.google.spanner.admin.database.v1.RestoreDatabaseEncryptionConfig;
import com.google.spanner.admin.database.v1.RestoreDatabaseRequest;
import java.util.concurrent.ExecutionException;
public class RestoreBackupWithEncryptionKey {
static void restoreBackupWithEncryptionKey() {
// TODO(developer): Replace these variables before running the sample.
String projectId = "my-project";
String instanceId = "my-instance";
String databaseId = "my-database";
String backupId = "my-backup";
String kmsKeyName =
"projects/" + projectId + "/locations/<location>/keyRings/<keyRing>/cryptoKeys/<keyId>";
try (Spanner spanner =
SpannerOptions.newBuilder().setProjectId(projectId).build().getService();
DatabaseAdminClient adminClient = spanner.createDatabaseAdminClient()) {
restoreBackupWithEncryptionKey(
adminClient,
projectId,
instanceId,
backupId,
databaseId,
kmsKeyName);
}
}
static Void restoreBackupWithEncryptionKey(DatabaseAdminClient adminClient,
String projectId, String instanceId, String backupId, String restoreId, String kmsKeyName) {
RestoreDatabaseRequest request =
RestoreDatabaseRequest.newBuilder()
.setParent(InstanceName.of(projectId, instanceId).toString())
.setDatabaseId(restoreId)
.setBackup(BackupName.of(projectId, instanceId, backupId).toString())
.setEncryptionConfig(RestoreDatabaseEncryptionConfig.newBuilder()
.setEncryptionType(CUSTOMER_MANAGED_ENCRYPTION).setKmsKeyName(kmsKeyName)).build();
Database database;
try {
System.out.println("Waiting for operation to complete...");
database = adminClient.restoreDatabaseAsync(request).get();
;
} catch (ExecutionException e) {
// If the operation failed during execution, expose the cause.
throw SpannerExceptionFactory.asSpannerException(e.getCause());
} catch (InterruptedException e) {
// Throw when a thread is waiting, sleeping, or otherwise occupied,
// and the thread is interrupted, either before or during the activity.
throw SpannerExceptionFactory.propagateInterrupt(e);
}
System.out.printf(
"Database %s restored to %s from backup %s using encryption key %s%n",
database.getRestoreInfo().getBackupInfo().getSourceDatabase(),
database.getName(),
database.getRestoreInfo().getBackupInfo().getBackup(),
database.getEncryptionConfig().getKmsKeyName()
);
return null;
}
}如要在多區域執行個體設定中還原已啟用 CMEK 的備份，請按照下列步驟操作：
import static com.google.spanner.admin.database.v1.RestoreDatabaseEncryptionConfig.EncryptionType.CUSTOMER_MANAGED_ENCRYPTION;
import com.google.cloud.spanner.Spanner;
import com.google.cloud.spanner.SpannerExceptionFactory;
import com.google.cloud.spanner.SpannerOptions;
import com.google.cloud.spanner.admin.database.v1.DatabaseAdminClient;
import com.google.common.collect.ImmutableList;
import com.google.spanner.admin.database.v1.BackupName;
import com.google.spanner.admin.database.v1.Database;
import com.google.spanner.admin.database.v1.InstanceName;
import com.google.spanner.admin.database.v1.RestoreDatabaseEncryptionConfig;
import com.google.spanner.admin.database.v1.RestoreDatabaseRequest;
import java.util.concurrent.ExecutionException;
public class RestoreBackupWithMultiRegionEncryptionKey {
static void restoreBackupWithMultiRegionEncryptionKey() {
// TODO(developer): Replace these variables before running the sample.
String projectId = "my-project";
String instanceId = "my-instance";
String databaseId = "my-database";
String backupId = "my-backup";
String[] kmsKeyNames =
new String[] {
"projects/" + projectId + "/locations/<location1>/keyRings/<keyRing>/cryptoKeys/<keyId>",
"projects/" + projectId + "/locations/<location2>/keyRings/<keyRing>/cryptoKeys/<keyId>",
"projects/" + projectId + "/locations/<location3>/keyRings/<keyRing>/cryptoKeys/<keyId>"
};
try (Spanner spanner =
SpannerOptions.newBuilder().setProjectId(projectId).build().getService();
DatabaseAdminClient adminClient = spanner.createDatabaseAdminClient()) {
restoreBackupWithMultiRegionEncryptionKey(
adminClient, projectId, instanceId, backupId, databaseId, kmsKeyNames);
}
}
static Void restoreBackupWithMultiRegionEncryptionKey(
DatabaseAdminClient adminClient,
String projectId,
String instanceId,
String backupId,
String restoreId,
String[] kmsKeyNames) {
RestoreDatabaseRequest request =
RestoreDatabaseRequest.newBuilder()
.setParent(InstanceName.of(projectId, instanceId).toString())
.setDatabaseId(restoreId)
.setBackup(BackupName.of(projectId, instanceId, backupId).toString())
.setEncryptionConfig(
RestoreDatabaseEncryptionConfig.newBuilder()
.setEncryptionType(CUSTOMER_MANAGED_ENCRYPTION)
.addAllKmsKeyNames(ImmutableList.copyOf(kmsKeyNames)))
.build();
Database database;
try {
System.out.println("Waiting for operation to complete...");
database = adminClient.restoreDatabaseAsync(request).get();
;
} catch (ExecutionException e) {
// If the operation failed during execution, expose the cause.
throw SpannerExceptionFactory.asSpannerException(e.getCause());
} catch (InterruptedException e) {
// Throw when a thread is waiting, sleeping, or otherwise occupied,
// and the thread is interrupted, either before or during the activity.
throw SpannerExceptionFactory.propagateInterrupt(e);
}
System.out.printf(
"Database %s restored to %s from backup %s using encryption keys %s%n",
database.getRestoreInfo().getBackupInfo().getSourceDatabase(),
database.getName(),
database.getRestoreInfo().getBackupInfo().getBackup(),
database.getEncryptionConfig().getKmsKeyNamesList());
return null;
}
}
Node.js
如要在區域執行個體設定中還原啟用 CMEK 的備份，請按照下列步驟操作：
// Imports the Google Cloud client library and precise date library
const {Spanner} = require('@google-cloud/spanner');
/**
* TODO(developer): Uncomment the following lines before running the sample.
*/
// const projectId = 'my-project-id';
// const instanceId = 'my-instance';
// const databaseId = 'my-database';
// const backupId = 'my-backup';
// const keyName =
// 'projects/my-project-id/my-region/keyRings/my-key-ring/cryptoKeys/my-key';
// Creates a client
const spanner = new Spanner({
projectId: projectId,
});
// Gets a reference to a Cloud Spanner Database Admin Client object
const databaseAdminClient = spanner.getDatabaseAdminClient();
// Restore the database
console.log(
`Restoring database ${databaseAdminClient.databasePath(
projectId,
instanceId,
databaseId,
)} from backup ${backupId}.`,
);
const [restoreOperation] = await databaseAdminClient.restoreDatabase({
parent: databaseAdminClient.instancePath(projectId, instanceId),
databaseId: databaseId,
backup: databaseAdminClient.backupPath(projectId, instanceId, backupId),
encryptionConfig: {
encryptionType: 'CUSTOMER_MANAGED_ENCRYPTION',
kmsKeyName: keyName,
},
});
// Wait for restore to complete
console.log('Waiting for database restore to complete...');
await restoreOperation.promise();
console.log('Database restored from backup.');
const [metadata] = await databaseAdminClient.getDatabase({
name: databaseAdminClient.databasePath(projectId, instanceId, databaseId),
});
console.log(
`Database ${metadata.restoreInfo.backupInfo.sourceDatabase} was restored ` +
`to ${databaseId} from backup ${metadata.restoreInfo.backupInfo.backup} ` +
`using encryption key ${metadata.encryptionConfig.kmsKeyName}.`,
);如要在多區域執行個體設定中還原已啟用 CMEK 的備份，請按照下列步驟操作：
/**
* TODO(developer): Uncomment the following lines before running the sample.
*/
// const projectId = 'my-project-id';
// const instanceId = 'my-instance';
// const databaseId = 'my-database';
// const backupId = 'my-backup';
// const kmsKeyNames =
// 'projects/my-project-id/my-region/keyRings/my-key-ring/cryptoKeys/my-key1,
// projects/my-project-id/my-region/keyRings/my-key-ring/cryptoKeys/my-key2';
// Imports the Google Cloud client library and precise date library
const {Spanner} = require('@google-cloud/spanner');
// Creates a client
const spanner = new Spanner({
projectId: projectId,
});
// Gets a reference to a Cloud Spanner Database Admin Client object
const databaseAdminClient = spanner.getDatabaseAdminClient();
async function restoreBackupWithMultipleKmsKeys() {
// Restore the database
console.log(
`Restoring database ${databaseAdminClient.databasePath(
projectId,
instanceId,
databaseId,
)} from backup ${backupId}.`,
);
const [restoreOperation] = await databaseAdminClient.restoreDatabase({
parent: databaseAdminClient.instancePath(projectId, instanceId),
databaseId: databaseId,
backup: databaseAdminClient.backupPath(projectId, instanceId, backupId),
encryptionConfig: {
encryptionType: 'CUSTOMER_MANAGED_ENCRYPTION',
kmsKeyNames: kmsKeyNames.split(','),
},
});
// Wait for restore to complete
console.log('Waiting for database restore to complete...');
await restoreOperation.promise();
console.log('Database restored from backup.');
const [metadata] = await databaseAdminClient.getDatabase({
name: databaseAdminClient.databasePath(projectId, instanceId, databaseId),
});
console.log(
`Database ${metadata.restoreInfo.backupInfo.sourceDatabase} was restored ` +
`to ${databaseId} from backup ${metadata.restoreInfo.backupInfo.backup} ` +
`using encryption key ${metadata.encryptionConfig.kmsKeyNames}.`,
);
}
restoreBackupWithMultipleKmsKeys();
PHP
如要在區域執行個體設定中還原啟用 CMEK 的備份，請按照下列步驟操作：
use Google\Cloud\Spanner\Admin\Database\V1\Client\DatabaseAdminClient;
use Google\Cloud\Spanner\Admin\Database\V1\RestoreDatabaseEncryptionConfig;
use Google\Cloud\Spanner\Admin\Database\V1\RestoreDatabaseRequest;
/**
* Restore a database from a backup.
* Example:
* ```
* restore_backup_with_encryption_key($projectId, $instanceId, $databaseId, $backupId, $kmsKeyName);
* ```
* @param string $projectId The Google Cloud project ID.
* @param string $instanceId The Spanner instance ID.
* @param string $databaseId The Spanner database ID.
* @param string $backupId The Spanner backup ID.
* @param string $kmsKeyName The KMS key used for encryption.
*/
function restore_backup_with_encryption_key(
string $projectId,
string $instanceId,
string $databaseId,
string $backupId,
string $kmsKeyName
): void {
$databaseAdminClient = new DatabaseAdminClient();
$instanceFullName = DatabaseAdminClient::instanceName($projectId, $instanceId);
$backupFullName = DatabaseAdminClient::backupName($projectId, $instanceId, $backupId);
$request = new RestoreDatabaseRequest([
'parent' => $instanceFullName,
'database_id' => $databaseId,
'backup' => $backupFullName,
'encryption_config' => new RestoreDatabaseEncryptionConfig([
'kms_key_name' => $kmsKeyName,
'encryption_type' => RestoreDatabaseEncryptionConfig\EncryptionType::CUSTOMER_MANAGED_ENCRYPTION
])
]);
// Create restore operation
$operation = $databaseAdminClient->restoreDatabase($request);
print('Waiting for operation to complete...' . PHP_EOL);
$operation->pollUntilComplete();
// Reload new database and get restore info
$database = $operation->operationSucceeded() ? $operation->getResult() : null;
$restoreInfo = $database->getRestoreInfo();
$backupInfo = $restoreInfo->getBackupInfo();
$sourceDatabase = $backupInfo->getSourceDatabase();
$sourceBackup = $backupInfo->getBackup();
$encryptionConfig = $database->getEncryptionConfig();
printf(
'Database %s restored from backup %s using encryption key %s' . PHP_EOL,
$sourceDatabase, $sourceBackup, $encryptionConfig->getKmsKeyName()
);
}如要在多區域執行個體設定中還原已啟用 CMEK 的備份，請按照下列步驟操作：
use Google\Cloud\Spanner\Admin\Database\V1\Client\DatabaseAdminClient;
use Google\Cloud\Spanner\Admin\Database\V1\RestoreDatabaseEncryptionConfig;
use Google\Cloud\Spanner\Admin\Database\V1\RestoreDatabaseRequest;
/**
* Restore a MR CMEK database from a backup.
* Example:
* ```
* restore_backup_with_mr_cmek($projectId, $instanceId, $databaseId, $backupId, $kmsKeyNames);
* ```
* @param string $projectId The Google Cloud project ID.
* @param string $instanceId The Spanner instance ID.
* @param string $databaseId The Spanner database ID.
* @param string $backupId The Spanner backup ID.
* @param string[] $kmsKeyNames The KMS keys used for encryption.
*/
function restore_backup_with_mr_cmek(
string $projectId,
string $instanceId,
string $databaseId,
string $backupId,
array $kmsKeyNames
): void {
$databaseAdminClient = new DatabaseAdminClient();
$instanceFullName = DatabaseAdminClient::instanceName($projectId, $instanceId);
$backupFullName = DatabaseAdminClient::backupName($projectId, $instanceId, $backupId);
$request = new RestoreDatabaseRequest([
'parent' => $instanceFullName,
'database_id' => $databaseId,
'backup' => $backupFullName,
'encryption_config' => new RestoreDatabaseEncryptionConfig([
'kms_key_names' => $kmsKeyNames,
'encryption_type' => RestoreDatabaseEncryptionConfig\EncryptionType::CUSTOMER_MANAGED_ENCRYPTION
])
]);
// Create restore operation
$operation = $databaseAdminClient->restoreDatabase($request);
print('Waiting for operation to complete...' . PHP_EOL);
$operation->pollUntilComplete();
// Reload new database and get restore info
$database = $operation->operationSucceeded() ? $operation->getResult() : null;
$restoreInfo = $database->getRestoreInfo();
$backupInfo = $restoreInfo->getBackupInfo();
$sourceDatabase = $backupInfo->getSourceDatabase();
$sourceBackup = $backupInfo->getBackup();
$encryptionConfig = $database->getEncryptionConfig();
printf(
'Database %s restored from backup %s using encryption keys %s' . PHP_EOL,
$sourceDatabase, $sourceBackup, print_r($encryptionConfig->getKmsKeyNames(), true)
);
}
Python
如要在區域執行個體設定中還原啟用 CMEK 的備份，請按照下列步驟操作：
def restore_database_with_encryption_key(
instance_id, new_database_id, backup_id, kms_key_name
):
"""Restores a database from a backup using a Customer Managed Encryption Key (CMEK)."""
from google.cloud.spanner_admin_database_v1 import (
RestoreDatabaseEncryptionConfig,
RestoreDatabaseRequest,
)
spanner_client = spanner.Client()
database_admin_api = spanner_client.database_admin_api
# Start restoring an existing backup to a new database.
encryption_config = {
"encryption_type": RestoreDatabaseEncryptionConfig.EncryptionType.CUSTOMER_MANAGED_ENCRYPTION,
"kms_key_name": kms_key_name,
}
request = RestoreDatabaseRequest(
parent=database_admin_api.instance_path(spanner_client.project, instance_id),
database_id=new_database_id,
backup=database_admin_api.backup_path(
spanner_client.project, instance_id, backup_id
),
encryption_config=encryption_config,
)
operation = database_admin_api.restore_database(request)
# Wait for restore operation to complete.
db = operation.result(1600)
# Newly created database has restore information.
restore_info = db.restore_info
print(
"Database {} restored to {} from backup {} with using encryption key {}.".format(
restore_info.backup_info.source_database,
new_database_id,
restore_info.backup_info.backup,
db.encryption_config.kms_key_name,
)
)
如要在多區域執行個體設定中還原已啟用 CMEK 的備份，請按照下列步驟操作：
def restore_database_with_multiple_kms_keys(
instance_id, new_database_id, backup_id, kms_key_names
):
"""Restores a database from a backup using a Customer Managed Encryption Key (CMEK)."""
from google.cloud.spanner_admin_database_v1 import (
RestoreDatabaseEncryptionConfig,
RestoreDatabaseRequest,
)
spanner_client = spanner.Client()
database_admin_api = spanner_client.database_admin_api
# Start restoring an existing backup to a new database.
encryption_config = {
"encryption_type": RestoreDatabaseEncryptionConfig.EncryptionType.CUSTOMER_MANAGED_ENCRYPTION,
"kms_key_names": kms_key_names,
}
request = RestoreDatabaseRequest(
parent=database_admin_api.instance_path(spanner_client.project, instance_id),
database_id=new_database_id,
backup=database_admin_api.backup_path(
spanner_client.project, instance_id, backup_id
),
encryption_config=encryption_config,
)
operation = database_admin_api.restore_database(request)
# Wait for restore operation to complete.
db = operation.result(1600)
# Newly created database has restore information.
restore_info = db.restore_info
print(
"Database {} restored to {} from backup {} with using encryption key {}.".format(
restore_info.backup_info.source_database,
new_database_id,
restore_info.backup_info.backup,
db.encryption_config.kms_key_names,
)
)
Ruby
如要在區域執行個體設定中還原啟用 CMEK 的備份，請按照下列步驟操作：
# project_id = "Your Google Cloud project ID"
# instance_id = "Your Spanner instance ID"
# database_id = "Your Spanner database ID of where to restore"
# backup_id = "Your Spanner backup ID"
# kms_key_name = "Your backup encryption database KMS key"
require "google/cloud/spanner"
require "google/cloud/spanner/admin/database"
database_admin_client = Google::Cloud::Spanner::Admin::Database.database_admin
instance_path = database_admin_client.instance_path project: project_id, instance: instance_id
db_path = database_admin_client.database_path project: project_id,
instance: instance_id,
database: database_id
backup_path = database_admin_client.backup_path project: project_id,
instance: instance_id,
backup: backup_id
encryption_config = {
encryption_type: :CUSTOMER_MANAGED_ENCRYPTION,
kms_key_name: kms_key_name
}
job = database_admin_client.restore_database parent: instance_path,
database_id: database_id,
backup: backup_path,
encryption_config: encryption_config
puts "Waiting for restore backup operation to complete"
job.wait_until_done!
database = database_admin_client.get_database name: db_path
restore_info = database.restore_info
puts "Database #{restore_info.backup_info.source_database} was restored to #{database_id} from backup #{restore_info.backup_info.backup} using encryption key #{database.encryption_config.kms_key_name}"
如要在多區域執行個體設定中還原已啟用 CMEK 的備份，請按照下列步驟操作：
# project_id = "Your Google Cloud project ID"
# instance_id = "Your Spanner instance ID"
# database_id = "Your Spanner database ID of where to restore"
# backup_id = "Your Spanner backup ID"
# kms_key_names = ["key1", "key2", "key3"]
require "google/cloud/spanner"
require "google/cloud/spanner/admin/database"
database_admin_client = Google::Cloud::Spanner::Admin::Database.database_admin
instance_path = database_admin_client.instance_path(
project: project_id, instance: instance_id
)
db_path = database_admin_client.database_path project: project_id,
instance: instance_id,
database: database_id
backup_path = database_admin_client.backup_path project: project_id,
instance: instance_id,
backup: backup_id
encryption_config = {
encryption_type: :CUSTOMER_MANAGED_ENCRYPTION,
kms_key_names: kms_key_names
}
job = database_admin_client.restore_database(
parent: instance_path,
database_id: database_id,
backup: backup_path,
encryption_config: encryption_config
)
puts "Waiting for restore backup operation to complete"
job.wait_until_done!
database = database_admin_client.get_database name: db_path
restore_info = database.restore_info
puts "Database #{restore_info.backup_info.source_database} was restored " \
"to #{database_id} from backup #{restore_info.backup_info.backup} " \
"using encryption key #{database.encryption_config.kms_key_names}"
查看 Cloud KMS 金鑰的稽核記錄
請確認專案中 Cloud KMS API 的記錄功能已啟用 。
前往 Google Cloud 控制台的「Logs Explorer」頁面。
在查詢建構工具中新增下列程式碼行，將記錄項目限制為 Cloud KMS 金鑰：
resource.type="cloudkms_cryptokey" resource.labels.location="KMS_KEY_LOCATION" resource.labels.key_ring_id="KMS_KEY_RING_ID" resource.labels.crypto_key_id="KMS_KEY_ID"在正常作業下，加密和解密動作會以
INFO嚴重程度記錄。Spanner 執行個體中的區域會每隔五分鐘輪詢一次 Cloud KMS 金鑰，因此系統會記錄這些項目。如果 Spanner 無法存取金鑰，作業會記錄為
ERROR。
