設定及查詢 Spanner Graph

注意：這項功能適用於 Spanner Enterprise 版和 Enterprise Plus 版。詳情請參閱 Spanner 版本總覽。

本文說明如何設定及查詢 Spanner Graph 資料庫，以便使用 Google Cloud 主控台和用戶端程式庫，建立複雜資料關係的模型、儲存及分析這些關係。

以下主題將說明如何：

• 建立 Spanner 執行個體。

• 使用 Spanner Graph 結構定義建立資料庫。

• 插入圖表資料。

• 查詢您建立的圖表。

• 清除資源。

如要瞭解 Spanner 定價詳細資料，請參閱 Spanner 定價。

如要試用程式碼研究室，請參閱「開始使用 Spanner Graph」。

事前準備

Sign in to your Google Cloud account. If you're new to Google Cloud, create an account to evaluate how our products perform in real-world scenarios. New customers also get $300 in free credits to run, test, and deploy workloads.

In the Google Cloud console, on the project selector page, select or create a Google Cloud project.

Note: If you don't plan to keep the resources that you create in this procedure, create a project instead of selecting an existing project. After you finish these steps, you can delete the project, removing all resources associated with the project.

Go to project selector

Verify that billing is enabled for your Google Cloud project.

In the Google Cloud console, on the project selector page, select or create a Google Cloud project.

Note: If you don't plan to keep the resources that you create in this procedure, create a project instead of selecting an existing project. After you finish these steps, you can delete the project, removing all resources associated with the project.

Go to project selector

Verify that billing is enabled for your Google Cloud project.

1. 啟用 Spanner API：
   前往「啟用 Spanner API」

4. 如要取得建立執行個體和資料庫所需的權限，請要求管理員為您授予專案的 Cloud Spanner 管理員 (roles/spanner.admin) 身分與存取權管理角色。

5. 如要取得查詢 Spanner 圖表所需的權限 (如果未獲授予 Cloud Spanner 管理員角色)，請要求管理員授予您專案的 Cloud Spanner 資料庫讀取者 (roles/spanner.databaseReader) IAM 角色。

可建立 Spanner 執行個體

注意： 如要使用 90 天的免費試用執行個體探索 Spanner，請參閱「建立 Spanner 免費試用執行個體」。

首次使用 Spanner 時，必須建立「執行個體」，這會為 Spanner 資料庫分配資源。本節說明如何使用 Google Cloud 控制台建立執行個體。

1. 前往 Google Cloud 控制台的「Spanner」頁面。

   前往 Spanner

2. 選取或建立 Google Cloud 專案 (如果尚未建立)。

3. 執行下列其中一個步驟：

   1. 如果您先前未建立 Spanner 執行個體，請在「Welcome to Spanner」(歡迎使用 Spanner) 頁面上，按一下「Create a provisioned instance」(建立已佈建的執行個體)。

   2. 如果您已建立 Spanner 執行個體，請在「執行個體」頁面上按一下「建立執行個體」。

4. 在「選取版本」頁面中，選取「Enterprise Plus」或「Enterprise」。

   Spanner Graph 僅適用於 Enterprise 版或 Enterprise Plus 版。如要比較不同版本，請按一下「比較版本」。詳情請參閱 Spanner 版本總覽。

5. 按一下「繼續」。

6. 在「Instance name」(執行個體名稱) 中輸入執行個體名稱，例如 test-instance。

7. 在「執行個體 ID」中，保留或變更執行個體 ID。執行個體 ID 預設為執行個體名稱，但您可以變更。執行個體名稱和執行個體 ID 可以相同，也可以不同。

8. 按一下「繼續」。

9. 在「選擇設定」中，執行下列操作：

   1. 請選取「區域」。

   2. 在「選擇設定」中，選取區域。Spanner 會在您選取的區域中儲存及複製執行個體。

   3. 按一下「繼續」。

10. 在「設定運算能力」中，執行下列操作：

    1. 在「選取單位」中，選取「處理單元 (PU)」。

    2. 在「選擇調整資源配置模式」中，保留選取的「手動分配」，並在「數量」中保留 1000 個處理單元。

11. 按一下「Create」(建立)。 Google Cloud 控制台會顯示您所建立執行個體的「Overview」(總覽) 頁面。

使用結構定義建立圖形資料庫

本節說明如何使用 Spanner Graph 結構定義建立 Spanner Graph 資料庫。您可以使用 Google Cloud 控制台或用戶端程式庫。

主控台

1. 前往 Google Cloud 控制台的「Spanner Instances」(Spanner 執行個體) 頁面。

   前往 Spanner 執行個體

2. 按一下您建立的執行個體，例如 Test Instance。

3. 在「總覽」中，按一下執行個體名稱下方的「建立資料庫」。

4. 在「Database name」(資料庫名稱) 中輸入資料庫名稱。例如：example-db。

5. 在「選取資料庫方言」中，選擇 Google 標準 SQL。 PostgreSQL 方言不支援 Spanner Graph。

6. 在「DDL Templates」(DDL 範本) 編輯器分頁中，輸入下列結構定義。 結構定義包含兩個節點資料表定義 (Person 和 Account)，以及兩個邊緣資料表定義 (PersonOwnAccount 和 AccountTransferAccount)。Spanner Graph 會使用關聯式資料表定義圖形，因此您會在結構定義中看到關聯式資料表和圖形陳述式。如要進一步瞭解 Spanner Graph 結構定義，請參閱 Spanner Graph 結構定義總覽：

   CREATE TABLE Person (
     id               INT64 NOT NULL,
     name             STRING(MAX),
     birthday         TIMESTAMP,
     country          STRING(MAX),
     city             STRING(MAX),
   ) PRIMARY KEY (id);

   CREATE TABLE Account (
     id               INT64 NOT NULL,
     create_time      TIMESTAMP,
     is_blocked       BOOL,
     nick_name        STRING(MAX),
   ) PRIMARY KEY (id);

   CREATE TABLE PersonOwnAccount (
     id               INT64 NOT NULL,
     account_id       INT64 NOT NULL,
     create_time      TIMESTAMP,
     FOREIGN KEY (account_id) REFERENCES Account (id)
   ) PRIMARY KEY (id, account_id),
     INTERLEAVE IN PARENT Person ON DELETE CASCADE;

   CREATE TABLE AccountTransferAccount (
     id               INT64 NOT NULL,
     to_id            INT64 NOT NULL,
     amount           FLOAT64,
     create_time      TIMESTAMP NOT NULL,
     order_number     STRING(MAX),
     FOREIGN KEY (to_id) REFERENCES Account (id)
   ) PRIMARY KEY (id, to_id, create_time),
     INTERLEAVE IN PARENT Account ON DELETE CASCADE;

   CREATE OR REPLACE PROPERTY GRAPH FinGraph
     NODE TABLES (Account, Person)
     EDGE TABLES (
       PersonOwnAccount
         SOURCE KEY (id) REFERENCES Person (id)
         DESTINATION KEY (account_id) REFERENCES Account (id)
         LABEL Owns,
       AccountTransferAccount
         SOURCE KEY (id) REFERENCES Account (id)
         DESTINATION KEY (to_id) REFERENCES Account (id)
         LABEL Transfers
     );


7. 保留「顯示加密選項」中的預設設定。

8. 按一下「建立」。 Google Cloud 控制台會顯示您所建立資料庫的「總覽」頁面。

用戶端程式庫

Python

def create_database_with_property_graph(instance_id, database_id):
    """Creates a database, tables and a property graph for sample data."""
    from google.cloud.spanner_admin_database_v1.types import spanner_database_admin

    spanner_client = spanner.Client()
    database_admin_api = spanner_client.database_admin_api

    request = spanner_database_admin.CreateDatabaseRequest(
        parent=database_admin_api.instance_path(spanner_client.project, instance_id),
        create_statement=f"CREATE DATABASE `{database_id}`",
        extra_statements=[
            """CREATE TABLE Person (
            id               INT64 NOT NULL,
            name             STRING(MAX),
            birthday         TIMESTAMP,
            country          STRING(MAX),
            city             STRING(MAX),
        ) PRIMARY KEY (id)""",
            """CREATE TABLE Account (
            id               INT64 NOT NULL,
            create_time      TIMESTAMP,
            is_blocked       BOOL,
            nick_name        STRING(MAX),
        ) PRIMARY KEY (id)""",
            """CREATE TABLE PersonOwnAccount (
            id               INT64 NOT NULL,
            account_id       INT64 NOT NULL,
            create_time      TIMESTAMP,
            FOREIGN KEY (account_id)
                REFERENCES Account (id)
        ) PRIMARY KEY (id, account_id),
        INTERLEAVE IN PARENT Person ON DELETE CASCADE""",
            """CREATE TABLE AccountTransferAccount (
            id               INT64 NOT NULL,
            to_id            INT64 NOT NULL,
            amount           FLOAT64,
            create_time      TIMESTAMP NOT NULL,
            order_number     STRING(MAX),
            FOREIGN KEY (to_id) REFERENCES Account (id)
        ) PRIMARY KEY (id, to_id, create_time),
        INTERLEAVE IN PARENT Account ON DELETE CASCADE""",
            """CREATE OR REPLACE PROPERTY GRAPH FinGraph
            NODE TABLES (Account, Person)
            EDGE TABLES (
                PersonOwnAccount
                    SOURCE KEY(id) REFERENCES Person(id)
                    DESTINATION KEY(account_id) REFERENCES Account(id)
                    LABEL Owns,
                AccountTransferAccount
                    SOURCE KEY(id) REFERENCES Account(id)
                    DESTINATION KEY(to_id) REFERENCES Account(id)
                    LABEL Transfers)""",
        ],
    )

    operation = database_admin_api.create_database(request=request)

    print("Waiting for operation to complete...")
    database = operation.result(OPERATION_TIMEOUT_SECONDS)

    print(
        "Created database {} on instance {}".format(
            database.name,
            database_admin_api.instance_path(spanner_client.project, instance_id),
        )
    )

Java

static void createDatabaseWithPropertyGraph(
    DatabaseAdminClient dbAdminClient, InstanceName instanceName, String databaseId) {
  CreateDatabaseRequest createDatabaseRequest =
      CreateDatabaseRequest.newBuilder()
          .setCreateStatement("CREATE DATABASE `" + databaseId + "`")
          .setParent(instanceName.toString())
          .addAllExtraStatements(
              Arrays.asList(
                  "CREATE TABLE Person ("
                      + "  id               INT64 NOT NULL,"
                      + "  name             STRING(MAX),"
                      + "  birthday         TIMESTAMP,"
                      + "  country          STRING(MAX),"
                      + "  city             STRING(MAX),"
                      + ") PRIMARY KEY (id)",
                  "CREATE TABLE Account ("
                      + "  id               INT64 NOT NULL,"
                      + "  create_time      TIMESTAMP,"
                      + "  is_blocked       BOOL,"
                      + "  nick_name        STRING(MAX),"
                      + ") PRIMARY KEY (id)",
                  "CREATE TABLE PersonOwnAccount ("
                      + "  id               INT64 NOT NULL,"
                      + "  account_id       INT64 NOT NULL,"
                      + "  create_time      TIMESTAMP,"
                      + "  FOREIGN KEY (account_id)"
                      + "  REFERENCES Account (id)"
                      + ") PRIMARY KEY (id, account_id),"
                      + "INTERLEAVE IN PARENT Person ON DELETE CASCADE",
                  "CREATE TABLE AccountTransferAccount ("
                      + "  id               INT64 NOT NULL,"
                      + "  to_id            INT64 NOT NULL,"
                      + "  amount           FLOAT64,"
                      + "  create_time      TIMESTAMP NOT NULL,"
                      + "  order_number     STRING(MAX),"
                      + "  FOREIGN KEY (to_id) REFERENCES Account (id)"
                      + ") PRIMARY KEY (id, to_id, create_time),"
                      + "INTERLEAVE IN PARENT Account ON DELETE CASCADE",
                  "CREATE OR REPLACE PROPERTY GRAPH FinGraph "
                      + "NODE TABLES (Account, Person)"
                      + "EDGE TABLES ("
                      + "  PersonOwnAccount"
                      + "    SOURCE KEY(id) REFERENCES Person(id)"
                      + "    DESTINATION KEY(account_id) REFERENCES Account(id)"
                      + "    LABEL Owns,"
                      + "  AccountTransferAccount"
                      + "    SOURCE KEY(id) REFERENCES Account(id)"
                      + "    DESTINATION KEY(to_id) REFERENCES Account(id)"
                      + "    LABEL Transfers)"))
          .build();
  try {
    // Initiate the request which returns an OperationFuture.
    com.google.spanner.admin.database.v1.Database db =
        dbAdminClient.createDatabaseAsync(createDatabaseRequest).get();
    System.out.println("Created database [" + db.getName() + "]");
  } catch (ExecutionException e) {
    // If the operation failed during execution, expose the cause.
    System.out.println("Encountered exception" + e.getCause());
    throw (SpannerException) e.getCause();
  } catch (InterruptedException e) {
    // Throw when a thread is waiting, sleeping, or otherwise occupied,
    // and the thread is interrupted, either before or during the activity.
    throw SpannerExceptionFactory.propagateInterrupt(e);
  }
}

Go

import (
	"context"
	"fmt"
	"io"
	"regexp"

	database "cloud.google.com/go/spanner/admin/database/apiv1"
	adminpb "google.golang.org/genproto/googleapis/spanner/admin/database/v1"
)

func createDatabaseWithPropertyGraph(ctx context.Context, w io.Writer, dbId string) error {
	// dbId is of the form:
	// 	projects/YOUR_PROJECT_ID/instances/YOUR_INSTANCE_ID/databases/YOUR_DATABASE_NAME
	matches := regexp.MustCompile("^(.*)/databases/(.*)$").FindStringSubmatch(dbId)
	if matches == nil || len(matches) != 3 {
		return fmt.Errorf("Invalid database id %s", dbId)
	}

	adminClient, err := database.NewDatabaseAdminClient(ctx)
	if err != nil {
		return err
	}
	defer adminClient.Close()

	var instance = matches[1]
	var dbName = matches[2]

	// The schema defintion for a database with a property graph comprises table
	// definitions one or more `CREATE PROPERTY GRAPH` statements to define the
	// property graph(s).
	//
	// Here, tables are created for 'Person's and 'Account's. The property graph
	// definition says that these entities form nodes in the graph. Similarly,
	// there are 'PersonOwnAccount' and 'AccountTransferAccount' relationship
	// tables defined. The property graph definition maps these to edges in the graph.
	var schema_statements = []string{
		`CREATE TABLE Person (
			id               INT64 NOT NULL,
			name             STRING(MAX),
			birthday         TIMESTAMP,
			country          STRING(MAX),
			city             STRING(MAX),
		) PRIMARY KEY (id)`,
		`CREATE TABLE Account (
			id               INT64 NOT NULL,
			create_time      TIMESTAMP,
			is_blocked       BOOL,
			nick_name        STRING(MAX),
		) PRIMARY KEY (id)`,
		`CREATE TABLE PersonOwnAccount (
			id               INT64 NOT NULL,
			account_id       INT64 NOT NULL,
			create_time      TIMESTAMP,
			FOREIGN KEY (account_id)
				REFERENCES Account (id)
		) PRIMARY KEY (id, account_id),
		INTERLEAVE IN PARENT Person ON DELETE CASCADE`,
		`CREATE TABLE AccountTransferAccount (
			id               INT64 NOT NULL,
			to_id            INT64 NOT NULL,
			amount           FLOAT64,
			create_time      TIMESTAMP NOT NULL,
			order_number     STRING(MAX),
			FOREIGN KEY (to_id) REFERENCES Account (id)
		) PRIMARY KEY (id, to_id, create_time),
		INTERLEAVE IN PARENT Account ON DELETE CASCADE`,
		`CREATE OR REPLACE PROPERTY GRAPH FinGraph
			NODE TABLES (Account, Person)
			EDGE TABLES (
				PersonOwnAccount
					SOURCE KEY(id) REFERENCES Person(id)
					DESTINATION KEY(account_id) REFERENCES Account(id)
					LABEL Owns,
				AccountTransferAccount
					SOURCE KEY(id) REFERENCES Account(id)
					DESTINATION KEY(to_id) REFERENCES Account(id)
					LABEL Transfers)`,
	}

	op, err := adminClient.CreateDatabase(ctx, &adminpb.CreateDatabaseRequest{
		Parent:          instance,
		CreateStatement: "CREATE DATABASE `" + dbName + "`",
		ExtraStatements: schema_statements,
	})
	if err != nil {
		return err
	}
	if _, err := op.Wait(ctx); err != nil {
		return err
	}
	fmt.Fprintf(w, "Created database [%s]\n", dbId)
	return nil
}

C++

void CreateDatabaseWithPropertyGraph(
    google::cloud::spanner_admin::DatabaseAdminClient client,
    std::string const& project_id, std::string const& instance_id,
    std::string const& database_id) {
  google::cloud::spanner::Database database(project_id, instance_id,
                                            database_id);
  google::spanner::admin::database::v1::CreateDatabaseRequest request;
  request.set_parent(database.instance().FullName());
  request.set_create_statement("CREATE DATABASE `" + database.database_id() +
                               "`");
  request.add_extra_statements(R"""(
    CREATE TABLE Person (
      id               INT64 NOT NULL,
      name             STRING(MAX),
      birthday         TIMESTAMP,
      country          STRING(MAX),
      city             STRING(MAX),
    ) PRIMARY KEY (id))""");
  request.add_extra_statements(R"""(
    CREATE TABLE Account (
      id               INT64 NOT NULL,
      create_time      TIMESTAMP,
      is_blocked       BOOL,
      nick_name        STRING(MAX),
    ) PRIMARY KEY (id))""");
  request.add_extra_statements(R"""(
    CREATE TABLE PersonOwnAccount (
      id               INT64 NOT NULL,
      account_id       INT64 NOT NULL,
      create_time      TIMESTAMP,
      FOREIGN KEY (account_id)
      REFERENCES Account (id)
    ) PRIMARY KEY (id, account_id),
      INTERLEAVE IN PARENT Person ON DELETE CASCADE)""");
  request.add_extra_statements(R"""(
    CREATE TABLE AccountTransferAccount (
      id               INT64 NOT NULL,
      to_id            INT64 NOT NULL,
      amount           FLOAT64,
      create_time      TIMESTAMP NOT NULL,
      order_number     STRING(MAX),
      FOREIGN KEY (to_id) REFERENCES Account (id)
    ) PRIMARY KEY (id, to_id, create_time),
      INTERLEAVE IN PARENT Account ON DELETE CASCADE)""");
  request.add_extra_statements(R"""(
    CREATE OR REPLACE PROPERTY GRAPH FinGraph
      NODE TABLES (Account, Person)
      EDGE TABLES (
        PersonOwnAccount
          SOURCE KEY(id) REFERENCES Person(id)
          DESTINATION KEY(account_id) REFERENCES Account(id)
          LABEL Owns,
        AccountTransferAccount
          SOURCE KEY(id) REFERENCES Account(id)
          DESTINATION KEY(to_id) REFERENCES Account(id)
          LABEL Transfers))""");
  auto db = client.CreateDatabase(request).get();
  if (!db) throw std::move(db).status();
  std::cout << "Database " << db->name() << " created with property graph.\n";
}

插入圖表資料

建立資料庫後，即可新增資料。本節說明如何使用 Google Cloud 控制台 (圖形介面) 或用戶端程式庫，以程式輔助方式將資料插入圖表。

主控台

1. 在「Spanner Studio」頁面中，按一下「新增分頁」，或使用編輯器分頁。

2. 複製下列圖形資料插入陳述式，並貼到節點和邊緣。

   INSERT INTO Account
     (id, create_time, is_blocked, nick_name)
   VALUES
     (7,"2020-01-10 06:22:20.222",false,"Vacation Fund"),
     (16,"2020-01-27 17:55:09.206",true,"Vacation Fund"),
     (20,"2020-02-18 05:44:20.655",false,"Rainy Day Fund");

   INSERT INTO Person
     (id, name, birthday, country, city)
   VALUES
     (1,"Alex","1991-12-21 00:00:00","Australia","Adelaide"),
     (2,"Dana","1980-10-31 00:00:00","Czech_Republic","Moravia"),
     (3,"Lee","1986-12-07 00:00:00","India","Kollam");

   INSERT INTO AccountTransferAccount
     (id, to_id, amount, create_time, order_number)
   VALUES
     (7,16,300,"2020-08-29 15:28:58.647","304330008004315"),
     (7,16,100,"2020-10-04 16:55:05.342","304120005529714"),
     (16,20,300,"2020-09-25 02:36:14.926","103650009791820"),
     (20,7,500,"2020-10-04 16:55:05.342","304120005529714"),
     (20,16,200,"2020-10-17 03:59:40.247","302290001255747");

   INSERT INTO PersonOwnAccount
     (id, account_id, create_time)
   VALUES
     (1,7,"2020-01-10 06:22:20.222"),
     (2,20,"2020-01-27 17:55:09.206"),
     (3,16,"2020-02-18 05:44:20.655");


3. 按一下「執行」。執行完成後，「結果」分頁會顯示已插入 3 個資料列。

用戶端程式庫

Python

def insert_data(instance_id, database_id):
    """Inserts sample data into the given database.

    The database and tables must already exist and can be created using
    `create_database_with_property_graph`.
    """
    spanner_client = spanner.Client()
    instance = spanner_client.instance(instance_id)
    database = instance.database(database_id)

    with database.batch() as batch:
        batch.insert(
            table="Account",
            columns=("id", "create_time", "is_blocked", "nick_name"),
            values=[
                (7, "2020-01-10T06:22:20.12Z", False, "Vacation Fund"),
                (16, "2020-01-27T17:55:09.12Z", True, "Vacation Fund"),
                (20, "2020-02-18T05:44:20.12Z", False, "Rainy Day Fund"),
            ],
        )

        batch.insert(
            table="Person",
            columns=("id", "name", "birthday", "country", "city"),
            values=[
                (1, "Alex", "1991-12-21T00:00:00.12Z", "Australia", " Adelaide"),
                (2, "Dana", "1980-10-31T00:00:00.12Z", "Czech_Republic", "Moravia"),
                (3, "Lee", "1986-12-07T00:00:00.12Z", "India", "Kollam"),
            ],
        )

        batch.insert(
            table="AccountTransferAccount",
            columns=("id", "to_id", "amount", "create_time", "order_number"),
            values=[
                (7, 16, 300.0, "2020-08-29T15:28:58.12Z", "304330008004315"),
                (7, 16, 100.0, "2020-10-04T16:55:05.12Z", "304120005529714"),
                (16, 20, 300.0, "2020-09-25T02:36:14.12Z", "103650009791820"),
                (20, 7, 500.0, "2020-10-04T16:55:05.12Z", "304120005529714"),
                (20, 16, 200.0, "2020-10-17T03:59:40.12Z", "302290001255747"),
            ],
        )

        batch.insert(
            table="PersonOwnAccount",
            columns=("id", "account_id", "create_time"),
            values=[
                (1, 7, "2020-01-10T06:22:20.12Z"),
                (2, 20, "2020-01-27T17:55:09.12Z"),
                (3, 16, "2020-02-18T05:44:20.12Z"),
            ],
        )

    print("Inserted data.")

Java

/** Class to contain sample Person data. */
static class Person {

  final long id;
  final String name;
  final Timestamp birthday;
  final String country;
  final String city;

  Person(long id, String name, Timestamp birthday, String country, String city) {
    this.id = id;
    this.name = name;
    this.birthday = birthday;
    this.country = country;
    this.city = city;
  }
}

/** Class to contain sample Account data. */
static class Account {

  final long id;
  final Timestamp createTime;
  final boolean isBlocked;
  final String nickName;

  Account(long id, Timestamp createTime, boolean isBlocked, String nickName) {
    this.id = id;
    this.createTime = createTime;
    this.isBlocked = isBlocked;
    this.nickName = nickName;
  }
}

/** Class to contain sample Transfer data. */
static class Transfer {

  final long id;
  final long toId;
  final double amount;
  final Timestamp createTime;
  final String orderNumber;

  Transfer(long id, long toId, double amount, Timestamp createTime, String orderNumber) {
    this.id = id;
    this.toId = toId;
    this.amount = amount;
    this.createTime = createTime;
    this.orderNumber = orderNumber;
  }
}

/** Class to contain sample Ownership data. */
static class Own {

  final long id;
  final long accountId;
  final Timestamp createTime;

  Own(long id, long accountId, Timestamp createTime) {
    this.id = id;
    this.accountId = accountId;
    this.createTime = createTime;
  }
}

static final List<Account> ACCOUNTS =
    Arrays.asList(
        new Account(
            7, Timestamp.parseTimestamp("2020-01-10T06:22:20.12Z"), false, "Vacation Fund"),
        new Account(
            16, Timestamp.parseTimestamp("2020-01-27T17:55:09.12Z"), true, "Vacation Fund"),
        new Account(
            20, Timestamp.parseTimestamp("2020-02-18T05:44:20.12Z"), false, "Rainy Day Fund"));

static final List<Person> PERSONS =
    Arrays.asList(
        new Person(
            1,
            "Alex",
            Timestamp.parseTimestamp("1991-12-21T00:00:00.12Z"),
            "Australia",
            " Adelaide"),
        new Person(
            2,
            "Dana",
            Timestamp.parseTimestamp("1980-10-31T00:00:00.12Z"),
            "Czech_Republic",
            "Moravia"),
        new Person(
            3, "Lee", Timestamp.parseTimestamp("1986-12-07T00:00:00.12Z"), "India", "Kollam"));

static final List<Transfer> TRANSFERS =
    Arrays.asList(
        new Transfer(
            7, 16, 300.0, Timestamp.parseTimestamp("2020-08-29T15:28:58.12Z"), "304330008004315"),
        new Transfer(
            7, 16, 100.0, Timestamp.parseTimestamp("2020-10-04T16:55:05.12Z"), "304120005529714"),
        new Transfer(
            16,
            20,
            300.0,
            Timestamp.parseTimestamp("2020-09-25T02:36:14.12Z"),
            "103650009791820"),
        new Transfer(
            20, 7, 500.0, Timestamp.parseTimestamp("2020-10-04T16:55:05.12Z"), "304120005529714"),
        new Transfer(
            20,
            16,
            200.0,
            Timestamp.parseTimestamp("2020-10-17T03:59:40.12Z"),
            "302290001255747"));

static final List<Own> OWNERSHIPS =
    Arrays.asList(
        new Own(1, 7, Timestamp.parseTimestamp("2020-01-10T06:22:20.12Z")),
        new Own(2, 20, Timestamp.parseTimestamp("2020-01-27T17:55:09.12Z")),
        new Own(3, 16, Timestamp.parseTimestamp("2020-02-18T05:44:20.12Z")));

static void insertData(DatabaseClient dbClient) {
  List<Mutation> mutations = new ArrayList<>();
  for (Account account : ACCOUNTS) {
    mutations.add(
        Mutation.newInsertBuilder("Account")
            .set("id")
            .to(account.id)
            .set("create_time")
            .to(account.createTime)
            .set("is_blocked")
            .to(account.isBlocked)
            .set("nick_name")
            .to(account.nickName)
            .build());
  }
  for (Person person : PERSONS) {
    mutations.add(
        Mutation.newInsertBuilder("Person")
            .set("id")
            .to(person.id)
            .set("name")
            .to(person.name)
            .set("birthday")
            .to(person.birthday)
            .set("country")
            .to(person.country)
            .set("city")
            .to(person.city)
            .build());
  }
  for (Transfer transfer : TRANSFERS) {
    mutations.add(
        Mutation.newInsertBuilder("AccountTransferAccount")
            .set("id")
            .to(transfer.id)
            .set("to_id")
            .to(transfer.toId)
            .set("amount")
            .to(transfer.amount)
            .set("create_time")
            .to(transfer.createTime)
            .set("order_number")
            .to(transfer.orderNumber)
            .build());
  }
  for (Own own : OWNERSHIPS) {
    mutations.add(
        Mutation.newInsertBuilder("PersonOwnAccount")
            .set("id")
            .to(own.id)
            .set("account_id")
            .to(own.accountId)
            .set("create_time")
            .to(own.createTime)
            .build());
  }

  dbClient.write(mutations);
}

Go

import (
	"context"
	"io"
	"time"

	"cloud.google.com/go/spanner"
)

func parseTime(rfc3339Time string) time.Time {
	t, _ := time.Parse(time.RFC3339, rfc3339Time)
	return t
}

func insertGraphData(w io.Writer, db string) error {
	ctx := context.Background()
	client, err := spanner.NewClient(ctx, db)
	if err != nil {
		return err
	}
	defer client.Close()

	// Values are inserted into the node and edge tables corresponding to
	// using Spanner 'Insert' mutations.
	// The tables and columns comply with the schema defined for the
	// property graph 'FinGraph', comprising 'Person' and 'Account' nodes,
	// and 'PersonOwnAccount' and 'AccountTransferAccount' edges.
	personColumns := []string{"id", "name", "birthday", "country", "city"}
	accountColumns := []string{"id", "create_time", "is_blocked", "nick_name"}
	ownColumns := []string{"id", "account_id", "create_time"}
	transferColumns := []string{"id", "to_id", "amount", "create_time", "order_number"}
	m := []*spanner.Mutation{
		spanner.Insert("Account", accountColumns,
			[]interface{}{7, parseTime("2020-01-10T06:22:20.12Z"), false, "Vacation Fund"}),
		spanner.Insert("Account", accountColumns,
			[]interface{}{16, parseTime("2020-01-27T17:55:09.12Z"), true, "Vacation Fund"}),
		spanner.Insert("Account", accountColumns,
			[]interface{}{20, parseTime("2020-02-18T05:44:20.12Z"), false, "Rainy Day Fund"}),
		spanner.Insert("Person", personColumns,
			[]interface{}{1, "Alex", parseTime("1991-12-21T00:00:00.12Z"), "Australia", " Adelaide"}),
		spanner.Insert("Person", personColumns,
			[]interface{}{2, "Dana", parseTime("1980-10-31T00:00:00.12Z"), "Czech_Republic", "Moravia"}),
		spanner.Insert("Person", personColumns,
			[]interface{}{3, "Lee", parseTime("1986-12-07T00:00:00.12Z"), "India", "Kollam"}),
		spanner.Insert("AccountTransferAccount", transferColumns,
			[]interface{}{7, 16, 300.0, parseTime("2020-08-29T15:28:58.12Z"), "304330008004315"}),
		spanner.Insert("AccountTransferAccount", transferColumns,
			[]interface{}{7, 16, 100.0, parseTime("2020-10-04T16:55:05.12Z"), "304120005529714"}),
		spanner.Insert("AccountTransferAccount", transferColumns,
			[]interface{}{16, 20, 300.0, parseTime("2020-09-25T02:36:14.12Z"), "103650009791820"}),
		spanner.Insert("AccountTransferAccount", transferColumns,
			[]interface{}{20, 7, 500.0, parseTime("2020-10-04T16:55:05.12Z"), "304120005529714"}),
		spanner.Insert("AccountTransferAccount", transferColumns,
			[]interface{}{20, 16, 200.0, parseTime("2020-10-17T03:59:40.12Z"), "302290001255747"}),
		spanner.Insert("PersonOwnAccount", ownColumns,
			[]interface{}{1, 7, parseTime("2020-01-10T06:22:20.12Z")}),
		spanner.Insert("PersonOwnAccount", ownColumns,
			[]interface{}{2, 20, parseTime("2020-01-27T17:55:09.12Z")}),
		spanner.Insert("PersonOwnAccount", ownColumns,
			[]interface{}{3, 16, parseTime("2020-02-18T05:44:20.12Z")}),
	}
	_, err = client.Apply(ctx, m)
	return err
}

C++

void InsertData(google::cloud::spanner::Client client) {
  namespace spanner = ::google::cloud::spanner;

  auto insert_accounts =
      spanner::InsertMutationBuilder(
          "Account", {"id", "create_time", "is_blocked", "nick_name"})
          .EmplaceRow(7, spanner::Value("2020-01-10T06:22:20.12Z"), false,
                      "Vacation Fund")
          .EmplaceRow(16, spanner::Value("2020-01-27T17:55:09.12Z"), true,
                      "Vacation Fund")
          .EmplaceRow(20, spanner::Value("2020-02-18T05:44:20.12Z"), false,
                      "Rainy Day Fund")
          .Build();

  auto insert_persons =
      spanner::InsertMutationBuilder(
          "Person", {"id", "name", "birthday", "country", "city"})
          .EmplaceRow(1, "Alex", spanner::Value("1991-12-21T00:00:00.12Z"),
                      "Australia", "Adelaide")
          .EmplaceRow(2, "Dana", spanner::Value("1980-10-31T00:00:00.12Z"),
                      "Czech_Republic", "Moravia")
          .EmplaceRow(3, "Lee", spanner::Value("1986-12-07T00:00:00.12Z"),
                      "India", "Kollam")
          .Build();

  auto insert_transfers =
      spanner::InsertMutationBuilder(
          "AccountTransferAccount",
          {"id", "to_id", "amount", "create_time", "order_number"})
          .EmplaceRow(7, 16, 300.0, spanner::Value("2020-08-29T15:28:58.12Z"),
                      "304330008004315")
          .EmplaceRow(7, 16, 100.0, spanner::Value("2020-10-04T16:55:05.12Z"),
                      "304120005529714")
          .EmplaceRow(16, 20, 300.0, spanner::Value("2020-09-25T02:36:14.12Z"),
                      "103650009791820")
          .EmplaceRow(20, 7, 500.0, spanner::Value("2020-10-04T16:55:05.12Z"),
                      "304120005529714")
          .EmplaceRow(20, 16, 200.0, spanner::Value("2020-10-17T03:59:40.12Z"),
                      "302290001255747")
          .Build();

  auto insert_ownerships =
      spanner::InsertMutationBuilder("PersonOwnAccount",
                                     {"id", "account_id", "create_time"})
          .EmplaceRow(1, 7, spanner::Value("2020-01-10T06:22:20.12Z"))
          .EmplaceRow(2, 20, spanner::Value("2020-01-27T17:55:09.12Z"))
          .EmplaceRow(3, 16, spanner::Value("2020-02-18T05:44:20.12Z"))
          .Build();

  auto commit_result = client.Commit(spanner::Mutations{
      insert_accounts, insert_persons, insert_transfers, insert_ownerships});
  if (!commit_result) throw std::move(commit_result).status();
  std::cout << "Insert was successful [spanner_insert_graph_data]\n";
}

下圖顯示插頁中的人員、帳戶、帳戶擁有權和帳戶轉移：



執行圖形查詢

將資料插入圖表後，您可以查詢資料，找出模式和關係。本節說明如何使用Google Cloud 控制台 (圖形介面) 執行查詢，或透過用戶端程式庫以程式輔助方式執行查詢。

主控台

1. 在資料庫的「總覽」頁面中，按一下導覽選單中的「Spanner Studio」。

2. 在「Spanner Studio」頁面中，按一下「新增分頁」，或使用編輯器分頁。

3. 在查詢編輯器中輸入下列查詢。這項查詢會找出 Dana 匯款的對象，以及匯款金額。

   GRAPH FinGraph
   MATCH
     (from_person:Person {name: "Dana"})-[:Owns]->
     (from_account:Account)-[transfer:Transfers]->
     (to_account:Account)<-[:Owns]-(to_person:Person)
   RETURN
     from_person.name AS from_account_owner,
     from_account.id AS from_account_id,
     to_person.name AS to_account_owner,
     to_account.id AS to_account_id,
     transfer.amount AS amount


4. 按一下「執行」。

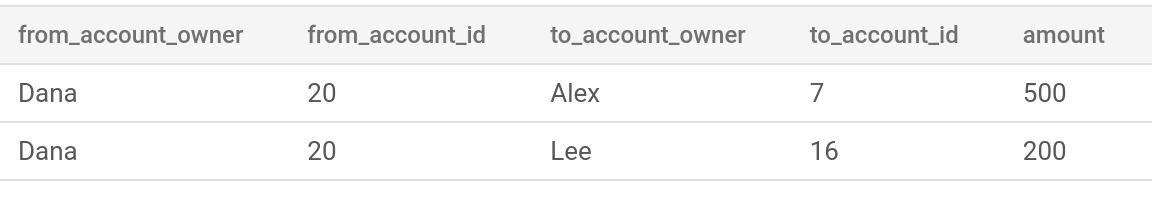

   「結果」分頁會顯示帳戶 20 擁有者 Dana 的下列路徑：

   • 傳送至小艾擁有的「Account {id:7}」。

   • 轉移給李擁有的「Account {id:16}」。



用戶端程式庫

Python

def query_data(instance_id, database_id):
    """Queries sample data from the database using GQL."""
    spanner_client = spanner.Client()
    instance = spanner_client.instance(instance_id)
    database = instance.database(database_id)

    with database.snapshot() as snapshot:
        results = snapshot.execute_sql(
            """Graph FinGraph
            MATCH (a:Person)-[o:Owns]->()-[t:Transfers]->()<-[p:Owns]-(b:Person)
            RETURN a.name AS sender, b.name AS receiver, t.amount, t.create_time AS transfer_at"""
        )

        for row in results:
            print("sender: {}, receiver: {}, amount: {}, transfer_at: {}".format(*row))

Java

static void query(DatabaseClient dbClient) {
  try (ResultSet resultSet =
      dbClient
          .singleUse() // Execute a single query against Cloud Spanner.
          .executeQuery(
              Statement.of(
                  "Graph FinGraph MATCH"
                      + " (a:Person)-[o:Owns]->()-[t:Transfers]->()<-[p:Owns]-(b:Person)RETURN"
                      + " a.name AS sender, b.name AS receiver, t.amount, t.create_time AS"
                      + " transfer_at"))) {
    while (resultSet.next()) {
      System.out.printf(
          "%s %s %f %s\n",
          resultSet.getString(0),
          resultSet.getString(1),
          resultSet.getDouble(2),
          resultSet.getTimestamp(3));
    }
  }
}

Go

import (
	"context"
	"fmt"
	"io"
	"time"

	"cloud.google.com/go/spanner"

	"google.golang.org/api/iterator"
)

func queryGraphData(w io.Writer, db string) error {
	ctx := context.Background()
	client, err := spanner.NewClient(ctx, db)
	if err != nil {
		return err
	}
	defer client.Close()

	// Execute a Spanner query statement comprising a graph query. Graph queries
	// are characterized by 'MATCH' statements describing node and edge
	// patterns.
	//
	// This statement finds entities ('Account's) owned by all 'Person's 'b' to
	// which transfers have been made by entities ('Account's) owned by any
	// 'Person' 'a' in the graph called 'FinGraph'. It then returns the names of
	// all such 'Person's 'a' and 'b', and the amount and time of the transfer.
	stmt := spanner.Statement{SQL: `Graph FinGraph
		 MATCH (a:Person)-[o:Owns]->()-[t:Transfers]->()<-[p:Owns]-(b:Person)
		 RETURN a.name AS sender, b.name AS receiver, t.amount, t.create_time AS transfer_at`}
	iter := client.Single().Query(ctx, stmt)
	defer iter.Stop()

	// The results are returned in tabular form. Iterate over the
	// result rows and print them.
	for {
		row, err := iter.Next()
		if err == iterator.Done {
			return nil
		}
		if err != nil {
			return err
		}
		var sender, receiver string
		var amount float64
		var transfer_at time.Time
		if err := row.Columns(&sender, &receiver, &amount, &transfer_at); err != nil {
			return err
		}
		fmt.Fprintf(w, "%s %s %f %s\n", sender, receiver, amount, transfer_at.Format(time.RFC3339))
	}
}

C++

void QueryData(google::cloud::spanner::Client client) {
  namespace spanner = ::google::cloud::spanner;

  spanner::SqlStatement select(R"""(
    Graph FinGraph
    MATCH (a:Person)-[o:Owns]->()-[t:Transfers]->()<-[p:Owns]-(b:Person)
    RETURN a.name AS sender,
           b.name AS receiver,
           t.amount,
          t.create_time AS transfer_at
  )""");
  using RowType =
      std::tuple<std::string, std::string, double, spanner::Timestamp>;
  auto rows = client.ExecuteQuery(std::move(select));
  for (auto& row : spanner::StreamOf<RowType>(rows)) {
    if (!row) throw std::move(row).status();
    std::cout << "sender: " << std::get<0>(*row) << "\t";
    std::cout << "receiver: " << std::get<1>(*row) << "\t";
    std::cout << "amount: " << std::get<2>(*row) << "\t";
    std::cout << "transfer_at: " << std::get<3>(*row) << "\n";
  }

  std::cout << "Query completed for [spanner_query_graph_data]\n";
}

清除所用資源

本節說明如何清除您建立的資源，以免系統向您的 Cloud 帳單帳戶收取費用。如果您打算在「後續步驟」一節中探索其他 Spanner 圖表範例，請暫時不要執行這些步驟。刪除 Spanner 執行個體時，也會刪除該執行個體中的所有資料庫。

刪除資料庫

1. 前往 Google Cloud 控制台的「Spanner Instances」(Spanner 執行個體) 頁面。

   前往 Spanner

2. 按一下執行個體名稱，例如「Test Instance」。

3. 按一下資料庫名稱，例如 example-db。

4. 在「Database details」(資料庫詳細資料) 頁面，按一下「Delete database」(刪除資料庫)。

5. 輸入資料庫名稱，然後按一下「刪除」，確認要刪除資料庫。

刪除執行個體

警告： 永久刪除執行個體會移除該執行個體及其所有資料庫。請注意，這項操作無法復原。每個專案生命週期只能建立一個免費試用執行個體。刪除後就無法再建立。

1. 前往 Google Cloud 控制台的「Spanner Instances」(Spanner 執行個體) 頁面。

   前往 Spanner 執行個體

2. 按一下要刪除的執行個體名稱，例如「Test Instance」。

3. 按一下 [Delete instance] (刪除執行個體)。

4. 輸入執行個體名稱，然後按一下「刪除」，確認要刪除執行個體。

後續步驟

• 如要進一步瞭解 Spanner Graph，請參閱程式碼研究室。
• 瞭解 Spanner Graph 結構定義。
• 建立、更新或捨棄 Spanner 圖表結構定義。
• 插入、更新或刪除 Spanner Graph 資料。
• Spanner Graph 查詢總覽。
• 遷移至 Spanner Graph。
