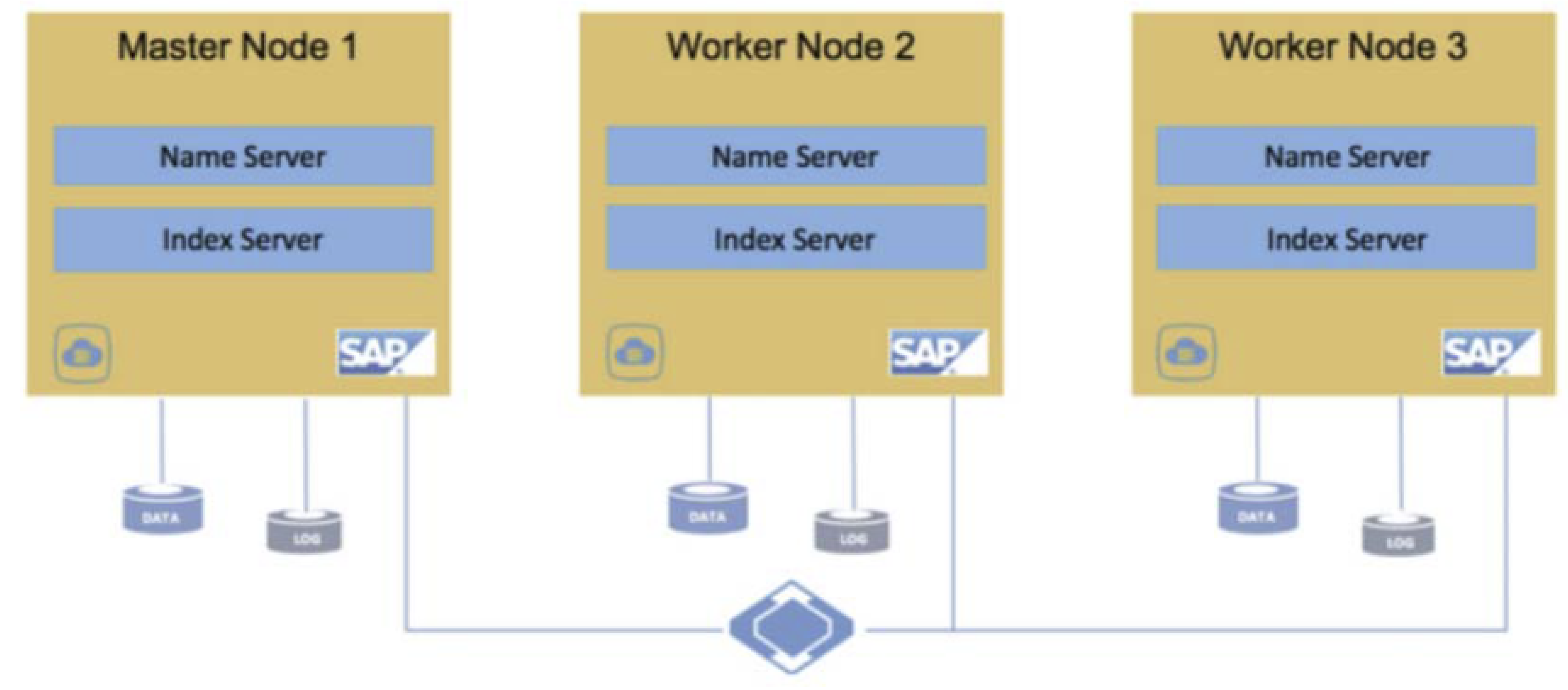

[[["容易理解","easyToUnderstand","thumb-up"],["確實解決了我的問題","solvedMyProblem","thumb-up"],["其他","otherUp","thumb-up"]],[["難以理解","hardToUnderstand","thumb-down"],["資訊或程式碼範例有誤","incorrectInformationOrSampleCode","thumb-down"],["缺少我需要的資訊/範例","missingTheInformationSamplesINeed","thumb-down"],["翻譯問題","translationIssue","thumb-down"],["其他","otherDown","thumb-down"]],["上次更新時間：2025-09-04 (世界標準時間)。"],[[["\u003cp\u003eThis page outlines the process of protecting both HANA 1+n replication clusters and HANA scale-out instances using Backup and DR Service.\u003c/p\u003e\n"],["\u003cp\u003eFor HANA 1+n, the cluster is recognized as a single application post-discovery, and log backups automatically failover to the current primary node.\u003c/p\u003e\n"],["\u003cp\u003eProtecting either type requires the Backup and DR agent to be installed on all nodes and for port 5106 to be open for communication between the appliance and the hosts.\u003c/p\u003e\n"],["\u003cp\u003eHANA log backup locations must be shared (NFS) between nodes for both HANA 1+n and scale-out configurations when utilizing file-based backups.\u003c/p\u003e\n"],["\u003cp\u003eForce discovery is recommended after changes to HANA 1+n cluster node configurations to prevent backup issues, and changes should be tracked with logical volume manager change block tracking.\u003c/p\u003e\n"]]],[],null,["# Back up HANA 1+n and HANA scale-out instances\n\nThis page includes information about protecting HANA 1+n and HANA scale-out.\n\nProtect HANA 1+n\n----------------\n\nTo protect a HANA 1+n replication cluster as a single application, the application\nhas the cluster host as sid `name_cluster` after application discovery. For\nexample, if sr1 is the HANA instance, then the application name is sr1 and the\nhostname is sr1_cluster in the **App Manager Applications** list.\n\nThe HANA log backup destination must be shared between two nodes. When failover\noccurs, the database and log backup automatically fails over to the current\nprimary, and log backups are performed from the current primary, capturing the\nlast logs from the old primary as well as new logs from the new primary. Follow\nthe preparation steps in\n[Prepare your SAP HANA databases for protection](/backup-disaster-recovery/docs/configuration/prepare-hana).\n\nHANA 1+n is always discovered as cluster application containing all node\ndetails in the metadata. It is a good idea to run a force discovery after any\nchanges to cluster node configuration---such as after adding or deleting a\nnode from the cluster. If a node is removed or added after discovery and\nprotection, the configuration does not be updated automatically in\nBackup and DR metadata, and may cause backup issues.\n| **Note:** With the failover of the HANA database from primary to secondary and back, the next database backup is low-splash and takes more time to get the incremental changes.\n\n### Prerequisites for protecting SAP HANA 1+n instances and databases\n\nBefore protecting SAP HANA instances, ensure the following:\n\n- If hosts have virtual IPs configured, add only the virtual IP and hostname of the primary host during discovery.\n- The Backup and DR agent must be installed on all nodes.\n- Ports need to be opened on the hosts to allow communication on port 5106. This requires an ingress firewall rule where the backup/recovery appliance is the source, the host running the agent is the target and the target port is 5106. Also, there is no need to add port 5106 to the default ingress rule created for the appliance, as this specifies the appliance as the target.\n- HANA log backup location must be set on shared---NFS.\n\n| **Note:** Activate logical volume manager change block tracking on all the nodes of SAP HANA scale-out cluster by running `/opt/act/cbt/bin/cbt_activate.sh` on the command line as a root user. Verify that logical volume manager change block tracking is activated by running `pgrep cbt`---this should return two processes running for change block tracking.\n\nProtect HANA scale-out\n----------------------\n\n### Prerequisites for protecting SAP HANA scale-out instances\n\nBefore protecting SAP HANA scale-out instances, be sure that the following is complete:\n\n- If hosts have virtual IPs configured, add only the virtual IP and the associated hostname of the primary host during discovery.\n- The Backup and DR agent must be installed on all nodes.\n- Ports need to be opened on the hosts to allow communication on port 5106. This requires an ingress firewall rule where the backup/recovery appliance is the source, the host running the agent is the target and the target port is 5106. Also, there is no need to add port 5106 to the default ingress rule created for the appliance, as this specifies the appliance as the target.\n- For backint file based---Full+Incremental---backup, the HANA log backup location must be set to shared---NFS. See [Add the host to the management console](/backup-disaster-recovery/docs/configuration/otherdb-add-host).\n- For storage snapshot protection\n\n - Data and log volume are non-shared across all nodes\n - Data and log volumes are managed by logical volume manager (LVM)\n - Ensure mnt000\\* directories exist on the local mount points to identify the primary and secondary nodes\n\n | **Note:** The discovered SAP HANA instance shows up under application list with: Application (HANA sid name): Hostname and Friendly path (HANA sid name)_cluster(site id)_(HANA hardware id).\n\n Follow the setup procedures in\n [Prepare your SAP HANA databases for protection](/backup-disaster-recovery/docs/configuration/prepare-sap-hana-scaleout).\n\n| **Note:** Activate logical volume manager change block tracking on all the nodes of SAP HANA scale-out cluster by running `/opt/act/cbt/bin/cbt_activate.sh` on the command line as a root user. Verify that logical volume manager change block tracking is activated by running `pgrep cbt`---this should return two processes running for change block tracking.\n| **Note:** If you are protecting data on a HANA replication cluster, any reboot of the primary HANA node results in a role switch where the secondary node becomes the new primary node. Backup jobs always run from the primary HANA node. If there is a HANA failover to the secondary node, the first backup after the failover is a full copy because CBT from the old primary node is not available on the new primary (old secondary) node.\n\nBackup and DR Service documentation for SAP HANA scale-out\n----------------------------------------------------------\n\nThis page is one in a series of pages specific to protecting and recovering\nSAP HANA scale-out instances with Backup and DR Service.\nYou can find additional information in the following pages:\n\n- [Backup and DR for SAP HANA scale-out](/backup-disaster-recovery/docs/concepts/backupdr-for-sap-hana-scaleout)\n- [Prepare SAP HANA scale-out instances for backup](/backup-disaster-recovery/docs/configuration/prepare-sap-hana)\n- [Add an SAP HANA scale-out host, and discover and protect its databases](/backup-disaster-recovery/docs/configuration/discover-sap-hana-scaleout)\n- [Configure staging disk format and backup method for SAP HANA scale-out](/backup-disaster-recovery/docs/backup/backup-method-staging-disk-sap-hana-scaleout)\n- [Set application details and settings for SAP HANA scale-out instances](/backup-disaster-recovery/docs/backup/app-details-settings-sap-hana-scaleout)\n- [Back up HANA 1+n and HANA scale-out databases](/backup-disaster-recovery/docs/backup/back-up-sap-hana-scaleout)\n- [Restore and recover SAP HANA scale-out instances](/backup-disaster-recovery/docs/restore-data/restore-sap-hana-scaleout)\n- [Mount an SAP HANA scale-out backup as a standard mount](/backup-disaster-recovery/docs/access-data/mount-sap-hana)\n- [Mount an SAP HANA scale-out backup as a virtual database](/backup-disaster-recovery/docs/access-data/mount-sap-hana-virtualdb)\n- [Mount and migrate an SAP HANA scale-out backup for instant recovery to any target](/backup-disaster-recovery/docs/access-data/mount-and-migrate-sap-hana)"]]
