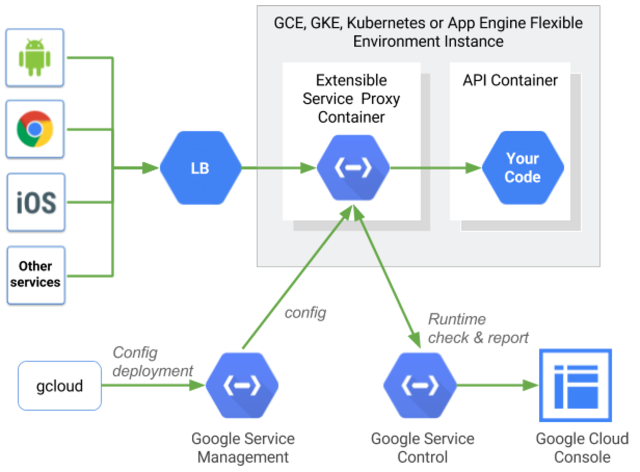

Service Control 會在執行階段套用 API 管理規則，例如金鑰驗證、監控和記錄。Service Control 提供下列方法：
檢查：確認驗證和 API 金鑰，並指示是否應允許某個呼叫
報告：向系統通報記錄和監控功能的相關記錄
服務管理
您將使用 OpenAPI 規格以稱為 Endpoints 設定的文字檔來描述 API 的介面和行為。您將利用會設定 API 管理規則的 gcloud CLI，將 Endpoints 設定部署到 Service Management。其他設定相關工作也會在這裡進行，例如與其他開發人員共用您的 API、在不同的專案中啟用或停用 API，以及產生 API 金鑰。
gcloud CLI
gcloud CLI 提供 Google Cloud CLI，可用來呼叫各種 Google Cloud 服務。您可以使用 Google Cloud CLI，將 Endpoints 設定部署到 Service Management。
Google Cloud 控制台
Google Cloud 控制台是Google Cloud的圖形使用者介面。Endpoints 會使用Google Cloud 主控台公開由 ESP 或 ESPv2 傳送並由 Service Control 記錄的監控和記錄資料，也會透過這個主控台與其他開發人員共用 API，方便他們產生 API 金鑰來呼叫 API。
