CCAI Transcription allows you to convert your streaming audio data to
transcripted text in real time. Agent Assist makes suggestions based on
text, so audio data must be converted before it can be used. You can also use
transcripted streaming audio with CCAI Insights to gather real-time data about
agent conversations (for example, Topic
Modeling).
There are two ways to transcribe streaming audio for use with CCAI: By using the
SIPREC feature, or by making gRPC calls with audio
data as payload. This page describes the process of transcribing streaming audio
data using gRPC calls.
CCAI Transcription works using Cloud Speech-to-Text streaming speech
recognition. Cloud
Speech-to-Text offers multiple recognition
models, standard and
enhanced. CCAI Transcription is
supported at the GA level only when it's used with the
enhanced phone call model. Enhanced phone call is available for the
following languages:

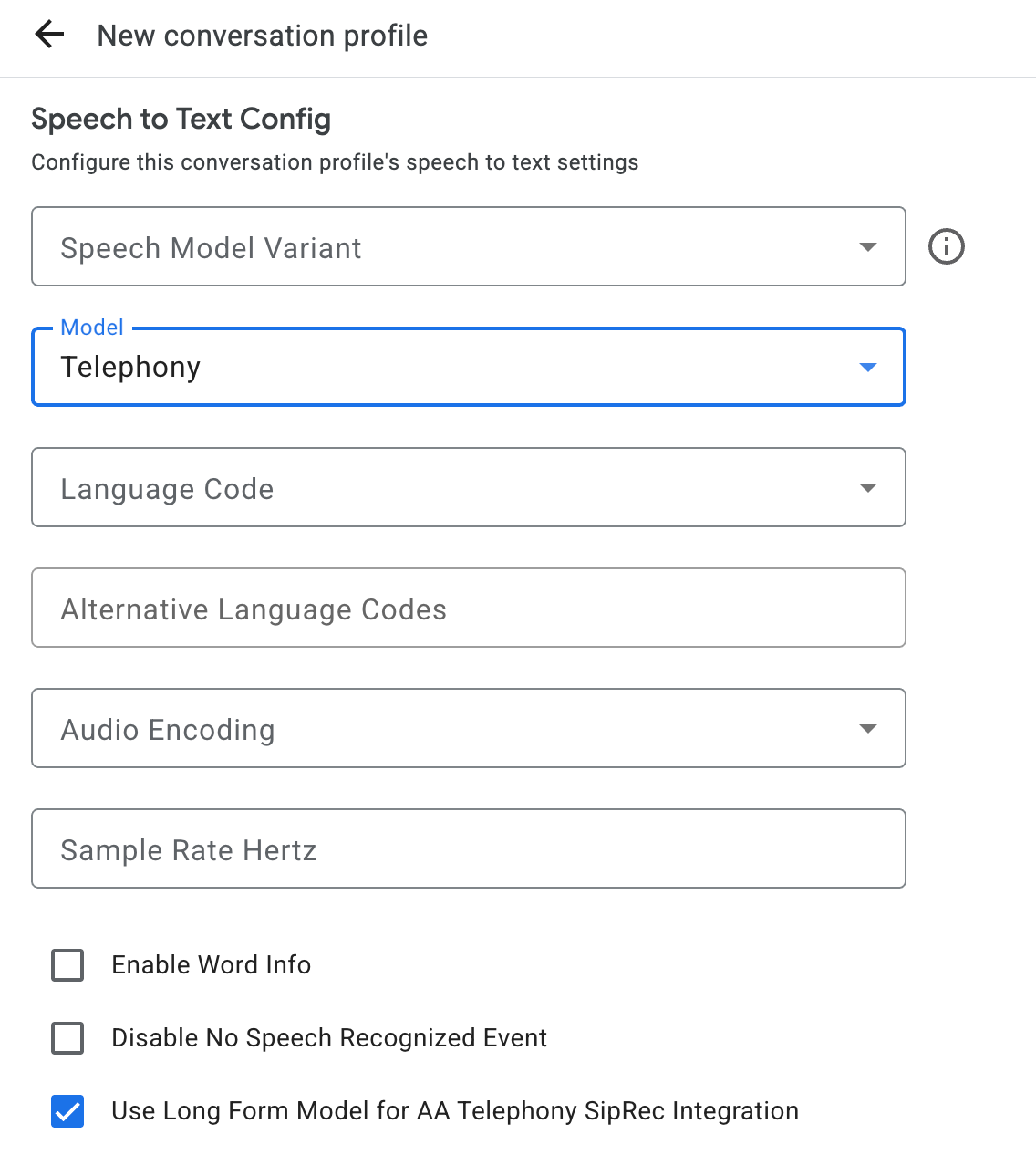

To create a conversation profile, call the create method on the
ConversationProfile
resource. The method is the same as when you create a conversation profile for
chat data.
Create a conversation
Create participants
There are three types of
participant.
See the reference
documentation
for more details about their roles. Call the create method on the
participant and specify the role. Only an END_USER or a HUMAN_AGENT
participant can call StreamingAnalyzeContent, which is required to get a
transcription.
Send audio data and get a transcript
You can use
StreamingAnalyzeContent
to send a participant's audio to Google and get transcription, with the
following parameters:
The first request in the stream must be
InputAudioConfig.
(It does not use ConversationProfile.stt_config right now). Don't send any
audio input util the second request.
audioEncoding needs to be set to AUDIO_ENCODING_LINEAR_16 or
AUDIO_ENCODING_MULAW.
model: This is the Cloud Speech-to-Text
model that you want to use to
transcribe your audio. Set this field to phone_call.
speechModelVariant: The
speechModelVariant
field determines whether Cloud Speech-to-Text will use the standard
or enhanced version of your
selected model. Set this field to USE_ENHANCED.
singleUtterance should be set to false for best transcription
quality. You should not expect END_OF_SINGLE_UTTERANCE if
singleUtterance is false, but you can depend on isFinal==true
inside StreamingAnalyzeContentResponse.recognition_result to
half-close the stream.
Optional additional parameters: The following parameters are
optional. To gain access to these parameters, contact your Google
representative.
languageCode: language_code of the audio. The default value
is en-US.
alternativeLanguageCodes: Additional languages that might be
detected in the audio. Agent Assist uses the language_code
field to automatically detect the language at the beginning of the
audio and sticks to it in all following conversation turns. The
alternativeLanguageCodes field allows you to specify more options
for Agent Assist to choose from.
phraseSets: The Cloud Speech-to-Text model
adaptationphraseSet
resource name. To use model adaptation with CCAI Transcription you
must first create the phraseSet using the Cloud Speech-to-Text API
and specify the resource name here.
After you send the second request with audio payload, you should start
receiving some StreamingAnalyzeContentResponses from the stream.
You can half close the stream (or stop sending in some languages like
Python) when you see is_final set to true in
StreamingAnalyzeContentResponse.recognition_result.
After you half-close the stream, the server will send back the response
containing final transcript, along with potential Dialogflow Suggestions
or Agent Assist Suggestions.
You can find the final transcription in the following locations:
Start a new stream after the previous stream is closed.
Audio re-send: Audio data generated after last speech_end_offset of
the response with is_final=true to the new stream start time needs to
be re-sent to StreamingAnalyzeContent for best transcription quality.
Here is the diagram illustrate how stream works.
Streaming recognition request code sample
The following code sample illustrates how to send a streaming transcription
request:
# Copyright 2023 Google LLC
#
# Licensed under the Apache License, Version 2.0 (the "License");
# you may not use this file except in compliance with the License.
# You may obtain a copy of the License at
#
# http://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.
"""Google Cloud Dialogflow API sample code using the StreamingAnalyzeContent
API.
Also please contact Google to get credentials of this project and set up the
credential file json locations by running:
export GOOGLE_APPLICATION_CREDENTIALS=<cred_json_file_location>
Example usage:
export GOOGLE_CLOUD_PROJECT='cloud-contact-center-ext-demo'
export CONVERSATION_PROFILE='FnuBYO8eTBWM8ep1i-eOng'
export GOOGLE_APPLICATION_CREDENTIALS='/Users/ruogu/Desktop/keys/cloud-contact-center-ext-demo-78798f9f9254.json'
python streaming_transcription.py
Then started to talk in English, you should see transcription shows up as you speak.
Say "Quit" or "Exit" to stop.
"""
import os
import re
import sys
from google.api_core.exceptions import DeadlineExceeded
import pyaudio
from six.moves import queue
import conversation_management
import participant_management
PROJECT_ID = os.getenv("GOOGLE_CLOUD_PROJECT")
CONVERSATION_PROFILE_ID = os.getenv("CONVERSATION_PROFILE")
# Audio recording parameters
SAMPLE_RATE = 16000
CHUNK_SIZE = int(SAMPLE_RATE / 10) # 100ms
RESTART_TIMEOUT = 160 # seconds
MAX_LOOKBACK = 3 # seconds
YELLOW = "\033[0;33m"
class ResumableMicrophoneStream:
"""Opens a recording stream as a generator yielding the audio chunks."""
def __init__(self, rate, chunk_size):
self._rate = rate
self.chunk_size = chunk_size
self._num_channels = 1
self._buff = queue.Queue()
self.is_final = False
self.closed = True
# Count the number of times the stream analyze content restarts.
self.restart_counter = 0
self.last_start_time = 0
# Time end of the last is_final in millisec since last_start_time.
self.is_final_offset = 0
# Save the audio chunks generated from the start of the audio stream for
# replay after restart.
self.audio_input_chunks = []
self.new_stream = True
self._audio_interface = pyaudio.PyAudio()
self._audio_stream = self._audio_interface.open(
format=pyaudio.paInt16,
channels=self._num_channels,
rate=self._rate,
input=True,
frames_per_buffer=self.chunk_size,
# Run the audio stream asynchronously to fill the buffer object.
# This is necessary so that the input device's buffer doesn't
# overflow while the calling thread makes network requests, etc.
stream_callback=self._fill_buffer,
)
def __enter__(self):
self.closed = False
return self
def __exit__(self, type, value, traceback):
self._audio_stream.stop_stream()
self._audio_stream.close()
self.closed = True
# Signal the generator to terminate so that the client's
# streaming_recognize method will not block the process termination.
self._buff.put(None)
self._audio_interface.terminate()
def _fill_buffer(self, in_data, *args, **kwargs):
"""Continuously collect data from the audio stream, into the buffer in
chunksize."""
self._buff.put(in_data)
return None, pyaudio.paContinue
def generator(self):
"""Stream Audio from microphone to API and to local buffer"""
try:
# Handle restart.
print("restart generator")
# Flip the bit of is_final so it can continue stream.
self.is_final = False
total_processed_time = self.last_start_time + self.is_final_offset
processed_bytes_length = (
int(total_processed_time * SAMPLE_RATE * 16 / 8) / 1000
)
self.last_start_time = total_processed_time
# Send out bytes stored in self.audio_input_chunks that is after the
# processed_bytes_length.
if processed_bytes_length != 0:
audio_bytes = b"".join(self.audio_input_chunks)
# Lookback for unprocessed audio data.
need_to_process_length = min(
int(len(audio_bytes) - processed_bytes_length),
int(MAX_LOOKBACK * SAMPLE_RATE * 16 / 8),
)
# Note that you need to explicitly use `int` type for substring.
need_to_process_bytes = audio_bytes[(-1) * need_to_process_length :]
yield need_to_process_bytes
while not self.closed and not self.is_final:
data = []
# Use a blocking get() to ensure there's at least one chunk of
# data, and stop iteration if the chunk is None, indicating the
# end of the audio stream.
chunk = self._buff.get()
if chunk is None:
return
data.append(chunk)
# Now try to the rest of chunks if there are any left in the _buff.
while True:
try:
chunk = self._buff.get(block=False)
if chunk is None:
return
data.append(chunk)
except queue.Empty:
break
self.audio_input_chunks.extend(data)
if data:
yield b"".join(data)
finally:
print("Stop generator")
def main():
"""start bidirectional streaming from microphone input to Dialogflow API"""
# Create conversation.
conversation = conversation_management.create_conversation(
project_id=PROJECT_ID, conversation_profile_id=CONVERSATION_PROFILE_ID
)
conversation_id = conversation.name.split("conversations/")[1].rstrip()
# Create end user participant.
end_user = participant_management.create_participant(
project_id=PROJECT_ID, conversation_id=conversation_id, role="END_USER"
)
participant_id = end_user.name.split("participants/")[1].rstrip()
mic_manager = ResumableMicrophoneStream(SAMPLE_RATE, CHUNK_SIZE)
print(mic_manager.chunk_size)
sys.stdout.write(YELLOW)
sys.stdout.write('\nListening, say "Quit" or "Exit" to stop.\n\n')
sys.stdout.write("End (ms) Transcript Results/Status\n")
sys.stdout.write("=====================================================\n")
with mic_manager as stream:
while not stream.closed:
terminate = False
while not terminate:
try:
print(f"New Streaming Analyze Request: {stream.restart_counter}")
stream.restart_counter += 1
# Send request to streaming and get response.
responses = participant_management.analyze_content_audio_stream(
conversation_id=conversation_id,
participant_id=participant_id,
sample_rate_herz=SAMPLE_RATE,
stream=stream,
timeout=RESTART_TIMEOUT,
language_code="en-US",
single_utterance=False,
)
# Now, print the final transcription responses to user.
for response in responses:
if response.message:
print(response)
if response.recognition_result.is_final:
print(response)
# offset return from recognition_result is relative
# to the beginning of audio stream.
offset = response.recognition_result.speech_end_offset
stream.is_final_offset = int(
offset.seconds * 1000 + offset.microseconds / 1000
)
transcript = response.recognition_result.transcript
# Half-close the stream with gRPC (in Python just stop yielding requests)
stream.is_final = True
# Exit recognition if any of the transcribed phrase could be
# one of our keywords.
if re.search(r"\b(exit|quit)\b", transcript, re.I):
sys.stdout.write(YELLOW)
sys.stdout.write("Exiting...\n")
terminate = True
stream.closed = True
break
except DeadlineExceeded:
print("Deadline Exceeded, restarting.")
if terminate:
conversation_management.complete_conversation(
project_id=PROJECT_ID, conversation_id=conversation_id
)
break
if __name__ == "__main__":
main()
