使用用戶端程式庫建立 Dataproc 叢集

以下列出的範例程式碼,說明如何使用 Cloud 用戶端程式庫建立 Dataproc 叢集、在叢集上執行工作,然後刪除叢集。

你也可以使用下列工具執行這些工作:

事前準備

  1. Sign in to your Google Cloud account. If you're new to Google Cloud, create an account to evaluate how our products perform in real-world scenarios. New customers also get $300 in free credits to run, test, and deploy workloads.
  2. In the Google Cloud console, on the project selector page, select or create a Google Cloud project.

    Go to project selector

  3. Verify that billing is enabled for your Google Cloud project.

  4. Enable the Dataproc API.

    Enable the API

  5. In the Google Cloud console, on the project selector page, select or create a Google Cloud project.

    Go to project selector

  6. Verify that billing is enabled for your Google Cloud project.

  7. Enable the Dataproc API.

    Enable the API

  8. 執行程式碼

    試用逐步操作說明:按一下「在 Cloud Shell 中開啟」,執行 Python Cloud 用戶端程式庫逐步操作說明,建立叢集、執行 PySpark 工作,然後刪除叢集。

    在 Cloud Shell 中開啟

    Go

    1. 安裝用戶端程式庫 詳情請參閱「設定開發環境」。
    2. 設定驗證
    3. 複製並執行 GitHub 程式碼範例。

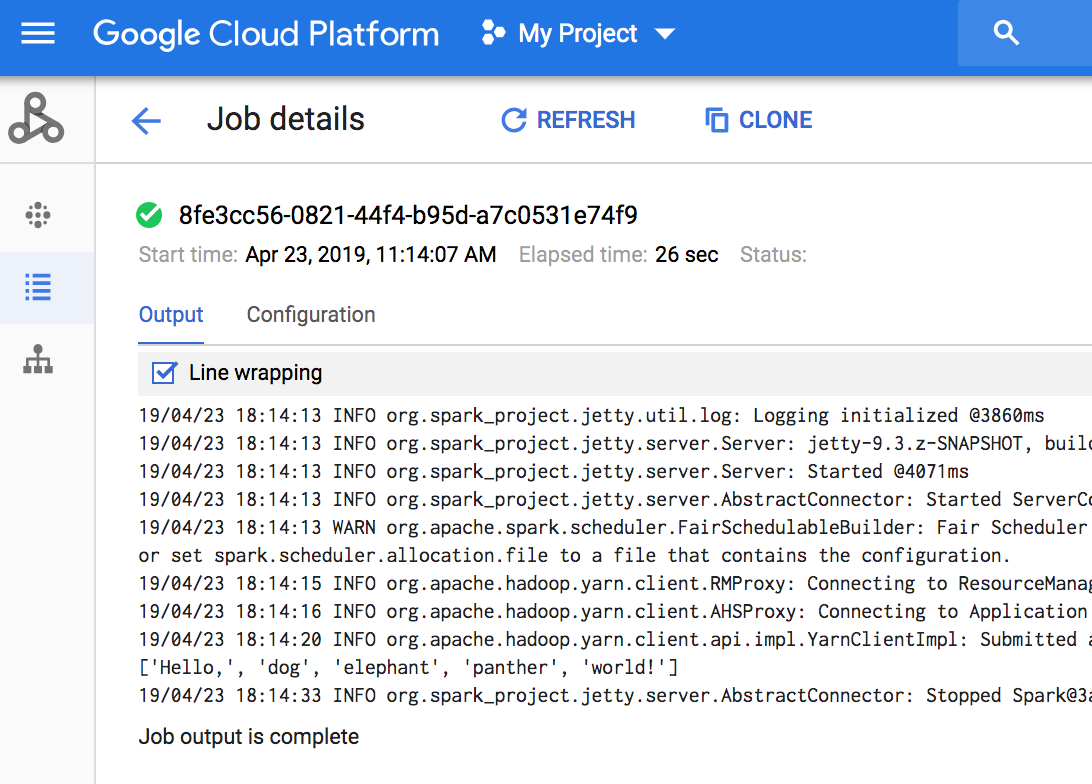

    4. 查看輸出內容。程式碼會將作業驅動程式記錄檔輸出至 Cloud Storage 中的預設 Dataproc 暫存 bucket。您可以在專案的 Dataproc Jobs 區段中,透過 Google Cloud 控制台查看工作驅動程式輸出。按一下「工作 ID」,即可在「工作詳細資料」頁面中查看工作輸出內容。


    // This quickstart shows how you can use the Dataproc Client library to create a
    // Dataproc cluster, submit a PySpark job to the cluster, wait for the job to finish
    // and finally delete the cluster.
    //
    // Usage:
    //
    //	go build
    //	./quickstart --project_id <PROJECT_ID> --region <REGION> \
    //	    --cluster_name <CLUSTER_NAME> --job_file_path <GCS_JOB_FILE_PATH>
    package main

    import (
    	"context"
    	"flag"
    	"fmt"
    	"io"
    	"log"
    	"regexp"

    	dataproc "cloud.google.com/go/dataproc/apiv1"
    	"cloud.google.com/go/dataproc/apiv1/dataprocpb"
    	"cloud.google.com/go/storage"
    	"google.golang.org/api/option"
    )

    func main() {
    	var projectID, clusterName, region, jobFilePath string
    	flag.StringVar(&projectID, "project_id", "", "Cloud Project ID, used for creating resources.")
    	flag.StringVar(&region, "region", "", "Region that resources should be created in.")
    	flag.StringVar(&clusterName, "cluster_name", "", "Name of Cloud Dataproc cluster to create.")
    	flag.StringVar(&jobFilePath, "job_file_path", "", "Path to job file in GCS.")
    	flag.Parse()

    	ctx := context.Background()

    	// Create the cluster client.
    	endpoint := fmt.Sprintf("%s-dataproc.googleapis.com:443", region)
    	clusterClient, err := dataproc.NewClusterControllerClient(ctx, option.WithEndpoint(endpoint))
    	if err != nil {
    		log.Fatalf("error creating the cluster client: %s\n", err)
    	}

    	// Create the cluster config.
    	createReq := &dataprocpb.CreateClusterRequest{
    		ProjectId: projectID,
    		Region:    region,
    		Cluster: &dataprocpb.Cluster{
    			ProjectId:   projectID,
    			ClusterName: clusterName,
    			Config: &dataprocpb.ClusterConfig{
    				MasterConfig: &dataprocpb.InstanceGroupConfig{
    					NumInstances:   1,
    					MachineTypeUri: "n1-standard-2",
    				},
    				WorkerConfig: &dataprocpb.InstanceGroupConfig{
    					NumInstances:   2,
    					MachineTypeUri: "n1-standard-2",
    				},
    			},
    		},
    	}

    	// Create the cluster.
    	createOp, err := clusterClient.CreateCluster(ctx, createReq)
    	if err != nil {
    		log.Fatalf("error submitting the cluster creation request: %v\n", err)
    	}

    	createResp, err := createOp.Wait(ctx)
    	if err != nil {
    		log.Fatalf("error creating the cluster: %v\n", err)
    	}

    	// Defer cluster deletion.
    	defer func() {
    		dReq := &dataprocpb.DeleteClusterRequest{
    			ProjectId:   projectID,
    			Region:      region,
    			ClusterName: clusterName,
    		}
    		deleteOp, err := clusterClient.DeleteCluster(ctx, dReq)
    		deleteOp.Wait(ctx)
    		if err != nil {
    			fmt.Printf("error deleting cluster %q: %v\n", clusterName, err)
    			return
    		}
    		fmt.Printf("Cluster %q successfully deleted\n", clusterName)
    	}()

    	// Output a success message.
    	fmt.Printf("Cluster created successfully: %q\n", createResp.ClusterName)

    	// Create the job client.
    	jobClient, err := dataproc.NewJobControllerClient(ctx, option.WithEndpoint(endpoint))

    	// Create the job config.
    	submitJobReq := &dataprocpb.SubmitJobRequest{
    		ProjectId: projectID,
    		Region:    region,
    		Job: &dataprocpb.Job{
    			Placement: &dataprocpb.JobPlacement{
    				ClusterName: clusterName,
    			},
    			TypeJob: &dataprocpb.Job_PysparkJob{
    				PysparkJob: &dataprocpb.PySparkJob{
    					MainPythonFileUri: jobFilePath,
    				},
    			},
    		},
    	}

    	submitJobOp, err := jobClient.SubmitJobAsOperation(ctx, submitJobReq)
    	if err != nil {
    		fmt.Printf("error with request to submitting job: %v\n", err)
    		return
    	}

    	submitJobResp, err := submitJobOp.Wait(ctx)
    	if err != nil {
    		fmt.Printf("error submitting job: %v\n", err)
    		return
    	}

    	re := regexp.MustCompile("gs://(.+?)/(.+)")
    	matches := re.FindStringSubmatch(submitJobResp.DriverOutputResourceUri)

    	if len(matches) < 3 {
    		fmt.Printf("regex error: %s\n", submitJobResp.DriverOutputResourceUri)
    		return
    	}

    	// Dataproc job outget gets saved to a GCS bucket allocated to it.
    	storageClient, err := storage.NewClient(ctx)
    	if err != nil {
    		fmt.Printf("error creating storage client: %v\n", err)
    		return
    	}

    	obj := fmt.Sprintf("%s.000000000", matches[2])
    	reader, err := storageClient.Bucket(matches[1]).Object(obj).NewReader(ctx)
    	if err != nil {
    		fmt.Printf("error reading job output: %v\n", err)
    		return
    	}

    	defer reader.Close()

    	body, err := io.ReadAll(reader)
    	if err != nil {
    		fmt.Printf("could not read output from Dataproc Job: %v\n", err)
    		return
    	}

    	fmt.Printf("Job finished successfully: %s", body)
    }


    Java

    1. 安裝用戶端程式庫 詳情請參閱「設定 Java 開發環境」。
    2. 設定驗證
    3. 複製並執行 GitHub 程式碼範例。
    4. 查看輸出內容。程式碼會將作業驅動程式記錄檔輸出至 Cloud Storage 中的預設 Dataproc 暫存 bucket。您可以在專案的 Dataproc Jobs 區段中,透過 Google Cloud 控制台查看工作驅動程式輸出。按一下「工作 ID」,即可在「工作詳細資料」頁面中查看工作輸出內容。

    /* This quickstart sample walks a user through creating a Cloud Dataproc
     * cluster, submitting a PySpark job from Google Cloud Storage to the
     * cluster, reading the output of the job and deleting the cluster, all
     * using the Java client library.
     *
     * Usage:
     *     mvn clean package -DskipTests
     *
     *     mvn exec:java -Dexec.args="<PROJECT_ID> <REGION> <CLUSTER_NAME> <GCS_JOB_FILE_PATH>"
     *
     *     You can also set these arguments in the main function instead of providing them via the CLI.
     */

    import com.google.api.gax.longrunning.OperationFuture;
    import com.google.cloud.dataproc.v1.Cluster;
    import com.google.cloud.dataproc.v1.ClusterConfig;
    import com.google.cloud.dataproc.v1.ClusterControllerClient;
    import com.google.cloud.dataproc.v1.ClusterControllerSettings;
    import com.google.cloud.dataproc.v1.ClusterOperationMetadata;
    import com.google.cloud.dataproc.v1.InstanceGroupConfig;
    import com.google.cloud.dataproc.v1.Job;
    import com.google.cloud.dataproc.v1.JobControllerClient;
    import com.google.cloud.dataproc.v1.JobControllerSettings;
    import com.google.cloud.dataproc.v1.JobMetadata;
    import com.google.cloud.dataproc.v1.JobPlacement;
    import com.google.cloud.dataproc.v1.PySparkJob;
    import com.google.cloud.storage.Blob;
    import com.google.cloud.storage.Storage;
    import com.google.cloud.storage.StorageOptions;
    import com.google.protobuf.Empty;
    import java.io.IOException;
    import java.util.concurrent.ExecutionException;
    import java.util.regex.Matcher;
    import java.util.regex.Pattern;

    public class Quickstart {

      public static void quickstart(
          String projectId, String region, String clusterName, String jobFilePath)
          throws IOException, InterruptedException {
        String myEndpoint = String.format("%s-dataproc.googleapis.com:443", region);

        // Configure the settings for the cluster controller client.
        ClusterControllerSettings clusterControllerSettings =
            ClusterControllerSettings.newBuilder().setEndpoint(myEndpoint).build();

        // Configure the settings for the job controller client.
        JobControllerSettings jobControllerSettings =
            JobControllerSettings.newBuilder().setEndpoint(myEndpoint).build();

        // Create both a cluster controller client and job controller client with the
        // configured settings. The client only needs to be created once and can be reused for
        // multiple requests. Using a try-with-resources closes the client, but this can also be done
        // manually with the .close() method.
        try (ClusterControllerClient clusterControllerClient =
                ClusterControllerClient.create(clusterControllerSettings);
            JobControllerClient jobControllerClient =
                JobControllerClient.create(jobControllerSettings)) {
          // Configure the settings for our cluster.
          InstanceGroupConfig masterConfig =
              InstanceGroupConfig.newBuilder()
                  .setMachineTypeUri("n1-standard-2")
                  .setNumInstances(1)
                  .build();
          InstanceGroupConfig workerConfig =
              InstanceGroupConfig.newBuilder()
                  .setMachineTypeUri("n1-standard-2")
                  .setNumInstances(2)
                  .build();
          ClusterConfig clusterConfig =
              ClusterConfig.newBuilder()
                  .setMasterConfig(masterConfig)
                  .setWorkerConfig(workerConfig)
                  .build();
          // Create the cluster object with the desired cluster config.
          Cluster cluster =
              Cluster.newBuilder().setClusterName(clusterName).setConfig(clusterConfig).build();

          // Create the Cloud Dataproc cluster.
          OperationFuture<Cluster, ClusterOperationMetadata> createClusterAsyncRequest =
              clusterControllerClient.createClusterAsync(projectId, region, cluster);
          Cluster clusterResponse = createClusterAsyncRequest.get();
          System.out.println(
              String.format("Cluster created successfully: %s", clusterResponse.getClusterName()));

          // Configure the settings for our job.
          JobPlacement jobPlacement = JobPlacement.newBuilder().setClusterName(clusterName).build();
          PySparkJob pySparkJob = PySparkJob.newBuilder().setMainPythonFileUri(jobFilePath).build();
          Job job = Job.newBuilder().setPlacement(jobPlacement).setPysparkJob(pySparkJob).build();

          // Submit an asynchronous request to execute the job.
          OperationFuture<Job, JobMetadata> submitJobAsOperationAsyncRequest =
              jobControllerClient.submitJobAsOperationAsync(projectId, region, job);
          Job jobResponse = submitJobAsOperationAsyncRequest.get();

          // Print output from Google Cloud Storage.
          Matcher matches =
              Pattern.compile("gs://(.*?)/(.*)").matcher(jobResponse.getDriverOutputResourceUri());
          matches.matches();

          Storage storage = StorageOptions.getDefaultInstance().getService();
          Blob blob = storage.get(matches.group(1), String.format("%s.000000000", matches.group(2)));

          System.out.println(
              String.format("Job finished successfully: %s", new String(blob.getContent())));

          // Delete the cluster.
          OperationFuture<Empty, ClusterOperationMetadata> deleteClusterAsyncRequest =
              clusterControllerClient.deleteClusterAsync(projectId, region, clusterName);
          deleteClusterAsyncRequest.get();
          System.out.println(String.format("Cluster \"%s\" successfully deleted.", clusterName));

        } catch (ExecutionException e) {
          System.err.println(String.format("quickstart: %s ", e.getMessage()));
        }
      }

      public static void main(String... args) throws IOException, InterruptedException {
        if (args.length != 4) {
          System.err.println(
              "Insufficient number of parameters provided. Please make sure a "
                  + "PROJECT_ID, REGION, CLUSTER_NAME and JOB_FILE_PATH are provided, in this order.");
          return;
        }

        String projectId = args[0]; // project-id of project to create the cluster in
        String region = args[1]; // region to create the cluster
        String clusterName = args[2]; // name of the cluster
        String jobFilePath = args[3]; // location in GCS of the PySpark job

        quickstart(projectId, region, clusterName, jobFilePath);
      }
    }

    Node.js

    1. 安裝用戶端程式庫 詳情請參閱設定 Node.js 開發環境
    2. 設定驗證
    3. 複製並執行 GitHub 程式碼範例。
    4. 查看輸出內容。程式碼會將作業驅動程式記錄檔輸出至 Cloud Storage 中的預設 Dataproc 暫存 bucket。您可以在專案的 Dataproc Jobs 區段中,透過 Google Cloud 控制台查看工作驅動程式輸出。按一下「工作 ID」,即可在「工作詳細資料」頁面中查看工作輸出內容。

    // This quickstart sample walks a user through creating a Dataproc
    // cluster, submitting a PySpark job from Google Cloud Storage to the
    // cluster, reading the output of the job and deleting the cluster, all
    // using the Node.js client library.

    'use strict';

    function main(projectId, region, clusterName, jobFilePath) {
      const dataproc = require('@google-cloud/dataproc');
      const {Storage} = require('@google-cloud/storage');

      // Create a cluster client with the endpoint set to the desired cluster region
      const clusterClient = new dataproc.v1.ClusterControllerClient({
        apiEndpoint: `${region}-dataproc.googleapis.com`,
        projectId: projectId,
      });

      // Create a job client with the endpoint set to the desired cluster region
      const jobClient = new dataproc.v1.JobControllerClient({
        apiEndpoint: `${region}-dataproc.googleapis.com`,
        projectId: projectId,
      });

      async function quickstart() {
        // Create the cluster config
        const cluster = {
          projectId: projectId,
          region: region,
          cluster: {
            clusterName: clusterName,
            config: {
              masterConfig: {
                numInstances: 1,
                machineTypeUri: 'n1-standard-2',
              },
              workerConfig: {
                numInstances: 2,
                machineTypeUri: 'n1-standard-2',
              },
            },
          },
        };

        // Create the cluster
        const [operation] = await clusterClient.createCluster(cluster);
        const [response] = await operation.promise();

        // Output a success message
        console.log(`Cluster created successfully: ${response.clusterName}`);

        const job = {
          projectId: projectId,
          region: region,
          job: {
            placement: {
              clusterName: clusterName,
            },
            pysparkJob: {
              mainPythonFileUri: jobFilePath,
            },
          },
        };

        const [jobOperation] = await jobClient.submitJobAsOperation(job);
        const [jobResponse] = await jobOperation.promise();

        const matches =
          jobResponse.driverOutputResourceUri.match('gs://(.*?)/(.*)');

        const storage = new Storage();

        const output = await storage
          .bucket(matches[1])
          .file(`${matches[2]}.000000000`)
          .download();

        // Output a success message.
        console.log(`Job finished successfully: ${output}`);

        // Delete the cluster once the job has terminated.
        const deleteClusterReq = {
          projectId: projectId,
          region: region,
          clusterName: clusterName,
        };

        const [deleteOperation] =
          await clusterClient.deleteCluster(deleteClusterReq);
        await deleteOperation.promise();

        // Output a success message
        console.log(`Cluster ${clusterName} successfully deleted.`);
      }

      quickstart();
    }

    const args = process.argv.slice(2);

    if (args.length !== 4) {
      console.log(
        'Insufficient number of parameters provided. Please make sure a ' +
          'PROJECT_ID, REGION, CLUSTER_NAME and JOB_FILE_PATH are provided, in this order.'
      );
    }

    main(...args);

    Python

    1. 安裝用戶端程式庫 詳情請參閱「設定 Python 開發環境」。
    2. 設定驗證
    3. 複製並執行 GitHub 程式碼範例。
    4. 查看輸出內容。程式碼會將作業驅動程式記錄檔輸出至 Cloud Storage 中的預設 Dataproc 暫存 bucket。您可以在專案的 Dataproc Jobs 區段中,透過 Google Cloud 控制台查看工作驅動程式輸出。按一下「工作 ID」,即可在「工作詳細資料」頁面中查看工作輸出內容。

    """
    This quickstart sample walks a user through creating a Cloud Dataproc
    cluster, submitting a PySpark job from Google Cloud Storage to the
    cluster, reading the output of the job and deleting the cluster, all
    using the Python client library.

    Usage:
        python quickstart.py --project_id <PROJECT_ID> --region <REGION> \
            --cluster_name <CLUSTER_NAME> --job_file_path <GCS_JOB_FILE_PATH>
    """

    import argparse
    import re

    from google.cloud import dataproc_v1 as dataproc
    from google.cloud import storage


    def quickstart(project_id, region, cluster_name, job_file_path):
        # Create the cluster client.
        cluster_client = dataproc.ClusterControllerClient(
            client_options={"api_endpoint": "{}-dataproc.googleapis.com:443".format(region)}
        )

        # Create the cluster config.
        cluster = {
            "project_id": project_id,
            "cluster_name": cluster_name,
            "config": {
                "master_config": {
                    "num_instances": 1,
                    "machine_type_uri": "n1-standard-2",
                    "disk_config": {"boot_disk_size_gb": 100},
                },
                "worker_config": {
                    "num_instances": 2,
                    "machine_type_uri": "n1-standard-2",
                    "disk_config": {"boot_disk_size_gb": 100},
                },
            },
        }

        # Create the cluster.
        operation = cluster_client.create_cluster(
            request={"project_id": project_id, "region": region, "cluster": cluster}
        )
        result = operation.result()

        print("Cluster created successfully: {}".format(result.cluster_name))

        # Create the job client.
        job_client = dataproc.JobControllerClient(
            client_options={"api_endpoint": "{}-dataproc.googleapis.com:443".format(region)}
        )

        # Create the job config.
        job = {
            "placement": {"cluster_name": cluster_name},
            "pyspark_job": {"main_python_file_uri": job_file_path},
        }

        operation = job_client.submit_job_as_operation(
            request={"project_id": project_id, "region": region, "job": job}
        )
        response = operation.result()

        # Dataproc job output gets saved to the Google Cloud Storage bucket
        # allocated to the job. Use a regex to obtain the bucket and blob info.
        matches = re.match("gs://(.*?)/(.*)", response.driver_output_resource_uri)

        output = (
            storage.Client()
            .get_bucket(matches.group(1))
            .blob(f"{matches.group(2)}.000000000")
            .download_as_bytes()
            .decode("utf-8")
        )

        print(f"Job finished successfully: {output}")

        # Delete the cluster once the job has terminated.
        operation = cluster_client.delete_cluster(
            request={
                "project_id": project_id,
                "region": region,
                "cluster_name": cluster_name,
            }
        )
        operation.result()

        print("Cluster {} successfully deleted.".format(cluster_name))


    if __name__ == "__main__":
        parser = argparse.ArgumentParser(
            description=__doc__,
            formatter_class=argparse.RawDescriptionHelpFormatter,
        )
        parser.add_argument(
            "--project_id",
            type=str,
            required=True,
            help="Project to use for creating resources.",
        )
        parser.add_argument(
            "--region",
            type=str,
            required=True,
            help="Region where the resources should live.",
        )
        parser.add_argument(
            "--cluster_name",
            type=str,
            required=True,
            help="Name to use for creating a cluster.",
        )
        parser.add_argument(
            "--job_file_path",
            type=str,
            required=True,
            help="Job in GCS to execute against the cluster.",
        )

        args = parser.parse_args()
        quickstart(args.project_id, args.region, args.cluster_name, args.job_file_path)

    後續步驟

    • 請參閱 Dataproc Cloud Client Library 的其他資源
