En esta página, se describe cómo leer varias tablas desde una base de datos de Microsoft SQL Server con la fuentede tablas múltiples.
Usa la fuente de tablas múltiples cuando desees que tu canalización lea desde varias tablas. Si deseas que tu canalización lea desde una sola tabla, consulta Lee desde una tabla de SQL Server.
La fuente de varias tablas genera datos con varios esquemas y, además, incluye un campo de nombre de tabla que indica la tabla de la que provienen. Cuando uses la fuente de tablas múltiples, usa uno de los receptores de varias tablas, Tablas múltiples de BigQuery o Archivos múltiples de GCS.
Antes de comenzar
Sign in to your Google Cloud account. If you're new to
Google Cloud,
create an account to evaluate how our products perform in
real-world scenarios. New customers also get $300 in free credits to
run, test, and deploy workloads.
In the Google Cloud console, on the project selector page,
select or create a Google Cloud project.
Asegúrate de que tu base de datos de SQL Server pueda aceptar conexiones desde Cloud Data Fusion. Para hacerlo de forma segura, te recomendamos crear una instancia privada de Cloud Data Fusion.
Consulta tu instancia de Cloud Data Fusion
Cuando usas Cloud Data Fusion, usas la Google Cloud consola y la IU independiente de Cloud Data Fusion. En la Google Cloud consola, puedes crear un Google Cloud proyecto, y crear y borrar instancias de Cloud Data Fusion. En la IU de Cloud Data Fusion, puedes usar las distintas páginas, como Studio o Wrangler, para usar las funciones de Cloud Data Fusion.
En la Google Cloud consola, ve a la página de Cloud Data Fusion.
Para abrir la instancia en Cloud Data Fusion Studio,
haz clic en Instancias y, luego, en Ver instancia.
Almacena tu contraseña de SQL Server como una clave segura
Agrega tu contraseña de SQL Server como una clave segura para encriptar en tu instancia de Cloud Data Fusion. Más adelante en esta guía, te asegurarás de que tu contraseña se recupere con Cloud KMS.
En la esquina superior derecha de cualquier página de Cloud Data Fusion, haz clic en Administrador del sistema.
Haz clic en la pestaña Configuración.
Haz clic en Realizar llamadas HTTP.
En el menú desplegable, selecciona PUT.
En el campo Ruta de acceso, ingresa namespaces/NAMESPACE_ID/securekeys/PASSWORD.
En el campo Cuerpo (Body), ingresa {"data":"SQL_SERVER_PASSWORD"}.
Haz clic en Enviar.
Asegúrate de que la Respuesta (Response) que recibes sea el código de estado 200.
Obtén el controlador JDBC para SQL Server
Cómo usar el Hub
En la IU de Cloud Data Fusion, haz clic en Hub.
En la barra de búsqueda, ingresa Microsoft SQL Server JDBC Driver.
Haz clic en Microsoft SQL Server JDBC Driver.
Haz clic en Descargar. Sigue los pasos de descarga que se muestran.
Haz clic en Implementar. Sube el archivo JAR del paso anterior.
En la IU de Cloud Data Fusion, haz clic en menuMenú y navega a la página Studio.
Haga clic en addAgregar.
En Driver, haz clic en Upload.
Sube el archivo JAR que descargaste en el paso 2.
Haz clic en Siguiente.
Escribe un nombre para configurar el controlador.
En el campo Nombre de la clase, ingresa com.microsoft.sqlserver.jdbc.SQLServerDriver.
Haz clic en Finalizar.
Implementa los complementos de múltiples tablas
En la IU web de Cloud Data Fusion, haz clic en Centro de noticias.
En la barra de búsqueda, ingresa Multiple table plugins.
Haz clic en Multiple Table Plugins.
Haz clic en Implementar.
Haz clic en Finalizar.
Haz clic en Create a pipeline.
Conéctate a SQL Server
En la IU de Cloud Data Fusion, haz clic en menuMenú y navega a la página Studio.

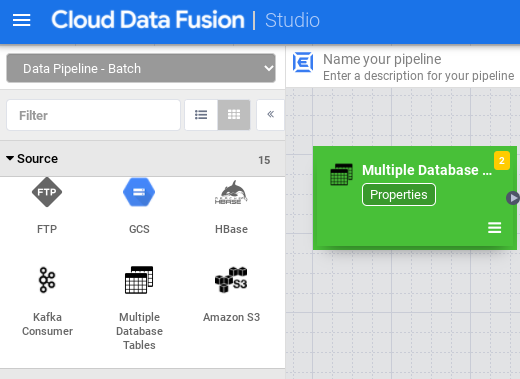

En Studio, expande el menú Source.
Haz clic en Multiple Database Tables.

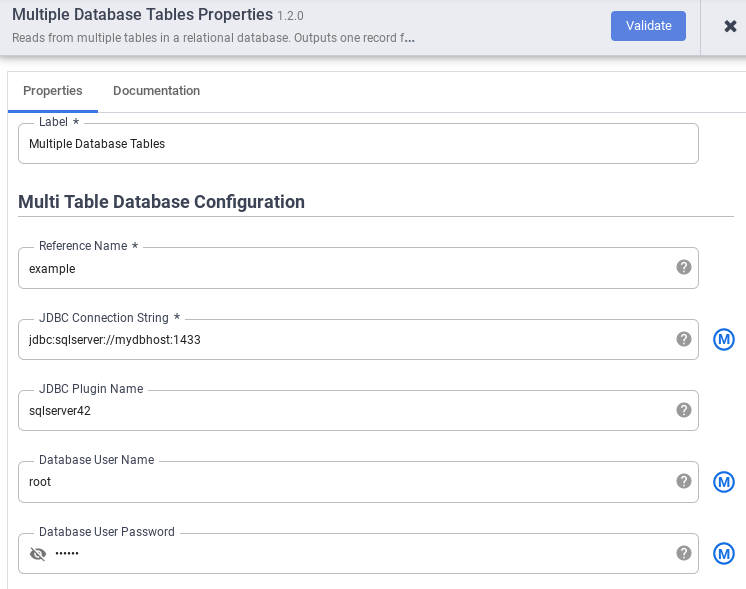

Mantén el puntero sobre el nodo Multiple Database Tables y haz clic en Properties.
En el campo Reference name, especifica un nombre de referencia que se usará para identificar tu origen de SQL Server.
En el campo JDBC Connection String, ingresa la cadena de conexión de JDBC. Por ejemplo, jdbc:sqlserver://mydbhost:1433. Para obtener más información, consulta Compila la URL de conexión.
Ingresa el Nombre del complemento JDBC, el Nombre de usuario de la base de datos y la Contraseña de usuario de la base de datos.
Haz clic en Validate.
Haz clic en closeCerrar.
Conéctate a BigQuery o Cloud Storage
En la IU de Cloud Data Fusion, haz clic en menuMenú y navega a la página Studio.
Expande Sink.
Haz clic en BigQuery Multi Table o GCS Multi File.

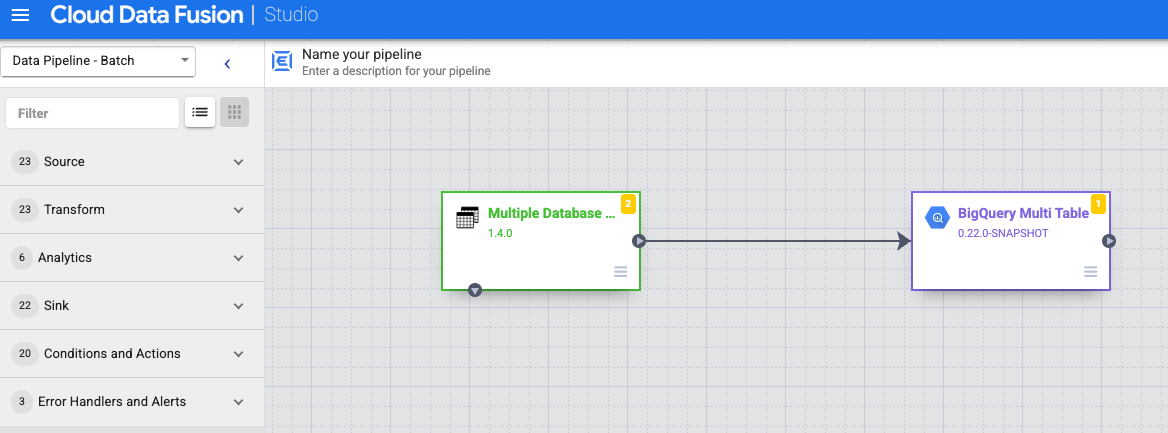

Conecta el nodo Multiple Database Tables con BigQuery Multi Table o GCS Multi File.
Mantén el puntero sobre el nodo BigQuery Multi Table o GCS Multi File, haz clic en Properties y configura el receptor.
