Application Integration permite gerar e visualizar dinamicamente as especificações OpenAPI das suas integrações publicadas que estão configuradas com um ou mais gatilhos de API. Ao acessar a especificação OpenAPI da sua integração, você pode:
Entenda os endpoints, métodos e estruturas de dados da API da sua integração.
Permite um desenvolvimento e uma solução de problemas mais eficientes ao fornecer uma visão detalhada e centralizada da API da sua integração.
A especificação OpenAPI (OAS, na sigla em inglês) é um formato padrão e independente de linguagem para descrever APIs RESTful. Normalmente escrita em formatos YAML ou JSON, a especificação OpenAPI apresenta uma descrição formal dos elementos da API, como URL base, caminhos e verbos, cabeçalhos, parâmetros de consulta, tipos de conteúdo, modelos de solicitação e resposta e muito mais. Para mais informações sobre a especificação OpenAPI, consulte Especificação OpenAPI.
Gerar e visualizar a especificação OpenAPI
É possível gerar e visualizar dinamicamente a especificação OpenAPI das suas integrações no editor de integração do console Google Cloud ou usando uma chamada de API.
Antes de começar
Confirme se a integração está configurada com um ou mais gatilhos de API. Para informações sobre como configurar gatilhos de API, consulte Gatilhos de API.
Application Integration gera a especificação OpenAPI para suas integrações publicadas de acordo com o padrão OpenAPI Specification 3.0. A tabela a seguir descreve os elementos da especificação OpenAPI gerados no Application Integration:
Elemento
Descrição
openapi
A versão da especificação OpenAPI usada.
info
Informações sobre a integração, como nome (título), descrição e versão publicada.
servers
Os URLs do servidor que hospedam a integração.
paths
Os caminhos são criados para cada gatilho de API selecionado na integração. O URL do servidor combinado com o caminho constitui o endpoint de API para fazer chamadas de API.
Os campos Request e Response são preenchidos com base nas variáveis de entrada e saída configuradas para o gatilho de API correspondente.
components
O campo schemas contém o esquema JSON para as variáveis de entrada e saída do gatilho da API.
O campo securitySchemes contém as informações de autenticação dos gatilhos de API.
Considerações
As seguintes considerações se aplicam ao visualizar a especificação OpenAPI da sua integração:
A especificação OpenAPI é gerada apenas para integrações publicadas.
A especificação OpenAPI é gerada apenas para integrações configuradas com um ou mais gatilhos de API.
A especificação OpenAPI é gerada apenas para integrações na mesma região.
A especificação OpenAPI é gerada no formato YAML por padrão. Para gerar e visualizar a especificação OpenAPI no formato JSON, defina o parâmetro fileFormat como JSON na chamada de API.
No momento, Application Integration é compatível apenas com o seguinte conjunto limitado de palavras-chave do esquema JSON:
type
items
properties
description
required
array
object
oneOf
allOf
anyOf
not
null
enum
additionalProperties
default

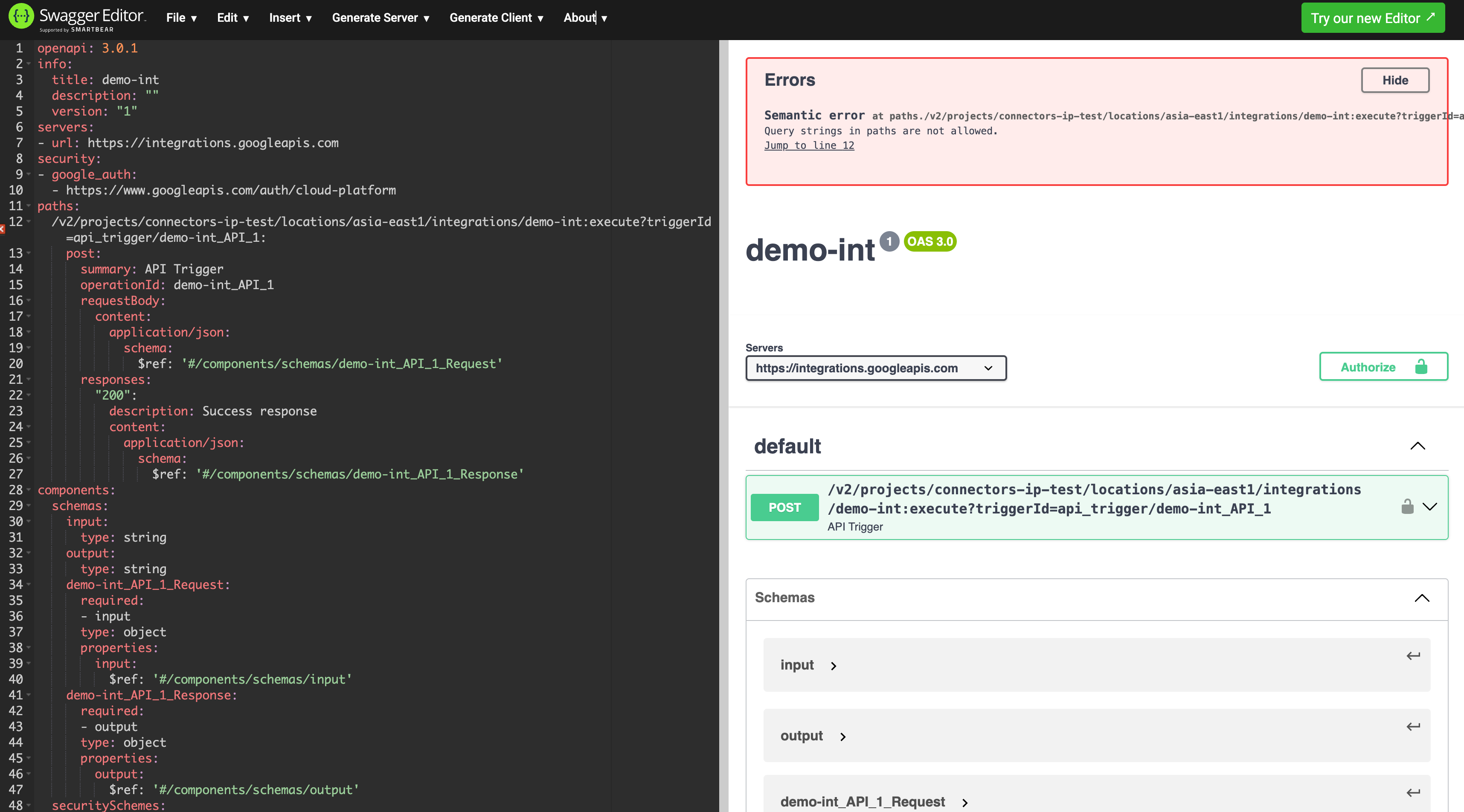

Ao validar a especificação OpenAPI usando o Swagger Editor, você pode encontrar erros semânticos relacionados aos caminhos da API, semelhantes à imagem a seguir:
Esses erros podem ser ignorados com segurança. A especificação OpenAPI ainda é válida.
