如果您打算建立具備私人 IP 位址的 Cloud Data Fusion 執行個體，請先使用 VPC Service Controls (VPC-SC) 為執行個體建立安全邊界，以提供額外安全防護。在私人 Cloud Data Fusion 執行個體和其他 Google Cloud 資源周圍建立 VPC-SC 安全範圍，有助於降低資料竊取風險。舉例來說，如果使用 VPC Service Controls，當 Cloud Data Fusion 管道從位於安全範圍內的支援的資源 (例如 BigQuery 資料集) 讀取資料，然後嘗試將輸出內容寫入安全範圍外的資源，管道就會失敗。
Cloud Data Fusion 資源會公開在兩個 API 途徑：
datafusion.googleapis.com 控制層 API 介面，可讓您執行執行個體層級作業，例如建立及刪除執行個體。
datafusion.googleusercontent.com 資料層 API 介面 ( Google Cloud 控制台中的 Cloud Data Fusion Web UI)，會在 Cloud Data Fusion 執行個體上執行，以建立及執行資料管道。
您可以限制與這兩個 API 途徑的連線，藉此設定 Cloud Data Fusion 的 VPC Service Controls。
策略：
Cloud Data Fusion 管道會在 Dataproc 叢集中執行。如要使用服務範圍保護 Dataproc 叢集，請按照設定私人連線一文的指示操作，讓叢集可在範圍內運作。

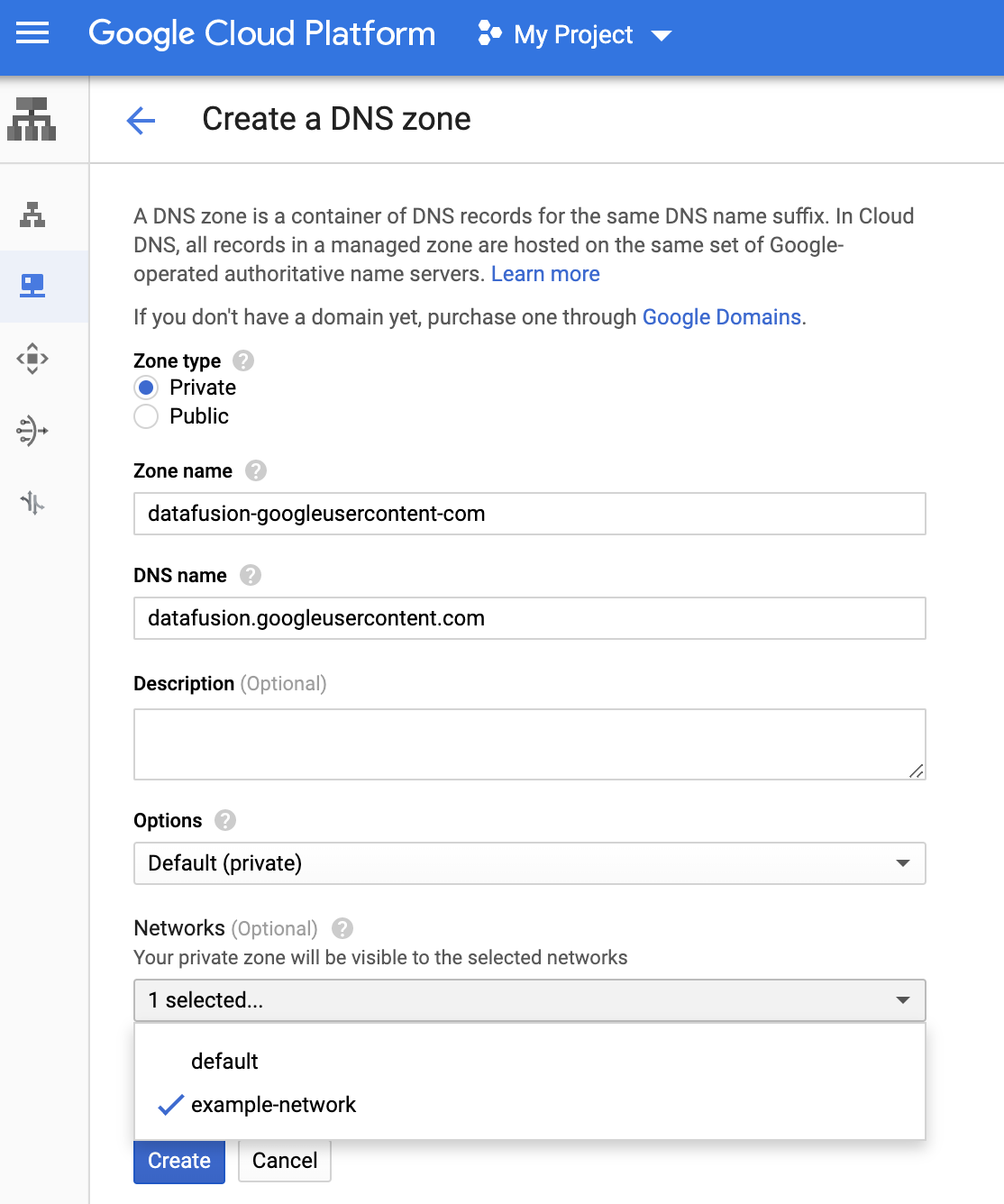

在「Cloud DNS」頁面中，按一下 datafusiongoogleusercontent DNS 區域名稱，開啟「區域詳細資料」頁面。系統會列出兩個記錄：NS 和 SOA 記錄。使用「Add Standard」，將下列兩個記錄組新增至 datafusiongoogleusercontent DNS 區域。

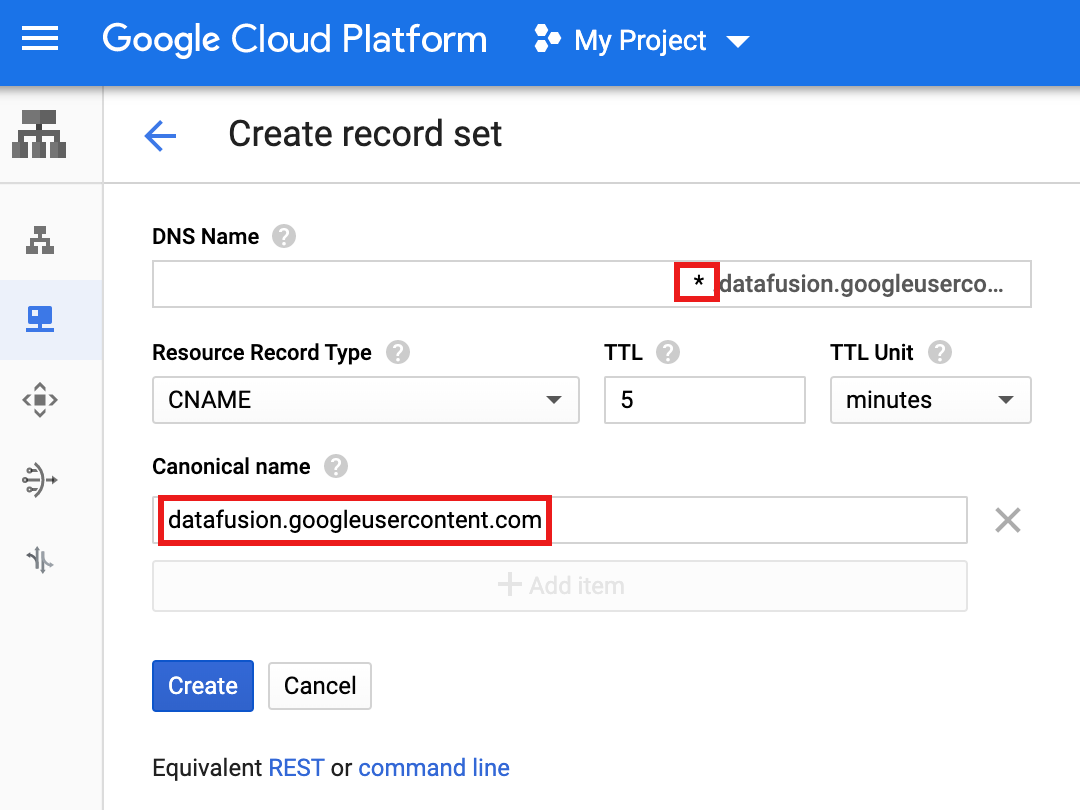

新增 CNAME 記錄：在「Create record set」對話方塊中填入下列欄位，將 DNS 名稱 *.datafusion.googleusercontent.com. 對應至正規名稱 datafusion.googleusercontent.com：
DNS 名稱："*.datafusion.googleusercontent.com"
標準名稱：「datafusion.googleusercontent.com」
新增 A 記錄：在新的「Create record set」對話方塊中，填入下列欄位，將 DNS 名稱 datafusion.googleusercontent.com. 對應至 IP 位址 199.36.153.4 - 199.36.153.7：
DNS 名稱：".datafusion.googleusercontent.com"
IPv4 位址：
199.36.153.4
199.36.153.5
199.36.153.6
199.36.153.7
datafusiongoogleusercontent「可用區詳細資料」頁面會顯示下列記錄集：
請按照上述步驟建立私人 DNS 區域，並為 *.datafusion.cloud.google.com 網域新增記錄集。
