Monitor instances

This page describes how to monitor AlloyDB instances using the following methods:

Monitor an instance using the AlloyDB System Insights dashboard.
Monitor an instance using the Cloud Monitoring dashboard.
View metrics on the AlloyDB cluster Overview page.

You can use Gemini in Databases assistance to help you monitor and troubleshoot your AlloyDB resources. For more information, see Monitor and troubleshoot with Gemini assistance.

Before you begin

To access the System Insights dashboard, enable access to AlloyDB for PostgreSQL in your Google Cloud project.

Required roles

To use AlloyDB System Insights, you need permissions to do the following:

To access System Insights, you need permissions to access the AlloyDB System Insights dashboard.
To edit System Insights, you need permissions to update AlloyDB instances.

To get these permissions, ask your administrator to grant you one of the following roles:

Basic viewer (roles/viewer)
Database Insights viewer (roles/databaseinsights.eventsViewer)

For more information about granting roles, see Manage access.

Monitor an instance using the AlloyDB System Insights dashboard

The AlloyDB System Insights dashboard displays metrics of the resources that you use and lets you monitor these resources and metrics.

To view the AlloyDB System Insights dashboard, do the following:

In the Google Cloud console, open the AlloyDB page.

Go to AlloyDB
Click the name of a cluster to open its Overview page.
Select the System insights tab.

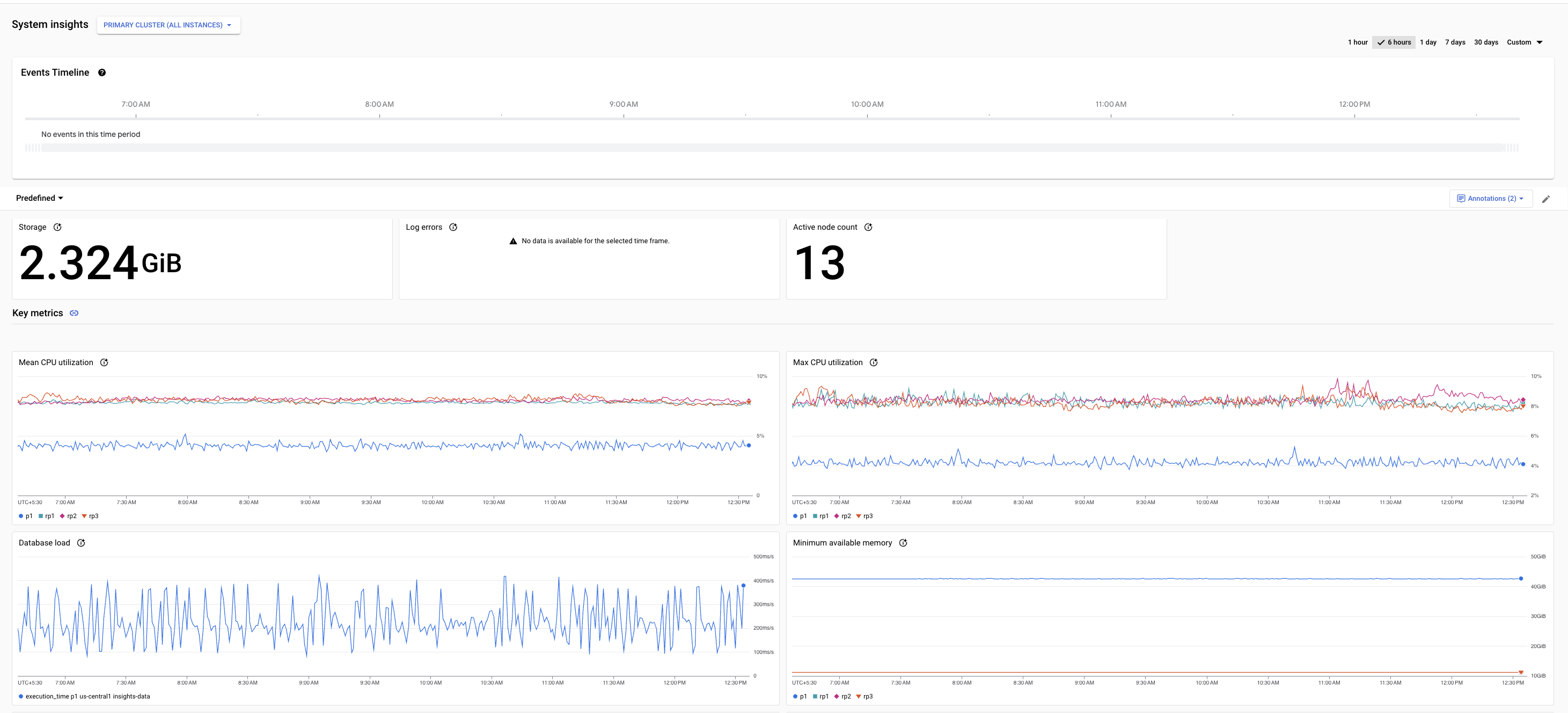

The AlloyDB System Insights dashboard opens. It shows details about the cluster at the top followed by charts for the key metrics.

Shows the AlloyDB System Insights dashboard. It has a filter for setting
a time range. Below that, charts of important metrics are shown.

The dashboard offers the following high-level options:

By default, the Cluster (all instances) view is selected. You can choose to view metrics for the primary instance or for read pool instances.
To view either two charts side-by-side or only one chart per row, click the toggle button.
The time selector shows 1 day selected by default. To change the period, select one of the other predefined periods or click Custom and define a start and end time. Data is available for the last 30 days.

The summary cards show the latest or aggregated values for some metrics, and provide an overview of the database health and performance during the selected period.

The metrics charts show information about some important metrics that help you gain insights into resource usage such as CPU, memory, connections, replication, and storage, and respond proactively as your application needs change.

The system events show information that helps you evaluate the impact of system events on the health and performance of the instance.

Summary cards

The following table describes the summary cards displayed on the AlloyDB System Insights dashboard. These cards provide an overview of the database health and performance during the selected period.

Summary cards	Description	Dashboard availability
Storage	The total storage that the AlloyDB cluster uses during the selected period.	Cluster dashboard
Active node count	The latest number of active nodes that can serve user traffic in the cluster during the selected period.	Cluster dashboard Read pool instance dashboard
CPU utilization	The 99th and 50th percentile values of CPU utilization during the selected period.	Primary instance dashboard Read pool instance dashboard
Peak connections	The ratio of peak connections to maximum connections across all serving nodes of the instance during the selected period. This includes both active and idle connections.	Cluster dashboard Primary instance dashboard Read pool instance dashboard
Log errors	The total number of error logs generated during the selected period.	Cluster dashboard Primary instance dashboard and Read pool instance dashboard
Transactions per second	The latest value of transactions per second that are committed or rolled back across all serving nodes of the instance during the selected period.	Cluster dashboard Read pool instance dashboard
Max replication lag	The average value of the maximum time taken for replication from a primary instance to a read pool during the selected period.	Primary instance dashboard

Metrics charts

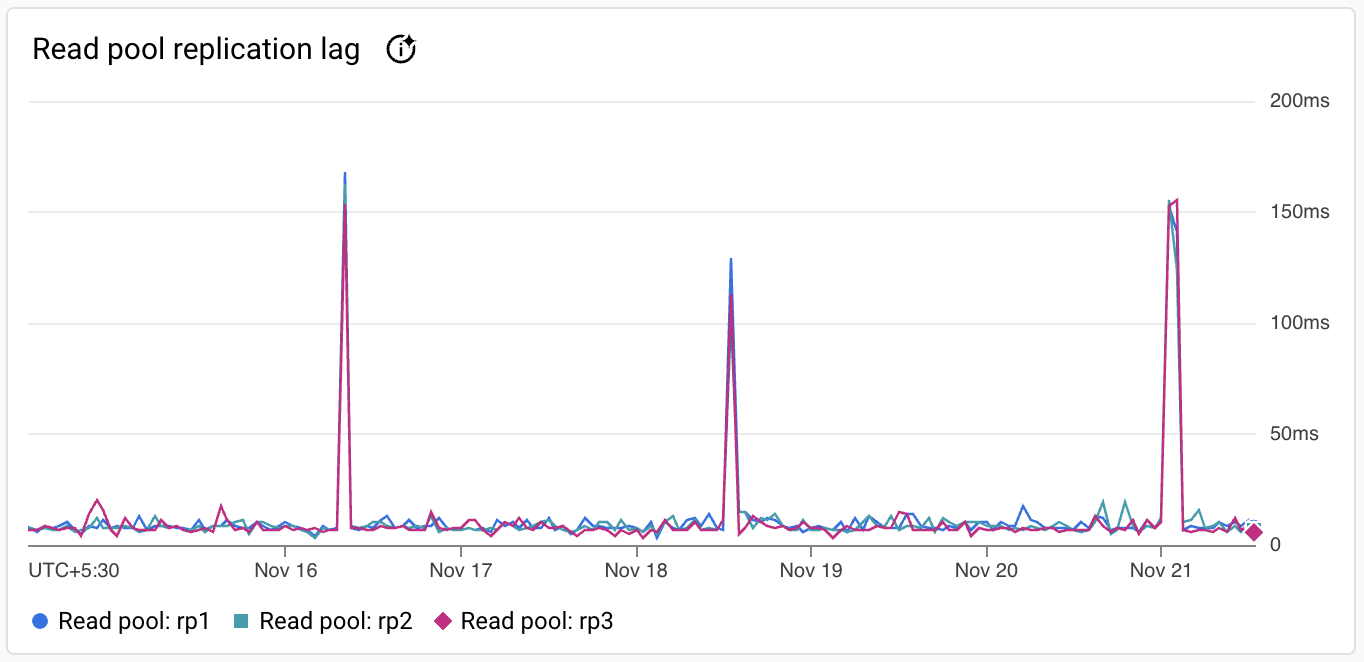

A chart card for a sample metric appears as follows.

Graph showing sample AlloyDB for PostgreSQL metric data.

The toolbar on each chart card provides the following set of standard options:

To hide or display the legend, click .
To view metric values for a specific moment in the selected period, move the cursor over the chart.
To view a chart in full-screen mode, click . To exit full-screen mode, click Esc.
To zoom a chart, click the chart and drag horizontally along the x-axis or vertically along the y-axis. To revert the zoom operation, click . Zoom operations apply at the same time to all charts on a dashboard.
To view additional options, click . Most charts offer these options:
- Download a PNG image.
- Add to custom dashboard. Provide a name for the dashboard or select an existing custom dashboard. View and edit the dashboard using Cloud Monitoring.
- View in Metrics Explorer. View the metric in Metrics Explorer. You can view other AlloyDB metrics in the Metrics Explorer by selecting the AlloyDB instance resource type.

The following table describes the metrics charts that are displayed on the AlloyDB System Insights dashboard and in the Metrics Explorer. The metric type strings must be prefixed with alloydb.googleapis.com/. For example, alloydb.googleapis.com/Instance.

Launch stages of these metrics: BETA, GA

Cluster dashboard metrics

Display name and metric name	Description
Rows in database by state ^BETA `database/postgresql/tuples`	The number of live and dead rows in the instance. Only available for instances with the number of databases less than 50.
Query latency ^BETA `database/postgresql/insights/aggregate/latencies`	The aggregated P99 query latency distribution for each instance. Only available for instances with Query Insights enabled.
Database load ^BETA `database/postgresql/insights/aggregate/execution_time`	The accumulated query execution time for each instance. This is the sum of CPU time, I/O wait time, lock wait time, process context switch, and scheduling for all processes involved in query execution. Only available for instances with Query Insights enabled.
Max CPU utilization ^GA `instance/cpu/maximum_utilization`	The maximum CPU utilization calculated across all serving nodes of the instance, represented as a percentage for each instance.
Mean CPU utilization ^GA `instance/cpu/average_utilization`	The mean CPU utilization calculated as an average across all serving nodes of the instance, represented as a percentage for each instance.
Minimum available memory ^GA `instance/memory/min_available_memory`	The minimum available memory across all serving nodes of the instance. The available memory is an estimate of memory in bytes available for allocation on the VM including memory that is currently used, but can be potentially freed.
Cluster storage ^GA `cluster/storage/usage`	The billable storage that the AlloyDB cluster uses. It does not include the storage that automatic and on-demand backups use.
Queries IO wait time ^BETA `database/postgresql/insights/aggregate/io_time`	The aggregated queries I/O wait time for each instance. Only available for instances with Query Insights enabled.
Number of connections ^BETA `instance/postgresql/backends_by_state`	The number of connections to each instance across all serving nodes of the instance. This includes connections in all states such as `idle`, `active`, `idle_in_transaction`, `idle_in_transaction_aborted`, `disabled`, and `fastpath_function_call`.
Rows fetched vs. rows returned vs. rows written ^BETA `instance/postgresql/fetched_tuples_count` `instance/postgresql/returned_tuples_count` `instance/postgresql/written_tuples_count`	Rows fetched: The aggregated number of rows fetched as a result of queries across the cluster. Rows returned: The aggregated number of rows scanned while processing the queries across the cluster. Rows written: The aggregated number of rows written while performing `insert`, `update`, and `delete` operations across the cluster. Only available for instances with the number of databases less than 5000.
Rows processed by operation ^BETA `database/postgresql/inserted_tuples_count_for_top_databases` `database/postgresql/updated_tuples_count_for_top_databases` `database/postgresql/deleted_tuples_count_for_top_databases`	The number of rows processed in the primary instance per operation such as `insert`, `update`, or `delete`. Only available for instances with the number of databases less than 5000.
Oldest transaction age ^BETA `postgresql/vacuum/oldest_transaction_age`	The current age of the oldest uncommitted transaction for each instance that is blocking the vacuum operation. It's measured in the number of transactions that started after the oldest transaction.
Transaction ID utilization ^BETA `postgresql/vacuum/transaction_id_utilization`	The current percentage of transaction ID space that's consumed by each instance. It records up to a maximum of two billion unvacuumed transactions as a percentage.
Wait time ^BETA `instance/postgresql/wait_time`	The aggregated accumulated elapsed wait time per wait event name and wait event type across the cluster.
Wait count ^BETA `instance/postgresql/wait_count`	The number of times processes waited per wait event name and wait event type across the cluster.
Temp data size used ^BETA `instance/postgresql/temp_bytes_written_count`	The amount of data (bytes) used in each instance for executing queries and performing algorithms such as `join` and `sort`. Only available for instances with the number of databases less than 5000.
Temp files used ^BETA `instance/postgresql/temp_files_written_count`	The number of temporary files that are used in each instance for executing queries and performing algorithms such as `join` and `sort`. Only available for instances with the number of databases less than 5000.
New connection count ^BETA `instance/postgresql/new_connections_count`	The number of new connections that are added to each instance. Only available for instances with the number of databases less than 5000.
Statements executed count ^BETA `database/postgresql/statements_executed_count`	The number of statements that are executed in each instance. Only available for instances with Query Insights enabled.
Transaction count ^GA `instance/postgres/transaction_count`	The number of transactions that have occurred in each instance. Only available for instances with the number of databases less than 5000.
Block read count ^BETA `instance/postgresql/blks_hit` `instance/postgresql/blks_read`	The number of blocks read from the disk and from the buffer cache across the cluster. Only available for instances with the number of databases less than 5000.
Deadlock count ^BETA `instance/postgresql/deadlock_count`	The number of deadlocks in each instance. Only available for instances with the number of databases less than 5000.
Read pool replication lag ^GA `instance/postgres/replication/maximum_lag`	The maximum time taken for replication from a primary instance to a read pool. The time lag is calculated across all serving read pool nodes per read pool instance in the cluster.
Active nodes ^GA `instance/postgres/instances`	The number of nodes that can serve user traffic in the cluster.

Instance dashboard metrics

Display name and metric name	Description
Rows in database by state ^BETA `database/postgresql/tuples`	The number of live and dead rows in the instance. Only available for instances with the number of databases less than 50.
Query latency ^BETA `database/postgresql/insights/aggregate/latencies`	The aggregated P99, P95, and P50 query latency distribution. Only available for instances with Query Insights enabled.
Database load per database, user, or client address ^BETA `database/postgresql/insights/aggregate/execution_time`	The accumulated query execution time per database, user, or client address. This is the sum of CPU time, I/O wait time, lock wait time, process context switch, and scheduling for all processes involved in query execution. Only available for instances with Query Insights enabled.
CPU utilization ^GA `instance/cpu/maximum_utilization`	The current CPU utilization, represented as a percentage of the reserved CPU that's currently in use.
Available memory ^GA `instance/memory/min_available_memory`	The available memory is an estimate of memory in bytes available for allocation on the VM including memory that is currently used, but can be potentially freed.
Queries IO wait breakdown by type ^BETA `database/postgresql/insights/aggregate/io_time`	The breakdown of I/O wait time for SQL statements by IO type (read/write). Only available for instances with Query Insights enabled.
Connections by status ^BETA `instance/postgresql/backends_by_state`	The number of connections grouped by the following statuses: `idle`, `active`, `idle_in_transaction`, `idle_in_transaction_aborted`, `disabled`, and `fastpath_function_call`. For information about these statuses, see the state text row in the pg_stat_activity documentation.
Connections per database ^BETA `database/postgresql/backends_for_top_databases`	The number of connections to the instance per database.
Connections per application ^BETA `instance/postgresql/backends_for_top_applications`	The number of connections to the instance, grouped by applications. Connections without an application name are grouped as `Unknown`.
Rows fetched vs. rows returned vs. rows written ^BETA `instance/postgresql/fetched_tuples_count` `instance/postgresql/returned_tuples_count` `instance/postgresql/written_tuples_count`	Rows fetched: The number of rows fetched as a result of queries in the instance. Rows returned: The number of rows scanned while processing the queries in the instance. Rows written: The aggregated number of rows written while performing `insert`, `update`, and `delete` operations. If the difference between rows returned and rows fetched is too large that their values aren't shown in the same scale, then the value of rows fetched is shown as `0` because it's negligible compared to the value of rows returned.
Rows processed by operation ^BETA `instance/postgresql/inserted_tuples_count` `instance/postgresql/updated_tuples_count` `instance/postgresql/deleted_tuples_count`	The number of rows processed in the primary instance per operation such as `insert`, `update`, or `delete`.
Oldest transaction age ^BETA `postgresql/vacuum/oldest_transaction_age`	The current age of the oldest uncommitted transaction that's blocking the vacuum operation. It's measured in the number of transactions that started after the oldest transaction.
Transaction ID utilization ^BETA `postgresql/vacuum/transaction_id_utilization`	The current percentage of transaction ID space that is consumed by the instance. It records up to a maximum of two billion unvacuumed transactions as a percentage.
Wait time ^BETA `instance/postgresql/wait_time`	The accumulated elapsed wait time in the system per wait event name and wait event type.
Wait count ^BETA `instance/postgresql/wait_count`	The number of times processes waited per wait event name and wait event type in the instance.
Temp data size used per database ^BETA `database/postgresql/temp_bytes_written_for_top_databases`	The amount of data (bytes) used in each database for executing queries and performing algorithms such as `join` and `sort`.
Temp files used per database ^BETA `database/postgresql/temp_files_written_for_top_databases`	The number of temporary files that are used in each database for executing queries and performing algorithms such as `join` and `sort`.
New connection count per database ^BETA `database/postgresql/new_connections_for_top_databases`	The number of new connections that are added to the instance per database.
Statements executed count ^BETA `database/postgresql/statements_executed_count`	The number of statements that are executed in each instance per operation such as `SELECT`, `UPDATE`, `INSERT`, `DELETE`, `MERGE`, `UTILITY`, `NOTHING`, and `UNKNOWN`. Only available for instances with Query Insights enabled.
Transaction count ^GA `database/postgresql/transaction_count`	The number of committed and rolled-back transactions that have occurred in the instance.
Block read count ^BETA `instance/postgresql/blks_hit` `instance/postgresql/blks_read`	The number of blocks read in the instance from the disk and from the buffer cache.
Deadlock count per database ^BETA `database/postgresql/deadlock_count_for_top_databases`	The number of deadlocks in the instance per database.
Read pool replication lag ^GA `instance/postgres/replication/maximum_lag`	The maximum time taken for replication from a primary instance to a read pool. The time lag is calculated across all serving read pool nodes per read pool instance in the cluster.

Read pool dashboard metrics

Display name and metric name	Description
Query latency ^BETA `database/postgresql/insights/aggregate/latencies`	The aggregated P99, P95, and P50 query latency distribution. Only available for instances with Query Insights enabled.
Database load ^BETA `database/postgresql/insights/aggregate/execution_time`	The accumulated query execution time per database, user, or client address across all serving nodes of the instance. This is the sum of CPU time, I/O wait time, lock wait time, process context switch, and scheduling for all processes involved in query execution. Only available for instances with Query Insights enabled.
CPU utilization ^GA `instance/cpu/maximum_utilization` `instance/cpu/average_utilization`	Maximum CPU Utilization: The maximum CPU utilization calculated across all serving nodes of the instance, represented as a percentage for instance. Mean CPU Utilization: The mean CPU utilization calculated as an average across all serving nodes of the instance, represented as a percentage for instance.
Minimum available memory ^BETA `instance/memory/min_available_memory`	The minimum available memory across all serving nodes of the instance. The available memory is an estimate of memory in bytes available for allocation on the VM including memory that is currently used, but can be potentially freed.
Connections by status ^BETA `instance/postgresql/backends_by_state`	The number of connections across all serving nodes of the read pool instance grouped by the following statuses: `idle`, `active`, `idle_in_transaction`, `idle_in_transaction_aborted`, `disabled`, and `fastpath_function_call`. For information about these statuses, see the state text row in the pg_stat_activity documentation.
Connections per database ^BETA `database/postgresql/backends_for_top_databases`	The number of connections per database across all serving nodes of the read pool instance.
Connections per application ^BETA `instance/postgresql/backends_for_top_applications`	The number of connections per application name across all serving nodes of the read pool instance. Connections without an application name are grouped as `Unknown`.
Rows fetched vs. rows returned ^BETA `instance/postgresql/fetched_tuples_count` `instance/postgresql/returned_tuples_count`	Rows fetched: The number of rows fetched as a result of queries across all serving nodes of the read pool instance. Rows returned: The number of rows scanned while processing the queries across all serving nodes of the read pool instance. If the difference between rows returned and rows fetched is too large that their values aren't shown in the same scale, then the value of rows fetched is shown as `0` because it's negligible compared to the value of rows returned.
Oldest transaction age ^BETA `postgresql/vacuum/oldest_transaction_age`	The current age of the oldest uncommitted transaction that's blocking the vacuum operation. It's measured in the number of transactions that started after the oldest transaction.
Transaction ID utilization ^BETA `postgresql/vacuum/transaction_id_utilization`	The current percentage of transaction ID space that is consumed by the instance. It records up to a maximum of two billion unvacuumed transactions as a percentage.
Wait time ^BETA `instance/postgresql/wait_time`	The aggregated accumulated elapsed wait time per wait event name and wait event type across all serving nodes of the read pool instance.
Wait count ^BETA `instance/postgresql/wait_count`	The number of times processes waited per wait event name and wait event type across all serving nodes of the read pool instance.
Temp data size used per database ^BETA `database/postgresql/temp_bytes_written_for_top_databases`	The amount of data (bytes) used in each database across all serving nodes of the read pool instance for executing queries and performing algorithms such as `join` and `sort`.
Temp files used per database ^BETA `database/postgresql/temp_files_written_for_top_databases`	The number of temporary files that are used in each database across all serving nodes of the read pool instance for executing queries and performing algorithms such as `join` and `sort`.
New connection count per database ^BETA `database/postgresql/new_connections_for_top_databases`	The number of new connections that are added per database to the serving nodes of the read pool instance.
Statements executed count ^BETA `database/postgresql/statements_executed_count`	The number of statements that are executed in the serving nodes of the read pool instance per operation such as `SELECT`, `UPDATE`, `INSERT`, `DELETE`, `MERGE`, `UTILITY`, `NOTHING`, and `UNKNOWN`. Only available for instances with Query Insights enabled.
Transaction count ^GA `database/postgresql/transaction_count`	The number of committed and rolledback transactions across all the serving nodes of the read pool instance.
Block read count ^BETA `instance/postgresql/blks_hit` `instance/postgresql/blks_read`	The number of blocks read from the disk and from the buffer cache across all the serving nodes of the read pool instance.
Deadlock count per database ^BETA `database/postgresql/deadlock_count_for_top_databases`	The number of deadlocks across all the serving nodes of the read pool instance.
Read pool replication lag ^GA `instance/postgres/replication/maximum_lag`	The maximum time taken for replication from a primary instance to a read pool. The time lag is calculated across all serving read pool nodes in the read pool instance.
Nodes and replication status ^GA `instance/postgres/replication/replicas`	The number of read nodes connected to the primary instance per read pool along with one of the following states: `startup`, `catchup`, `streaming`, `backup`, and `stopping`.
Active nodes ^BETA `instance/postgres/instances`	The number of nodes that can serve user traffic in the read pool instance.

Additionally, the Cloud Logging metric, Log entries by severity (logging.googleapis.com/log_entry_count), shows the total numbers of error and warning log entries per instance. These are extracted from postgres.log, which is the database log, and pgaudit.log, which contains data access information.

For more information, see AlloyDB metrics.

Events timeline

The dashboard provides details about the following events. System events appear in Events timeline within approximately 5 minutes after the event occurs.

Event name	Description	Operation type
`Instance create`	Creates an AlloyDB instance.	`INSTANCE_CREATE`
`Instance update`	Updates an AlloyDB instance.	`INSTANCE_UPDATE`
`Instance restart`	Restarts the AlloyDB instance.	`INSTANCE_RESTART`
`Instance failover`	Initiates a manual failover of a highly available primary instance for a standby instance to become the primary instance.	`INSTANCE_FAILOVER`
`Cluster maintenance`	Indicates that the cluster is currently in maintenance, and the instances become unavailable for a few minutes.	`MAINTENANCE`
`Backup create`	Creates a backup of an AlloyDB instance.	`BACKUP_CREATE`
`Backup update`	Updates a backup of an AlloyDB instance.	`BACKUP_UPDATE`
`Cluster create`	Creates an AlloyDB cluster.	`CLUSTER_CREATE`
`Cluster update`	Update an AlloyDB cluster.	`CLUSTER_UPDATE`
`Cluster promote`	Promotes a secondary cluster to primary cluster.	`CLUSTER_PROMOTE`
`User create`	Creates a new user.	`USER_CREATE`
`User update`	Update a user.	`USER_UPDATE`
`User delete`	Deletes a user.	`USER_DELETE`

Monitor an instance using the Cloud Monitoring dashboard

Cloud Monitoring offers predefined dashboards for several Google Cloud products. You can also create your own custom dashboards to display data that is of interest to you and to monitor the general health of your primary and read pool instances.

Set up alerts

You can use Cloud Monitoring to set up alerts for a project or a specified instance.

For example, you can set up an alert for a message to be sent to specific email IDs when the Memory usage metric for a AlloyDB instance exceeds the threshold of 80%.

View metrics on the AlloyDB cluster Overview page

In the cluster Overview page, the default metrics chart appears at the top of the page.

Shows the default monitoring chart on the Overview page.

Select another metric from the Chart drop-down list. The chart shows the data for the selected metric.

What's next

View the list of AlloyDB metrics.
Use Query Insights to improve query performance.
Learn more about Cloud Logging and Cloud Monitoring.
Monitor active queries to identify causes of system latency and high CPU usage.
