Architecture

Cluster architecture

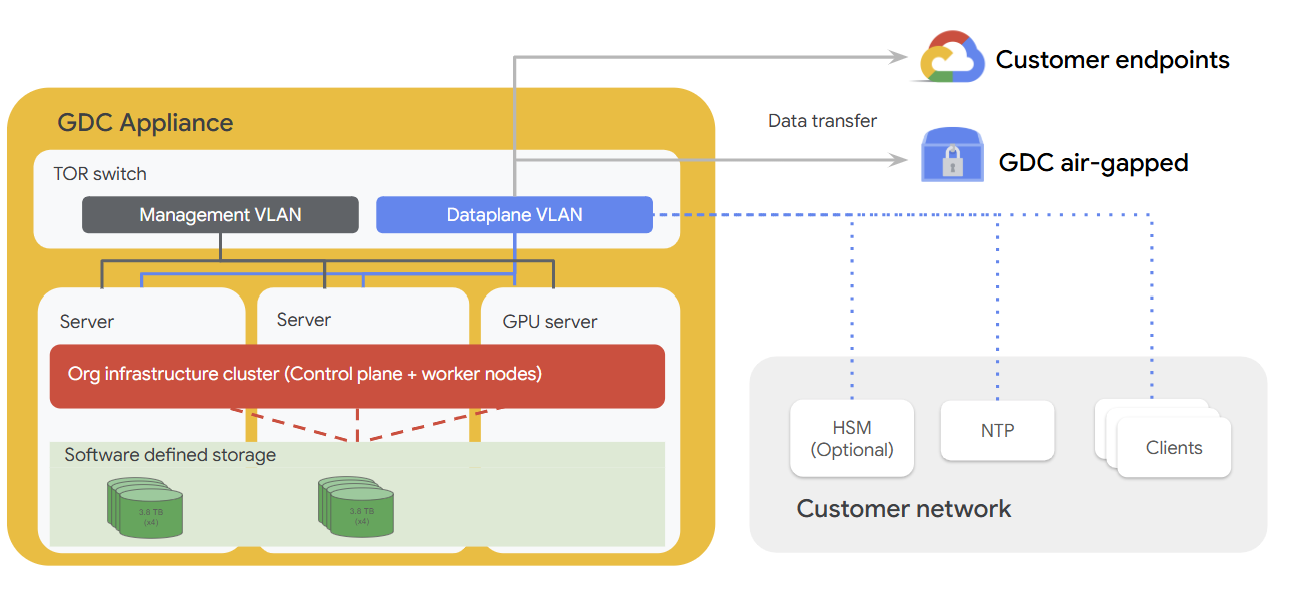

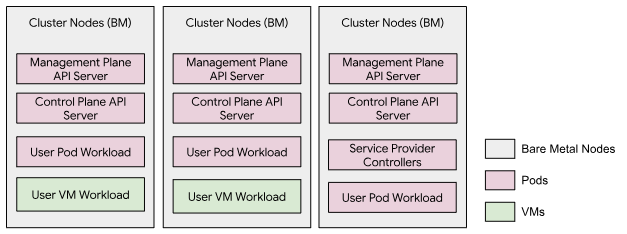

Google Distributed Cloud (GDC) air-gapped appliance operates a single cluster that encompasses all three of its bare metal nodes, known as the org infrastructure cluster. A dedicated management API server, which runs as pod workloads on the cluster, hosts management plane APIs. User workloads, which include both VMs and Kubernetes pods, can run on this cluster. There is no user cluster in this cluster model.

Network architecture

The EL8000 includes a backplane which creates four separate Layer 2 (L2) networks inside the device:

1. Integrated Lights-Out (iLO) console (1GbEth)
2. Management network (1GbEth)
3. Data network A (10GbEth)
4. Data network B (10GbEth)

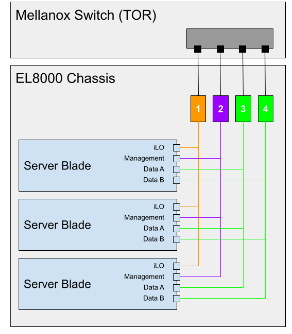

The following diagram shows how the L2 networks are connected to the Mellanox switch (https://www.hpe.com/psnow/doc/a00043975enw.html?jumpid=in_pdp-psnow-qs). Each network in a blade connects to a single network switch. All of the iLO console networks in each server blade connect to network switch 1. The management networks connect to network switch 2 and the data networks connect to switches 3 and 4.

The customer network ports (15 and 17) have access to the cluster (VLAN 100) and only traffic to the Ingress CIDR is allowed. The Ingress CIDR is available for services and the range is advertised over Border Gateway Protocol (BGP) to the customer network.

Management network ports (16 and 18) have access to system management (VLAN 501) so that customers can have the device on a broader network and use only local connections to do system administration tasks.

Lower network topology

Physical network

The GDC consists of a hybrid cluster that operates in a single tenant mode. The hybrid cluster, which we refer to as the infra cluster, consists of both the system and admin clusters merged together:

The physical design is centered on a Mellanox SN2010 that acts as a gateway between the Appliance Infra Cluster and the external customer network.

The infra cluster consists of 3 Bare Metal Nodes (BMs). The connections on the BMs can be categorized as follows:

• Data network connectivity (subnet 198.18.2.0/24) which is over VLAN 100. The BM has a NIC with 2 ports, NIC0P1 and NIC0P2, that are bonded and connected to the TOR switch. BM1 and BM2 directly connect to the switch whereas BM3 connects to the TOR using an unmanaged switch.
• Management network connectivity ( subnet 198.18..0/24) is over VLAN 501. The ILO and MGMT interfaces are connected over this VLAN using 1G interfaces. The ILO interfaces and the MGMT interfaces on the BM nodes connect to the switch using unmanaged switches.
• Maybe: add OTS networking on VLANs 200-203(?), subnet 198.18.1.x

The connection from the Mellanox switch to the customer router provides external connectivity. 10G interfaces are used for this connectivity, and the BGP protocol is used to advertise the external network IPs to the customer. Customers use the external IPs to access the necessary services provided by the Appliance unit.

Note: the physical network diagram displayed earlier shows a bootstrapper device connected to port 12 of the switch. This bootstrapper is to provision the appliance unit as a part of the lowside bootstrap phase. This connection won't be present when the appliance is shipped to the customer.

Logical network

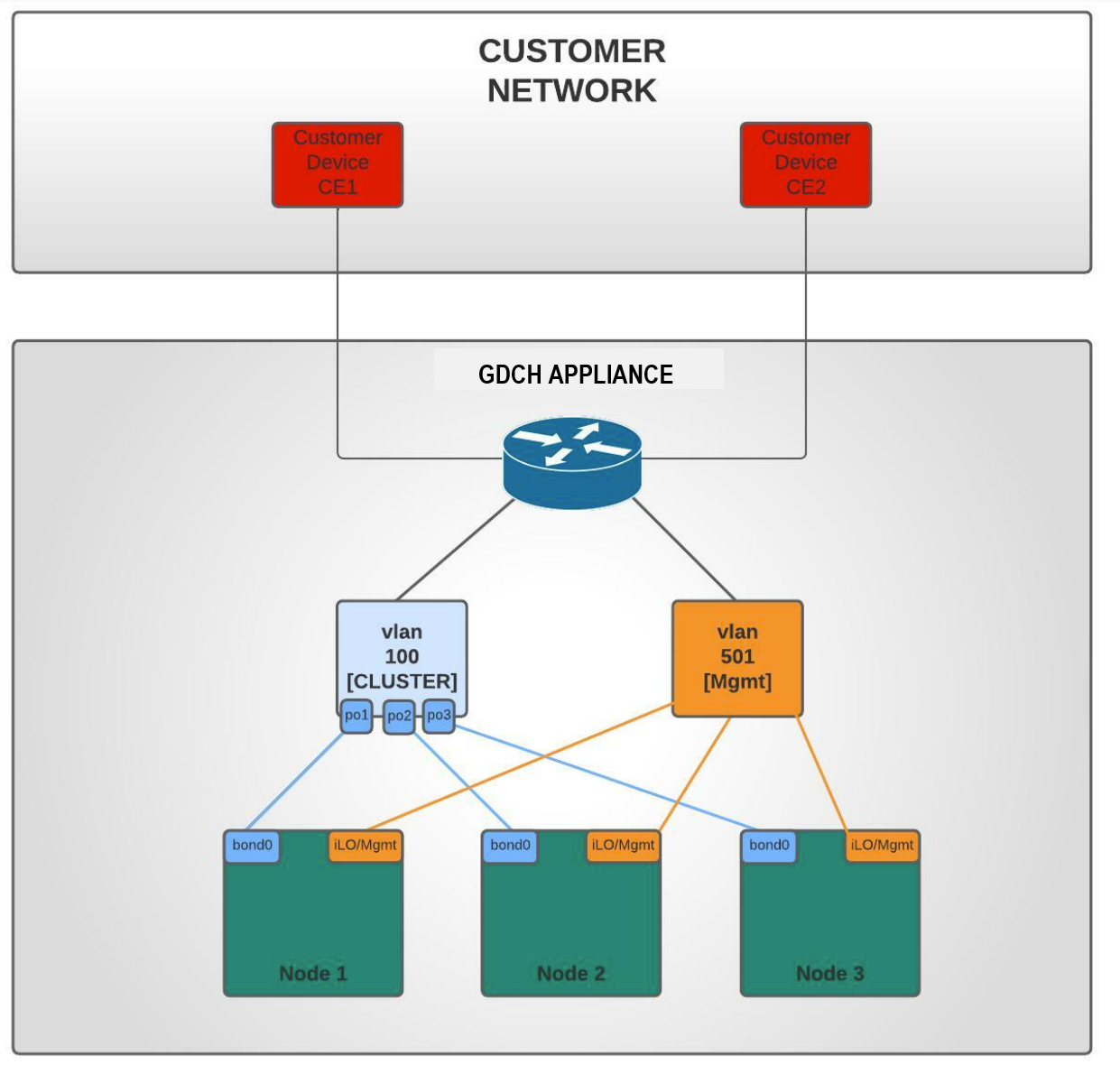

There are two virtual local area networks (VLANs) separating the various traffic:

1. VLAN 100: Cluster (Ingress virtual internet protocol addresses (VIPs), cluster/node IPs) with IPv4 subnet provided by customers.
2. VLAN 501: Management (iLO, Mgmt) with IPv4 subnet provided by the customer.

Upper network topology

The cluster is configured using Layer 2 (L2) load balancing. The Ingress VIPs for the cluster come from the same subnet as the nodes. When an Ingress VIP is assigned to a node, the node uses Address Resolution Protocol (ARP) so that the node is reachable from the TOR.

The TOR peers with the customer network using BGP, and advertises the cluster's Ingress range (aggregated prefix provided by the customer) to the customer network. When the rack moves to a new location, we can advertise the cluster Ingress range to the new customer network. When the rack moves to a new location, you must manually update the IP addresses on the TOR interfaces connecting to the customer network, and update the BGP peering information to add the new BGP peers.

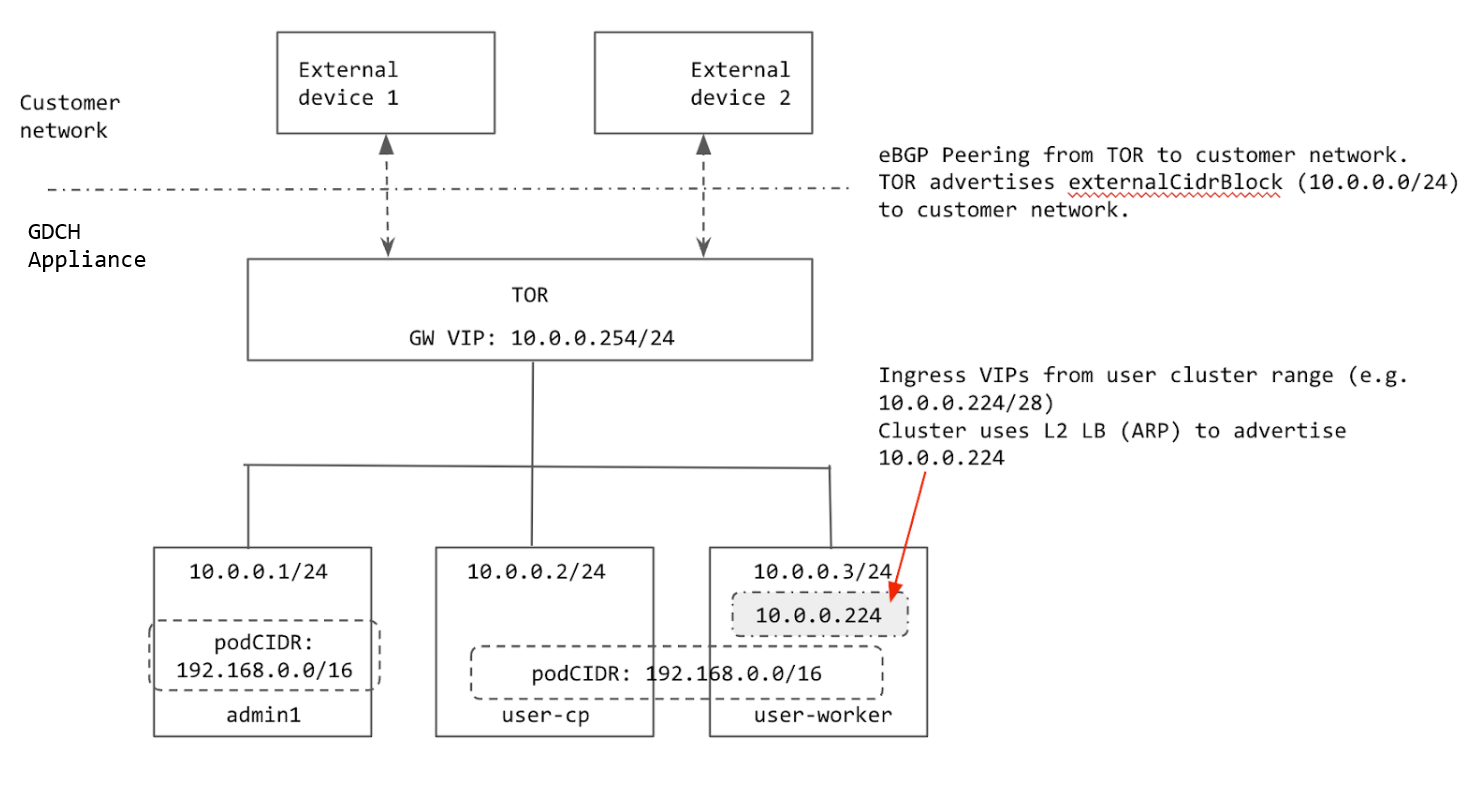

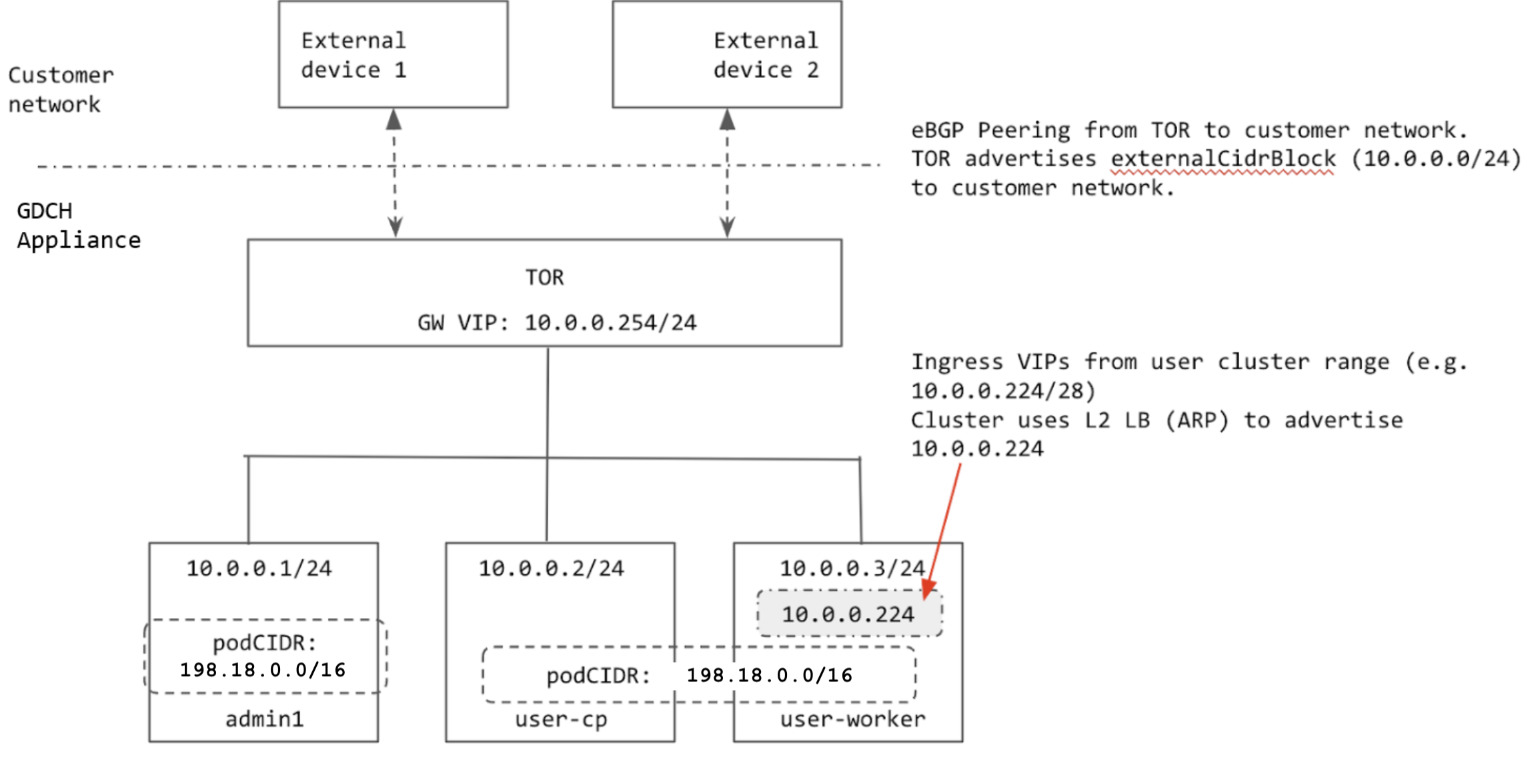

All IPs used by the cluster are either allocated from the rack's externalCidrBlock, or hardcoded (for cluster-internal IPs). In the following diagram, the externalCidrBlock example is 10.0.0.0/24:

Cluster IP ranges

There are several IP ranges that need to be configured in a bare metal cluster.

• Pod CIDR: the IP range used to assign IPs to the pods in the cluster. This range uses island mode, so that the physical network (ToR) does not need to know about the pod CIDR. The only requirement is that the range cannot overlap with any services that the cluster pods need to access. The pod CIDR cannot be changed after the cluster is created.
• Service CIDR: used for internal cluster services with the same requirement as the pod CIDR.
• Node CIDR: IP addresses of the Kubernetes cluster nodes. These addresses also cannot change after the cluster is created.
• Ingress range: a range of IP addresses used for any services in the cluster that are exposed externally. External clients use these IPs to access in-cluster services. This range needs to be advertised to the customer network so that clients can reach the Ingress IPs.
• Control plane VIP: advertised by the cluster for access to the Kubernetes api-server (similar to the Ingress VIPs). This VIP must be from the same subnet as the node when the cluster is in L2 load balancing mode.

The Pod CIDR and Service CIDRs for the clusters are hardcoded. The Pod CIDR is 192.168.0.0/16 and the Service CIDR is 10.96.0.0/12. The cluster uses the same two CIDRs, as these IPs are not exposed outside of the cluster.

The nodes are provisioned with IP addresses from the externalCidrBlock set in the GDC cell.yaml. These IP addresses are provided by the customer before the rack is provisioned.

The Ingress range and control plane VIP for the cluster are also allocated from the externalCidrBlock. The TOR must advertise the externalCidrBlock to the customer network so that these VIPs are accessible to clients outside of the rack.
