Heatmap patterns for index keys

This page shows examples of patterns that you might see in a Key Visualizer heatmap. These patterns can help you troubleshoot specific performance issues.

Evenly distributed usage

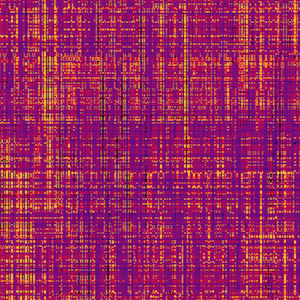

Heatmap showing evenly distributed reads and writes

If a heatmap shows a fine-grained mix of dark and bright colors, then write/delete operations for index keys are evenly distributed throughout the database. This heatmap likely represents an effective usage pattern for Datastore mode.

Indexes on sequential keys

A heatmap with a single bright diagonal line can indicate an index that is on a key that is strictly increasing or decreasing, such as timestamp. Indexes on sequential keys are not recommended and can create hotspots. When hotspotting, you might observe corresponding elevated latencies.

Some examples of common hotspots on index are as follows:

Hotspotting due to increasing timestamp

Heatmap showing hotspotting due to increasing timestamp

In this example, a heatmap with a single bright diagonal line can indicate a database that uses strictly increasing or decreasing index write/delete operations on a timestamp property.

Hotspotting due to increasing property names

Heatmap showing hotspotting due to increasing property

In this example, a heatmap with a single bright diagonal line can indicate a database that uses strictly increasing or decreasing index write/delete operations on an incremental property, such as auto-generated invoice numbers.

To identify the hotspotting issue, use the Key Visualizer tool and understand the index key structure to determine which index causes the issue and exempt those indexes with best practices.

Understand the index key structure

Before you understand the structure of index keys that you see in Key Visualizer tool, learn about indexes in Datastore mode.

The following code shows an example index key format that you see when you hover over the affected key-range on the heatmap.

NAMESPACE: NS KIND: Users
PROPERTIES: (Timestamp: DESC, Name: DESC)
ANCESTOR: KEY(PROJECT('PROJECT_ID'),NAMESPACE('NS'),`UserList`,1)
VALUES: (16500000000000001,'Alice')
ENTITY:KEY(PROJECT('PROJECT_ID'),NAMESPACE(''),`UserList`,1,`User`,5000000000000001)

Where:

  • NAMESPACE: namespace of the entity.
  • KIND: kind of entity that categorizes the entities.
  • PROPERTIES: properties related to the entity. The __key__ ordering property is only shown for index definitions that modify the default ordering.
  • ANCESTOR: optional ancestor path to locate the entity within the database hierarchy.
  • VALUES: value of each property.
  • ENTITY: ID of the entity updated in an operation.

From the earlier example, identify the properties from the PROPERTIES value to find the affected index.

To find the index, complete the following steps:

  1. Go to the Datastore mode Indexes page in Google Cloud console.

    Go to Datastore mode Indexes

    You can identify the type of index by analyzing the PROPERTIES field. See examples of index keys for more information.

  2. Click Filter, select Fields, and enter the name of the field.

    Use the OR operator to add more properties in case of composite indexes.

After you have identified the index that is causing issues, you can use the following solutions:

  • Built-in index: Exclude the property such that the index doesn't maintain index entries for that property. See Excluded properties for more information.
  • Composite index: Either modify the index in the index.yaml file to ensure that the field whose value monotonically increases or decreases is not selected as the first field for indexing, or delete the index. See About index.yaml for more information.

Examples of index key entries on the heatmap

Type Description Example
Built-in index entry Index entry for the single property index on the Timestamp property, in descending order for the NS namespace. NAMESPACE: NS
KIND: Users
PROPERTIES: (Timestamp: DESC)
ANCESTOR: NONE
VALUES: (16500000000000001)
ENTITY: KEY(PROJECT('PROJECT_ID'), NAMESPACE('NS'),Users, 5000000000000001)
Built-in index entry Index entry for the single property index in the default namespace. NAMESPACE: ' '
KIND: Users
PROPERTIES: (Timestamp: DESC)
ANCESTOR: NONE
VALUES: (16500000000000001)
ENTITY: KEY(PROJECT('PROJECT_ID'), NAMESPACE('NS'),Users, 5000000000000001)
Composite index entry Index entry for the composite index on the Timestamp property and the Name property in descending order without ancestor enabled. NAMESPACE: NS
KIND: Users
PROPERTIES: (Timestamp: DESC, Name: DESC)
ANCESTOR: NONE
VALUES: (16500000000000001, 'Alice')
ENTITY: KEY(PROJECT('PROJECT_ID'),NAMESPACE('NS'),Users,5000000000000001)
Composite index entry with ancestor Index entry for the composite index on the Timestamp property in descending order and the Name property in descending order with ancestor enabled. NAMESPACE: NS
KIND: Users
PROPERTIES: (Timestamp: DESC, Name: ASC)
ANCESTOR: KEY(PROJECT('PROJECT_ID'),NAMESPACE('NS'),UserList,1,User,5000000000000001
VALUES: (16500000000000001, 'Alice')
ENTITY: KEY(PROJECT('PROJECT_ID'),NAMESPACE('NS'),UserList,1,User,5000000000000001)
Composite index entry with __key__ Index entry for the composite index on the Timestamp property in ascending order and the __key__ in descending order without ancestor enabled. You can use __key__ as the final property in an index definition to change the default ordering of results. NAMESPACE: NS
KIND: Users
PROPERTIES: (Timestamp: ASC, __key__ DESC)
ANCESTOR: NONE
VALUES: (16500000000000001)
ENTITY: KEY(PROJECT('PROJECT_ID'),NAMESPACE('NS'),UserList,1,User,5000000000000001)
