GraphQL policy

You're viewing Apigee X documentation.
View Apigee Edge documentation.

GraphQL policy icon

What

The GraphQL policy can parse GraphQL payloads into message flow variables, verify GraphQL requests against a schema, or both.

For more information, see the following resources:

See Using GraphQL for an example that uses this policy.

<GraphQL> element

Defines a <GraphQL> policy.

Default value See Default Policy tab, below
Required? Required
Type TYPE
Parent Element n/a
Child Elements <Action>
<MaxDepth>
<MaxCount>
<OperationType>
<Source>
<ResourceURL>

Syntax

The <GraphQL> element uses the following syntax:

<GraphQL
    continueOnError="[false|true]"
    enabled="[true|false]"
    name="POLICY_NAME" >
  <Source>request</Source>

  <OperationType>[query|mutuation|all]</OperationType>

  <MaxDepth>MAX_DEPTH</MaxDepth>
  <MaxCount>MAX_NUMBER_OF_QUERIES</MaxCount>
  <Action>parse</Action>
  <ResourceURL>PATH/TO/SCHEMA.xsd</ResourceURL>
</GraphQL>

Default Policy

The following example shows the default settings when you add a <GraphQL> policy to your flow in the Apigee UI:

<?xml version="1.0" encoding="UTF-8" standalone="yes"?>
<GraphQL name="GraphQLParser">
  <Source>request</Source>
  <OperationType>query</OperationType>
  <MaxDepth>10</MaxDepth>
  <MaxCount>10</MaxCount>
  <Action>parse</Action>
  <ResourceURL></ResourceURL>
</GraphQL>

This element has the following attributes that are common to all policies:

Attribute Default Required? Description
name N/A Required

The internal name of the policy. The value of the name attribute can contain letters, numbers, spaces, hyphens, underscores, and periods. This value cannot exceed 255 characters.

Optionally, use the <DisplayName> element to label the policy in the management UI proxy editor with a different, natural-language name.

continueOnError false Optional Set to false to return an error when a policy fails. This is expected behavior for most policies. Set to true to have flow execution continue even after a policy fails.
enabled true Optional Set to true to enforce the policy. Set to false to turn off the policy. The policy will not be enforced even if it remains attached to a flow.
async   false Deprecated This attribute is deprecated.

The following table provides a high-level description of the child elements of <GraphQL>:

Child Element Required? Description
Common operations
<MaxCount> Optional The maximum number of queries or fragments that a GraphQL request can spawn. The default value is 10.
<MaxDepth> Optional The maximum depth of the tree for the query. The default value is 4.
<Action> Optional Specifies the action to take for a request: parse, verify, or parse_verify (both).
<Source> Required request
<OperationType> Required Specifies the type of request that can be parsed: query, mutation, or query_mutation (either).
<ResourceURL> Optional DESCRIPTION. The location of the GraphQL schema file.

Each of these child elements is described in the sections that follow.

Child element reference

This section describes the child elements of <GraphQL>.

<Action>

Action represents one of the following GraphQL actions:

  • parse: Apigee parses the GraphQL request.
  • verify: Apigee verifies the GraphQL request.
  • parse_verify: Apigee parses and verifies the GraphQL request.
Default value parse
Required? Optional
Type String
Parent Element <GraphQL>
Child Elements none

The <Action> element uses the following syntax:

Syntax

<GraphQL
    continueOnError="[false|true]"
    enabled="[true|false]"
    name="POLICY_NAME" >
  <Action>parse</Action>
</GraphQL>

<OperationType>

Indicates the type of request that can be parsed:

  • query: A GraphQL query.
  • mutation: A GraphQL mutation
  • query_mutation: A GraphQL query or a mutation.

If the scope is query, and a mutation request is passed, the request fails and returns a 4xx error.

Default value query
Required? Optional
Type String
Parent Element <GraphQL>
Child Elements none

The <OperationType> element uses the following syntax:

Syntax

<GraphQL
    continueOnError="[false|true]"
    enabled="[true|false]"
    name="POLICY_NAME" >
  <OperationType>[query|mutation|all]</OperationType>
</GraphQL>

<MaxDepth>

The maximum depth of the query, when represented as a tree. MaxDepth allows you to block deep queries in the payload, so that Apigee does not need to create very large flow variables to hold the values. However, the payload is sent as is, regardless of the value of MaxDepth. The default value is 10.

Note: MaxDepth is only necessary when <Action> is set to verify or parse_verify.

Default value 10
Required? Optional
Type Integer
Parent Element <GraphQL>
Child Elements none

The <MaxDepth> element uses the following syntax:

Syntax

<GraphQL
    continueOnError="[false|true]"
    enabled="[true|false]"
    name="POLICY_NAME" >
  <MaxDepth>MAX_DEPTH</MaxDepth>
</GraphQL>

<MaxCount>

The maximum number of fragments that can be in the payload. You can use this to prevent the GraphQL back-end server of the customer from executing highly complex queries, forcing clients to break their logic in to smaller payloads.

Default value request
Required? Optional
Type String
Parent Element <GraphQL>
Child Elements none

The <MaxCount> element uses the following syntax:

Syntax

<GraphQL
    continueOnError="[false|true]"
    enabled="[true|false]"
    name="POLICY_NAME" >
  <MaxCount>MAX_NUMBER_OF_QUERIES</MaxCount>
</GraphQL>

<Source>

Source on which this policy executes.

Default value request
Required? Optional
Type String
Parent Element <GraphQL>
Child Elements none

The <Source> element uses the following syntax:

Syntax

<GraphQL
    continueOnError="[false|true]"
    enabled="[true|false]"
    name="POLICY_NAME" >
  <Source>request</Source>
</GraphQL>

<ResourceURL>

The path to the GraphQL schema file that the GraphQL policy verifies requests against.

Default value n/a
Required? Optional
Type String
Parent Element <GraphQL>
Child Elements none

The ResourceURL element uses the following syntax:

Syntax

<GraphQL
    continueOnError="[false|true]"
    enabled="[true|false]"
    name="POLICY_NAME" >
  <ResourceURL>PATH/TO/SCHEMA.graphql</ResourceURL>
</GraphQL>

GraphQL Parser

The graphQL parser supports all features of a graphQL query and represents it as a graph in the message flow dotted notation. A query can comprise of operation definition and optionally fragments identified as fragment definitions. See the GraphQL specification.

Anatomy of a graphQL request

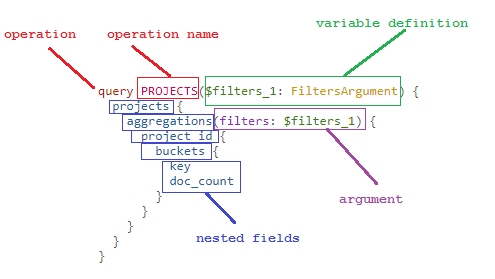

The diagram below shows the anatomy of a graphQL request.

GraphQL query diagram.

Representation in message flow of operation definitions

The parser implementation covers all aspects of graphQL syntax, including support for query and mutations. See Message flow variable.

The message flow variables follows this convention:

graphql.(root-index).(root definition)[(sub-indices).(child-definitions)…]

where:

  • graphql: Static prefix indicating this is graphQL related message flow variables
  • root-Index: based index indicating the root level query definitions index (default up to 4 per request)
  • root-definition: Root level graphQL request message body, args, its values
  • sub-indices: Child indices
  • child-definitions: Leaf level definitions that correlate to specific fields and its values

Representation in message flow variable of operation definitions

Fields in message Type Description
name String Name of the graphQL operation. Note that this name is unrelated to the name in message flow.
definition String - Operation Indicates that this contains the main message body of the query request
operationType query or mutation The type of operation being performed.
variableDefinition Integer They work just like the argument definitions for a function in a typed language. It lists all of the variables, prefixed by $, followed by their type.
directives Integer @include and @skip are the two directives currently offered, that can filter based on dynamically passed values.
selectionSet Integer One level logical grouping of all attributes associated with an object.

Representation in message flow of fragment definitions

Message Flow Variable Name Type Description
name String Name of the fragment.
definition String- fragment Indicates that the body of the request is a fragment to the main request.
typeCondition String The condition under which the fragment gets invoked.
variableDefinition Integer The variables definition passed as arguments to the fragment.

Examples of message flow variable representations

The following examples show the message flow variable representations for sample request payloads.

Sample query 1

This example shows a query made with arguments passed as input, which queries for three attributes for employees.

{
 employee(id: 123) {
   id
   firstName
   lastName
 }
}

The table shows the corresponding message flow variable representations.

Message flow variable Value
graphql.operation.operationType QUERY
graphql.fragment.count 1
graphql.operation.selectionSet.count 1
graphql.operation.variableDefinitions.count 0
graphql.operation.selectionSet.1.name employee
graphql.operation.selectionSet.1.argument.count 1
graphql.operation.selectionSet.1.argument.1.name id
graphql.operation.selectionSet.1.argument.1.value IntValue{value=123}
graphql.operation.selectionSet.1.directive.count 0
graphql.operation.selectionSet.1.selectionSet.count 3
graphql.operation.selectionSet.1.selectionSet.1.name id
graphql.operation.selectionSet.1.selectionSet.2.name firstName
graphql.operation.selectionSet.1.selectionSet.3.name lastName

Sample query 2

This example shows a query made with arguments passed as input, which queries for the names of friends.

query Characters($episode: Episode, $withFriends: Boolean!) {
   friends @include(if: $withFriends) {
     friendsName
    }
}

The table below shows the corresponding message flow variable representations.

Message flow variable Value
graphql.operation.operationType QUERY
graphql.operation.selectionSet.count 1
graphql.operation.name Characters
graphql.fragment.count 0
graphql.operation.selectionSet.1.name friends
graphql.operation.variableDefinitions.count 2
graphql.operation.variableDefinitions.1.name episode
graphql.operation.variableDefinitions.1.type TypeName{name='Episode'}
graphql.operation.variableDefinitions.2.name withFriends
graphql.operation.variableDefinitions.2.type NonNullType{type=TypeName{name='Boolean'}}
graphql.operation.selectionSet.1.argument.count 0
graphql.operation.selectionSet.1.selectionSet.count 1
graphql.operation.selectionSet.1.selectionSet.1.name friendsName
graphql.operation.selectionSet.1.directive.count 1
graphql.operation.selectionSet.1.directive.1.argument.1.name if
graphql.operation.selectionSet.1.directive.1.argument.1.value VariableReference{name='withFriends'}

Sample query 3

This example has a variable definition with alias.

query getUsers {
  admins: users(role: ADMIN) {
    lastName
  }
  accountants: users(role: ACCOUNTANT) {
    firstName
  }
}

The table below shows the corresponding message flow variable representations.

Message flow variable Value
graphql.operation.operationType QUERY
graphql.operation.selectionSet.count 2
graphql.operation.selectionSet.1.name users
graphql.operation.selectionSet.1.alias admins
graphql.operation.variableDefinitions.count 0
graphql.operation.selectionSet.1.argument.count 1
graphql.operation.selectionSet.1.argument.1.name role
graphql.operation.selectionSet.1.argument.1.value EnumValue{name='ADMIN'}
graphql.operation.selectionSet.1.argument.2.name null
graphql.operation.selectionSet.1.argument.2.value null
graphql.operation.selectionSet.1.selectionSet.count 1
graphql.operation.selectionSet.1.selectionSet.count 1
graphql.operation.selectionSet.1.selectionSet.1.name lastName
graphql.operation.selectionSet.1.selectionSet.1.alias null
graphql.operation.selectionSet.1.selectionSet.2.name null
graphql.operation.selectionSet.1.selectionSet.2.alias null
graphql.operation.selectionSet.1.directive.count 0
graphql.operation.selectionSet.1.directive.1.argument.1.name null
graphql.operation.selectionSet.1.directive.1.argument.1.value null
graphql.operation.selectionSet.2.name users
graphql.operation.selectionSet.2.alias accountants
graphql.operation.selectionSet.2.argument.count 1
graphql.operation.selectionSet.2.argument.1.name role
graphql.operation.selectionSet.2.argument.1.value EnumValue{name='ACCOUNTANT'}
graphql.operation.selectionSet.2.selectionSet.count 1
graphql.operation.selectionSet.2.selectionSet.1.name firstName
graphql.operation.selectionSet.2.directive.count 0
graphql.operation.selectionSet.2.selectionSet.1.alias null
graphql.operation.selectionSet.2.selectionSet.2.name null
graphql.operation.selectionSet.2.selectionSet.2.alias null
graphql.operation.selectionSet.2.directive.count 0
