When you execute your pipeline using the Dataflow managed service, you can view that job and any others by using Dataflow's web-based monitoring user interface. The monitoring interface lets you see and interact with your Dataflow jobs.
You can access the Dataflow monitoring interface by using the Google Cloud Console. The monitoring interface can show you:
- A list of all currently running Dataflow jobs and previously run jobs within the last 30 days.
- A graphical representation of each pipeline.
- Details about your job's status, execution, and SDK version.
- Links to information about the Google Cloud services running your pipeline, such as Compute Engine and Cloud Storage.
- Any errors or warnings that occur during a job.
- Additional diagnostics for a job.
You can view job monitoring charts within the Dataflow monitoring interface. These charts display metrics over the duration of a pipeline job and include the following information:
- Step-level visibility to help identify which steps might be causing pipeline lag.
- Statistical information that can surface anomalous behavior.
- I/O metrics that can help identify bottlenecks in your sources and sinks.
Accessing the Dataflow monitoring interface
To access the Dataflow monitoring interface, follow these steps:
- Log in to the Cloud Console.
- Select your Google Cloud project.
- Click the menu in the upper left corner.
- Navigate to the Big Data section and click Dataflow.
A list of Dataflow jobs appears along with their status. If you don't see any jobs, you need to run a new job. To learn how to run a job, see the Dataflow quickstarts.
A job can have the following statuses:
- —: the monitoring UI has not yet received a status from the Dataflow service.
- Running: the job is currently running.
- Starting...: the job is created, but the system needs some time to prepare before launching.
- Queued: a FlexRS job is queued.
- Canceling...: the job is being canceled.
- Canceled: the job that was canceled by the user.
- Draining...: the job is being drained.
- Drained: the user drained the job.
- Updating...: the job is being updated.
- Updated: the user updated the job.
- Succeeded: the job has finished successfully.
- Failed: the job failed to complete.
For more information about a pipeline, click that job's Name.
Accessing job monitoring charts
To access a job's monitoring charts, click the job Name within the Dataflow monitoring interface. This navigates you to the Job details page, which contains the following:
- Job graph: the visual representation of your pipeline
- Job metrics: metrics about the execution of your job
- Job info panel: descriptive information about your pipeline
- Job logs: logs generated by the Dataflow service at the job level
- Worker logs: logs generated by the Dataflow service at at the worker level
- Diagnostics: table showing where errors occurred along the chosen timeline and possible recommendations for your pipeline
- Time selector: tool that lets you adjust the timespan of your metrics
Within the Job details page, you can switch your job view with the Job graph and Job metrics tab.
Creating Cloud Monitoring alerts
Dataflow is fully integrated with Cloud Monitoring, which lets you create alerts when your job exceeds a user-defined threshold. To create a Cloud Monitoring alert from a metric chart, click Create alerting policy.
For more instructions on creating these alerts, read the Using Cloud Monitoring for Dataflow pipelines page.
Full screen mode
To view a metric chart in full screen, click fullscreen.
Using the time selector tool
You can adjust the timespan of the metrics with the time selector tool. You can select a predefined duration or select a custom time interval to analyze your job.
For streaming or in-flight batch jobs, the default display of the charts shows the previous six hours of metrics for that job. For stopped or completed streaming jobs, the default display of the charts shows the entire runtime of the job duration.
Step and worker metrics
You can view charts for the following metrics:
- Data freshness (streaming pipelines only)
- System latency (streaming pipelines only)
- Autoscaling
- Throughput
- CPU utilization
- Worker error log count
- Input and Output Metrics
To access additional information in these charts, click the legend toggle to "Expand chart legend."
Data freshness (streaming pipelines only)
Data freshness is the amount of time between real time and the output watermark. Each step of your pipeline has an output data watermark. An output data watermark of T indicates that the computation has processed all elements with an event time before T. The output data watermark is bounded above by the earliest input data watermark of all upstream computations. If some input data has not yet been processed, the output watermark might be held back, which affects data freshness.

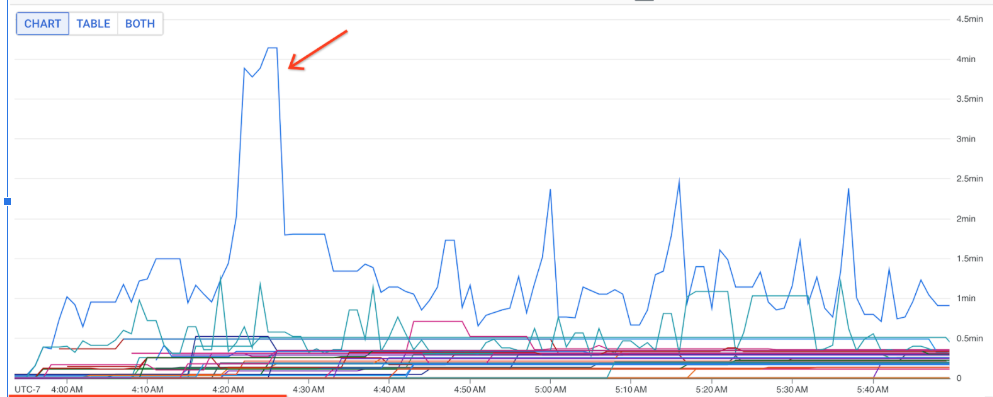

System latency (streaming pipelines only)
System latency is the current maximum duration that an item of data has been processing or awaiting processing. This metric indicates how long an element waits inside any one source in the pipeline, in seconds. Maximum duration is adjusted after processing. The following cases are additional considerations:
- If there are multiple sources and sinks, then system latency is the longest amount of time an element waits inside a source before it is written to all sinks.
- If a source does not provide a value for how long an element waits inside a source and the element does not have metadata to define its event time, then the system latency is calculated from the time when the pipeline first receives the element.
Autoscaling
The Dataflow service automatically chooses the number of worker instances required to run your autoscaling job. The number of worker instances can change over time according to your job's needs.
To see the history of autoscaling changes, click the More History button. A table with information about your pipeline's worker history will show below the chart.
Throughput
Throughput is the volume of data being processed at any point in time. This per step metric is displayed as number of elements per second. To view this metric in bytes per second, click Throughput (elements/sec) arrow_drop_down > Throughput (bytes/sec).
CPU utilization
CPU utilization is the amount of CPU being used divided by the amount of CPU available for processing. This per worker metric is displayed as a percentage.
Input and Output Metrics
Input metrics and output metrics are displayed if your streaming Dataflow job has read or written records using Pub/Sub.
The following three charts are displayed in both the Input Metrics and Output Metrics sections.
Requests per sec
Requests per sec is the rate of API requests to read or write data by the source or sink over time. If this rate drops to zero, or decreases significantly for an extended period relative to your expected behavior, then the pipeline might be blocked performing certain operations (or there is no data to read) and you should review steps that have a high system watermark. Also, examine the worker logs for errors or indications that slow processing is occurring.
Response errors per sec by error type
Response errors per sec by error type is the rate of failed API requests to read or write data by the source or sink over time. If errors occur frequently and repeatedly, these API requests might be slowing down processing and should be investigated. To help troubleshoot these issues, review the general I/O error code documentation and any specific error code documentation used by the source or sink, such as the Pub/Sub error codes.
Requests latency
Requests latency is the length of response times for various percentiles. For example, the 95th percentile indicates that 95 percent of requests take less than the displayed time. If the response time for the 99th percentile is quite long for a specific input or output, this might indicate a hotspotting issue. This issue occurs when many elements are being read or written in a way which causes the service to overload a resource. For an example of this, see Understanding Cloud Bigtable Performance.
Using Metrics explorer
The following Dataflow I/O metrics can be viewed in Metrics explorer:
job/pubsub/write_count: Pub/Sub Publish requests from PubsubIO.Write in Dataflow jobs.job/pubsub/read_count: Pub/Sub Pull requests from Pubsub.IO.Read in Dataflow jobs.job/pubsub/write_latencies: Pub/Sub Publish request latencies from PubsubIO.Write in Dataflow jobs.job/pubsub/read_latencies: Pub/Sub Pull request latencies from Pubsub.IO.Read in Dataflow jobs.
For the complete list of Dataflow metrics, see the Google Cloud metrics documentation.
Creating Cloud Monitoring alerts
Dataflow is fully integrated with Cloud Monitoring, which allows you to create alerts when your job exceeds a user-defined threshold.
For instructions on creating these alerts, read the Using Cloud Monitoring for Dataflow pipelines page.
Viewing a pipeline
When you select a specific Dataflow job, the monitoring interface shows detailed information about the pipeline in that job. This information includes a graphical representation of your pipeline as it is executed on the Dataflow service, as well as a job summary, the job log, and detailed information on each step in the pipeline.
The Dataflow monitoring interface provides a graphical representation of your pipeline: the execution graph. A pipeline's execution graph represents each transform in the pipeline as a box. Each box contains the transform name and information about the job status, which includes the following:
- Running: the step is currently running.
- Queued: the step in a FlexRS job is queued.
- Succeeded: the step finished successfully.
- Stopped: the step was stopped because the job stopped.
- Unknown: the step failed to report status.
- Failed: the step failed to complete.
Basic execution graph
Pipeline Code:
Java: SDK 2.x
// Read the lines of the input text.
p.apply("ReadLines", TextIO.read().from(options.getInputFile()))
// Count the words.
.apply(new CountWords())
// Write the formatted word counts to output.
.apply("WriteCounts", TextIO.write().to(options.getOutput()))
.to(options.getOutput()));
Python
(
p
# Read the lines of the input text.
| 'ReadLines' >> beam.io.ReadFromText(options.input)
# Count the words.
| CountWords()
# Write the formatted word counts to output.
| 'WriteCounts' >> beam.io.WriteToText(options.output))
Java: SDK 1.x |
Execution Graph:
|
Composite transforms
In the execution graph, composite transforms, transforms that contain multiple nested sub-transforms, are expandable. Expandable composite transforms are marked with an arrow in the graph. Click the arrow to expand the transform and view the sub-transforms within.
Pipeline Code:
Java: SDK 2.x
// The CountWords Composite Transform
// inside the WordCount pipeline.
public static class CountWords
extends PTransform<PCollection<String>, PCollection<String>> {
@Override
public PCollection<String> apply(PCollection<String> lines) {
// Convert lines of text into individual words.
PCollection<String> words = lines.apply(
ParDo.of(new ExtractWordsFn()));
// Count the number of times each word occurs.
PCollection<KV<String, Long>> wordCounts =
words.apply(Count.<String>perElement());
return wordCounts;
}
}
Note: Python
# The CountWords Composite Transform inside the WordCount pipeline.
class CountWords(beam.PTransform):
def expand(self, pcoll):
return (
pcoll
# Convert lines of text into individual words.
| 'ExtractWords' >> beam.ParDo(ExtractWordsFn())
# Count the number of times each word occurs.
| beam.combiners.Count.PerElement()
# Format each word and count into a printable string.
| 'FormatCounts' >> beam.ParDo(FormatCountsFn()))
Java: SDK 1.x |
Execution Graph:
|
Transform names
Dataflow has a few different ways to obtain the transform name that's shown in the monitoring execution graph:
Java: SDK 2.x
- Dataflow can use a name that you assign when you apply your transform. The first
argument you supply to the
applymethod will be your transform name. - Dataflow can infer the transform name, either from the class name (if you've built a
custom transform) or the name of your
DoFnfunction object (if you're using a core transform such asParDo).
Python
- Dataflow can use a name that you assign when you apply your transform. You can set the
transform name by specifying the transform's
labelargument. - Dataflow can infer the transform name, either from the class name (if you've built a
custom transform) or the name of your
DoFnfunction object (if you're using a core transform such asParDo).
Java: SDK 1.x
Understanding the metrics
Wall time
When you click on a step, the Wall time metric shows up. Wall time provides the total approximate time spent across all threads in all workers on the following actions:
- Initializing the step
- Processing data
- Shuffling data
- Ending the step
For composite steps, wall time tells you the sum of time spent in the component steps. This estimate can help you identify slow steps and diagnose which part of your pipeline is taking more time than it should.
See Understanding timing in Dataflow pipelines for an example that uses the Wall Time metric (previously referred to as Total Execution Time) to investigate what is causing a pipeline to take more time to run than expected.
Side input metrics
Side input metrics show you how your side input access patterns and algorithms affect your pipeline's performance. When your pipeline uses a side input, Dataflow writes the collection to a persistent layer, such as a disk, and your transforms read from this persistent collection. These reads and writes affect your job's execution time.
The Dataflow monitoring interface displays side input metrics when you select a transform that creates or consumes a side input collection. You can view the metrics in the Side Input Metrics section of the Step tab.
Transforms that create a side input
If the selected transform creates a side input collection, the Side Input Metrics section displays the name of the collection, along with the following metrics:
- Time spent writing: The execution time spent writing the side input collection.
- Bytes written: The total number of bytes written to the side input collection.
- Time & bytes read from side input: A table that contains additional metrics for all transforms that consume the side input collection, called side input consumers.
The Time & bytes read from side input table contains the following information for each side input consumer:
- Side input consumer: The transform name of the side input consumer.
- Time spent reading: The time this consumer spent reading the side input collection.
- Bytes read: The number of bytes this consumer read from the side input collection.
If your pipeline has a composite transform that creates a side input, expand the composite transform until you see the specific subtransform that creates the side input. Then, select that subtransform to view the Side Input Metrics section.
Figure 5 shows side input metrics for a transform that creates a side input collection.
MakeMapView). The subtransform that creates the
side input (CreateDataflowView) is selected, and the side
input metrics are visible in the Step info side panel.Transforms that consume one or more side inputs
If the selected transform consumes one or more side inputs, the Side Input Metrics section displays the Time & bytes read from side input table. This table contains the following information for each side input collection:
- Side input collection: The name of the side input collection.
- Time spent reading: The time the transform spent reading this side input collection.
- Bytes read: The number of bytes the transform read from this side input collection.
If your pipeline has a composite transform that reads a side input, expand the composite transform until you see the specific subtransform that reads the side input. Then, select that subtransform to view the Side Input Metrics section.
Figure 6 shows side input metrics for a transform that reads from an side input collection.
JoinBothCollections transform reads
from a side input collection. JoinBothCollections is
selected in the execution graph and the side input metrics are visible in
the Step info side panel.Identifying side input performance issues
Reiteration is a common side input performance issue. If your side input
PCollection is too large, workers can't cache the entire collection in memory.
As a result, the workers must repeatedly read from the persistent side input
collection.
In figure 7, side input metrics show that the total bytes read from the side input collection are much larger than the collection's size, total bytes written.
To improve the performance of this pipeline, redesign your algorithm to avoid iterating or refetching the side input data. In this example, the pipeline creates the Cartesian product of two collections. The algorithm iterates through the entire side input collection for each element of the main collection. You can improve the access pattern of the pipeline by batching multiple elements of the main collection together. This change reduces the number of times workers must re-read the side input collection.
Another common performance issue can occur if your pipeline performs a join
by applying a ParDo with one or more large side inputs. In this case,
workers spend a large percentage of the join's execution time reading from
the side input collections.
Figure 8 shows example side input metrics for this issue:
JoinBothCollections transform has
a total execution time of 18 min 31 sec. Workers spend the
majority of the execution time (10 min 3 sec) reading from the 10 GB
side input collection.To improve the performance of this pipeline, use CoGroupByKey instead of side inputs.
Error reporting
The Error Reporting interface aggregates and displays errors produced in your pipelines.
The error report includes:
- A list of errors with error messages.
- The number of times each error occurred.
- A histogram indicating when each error occurred.
- The time that the error most recently occurred.
To view the error report for your pipeline, click the Logs menu above the pipeline graph and then on the Stack Traces tab below the pipeline graph. In the Dataflow monitoring interface, you will see a summary of each logged error and the number of times it occurred.
The Worker error log count panels shows you the rate of errors observed across all workers at any point in time.
To see more information about the errors, click an error summary. You will be taken to the Error Reporting interface.
The Error Reporting interface offers additional functionality. See Viewing Errors for more information about the errors produced by your pipelines.
