File storage (aka network-attached storage (NAS)) provides file-level access to applications to read and update information that can be shared across multiple machines. Some on-premises file storage solutions have a scale-up architecture and simply add storage to a fixed amount of compute resources. Other file storage solutions have a scale-out architecture where capacity and compute (performance) can be incrementally added to an existing file system as needed. In both storage architectures, one or multiple virtual machines (VMs) can access the storage.
Although some file systems use a native POSIX client, many storage systems use a protocol that enables client machines to mount a file system and access the files as if they were hosted locally. The most common protocols for exporting file shares are Network File System (NFS) for Linux (and in some cases Windows) and Server Message Block (SMB) for Windows.
This solution describes the following options for sharing files:
Managed file storage solutions:
Supported filer solutions in Cloud Marketplace:
An underlying factor in the performance and predictability of all of the Google Cloud services is the network stack that Google evolved over many years. With the Jupiter Fabric, Google built a robust, scalable, and stable networking stack that can continue to evolve without affecting your workloads. As Google improves and bolsters its network abilities internally, your file-sharing solution benefits from the added performance. For more details on the Jupiter Fabric, see the 2015 paper that describes its evolution.
One feature of Google Cloud that can help you get the most out of your investment is the ability to specify Custom VM types. When choosing the size of your filer, you can pick exactly the right mix of memory and CPU, so that your filer is operating at optimal performance without being oversubscribed.
Furthermore, it is important to choose the correct Compute Engine persistent disk capacity and number of vCPUs to ensure that your file server's storage devices receive the required storage bandwidth and IOPs as well as network bandwidth. A VM receives 2 Gb/s of network throughput for every vCPU (up to the max). For tuning persistent disk, see Optimizing persistent disk and local SSD performance.
Note that Cloud Storage is also a great way to store petabytes of data with high levels of redundancy at a low cost, but Cloud Storage has a different performance profile and API than the file servers discussed here.
Summary of file server options
The following table summarizes the features of persistent disks and the filer options:
|Filer solution||Optimal data set||Throughput||Managed support||Export protocols|
|Filestore Basic||1 TiB to 64 TiB||Up to 1.2 GiB/s||Fully managed service by Google||NFSv3|
|10 TiB to 100 TiB||Up to 26 GiB/s||Fully managed service by Google||NFSv3|
|Filestore Enterprise||1 TiB to 10 TiB||Up to 1.2 GiB/s||Fully managed service by Google||NFSv3|
|NetApp Cloud Volumes||20 MB to 2 PB||10s to 100s Gb/s||Fully managed service by NetApp||NFSv3, NFSv4.x, SMB2, SMB3, iSCSI|
|Dell EMC PowerScale||25 TiB up to 33 PiB||Up to 100s of GB/sec||Fully managed service by Google and Dell Technologies||NFSv3, NFSv4, SMB1, SMB2, SMB3, HDFS|
|Panzura||10s of TB to > 1 PB||Up to several GB/s||Panzura||NFSv3, NFSv4, SMB1, SMB2, SMB3|
|Nasuni||10s of TB to > 1 PB||Up to 1.2 GB/s||Nasuni and customer managed||NFSv3, NFSv4, NFSv4.1, NFSv4.2, SMB2, SMB3|
|Read-only PD||< 64 TB||240 to 1,200 MB/s||No||Direct attachment|
Compute Engine persistent disks and local SSDs
If you have data that only needs to be accessed by a single VM or doesn't change over time, you might use Compute Engine's persistent disks, and avoid a file server altogether. With persistent disks, you can format them with a file system such as Ext4 or XFS and attach volumes in either read-write or read-only mode. This means that you can first attach a volume to an instance, load it with the data you need, and then attach it as a read-only disk to hundreds of VMs simultaneously. Employing read-only persistent disks does not work for all use cases, but it can greatly reduce complexity, compared to using a file server.
Persistent disks deliver consistent performance. All disks of the same size (and for SSD persistent disks, the same number of vCPUs) that you attach to your instance have the same performance characteristics. You don't need to pre-warm or test your persistent disks before using them in production.
The cost of persistent disks is easy to determine because there are no I/O costs to consider after provisioning your volume. Persistent disks can also be resized on the fly, allowing you to start with a low-cost and low-capacity volume, and not requiring you to spin up additional instances or disks to scale your capacity.
If total storage capacity is the main requirement, you can use low-cost standard persistent disks. For the best performance while continuing to be durable, you can use SSD persistent disks.
If your data is ephemeral and requires sub-millisecond latency and high I/O operations per second (IOPS), you can leverage up to 9 TB of local SSDs for extreme performance. Local SSDs provide GB/s of bandwidth and millions of IOPS, all while not using up your instances' allotted network bandwidth. It is important to remember though that local SSDs have certain trade-offs in availability, durability, and flexibility.
For a comparison of the many disk types available to Compute Engine instances, see the documentation for block storage.
Considerations when choosing a file storage solution
Choosing a file storage solution requires you to make tradeoffs regarding manageability, cost, performance, and scalability. Making the decision is easier if you have a well-defined workload, which isn't often the case. Where workloads evolve over time or are highly variant, it's prudent to trade cost savings for flexibility and elasticity, so you can grow into your solution. On the other hand, if you have a temporal and well-known workload, you can create a purpose-built file storage architecture that you can easily tear down and rebuild to meet your immediate storage needs.
One of the first decisions to make is whether you want to pay for a managed storage service, a solution that includes product support, or an unsupported solution.
- Managed file storage services are the easiest to operate, because either Google or a partner is handling all operations. These services might even provide a service level agreement (SLA) for availability like most other Google Cloud services.
- Unmanaged, yet supported, solutions provide additional flexibility. Partners can help with any issues, but the day-to-day operation of the storage solution is left to the user.
- Unsupported solutions require the most effort to deploy and maintain, leaving all issues to the user. These solutions are not covered in this document.
Your next decision involves determining the solution's durability and availability requirements. Most file solutions are zonal solutions and do not by default provide protection if the zone fails. So it's important to consider if a disaster recovery (DR) solution that protects against zonal failures is required. It's also important to understand the application requirements for durability and availability. For example, the choice of local SSDs or persistent disks in your deployment has a big impact, as does the configuration of the file solution software. Each solution requires careful planning to achieve high durability, availability, and even protection against zonal and regional failures.
Finally, consider the locations (that is, zones, regions, on-premises data centers) of where you need to access the data. The locations of the compute farms that access your data influence your choice of filer solution because only some solutions allow hybrid on-premises and in-cloud access.
Managed file storage solutions
Filestore is Google's fully managed NAS solution.
You can easily mount Filestore file shares on Compute Engine VMs. Filestore is also tightly integrated with Google Kubernetes Engine so your containers can reference the same shared data.
Filestore offers two performance tiers, Standard and Premium. Both tiers provide consistent performance and predictable costs.
For more information follow these links:
- Dynamically provision GKE storage from Filestore using the NFS-Client provisioner
- Filestore powers high-performance storage for ClioSoft's design management platform
Filestore High Scale
Filestore High Scale simplifies enterprise storage and data management on Google Cloud and across hybrid clouds. Filestore High Scale delivers cost-effective, high-performance parallel access to global data while maintaining strict consistency powered by a dynamically scalable, distributed file system. With High Scale, existing NFS applications and NAS workflows can run in the cloud without requiring refactoring, yet retain the benefits of enterprise data services (high availability, compression, deduplication, and so on). Cloud-based integration with Google Kubernetes Engine allows seamless data persistence, portability, and sharing for containerized workloads.
High Scale is deployable and scalable at the push of a button. It lets you create and expand file system infrastructure easily and on-demand, ensuring that storage performance and capacity always align with your dynamic workflow requirements. As a High Scale cluster expands, both metadata and I/O performance scale linearly. This scaling allows you to enhance and accelerate a broad range of data-intensive workflows, including high-performance computing, analytics, cross-site data aggregation, DevOps, and many more. As a result, High Scale is a great fit for use in data-centric industries such as life sciences (for example, genome sequencing), financial services, and media and entertainment.
Filestore Enterprise is a fully managed
cloud-native NFS solution that lets you deploy critical file-based applications
in Google Cloud, backed by an SLA that delivers 99.99%
regional availability. With a 99.99% regional-availability SLA, Filestore
Enterprise is designed for applications that demand high availability. With a
few mouse clicks (or a few
gcloud commands or API calls), you can provision
NFS shares that are synchronously replicated across three zones within a region.
If any zone within the region becomes unavailable, Filestore
Enterprise continues to transparently serve data to the application with no
operational intervention on your part.
To further protect critical data, Filestore also lets you take and keep periodic snapshots of the file system. With Filestore, you can easily recover an individual file or an entire file system in less than 10 minutes from any of the prior recovery points.
For critical applications like SAP, both the database and application tiers need to be highly available. To satisfy this requirement, you can deploy the SAP database tier to Persistent Disk, in multiple zones using built-in database high availability. Similarly, the NetWeaver application tier, which requires shared executables across many VMs, can be deployed to Filestore Enterprise, which replicates the Netweaver data across multiple zones within a region. The end result is a highly available three-tier mission-critical application architecture.
IT organizations are also increasingly deploying stateful applications in containers on Google Kubernetes Engine (GKE). This often causes them to rethink which storage infrastructure to use to support those applications. You can use Persistent Disk (block), Filestore Basic or Enterprise (file), and/or Cloud Storage (object). Filestore Enterprise, with its managed Kubernetes Container Storage Interface (CSI) driver, lets organizations that require multiple GKE Pods have shared file access, providing an increased level of availability for mission-critical workloads.
NetApp Cloud Volumes
NetApp Cloud Volumes ONTAP is a fully managed, cloud-based solution that brings the full feature set of ONTAP, NetApp's leading data management operating system, to Google Cloud. Cloud Volumes ONTAP is deployed within your VPC, including billing and support from Google. The ONTAP software runs on a Compute Engine virtual machine and uses a combination of persistent disks (PDs) and Cloud Storage buckets to store the NAS data. The built-in filer accommodates the NAS volumes using thin provisioning so that you pay only for the storage you use. As the data grows, additional PDs are added to the aggregate capacity pool. Cloud Volumes are delivered either as a scale-up architecture-managed service called Cloud Volumes Service, or as a scale-out architecture-managed solution called Cloud Volumes ONTAP.
The service allows you to quickly mount persistent shared storage to your Google Cloud compute instances. This storage delivers high throughput to your applications at low latency, with robust data-protection capabilities (snapshots and copies). With enterprise-grade architecture, the service provides high performance for both sequential and random workloads, which can scale across hundreds or thousands of Compute Engine compute instances. In seconds, volumes that range in size from 20 MB to 2 PB can be provisioned and protected with automated space-efficient snapshots. With three service levels—Standard, Premium, and Extreme—that you can change on demand, Cloud Volumes Service delivers the right performance fit for your workload, without impacting availability of your workloads.
Cloud Volumes ONTAP abstracts the underlying infrastructure and enables you to create virtual data volumes carved out of the aggregate pool that are consistent with all other ONTAP volumes on any cloud or on-premises environment. The data volumes you create support all versions of NFS, SMB, multi-protocol NFS/SMB, and iSCS and support a broad range of file-based workloads, including web and rich media content, used across many industries such as electronic design automation (EDA) and media and entertainment.
Cloud Volumes ONTAP's HA architecture includes synchronous mirroring of the data between 2 separate zones with a mediator in a third zone and automatic failover and failback to ensure at least 99.99% availability, RPO=0 (no data loss) and RTO < 60 sec, as required by for mission-critical workloads. Cloud Volumes ONTAP supports instant, space-saving point-in-time snapshots, built-in block-level, incremental forever backup to Cloud Storage and cross-region asynchronous replication for disaster recovery. The option to select the type of Compute Engine instance and PDs lets you achieve the performance you want for your workloads. Even when operating in a high-performance configuration, Cloud Volumes ONTAP implements storage efficiencies such as deduplication, compaction, and compressions as well as auto-tiering infrequently-used data to the Cloud Storage bucket enabling you to store petabytes of data while significantly reducing overall storage costs.
For more information, follow these links:
- NetApp Cloud Volumes for Google Cloud
- Regional Availability
- Download Solution Brief
- Watch a Demo
- Selecting the appropriate service level and allocated capacity for NetApp Cloud Volumes Service
Dell EMC PowerScale for Google Cloud
Dell EMC PowerScale for Google Cloud is an integrated cloud-native file service for Google Cloud users powered by Dell EMC PowerScale, the industry's #1 scale-out NAS storage system. This turnkey offering, managed by Dell Technologies Services, combines the performance and capacity at scale of PowerScale OneFS and the flexibility and cost economics of Google Cloud.
PowerScale for Google Cloud is a simple, easy-to-use service with annual subscriptions and guaranteed, predictable pricing. Customers order it from Cloud Marketplace, and once it's provisioned can configure and manage their OneFS clusters directly from the Google Cloud Console. Google sends a single monthly bill, and support comes from Google, while Dell Technologies experts provide complete lifecycle management of the environment.
With PowerScale for Google Cloud, organizations can deploy a dedicated, secure PowerScale instance with sub-millisecond latency access to Google Cloud on-demand compute and analytics services while retaining the value they enjoy with PowerScale without having to make any changes to their applications. PowerScale for Google Cloud provides multi-protocol access and scale-out up to 33 PiB usable in a single namespace along with other enterprise-class features such as multi-protocol access, native replication, and snapshots. Backed by enterprise-level uptime and performance SLAs, customers can expand existing and file storage capabilities and new capabilities—all without additional investment in their data center, facilities, people, hardware, engineering, or integration.
Google Cloud provides a broad range of compute and analytics services for on-demand, cost-effective processing and analysis of high-throughput, filed-based workloads. Together, PowerScale for Google Cloud enables enterprises to run the most demanding file-based workloads in the cloud—from big data analytics, artificial intelligence, and machine learning to genome sequencing and media and entertainment, taking advantage of flexible cloud consumption models and cloud economics.
For more information, follow these links:
- PowerScale for Google Cloud Marketplace
- PowerScale for Google Cloud User Guide
- PowerScale for Google Cloud website
- Download Solution Brief
- Watch an interactive demo
- ESG Technical Review: Performance testing of Dell EMC PowerScale for Google Cloud
DDN EXAScaler Cloud
DDN's EXAScaler Cloud platform is an industry leading parallel shared file solution for high-performance data processing and for managing the large volumes of data required to support AI, HPC, and analytics workloads. Life sciences, energy, autonomous vehicles, financial services, and other data-intensive customers can leverage EXAScaler Cloud for AI and analytics in the cloud to maximize their return from Google Cloud resources and create agile workflows with cloud bursting and long-term data retention.
Ideal uses of EXAScaler Cloud include deep learning and inference AI applications, hybrid-cloud architectures for cloud bursting to take advantage of on-demand high-performance processing, and as a repository to hold longer-term assets from an on-premises EXAScaler deployment. The cloud-based EXAScaler is easy to deploy and takes advantage of DDN's parallel file system, which powers over two thirds of the top 100 supercomputers.
EXAScaler Cloud is designed to optimize data-intensive cloud workloads to reduce time to insight by reducing I/O contention and delivering resilient access to shared storage for a large number of clients. EXAScaler Cloud optimizes the whole environment for high performance from application through to the storage devices, including the network and the compute instances themselves.
With flexible configurations, EXAScaler Cloud is useful for high-performance scratch workloads, more persistent IOPS or throughput-oriented applications, and even long-term persistent data. By mimicking on-premises architectures in the cloud, customers can transition workloads seamlessly, helping minimize end-user application disruption as workloads move.
DDN EXAScaler Cloud handles scalable workloads and is backed with the expertise learned supporting the largest data environments in the world. With premium support options, customers get the same expert support experience on-premises and in the cloud.
For more information, follow these links:
Supported filer solutions in Cloud Marketplace
The following solutions are available in Cloud Marketplace.

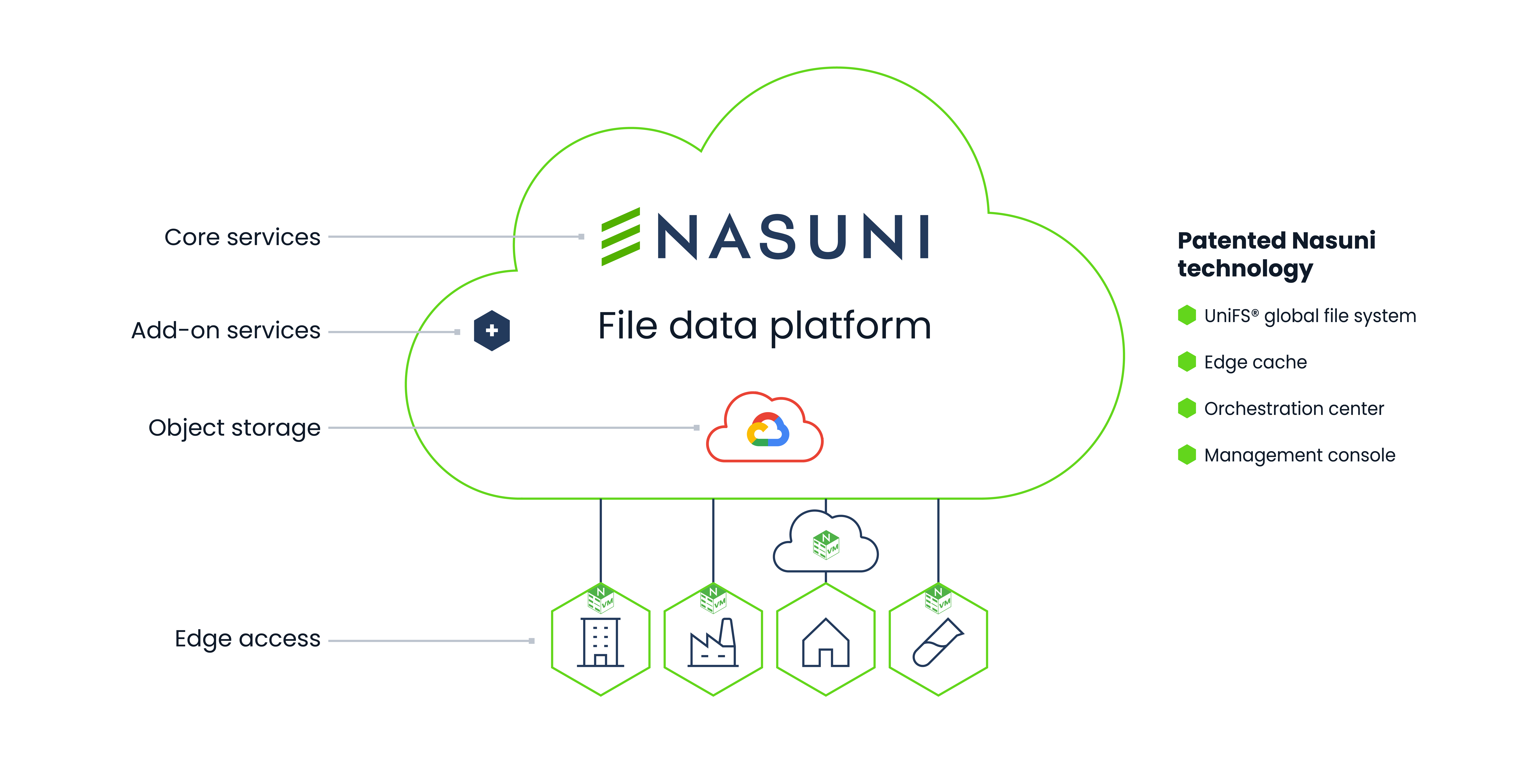

Nasuni Cloud File Storage
Nasuni replaces enterprise file servers and NAS devices and all associated infrastructures, including backup and DR hardware, with a simpler, low-cost cloud alternative. Nasuni uses Google Cloud object storage to deliver a more efficient software-as-a-service (SaaS) storage solution that scales easily to handle rapid, unstructured file data growth. Nasuni is designed to handle department, project, and organizational file shares and application workflows for every employee, wherever they work.
Nasuni offers three packages, with pricing for companies and organizations of all sizes so they can grow and expand as needed.
Its benefits include the following:
- Cloud-based primary file storage for up to 70% less. Nasuni's
architecture takes advantage of Google Cloud's native object lifecycle
management policies. These policies allow complete flexibility of use with
Cloud Storage object storage classes, including Standard, Nearline,
Coldline, and Archive. By using Google's unique immediate-access
Archiveclass object storage for primary storage with Nasuni, you can realize cost savings as dramatic as 70%.
- Departmental and organizational file shares in the cloud. Nasuni's cloud-based architecture offers a single global namespace across Google Cloud regions, with no limits on the number of files, file sizes, or snapshots, letting you store files directly from your desktop into Google Cloud through standard NAS (SMB) drive-mapping protocols.
- Built-in backup and disaster recovery. Nasuni's "set-it and forget-it" operations ease managing global file storage. Its built-in backup and DR is included with a single management console where you can oversee and control the environment anywhere, anytime.
- Replaces aging file servers. Nasuni makes it easy to migrate Microsoft Windows file servers and other existing file storage systems to Google Cloud, reducing costs and management complexity of these environments.
Panzura is a leader in managing unstructured data in the cloud. Enterprises in media and entertainment, genomics, life sciences, healthcare, financial services, and more choose Panzura Freedom NAS to consolidate their data islands into a single source of truth in Google Cloud without sacrificing performance or application rewrites. By consolidating unstructured data (NFS, SMB, and Object) into Google Cloud, you access all your data, collaborate on this data, and analyze and control it for compliance.
Panzura CloudFS underpins the Freedom Family and is a scale-out, distributed file system built for the cloud. It incorporates intelligent file services backed by 26 patents. The Freedom product family lets you address the following use cases cost effectively: cloud migration, global collaboration, and search and analytics.
Together, Panzura Freedom and Google Cloud enable IT leaders to:
- Migrate thousands of legacy applications to Google Cloud without rewriting, changing workflows, or sacrificing performance.
- Eliminate copy data sprawl for backup and secondary storage by consolidating data into a single source of truth.
- Collaborate globally on large-scale projects to improve productivity and time to market.
- Modernize your legacy NAS while realizing a 70% cost saving and reducing your file infrastructure in your data center by 90%.
- Rehydrate legacy tape data for advanced analytics and machine learning.
- Read Using Panzura Hybrid Cloud Storage for on-premises and in-cloud file services to learn more about how Panzura and Google work together.
- Read the press release: Panzura Freedom Cloud NAS Now Available in Google Cloud Marketplace.
- Read the blog post: Panzura Freedom Hybrid Cloud NAS Comes to the Google Cloud Marketplace.
- Download the datasheet on the Panzura Freedom NAS Filer.
- Download the white paper on the Panzura Freedom NAS Filer: Technology in Detail.
- Visit the Panzura website.
