Este problema pode ocorrer se o anfitrião do servidor de destino designado especificado no proxy da API estiver incorreto ou contiver carateres inválidos.
Este problema pode ocorrer quando o Apigee não consegue resolver o nome do domínio se o peering de DNS não estiver configurado nas implementações do Apigee.
Apigee
Causa: o anfitrião do servidor de destino especificado está incorreto ou tem carateres inválidos
{"fault":{"faultstring":
"Unable to resolve host invalid-target-host","detail":
{"errorcode":"protocol.http.NoResolvedHost","reason":
"TARGET_CONNECT_HOST_NOT_REACHABLE"}}}
Se a resposta contiver o motivo do erro
TARGET_CONNECT_HOST_NOT_REACHABLE, significa que está relacionado com
este motivo.
Resolução

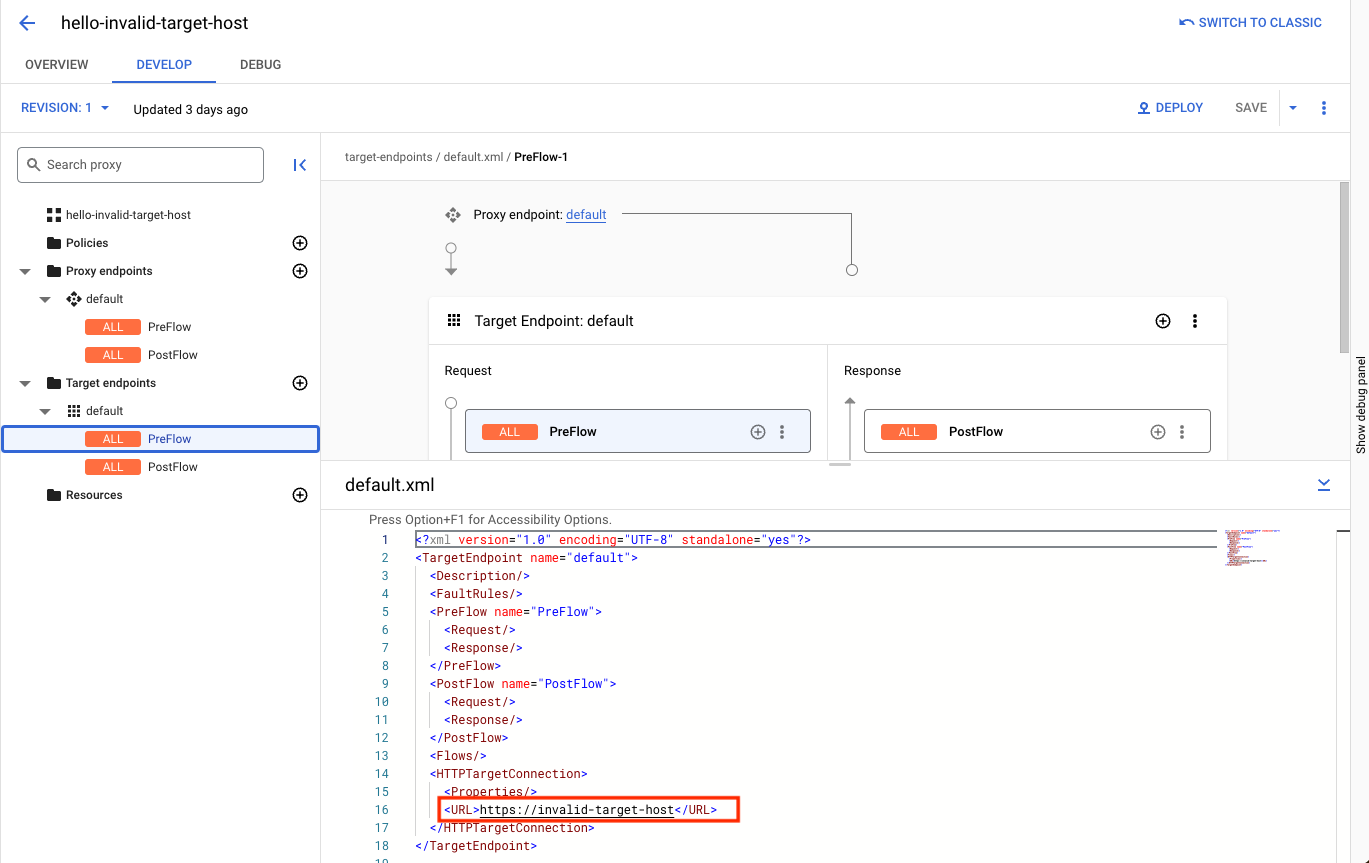

Verifique a definição do proxy de API e encontre o nome do anfitrião de destino definido:
Se o nome de anfitrião de destino fornecido for inválido ou tiver carateres inválidos,
corrija-o em conformidade, crie uma nova revisão do proxy e implemente o
proxy.
Causa: o peering de DNS não está configurado
Diagnóstico
Verifique se a organização do Apigee está em peering com uma rede VPC
invocando a seguinte API Apigee:
Por exemplo, para determinar se o peering de VPC está ativado, verifique se o atributo de resposta
authorizedNetwork está presente e definido para um valor. Se não for o caso, o peering de VPC não está ativado:
Verifique junto do programador do proxy de API do lado do cliente se o nome de domínio deste servidor de destino está configurado internamente. Caso contrário,
este cenário não se aplica.
Encontre o ID do projeto e a rede na qual o ponto final de destino está alojado.
Liste as interligações de DNS criadas na rede acima. Siga os passos abaixo consoante a organização do Apigee esteja ou não em peering com uma rede VPC.
Intercâmbio de VPC ativado
Se a sua organização tiver a interligação de VPC ativada, use o comando
peered-dns-domains list:
gcloud services peered-dns-domains list --network=NETWORK --project=PROJECT-ID
O resultado pode estar em branco se não estiverem disponíveis domínios DNS
com peering ou apresentar os domínios DNS com peering. Por exemplo:
NAME DNS_SUFFIX
customer-service customer.service.internal.
accounts-service accounts.service.internal.
O intercâmbio de VPC não está ativado
Se a sua organização não tiver a funcionalidade de interligação de VPC ativada, use a seguinte API Apigee:
Se a resposta não incluir uma entrada de peering de DNS para o sufixo de DNS relevante, esse pode ser o motivo deste problema. Siga as instruções indicadas em Resolução para resolver o problema.
Resolução
Tome nota do sufixo DNS, do ID do projeto e da rede em que o ponto final de destino está alojado.
Crie um domínio DNS com peering para o sufixo DNS.
Intercâmbio de VPC ativado
Se a sua organização tiver a interligação de VPC ativada, use o comando
peered-dns-domains create gcloud. Tenha em atenção que o
sufixo DNS deve conter um ponto final no final do sufixo DNS:
gcloud services peered-dns-domains create NAME --network=NETWORK --dns-suffix=DNS-SUFFIX. --project=PROJECT-ID
ORGANIZATION é o nome da sua organização do Apigee.
DNS_ZONE_ID é o nome da zona DNS que quer criar.
DOMAIN é o nome DNS desta zona gerida, por exemplo, example.com.
DESCRIPTION é uma breve descrição da zona DNS. Máximo de carateres: 1024
PRODUCER_PROJECT_ID é o projeto que contém a rede VPC do produtor.
PRODUCER_VPC_NETWORK é a rede VPC no projeto do cliente.
Agora, envie um pedido de API para o ponto final do proxy de API e verifique se o proxy de API conseguiu resolver o nome do domínio do servidor de destino e comunicar com o servidor de destino.
Tem de recolher informações de diagnóstico
Se o problema persistir mesmo depois de seguir as instruções acima,
reúna as seguintes informações de diagnóstico e, em seguida, contacte o apoio ao cliente do Google Cloud.
Google Cloud ID do projeto
Organização do Apigee
Proxy e revisão da API
Rede na qual o domínio privado é criado
Sufixo DNS do domínio privado
O resultado completo do comando de criação do domínio DNS em peering
