Plan for Bare Metal Solution

Bare Metal Solution provides a secure environment in which you can run your specialized workloads on high-performance, bare-metal servers.

Use Bare Metal Solution to run:

  • Third-party virtualization software.
  • Applications that require direct, low-level access to the server.

What Bare Metal Solution provides

Bare Metal Solution is a managed solution that provides purpose-built HPE or Atos bare-metal servers in regional extensions that are connected to Google Cloud by a managed, high-performance connection with a low-latency network fabric.

Bare-metal servers are shown in a regional extension that is colocated
with a Google Cloud data center

With Bare Metal Solution, Google Cloud provides and manages the core infrastructure, the network, the physical and network security, and hardware monitoring capabilities in an environment from which you can access all of the Google Cloud services. The core infrastructure includes secure, controlled-environment facilities, and power.

The Bare Metal Solution also includes the provisioning and maintenance of custom, sole-tenancy servers with local SAN, and smart hands support.

The network, which is managed by Google Cloud, includes a low-latency Partner Interconnect connection into the customer Bare Metal Solution environment.

The available Google Cloud services include private API access, management tools, support, and billing.

The elements in the preceding text are shown in the diagram

Your responsibilities in a Bare Metal Solution environment

You are responsible for the software, applications, and data that you use and store in the Bare Metal Solution environment. Your responsibilities include:

  • Data, including:
    • Security and encryption
    • Backups
  • Software and applications, including:
    • Installation
    • Configuration
    • Upgrades and patching
  • Operating system and any hypervisor, including:
    • Configuration changes
    • Upgrades and patching
  • Server clusters, including:
    • Installation
    • Configuration
    • Maintenance
  • Databases, including:
    • Installation
    • Configuration
    • Migration
    • Administration
    • Upgrades and patching
  • Licensing
  • Security, including:
    • Application security
    • OS patching and security updates
    • Network transport encryption, if needed between your Google Cloud environment and your Bare Metal Solution environment
  • Application and OS logging and monitoring
  • Application or workload maintenance
  • Backups, including backup security encryption
  • Support for your applications, as per your ISV agreements

You are responsible for the licensing of all of your software. Bare Metal Solution uses a bring-your-own-license (BYOL) model.

The operating system and any hypervisor software are included in the software that you are responsible for. Google Cloud installs the initial operating system or hypervisor for you, but as soon as you receive control of the servers in your Bare Metal Solution environment, you assume all responsibility for them.

When you need to upgrade the operating system for your Bare Metal Solution servers, use officially supported software and contact Cloud Customer Care for assistance.

As a part of your responsibility for the security and compliance of your software and applications, you are responsible for applying the latest available security patches and software updates.

Finally, you need to design and implement your solutions for incident and operations management, change management, Identity and Access Management (IAM), backup and recovery, high-availability, and disaster recovery.

Regional availability

Bare Metal Solution is currently available in the following Google Cloud regions:

Region Location
asia-northeast1 Tokyo, Japan, APAC
asia-northeast3 Seoul, South Korea, APAC
asia-southeast1 Jurong West, Singapore, APAC
australia-southeast1 Sydney, Australia, APAC
europe-west2 London, England, Europe
europe-west3 Frankfurt, Germany, Europe
europe-west4 Eemshaven, Netherlands, Europe
europe-west6 Zurich, Switzerland, Europe
northamerica-northeast1 Montréal, Québec, Canada, North America
northamerica-northeast2 Toronto, Ontario, Canada, North America
southamerica-east1 Osasco, São Paulo, Brazil, South America
us-central1 Council Bluffs, Iowa, USA, North America
us-east4 Ashburn, Virginia, USA, North America
us-west2 Los Angeles, California, USA, North America

The following table shows the current Google Cloud regions that support SAP HANA on Bare Metal Solution.

Region Location
europe-west3 Frankfurt, Germany, Europe
europe-west4 Eemshaven, Netherlands, Europe
us-central1 Council Bluffs, Iowa, USA, North America
us-east4 Ashburn, Virginia, USA, North America
us-west2 Los Angeles, California, USA, North America

If you do not see the region that you need in the preceding table, contact Google Cloud Sales.

Server configurations

Bare Metal Solution offers servers in pre-configured sizes, as shown in the following table.

Each bare-metal server comes with 200 GB of network attached storage for the boot disk.

By default, CPU hyper-threading is disabled in Bare Metal Solution servers. If you need hyper-threading, let your sales representative know or, if you already have Bare Metal Solution, open a service request.

Server name CPU cores vCPUs Sockets Memory CPU platform Ethernet ports
General-purpose servers
o2-standard-16-metal 8 16 2 192 GB Intel Xeon Gold, 5200 series, 3.8 GHz 4 port 25GbE NIC
o2-standard-32-metal 16 32 2 384 GB Intel Xeon Gold, 6200 series, 3.2 GHz 4 port 25GbE NIC
o2-standard-48-metal 24 48 2 768 GB Intel Xeon Gold, 6200 series, 3.0 GHz 4 port 25GbE NIC
o2-standard-112-metal 56 112 2 1.5 TB Intel Xeon Platinum, 8200 series, 2.2 GHz 4 port 25GbE NIC
High-memory general-purpose servers
o2-highmem-224-metal 112 224 4 3 TB Intel Xeon Platinum, 8200 series, 2.7 GHz 4 port 25GbE NIC
Memory-optimized servers
o2-ultramem-672-metal 336 672 12 18 TB Intel Xeon Platinum, 8200 series, 2.7 GHz 6 port 25GbE NIC
o2-ultramem-896-metal 448 896 16 24 TB Intel Xeon Platinum, 8200 series, 2.7 GHz 8 port 25GbE NIC

Operating systems

When you place an order for Bare Metal Solution, you can specify the operating system (OS) that you need installed on your servers. If you need an OS that does not appear in the following tables, contact Google Cloud Sales.

Linux

You can request the installation of any of the following Linux OS vendor versions on your Bare Metal Solution servers:

  • Oracle Linux
    • 7.9
    • 8.4
  • Red Hat Enterprise Linux (RHEL)
    • 7.9
    • 8.4
  • SUSE Linux Enterprise Server (SLES)
    • 15 SP1
  • RHEL for SAP Solutions
    • 7.6
    • 7.7
    • 8.1
  • SLES for SAP Solutions
    • 12 SP4
    • 12 SP5
    • 15
    • 15 SP1

Hypervisors

When you place an order for Bare Metal Solution, you can request that a hypervisor be installed on your servers. If you request a hypervisor, you must install any guest operating system yourself.

You can request the following hypervisor:

  • Oracle VM
    • 3.4.6

To use Oracle Linux Virtualization Manager (OLVM - a KVM-based hypervisor), request a compatible Linux OS such as Oracle Linux 7.

Storage

For storage in a Bare Metal Solution environment, you need to select the type of storage you need, know how to maximize the performance, and decide if you want to enable snapshots.

Storage choices

Storage devices in the regional extension provide local storage to Bare Metal Solution servers. There are three types of local storage you can request:

  • Fibre Channel-based block storage presented as logical unit numbers (LUNs) and accessible by only one Bare Metal Solution server.
  • Fibre Channel-based block storage presented as multipath LUNs and shared with multiple Bare Metal Solution servers. This option is good for high-availability applications, such as Oracle Database RAC.
  • Network File System (NFS) storage. With NFS, you mount a shared storage directory on one or more Bare Metal Solution servers and access the directory like any other file system. For information on how to implement NFS, see Add NFS file storage to a Bare Metal Solution environment.

For Fibre Channel-based block storage, you can choose the following storage options in 1 TiB increments up to a maximum of 16 TiB. For NFS, you can choose the following storage options with a minimum of 100 GiB and a maximum of 16 TiB.

Storage type Snapshot support Common Workloads
SSD (solid-state drive) Yes Mission-critical production workloads
HDD (hard drive) Yes Local backups or archival workloads

Here are some additional storage volume considerations that you need to understand:

  • When you provision any Fibre Channel or NFS storage volume, the volume size becomes fixed and you cannot expand the volume.
  • If you need additional storage space, you need to purchase additional storage volumes.
  • You cannot expand the existing LUNs in a storage volume. Instead, you need to order new LUNs and a new storage volume, migrate the old LUNs to the new storage volume, and decommission the old LUNs.
  • When you migrate the LUNs to a new storage volume, you also need to migrate the data.
  • If you run Oracle Automatic Storage Management (ASM), the following options are available:
    • When you need to expand an ASM disk group, you can order another storage volume, rescan the SCSI hosts to discover the new LUNs, and use ASM to add the new storage capacity into the disk group.
    • When you add, drop, or resize disks, ASM automatically inititates a rebalance to prevent an unnecessary load on the production database.
  • When you remove a storage volume from service in a Bare Metal Solution environment, the Bare Metal Solution server reboots. The length of the outage can last from 20 minutes to an hour, depending on the size of your Bare Metal Solution server and the amount of storage attached to the server.

Storage performance

For Fibre Channel and NFS storage, Bare Metal Solution provides the following maximum throughput and input/output operations per second (IOPS) performance for an 8 KiB block size on an SSD drive:

Volume size Read (IOPS) Write (IOPS) Throughput (MiBps) Read/Write latency
1 TiB 6000 6000 48 < 1 ms
4 TiB 24000 24000 192 < 1 ms
8 TiB 48000 48000 384 < 1 ms
12 TiB 72000 72000 576 < 1 ms
16 TiB 96000 96000 768 < 1 ms

Use the following storage recommendations to improve the performance of your databases and applications in your Bare Metal Solution environment:

  • When you deploy multiple storage volumes, use consistent volume sizes to get consistent performance for databases and applications.
  • We recommend that you configure 1 LUN for each volume with 4 TiB or less, and 8 LUNs for volumes with more than 4 TiB.
  • When you add a new storage volume, always remember to rescan the LUNs to detect the new storage capacity.

Storage volume snapshots

The Bare Metal Solution provides options to save snapshots of your storage volumes to use for recovery purposes. Snapshots are available as follows:

  • OS boot volume: Google Cloud takes a daily snapshot by default.
  • Data volume: You can request daily snapshots when you place your initial order for Bare Metal Solution. You can also contact Customer Care to request data volume snapshots for existing storage volumes.

Google Cloud takes snapshots of the boot OS volume automatically every day at 12:10 AM in the region where your Bare Metal Solution servers are located. We also take a snapshot of your data volume if you have ordered this. We retain the snapshots for 7 days, and you cannot modify the schedule for these snapshots.

The following diagram shows the default process of how snapshots fill up a storage volume.

Visual representation of how snapshots fill up a storage volume and need to be
deleted to allow new snapshots

  • When Google Cloud enables snapshots on a data volume, we reserve 80% of the volume for regular data and 20% of the volume for snapshots. The latter is called the snapshot reserve.
  • When the snapshot reserve fills its original 20% space, the volume grows automatically by an additional 20%. This increases both the data area and the snapshot reserve proportionally.
  • If the snapshot reserve becomes 100% full, snapshots spill over into the data area.
  • If both the data area and snapshot reserve become 100% full, the volume goes offline to prevent corruption of the LUNs. Write operations are suspended.
  • To bring the volume back online, you need to reclaim sufficient space in the volume by deleting prior snapshots.

Your data volume might fill up as the result of a high rate of data change within the LUN(s). For example, an application might write and delete large amounts of data within a 24-hour period.

To delete data volume snapshots and bring a data volume back online, or restore an OS boot volume snapshot, contact Customer Care.

Networking

Each Bare Metal Solution environment resides in a secure region extension that is connected to the corresponding Google Cloud region by a Partner Interconnect connection that is provided and managed by Google Cloud.

Google Cloud monitors round-trip latencies between VM instances in Compute Engine zones and the Bare Metal Solution environment in the same region. For Google Cloud locations in Los Angeles, Ashburn, and London, median round-trip latencies are regularly measured at 0.6 ms to 1 ms.

Choose standard networking or explore advanced networking options

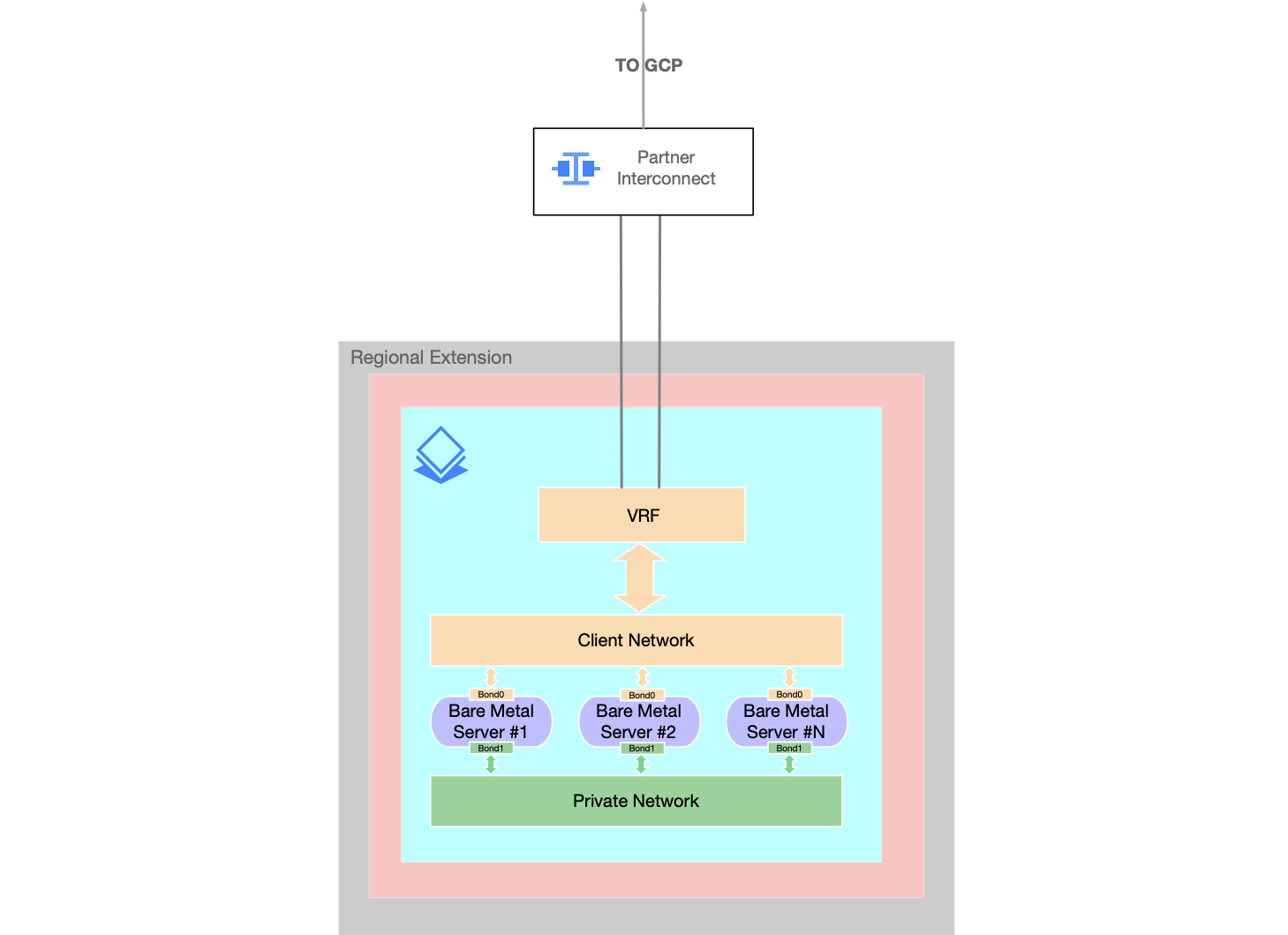

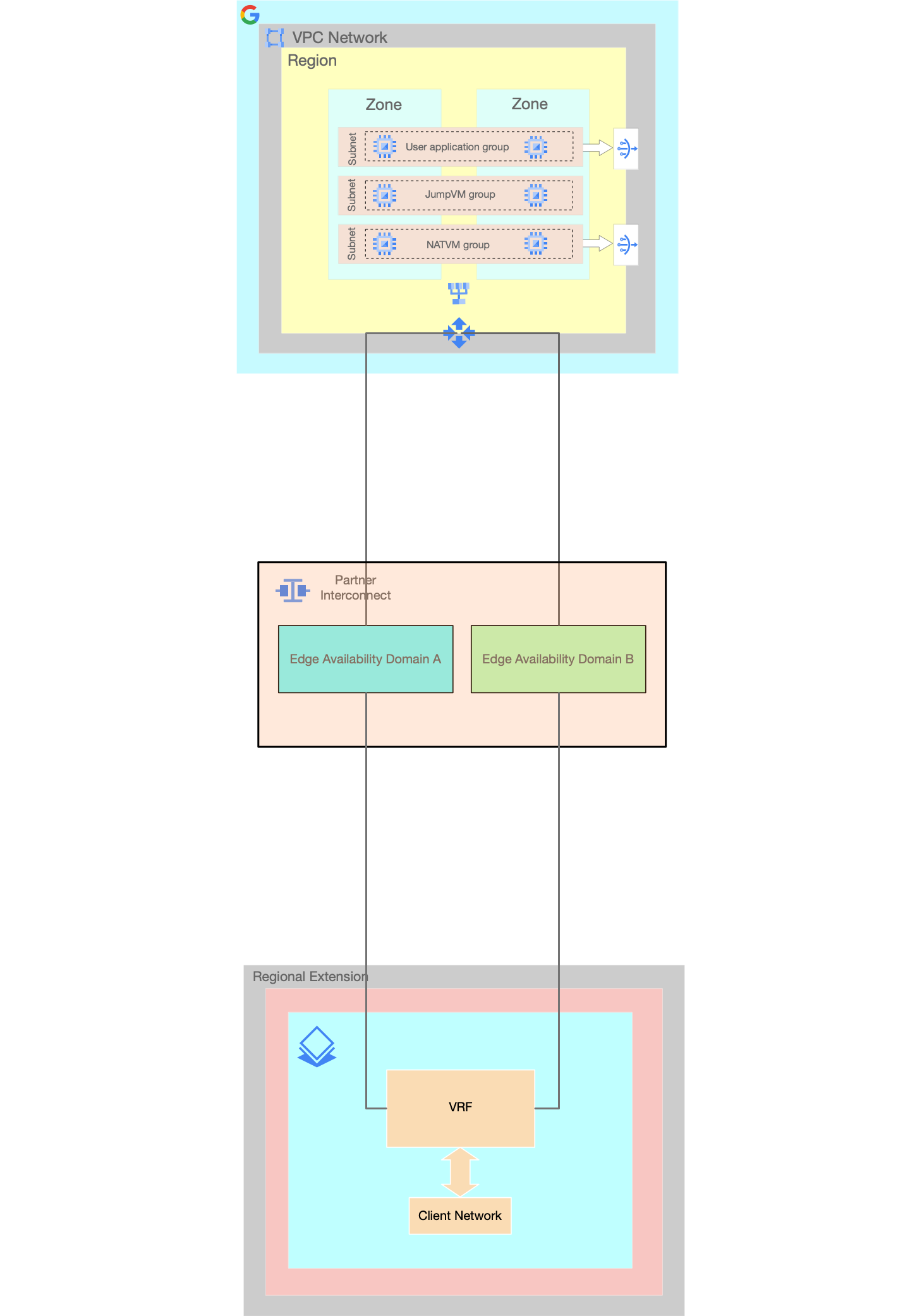

The standard networking configuration for Bare Metal Solution offers a basic network topology that is appropriate for most small-scale deployments. The standard networking configuration includes:

  • Four physical interfaces for each Bare Metal Solution server. We bundle the interfaces into two logical interfaces called bonds. These bonded interfaces use a standard networking template to provide basic redundancy and load balancing.
    • One bonded interface connects to a single, client VLAN network to reach Google Cloud.
    • The second bonded interface connects to a single, private VLAN network for services and applications running locally in your Bare Metal Solution environment.
  • A single Partner Interconnect connection with a single pair of VLAN attachments connects your Google Virtual Private Cloud to the client VLAN in your Bare Metal Solution environment.

If the standard networking configuration does not meet your needs, you can consider implementing some advanced networking capabilities. If you already have a Bare Metal Solution environment and would like to migrate to an advanced networking configuration, contact Customer Care. If you are a new customer and would like to implement an advanced networking configuration, contact Google Cloud Sales.

When you order an advanced networking configuration, the following options become available for more complex network deployments:

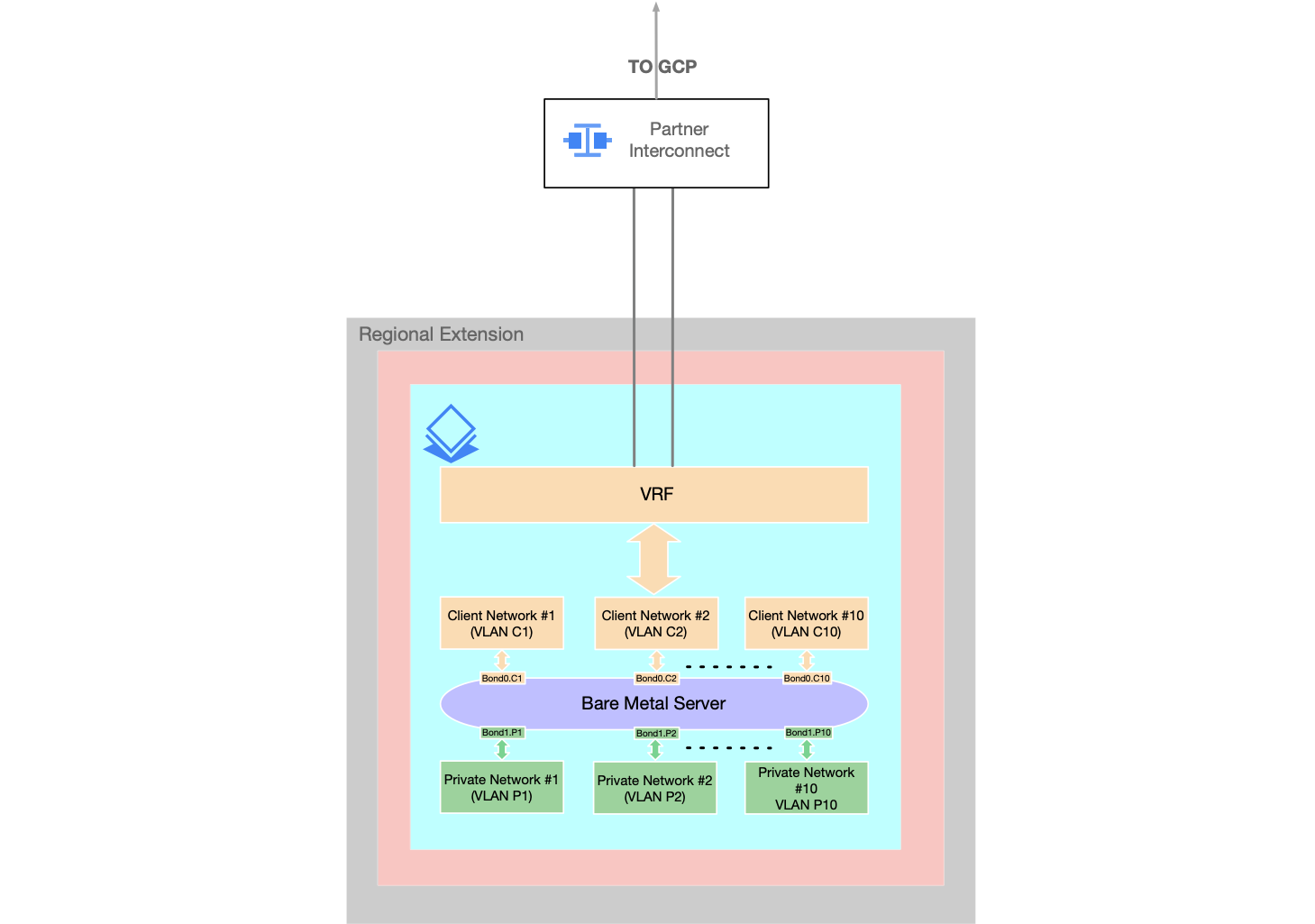

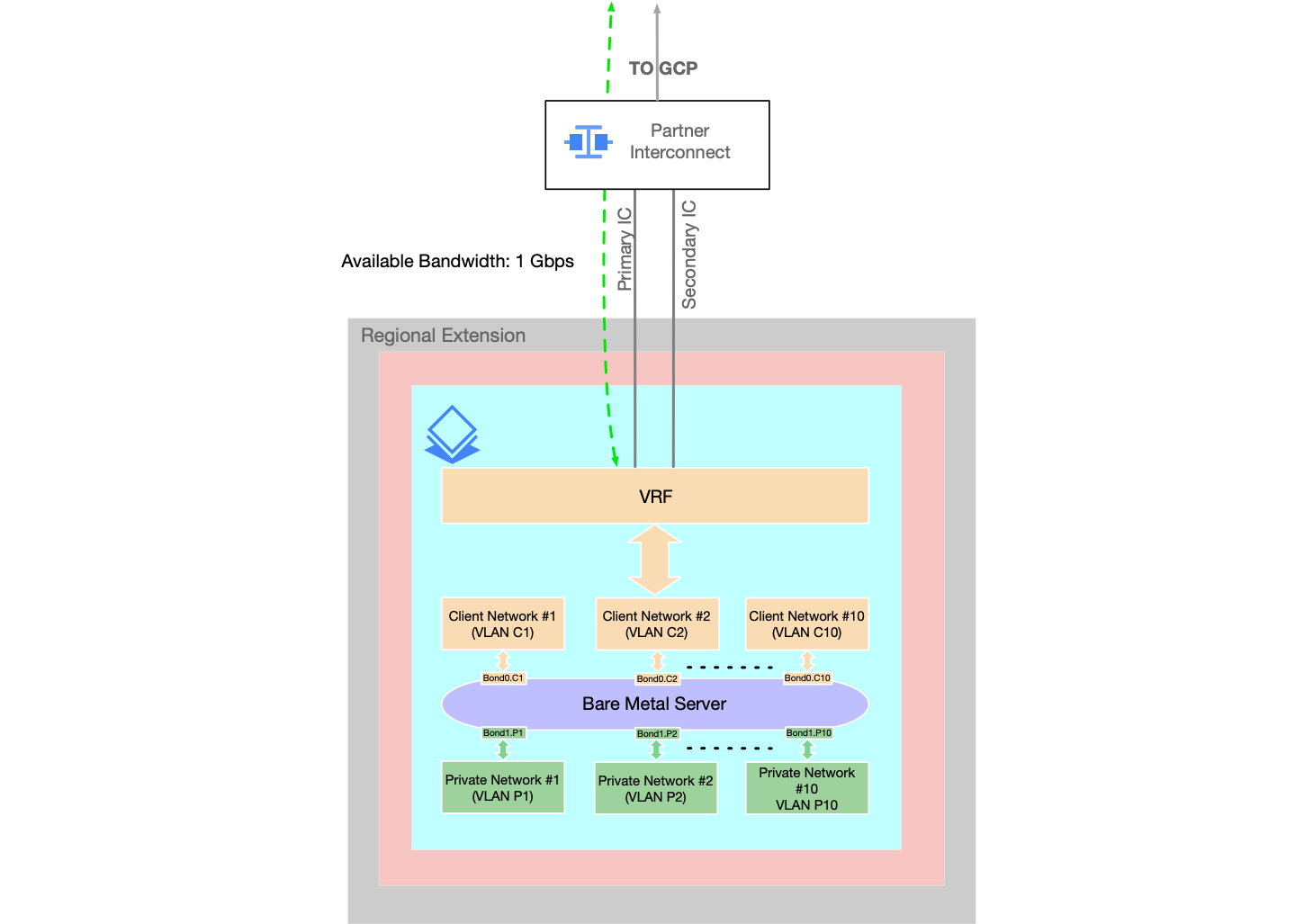

  • Instead of a single VLAN for each bonded interface, you can add multiple VLANs on the same bonded interface.

    • The additional VLANs can be client VLANs, private VLANs, or a combination of both.
    • You can add up to 10 VLANs per bonded interface and a total of 20 VLANs per server.
    • You can enable routing between different client VLANs in the same networking environment.

    • To add multiple VLANs to your Bare Metal Solution servers, you have two options:

      • Request a server reimage and specify which VLANs you want added to the server bonded interfaces.

      • Request a network change, then use your operating system to add the selected networks to the server bonded interfaces using information received from Google Cloud Support.

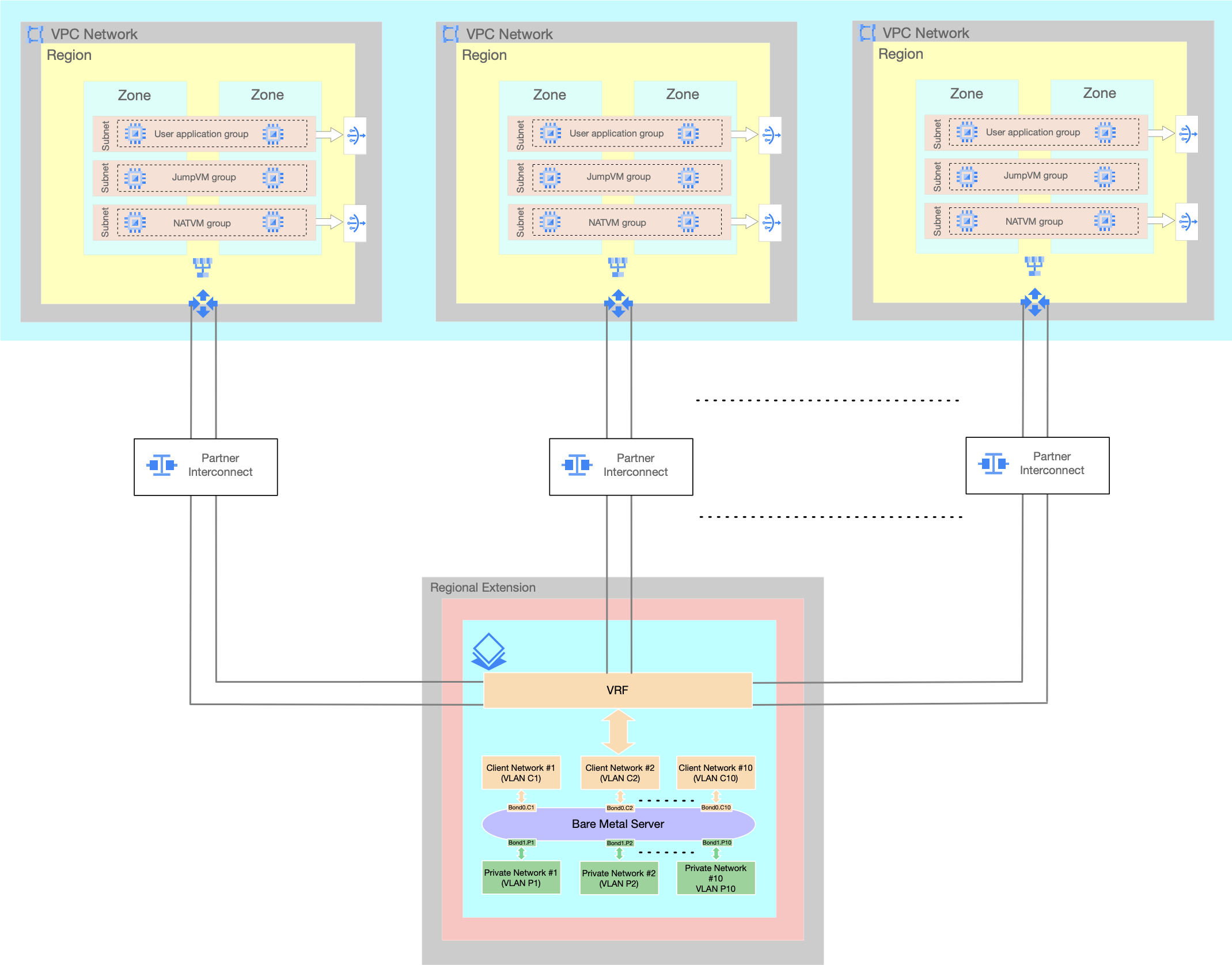

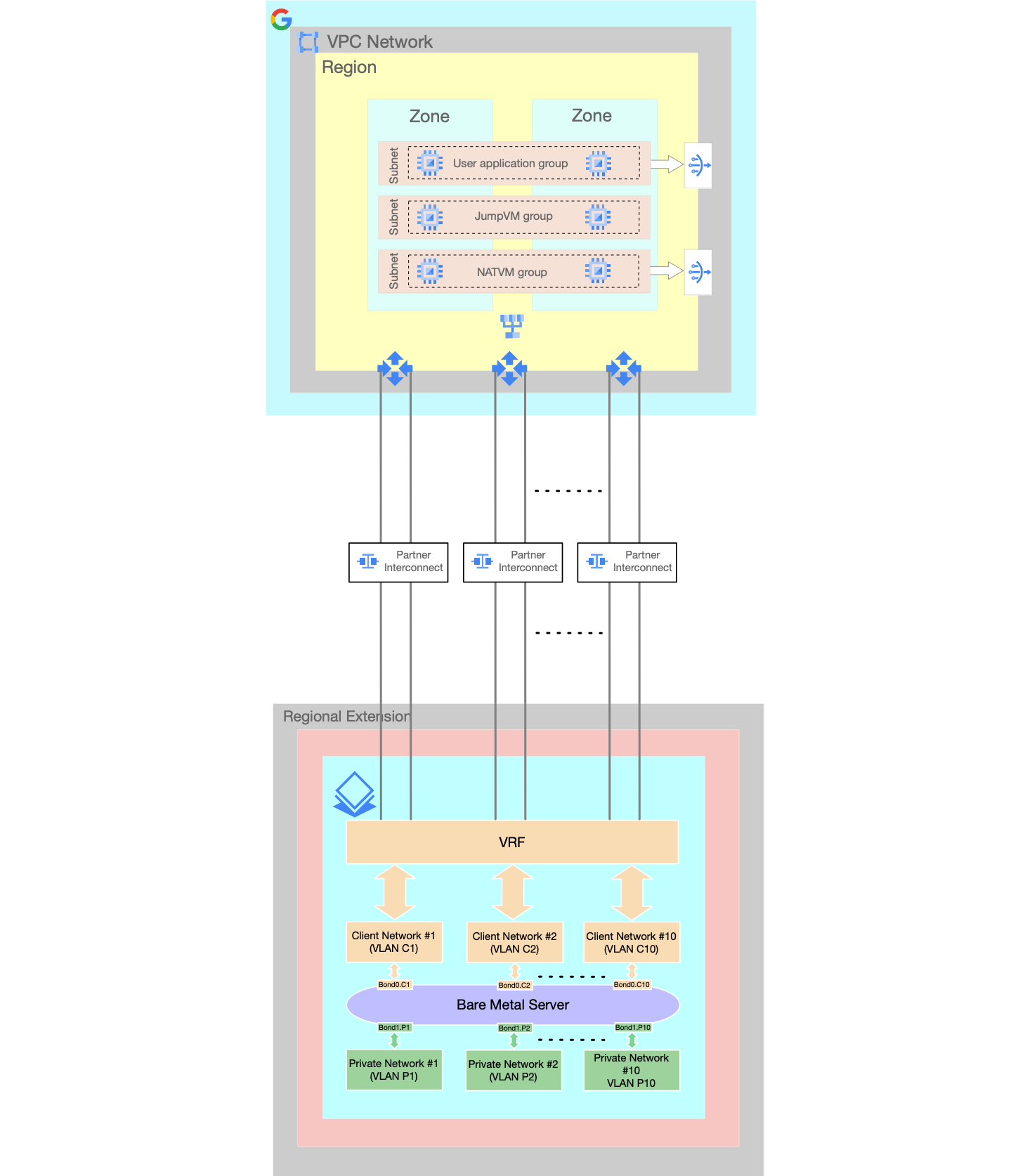

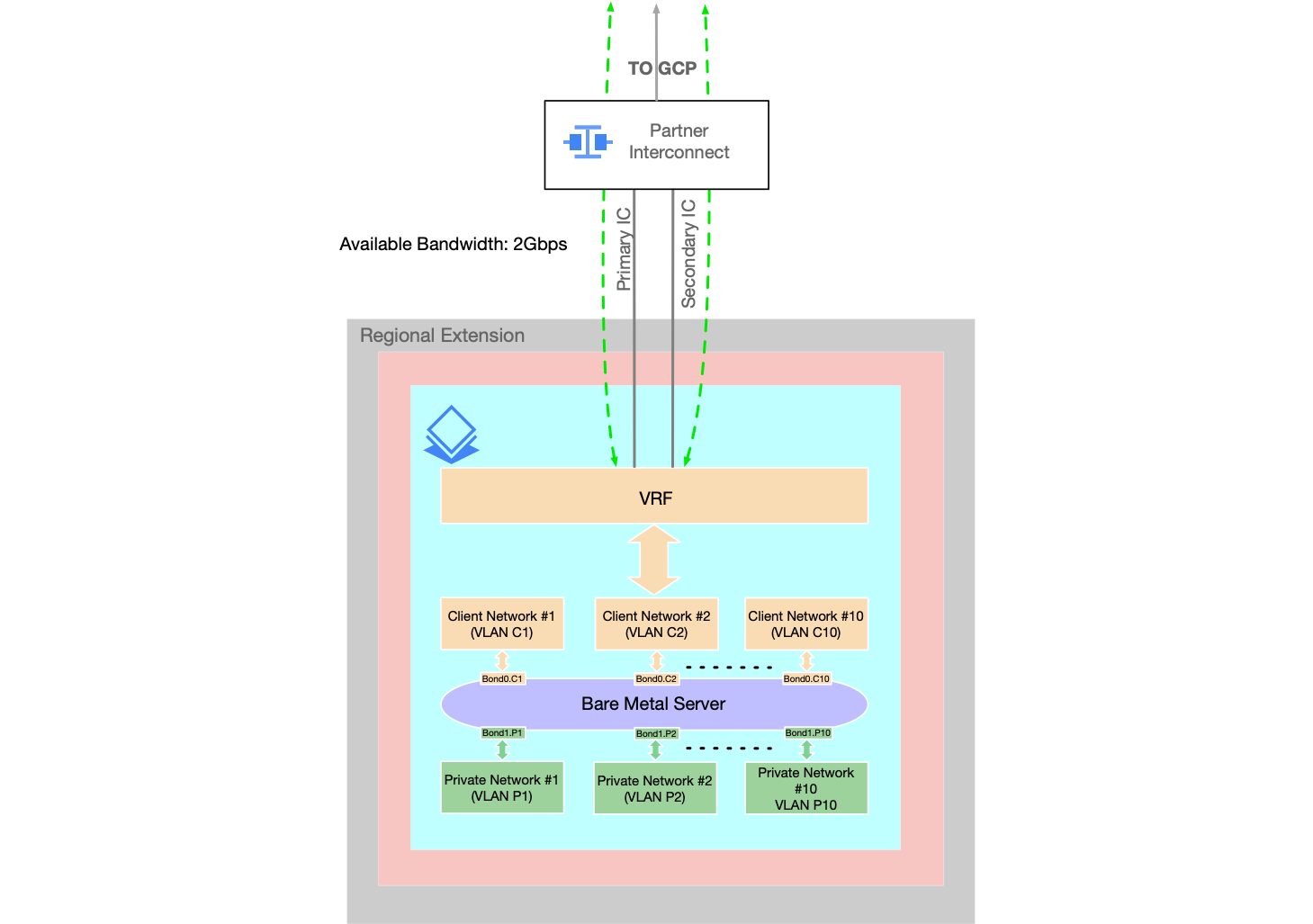

  • You can configure multiple VLAN attachments over a Partner Interconnect connection to your Bare Metal Solution environment.

    • This provides more bandwidth between your VPC and the Bare Metal Solution environment than the bandwidth offered by a single set of VLAN attachments.

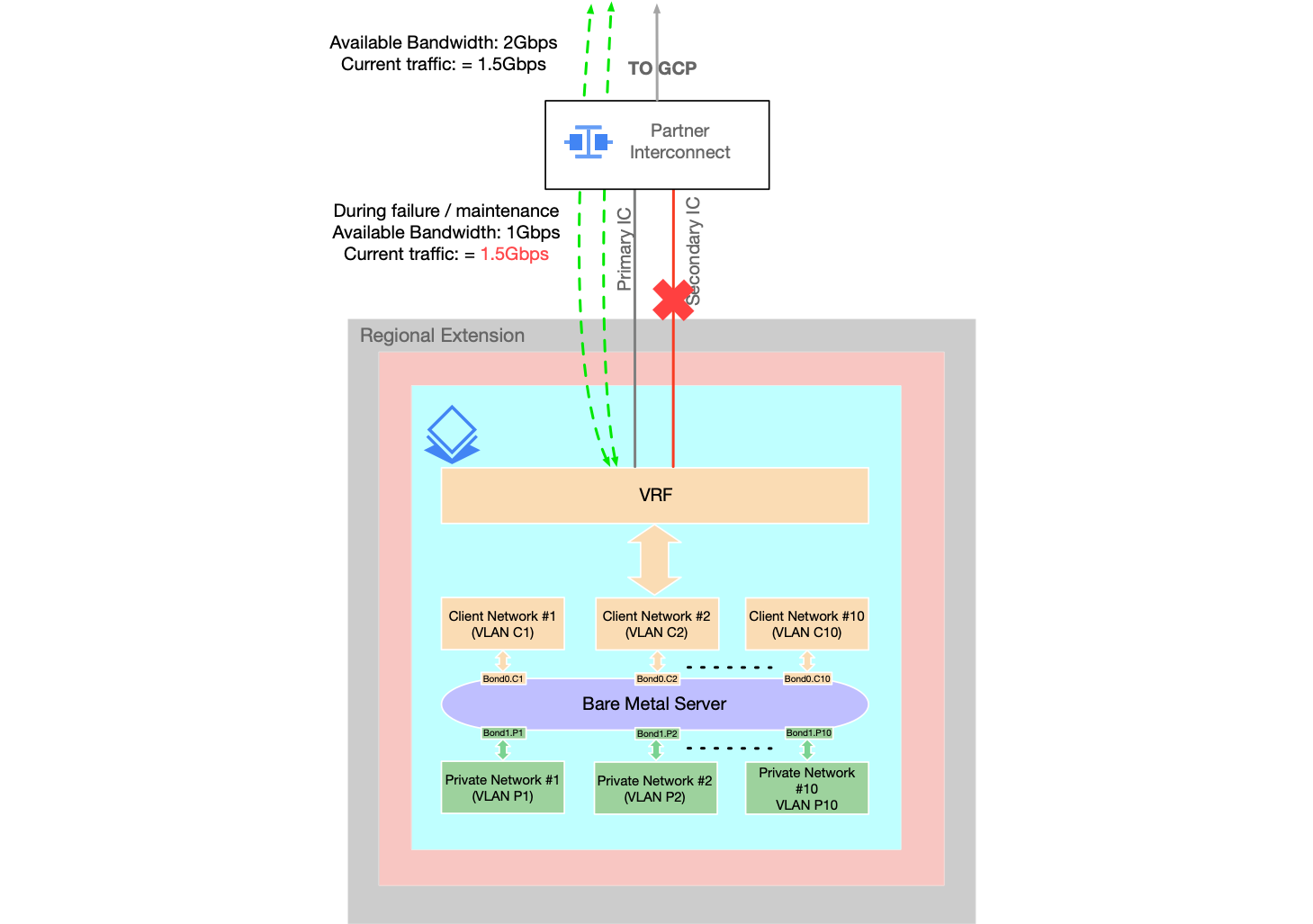

    • The network load balances the traffic across the multiple VLAN attachments.
    • Based on network conditions, total available bandwidth might be lower than the sum of the bandwidth of the Partner Interconnect connections.
    • To configure multiple VLAN attachments, see Create the VLAN attachments for the Partner Interconnect connection.
  • You can connect the Bare Metal Solution environment to more than one Virtual Private Cloud (VPC) in your Google Cloud project.

  • You must use the same maximum transmission unit (MTU) for every VLAN to ensure consistent switching between devices.

    • Select either a normal frame size (1500 bytes) or jumbo frames (9000 bytes).
    • Specify the same MTU for every VLAN in the client VLAN network and the private VLAN network.
    • Do not change the MTU setting on your VLANs after initial provisioning.
  • You can use network templates to enable a flexible network design of your choice, such as active/active and active/backup, to meet your needs for high availability, redundancy, and load balancing.

    • Templates allow for different combinations of connections between server interfaces, bonds, and switch ports.
    • To learn more about templates and request them for your Bare Metal Solution network, contact Google Cloud Sales.

Partner Interconnect for Bare Metal Solution

The connection between your Google Cloud environment and your Bare Metal Solution environment uses the Partner Interconnect framework.

For more information about the Partner Interconnect framework, see the Partner Interconnect documentation, but keep in mind the following differences applicable in the context of Bare Metal Solution:

  • Because Google Cloud manages the network connection, you provide pairing keys for the VLAN attachments to Google Cloud instead of a third-party service provider.
  • This connection to the Bare Metal Solution environment is not subject to the pricing model that the Partner Interconnect product uses. For more information about the pricing model, talk to your Google Cloud Sales representative.

Defining your own IP address spaces

Bare Metal Solution enables you to bring your own IP subnets for use in the bare-metal environment. This enables you to fit your Bare Metal Solution into any existing IP address schema that your enterprise might have.

When you place an order for Bare Metal Solution, you provide two internal IP address ranges: a client IP address range for communication between your Google Cloud and Bare Metal Solution environments, and a private IP address range used for accessing services and devices within the Bare Metal Solution environment.

You can also select the specific IP addresses to use with each server.

Make sure that no existing IP addresses in your VPC network or your extended on-premises network conflict with the IP ranges that you use for Bare Metal Solution environment.

Multi-region networking considerations

For any outside communication, including communication with services or your on-premises environments, the communication from your Bare Metal Solution environment must pass through the VPC network that you are using to connect to your Bare Metal Solution environment.

Consider using a single VPC network with global_dynamic routing enabled if your Bare Metal Solution environment will require access to other Google Cloud regions to connect to any of the following resources:

  • Other Bare Metal Solution environments
  • VMs in other regions
  • Other Google Cloud services
  • Your on-premises sites in other geographical locations

Using a VPC network with global dynamic routing enabled and custom route advertisements, you can set up a routed environment to connect your Bare Metal Solution instances directly to your Google Cloud and extended on-premises environments in other regions, without any additional configuration in Google Cloud.

Our recommendation is to advertise a default route on the BGP sessions to Bare Metal Solution. This enables you to:

  • Avoid having to make change to routes to the Bare Metal Solution environment even if things change in your VPC subnets or your on-premises environments.
  • Keep the routing table to Bare Metal Solution small and allow it to contain only one prefix.

Network services and your Bare Metal Solution environment

As described earlier, Google Cloud recommends that you advertise a single default route to your Bare Metal Solution environment to keep the routing table simple. However, if your circumstances don't allow that, the routes that you need to expose to your Bare Metal Solution environment are determined by networks and services in your Google Cloud or on-premises environments that need access to the devices or applications in your Bare Metal Solution environment and vice-versa.

Some services that might require routes include NTP servers, DNS servers, LDAP servers, logging services, monitoring services, and so forth, as well as any other workloads and applications that need to communicate with the Bare Metal Solution environment.

Bare Metal Solution does not come with internet access. If you need to, you can setup routing to access the internet through any existing internet gateways that you have, either on Google Cloud or on premises.

Keeping routing simple

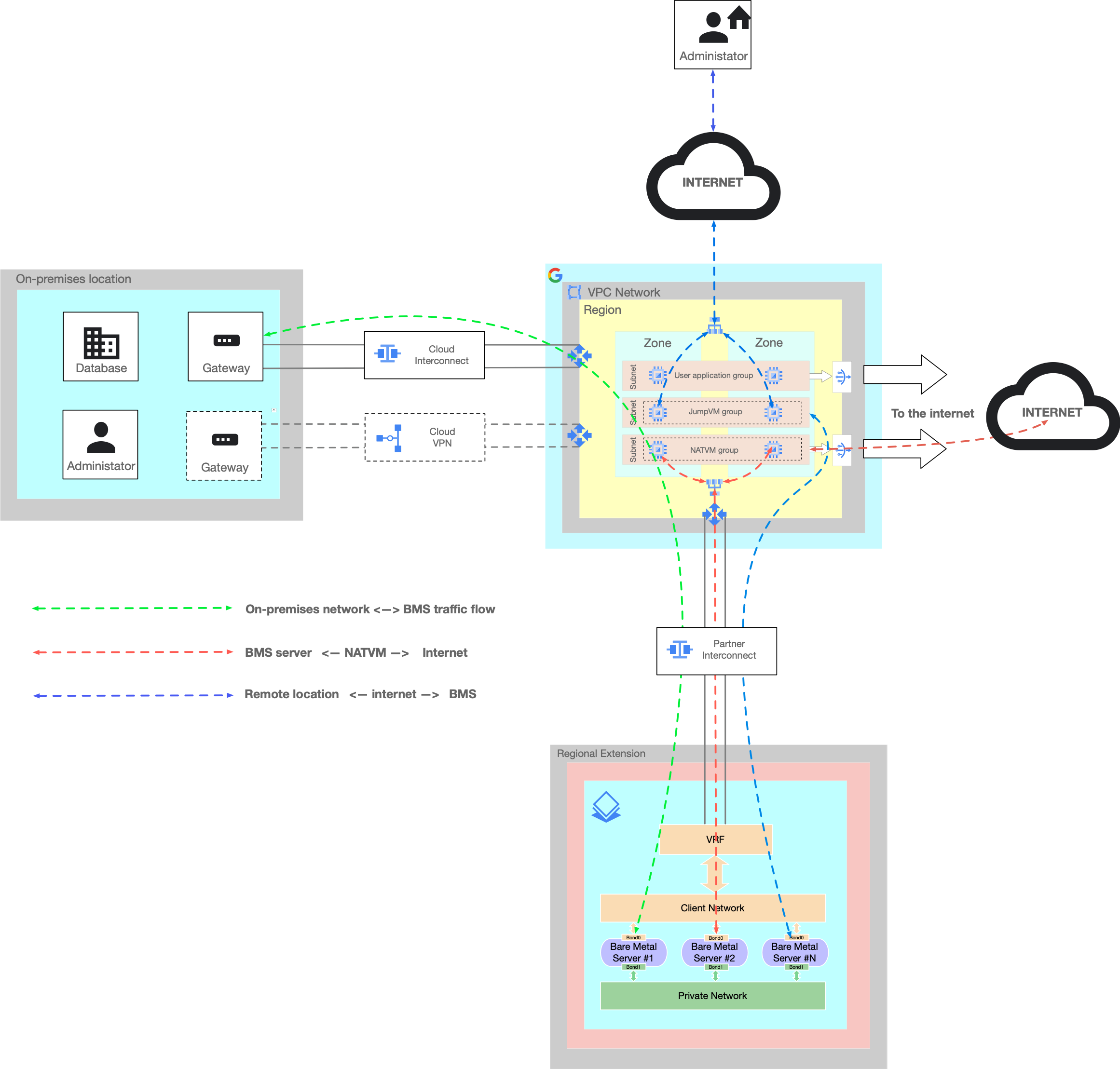

Outside of the other servers in the same Bare Metal Solution region, your servers likely need to communicate with one or more of the following:

  • Your endpoints in your Google Cloud environment
  • Your extended on-premises environment through your Google Cloud environment
  • Your servers in Bare Metal Solution environments in other regions through your Google Cloud environment
  • The internet through your Google Cloud environment

Because all of your communication from the Bare Metal Solution environment is routed through your Google Cloud environment, to keep routing simple, consider advertising either a default route or all RFC 1918 private addresses, based on your IP schemes toward your Bare Metal Solution. You can do this by using custom route advertisements at the BGP-session level to your Bare Metal Solution environment.

Firewalls and the Bare Metal Solution environment

When planning your firewall implementation for the Bare Metal Solution environment, there are a couple things to consider.

If you need to control traffic between the servers or applications within the Bare Metal Solution environment (east-west traffic), ask your Google Cloud sales representative for the available options.

In your VPC network on Google Cloud, you need to create firewall rules that allow incoming connections from the Bare Metal Solution environment.

Required networking information for your Bare Metal Solution order

When you submit a Bare Metal Solution order, include the following networking information:

  • The Google Cloud project ID that you are using with your Bare Metal Solution environment.
  • The IP ranges that you intend to use in your Bare Metal Solution environment. For example, the client IP address range used for communication between your Google Cloud and Bare Metal Solution environments, and the private IP address range used for services and devices within the Bare Metal Solution environment.
  • The number of VLANs you need in your Bare Metal Solution environment. Keep in mind that you need at least 2 VLANs for each Partner Interconnect.
  • The bandwidth, in 1 Gbps increments, that you need between your Google Cloud environment and your Bare Metal Solution environment.
