Connection resets during TLS handshake for non-SNI clients

Symptom

Your client application may experience connection reset, connection refused, or similar errors during the TLS handshake when calling the Apigee endpoint.

Error messages

Postman or Node.js clients may see ECONRESET error messages.

Curl may show Connection reset by peer when making HTTPS calls directly to the Apigee Ingress IP address. For example:

curl https://1.2.3.4/basepath -H "Host: your.apigee.domain" -kv
* Connected to 1.2.3.4 (1.2.3.4) port 443
* (304) (OUT), TLS handshake, Client hello (1):
* Recv failure: Connection reset by peer
* Closing connection

Other clients may display different errors. However, the pattern would be the same; the client is unable to establish a connection fully during the TLS handshake.

Possible causes

Apigee Hybrid's Ingress Gateway is Server Name Indication (SNI) enabled by default. This issue can occur if your client is not SNI enabled and there is no wildcard Apigee route configured to enable non-SNI clients. This results in no default TLS server certificate being sent to the client, and an Apigee ingress TCP reset occurs.

Diagnosis

Determine if your client is SNI enabled. If you already know that it's not SNI enabled, proceed to step 4 to validate the Apigee Hybrid configuration.

Review the Apigee Ingress access logs for signs of client requests without the SNI server name, and check if virtual hosts are not configured with a default certificate for non-SNI clients.

Get a listing of your apigee-ingressgateway pods with the following command:

kubectl -n apigee get pods -l app=apigee-ingressgateway

Sample output

NAME                                                              READY   STATUS    RESTARTS   AGE
apigee-ingressgateway-ext-ingress-myorg-hyb-8f2c412-dvrcp         2/2     Running   0          46h
apigee-ingressgateway-ext-ingress-myorg-hyb-8f2c412-wg26k         2/2     Running   0          46h

Get the logs for an apigee-ingressgateway pod.
```
kubectl -n apigee logs APIGEE_INGRESSGATEWAY_POD
```
Where APIGEE_INGRESSGATEWAY_POD is an apigee-ingressgateway pod listed in the previous command output.

An access log may look like the following:

{
  "request_time": 1,
  "tls_protocol": null,
  "upstream_service_time": null,
  "request_method": null,
  "request_protocol": null,
  "upstream_response_time": null,
  "bytes_sent": 0,
  "start_time": "2025-05-19T04:46:20.117Z",
  "bytes_received": 0,
  "host": null,
  "upstream_cluster": null,
  "upstream_address": null,
  "remote_address": "10.138.0.28:19432",
  "request_path": null,
  "request_id": null,
  "user_agent": null,
  "status_details": "filter_chain_not_found",
  "request": "- - -",
  "status": 0,
  "x_forwarded_for": null,
  "apigee_dynamic_data": null,
  "upstream_response_flags": "NR",
  "sni_host": null
}

Analyzing the preceding log, you can infer the following:
1. "sni_host": null: The client is not SNI enabled as there is no SNI host name. For ex ample, api-test.mydomain.com is associated with this request.
2. "status_details": "filter_chain_not_found": Server certificates are selected based on a filter chain which is based on the sni_host. If no sni_host exists and no default is configured, the filter chain cannot be found. This means no server certificate is returned, as seen in the example client request.
3. "status": 0: There's no status code as the connection was reset.

Instead of reviewing logs, a more precise way to check if a client is SNI enabled would be to take a packet capture in front of Apigee Ingress or on Apigee Ingress itself. This will help determine if the client is sending the SNI header for the TLS handshake.

To run on Apigee Ingressin Google Kubernetes Engine, you would require SSH to the node running the ingress gateway and install toolbox and tcpdump.
Note: The process for running a packet capture may vary depending on the platform where Apigee Hybrid is installed.
```
tcpdump -n -i any -s 0 'host IP_Address' -w FILE_NAME
```
Where FILE_NAME is the name of the file, including path, where you want the packet capture output saved.
Analyse the packet capture using Wireshark or a similar tool.

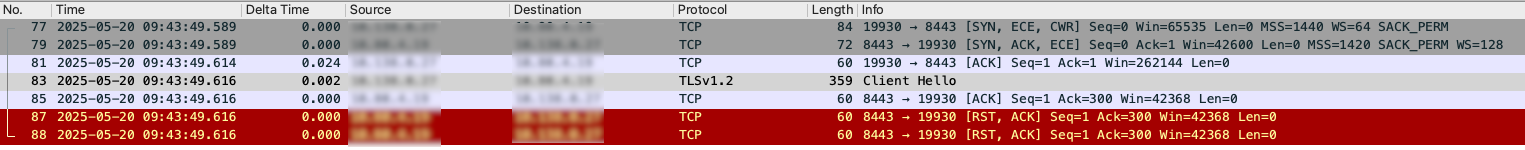

Here's a sample analysis of a packet capture using Wireshark taken on Apigee Ingress. .
- In the packet capture output, message #83 indicates that the Client (source) sent a "Client Hello" message to Apigee Ingress (destination).

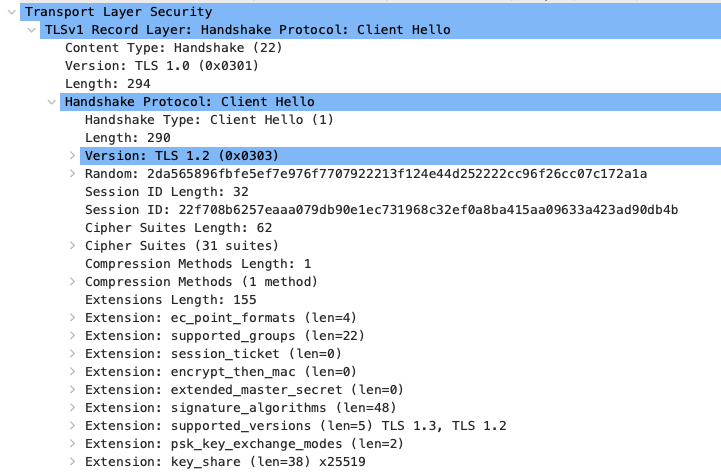

- When you select the Client Hello message and examine the Handshake Protocol: Client Hello, you will see that the Extension: server_name is missing.
- As an example, an SNI enabled client will show Extension: server_name in the output as shown in the following example.
- This confirms that the client did not send the server_name to Apigee Ingress.
- Since no SNI server_name is included in the Client Hello message, no server certificate is returned, and Apigee Ingress closes the connection with an RST packet.

Check if non-SNI clients are supported by testing an Apigee endpoint with a tool like OpenSSL to send requests with or without the SNI header.al.
1. Check if non-SNI clients are enabled.
```
openssl s_client -connect api-test.mydomain.com:443 -noservername
```
  Example Output
```
Connecting to 1.2.3.4
CONNECTED(00000005)
write:errno=54
---
no peer certificate available
---
No client certificate CA names sent
---
SSL handshake has read 0 bytes and written 299 bytes
Verification: OK
---
New, (NONE), Cipher is (NONE)
This TLS version forbids renegotiation.
Compression: NONE
Expansion: NONE
No ALPN negotiated
Early data was not sent
Verify return code: 0 (ok)
---
```
2. The response above shows no peer certificate available which means SNI clients are not enabled within the Apigee route, as we passed the -noservername option in the command. If a peer certificate was returned while using the -noservername flag, this would indicate a wildcard route is configured.
  Note: Older versions of OpenSSL are non-SNI by default and require the -servername option to send the SNI header.
Review the current Apigee route configuration to see if a wildcard route is configured and enabled on the virtual host.
1. Get a list of the defined Apigee routes with the following command:
```
kubectl -n apigee get apigeeroutes
```
  Sample output
```
NAME                                  STATE     AGE
myorg-hyb-dev-grp-000-33620d0         running   2d1h
non-sni                               running   17s
```
2. Check each Apigee route for hostnames that include a wildcard.
  For each Apigee route, execute the provided command to retrieve a JSON array of its defined hostnames. A wildcard route will be indicated by an asterisk (*) within the output.
```
kubectl -n apigee get apigeeroute APIGEE_ROUTE_NAME
```
  Example for myorg-hyb-dev-grp-000-33620d0 route:
```
kubectl -n apigee get apigeeroute myorg-hyb-dev-grp-000-33620d0 -o jsonpath='{.spec.hostnames}'
```
  Sample output
```
["api-test.mydomain.com"]
```
  Example for non-sni route:
```
kubectl -n apigee get apigeeroute non-sni -o jsonpath='{.spec.hostnames}'
```
  Sample output
```
["*"]
```
  The non-sni apigeeroute is a wildcard route as it contains (*) as a hostname.
3. If a wildcard route is configured, then non-SNI clients are enabled.
4. For the wildcard route, make sure the enableNonSniClient flag is set to true. The following command runs on the wildcard route with non-sni client.
```
kubectl -n apigee get apigeeroute non-sni -o jsonpath='{.spec.enableNonSniClient}'
```
  Sample output
```
true
```
5. If the wildcard route exists and non-SNI clients are enabled, review the virtual host configuration in the overrides.yaml file to make sure that the wildcard route is listed in the additionalGateways.
```
virtualhosts:
- name: dev-grp
  selector:
    app: apigee-ingressgateway
    ingress_name: ext-ingress
  sslCertPath: ./certs/keystore_dev-grp.pem
  sslKeyPath: ./certs/keystore_dev-grp.key
  additionalGateways: ["non-sni"]

```
6. The additionalGateways will show up in the Apigee route defined by your virtual host configuration. Use the following command to confirm your configured additionalGateway is showing up in the Apigee route configuration.
```
  kubectl -n apigee get apigeeroute APIGEE_ROUTE_NAME -o jsonpath='{.spec.additionalGateways}
```
  For example, the myorg-hyb-dev-grp-000-33620d0 route should show the non-sni route as an additionalGateway.
```
  kubectl -n apigee get apigeeroute myorg-hyb-dev-grp-000-33620d0 -o jsonpath='{.spec.additionalGateways}'
```
  Sample output
```
["non-sni"]
```
Resolution

If the diagnostic steps indicate that your client is a non-SNI enabled client and non-SNI clients are not enabled or properly configured in your Apigee Hybrid installation, follow the enable non-SNI clients documentation to allow traffic from non-SNI clients.

Must gather diagnostic information
If the problem persists even after following the preceding instructions, gather the following diagnostic information and then contact Google Cloud Customer Care:
- Overrides.yaml
- Output of the following commands
- Environment Group(s) exhibiting the issue
