由客戶管理的加密金鑰 (CMEK)

根據預設， Google Cloud 系統會使用 Google 代管的加密金鑰，在資料處於靜態狀態時自動加密。

如果您在保護資料的金鑰方面有特定的法規遵循或監管要求，可以為 Document AI 使用客戶自行管理的加密金鑰 (CMEK)。您可以在 Cloud Key Management Service (KMS) 中控制及管理用來保護您資料的加密金鑰，而不是由 Google 管理。

本指南說明 Document AI 的 CMEK。如要進一步瞭解 CMEK 一般資訊，包括啟用時機和原因，請參閱 Cloud Key Management Service 說明文件。

修課條件

Document AI 服務代理人必須擁有您所用金鑰的 Cloud KMS CryptoKey Encrypter/Decrypter 角色。

下列範例會授予可存取 Cloud KMS 金鑰的角色：

gcloud

gcloud kms keys add-iam-policy-binding key \
    --keyring key-ring \
    --location location \
    --project key_project_id \
    --member serviceAccount:service-project_number@gcp-sa-prod-dai-core.iam.gserviceaccount.com \
    --role roles/cloudkms.cryptoKeyEncrypterDecrypter

將 key 替換為金鑰名稱。將 key-ring 替換為金鑰所在金鑰環的名稱。將 location 替換為金鑰環的 Document AI 位置。將 key_project_id 替換為金鑰環的專案。將 project_number 替換為專案編號。

C#

詳情請參閱 Document AI C# API 參考說明文件。

如要向 Document AI 進行驗證，請設定應用程式預設憑證。 詳情請參閱「為本機開發環境設定驗證」。


using Google.Cloud.Iam.V1;
using Google.Cloud.Kms.V1;

public class IamAddMemberSample
{
    public Policy IamAddMember(
      string projectId = "my-project", string locationId = "us-east1", string keyRingId = "my-key-ring", string keyId = "my-key",
      string member = "user:foo@example.com")
    {
        // Create the client.
        KeyManagementServiceClient client = KeyManagementServiceClient.Create();

        // Build the resource name.
        CryptoKeyName resourceName = new CryptoKeyName(projectId, locationId, keyRingId, keyId);

        // The resource name could also be a key ring.
        // var resourceName = new KeyRingName(projectId, locationId, keyRingId);

        // Get the current IAM policy.
        Policy policy = client.IAMPolicyClient.GetIamPolicy(
            new GetIamPolicyRequest
            {
                ResourceAsResourceName = resourceName
            });

        // Add the member to the policy.
        policy.AddRoleMember("roles/cloudkms.cryptoKeyEncrypterDecrypter", member);

        // Save the updated IAM policy.
        Policy result = client.IAMPolicyClient.SetIamPolicy(
            new SetIamPolicyRequest
            {
                ResourceAsResourceName = resourceName,
                Policy = policy
            });

        // Return the resulting policy.
        return result;
    }
}

Go

詳情請參閱 Document AI Go API 參考說明文件。

如要向 Document AI 進行驗證，請設定應用程式預設憑證。 詳情請參閱「為本機開發環境設定驗證」。

import (
	"context"
	"fmt"
	"io"

	kms "cloud.google.com/go/kms/apiv1"
)

// iamAddMember adds a new IAM member to the Cloud KMS key
func iamAddMember(w io.Writer, name, member string) error {
	// NOTE: The resource name can be either a key or a key ring. If IAM
	// permissions are granted on the key ring, the permissions apply to all keys
	// in the key ring.
	//
	// name := "projects/my-project/locations/us-east1/keyRings/my-key-ring/cryptoKeys/my-key"
	// member := "user:foo@example.com"

	// Create the client.
	ctx := context.Background()
	client, err := kms.NewKeyManagementClient(ctx)
	if err != nil {
		return fmt.Errorf("failed to create kms client: %w", err)
	}
	defer client.Close()

	// Get the current IAM policy.
	handle := client.ResourceIAM(name)
	policy, err := handle.Policy(ctx)
	if err != nil {
		return fmt.Errorf("failed to get IAM policy: %w", err)
	}

	// Grant the member permissions. This example grants permission to use the key
	// to encrypt data.
	policy.Add(member, "roles/cloudkms.cryptoKeyEncrypterDecrypter")
	if err := handle.SetPolicy(ctx, policy); err != nil {
		return fmt.Errorf("failed to save policy: %w", err)
	}

	fmt.Fprintf(w, "Updated IAM policy for %s\n", name)
	return nil
}

Java

詳情請參閱 Document AI Java API 參考說明文件。

如要向 Document AI 進行驗證，請設定應用程式預設憑證。 詳情請參閱「為本機開發環境設定驗證」。

import com.google.cloud.kms.v1.CryptoKeyName;
import com.google.cloud.kms.v1.KeyManagementServiceClient;
import com.google.iam.v1.Binding;
import com.google.iam.v1.Policy;
import java.io.IOException;

public class IamAddMember {

  public void iamAddMember() throws IOException {
    // TODO(developer): Replace these variables before running the sample.
    String projectId = "your-project-id";
    String locationId = "us-east1";
    String keyRingId = "my-key-ring";
    String keyId = "my-key";
    String member = "user:foo@example.com";
    iamAddMember(projectId, locationId, keyRingId, keyId, member);
  }

  // Add the given IAM member to the key.
  public void iamAddMember(
      String projectId, String locationId, String keyRingId, String keyId, String member)
      throws IOException {
    // Initialize client that will be used to send requests. This client only
    // needs to be created once, and can be reused for multiple requests. After
    // completing all of your requests, call the "close" method on the client to
    // safely clean up any remaining background resources.
    try (KeyManagementServiceClient client = KeyManagementServiceClient.create()) {
      // Build the key version name from the project, location, key ring, key,
      // and key version.
      CryptoKeyName resourceName = CryptoKeyName.of(projectId, locationId, keyRingId, keyId);

      // The resource name could also be a key ring.
      // KeyRingName resourceName = KeyRingName.of(projectId, locationId, keyRingId);

      // Get the current policy.
      Policy policy = client.getIamPolicy(resourceName);

      // Create a new IAM binding for the member and role.
      Binding binding =
          Binding.newBuilder()
              .setRole("roles/cloudkms.cryptoKeyEncrypterDecrypter")
              .addMembers(member)
              .build();

      // Add the binding to the policy.
      Policy newPolicy = policy.toBuilder().addBindings(binding).build();

      client.setIamPolicy(resourceName, newPolicy);
      System.out.printf("Updated IAM policy for %s%n", resourceName.toString());
    }
  }
}

Node.js

詳情請參閱 Document AI Node.js API 參考說明文件。

如要向 Document AI 進行驗證，請設定應用程式預設憑證。 詳情請參閱「為本機開發環境設定驗證」。

//
// TODO(developer): Uncomment these variables before running the sample.
//
// const projectId = 'my-project';
// const locationId = 'us-east1';
// const keyRingId = 'my-key-ring';
// const keyId = 'my-key';
// const member = 'user:foo@example.com';

// Imports the Cloud KMS library
const {KeyManagementServiceClient} = require('@google-cloud/kms');

// Instantiates a client
const client = new KeyManagementServiceClient();

// Build the resource name
const resourceName = client.cryptoKeyPath(
  projectId,
  locationId,
  keyRingId,
  keyId
);

// The resource name could also be a key ring.
// const resourceName = client.keyRingPath(projectId, locationId, keyRingId);

async function iamAddMember() {
  // Get the current IAM policy.
  const [policy] = await client.getIamPolicy({
    resource: resourceName,
  });

  // Add the member to the policy.
  policy.bindings.push({
    role: 'roles/cloudkms.cryptoKeyEncrypterDecrypter',
    members: [member],
  });

  // Save the updated policy.
  const [updatedPolicy] = await client.setIamPolicy({
    resource: resourceName,
    policy: policy,
  });

  console.log('Updated policy');
  return updatedPolicy;
}

return iamAddMember();

PHP

詳情請參閱 Document AI PHP API 參考說明文件。

如要向 Document AI 進行驗證，請設定應用程式預設憑證。 詳情請參閱「為本機開發環境設定驗證」。

use Google\Cloud\Iam\V1\Binding;
use Google\Cloud\Iam\V1\GetIamPolicyRequest;
use Google\Cloud\Iam\V1\SetIamPolicyRequest;
use Google\Cloud\Kms\V1\Client\KeyManagementServiceClient;

function iam_add_member(
    string $projectId = 'my-project',
    string $locationId = 'us-east1',
    string $keyRingId = 'my-key-ring',
    string $keyId = 'my-key',
    string $member = 'user:foo@example.com'
) {
    // Create the Cloud KMS client.
    $client = new KeyManagementServiceClient();

    // Build the resource name.
    $resourceName = $client->cryptoKeyName($projectId, $locationId, $keyRingId, $keyId);

    // The resource name could also be a key ring.
    // $resourceName = $client->keyRingName($projectId, $locationId, $keyRingId);

    // Get the current IAM policy.
    $getIamPolicyRequest = (new GetIamPolicyRequest())
        ->setResource($resourceName);
    $policy = $client->getIamPolicy($getIamPolicyRequest);

    // Add the member to the policy.
    $bindings = $policy->getBindings();
    $bindings[] = (new Binding())
        ->setRole('roles/cloudkms.cryptoKeyEncrypterDecrypter')
        ->setMembers([$member]);
    $policy->setBindings($bindings);

    // Save the updated IAM policy.
    $setIamPolicyRequest = (new SetIamPolicyRequest())
        ->setResource($resourceName)
        ->setPolicy($policy);
    $updatedPolicy = $client->setIamPolicy($setIamPolicyRequest);
    printf('Added %s' . PHP_EOL, $member);

    return $updatedPolicy;
}

Python

詳情請參閱 Document AI Python API 參考說明文件。

如要向 Document AI 進行驗證，請設定應用程式預設憑證。 詳情請參閱「為本機開發環境設定驗證」。

from google.cloud import kms
from google.iam.v1 import policy_pb2 as iam_policy


def iam_add_member(
    project_id: str, location_id: str, key_ring_id: str, key_id: str, member: str
) -> iam_policy.Policy:
    """
    Add an IAM member to a resource.

    Args:
        project_id (string): Google Cloud project ID (e.g. 'my-project').
        location_id (string): Cloud KMS location (e.g. 'us-east1').
        key_ring_id (string): ID of the Cloud KMS key ring (e.g. 'my-key-ring').
        key_id (string): ID of the key to use (e.g. 'my-key').
        member (string): Member to add (e.g. 'user:foo@example.com')

    Returns:
        Policy: Updated Cloud IAM policy.

    """

    # Create the client.
    client = kms.KeyManagementServiceClient()

    # Build the resource name.
    resource_name = client.crypto_key_path(project_id, location_id, key_ring_id, key_id)

    # The resource name could also be a key ring.
    # resource_name = client.key_ring_path(project_id, location_id, key_ring_id);

    # Get the current policy.
    policy = client.get_iam_policy(request={"resource": resource_name})

    # Add the member to the policy.
    policy.bindings.add(
        role="roles/cloudkms.cryptoKeyEncrypterDecrypter", members=[member]
    )

    # Save the updated IAM policy.
    request = {"resource": resource_name, "policy": policy}

    updated_policy = client.set_iam_policy(request=request)
    print(f"Added {member} to {resource_name}")
    return updated_policy

Ruby

詳情請參閱 Document AI Ruby API 參考說明文件。

如要向 Document AI 進行驗證，請設定應用程式預設憑證。 詳情請參閱「為本機開發環境設定驗證」。

# TODO(developer): uncomment these values before running the sample.
# project_id  = "my-project"
# location_id = "us-east1"
# key_ring_id = "my-key-ring"
# key_id      = "my-key"
# member      = "user:foo@example.com"

# Require the library.
require "google/cloud/kms"

# Create the client.
client = Google::Cloud::Kms.key_management_service

# Build the resource name.
resource_name = client.crypto_key_path project:    project_id,
                                       location:   location_id,
                                       key_ring:   key_ring_id,
                                       crypto_key: key_id

# The resource name could also be a key ring.
# resource_name = client.key_ring_path project: project_id, location: location_id, key_ring: key_ring_id

# Create the IAM client.
iam_client = Google::Cloud::Kms::V1::IAMPolicy::Client.new

# Get the current IAM policy.
policy = iam_client.get_iam_policy resource: resource_name

# Add the member to the policy.
policy.bindings << Google::Iam::V1::Binding.new(
  members: [member],
  role:    "roles/cloudkms.cryptoKeyEncrypterDecrypter"
)

# Save the updated policy.
updated_policy = iam_client.set_iam_policy resource: resource_name, policy: policy
puts "Added #{member}"

使用 CMEK

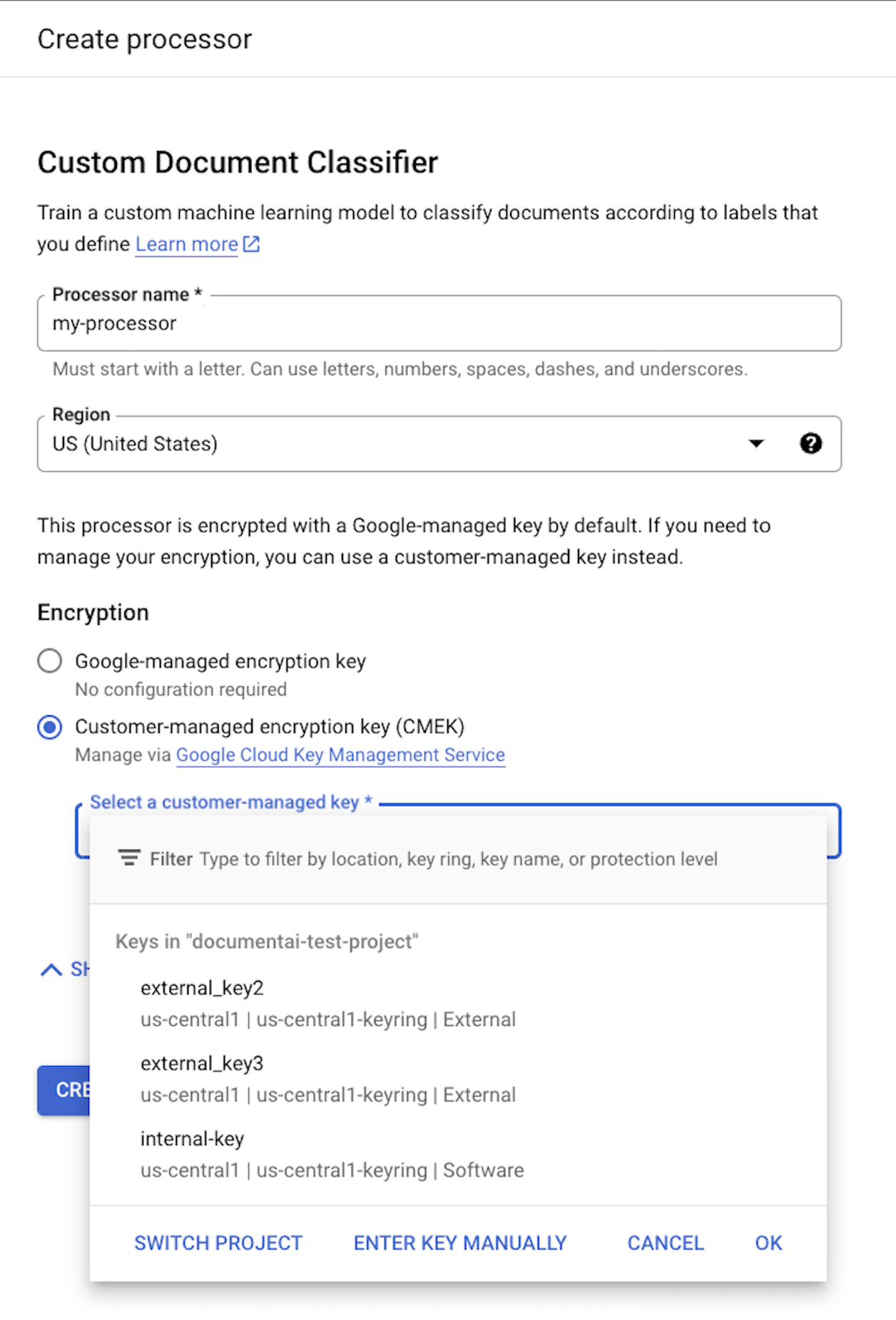

建立處理器時，即可使用加密設定。 如要使用 CMEK，請選取「CMEK」CMEK選項並選取金鑰。

security-3

CMEK 金鑰適用於與處理器及其子項資源相關聯的所有資料。傳送至處理器的所有客戶相關資料，都會先使用提供的金鑰自動加密，再寫入磁碟。

處理器建立後，您就無法變更加密設定。如要使用其他金鑰，請建立新的處理器。

外部金鑰

您可以使用 Cloud External Key Manager (EKM) 建立及管理外部金鑰，加密 Google Cloud中的資料。

使用 Cloud EKM 金鑰時，Google 無法控管外部代管金鑰的供應情形。如果您要求存取以外部代管金鑰加密的資源，但該金鑰無法使用，Document AI 就會拒絕要求。金鑰可用後，您可能需要等待最多 10 分鐘，才能存取資源。

如要進一步瞭解使用外部金鑰的注意事項，請參閱「EKM 注意事項」。

支援 CMEK 的資源

將任何資源儲存到磁碟時，如果資源中儲存了任何客戶資料，Document AI 會先使用 CMEK 金鑰加密內容。

資源 教材已加密
Processor 不適用 - 沒有使用者資料。不過，如果在建立處理器時指定 CMEK 金鑰，則該金鑰必須有效。
ProcessorVersion 全部
Evaluation 全部

支援 CMEK 的 API

使用 CMEK 金鑰加密的 API 包括：

方法 加密
processDocument 不適用 - 系統不會將資料儲存到磁碟。
batchProcessDocuments 資料會暫時儲存在磁碟上，並使用暫時性金鑰加密 (請參閱 CMEK 合規性)。
trainProcessorVersion 用於訓練的文件會使用提供的 KMS/CMEK 金鑰加密。
evaluateProcessorVersion 評估結果會使用您提供的 KMS/CMEK 金鑰加密。

如果金鑰已停用或無法存取，存取加密資源的 API 要求就會失敗。例如：

方法 解密
getProcessorVersion 使用顧客數位資料訓練的處理器版本會經過加密。必須解密才能存取。
processDocument 使用加密的處理器版本處理文件時，必須先解密。
Import Documents 如果使用加密的處理器版本匯入已啟用 auto-labeling 的文件，則必須解密。

CMEK 和 Cloud Storage

API (例如 batchProcess) 可以讀取及寫入 Cloud Storage bucket。

Document AI 寫入 Cloud Storage 的所有資料，都會使用值區設定的加密金鑰加密，這可能與處理器的 CMEK 金鑰不同。

詳情請參閱 Cloud Storage 的 CMEK 說明文件。

上一頁
資訊安全與法規遵循
下一頁
新增稽核記錄
