Connect Microsoft Outlook with data federation

Preview: You must be on the allowlist to use this connector.

This page describes how to connect Microsoft Outlook to Agentspace using data federation.

Use the following procedure to search your Microsoft Outlook account using federated search.

Before you begin

Note: To enforce data source access control and secure data in Google Agentspace, ensure that you have configured your identity provider.

Perform the following steps before connecting to your Microsoft Outlook data store using federated search.

1. Register Agentspace as an OAuth 2.0 application in Microsoft Entra ID. Copy the following credentials:

   • Client ID
   • Client secret
   • Tenant ID

2. Configure the following Microsoft Graph application permissions with the consent of a Microsoft Outlook administrator:

   Permission	Type	Description
   Mail.Read	Delegated	Read user mail
   Calendars.Read	Delegated	Read user calendars
   Contacts.Read	Delegated	Read user contacts

3. Add the following URLs as web callback URLs:

   • https://vertexaisearch.cloud.google.com/console/oauth/default_oauth.html
   • https://vertexaisearch.cloud.google.com/oauth-redirect

Create a federated search connector with Outlook

Use the following steps for Google Cloud console to perform federated search through Microsoft Outlook from Agentspace.

1. In the Google Cloud console, go to the Agentspace page.

   Agentspace

2. In the navigation menu, click Data Stores.

3. Click Create Data Store.

4. On the Select a data source page, select Outlook Federated to connect your third-party data source.

5. Under Authentication settings:

   1. Enter the Client ID, Client secret, and Tenant ID.

   2. Click Login.

   3. Click Continue.

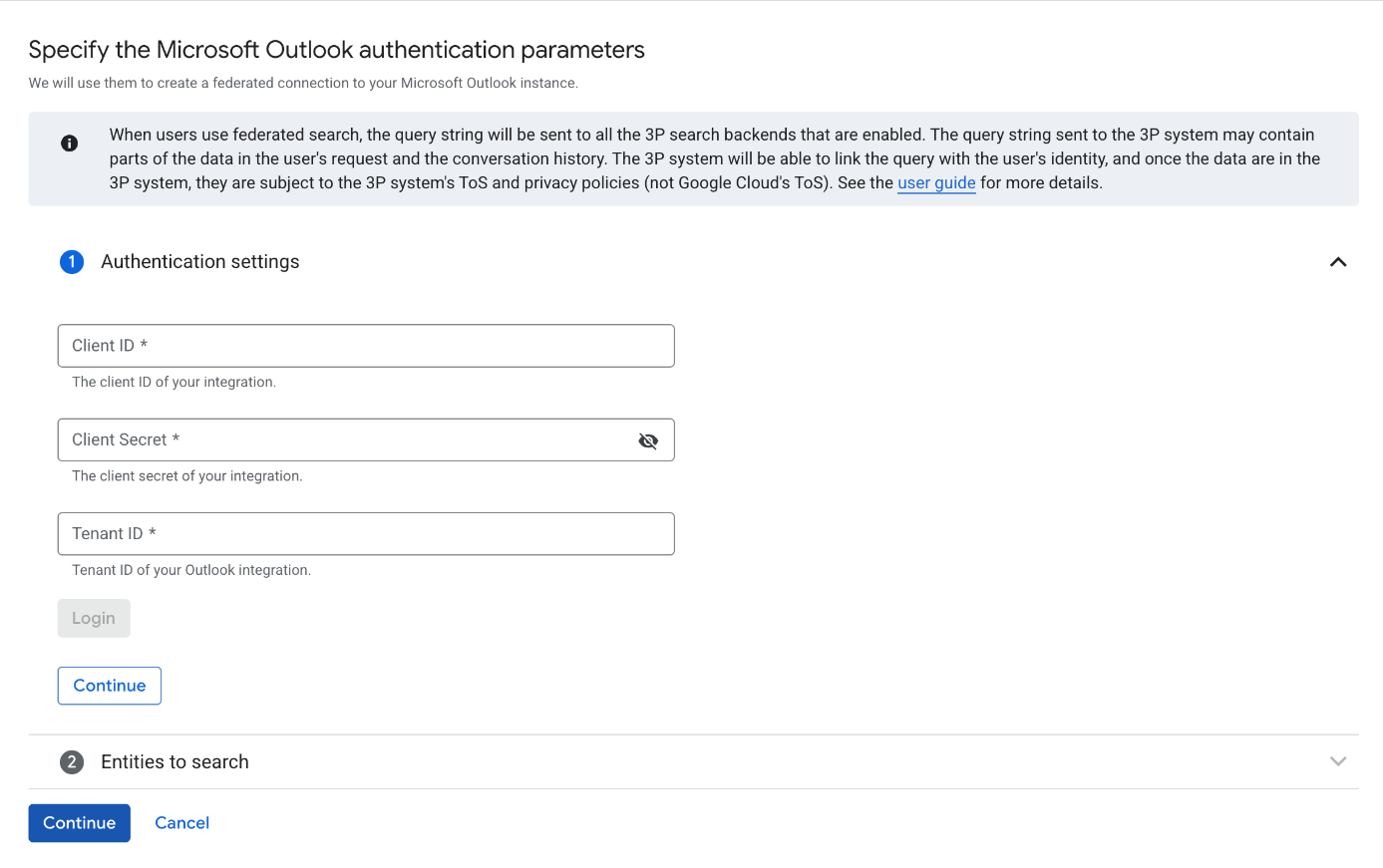

      Login using the copied OAuth 2.0 credentials

6. Select the entities you want to include.

   1. Select from Mail, Calendar, and Contact.

   2. Click Continue.

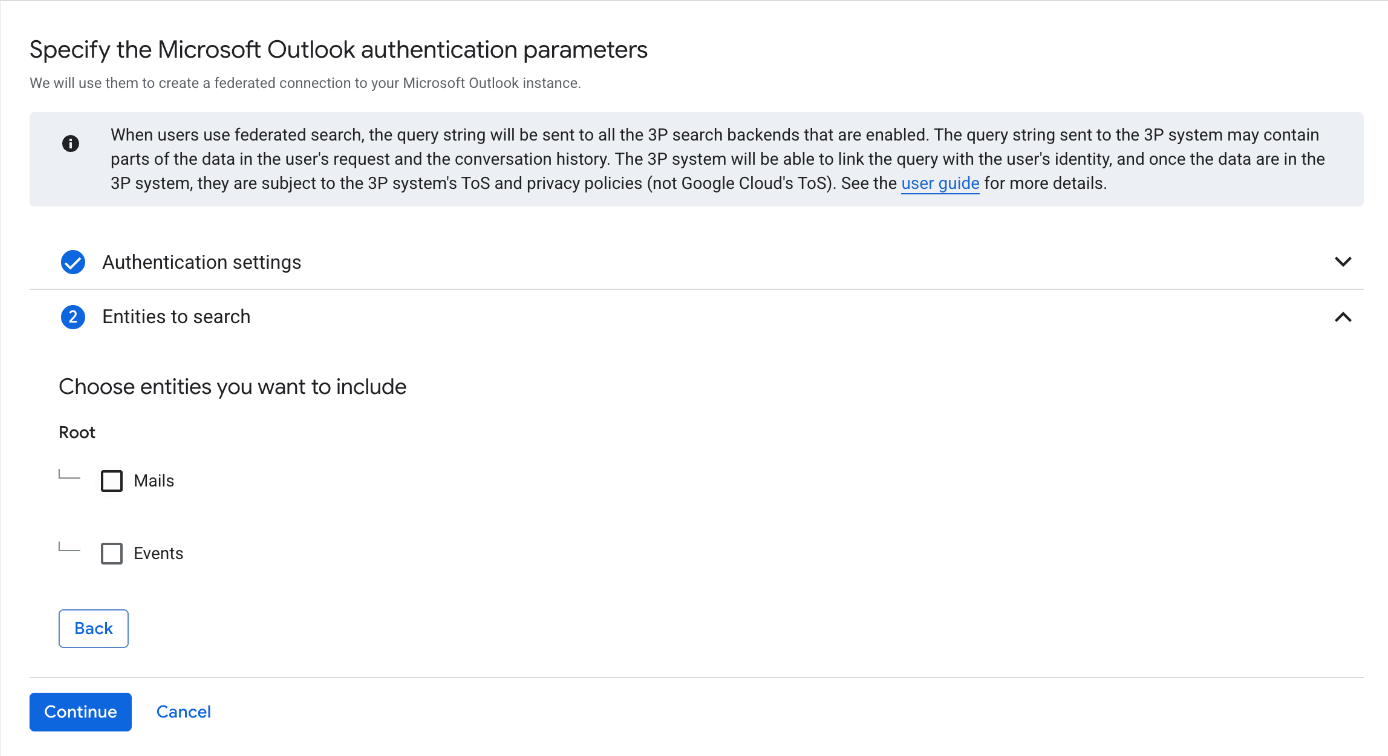

      Select the Microsoft Outlook entities you want to include

7. Select a region for your data source.

8. Enter a name for your data source.

9. Click Create. Agentspace creates your data store and displays it on the Data Stores page.

After the data store is created, go to the Data Stores page and click your data store name to see the status. When the Connector state changes from Creating to Active, the federated search connector is ready to be used.

User authorization

After creating a federated search data store, the Agentspace source management panel lists it as one of your data sources. If you haven't previously authorized Agentspace, you can't select the data source. Instead, an Authorize button appears.

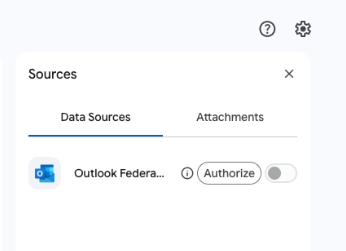

Authorize Agentspace Enterprise to access your new data source

To initiate the authorization flow:

1. Click Authorize. You are redirected to the Outlook authorization server.

2. Sign in to your account.

3. Click Grant access. After granting access, you are redirected back to Agentspace to complete the authorization flow. Agentspace obtains the access token and uses it to access the Microsoft Outlook search.

Query execution

After you authorize Microsoft Outlook, when you enter a search query:

1. Agentspace sends your search query to the Microsoft Graph API.

2. Agentspace blends the results with those from other sources and displays them.

Data handling

When using third-party federated search, your query string is sent to the third-party search backend. These third parties may associate queries with your identity. If multiple federated search data sources are enabled, the query might be sent to all of them.

Once the data reaches the third-party system, it is governed by that system's terms of service and privacy policies.

Note: An LLM might rewrite your query before it is sent. This rewritten query can incorporate information from your session-based query history. As a result, parts of that query history might also be included in the query that's sent to third-party search backends.
