Find and explore traces

To view an aggregate representation of your trace data, or to find and explore individual traces or traces that contain specific labels, use the Trace Explorer page.

About the Trace Explorer page

To help you identify trends and patterns in your trace data, the latency data is aggregated and displayed in charts. The heatmap, which is the default visualization, uses color to represent the number of spans in a cell. A cell with many spans is shown with a darker color than a cell with few spans. You can select a cell or activate a cell's tooltip to get more information. The other visualizations let you view latency as a percentile and span rate information. For all visualizations, you can use your pointer to expand the x-axis. For the line charts, you can expand the x- and y-axes.

When you are investigating an issue, you might want to view a specific trace or only spans with certain properties:

• When you know the ID of a trace, in the toolbar, click pageview Search for trace, and then enter the trace ID in the dialog. Next, you can search the spans and attributes in the trace for keywords .

• When viewing the aggregate data, you can search for specific spans by applying filters. For example, you might filter the data to display only those spans for a specific service. Next, you might add a second filter that limits the display to spans for a specific service that reports an error.

The tabular data lets you view details of individual spans and it helps you identify outliers. For example, to find the span with the highest latency value, select the Spans tab and then sort the data by latency. To find the services that are generating errors, filter the data by span status, and then select the Grouped tab, which shows data that has been aggregated by span and service name. Each row in the table contains a link to detailed information.

The trace data shown by the Trace Explorer page depends on the following:

• The projects searched for trace data. By default, only the project selected by the project picker is searched for trace data. However, you can configure the page to search the list of projects in a trace scope.
• Your Identity and Access Management (IAM) permissions on the searched projects. If you don't have the permission to view trace data for a project, then the Google Cloud console displays a warning message and the data from that project isn't displayed.
• The time-range setting.
• The filters you apply.

The remainder of this page provides more information about how to find and explore your trace data.

Before you begin

To get the permissions that you need to view trace data by using the Google Cloud console and to or select a trace scope, ask your administrator to grant you the Cloud Trace User (roles/cloudtrace.user) IAM role on your project. For more information about granting roles, see Manage access to projects, folders, and organizations.

This predefined role contains the permissions required to view trace data by using the Google Cloud console and to or select a trace scope. To see the exact permissions that are required, expand the Required permissions section:

Required permissions

The following permissions are required to view trace data by using the Google Cloud console and to or select a trace scope:

• To select a trace scope: cloudtrace.traceScopes.[get, list]
• To read the default trace scope: observability.scopes.get

You might also be able to get these permissions with custom roles or other predefined roles.

For more information about roles, see Control access with Identity and Access Management.

View aggregated trace data

To view the aggregated information about your trace data, do the following:

1. In the Google Cloud console, go to the Trace explorer page:

   Go to Trace explorer

   You can also find this page by using the search bar.

   It might take several minutes after the first trace data is written to a Google Cloud project before that data is available to view. If you don't see any trace data displayed after waiting a few minutes, then your project might not have any data to display or there might be a configuration issue. For information about how to resolve these issues, see Troubleshoot: No data in the Trace interface.

2. Optional: Configure which projects are searched for trace data by using the Scope element:

   • To show the trace data that is stored in your project, set the first menu of the Scope element to Project or to _Default. These two settings are equivalent.

   • To show the trace data that is stored in multiple projects, expand the first menu of the Scope element, select Trace scope, and then select the trace scope that lists those projects. After you make your selection, the Scope menu displays a trace scope icon, , and the name of the selected trace scope.

   The data that is returned depends on your IAM roles on the searched projects. For example, the searched projects include a Google Cloud project that you don't have access to, then no trace data for that project is returned.

   For more information, see Create and manage trace scopes.

3. Optional: Update the time range by using the time-range selector or by using your pointer to highlight a range on the x-axis.

4. Explore the charts, which show patterns and trends in your trace data:

   • To get information about span latency data, set the Chart view menu to Span duration (heatmap). The color intensity is proportional to the number of spans. For information about a cell, use your pointer. The tooltip displays the number of spans, date and time, and the time interval of the cell.

     Note: If you select a cell in the heatmap, then the table that lists individual spans or groupings of spans is updated.

   • To view latency trends, set the Chart view menu to Span duration (percentile). The duration chart displays the 50th, 90th, 95th, and 99th percentiles.

   • To view the response status as a function of time, set the Chart view menu to Span rate. The chart displays the rate of spans being sent to your project.

5. Explore the tabular data which lists individual spans on Spans tab and spans grouped by their service and name on the Grouped tab.

   Each row in the tables displays a span or grouping, along with a link to detailed information and some metrics. For example, on the Grouped tab, the metrics include the error rate and the number of spans in the group.

   To find outliers, select a column header to sort the table.

6. Add filters to restrict which spans are shown. For example, you might filter by service name and by status. When you add or remove a filter, the data displayed by the Trace Explorer page is refreshed and only shows those spans that match all applied filters.

   To change your filter settings, do any of the following:

   • Go to the Span filters pane and select the filters to apply.

     The Span filters pane lists only the most common filters. If you want to filter by an attribute that isn't listed, then use the Filter bar.

   • To add a filter by using the Filter bar, select Add filter, and then complete the dialog.

     To filter by an attribute that isn't listed by the menu of options, select Add attribute filter, and then add your custom key and value. For example, if you set the key to /http/status_code and the value to 200, then the filter is /http/status_code: 200. To let the filter match any value, select Any value.

Find a trace by ID

When you are troubleshooting an incident or failure, you might know the trace ID. To explore that trace, do the following:

1. In the Google Cloud console, go to the Trace explorer page:

   Go to Trace explorer

   You can also find this page by using the search bar.

2. Go to the toolbar, click pageview Search for trace, and enter the trace ID.

   When you enter a valid ID, the Details flyout opens and displays information about the trace and its spans. You can use the options in that pane to explore the trace. For example, you might search the spans for keywords.

   Note: If you enter a trace ID that isn't found, then the trace data might be stored in a project that isn't searched by the Trace Explorer page, or you might not have an IAM role that lets you view trace data. To resolve these failures, identify the projects that store the trace data. For each project, verify that your IAM role lets you view trace data and then ensure that the Scope element is configured to search all projects that store your trace data. For more information, see Update the list of projects searched for trace data.

Explore a trace

To view a trace or span, do the following:

1. In the Google Cloud console, go to the Trace explorer page:

   Go to Trace explorer

   You can also find this page by using the search bar.

   It might take several minutes after the first trace data is written to a Google Cloud project before that data is available to view. If you don't see any trace data displayed after waiting a few minutes, then your project might not have any data to display or there might be a configuration issue. For information about how to resolve these issues, see Troubleshoot: No data in the Trace interface.

2. Do one of the following:

   • Go to the table section of the Trace Explorer page and select an entry from the table that lists spans or lists summary information after grouping the data by service and span name.

   • Go to the toolbar of the Trace Explorer page, click pageview Search for trace, and enter the trace ID.

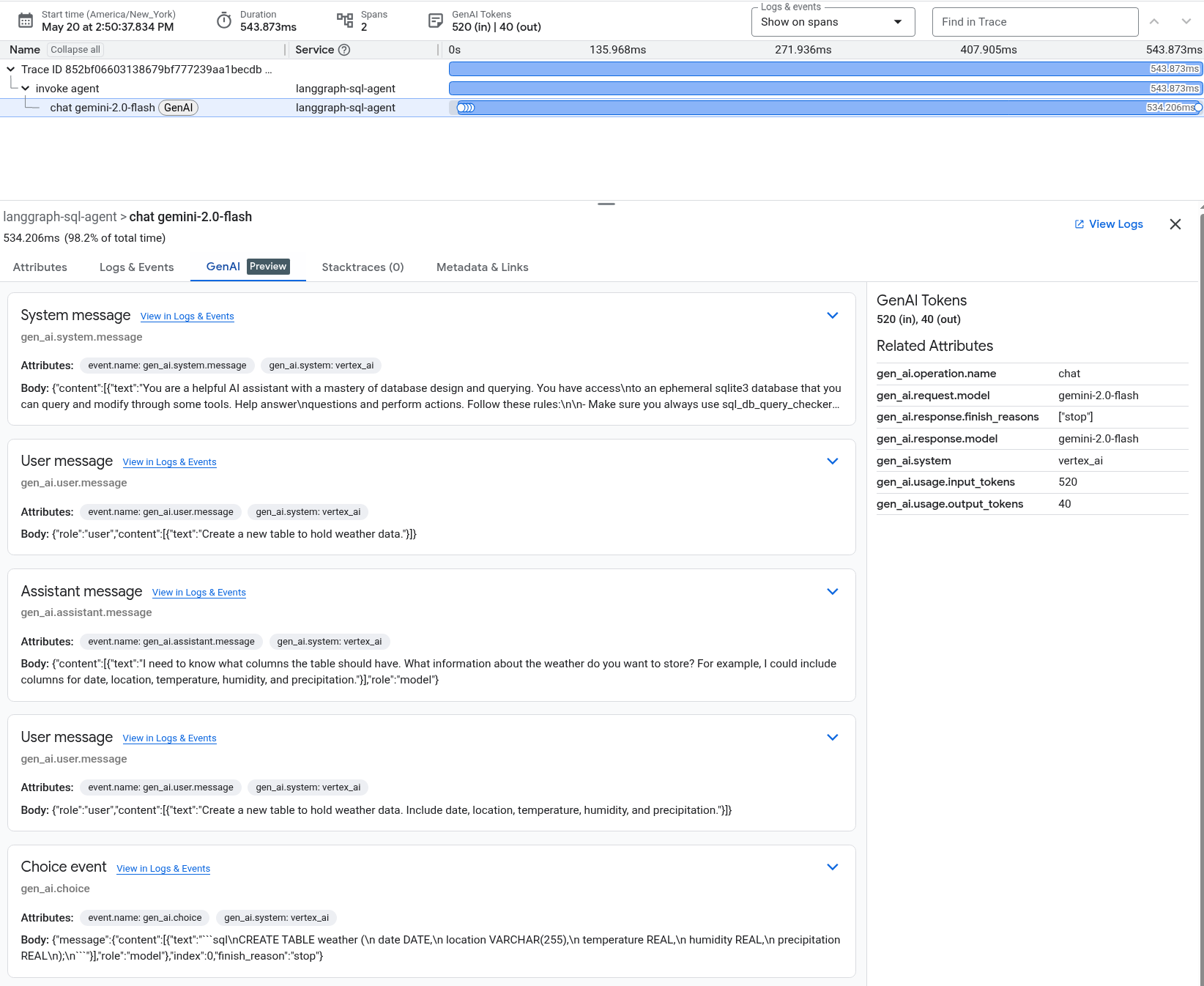

   The Details flyout opens and displays a trace and its spans:

   • The Name column displays the call hierarchy and the first entry includes the trace ID.
   • The Service column is extracted from the OpenTelemetry attribute service.name, when that attribute is set. If that attribute isn't set and if the service is running on App Engine, then the App Engine service name is displayed. Otherwise, no service is specified.
   • The length of the latency bar is representative of the latency value.
   • The color of the latency bar indicates status. A blue latency bar indicates a successful completion while a red latency bar indicates an error occurred.
   • A circle on a latency bar indicates a log entry or event is associated with the span. To change this behavior, use the Logs & events menu.

3. Optional: Search the span name, service name, and attributes in a trace by using the Find in Trace field.

   For example, if you enter GET, then text in the span name, service name, or in the Attributes pane that displays GET, ignoring case, is highlighted.

   You can't search by using a regular expression, and you can't search logs, events, or metadata.

4. To view the details of a specific span, select the span, and then do the following:

   1. To view the labels that are attached to the span, go to the Attributes tab. For information about labels, see Trace labels.

   2. To view the logs and events that are related to the span, go to the Logs & Events tab. For information about event annotations, see Annotating trace spans.

      To view a log entry, click Show more.

      You can also select the View logs button, which opens the Logs Explorer page with the query set to filter to a specific trace, span, and time range. This query might not return any log entries.

      Note: Your IAM role on the project or resource that stores the log entries determines whether you can view related log entries. For example, log entries might be stored in a central log bucket, which is in a different Google Cloud project than your trace data. Your IAM role on the resource that stores the data determines whether you can view log data. For more information, see Access control for Cloud Logging.

   3. To view stacktraces, use the Stacktraces tab.

   4. To find general information about the span and a table of links to other spans, view the Metadata & Links tab. This information includes the following:

      • Span ID: The span ID is a 64-bit integer other than 0. For details, see TraceSpan.
      • Parent span ID
      • Project ID
      • Start time and end time
      • Table that lists links to other spans

      Each row in the table named Links lists a link between the current span and another span. The Attributes field lists the key-value pairs for the linked-to span. The Trace field links to the trace for the linked-to span. When this field contains Current trace, the linked-to span is in the same trace as the current span. Otherwise, the field contains a trace ID. For information about links, see the Links API reference page.
