Handle processing response

The response to a processing request contains a Document object that holds everything known about the processed document, including all of the structured information that Document AI was able to extract.

This page explains the layout of the Document object by providing sample documents, and then mapping aspects of OCR results to the specific elements of the Document object JSON. It also provides client libraries code samples and Document AI Toolbox SDK code samples. These code samples use online processing, but the Document object parsing works the same for batch processing.

Use a JSON viewer or editing utility specifically designed to expand or collapse elements. Reviewing raw JSON in a plain text utility is inefficient.

Text, layout, and quality scores

Here's a sample text document:

Here's the full document object as returned by the Enterprise Document OCR processor:

Download JSON

This OCR output is also always included in Document AI processor output, since OCR is run by the processors. It uses the existing OCR data, which is why you can enter such JSON data using the inline document option into Document AI processors.

  image=None, # all our samples pass this var
  mime_type="application/json",
  inline_document=document_response # pass OCR output to CDE input - undocumented

Here are some of the important fields:

Raw text

The text field contains the text that is recognized by Document AI. This text doesn't contain any layout structure other than spaces, tabs, and line feeds. This is the only field that stores a document's textual information and serves as the source of truth of the document's text. Other fields can refer to parts of the text field by position (startIndex and endIndex).

  {
    text: "Sample Document\nHeading 1\nLorem ipsum dolor sit amet, ..."
  }

Page size and languages

Each page in the document object corresponds to a physical page from the sample document. The sample JSON output contains one page because is a single PNG image.

Note: pages[].pageNumber is 1-based, not 0-based. The first page is page 1.

  {
    "pages:" [
      {
        "pageNumber": 1,
        "dimension": {
          "width": 679.0,
          "height": 460.0,
          "unit": "pixels"
        },
      }
    ]
  }

• The pages[].detectedLanguages[] field contains the languages found on a given page, along with the confidence score.

{
  "pages": [
    {
      "detectedLanguages": [
        {
          "confidence": 0.98009938,
          "languageCode": "en"
        },
        {
          "confidence": 0.01990064,
          "languageCode": "und"
        }
      ]
    }
  ]
}

OCR data

Document AI OCR detects text with various granularity or organization in the page, such as the text blocks, paragraphs, tokens and symbols (symbol level is optional, if configured to output symbol level data). These are all members of the page object.

Every element has a corresponding layout that describes its position and text. Non-text visual elements (such as checkboxes) are also at the page level.

{
  "pages": [
    {
      "paragraphs": [
        {
          "layout": {
            "textAnchor": {
              "textSegments": [
                {
                  "endIndex": "16"
                }
              ]
            },
            "confidence": 0.9939527,
            "boundingPoly": {
              "vertices": [ ... ],
              "normalizedVertices": [ ... ]
            },
            "orientation": "PAGE_UP"
          }
        }
      ]
    }
  ]
}

The raw text is referred to in the textAnchor object which is indexed into the main text string with startIndex and endIndex.

startIndex might be omitted if the text string begins at the beginning of the main text string.

• For boundingPoly, the top-left corner of the page is the origin (0,0). Positive X values are to the right, and positive Y values are down.

• The vertices object uses the same coordinates as the original image, whereas normalizedVertices are in the range [0,1]. There is a transformation matrix that indicates the measures deskewing and other attributes of the normalization of the image.

Caution: Zero coordinate values omitted. When the API detects a coordinate ("x" or "y") value of 0, that coordinate is omitted in the JSON response. For example, a response with a BoundingPoly around the entire image would be: "normalizedVertices": [{}, {"x": 1}, {"x": 1,"y": 1}, {"y": 1}], or "vertices": [{}, {"x": X_MAX}, {"x": X_MAX,"y": Y_MAX}, {"y": Y_MAX}]

• To draw the boundingPoly, draw line segments from one vertex to the next. Then, close the polygon by drawing a line segment from the last vertex back to the first. The orientation element of the layout indicates whether the text has been rotated relative to the page.

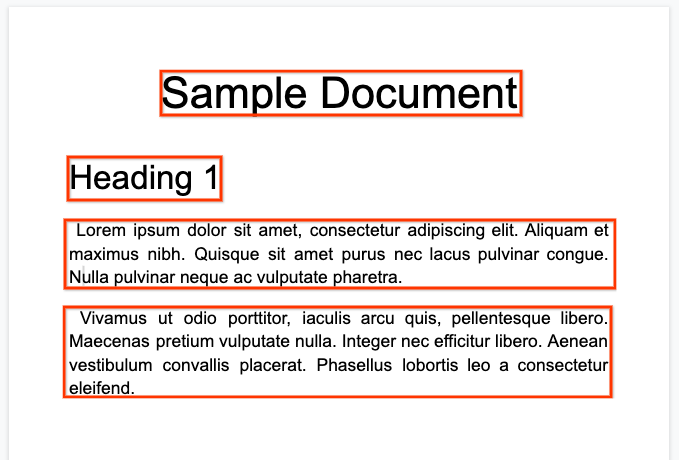

To help you visualize the document's structure, the following images draw bounding polygons for page.paragraphs, page.lines, page.tokens.

Paragraphs

Lines

Tokens

Blocks

The Enterprise Document OCR processor can perform quality assessment of a document based on its readability.

• You must set the field processOptions.ocrConfig.enableImageQualityScores to true to get this data in the API response.

This quality assessment is a quality score in [0, 1], where 1 means perfect quality. The quality score is returned in the Page.imageQualityScores field. All detected defects are listed as quality/defect_* and sorted in descending order by confidence value.

Here's a PDF that is too dark and blurry to comfortably read:

Download PDF

Here's the document quality information as returned by the Enterprise Document OCR processor:

  {
    "pages": [
      {
        "imageQualityScores": {
          "qualityScore": 0.7811847,
          "detectedDefects": [
            {
              "type": "quality/defect_document_cutoff",
              "confidence": 1.0
            },
            {
              "type": "quality/defect_glare",
              "confidence": 0.97849524
            },
            {
              "type": "quality/defect_text_cutoff",
              "confidence": 0.5
            }
          ]
        }
      }
    ]
  }

Code samples

The following code samples demonstrate how to send a processing request and then read and print the fields to the terminal:

Java

For more information, see the Document AI Java API reference documentation.

To authenticate to Document AI, set up Application Default Credentials. For more information, see Set up authentication for a local development environment.

import com.google.cloud.documentai.v1beta3.Document;
import com.google.cloud.documentai.v1beta3.DocumentProcessorServiceClient;
import com.google.cloud.documentai.v1beta3.DocumentProcessorServiceSettings;
import com.google.cloud.documentai.v1beta3.ProcessRequest;
import com.google.cloud.documentai.v1beta3.ProcessResponse;
import com.google.cloud.documentai.v1beta3.RawDocument;
import com.google.protobuf.ByteString;
import java.io.IOException;
import java.nio.file.Files;
import java.nio.file.Paths;
import java.util.List;
import java.util.concurrent.ExecutionException;
import java.util.concurrent.TimeoutException;

public class ProcessOcrDocument {
  public static void processOcrDocument()
      throws IOException, InterruptedException, ExecutionException, TimeoutException {
    // TODO(developer): Replace these variables before running the sample.
    String projectId = "your-project-id";
    String location = "your-project-location"; // Format is "us" or "eu".
    String processerId = "your-processor-id";
    String filePath = "path/to/input/file.pdf";
    processOcrDocument(projectId, location, processerId, filePath);
  }

  public static void processOcrDocument(
      String projectId, String location, String processorId, String filePath)
      throws IOException, InterruptedException, ExecutionException, TimeoutException {
    // Initialize client that will be used to send requests. This client only needs
    // to be created
    // once, and can be reused for multiple requests. After completing all of your
    // requests, call
    // the "close" method on the client to safely clean up any remaining background
    // resources.
    String endpoint = String.format("%s-documentai.googleapis.com:443", location);
    DocumentProcessorServiceSettings settings =
        DocumentProcessorServiceSettings.newBuilder().setEndpoint(endpoint).build();
    try (DocumentProcessorServiceClient client = DocumentProcessorServiceClient.create(settings)) {
      // The full resource name of the processor, e.g.:
      // projects/project-id/locations/location/processor/processor-id
      // You must create new processors in the Cloud Console first
      String name =
          String.format("projects/%s/locations/%s/processors/%s", projectId, location, processorId);

      // Read the file.
      byte[] imageFileData = Files.readAllBytes(Paths.get(filePath));

      // Convert the image data to a Buffer and base64 encode it.
      ByteString content = ByteString.copyFrom(imageFileData);

      RawDocument document =
          RawDocument.newBuilder().setContent(content).setMimeType("application/pdf").build();

      // Configure the process request.
      ProcessRequest request =
          ProcessRequest.newBuilder().setName(name).setRawDocument(document).build();

      // Recognizes text entities in the PDF document
      ProcessResponse result = client.processDocument(request);
      Document documentResponse = result.getDocument();

      System.out.println("Document processing complete.");

      // Read the text recognition output from the processor
      // For a full list of Document object attributes,
      // please reference this page:
      // https://googleapis.dev/java/google-cloud-document-ai/latest/index.html

      // Get all of the document text as one big string
      String text = documentResponse.getText();
      System.out.printf("Full document text: '%s'\n", escapeNewlines(text));

      // Read the text recognition output from the processor
      List<Document.Page> pages = documentResponse.getPagesList();
      System.out.printf("There are %s page(s) in this document.\n", pages.size());

      for (Document.Page page : pages) {
        System.out.printf("Page %d:\n", page.getPageNumber());
        printPageDimensions(page.getDimension());
        printDetectedLanguages(page.getDetectedLanguagesList());
        printParagraphs(page.getParagraphsList(), text);
        printBlocks(page.getBlocksList(), text);
        printLines(page.getLinesList(), text);
        printTokens(page.getTokensList(), text);
      }
    }
  }

  private static void printPageDimensions(Document.Page.Dimension dimension) {
    String unit = dimension.getUnit();
    System.out.printf("    Width: %.1f %s\n", dimension.getWidth(), unit);
    System.out.printf("    Height: %.1f %s\n", dimension.getHeight(), unit);
  }

  private static void printDetectedLanguages(
      List<Document.Page.DetectedLanguage> detectedLangauges) {
    System.out.println("    Detected languages:");
    for (Document.Page.DetectedLanguage detectedLanguage : detectedLangauges) {
      String languageCode = detectedLanguage.getLanguageCode();
      float confidence = detectedLanguage.getConfidence();
      System.out.printf("        %s (%.2f%%)\n", languageCode, confidence * 100.0);
    }
  }

  private static void printParagraphs(List<Document.Page.Paragraph> paragraphs, String text) {
    System.out.printf("    %d paragraphs detected:\n", paragraphs.size());
    Document.Page.Paragraph firstParagraph = paragraphs.get(0);
    String firstParagraphText = getLayoutText(firstParagraph.getLayout().getTextAnchor(), text);
    System.out.printf("        First paragraph text: %s\n", escapeNewlines(firstParagraphText));
    Document.Page.Paragraph lastParagraph = paragraphs.get(paragraphs.size() - 1);
    String lastParagraphText = getLayoutText(lastParagraph.getLayout().getTextAnchor(), text);
    System.out.printf("        Last paragraph text: %s\n", escapeNewlines(lastParagraphText));
  }

  private static void printBlocks(List<Document.Page.Block> blocks, String text) {
    System.out.printf("    %d blocks detected:\n", blocks.size());
    Document.Page.Block firstBlock = blocks.get(0);
    String firstBlockText = getLayoutText(firstBlock.getLayout().getTextAnchor(), text);
    System.out.printf("        First block text: %s\n", escapeNewlines(firstBlockText));
    Document.Page.Block lastBlock = blocks.get(blocks.size() - 1);
    String lastBlockText = getLayoutText(lastBlock.getLayout().getTextAnchor(), text);
    System.out.printf("        Last block text: %s\n", escapeNewlines(lastBlockText));
  }

  private static void printLines(List<Document.Page.Line> lines, String text) {
    System.out.printf("    %d lines detected:\n", lines.size());
    Document.Page.Line firstLine = lines.get(0);
    String firstLineText = getLayoutText(firstLine.getLayout().getTextAnchor(), text);
    System.out.printf("        First line text: %s\n", escapeNewlines(firstLineText));
    Document.Page.Line lastLine = lines.get(lines.size() - 1);
    String lastLineText = getLayoutText(lastLine.getLayout().getTextAnchor(), text);
    System.out.printf("        Last line text: %s\n", escapeNewlines(lastLineText));
  }

  private static void printTokens(List<Document.Page.Token> tokens, String text) {
    System.out.printf("    %d tokens detected:\n", tokens.size());
    Document.Page.Token firstToken = tokens.get(0);
    String firstTokenText = getLayoutText(firstToken.getLayout().getTextAnchor(), text);
    System.out.printf("        First token text: %s\n", escapeNewlines(firstTokenText));
    Document.Page.Token lastToken = tokens.get(tokens.size() - 1);
    String lastTokenText = getLayoutText(lastToken.getLayout().getTextAnchor(), text);
    System.out.printf("        Last token text: %s\n", escapeNewlines(lastTokenText));
  }

  // Extract shards from the text field
  private static String getLayoutText(Document.TextAnchor textAnchor, String text) {
    if (textAnchor.getTextSegmentsList().size() > 0) {
      int startIdx = (int) textAnchor.getTextSegments(0).getStartIndex();
      int endIdx = (int) textAnchor.getTextSegments(0).getEndIndex();
      return text.substring(startIdx, endIdx);
    }
    return "[NO TEXT]";
  }

  private static String escapeNewlines(String s) {
    return s.replace("\n", "\\n").replace("\r", "\\r");
  }
}

Node.js

For more information, see the Document AI Node.js API reference documentation.

To authenticate to Document AI, set up Application Default Credentials. For more information, see Set up authentication for a local development environment.

/**
 * TODO(developer): Uncomment these variables before running the sample.
 */
// const projectId = 'YOUR_PROJECT_ID';
// const location = 'YOUR_PROJECT_LOCATION'; // Format is 'us' or 'eu'
// const processorId = 'YOUR_PROCESSOR_ID'; // Create processor in Cloud Console
// const filePath = '/path/to/local/pdf';

const {DocumentProcessorServiceClient} =
  require('@google-cloud/documentai').v1beta3;

// Instantiates a client
const client = new DocumentProcessorServiceClient();

async function processDocument() {
  // The full resource name of the processor, e.g.:
  // projects/project-id/locations/location/processor/processor-id
  // You must create new processors in the Cloud Console first
  const name = `projects/${projectId}/locations/${location}/processors/${processorId}`;

  // Read the file into memory.
  const fs = require('fs').promises;
  const imageFile = await fs.readFile(filePath);

  // Convert the image data to a Buffer and base64 encode it.
  const encodedImage = Buffer.from(imageFile).toString('base64');

  const request = {
    name,
    rawDocument: {
      content: encodedImage,
      mimeType: 'application/pdf',
    },
  };

  // Recognizes text entities in the PDF document
  const [result] = await client.processDocument(request);

  console.log('Document processing complete.');

  // Read the text recognition output from the processor
  // For a full list of Document object attributes,
  // please reference this page: https://googleapis.dev/nodejs/documentai/latest/index.html
  const {document} = result;
  const {text} = document;

  // Read the text recognition output from the processor
  console.log(`Full document text: ${JSON.stringify(text)}`);
  console.log(`There are ${document.pages.length} page(s) in this document.`);
  for (const page of document.pages) {
    console.log(`Page ${page.pageNumber}`);
    printPageDimensions(page.dimension);
    printDetectedLanguages(page.detectedLanguages);
    printParagraphs(page.paragraphs, text);
    printBlocks(page.blocks, text);
    printLines(page.lines, text);
    printTokens(page.tokens, text);
  }
}

const printPageDimensions = dimension => {
  console.log(`    Width: ${dimension.width}`);
  console.log(`    Height: ${dimension.height}`);
};

const printDetectedLanguages = detectedLanguages => {
  console.log('    Detected languages:');
  for (const lang of detectedLanguages) {
    const code = lang.languageCode;
    const confPercent = lang.confidence * 100;
    console.log(`        ${code} (${confPercent.toFixed(2)}% confidence)`);
  }
};

const printParagraphs = (paragraphs, text) => {
  console.log(`    ${paragraphs.length} paragraphs detected:`);
  const firstParagraphText = getText(paragraphs[0].layout.textAnchor, text);
  console.log(
    `        First paragraph text: ${JSON.stringify(firstParagraphText)}`
  );
  const lastParagraphText = getText(
    paragraphs[paragraphs.length - 1].layout.textAnchor,
    text
  );
  console.log(
    `        Last paragraph text: ${JSON.stringify(lastParagraphText)}`
  );
};

const printBlocks = (blocks, text) => {
  console.log(`    ${blocks.length} blocks detected:`);
  const firstBlockText = getText(blocks[0].layout.textAnchor, text);
  console.log(`        First block text: ${JSON.stringify(firstBlockText)}`);
  const lastBlockText = getText(
    blocks[blocks.length - 1].layout.textAnchor,
    text
  );
  console.log(`        Last block text: ${JSON.stringify(lastBlockText)}`);
};

const printLines = (lines, text) => {
  console.log(`    ${lines.length} lines detected:`);
  const firstLineText = getText(lines[0].layout.textAnchor, text);
  console.log(`        First line text: ${JSON.stringify(firstLineText)}`);
  const lastLineText = getText(
    lines[lines.length - 1].layout.textAnchor,
    text
  );
  console.log(`        Last line text: ${JSON.stringify(lastLineText)}`);
};

const printTokens = (tokens, text) => {
  console.log(`    ${tokens.length} tokens detected:`);
  const firstTokenText = getText(tokens[0].layout.textAnchor, text);
  console.log(`        First token text: ${JSON.stringify(firstTokenText)}`);
  const firstTokenBreakType = tokens[0].detectedBreak.type;
  console.log(`        First token break type: ${firstTokenBreakType}`);
  const lastTokenText = getText(
    tokens[tokens.length - 1].layout.textAnchor,
    text
  );
  console.log(`        Last token text: ${JSON.stringify(lastTokenText)}`);
  const lastTokenBreakType = tokens[tokens.length - 1].detectedBreak.type;
  console.log(`        Last token break type: ${lastTokenBreakType}`);
};

// Extract shards from the text field
const getText = (textAnchor, text) => {
  if (!textAnchor.textSegments || textAnchor.textSegments.length === 0) {
    return '';
  }

  // First shard in document doesn't have startIndex property
  const startIndex = textAnchor.textSegments[0].startIndex || 0;
  const endIndex = textAnchor.textSegments[0].endIndex;

  return text.substring(startIndex, endIndex);
};

Python

For more information, see the Document AI Python API reference documentation.

To authenticate to Document AI, set up Application Default Credentials. For more information, see Set up authentication for a local development environment.

from typing import Optional, Sequence

from google.api_core.client_options import ClientOptions
from google.cloud import documentai

# TODO(developer): Uncomment these variables before running the sample.
# project_id = "YOUR_PROJECT_ID"
# location = "YOUR_PROCESSOR_LOCATION" # Format is "us" or "eu"
# processor_id = "YOUR_PROCESSOR_ID" # Create processor before running sample
# processor_version = "rc" # Refer to https://cloud.google.com/document-ai/docs/manage-processor-versions for more information
# file_path = "/path/to/local/pdf"
# mime_type = "application/pdf" # Refer to https://cloud.google.com/document-ai/docs/file-types for supported file types


def process_document_ocr_sample(
    project_id: str,
    location: str,
    processor_id: str,
    processor_version: str,
    file_path: str,
    mime_type: str,
) -> None:
    # Optional: Additional configurations for Document OCR Processor.
    # For more information: https://cloud.google.com/document-ai/docs/enterprise-document-ocr
    process_options = documentai.ProcessOptions(
        ocr_config=documentai.OcrConfig(
            enable_native_pdf_parsing=True,
            enable_image_quality_scores=True,
            enable_symbol=True,
            # OCR Add Ons https://cloud.google.com/document-ai/docs/ocr-add-ons
            premium_features=documentai.OcrConfig.PremiumFeatures(
                compute_style_info=True,
                enable_math_ocr=False,  # Enable to use Math OCR Model
                enable_selection_mark_detection=True,
            ),
        )
    )
    # Online processing request to Document AI
    document = process_document(
        project_id,
        location,
        processor_id,
        processor_version,
        file_path,
        mime_type,
        process_options=process_options,
    )

    text = document.text
    print(f"Full document text: {text}\n")
    print(f"There are {len(document.pages)} page(s) in this document.\n")

    for page in document.pages:
        print(f"Page {page.page_number}:")
        print_page_dimensions(page.dimension)
        print_detected_languages(page.detected_languages)

        print_blocks(page.blocks, text)
        print_paragraphs(page.paragraphs, text)
        print_lines(page.lines, text)
        print_tokens(page.tokens, text)

        if page.symbols:
            print_symbols(page.symbols, text)

        if page.image_quality_scores:
            print_image_quality_scores(page.image_quality_scores)

        if page.visual_elements:
            print_visual_elements(page.visual_elements, text)


def print_page_dimensions(dimension: documentai.Document.Page.Dimension) -> None:
    print(f"    Width: {str(dimension.width)}")
    print(f"    Height: {str(dimension.height)}")


def print_detected_languages(
    detected_languages: Sequence[documentai.Document.Page.DetectedLanguage],
) -> None:
    print("    Detected languages:")
    for lang in detected_languages:
        print(f"        {lang.language_code} ({lang.confidence:.1%} confidence)")


def print_blocks(blocks: Sequence[documentai.Document.Page.Block], text: str) -> None:
    print(f"    {len(blocks)} blocks detected:")
    first_block_text = layout_to_text(blocks[0].layout, text)
    print(f"        First text block: {repr(first_block_text)}")
    last_block_text = layout_to_text(blocks[-1].layout, text)
    print(f"        Last text block: {repr(last_block_text)}")


def print_paragraphs(
    paragraphs: Sequence[documentai.Document.Page.Paragraph], text: str
) -> None:
    print(f"    {len(paragraphs)} paragraphs detected:")
    first_paragraph_text = layout_to_text(paragraphs[0].layout, text)
    print(f"        First paragraph text: {repr(first_paragraph_text)}")
    last_paragraph_text = layout_to_text(paragraphs[-1].layout, text)
    print(f"        Last paragraph text: {repr(last_paragraph_text)}")


def print_lines(lines: Sequence[documentai.Document.Page.Line], text: str) -> None:
    print(f"    {len(lines)} lines detected:")
    first_line_text = layout_to_text(lines[0].layout, text)
    print(f"        First line text: {repr(first_line_text)}")
    last_line_text = layout_to_text(lines[-1].layout, text)
    print(f"        Last line text: {repr(last_line_text)}")


def print_tokens(tokens: Sequence[documentai.Document.Page.Token], text: str) -> None:
    print(f"    {len(tokens)} tokens detected:")
    first_token_text = layout_to_text(tokens[0].layout, text)
    first_token_break_type = tokens[0].detected_break.type_.name
    print(f"        First token text: {repr(first_token_text)}")
    print(f"        First token break type: {repr(first_token_break_type)}")
    if tokens[0].style_info:
        print_style_info(tokens[0].style_info)

    last_token_text = layout_to_text(tokens[-1].layout, text)
    last_token_break_type = tokens[-1].detected_break.type_.name
    print(f"        Last token text: {repr(last_token_text)}")
    print(f"        Last token break type: {repr(last_token_break_type)}")
    if tokens[-1].style_info:
        print_style_info(tokens[-1].style_info)


def print_symbols(
    symbols: Sequence[documentai.Document.Page.Symbol], text: str
) -> None:
    print(f"    {len(symbols)} symbols detected:")
    first_symbol_text = layout_to_text(symbols[0].layout, text)
    print(f"        First symbol text: {repr(first_symbol_text)}")
    last_symbol_text = layout_to_text(symbols[-1].layout, text)
    print(f"        Last symbol text: {repr(last_symbol_text)}")


def print_image_quality_scores(
    image_quality_scores: documentai.Document.Page.ImageQualityScores,
) -> None:
    print(f"    Quality score: {image_quality_scores.quality_score:.1%}")
    print("    Detected defects:")

    for detected_defect in image_quality_scores.detected_defects:
        print(f"        {detected_defect.type_}: {detected_defect.confidence:.1%}")


def print_style_info(style_info: documentai.Document.Page.Token.StyleInfo) -> None:
    """
    Only supported in version `pretrained-ocr-v2.0-2023-06-02`
    """
    print(f"           Font Size: {style_info.font_size}pt")
    print(f"           Font Type: {style_info.font_type}")
    print(f"           Bold: {style_info.bold}")
    print(f"           Italic: {style_info.italic}")
    print(f"           Underlined: {style_info.underlined}")
    print(f"           Handwritten: {style_info.handwritten}")
    print(
        f"           Text Color (RGBa): {style_info.text_color.red}, {style_info.text_color.green}, {style_info.text_color.blue}, {style_info.text_color.alpha}"
    )


def print_visual_elements(
    visual_elements: Sequence[documentai.Document.Page.VisualElement], text: str
) -> None:
    """
    Only supported in version `pretrained-ocr-v2.0-2023-06-02`
    """
    checkboxes = [x for x in visual_elements if "checkbox" in x.type]
    math_symbols = [x for x in visual_elements if x.type == "math_formula"]

    if checkboxes:
        print(f"    {len(checkboxes)} checkboxes detected:")
        print(f"        First checkbox: {repr(checkboxes[0].type)}")
        print(f"        Last checkbox: {repr(checkboxes[-1].type)}")

    if math_symbols:
        print(f"    {len(math_symbols)} math symbols detected:")
        first_math_symbol_text = layout_to_text(math_symbols[0].layout, text)
        print(f"        First math symbol: {repr(first_math_symbol_text)}")




def process_document(
    project_id: str,
    location: str,
    processor_id: str,
    processor_version: str,
    file_path: str,
    mime_type: str,
    process_options: Optional[documentai.ProcessOptions] = None,
) -> documentai.Document:
    # You must set the `api_endpoint` if you use a location other than "us".
    client = documentai.DocumentProcessorServiceClient(
        client_options=ClientOptions(
            api_endpoint=f"{location}-documentai.googleapis.com"
        )
    )

    # The full resource name of the processor version, e.g.:
    # `projects/{project_id}/locations/{location}/processors/{processor_id}/processorVersions/{processor_version_id}`
    # You must create a processor before running this sample.
    name = client.processor_version_path(
        project_id, location, processor_id, processor_version
    )

    # Read the file into memory
    with open(file_path, "rb") as image:
        image_content = image.read()

    # Configure the process request
    request = documentai.ProcessRequest(
        name=name,
        raw_document=documentai.RawDocument(content=image_content, mime_type=mime_type),
        # Only supported for Document OCR processor
        process_options=process_options,
    )

    result = client.process_document(request=request)

    # For a full list of `Document` object attributes, reference this page:
    # https://cloud.google.com/document-ai/docs/reference/rest/v1/Document
    return result.document




def layout_to_text(layout: documentai.Document.Page.Layout, text: str) -> str:
    """
    Document AI identifies text in different parts of the document by their
    offsets in the entirety of the document"s text. This function converts
    offsets to a string.
    """
    # If a text segment spans several lines, it will
    # be stored in different text segments.
    return "".join(
        text[int(segment.start_index) : int(segment.end_index)]
        for segment in layout.text_anchor.text_segments
    )

Forms and tables

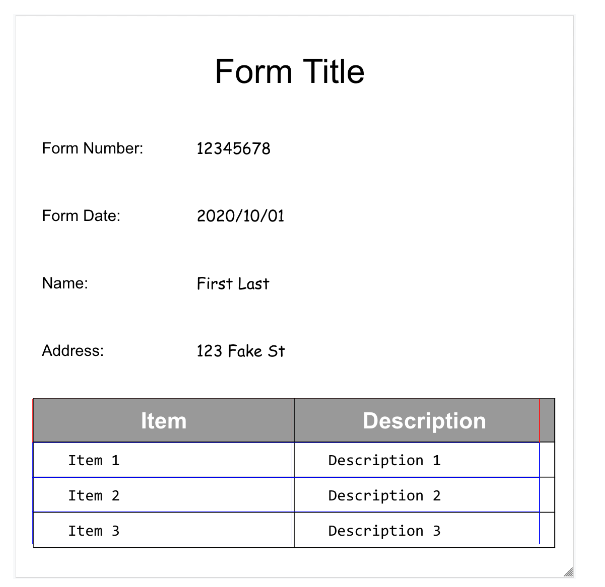

Here's our sample form:

Here's the full document object as returned by the Form Parser:

Download JSON

Here are some of the important fields:

The Form Parser is able to detect FormFields in the page. Each form field has a name and value. These are also called key-value pairs (KVP). Note that KVP are different from (schema) entities in other extractors:

Entity names are configured. The keys in KVPs are literally what the key text is on the document.

{
  "pages:" [
    {
      "formFields": [
        {
          "fieldName": { ... },
          "fieldValue": { ... }
        }
      ]
    }
  ]
}

• Document AI can also detect Tables in the page.

{
  "pages:" [
    {
      "tables": [
        {
          "layout": { ... },
          "headerRows": [
            {
              "cells": [
                {
                  "layout": { ... },
                  "rowSpan": 1,
                  "colSpan": 1
                },
                {
                  "layout": { ... },
                  "rowSpan": 1,
                  "colSpan": 1
                }
              ]
            }
          ],
          "bodyRows": [
            {
              "cells": [
                {
                  "layout": { ... },
                  "rowSpan": 1,
                  "colSpan": 1
                },
                {
                  "layout": { ... },
                  "rowSpan": 1,
                  "colSpan": 1
                }
              ]
            }
          ]
        }
      ]
    }
  ]
}

The table extraction within Form Parser only recognizes simple tables, those without cells that span rows or columns. So rowSpan and colSpan are always 1.

• Starting with processor version pretrained-form-parser-v2.0-2022-11-10, Form Parser can also recognize generic entities. For more information, see Form Parser.

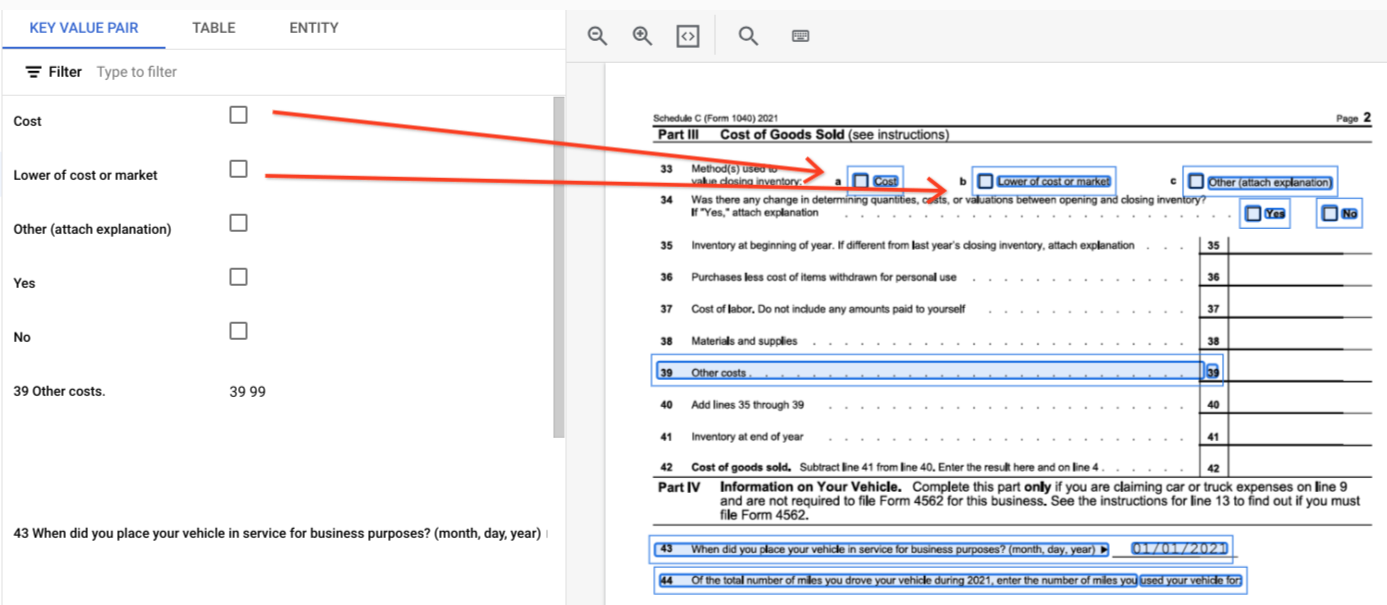

• To help you visualize the document's structure, the following images draw bounding polygons for page.formFields and page.tables.

• Checkboxes in tables. Form Parser is able to digitize checkboxes from images and PDFs as KVPs. Providing an example of checkbox digitization as a key-value pair.

Outside of tables, checkboxes are represented as visual elements within Form Parser. Highlighting the square boxes having checkmarks over the UI and unicode ✓ in the JSON.

"pages:" [
    {
      "tables": [
        {
          "layout": { ... },
          "headerRows": [
            {
              "cells": [
                {
                  "layout": { ... },
                  "rowSpan": 1,
                  "colSpan": 1
                },
                {
                  "layout": { ... },
                  "rowSpan": 1,
                  "colSpan": 1
                }
              ]
            }
          ],
          "bodyRows": [
            {
              "cells": [
                {
                  "layout": { ... },
                  "rowSpan": 1,
                  "colSpan": 1
                },
                {
                  "layout": { ... },
                  "rowSpan": 1,
                  "colSpan": 1
                }
              ]
            }
          ]
        }
      ]
    }
  ]
}

In tables, checkboxes appear as Unicode characters like ✓ (checked) or ☐ (unchecked).

The filled checkboxes have the value as filled_checkbox: under pages > x > formFields > x > fieldValue > valueType.. The unchecked checkboxes have the value as unfilled_checkbox.

The content fields show the checkbox content value as highlighted ✓ at path pages>formFields>x>fieldValue>textAnchor>content.

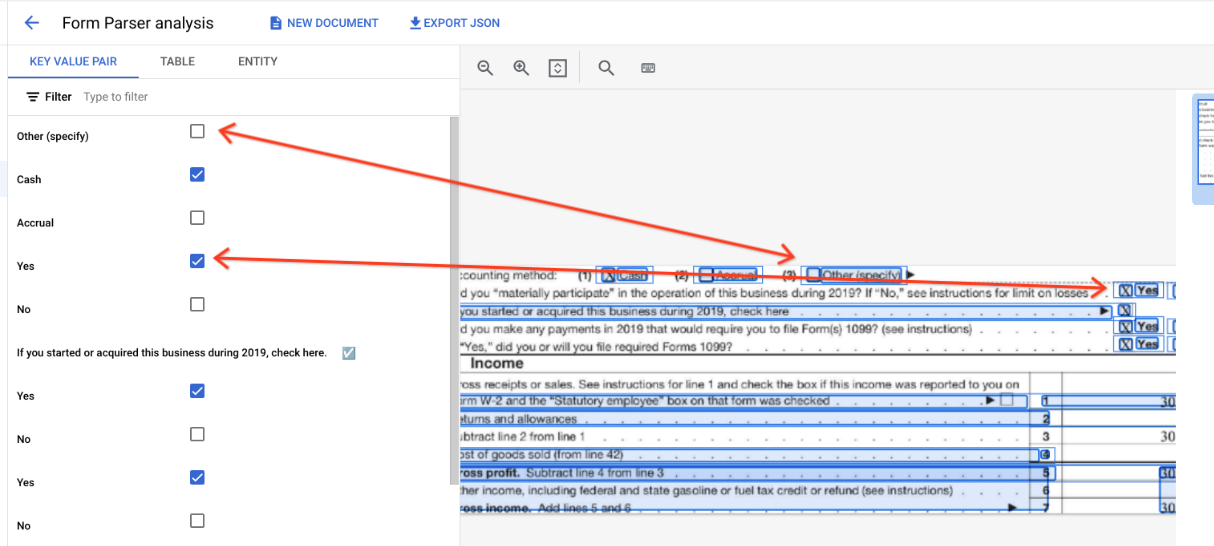

To help you visualize the document's structure, the following images draw bounding polygons for page.formFields and page.tables.

Form Fields

Tables

Code samples

The following code samples demonstrate how to send a processing request and then read and print the fields to the terminal:

Java

For more information, see the Document AI Java API reference documentation.

To authenticate to Document AI, set up Application Default Credentials. For more information, see Set up authentication for a local development environment.

import com.google.cloud.documentai.v1beta3.Document;
import com.google.cloud.documentai.v1beta3.DocumentProcessorServiceClient;
import com.google.cloud.documentai.v1beta3.DocumentProcessorServiceSettings;
import com.google.cloud.documentai.v1beta3.ProcessRequest;
import com.google.cloud.documentai.v1beta3.ProcessResponse;
import com.google.cloud.documentai.v1beta3.RawDocument;
import com.google.protobuf.ByteString;
import java.io.IOException;
import java.nio.file.Files;
import java.nio.file.Paths;
import java.util.List;
import java.util.concurrent.ExecutionException;
import java.util.concurrent.TimeoutException;

public class ProcessFormDocument {
  public static void processFormDocument()
      throws IOException, InterruptedException, ExecutionException, TimeoutException {
    // TODO(developer): Replace these variables before running the sample.
    String projectId = "your-project-id";
    String location = "your-project-location"; // Format is "us" or "eu".
    String processerId = "your-processor-id";
    String filePath = "path/to/input/file.pdf";
    processFormDocument(projectId, location, processerId, filePath);
  }

  public static void processFormDocument(
      String projectId, String location, String processorId, String filePath)
      throws IOException, InterruptedException, ExecutionException, TimeoutException {
    // Initialize client that will be used to send requests. This client only needs
    // to be created
    // once, and can be reused for multiple requests. After completing all of your
    // requests, call
    // the "close" method on the client to safely clean up any remaining background
    // resources.
    String endpoint = String.format("%s-documentai.googleapis.com:443", location);
    DocumentProcessorServiceSettings settings =
        DocumentProcessorServiceSettings.newBuilder().setEndpoint(endpoint).build();
    try (DocumentProcessorServiceClient client = DocumentProcessorServiceClient.create(settings)) {
      // The full resource name of the processor, e.g.:
      // projects/project-id/locations/location/processor/processor-id
      // You must create new processors in the Cloud Console first
      String name =
          String.format("projects/%s/locations/%s/processors/%s", projectId, location, processorId);

      // Read the file.
      byte[] imageFileData = Files.readAllBytes(Paths.get(filePath));

      // Convert the image data to a Buffer and base64 encode it.
      ByteString content = ByteString.copyFrom(imageFileData);

      RawDocument document =
          RawDocument.newBuilder().setContent(content).setMimeType("application/pdf").build();

      // Configure the process request.
      ProcessRequest request =
          ProcessRequest.newBuilder().setName(name).setRawDocument(document).build();

      // Recognizes text entities in the PDF document
      ProcessResponse result = client.processDocument(request);
      Document documentResponse = result.getDocument();

      System.out.println("Document processing complete.");

      // Read the text recognition output from the processor
      // For a full list of Document object attributes,
      // please reference this page:
      // https://googleapis.dev/java/google-cloud-document-ai/latest/index.html

      // Get all of the document text as one big string
      String text = documentResponse.getText();
      System.out.printf("Full document text: '%s'\n", removeNewlines(text));

      // Read the text recognition output from the processor
      List<Document.Page> pages = documentResponse.getPagesList();
      System.out.printf("There are %s page(s) in this document.\n", pages.size());

      for (Document.Page page : pages) {
        System.out.printf("\n\n**** Page %d ****\n", page.getPageNumber());

        List<Document.Page.Table> tables = page.getTablesList();
        System.out.printf("Found %d table(s):\n", tables.size());
        for (Document.Page.Table table : tables) {
          printTableInfo(table, text);
        }

        List<Document.Page.FormField> formFields = page.getFormFieldsList();
        System.out.printf("Found %d form fields:\n", formFields.size());
        for (Document.Page.FormField formField : formFields) {
          String fieldName = getLayoutText(formField.getFieldName().getTextAnchor(), text);
          String fieldValue = getLayoutText(formField.getFieldValue().getTextAnchor(), text);
          System.out.printf(
              "    * '%s': '%s'\n", removeNewlines(fieldName), removeNewlines(fieldValue));
        }
      }
    }
  }

  private static void printTableInfo(Document.Page.Table table, String text) {
    Document.Page.Table.TableRow firstBodyRow = table.getBodyRows(0);
    int columnCount = firstBodyRow.getCellsCount();
    System.out.printf(
        "    Table with %d columns and %d rows:\n", columnCount, table.getBodyRowsCount());

    Document.Page.Table.TableRow headerRow = table.getHeaderRows(0);
    StringBuilder headerRowText = new StringBuilder();
    for (Document.Page.Table.TableCell cell : headerRow.getCellsList()) {
      String columnName = getLayoutText(cell.getLayout().getTextAnchor(), text);
      headerRowText.append(String.format("%s | ", removeNewlines(columnName)));
    }
    headerRowText.setLength(headerRowText.length() - 3);
    System.out.printf("        Collumns: %s\n", headerRowText.toString());

    StringBuilder firstRowText = new StringBuilder();
    for (Document.Page.Table.TableCell cell : firstBodyRow.getCellsList()) {
      String cellText = getLayoutText(cell.getLayout().getTextAnchor(), text);
      firstRowText.append(String.format("%s | ", removeNewlines(cellText)));
    }
    firstRowText.setLength(firstRowText.length() - 3);
    System.out.printf("        First row data: %s\n", firstRowText.toString());
  }

  // Extract shards from the text field
  private static String getLayoutText(Document.TextAnchor textAnchor, String text) {
    if (textAnchor.getTextSegmentsList().size() > 0) {
      int startIdx = (int) textAnchor.getTextSegments(0).getStartIndex();
      int endIdx = (int) textAnchor.getTextSegments(0).getEndIndex();
      return text.substring(startIdx, endIdx);
    }
    return "[NO TEXT]";
  }

  private static String removeNewlines(String s) {
    return s.replace("\n", "").replace("\r", "");
  }
}

Node.js

For more information, see the Document AI Node.js API reference documentation.

To authenticate to Document AI, set up Application Default Credentials. For more information, see Set up authentication for a local development environment.

/**
 * TODO(developer): Uncomment these variables before running the sample.
 */
// const projectId = 'YOUR_PROJECT_ID';
// const location = 'YOUR_PROJECT_LOCATION'; // Format is 'us' or 'eu'
// const processorId = 'YOUR_PROCESSOR_ID'; // Create processor in Cloud Console
// const filePath = '/path/to/local/pdf';

const {DocumentProcessorServiceClient} =
  require('@google-cloud/documentai').v1beta3;

// Instantiates a client
const client = new DocumentProcessorServiceClient();

async function processDocument() {
  // The full resource name of the processor, e.g.:
  // projects/project-id/locations/location/processor/processor-id
  // You must create new processors in the Cloud Console first
  const name = `projects/${projectId}/locations/${location}/processors/${processorId}`;

  // Read the file into memory.
  const fs = require('fs').promises;
  const imageFile = await fs.readFile(filePath);

  // Convert the image data to a Buffer and base64 encode it.
  const encodedImage = Buffer.from(imageFile).toString('base64');

  const request = {
    name,
    rawDocument: {
      content: encodedImage,
      mimeType: 'application/pdf',
    },
  };

  // Recognizes text entities in the PDF document
  const [result] = await client.processDocument(request);

  console.log('Document processing complete.');

  // Read the table and form fields output from the processor
  // The form processor also contains OCR data. For more information
  // on how to parse OCR data please see the OCR sample.
  // For a full list of Document object attributes,
  // please reference this page: https://googleapis.dev/nodejs/documentai/latest/index.html
  const {document} = result;
  const {text} = document;
  console.log(`Full document text: ${JSON.stringify(text)}`);
  console.log(`There are ${document.pages.length} page(s) in this document.`);

  for (const page of document.pages) {
    console.log(`\n\n**** Page ${page.pageNumber} ****`);

    console.log(`Found ${page.tables.length} table(s):`);
    for (const table of page.tables) {
      const numCollumns = table.headerRows[0].cells.length;
      const numRows = table.bodyRows.length;
      console.log(`Table with ${numCollumns} columns and ${numRows} rows:`);
      printTableInfo(table, text);
    }
    console.log(`Found ${page.formFields.length} form field(s):`);
    for (const field of page.formFields) {
      const fieldName = getText(field.fieldName.textAnchor, text);
      const fieldValue = getText(field.fieldValue.textAnchor, text);
      console.log(
        `\t* ${JSON.stringify(fieldName)}: ${JSON.stringify(fieldValue)}`
      );
    }
  }
}

const printTableInfo = (table, text) => {
  // Print header row
  let headerRowText = '';
  for (const headerCell of table.headerRows[0].cells) {
    const headerCellText = getText(headerCell.layout.textAnchor, text);
    headerRowText += `${JSON.stringify(headerCellText.trim())} | `;
  }
  console.log(
    `Collumns: ${headerRowText.substring(0, headerRowText.length - 3)}`
  );
  // Print first body row
  let bodyRowText = '';
  for (const bodyCell of table.bodyRows[0].cells) {
    const bodyCellText = getText(bodyCell.layout.textAnchor, text);
    bodyRowText += `${JSON.stringify(bodyCellText.trim())} | `;
  }
  console.log(
    `First row data: ${bodyRowText.substring(0, bodyRowText.length - 3)}`
  );
};

// Extract shards from the text field
const getText = (textAnchor, text) => {
  if (!textAnchor.textSegments || textAnchor.textSegments.length === 0) {
    return '';
  }

  // First shard in document doesn't have startIndex property
  const startIndex = textAnchor.textSegments[0].startIndex || 0;
  const endIndex = textAnchor.textSegments[0].endIndex;

  return text.substring(startIndex, endIndex);
};

Python

For more information, see the Document AI Python API reference documentation.

To authenticate to Document AI, set up Application Default Credentials. For more information, see Set up authentication for a local development environment.

from typing import Optional, Sequence

from google.api_core.client_options import ClientOptions
from google.cloud import documentai

# TODO(developer): Uncomment these variables before running the sample.
# project_id = "YOUR_PROJECT_ID"
# location = "YOUR_PROCESSOR_LOCATION" # Format is "us" or "eu"
# processor_id = "YOUR_PROCESSOR_ID" # Create processor before running sample
# processor_version = "rc" # Refer to https://cloud.google.com/document-ai/docs/manage-processor-versions for more information
# file_path = "/path/to/local/pdf"
# mime_type = "application/pdf" # Refer to https://cloud.google.com/document-ai/docs/file-types for supported file types


def process_document_form_sample(
    project_id: str,
    location: str,
    processor_id: str,
    processor_version: str,
    file_path: str,
    mime_type: str,
) -> documentai.Document:
    # Online processing request to Document AI
    document = process_document(
        project_id, location, processor_id, processor_version, file_path, mime_type
    )

    # Read the table and form fields output from the processor
    # The form processor also contains OCR data. For more information
    # on how to parse OCR data please see the OCR sample.

    text = document.text
    print(f"Full document text: {repr(text)}\n")
    print(f"There are {len(document.pages)} page(s) in this document.")

    # Read the form fields and tables output from the processor
    for page in document.pages:
        print(f"\n\n**** Page {page.page_number} ****")

        print(f"\nFound {len(page.tables)} table(s):")
        for table in page.tables:
            num_columns = len(table.header_rows[0].cells)
            num_rows = len(table.body_rows)
            print(f"Table with {num_columns} columns and {num_rows} rows:")

            # Print header rows
            print("Columns:")
            print_table_rows(table.header_rows, text)
            # Print body rows
            print("Table body data:")
            print_table_rows(table.body_rows, text)

        print(f"\nFound {len(page.form_fields)} form field(s):")
        for field in page.form_fields:
            name = layout_to_text(field.field_name, text)
            value = layout_to_text(field.field_value, text)
            print(f"    * {repr(name.strip())}: {repr(value.strip())}")

    # Supported in version `pretrained-form-parser-v2.0-2022-11-10` and later.
    # For more information: https://cloud.google.com/document-ai/docs/form-parser
    if document.entities:
        print(f"Found {len(document.entities)} generic entities:")
        for entity in document.entities:
            print_entity(entity)
            # Print Nested Entities
            for prop in entity.properties:
                print_entity(prop)

    return document


def print_table_rows(
    table_rows: Sequence[documentai.Document.Page.Table.TableRow], text: str
) -> None:
    for table_row in table_rows:
        row_text = ""
        for cell in table_row.cells:
            cell_text = layout_to_text(cell.layout, text)
            row_text += f"{repr(cell_text.strip())} | "
        print(row_text)




def print_entity(entity: documentai.Document.Entity) -> None:
    # Fields detected. For a full list of fields for each processor see
    # the processor documentation:
    # https://cloud.google.com/document-ai/docs/processors-list
    key = entity.type_

    # Some other value formats in addition to text are available
    # e.g. dates: `entity.normalized_value.date_value.year`
    text_value = entity.text_anchor.content or entity.mention_text
    confidence = entity.confidence
    normalized_value = entity.normalized_value.text
    print(f"    * {repr(key)}: {repr(text_value)} ({confidence:.1%} confident)")

    if normalized_value:
        print(f"    * Normalized Value: {repr(normalized_value)}")




def process_document(
    project_id: str,
    location: str,
    processor_id: str,
    processor_version: str,
    file_path: str,
    mime_type: str,
    process_options: Optional[documentai.ProcessOptions] = None,
) -> documentai.Document:
    # You must set the `api_endpoint` if you use a location other than "us".
    client = documentai.DocumentProcessorServiceClient(
        client_options=ClientOptions(
            api_endpoint=f"{location}-documentai.googleapis.com"
        )
    )

    # The full resource name of the processor version, e.g.:
    # `projects/{project_id}/locations/{location}/processors/{processor_id}/processorVersions/{processor_version_id}`
    # You must create a processor before running this sample.
    name = client.processor_version_path(
        project_id, location, processor_id, processor_version
    )

    # Read the file into memory
    with open(file_path, "rb") as image:
        image_content = image.read()

    # Configure the process request
    request = documentai.ProcessRequest(
        name=name,
        raw_document=documentai.RawDocument(content=image_content, mime_type=mime_type),
        # Only supported for Document OCR processor
        process_options=process_options,
    )

    result = client.process_document(request=request)

    # For a full list of `Document` object attributes, reference this page:
    # https://cloud.google.com/document-ai/docs/reference/rest/v1/Document
    return result.document




def layout_to_text(layout: documentai.Document.Page.Layout, text: str) -> str:
    """
    Document AI identifies text in different parts of the document by their
    offsets in the entirety of the document"s text. This function converts
    offsets to a string.
    """
    # If a text segment spans several lines, it will
    # be stored in different text segments.
    return "".join(
        text[int(segment.start_index) : int(segment.end_index)]
        for segment in layout.text_anchor.text_segments
    )

Entities, nested entities, and normalized values

Many of the specialized processors extract structured data that is grounded to a well-defined schema. For example, the Invoice parser detects specific fields such as invoice_date and supplier_name. Here's a sample invoice:

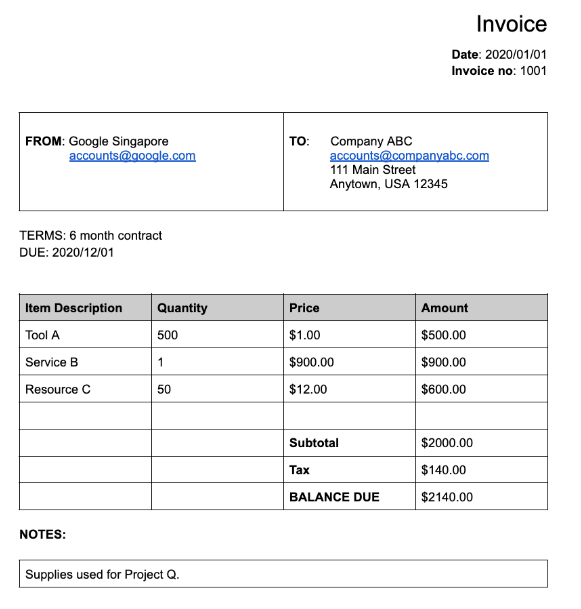

Here's the full document object as returned by the Invoice parser:

Download JSON

Here are some of the important parts of the document object:

• Detected fields: Entities contains the fields that the processor was able to detect, for example, the invoice_date:

  {
   "entities": [
      {
        "textAnchor": {
          "textSegments": [
            {
              "startIndex": "14",
              "endIndex": "24"
            }
          ],
          "content": "2020/01/01"
        },
        "type": "invoice_date",
        "confidence": 0.9938466,
        "pageAnchor": { ... },
        "id": "2",
        "normalizedValue": {
          "text": "2020-01-01",
          "dateValue": {
            "year": 2020,
            "month": 1,
            "day": 1
          }
        }
      }
    ]
  }


  For certain fields, the processor also normalizes the value. In this example, the date has been normalized from 2020/01/01 to 2020-01-01.

• Normalization: For many specific supported fields, the processor also normalizes the value and also returns an entity. The normalizedValue field is added to the raw extracted field obtained through the textAnchor of each entity. So it normalizes the literal text, often breaking up the text value into subfields. For example, a date like September 1st, 2024 would be represented as:

  normalizedValue": {
    "text": "2020-09-01",
    "dateValue": {
      "year": 2024,
      "month": 9,
      "day": 1
  }

In this example, the date has been normalized from 2020/01/01 to 2020-01-01, a standardized format to reduce postprocessing and enable conversion to the chosen format.

Note: Dates and currency are normalized. They depend on the parsing of document location information. For example, the US uses mm/dd/yyyy, as opposed to dd/mm/yyyy.

Addresses are also often normalized, which breaks down the elements of the address into individual fields. Numbers are normalized by having an integer or floating point number as the normalizedValue.

• Enrichment: Certain processors and fields also support enrichment. For example, the original supplier_name in the document Google Singapore has been normalized against the Enterprise Knowledge Graph to Google Asia Pacific, Singapore. Also notice that because the Enterprise Knowledge Graph contains information about Google, Document AI infers the supplier_address even though it wasn't present in the sample document.

Note: Enterprise Knowledge Graph, used for information enrichment, strives for accuracy but cannot be guaranteed to be perfect.

  {
    "entities": [
      {
        "textAnchor": {
          "textSegments": [ ... ],
          "content": "Google Singapore"
        },
        "type": "supplier_name",
        "confidence": 0.39170802,
        "pageAnchor": { ... },
        "id": "12",
        "normalizedValue": {
          "text": "Google Asia Pacific, Singapore"
        }
      },
      {
        "type": "supplier_address",
        "id": "17",
        "normalizedValue": {
          "text": "70 Pasir Panjang Rd #03-71 Mapletree Business City II Singapore 117371",
          "addressValue": {
            "regionCode": "SG",
            "languageCode": "en-US",
            "postalCode": "117371",
            "addressLines": [
              "70 Pasir Panjang Rd",
              "#03-71 Mapletree Business City II"
            ]
          }
        }
      }
    ]
  }

• Nested fields: Nested schema (fields) can be created by first declaring an entity as a parent, then creating child entities under the parent. The parsing response for the parent includes the child fields in the properties element of the parent field. In the following example, line_item is a parent field that has two child fields: line_item/description and line_item/quantity.

  {
    "entities": [
      {
        "textAnchor": { ... },
        "type": "line_item",
        "confidence": 1.0,
        "pageAnchor": { ... },
        "id": "19",
        "properties": [
          {
            "textAnchor": {
              "textSegments": [ ... ],
              "content": "Tool A"
            },
            "type": "line_item/description",
            "confidence": 0.3461604,
            "pageAnchor": { ... },
            "id": "20"
          },
          {
            "textAnchor": {
              "textSegments": [ ... ],
              "content": "500"
            },
            "type": "line_item/quantity",
            "confidence": 0.8077843,
            "pageAnchor": { ... },
            "id": "21",
            "normalizedValue": {
              "text": "500"
            }
          }
        ]
      }
    ]
  }


Note: The child field might not include the name of its parent. By convention, some pretrained processors prefix the child field with {parent}/, for example, line_item/description and line_item/quantity, but not all processors follow that convention.

The following parsers do follow it:

• Extract (Custom Extractor)
• Legacy
  • Bank statement parser
  • Expense parser
  • Invoice Parser
  • PaySlip parser
  • W2 Parser

Code samples

The following code samples demonstrate how to send a processing request and then read and print the fields from a specialized processor to the terminal:

Java

For more information, see the Document AI Java API reference documentation.

To authenticate to Document AI, set up Application Default Credentials. For more information, see Set up authentication for a local development environment.

import com.google.cloud.documentai.v1beta3.Document;
import com.google.cloud.documentai.v1beta3.DocumentProcessorServiceClient;
import com.google.cloud.documentai.v1beta3.DocumentProcessorServiceSettings;
import com.google.cloud.documentai.v1beta3.ProcessRequest;
import com.google.cloud.documentai.v1beta3.ProcessResponse;
import com.google.cloud.documentai.v1beta3.RawDocument;
import com.google.protobuf.ByteString;
import java.io.IOException;
import java.nio.file.Files;
import java.nio.file.Paths;
import java.util.concurrent.ExecutionException;
import java.util.concurrent.TimeoutException;

public class ProcessSpecializedDocument {
  public static void processSpecializedDocument()
      throws IOException, InterruptedException, ExecutionException, TimeoutException {
    // TODO(developer): Replace these variables before running the sample.
    String projectId = "your-project-id";
    String location = "your-project-location"; // Format is "us" or "eu".
    String processerId = "your-processor-id";
    String filePath = "path/to/input/file.pdf";
    processSpecializedDocument(projectId, location, processerId, filePath);
  }

  public static void processSpecializedDocument(
      String projectId, String location, String processorId, String filePath)
      throws IOException, InterruptedException, ExecutionException, TimeoutException {
    // Initialize client that will be used to send requests. This client only needs
    // to be created
    // once, and can be reused for multiple requests. After completing all of your
    // requests, call
    // the "close" method on the client to safely clean up any remaining background
    // resources.
    String endpoint = String.format("%s-documentai.googleapis.com:443", location);
    DocumentProcessorServiceSettings settings =
        DocumentProcessorServiceSettings.newBuilder().setEndpoint(endpoint).build();
    try (DocumentProcessorServiceClient client = DocumentProcessorServiceClient.create(settings)) {
      // The full resource name of the processor, e.g.:
      // projects/project-id/locations/location/processor/processor-id
      // You must create new processors in the Cloud Console first
      String name =
          String.format("projects/%s/locations/%s/processors/%s", projectId, location, processorId);

      // Read the file.
      byte[] imageFileData = Files.readAllBytes(Paths.get(filePath));

      // Convert the image data to a Buffer and base64 encode it.
      ByteString content = ByteString.copyFrom(imageFileData);

      RawDocument document =
          RawDocument.newBuilder().setContent(content).setMimeType("application/pdf").build();

      // Configure the process request.
      ProcessRequest request =
          ProcessRequest.newBuilder().setName(name).setRawDocument(document).build();

      // Recognizes text entities in the PDF document
      ProcessResponse result = client.processDocument(request);
      Document documentResponse = result.getDocument();

      System.out.println("Document processing complete.");

      // Read fields specificly from the specalized US drivers license processor:
      // https://cloud.google.com/document-ai/docs/processors-list#processor_us-driver-license-parser
      // retriving data from other specalized processors follow a similar pattern.
      // For a complete list of processors see:
      // https://cloud.google.com/document-ai/docs/processors-list
      //
      // OCR and other data is also present in the quality processor's response.
      // Please see the OCR and other samples for how to parse other data in the
      // response.
      for (Document.Entity entity : documentResponse.getEntitiesList()) {
        // Fields detected. For a full list of fields for each processor see
        // the processor documentation:
        // https://cloud.google.com/document-ai/docs/processors-list
        String entityType = entity.getType();
        // some other value formats in addition to text are availible
        // e.g. dates: `entity.getNormalizedValue().getDateValue().getYear()`
        // check for normilized value with `entity.hasNormalizedValue()`
        String entityTextValue = escapeNewlines(entity.getTextAnchor().getContent());
        float entityConfidence = entity.getConfidence();
        System.out.printf(
            "    * %s: %s (%.2f%% confident)\n",
            entityType, entityTextValue, entityConfidence * 100.0);
      }
    }
  }

  private static String escapeNewlines(String s) {
    return s.replace("\n", "\\n").replace("\r", "\\r");
  }
}

Node.js

For more information, see the Document AI Node.js API reference documentation.

To authenticate to Document AI, set up Application Default Credentials. For more information, see Set up authentication for a local development environment.

/**
 * TODO(developer): Uncomment these variables before running the sample.
 */
// const projectId = 'YOUR_PROJECT_ID';
// const location = 'YOUR_PROJECT_LOCATION'; // Format is 'us' or 'eu'
// const processorId = 'YOUR_PROCESSOR_ID'; // Create processor in Cloud Console
// const filePath = '/path/to/local/pdf';

const {DocumentProcessorServiceClient} =
  require('@google-cloud/documentai').v1beta3;

// Instantiates a client
const client = new DocumentProcessorServiceClient();

async function processDocument() {
  // The full resource name of the processor, e.g.:
  // projects/project-id/locations/location/processor/processor-id
  // You must create new processors in the Cloud Console first
  const name = `projects/${projectId}/locations/${location}/processors/${processorId}`;

  // Read the file into memory.
  const fs = require('fs').promises;
  const imageFile = await fs.readFile(filePath);

  // Convert the image data to a Buffer and base64 encode it.
  const encodedImage = Buffer.from(imageFile).toString('base64');

  const request = {
    name,
    rawDocument: {
      content: encodedImage,
      mimeType: 'application/pdf',
    },
  };

  // Recognizes text entities in the PDF document
  const [result] = await client.processDocument(request);

  console.log('Document processing complete.');

  // Read fields specificly from the specalized US drivers license processor:
  // https://cloud.google.com/document-ai/docs/processors-list#processor_us-driver-license-parser
  // retriving data from other specalized processors follow a similar pattern.
  // For a complete list of processors see:
  // https://cloud.google.com/document-ai/docs/processors-list
  //
  // OCR and other data is also present in the quality processor's response.
  // Please see the OCR and other samples for how to parse other data in the
  // response.
  const {document} = result;
  for (const entity of document.entities) {
    // Fields detected. For a full list of fields for each processor see
    // the processor documentation:
    // https://cloud.google.com/document-ai/docs/processors-list
    const key = entity.type;
    // some other value formats in addition to text are availible
    // e.g. dates: `entity.normalizedValue.dateValue.year`
    const textValue =
      entity.textAnchor !== null ? entity.textAnchor.content : '';
    const conf = entity.confidence * 100;
    console.log(
      `* ${JSON.stringify(key)}: ${JSON.stringify(textValue)}(${conf.toFixed(
        2
      )}% confident)`
    );
  }
}

Python

For more information, see the Document AI Python API reference documentation.

To authenticate to Document AI, set up Application Default Credentials. For more information, see Set up authentication for a local development environment.

from typing import Optional, Sequence

from google.api_core.client_options import ClientOptions
from google.cloud import documentai

# TODO(developer): Uncomment these variables before running the sample.
# project_id = "YOUR_PROJECT_ID"
# location = "YOUR_PROCESSOR_LOCATION" # Format is "us" or "eu"
# processor_id = "YOUR_PROCESSOR_ID" # Create processor before running sample
# processor_version = "rc" # Refer to https://cloud.google.com/document-ai/docs/manage-processor-versions for more information
# file_path = "/path/to/local/pdf"
# mime_type = "application/pdf" # Refer to https://cloud.google.com/document-ai/docs/file-types for supported file types


def process_document_entity_extraction_sample(
    project_id: str,
    location: str,
    processor_id: str,
    processor_version: str,
    file_path: str,
    mime_type: str,
) -> None:
    # Online processing request to Document AI
    document = process_document(
        project_id, location, processor_id, processor_version, file_path, mime_type
    )

    # Print extracted entities from entity extraction processor output.
    # For a complete list of processors see:
    # https://cloud.google.com/document-ai/docs/processors-list
    #
    # OCR and other data is also present in the processor's response.
    # Refer to the OCR samples for how to parse other data in the response.

    print(f"Found {len(document.entities)} entities:")
    for entity in document.entities:
        print_entity(entity)
        # Print Nested Entities (if any)
        for prop in entity.properties:
            print_entity(prop)




def print_entity(entity: documentai.Document.Entity) -> None:
    # Fields detected. For a full list of fields for each processor see
    # the processor documentation:
    # https://cloud.google.com/document-ai/docs/processors-list
    key = entity.type_

    # Some other value formats in addition to text are available
    # e.g. dates: `entity.normalized_value.date_value.year`
    text_value = entity.text_anchor.content or entity.mention_text
    confidence = entity.confidence
    normalized_value = entity.normalized_value.text
    print(f"    * {repr(key)}: {repr(text_value)} ({confidence:.1%} confident)")

    if normalized_value:
        print(f"    * Normalized Value: {repr(normalized_value)}")




def process_document(
    project_id: str,
    location: str,
    processor_id: str,
    processor_version: str,
    file_path: str,
    mime_type: str,
    process_options: Optional[documentai.ProcessOptions] = None,
) -> documentai.Document:
    # You must set the `api_endpoint` if you use a location other than "us".
    client = documentai.DocumentProcessorServiceClient(
        client_options=ClientOptions(
            api_endpoint=f"{location}-documentai.googleapis.com"
        )
    )

    # The full resource name of the processor version, e.g.:
    # `projects/{project_id}/locations/{location}/processors/{processor_id}/processorVersions/{processor_version_id}`
    # You must create a processor before running this sample.
    name = client.processor_version_path(
        project_id, location, processor_id, processor_version
    )

    # Read the file into memory
    with open(file_path, "rb") as image:
        image_content = image.read()

    # Configure the process request
    request = documentai.ProcessRequest(
        name=name,
        raw_document=documentai.RawDocument(content=image_content, mime_type=mime_type),
        # Only supported for Document OCR processor
        process_options=process_options,
    )

    result = client.process_document(request=request)

    # For a full list of `Document` object attributes, reference this page:
    # https://cloud.google.com/document-ai/docs/reference/rest/v1/Document
    return result.document

Custom Document Extractor

The Custom Document Extractor processor can extract custom entities from documents which don't have a pretrained processor available. This can be accomplished through training a custom model or by using Generative AI Foundation Models to extract named entities without any training. For more information, refer to Create a Custom Document Extractor in the console.

• If you train a custom model, the processor can be used in exactly the same way as a pretrained entity extraction processor.
• If you use a foundation model, you can create a processor version to extract specific entities for every request, or you can configure it on a per-request basis.

For information about the output structure, refer to Entities, nested entities, and normalized values.

Code samples

If you are using a custom model or created a processor version using a foundation model, then use the entity extraction code samples.

The following code sample demonstrates how to configure specific entities for a foundation model Custom Document Extractor on a per-request basis and print the extracted entities:

Python

For more information, see the Document AI Python API reference documentation.

To authenticate to Document AI, set up Application Default Credentials. For more information, see Set up authentication for a local development environment.

from typing import Optional, Sequence

from google.api_core.client_options import ClientOptions
from google.cloud import documentai

# TODO(developer): Uncomment these variables before running the sample.
# project_id = "YOUR_PROJECT_ID"
# location = "YOUR_PROCESSOR_LOCATION" # Format is "us" or "eu"
# processor_id = "YOUR_PROCESSOR_ID" # Create processor before running sample
# processor_version = "rc" # Refer to https://cloud.google.com/document-ai/docs/manage-processor-versions for more information
# file_path = "/path/to/local/pdf"
# mime_type = "application/pdf" # Refer to https://cloud.google.com/document-ai/docs/file-types for supported file types




def process_document_custom_extractor_sample(
    project_id: str,
    location: str,
    processor_id: str,
    processor_version: str,
    file_path: str,
    mime_type: str,
) -> None:
    # Entities to extract from Foundation Model CDE
    properties = [
        documentai.DocumentSchema.EntityType.Property(
            name="invoice_id",
            value_type="string",
            occurrence_type=documentai.DocumentSchema.EntityType.Property.OccurrenceType.REQUIRED_ONCE,
        ),
        documentai.DocumentSchema.EntityType.Property(
            name="notes",
            value_type="string",
            occurrence_type=documentai.DocumentSchema.EntityType.Property.OccurrenceType.OPTIONAL_MULTIPLE,
        ),
        documentai.DocumentSchema.EntityType.Property(
            name="terms",
            value_type="string",
            occurrence_type=documentai.DocumentSchema.EntityType.Property.OccurrenceType.OPTIONAL_MULTIPLE,
        ),
    ]
    # Optional: For Generative AI processors, request different fields than the
    # schema for a processor version
    process_options = documentai.ProcessOptions(
        schema_override=documentai.DocumentSchema(
            display_name="CDE Schema",
            description="Document Schema for the CDE Processor",
            entity_types=[
                documentai.DocumentSchema.EntityType(
                    name="custom_extraction_document_type",
                    base_types=["document"],
                    properties=properties,
                )
            ],
        )
    )

    # Online processing request to Document AI
    document = process_document(
        project_id,
        location,
        processor_id,
        processor_version,
        file_path,
        mime_type,
        process_options=process_options,
    )

    for entity in document.entities:
        print_entity(entity)
        # Print Nested Entities (if any)
        for prop in entity.properties:
            print_entity(prop)




def print_entity(entity: documentai.Document.Entity) -> None:
    # Fields detected. For a full list of fields for each processor see
    # the processor documentation:
    # https://cloud.google.com/document-ai/docs/processors-list
    key = entity.type_

    # Some other value formats in addition to text are available
    # e.g. dates: `entity.normalized_value.date_value.year`
    text_value = entity.text_anchor.content or entity.mention_text
    confidence = entity.confidence
    normalized_value = entity.normalized_value.text
    print(f"    * {repr(key)}: {repr(text_value)} ({confidence:.1%} confident)")

    if normalized_value:
        print(f"    * Normalized Value: {repr(normalized_value)}")




def process_document(
    project_id: str,
    location: str,
    processor_id: str,
    processor_version: str,
    file_path: str,
    mime_type: str,
    process_options: Optional[documentai.ProcessOptions] = None,
) -> documentai.Document:
    # You must set the `api_endpoint` if you use a location other than "us".
    client = documentai.DocumentProcessorServiceClient(
        client_options=ClientOptions(
            api_endpoint=f"{location}-documentai.googleapis.com"
        )
    )

    # The full resource name of the processor version, e.g.:
    # `projects/{project_id}/locations/{location}/processors/{processor_id}/processorVersions/{processor_version_id}`
    # You must create a processor before running this sample.
    name = client.processor_version_path(
        project_id, location, processor_id, processor_version
    )

    # Read the file into memory
    with open(file_path, "rb") as image:
        image_content = image.read()

    # Configure the process request
    request = documentai.ProcessRequest(
        name=name,
        raw_document=documentai.RawDocument(content=image_content, mime_type=mime_type),
        # Only supported for Document OCR processor
        process_options=process_options,
    )

    result = client.process_document(request=request)

    # For a full list of `Document` object attributes, reference this page:
    # https://cloud.google.com/document-ai/docs/reference/rest/v1/Document
    return result.document

Summarization

The Summarizer processor uses Generative AI Foundation Models to summarize the extracted text from a document. The length and format of the response can be customized in the following ways:

• Length
  • BRIEF: A brief summary of one or two sentences
  • MODERATE: A paragraph-length summary
  • COMPREHENSIVE: The longest option available
• Format
  • PARAGRAPH: Output in paragraphs
  • BULLETS: Output in bullet points

You can either create a processor version for a specific length and format, or you can configure it on a per-request basis.

The summarized text appears in Document.entities.normalizedValue.text. You can find a full sample output JSON file in Sample processor output.

For more information, refer to Build a document summarizer in the console.

Code samples

The following code sample demonstrates how to configure a specific length and format in a processing request and print the summarized text:

Python

For more information, see the Document AI Python API reference documentation.

To authenticate to Document AI, set up Application Default Credentials. For more information, see Set up authentication for a local development environment.

from typing import Optional

from google.api_core.client_options import ClientOptions
from google.cloud import documentai_v1beta3 as documentai


# TODO(developer): Uncomment these variables before running the sample.
# project_id = "YOUR_PROJECT_ID"
# location = "YOUR_PROCESSOR_LOCATION" # Format is "us" or "eu"
# processor_id = "YOUR_PROCESSOR_ID" # Create processor before running sample
# processor_version = "rc" # Refer to https://cloud.google.com/document-ai/docs/manage-processor-versions for more information
# file_path = "/path/to/local/pdf"
# mime_type = "application/pdf" # Refer to https://cloud.google.com/document-ai/docs/file-types for supported file types

def process_document_summarizer_sample(
    project_id: str,
    location: str,
    processor_id: str,
    processor_version: str,
    file_path: str,
    mime_type: str,
) -> None:
    # For supported options, refer to:
    # https://cloud.google.com/document-ai/docs/reference/rest/v1beta3/projects.locations.processors.processorVersions#summaryoptions
    summary_options = documentai.SummaryOptions(
        length=documentai.SummaryOptions.Length.BRIEF,
        format=documentai.SummaryOptions.Format.BULLETS,
    )

    properties = [
        documentai.DocumentSchema.EntityType.Property(
            name="summary",
            value_type="string",
            occurrence_type=documentai.DocumentSchema.EntityType.Property.OccurrenceType.REQUIRED_ONCE,
            property_metadata=documentai.PropertyMetadata(
                field_extraction_metadata=documentai.FieldExtractionMetadata(
                    summary_options=summary_options
                )
            ),
        )
    ]

    # Optional: Request specific summarization format other than the default
    # for the processor version.
    process_options = documentai.ProcessOptions(
        schema_override=documentai.DocumentSchema(
            entity_types=[
                documentai.DocumentSchema.EntityType(
                    name="summary_document_type",
                    base_types=["document"],
                    properties=properties,
                )
            ]
        )
    )

    # Online processing request to Document AI
    document = process_document(
        project_id,
        location,
        processor_id,
        processor_version,
        file_path,
        mime_type,
        process_options=process_options,
    )

    for entity in document.entities:
        print_entity(entity)
        # Print Nested Entities (if any)
        for prop in entity.properties:
            print_entity(prop)


def print_entity(entity: documentai.Document.Entity) -> None:
    # Fields detected. For a full list of fields for each processor see
    # the processor documentation:
    # https://cloud.google.com/document-ai/docs/processors-list
    key = entity.type_

    # Some other value formats in addition to text are availible
    # e.g. dates: `entity.normalized_value.date_value.year`
    text_value = entity.text_anchor.content
    confidence = entity.confidence
    normalized_value = entity.normalized_value.text
    print(f"    * {repr(key)}: {repr(text_value)}({confidence:.1%} confident)")

    if normalized_value:
        print(f"    * Normalized Value: {repr(normalized_value)}")


def process_document(
    project_id: str,
    location: str,
    processor_id: str,
    processor_version: str,
    file_path: str,
    mime_type: str,
    process_options: Optional[documentai.ProcessOptions] = None,
) -> documentai.Document:
    # You must set the `api_endpoint` if you use a location other than "us".
    client = documentai.DocumentProcessorServiceClient(
        client_options=ClientOptions(
            api_endpoint=f"{location}-documentai.googleapis.com"
        )
    )

    # The full resource name of the processor version, e.g.:
    # `projects/{project_id}/locations/{location}/processors/{processor_id}/processorVersions/{processor_version_id}`
    # You must create a processor before running this sample.
    name = client.processor_version_path(
        project_id, location, processor_id, processor_version
    )

    # Read the file into memory
    with open(file_path, "rb") as image:
        image_content = image.read()

    # Configure the process request
    request = documentai.ProcessRequest(
        name=name,
        raw_document=documentai.RawDocument(content=image_content, mime_type=mime_type),
        # Only supported for Document OCR processor
        process_options=process_options,
    )

    result = client.process_document(request=request)

    # For a full list of `Document` object attributes, reference this page:
    # https://cloud.google.com/document-ai/docs/reference/rest/v1/Document
    return result.document

Splitting and classification

Here's a composite 10-page PDF that contains different types of documents and forms:

Download PDF

Here's the full document object as returned by the lending document splitter and classifier:

Download JSON

Each document that is detected by the splitter is represented by an entity. For example:

  {
    "entities": [
      {
        "textAnchor": {
          "textSegments": [
            {
              "startIndex": "13936",
              "endIndex": "21108"
            }
          ]
        },
        "type": "1040se_2020",
        "confidence": 0.76257163,
        "pageAnchor": {
          "pageRefs": [
            {
              "page": "6"
            },
            {
              "page": "7"
            }
          ]
        }
      }
    ]
  }

• Entity.pageAnchor indicates that this document is 2 pages long. Note that pageRefs[].page is zero-based and is the index into the document.pages[] field.

  Caution: Zero pageRefs[].page values omitted. When the API detects a page value of "0", that coordinate is omitted in the JSON response. For example, a response for the first two pages of a document would be: "pageRefs": [{}, {"page": "1"}]

• Entity.type specifies that this document is a 1040 Schedule SE form. For a full list of document types that can be identified, see Document types identified in the processor documentation.

For more information, see Document splitters behavior.

Code samples

Splitters identify page boundaries, but don't actually split the input document for you. You can use Document AI Toolbox to physically split a PDF file by using the page boundaries. The following code samples print the page ranges without splitting the PDF:

Java

For more information, see the Document AI Java API reference documentation.

To authenticate to Document AI, set up Application Default Credentials. For more information, see Set up authentication for a local development environment.

import com.google.cloud.documentai.v1beta3.Document;
import com.google.cloud.documentai.v1beta3.DocumentProcessorServiceClient;
import com.google.cloud.documentai.v1beta3.DocumentProcessorServiceSettings;
import com.google.cloud.documentai.v1beta3.ProcessRequest;
import com.google.cloud.documentai.v1beta3.ProcessResponse;
import com.google.cloud.documentai.v1beta3.RawDocument;
import com.google.protobuf.ByteString;
import java.io.IOException;
import java.nio.file.Files;
import java.nio.file.Paths;
import java.util.List;
import java.util.concurrent.ExecutionException;
import java.util.concurrent.TimeoutException;

public class ProcessSplitterDocument {
  public static void processSplitterDocument()
      throws IOException, InterruptedException, ExecutionException, TimeoutException {
    // TODO(developer): Replace these variables before running the sample.
    String projectId = "your-project-id";
    String location = "your-project-location"; // Format is "us" or "eu".
    String processerId = "your-processor-id";
    String filePath = "path/to/input/file.pdf";
    processSplitterDocument(projectId, location, processerId, filePath);
  }

  public static void processSplitterDocument(
      String projectId, String location, String processorId, String filePath)
      throws IOException, InterruptedException, ExecutionException, TimeoutException {
    // Initialize client that will be used to send requests. This client only needs
    // to be created
    // once, and can be reused for multiple requests. After completing all of your
    // requests, call
    // the "close" method on the client to safely clean up any remaining background
    // resources.
    String endpoint = String.format("%s-documentai.googleapis.com:443", location);
    DocumentProcessorServiceSettings settings =
        DocumentProcessorServiceSettings.newBuilder().setEndpoint(endpoint).build();
    try (DocumentProcessorServiceClient client = DocumentProcessorServiceClient.create(settings)) {
      // The full resource name of the processor, e.g.:
      // projects/project-id/locations/location/processor/processor-id
      // You must create new processors in the Cloud Console first
      String name =
          String.format("projects/%s/locations/%s/processors/%s", projectId, location, processorId);

      // Read the file.
      byte[] imageFileData = Files.readAllBytes(Paths.get(filePath));

      // Convert the image data to a Buffer and base64 encode it.
      ByteString content = ByteString.copyFrom(imageFileData);

      RawDocument document =
          RawDocument.newBuilder().setContent(content).setMimeType("application/pdf").build();

      // Configure the process request.
      ProcessRequest request =
          ProcessRequest.newBuilder().setName(name).setRawDocument(document).build();

      // Recognizes text entities in the PDF document
      ProcessResponse result = client.processDocument(request);
      Document documentResponse = result.getDocument();

      System.out.println("Document processing complete.");

      // Read the splitter output from the document splitter processor:
      // https://cloud.google.com/document-ai/docs/processors-list#processor_doc-splitter
      // This processor only provides text for the document and information on how
      // to split the document on logical boundaries. To identify and extract text,
      // form elements, and entities please see other processors like the OCR, form,
      // and specalized processors.
      List<Document.Entity> entities = documentResponse.getEntitiesList();
      System.out.printf("Found %d subdocuments:\n", entities.size());
      for (Document.Entity entity : entities) {
        float entityConfidence = entity.getConfidence();
        String pagesRangeText = pageRefsToString(entity.getPageAnchor().getPageRefsList());
        String subdocumentType = entity.getType();
        if (subdocumentType.isEmpty()) {
          System.out.printf(
              "%.2f%% confident that %s a subdocument.\n", entityConfidence * 100, pagesRangeText);
        } else {
          System.out.printf(
              "%.2f%% confident that %s a '%s' subdocument.\n",
              entityConfidence * 100, pagesRangeText, subdocumentType);
        }
      }
    }
  }

  // Converts page reference(s) to a string describing the page or page range.
  private static String pageRefsToString(List<Document.PageAnchor.PageRef> pageRefs) {
    if (pageRefs.size() == 1) {
      return String.format("page %d is", pageRefs.get(0).getPage() + 1);
    } else {
      long start = pageRefs.get(0).getPage() + 1;
      long end = pageRefs.get(1).getPage() + 1;
      return String.format("pages %d to %d are", start, end);
    }
  }
}

Node.js

For more information, see the Document AI Node.js API reference documentation.

To authenticate to Document AI, set up Application Default Credentials. For more information, see Set up authentication for a local development environment.

/**
 * TODO(developer): Uncomment these variables before running the sample.
 */
// const projectId = 'YOUR_PROJECT_ID';
// const location = 'YOUR_PROJECT_LOCATION'; // Format is 'us' or 'eu'
// const processorId = 'YOUR_PROCESSOR_ID'; // Create processor in Cloud Console
// const filePath = '/path/to/local/pdf';

const {DocumentProcessorServiceClient} =
  require('@google-cloud/documentai').v1beta3;

// Instantiates a client
const client = new DocumentProcessorServiceClient();

async function processDocument() {
  // The full resource name of the processor, e.g.:
  // projects/project-id/locations/location/processor/processor-id
  // You must create new processors in the Cloud Console first
  const name = `projects/${projectId}/locations/${location}/processors/${processorId}`;

  // Read the file into memory.
  const fs = require('fs').promises;
  const imageFile = await fs.readFile(filePath);

  // Convert the image data to a Buffer and base64 encode it.
  const encodedImage = Buffer.from(imageFile).toString('base64');

  const request = {
    name,
    rawDocument: {
      content: encodedImage,
      mimeType: 'application/pdf',
    },
  };

  // Recognizes text entities in the PDF document
  const [result] = await client.processDocument(request);

  console.log('Document processing complete.');

  // Read fields specificly from the specalized US drivers license processor:
  // https://cloud.google.com/document-ai/docs/processors-list#processor_us-driver-license-parser
  // retriving data from other specalized processors follow a similar pattern.
  // For a complete list of processors see:
  // https://cloud.google.com/document-ai/docs/processors-list
  //
  // OCR and other data is also present in the quality processor's response.
  // Please see the OCR and other samples for how to parse other data in the
  // response.
  const {document} = result;
  console.log(`Found ${document.entities.length} subdocuments:`);
  for (const entity of document.entities) {
    const conf = entity.confidence * 100;
    const pagesRange = pageRefsToRange(entity.pageAnchor.pageRefs);
    if (entity.type !== '') {
      console.log(
        `${conf.toFixed(2)}% confident that ${pagesRange} a "${
          entity.type
        }" subdocument.`
      );
    } else {
      console.log(
        `${conf.toFixed(2)}% confident that ${pagesRange} a subdocument.`
      );
    }
  }
}

// Converts a page ref to a string describing the page or page range.
const pageRefsToRange = pageRefs => {
  if (pageRefs.length === 1) {
    const num = parseInt(pageRefs[0].page) + 1 || 1;
    return `page ${num} is`;
  } else {
    const start = parseInt(pageRefs[0].page) + 1 || 1;
    const end = parseInt(pageRefs[1].page) + 1;
    return `pages ${start} to ${end} are`;
  }
};

Python

For more information, see the Document AI Python API reference documentation.

To authenticate to Document AI, set up Application Default Credentials. For more information, see Set up authentication for a local development environment.

from typing import Optional, Sequence

from google.api_core.client_options import ClientOptions
from google.cloud import documentai

# TODO(developer): Uncomment these variables before running the sample.
# project_id = "YOUR_PROJECT_ID"
# location = "YOUR_PROCESSOR_LOCATION" # Format is "us" or "eu"
# processor_id = "YOUR_PROCESSOR_ID" # Create processor before running sample
# processor_version = "rc" # Refer to https://cloud.google.com/document-ai/docs/manage-processor-versions for more information
# file_path = "/path/to/local/pdf"
# mime_type = "application/pdf" # Refer to https://cloud.google.com/document-ai/docs/file-types for supported file types


def process_document_splitter_sample(
    project_id: str,
    location: str,
    processor_id: str,
    processor_version: str,
    file_path: str,
    mime_type: str,
) -> None:
    # Online processing request to Document AI
    document = process_document(
        project_id, location, processor_id, processor_version, file_path, mime_type
    )

    # Read the splitter output from a document splitter/classifier processor:
    # e.g. https://cloud.google.com/document-ai/docs/processors-list#processor_procurement-document-splitter
    # This processor only provides text for the document and information on how
    # to split the document on logical boundaries. To identify and extract text,
    # form elements, and entities please see other processors like the OCR, form,
    # and specalized processors.

    print(f"Found {len(document.entities)} subdocuments:")
    for entity in document.entities:
        conf_percent = f"{entity.confidence:.1%}"
        pages_range = page_refs_to_string(entity.page_anchor.page_refs)

        # Print subdocument type information, if available
        if entity.type_:
            print(
                f"{conf_percent} confident that {pages_range} a '{entity.type_}' subdocument."
            )
        else:
            print(f"{conf_percent} confident that {pages_range} a subdocument.")


def page_refs_to_string(
    page_refs: Sequence[documentai.Document.PageAnchor.PageRef],
) -> str:
    """Converts a page ref to a string describing the page or page range."""
    pages = [str(int(page_ref.page) + 1) for page_ref in page_refs]
    if len(pages) == 1:
        return f"page {pages[0]} is"
    else:
        return f"pages {', '.join(pages)} are"




def process_document(
    project_id: str,
    location: str,
    processor_id: str,
    processor_version: str,
    file_path: str,
    mime_type: str,
    process_options: Optional[documentai.ProcessOptions] = None,
) -> documentai.Document:
    # You must set the `api_endpoint` if you use a location other than "us".
    client = documentai.DocumentProcessorServiceClient(
        client_options=ClientOptions(
            api_endpoint=f"{location}-documentai.googleapis.com"
        )
    )

    # The full resource name of the processor version, e.g.:
    # `projects/{project_id}/locations/{location}/processors/{processor_id}/processorVersions/{processor_version_id}`
    # You must create a processor before running this sample.
    name = client.processor_version_path(
        project_id, location, processor_id, processor_version
    )

    # Read the file into memory
    with open(file_path, "rb") as image:
        image_content = image.read()

    # Configure the process request
    request = documentai.ProcessRequest(
        name=name,
        raw_document=documentai.RawDocument(content=image_content, mime_type=mime_type),
        # Only supported for Document OCR processor
        process_options=process_options,
    )

    result = client.process_document(request=request)

    # For a full list of `Document` object attributes, reference this page:
    # https://cloud.google.com/document-ai/docs/reference/rest/v1/Document
    return result.document

The following code sample uses Document AI Toolbox to split a PDF file using the page boundaries from a processed Document.

Python

For more information, see the Document AI Python API reference documentation.

To authenticate to Document AI, set up Application Default Credentials. For more information, see Set up authentication for a local development environment.

from google.cloud.documentai_toolbox import document

# TODO(developer): Uncomment these variables before running the sample.
# Given a local document.proto or sharded document.proto from a splitter/classifier in path
# document_path = "path/to/local/document.json"
# pdf_path = "path/to/local/document.pdf"
# output_path = "resources/output/"


def split_pdf_sample(document_path: str, pdf_path: str, output_path: str) -> None:
    wrapped_document = document.Document.from_document_path(document_path=document_path)

    output_files = wrapped_document.split_pdf(
        pdf_path=pdf_path, output_path=output_path
    )

    print("Document Successfully Split")
    for output_file in output_files:
        print(output_file)

Document AI Toolbox

Experimental

This library is subject to the "Pre-GA Offerings Terms" in the General Service Terms section of the Service Specific Terms. Pre-GA libraries are available "as is" and might have limited support. For more information, see the launch stage descriptions.

Document AI Toolbox is an SDK for Python that provides utility functions for managing, manipulating, and extracting information from the document response. It creates a "wrapped" document object from a processed document response from JSON files in Cloud Storage, local JSON files, or output directly from the process_document() method.

It can perform the following actions:

• Combine fragmented Document JSON files from Batch Processing into a single "wrapped" document.
• Export shards as a unified Document.
• Get Document output from:
  • Cloud Storage
  • BatchProcessMetadata
  • Operation name
• Access text from Pages, Lines, Paragraphs, FormFields, and Tables without handling Layout information.
• Search for a Pages containing a target string or matching a regular expression.
• Search for FormFields by name.
• Search for Entities by type.
• Convert Tables to a Pandas Dataframe or CSV.
• Insert Entities and FormFields into a BigQuery table.
• Split a PDF file based on output from a Splitter/Classifier processor.
• Extract image Entities from Document bounding boxes.
• Convert Documents to and from commonly used formats:
  • Cloud Vision API AnnotateFileResponse
  • hOCR
  • Third-party document processing formats
  Note: When importing documents and converting their annotations to the Document AI format, they will be classified as Labeled in the Google Cloud console.
• Create batches of documents for processing from a Cloud Storage folder.

Code Samples

The following code samples demonstrate how to use Document AI Toolbox.

Quickstart

from typing import Optional

from google.cloud import documentai
from google.cloud.documentai_toolbox import document, gcs_utilities

# TODO(developer): Uncomment these variables before running the sample.
# Given a Document JSON or sharded Document JSON in path gs://bucket/path/to/folder
# gcs_bucket_name = "bucket"
# gcs_prefix = "path/to/folder"

# Or, given a Document JSON in path gs://bucket/path/to/folder/document.json
# gcs_uri = "gs://bucket/path/to/folder/document.json"

# Or, given a Document JSON in path local/path/to/folder/document.json
# document_path = "local/path/to/folder/document.json"

# Or, given a Document object from Document AI
# documentai_document = documentai.Document()

# Or, given a BatchProcessMetadata object from Document AI
# operation = client.batch_process_documents(request)
# operation.result(timeout=timeout)
# batch_process_metadata = documentai.BatchProcessMetadata(operation.metadata)

# Or, given a BatchProcessOperation name from Document AI
# batch_process_operation = "projects/project_id/locations/location/operations/operation_id"


def quickstart_sample(
    gcs_bucket_name: Optional[str] = None,
    gcs_prefix: Optional[str] = None,
    gcs_uri: Optional[str] = None,
    document_path: Optional[str] = None,
    documentai_document: Optional[documentai.Document] = None,
    batch_process_metadata: Optional[documentai.BatchProcessMetadata] = None,
    batch_process_operation: Optional[str] = None,
) -> document.Document:
    if gcs_bucket_name and gcs_prefix:
        # Load from Google Cloud Storage Directory
        print("Document structure in Cloud Storage")
        gcs_utilities.print_gcs_document_tree(
            gcs_bucket_name=gcs_bucket_name, gcs_prefix=gcs_prefix
        )

        wrapped_document = document.Document.from_gcs(
            gcs_bucket_name=gcs_bucket_name, gcs_prefix=gcs_prefix
        )
    elif gcs_uri:
        # Load a single Document from a Google Cloud Storage URI
        wrapped_document = document.Document.from_gcs_uri(gcs_uri=gcs_uri)
    elif document_path:
        # Load from local `Document` JSON file
        wrapped_document = document.Document.from_document_path(document_path)
    elif documentai_document:
        # Load from `documentai.Document` object
        wrapped_document = document.Document.from_documentai_document(
            documentai_document
        )
    elif batch_process_metadata:
        # Load Documents from `BatchProcessMetadata` object
        wrapped_documents = document.Document.from_batch_process_metadata(
            metadata=batch_process_metadata
        )
        wrapped_document = wrapped_documents[0]
    elif batch_process_operation:
        wrapped_documents = document.Document.from_batch_process_operation(
            location="us", operation_name=batch_process_operation
        )
        wrapped_document = wrapped_documents[0]
    else:
        raise ValueError("No document source provided.")

    # For all properties and methods, refer to:
    # https://cloud.google.com/python/docs/reference/documentai-toolbox/latest/google.cloud.documentai_toolbox.wrappers.document.Document

    print("Document Successfully Loaded!")
    print(f"\t Number of Pages: {len(wrapped_document.pages)}")
    print(f"\t Number of Entities: {len(wrapped_document.entities)}")

    for page in wrapped_document.pages:
        print(f"Page {page.page_number}")
        for block in page.blocks:
            print(block.text)
        for paragraph in page.paragraphs:
            print(paragraph.text)
        for line in page.lines:
            print(line.text)
        for token in page.tokens:
            print(token.text)

        # Only supported with Form Parser processor
        # https://cloud.google.com/document-ai/docs/form-parser
        for form_field in page.form_fields:
            print(f"{form_field.field_name} : {form_field.field_value}")

        # Only supported with Enterprise Document OCR version `pretrained-ocr-v2.0-2023-06-02`
        # https://cloud.google.com/document-ai/docs/process-documents-ocr#enable_symbols
        for symbol in page.symbols:
            print(symbol.text)

        # Only supported with Enterprise Document OCR version `pretrained-ocr-v2.0-2023-06-02`
        # https://cloud.google.com/document-ai/docs/process-documents-ocr#math_ocr
        for math_formula in page.math_formulas:
            print(math_formula.text)

    # Only supported with Entity Extraction processors
    # https://cloud.google.com/document-ai/docs/processors-list
    for entity in wrapped_document.entities:
        print(f"{entity.type_} : {entity.mention_text}")
        if entity.normalized_text:
            print(f"\tNormalized Text: {entity.normalized_text}")

    # Only supported with Layout Parser
    for chunk in wrapped_document.chunks:
        print(f"Chunk {chunk.chunk_id}: {chunk.content}")

    for block in wrapped_document.document_layout_blocks:
        print(f"Document Layout Block {block.block_id}")

        if block.text_block:
            print(f"{block.text_block.type_}: {block.text_block.text}")
        if block.list_block:
            print(f"{block.list_block.type_}: {block.list_block.list_entries}")
        if block.table_block:
            print(block.table_block.header_rows, block.table_block.body_rows)

Tables

from google.cloud.documentai_toolbox import document

# TODO(developer): Uncomment these variables before running the sample.
# Given a local document.proto or sharded document.proto in path
# document_path = "path/to/local/document.json"
# output_file_prefix = "output/table"


def table_sample(document_path: str, output_file_prefix: str) -> None:
    wrapped_document = document.Document.from_document_path(document_path=document_path)

    print("Tables in Document")
    for page in wrapped_document.pages:
        for table_index, table in enumerate(page.tables):
            # Convert table to Pandas Dataframe
            # Refer to https://pandas.pydata.org/docs/reference/frame.html for all supported methods
            df = table.to_dataframe()
            print(df)

            output_filename = f"{output_file_prefix}-{page.page_number}-{table_index}"

            # Write Dataframe to CSV file
            df.to_csv(f"{output_filename}.csv", index=False)

            # Write Dataframe to HTML file
            df.to_html(f"{output_filename}.html", index=False)

            # Write Dataframe to Markdown file
            df.to_markdown(f"{output_filename}.md", index=False)

BigQuery export

from google.cloud.documentai_toolbox import document

# TODO(developer): Uncomment these variables before running the sample.
# Given a document.proto or sharded document.proto in path gs://bucket/path/to/folder
# gcs_bucket_name = "bucket"
# gcs_prefix = "path/to/folder"
# dataset_name = "test_dataset"
# table_name = "test_table"
# project_id = "YOUR_PROJECT_ID"


def entities_to_bigquery_sample(
    gcs_bucket_name: str,
    gcs_prefix: str,
    dataset_name: str,
    table_name: str,
    project_id: str,
) -> None:
    wrapped_document = document.Document.from_gcs(
        gcs_bucket_name=gcs_bucket_name, gcs_prefix=gcs_prefix
    )

    job = wrapped_document.entities_to_bigquery(
        dataset_name=dataset_name, table_name=table_name, project_id=project_id
    )

    # Also supported:
    # job = wrapped_document.form_fields_to_bigquery(
    #     dataset_name=dataset_name, table_name=table_name, project_id=project_id
    # )

    print("Document entities loaded into BigQuery")
    print(f"Job ID: {job.job_id}")
    print(f"Table: {job.destination.path}")

PDF split

from google.cloud.documentai_toolbox import document

# TODO(developer): Uncomment these variables before running the sample.
# Given a local document.proto or sharded document.proto from a splitter/classifier in path
# document_path = "path/to/local/document.json"
# pdf_path = "path/to/local/document.pdf"
# output_path = "resources/output/"


def split_pdf_sample(document_path: str, pdf_path: str, output_path: str) -> None:
    wrapped_document = document.Document.from_document_path(document_path=document_path)

    output_files = wrapped_document.split_pdf(
        pdf_path=pdf_path, output_path=output_path
    )

    print("Document Successfully Split")
    for output_file in output_files:
        print(output_file)

Image extraction

from google.cloud.documentai_toolbox import document

# TODO(developer): Uncomment these variables before running the sample.
# Given a local document.proto or sharded document.proto from an identity processor in path
# document_path = "path/to/local/document.json"
# output_path = "resources/output/"
# output_file_prefix = "exported_photo"
# output_file_extension = "png"


def export_images_sample(
    document_path: str,
    output_path: str,
    output_file_prefix: str,
    output_file_extension: str,
) -> None:
    wrapped_document = document.Document.from_document_path(document_path=document_path)

    output_files = wrapped_document.export_images(
        output_path=output_path,
        output_file_prefix=output_file_prefix,
        output_file_extension=output_file_extension,
    )
    print("Images Successfully Exported")
    for output_file in output_files:
        print(output_file)

Vision conversion

from google.cloud.documentai_toolbox import document

# TODO(developer): Uncomment these variables before running the sample.
# Given a document.proto or sharded document.proto in path gs://bucket/path/to/folder
# gcs_bucket_name = "bucket"
# gcs_prefix = "path/to/folder"


def convert_document_to_vision_sample(
    gcs_bucket_name: str,
    gcs_prefix: str,
) -> None:
    wrapped_document = document.Document.from_gcs(
        gcs_bucket_name=gcs_bucket_name, gcs_prefix=gcs_prefix
    )

    # Converting wrapped_document to vision AnnotateFileResponse
    annotate_file_response = (
        wrapped_document.convert_document_to_annotate_file_response()
    )

    print("Document converted to AnnotateFileResponse!")
    print(
        f"Number of Pages : {len(annotate_file_response.responses[0].full_text_annotation.pages)}"
    )

hOCR conversion

from google.cloud.documentai_toolbox import document

# TODO(developer): Uncomment these variables before running the sample.
# Given a document.proto or sharded document.proto in path gs://bucket/path/to/folder
# document_path = "path/to/local/document.json"
# document_title = "your-document-title"


def convert_document_to_hocr_sample(document_path: str, document_title: str) -> str:
    wrapped_document = document.Document.from_document_path(document_path=document_path)

    # Converting wrapped_document to hOCR format
    hocr_string = wrapped_document.export_hocr_str(title=document_title)

    print("Document converted to hOCR!")
    return hocr_string

Third-party conversion

from google.cloud.documentai_toolbox import converter

# TODO(developer): Uncomment these variables before running the sample.
# This sample will convert external annotations to the Document.json format used by Document AI Workbench for training.
# To process this the external annotation must have these type of objects:
#       1) Type
#       2) Text
#       3) Bounding Box (bounding boxes must be 1 of the 3 optional types)
#
# This is the bare minimum requirement to convert the annotations but for better accuracy you will need to also have:
#       1) Document width & height
#
# Bounding Box Types:
#   Type 1:
#       bounding_box:[{"x":1,"y":2},{"x":2,"y":2},{"x":2,"y":3},{"x":1,"y":3}]
#   Type 2:
#       bounding_box:{ "Width": 1, "Height": 1, "Left": 1, "Top": 1}
#   Type 3:
#       bounding_box: [1,2,2,2,2,3,1,3]
#
#   Note: If these types are not sufficient you can propose a feature request or contribute the new type and conversion functionality.
#
# Given a folders in gcs_input_path with the following structure :
#
# gs://path/to/input/folder
#   ├──test_annotations.json
#   ├──test_config.json
#   └──test.pdf
#
# An example of the config is in sample-converter-configs/Azure/form-config.json
#
# location = "us",
# processor_id = "my_processor_id"
# gcs_input_path = "gs://path/to/input/folder"
# gcs_output_path = "gs://path/to/input/folder"


def convert_external_annotations_sample(
    location: str,
    processor_id: str,
    project_id: str,
    gcs_input_path: str,
    gcs_output_path: str,
) -> None:
    converter.convert_from_config(
        project_id=project_id,
        location=location,
        processor_id=processor_id,
        gcs_input_path=gcs_input_path,
        gcs_output_path=gcs_output_path,
    )

Document batches

from google.cloud import documentai
from google.cloud.documentai_toolbox import gcs_utilities

# TODO(developer): Uncomment these variables before running the sample.
# Given unprocessed documents in path gs://bucket/path/to/folder
# gcs_bucket_name = "bucket"
# gcs_prefix = "path/to/folder"
# batch_size = 50


def create_batches_sample(
    gcs_bucket_name: str,
    gcs_prefix: str,
    batch_size: int = 50,
) -> None:
    # Creating batches of documents for processing
    batches = gcs_utilities.create_batches(
        gcs_bucket_name=gcs_bucket_name, gcs_prefix=gcs_prefix, batch_size=batch_size
    )

    print(f"{len(batches)} batch(es) created.")
    for batch in batches:
        print(f"{len(batch.gcs_documents.documents)} files in batch.")
        print(batch.gcs_documents.documents)

        # Use as input for batch_process_documents()
        # Refer to https://cloud.google.com/document-ai/docs/send-request
        # for how to send a batch processing request
        request = documentai.BatchProcessRequest(
            name="processor_name", input_documents=batch
        )
        print(request)

Merge Document shards

from google.cloud import documentai
from google.cloud.documentai_toolbox import document

# TODO(developer): Uncomment these variables before running the sample.
# Given a document.proto or sharded document.proto in path gs://bucket/path/to/folder
# gcs_bucket_name = "bucket"
# gcs_prefix = "path/to/folder"
# output_file_name = "path/to/folder/file.json"


def merge_document_shards_sample(
    gcs_bucket_name: str, gcs_prefix: str, output_file_name: str
) -> None:
    wrapped_document = document.Document.from_gcs(
        gcs_bucket_name=gcs_bucket_name, gcs_prefix=gcs_prefix
    )

    merged_document = wrapped_document.to_merged_documentai_document()

    with open(output_file_name, "w") as f:
        f.write(documentai.Document.to_json(merged_document))

    print(f"Document with {len(wrapped_document.shards)} shards successfully merged.")
