고정 레이아웃 사용 사례의 경우 학습 문서 3개와 테스트 문서 3개만으로 성능이 우수한 모델을 학습할 수 있습니다. W9, 1040, ACORD, 설문조사, 설문지와 같은 템플릿 문서 유형의 개발 속도를 높이고 프로덕션까지의 시간을 단축합니다.
데이터 세트 구성
프로세서 버전을 학습시키거나 업트레이닝하거나 평가하려면 문서 데이터 세트가 필요합니다.
Document AI 프로세서는 인간과 마찬가지로 예시에서 학습합니다. 데이터 세트는 성능 측면에서 프로세서 안정성을 개선합니다.
학습 데이터 세트
모델과 정확성을 개선하려면 문서에서 데이터 세트를 학습합니다. 모델은 정답이 있는 문서로 구성됩니다. 새 모델을 학습시키려면 문서가 3개 이상 필요합니다.
테스트 데이터 세트
테스트 데이터 세트는 모델에서 F1 점수 (정확성)를 생성하는 데 사용됩니다. 정답이 포함된 문서로 구성됩니다. 모델이 얼마나 정확한지 확인하기 위해 정답을 사용하여 모델의 예측 (모델에서 추출한 필드)을 올바른 답변과 비교합니다. 테스트 데이터 세트에는 문서가 3개 이상 있어야 합니다.
데이터 세트 위치를 설정합니다. 기본 옵션 폴더 (Google 관리)를 선택합니다. 이는 프로세서를 만든 직후에 자동으로 실행될 수 있습니다.
Build(빌드) 탭으로 이동하여 자동 라벨 지정이 사용 설정된 문서 가져오기를 선택합니다. 일반적으로 템플릿 기반 학습의 품질은 필요한 최소 3개보다 더 많은 문서를 추가해도 개선되지 않습니다. 더 많은 이미지를 추가하는 대신 소수의 이미지를 매우 정확하게 라벨링하는 데 집중하세요.

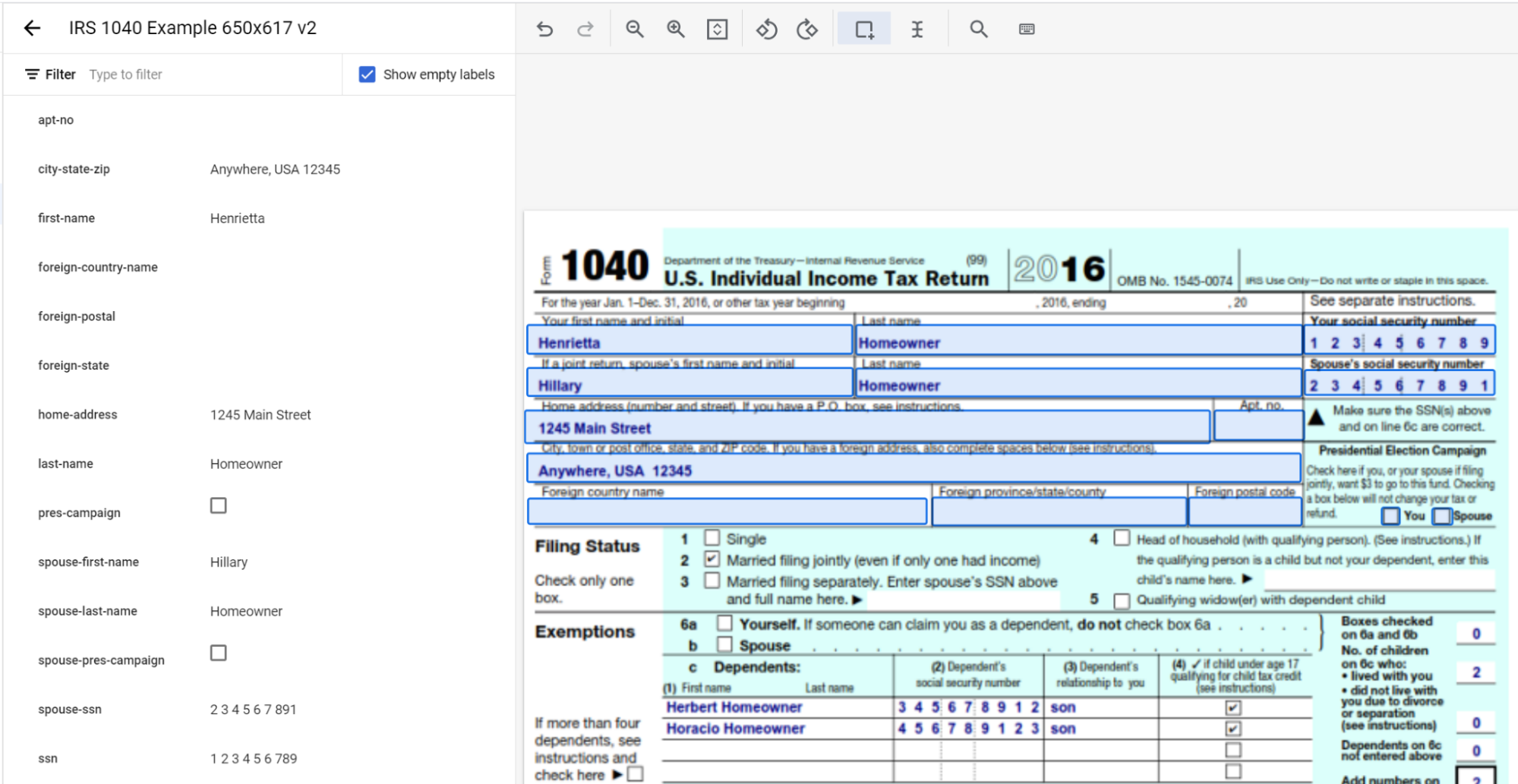

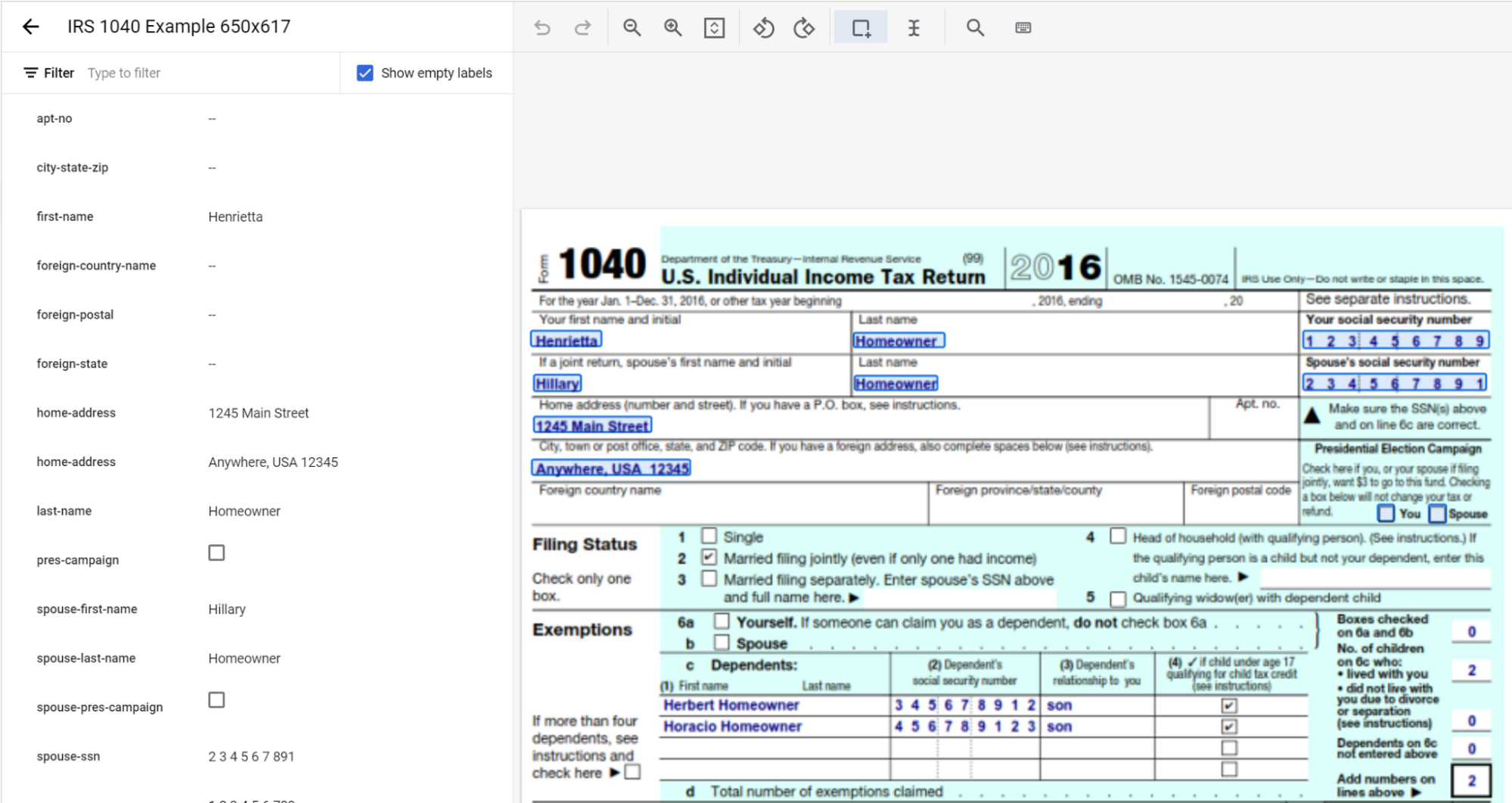

경계 상자를 확장합니다. 템플릿 모드의 이러한 상자는 위의 예와 같이 표시됩니다. 최적의 결과를 얻기 위해 권장사항에 따라 경계 상자를 확장합니다.
모델을 학습시킵니다.

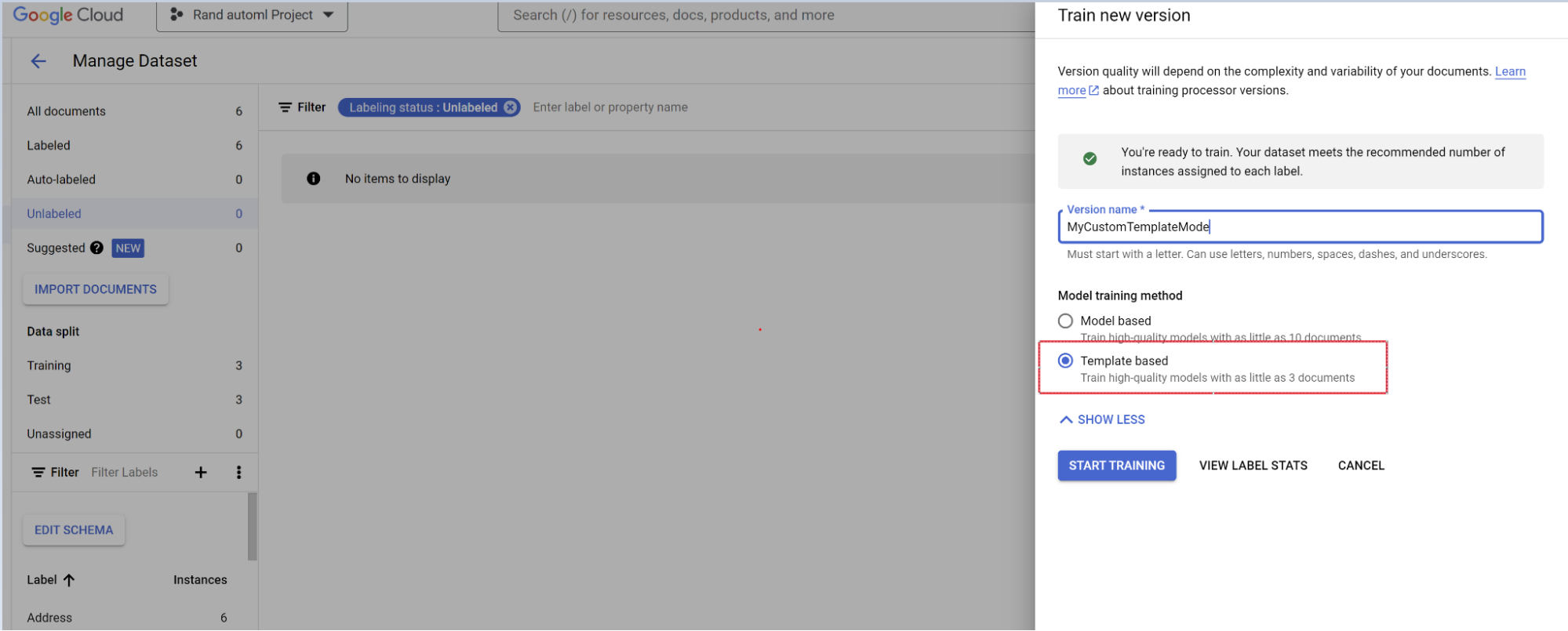

새 버전 학습을 선택합니다.
프로세서 버전의 이름을 지정합니다.
고급 옵션 표시로 이동하여 템플릿 기반 모델 접근 방식을 선택합니다.
평가

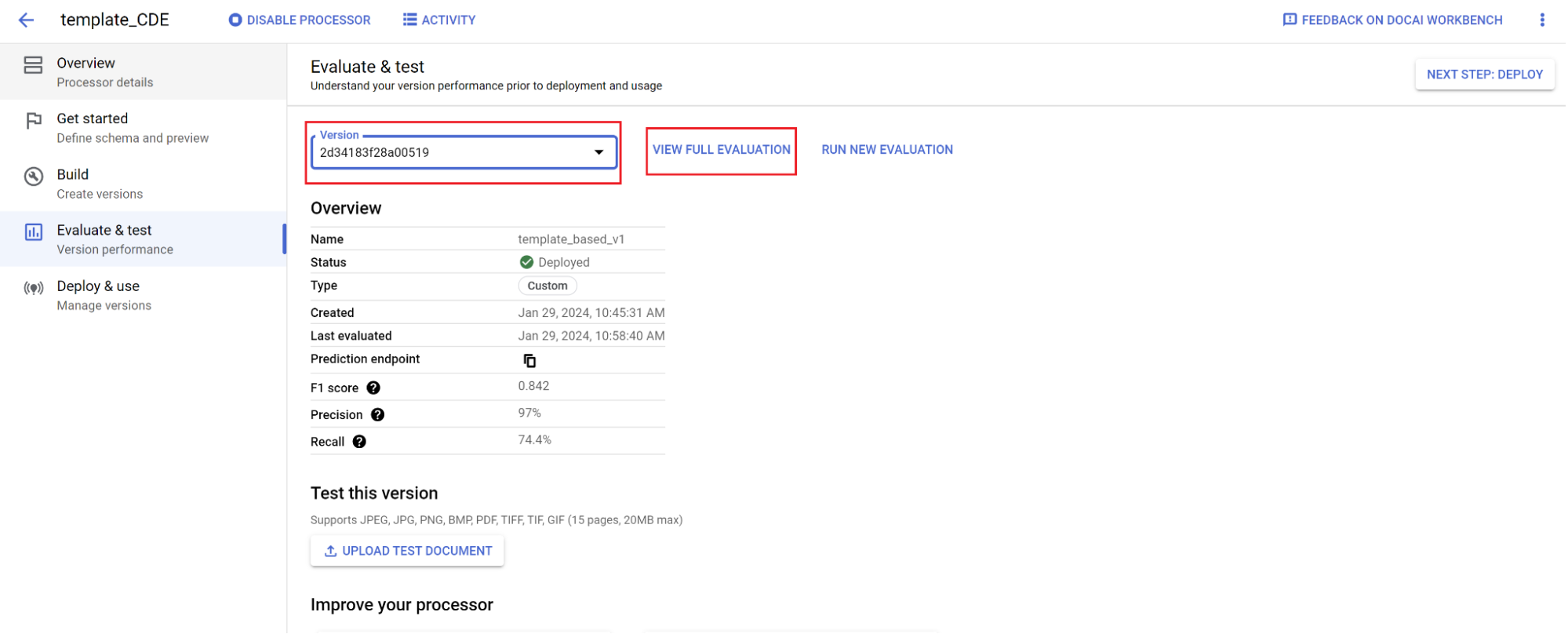

평가 및 테스트로 이동합니다.
방금 학습한 버전을 선택한 다음 전체 평가 보기를 선택합니다.
이제 전체 문서 및 각 필드의 F1, 정밀도, 재현율과 같은 측정항목이 표시됩니다.
1. 성능이 프로덕션 목표를 충족하는지 결정합니다. 충족하지 않으면 학습 및 테스트 세트를 재평가합니다.
새 버전을 기본값으로 설정합니다.

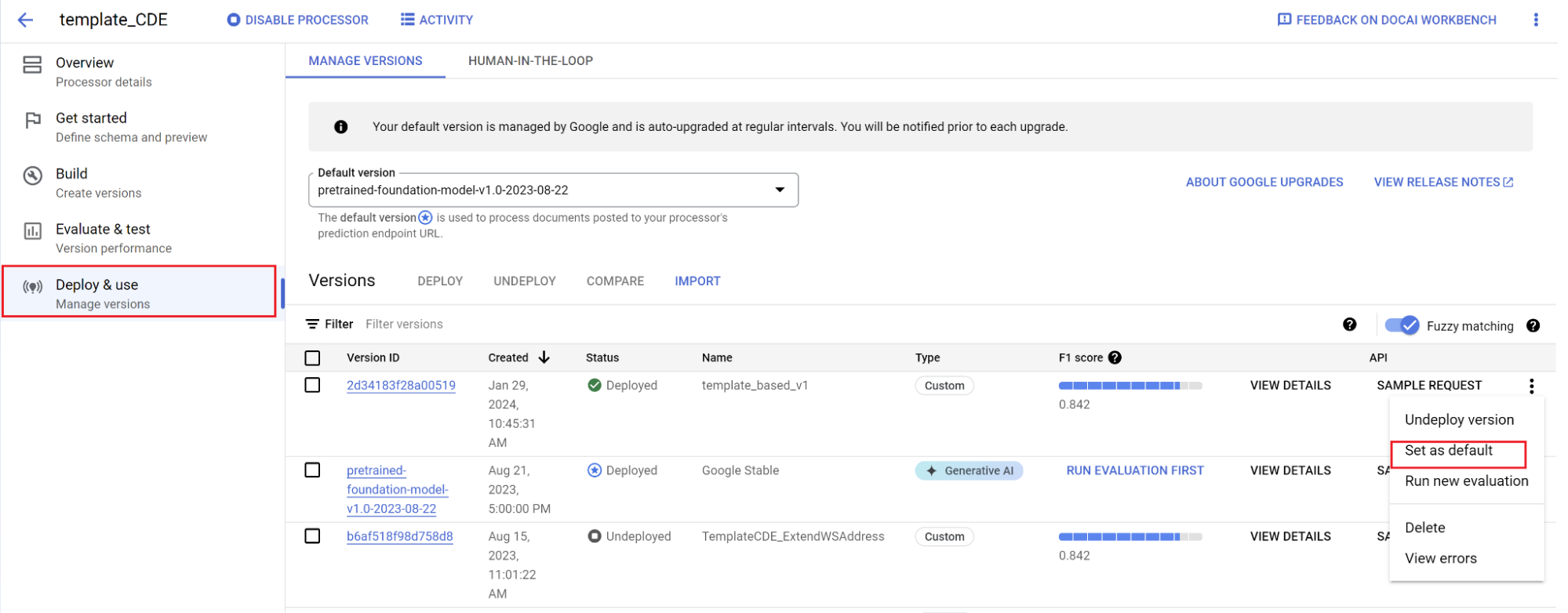

버전 관리로 이동합니다.
선택하여 설정 메뉴를 표시한 다음 기본값으로 설정을 선택합니다.
이제 모델이 배포되고 이 프로세서로 전송되는 문서에서 맞춤 버전을 사용합니다. 모델의 성능을 평가하여 (방법에 관한 자세한 내용) 추가 학습이 필요한지 확인하려 합니다.
평가 참조
평가 엔진은 일치검색 또는 유사 검색을 모두 실행할 수 있습니다.
정확한 일치의 경우 추출된 값이 실제 값과 정확하게 일치해야 하며 그렇지 않으면 누락으로 집계됩니다.

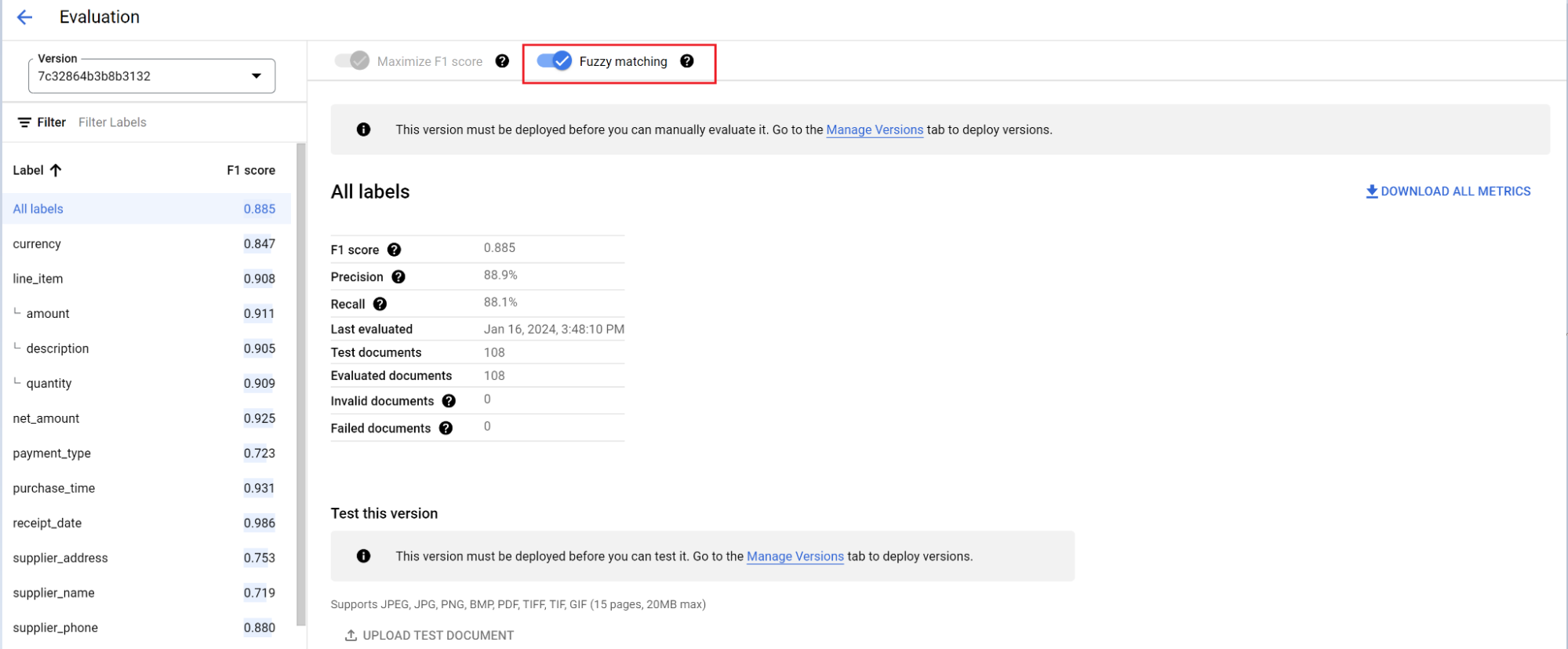

대소문자 차이와 같은 약간의 차이가 있는 퍼지 일치 추출도 일치로 간주됩니다. 평가 화면에서 변경할 수 있습니다.
기반 모델을 사용한 자동 라벨 지정
기반 모델은 다양한 문서 유형의 필드를 정확하게 추출할 수 있지만, 특정 문서 구조에 대한 모델의 정확성을 개선하기 위해 추가 학습 데이터를 제공할 수도 있습니다.
Document AI는 사용자가 정의한 라벨 이름과 이전 주석을 사용하여 자동 라벨 지정을 통해 대규모 문서에 더 쉽고 빠르게 라벨을 지정할 수 있습니다.

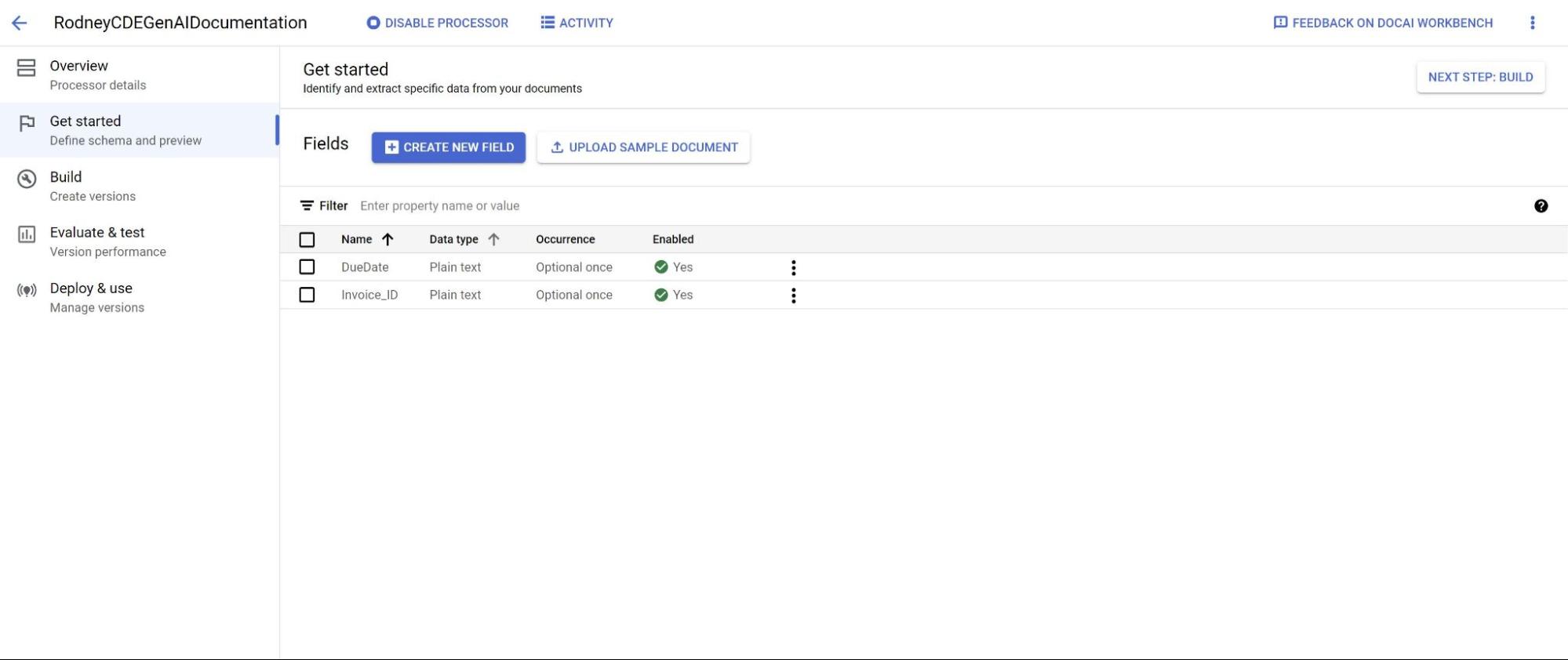

맞춤 프로세서를 만든 후 시작하기 탭으로 이동합니다.
새 필드 만들기를 선택합니다.

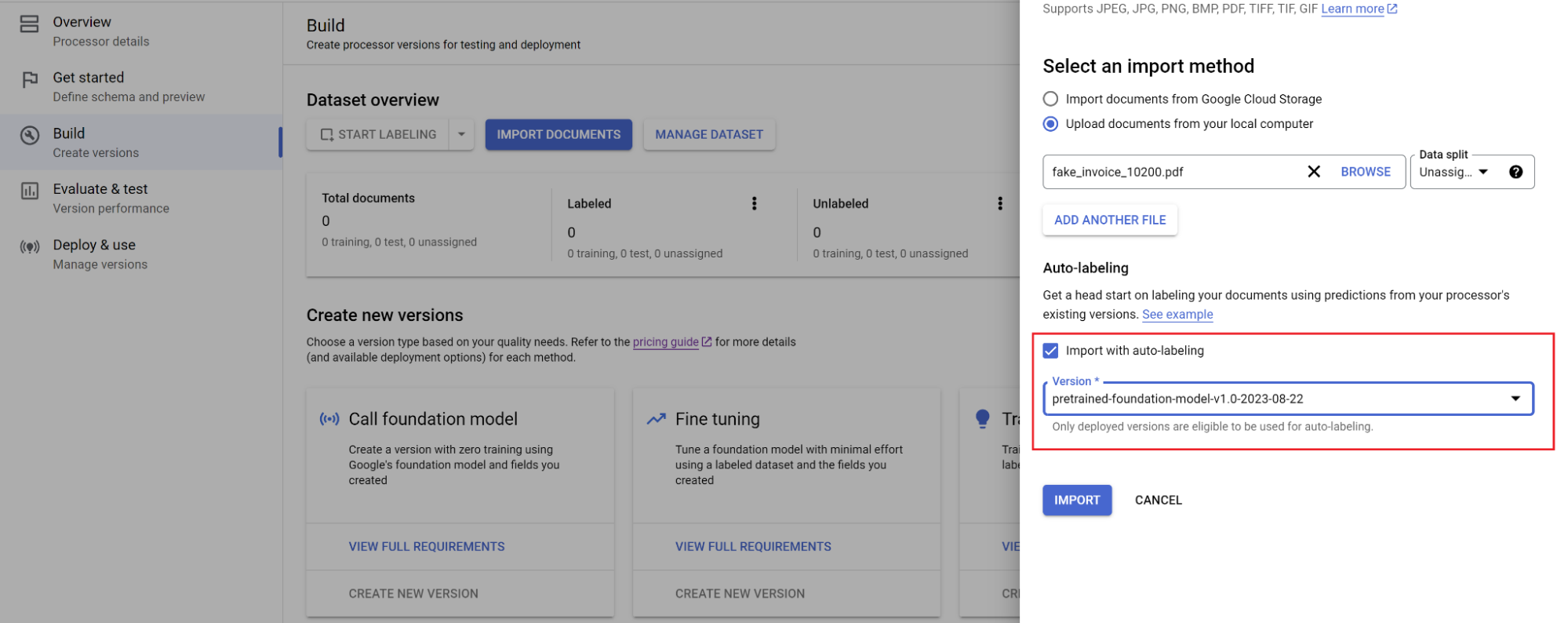

Build 탭으로 이동한 다음 문서 가져오기를 선택합니다.
문서의 경로와 문서를 가져올 세트를 선택합니다. 자동 라벨 지정 체크박스를 선택하고 기반 모델을 선택합니다.

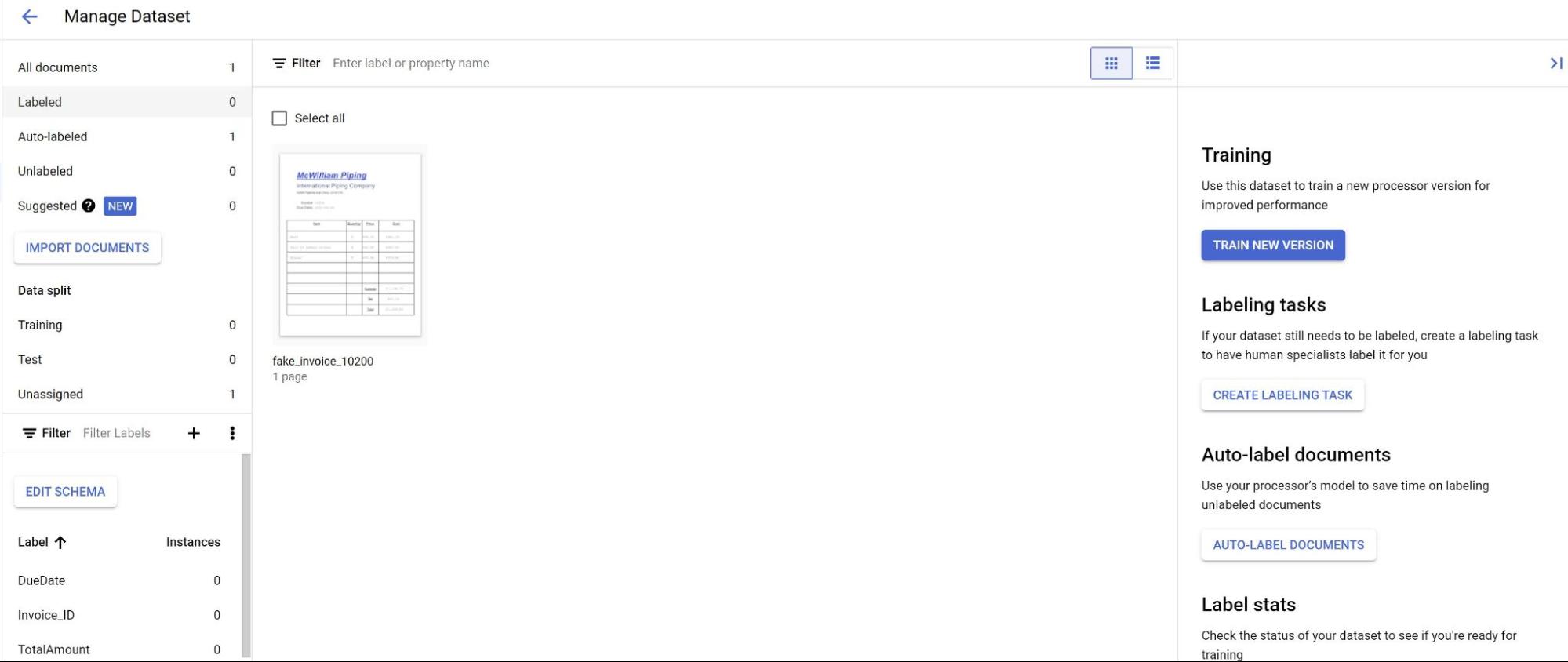

빌드 탭에서 데이터 세트 관리를 선택합니다. 가져온 문서가 표시됩니다. 문서 중 하나를 선택합니다.

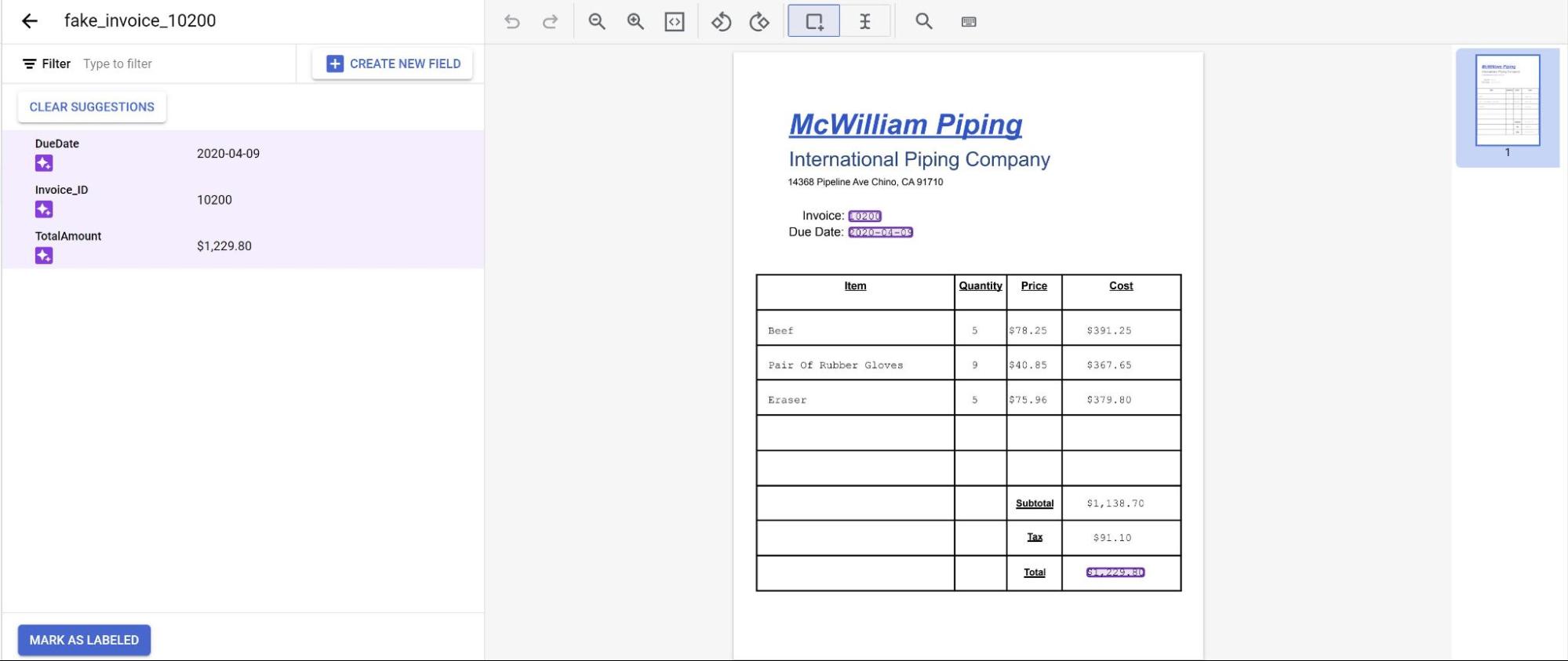

모델의 예측이 보라색으로 강조 표시됩니다. 모델에서 예측한 각 라벨을 검토하여 올바른지 확인해야 합니다. 누락된 필드가 있는 경우 해당 필드도 추가해야 합니다.
문서가 검토되면 라벨이 지정된 것으로 표시를 선택합니다.
이제 모델에서 문서를 사용할 수 있습니다. 문서가 테스트 또는 학습 세트에 있는지 확인합니다.
