Monitorización de entornos entre proyectos con Terraform

Cloud Composer 3 | Cloud Composer 2 | Cloud Composer 1

En esta página se muestra cómo implementar un panel de control de monitorización integrado para varios entornos de Cloud Composer en proyectos seleccionados de la misma organización.

Información general

La solución descrita puede ayudar a los equipos de plataformas empresariales centrales a dar asistencia a los entornos de Cloud Composer que usan otros equipos. Esta implementación se puede usar para monitorizar todos los entornos de Cloud Composer, incluso los que no se hayan creado con Terraform.

En esta guía se implementa el panel de control de Cloud Monitoring en Cloud Composer, junto con políticas de alertas que informan continuamente sobre las métricas clave de los entornos de Cloud Composer y generan incidencias en caso de que haya problemas. El panel de control analiza automáticamente todos los entornos de Cloud Composer de los proyectos seleccionados para esta monitorización. La implementación se basa en Terraform.

Nota: Los entornos de Cloud Composer 1 no proporcionan varias métricas ni las alertas correspondientes (como se indica más adelante) debido a las diferencias de arquitectura entre Cloud Composer 2 y Cloud Composer 1.

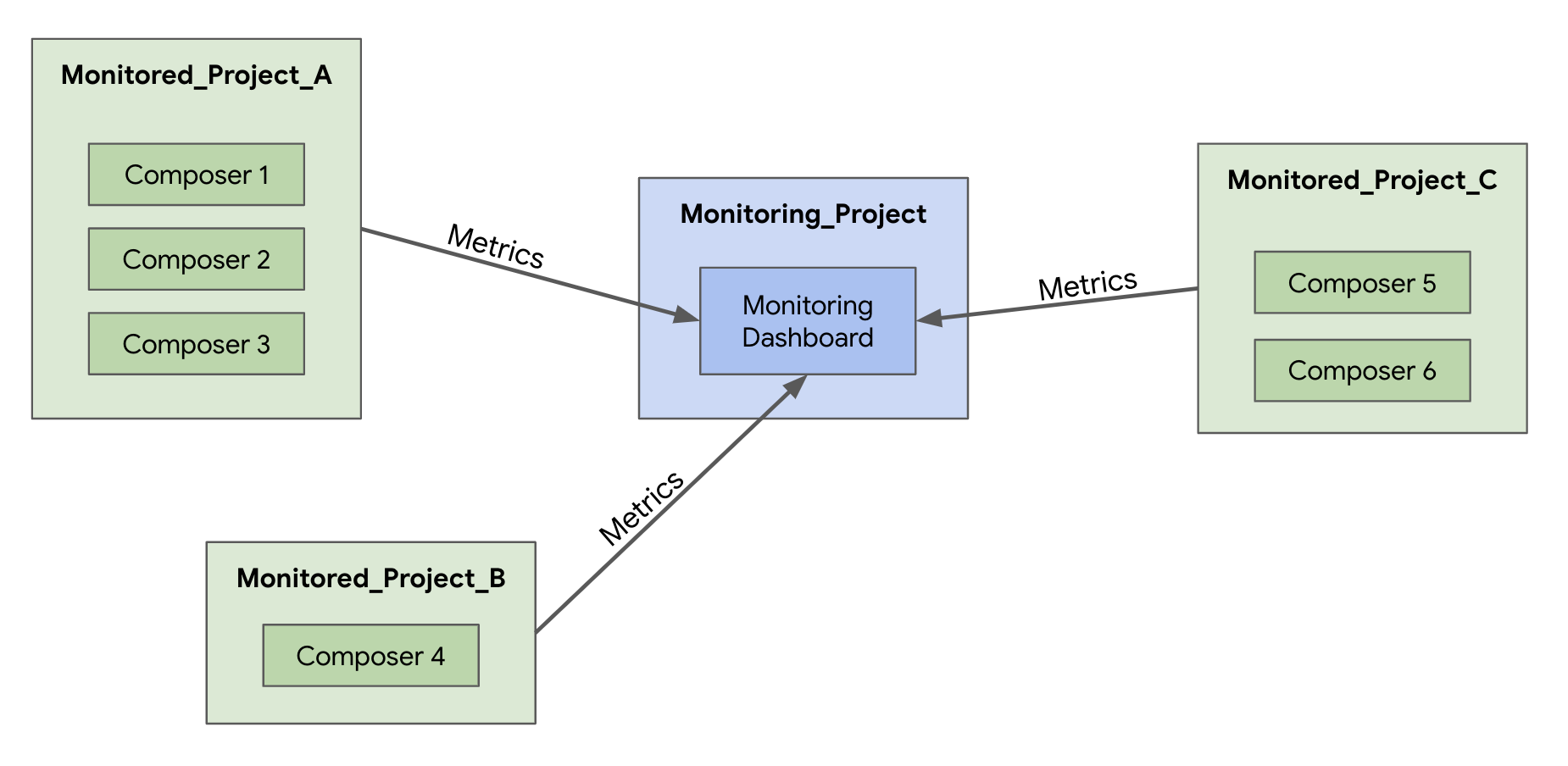

El modelo usa un Google Cloud proyecto que actúa como proyecto de monitorización, que se usa para monitorizar (solo lectura) entornos de Cloud Composer implementados en varios proyectos monitorizados. El panel de control central usa métricas de Cloud Monitoring de los proyectos monitorizados para mostrar su contenido.

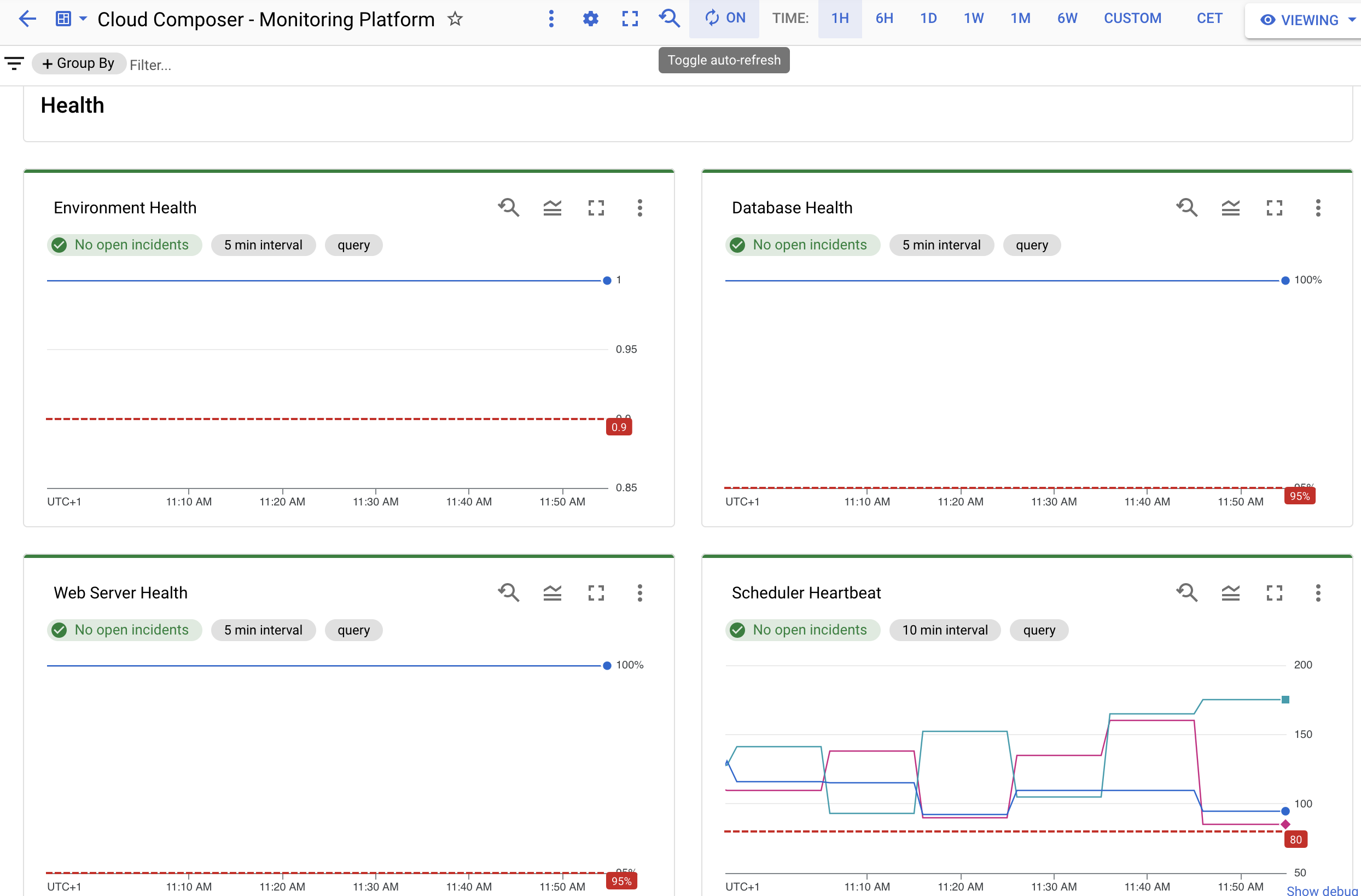

El panel de control monitoriza varias métricas y crea alertas para ellas, como el estado del entorno:

o métricas de CPU:

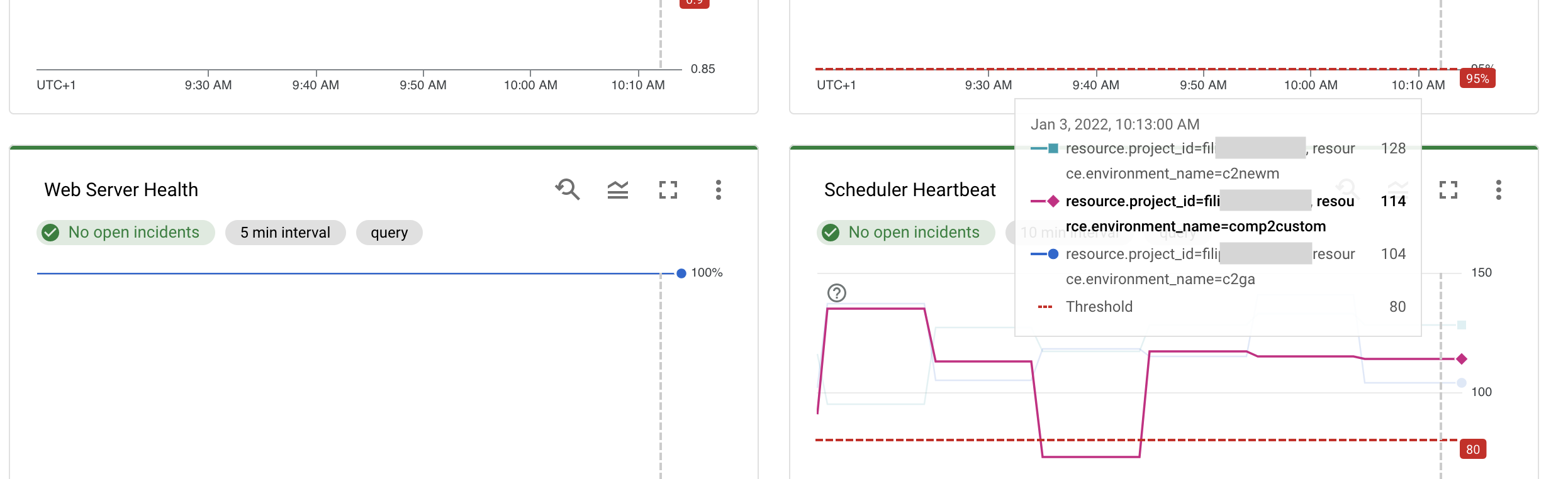

Mantén el puntero sobre una línea concreta para ver qué entorno representa. En el panel de control se mostrará el nombre del proyecto y el recurso:

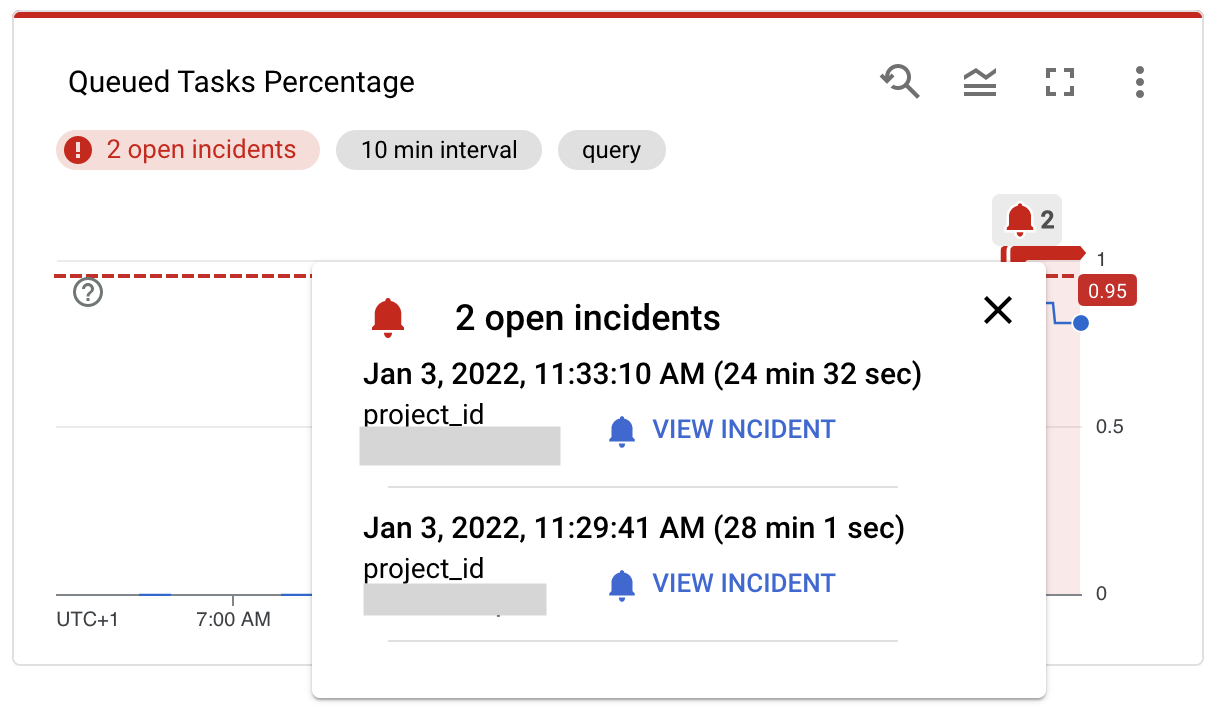

Si una métrica supera un umbral predefinido, se genera un incidente y se muestra una alerta en el gráfico correspondiente a esa métrica:

Lista de métricas monitorizadas

Lista completa de métricas monitorizadas:

• Estado de un entorno de Cloud Composer (basado en el DAG de monitorización)
• Estado de la base de datos
• Estado del servidor web
• Señales de latido del programador
• Uso de CPU y memoria de todos los trabajadores
• Uso de CPU y memoria de la base de datos de Airflow
• Uso de la CPU y la memoria del servidor web (solo disponible en Cloud Composer 2)
• Uso de CPU y memoria de los programadores de Airflow
• Proporción de tareas en cola, programadas, en cola o programadas en un entorno (útil para detectar problemas de configuración de simultaneidad de Airflow)
• Tiempo de análisis de DAG
• Número de trabajadores actual frente al mínimo: útil para detectar problemas de estabilidad o de escalado de los trabajadores
• Pods de trabajadores expulsados
• Número de errores registrados por los trabajadores, los programadores, el servidor web u otros componentes (gráficos individuales)

Nota: No es necesario modificar el panel de control cuando se añaden o se quitan entornos de Cloud Composer, siempre que la lista de proyectos monitorizados siga siendo la misma.

Antes de empezar

Para usar Cloud Composer y Cloud Monitoring, debes crear un proyecto y habilitar la facturación. Google Cloud El proyecto debe contener un entorno de Cloud Composer. En esta guía, este proyecto se denomina proyecto de monitorización.

Sign in to your Google Cloud account. If you're new to Google Cloud, create an account to evaluate how our products perform in real-world scenarios. New customers also get $300 in free credits to run, test, and deploy workloads.

In the Google Cloud console, on the project selector page, select or create a Google Cloud project.

Note: If you don't plan to keep the resources that you create in this procedure, create a project instead of selecting an existing project. After you finish these steps, you can delete the project, removing all resources associated with the project.

Go to project selector

Verify that billing is enabled for your Google Cloud project.

In the Google Cloud console, on the project selector page, select or create a Google Cloud project.

Note: If you don't plan to keep the resources that you create in this procedure, create a project instead of selecting an existing project. After you finish these steps, you can delete the project, removing all resources associated with the project.

Go to project selector

Verify that billing is enabled for your Google Cloud project.

1. Instala Terraform si aún no lo has hecho.
2. Configura el ámbito de las métricas de tu proyecto. De forma predeterminada, un proyecto solo puede mostrar o monitorizar los datos de serie temporal que almacena. Si quiere mostrar o monitorizar datos almacenados en varios proyectos, configure el ámbito de las métricas del proyecto. Para obtener más información, consulta el artículo Información general sobre los ámbitos de las métricas.

Pasos de la implementación

1. En el ordenador local en el que ejecutas Terraform, define la variable de entorno GOOGLE_CLOUD_PROJECT como el ID de tu proyecto de Monitoring:

   export GOOGLE_CLOUD_PROJECT=MONITORING_PROJECT_ID


2. Asegúrate de que tu proveedor de Google de Terraform esté autenticado y tenga acceso a los siguientes permisos:

   • Permiso roles/monitoring.editor en Proyecto de monitorización
   • roles/monitoring.viewer, roles/logging.viewer en todos los proyectos monitorizados

3. Copia el siguiente archivo main.tf en el ordenador local en el que ejecutas Terraform.

   Haz clic para desplegar

   #   Monitoring for multiple Cloud Composer environments
   #
   #   Usage:
   #       1. Create a new project that you will use for monitoring of Cloud Composer environments in other projects
   #       2. Replace YOUR_MONITORING_PROJECT with the name of this project in the "metrics_scope" parameter that is part of the "Add Monitored Projects to the Monitoring project" section
   #       3. Replace the list of projects to monitor with your list of projects with Cloud Composer environments to be monitored in the "for_each" parameter of the "Add Monitored Projects to the Monitoring project" section
   #       4. Set up your environment and apply the configuration following these steps: https://cloud.google.com/docs/terraform/basic-commands. Your GOOGLE_CLOUD_PROJECT environment variable should be the new monitoring project you just created.
   #
   #   The script creates the following resources in the monitoring project:
   #           1. Adds monitored projects to Cloud Monitoring
   #           2. Creates Alert Policies
   #           3. Creates Monitoring Dashboard
   #



   #######################################################
   #
   # Add Monitored Projects to the Monitoring project
   #
   ########################################################

   resource "google_monitoring_monitored_project" "projects_monitored" {
     for_each      = toset(["YOUR_PROJECT_TO_MONITOR_1", "YOUR_PROJECT_TO_MONITOR_2", "YOUR_PROJECT_TO_MONITOR_3"])
     metrics_scope = join("", ["locations/global/metricsScopes/", "YOUR_MONITORING_PROJECT"])
     name          = each.value
   }


   #######################################################
   #
   # Create alert policies in Monitoring project
   #
   ########################################################

   resource "google_monitoring_alert_policy" "environment_health" {
     display_name = "Environment Health"
     combiner     = "OR"
     conditions {
       display_name = "Environment Health"
       condition_monitoring_query_language {
         query = join("", [
           "fetch cloud_composer_environment",
           "| {metric 'composer.googleapis.com/environment/dagbag_size'",
           "| group_by 5m, [value_dagbag_size_mean: if(mean(value.dagbag_size) > 0, 1, 0)]",
           "| align mean_aligner(5m)",
           "| group_by [resource.project_id, resource.environment_name],    [value_dagbag_size_mean_aggregate: aggregate(value_dagbag_size_mean)];  ",
           "metric 'composer.googleapis.com/environment/healthy'",
           "| group_by 5m,    [value_sum_signals: aggregate(if(value.healthy,1,0))]",
           "| align mean_aligner(5m)| absent_for 5m }",
           "| outer_join 0",
           "| group_by [resource.project_id, resource.environment_name]",
           "| value val(2)",
           "| align mean_aligner(5m)",
           "| window(5m)",
           "| condition val(0) < 0.9"
         ])
         duration = "120s"
         trigger {
           count = "1"
         }
       }
     }

     # uncomment to set an auto close strategy for the alert
     #alert_strategy {
     #    auto_close = "30m"
     #}
   }

   resource "google_monitoring_alert_policy" "database_health" {
     display_name = "Database Health"
     combiner     = "OR"
     conditions {
       display_name = "Database Health"
       condition_monitoring_query_language {
         query = join("", [
           "fetch cloud_composer_environment",
           "| metric 'composer.googleapis.com/environment/database_health'",
           "| group_by 5m,",
           "    [value_database_health_fraction_true: fraction_true(value.database_health)]",
           "| every 5m",
           "| group_by 5m,",
           "    [value_database_health_fraction_true_aggregate:",
           "       aggregate(value_database_health_fraction_true)]",
           "| every 5m",
           "| group_by [resource.project_id, resource.environment_name],",
           "    [value_database_health_fraction_true_aggregate_aggregate:",
           "       aggregate(value_database_health_fraction_true_aggregate)]",
         "| condition val() < 0.95"])
         duration = "120s"
         trigger {
           count = "1"
         }
       }
     }
     # uncomment to set an auto close strategy for the alert
     #alert_strategy {
     #    auto_close = "30m"
     #}
   }

   resource "google_monitoring_alert_policy" "webserver_health" {
     display_name = "Web Server Health"
     combiner     = "OR"
     conditions {
       display_name = "Web Server Health"
       condition_monitoring_query_language {
         query = join("", [
           "fetch cloud_composer_environment",
           "| metric 'composer.googleapis.com/environment/web_server/health'",
           "| group_by 5m, [value_health_fraction_true: fraction_true(value.health)]",
           "| every 5m",
           "| group_by 5m,",
           "    [value_health_fraction_true_aggregate:",
           "       aggregate(value_health_fraction_true)]",
           "| every 5m",
           "| group_by [resource.project_id, resource.environment_name],",
           "    [value_health_fraction_true_aggregate_aggregate:",
           "       aggregate(value_health_fraction_true_aggregate)]",
         "| condition val() < 0.95"])
         duration = "120s"
         trigger {
           count = "1"
         }
       }
     }

     # uncomment to set an auto close strategy for the alert
     #alert_strategy {
     #    auto_close = "30m"
     #}
   }

   resource "google_monitoring_alert_policy" "scheduler_heartbeat" {
     display_name = "Scheduler Heartbeat"
     combiner     = "OR"
     conditions {
       display_name = "Scheduler Heartbeat"
       condition_monitoring_query_language {
         query = join("", [
           "fetch cloud_composer_environment",
           "| metric 'composer.googleapis.com/environment/scheduler_heartbeat_count'",
           "| group_by 10m,",
           "    [value_scheduler_heartbeat_count_aggregate:",
           "      aggregate(value.scheduler_heartbeat_count)]",
           "| every 10m",
           "| group_by 10m,",
           "    [value_scheduler_heartbeat_count_aggregate_mean:",
           "       mean(value_scheduler_heartbeat_count_aggregate)]",
           "| every 10m",
           "| group_by [resource.project_id, resource.environment_name],",
           "    [value_scheduler_heartbeat_count_aggregate_mean_aggregate:",
           "       aggregate(value_scheduler_heartbeat_count_aggregate_mean)]",
         "| condition val() < 80"])
         duration = "120s"
         trigger {
           count = "1"
         }
       }
     }

     # uncomment to set an auto close strategy for the alert
     #alert_strategy {
     #    auto_close = "30m"
     #}
   }

   resource "google_monitoring_alert_policy" "database_cpu" {
     display_name = "Database CPU"
     combiner     = "OR"
     conditions {
       display_name = "Database CPU"
       condition_monitoring_query_language {
         query = join("", [
           "fetch cloud_composer_environment",
           "| metric 'composer.googleapis.com/environment/database/cpu/utilization'",
           "| group_by 10m, [value_utilization_mean: mean(value.utilization)]",
           "| every 10m",
           "| group_by [resource.project_id, resource.environment_name]",
         "| condition val() > 0.8"])
         duration = "120s"
         trigger {
           count = "1"
         }
       }
     }

     # uncomment to set an auto close strategy for the alert
     #alert_strategy {
     #    auto_close = "30m"
     #}
   }

   resource "google_monitoring_alert_policy" "scheduler_cpu" {
     display_name = "Scheduler CPU"
     combiner     = "OR"
     conditions {
       display_name = "Scheduler CPU"
       condition_monitoring_query_language {
         query = join("", [
           "fetch k8s_container",
           "| metric 'kubernetes.io/container/cpu/limit_utilization'",
           "| filter (resource.pod_name =~ 'airflow-scheduler-.*')",
           "| group_by 10m, [value_limit_utilization_mean: mean(value.limit_utilization)]",
           "| every 10m",
           "| group_by [resource.cluster_name],",
           "    [value_limit_utilization_mean_mean: mean(value_limit_utilization_mean)]",
         "| condition val() > 0.8"])
         duration = "120s"
         trigger {
           count = "1"
         }
       }
     }

     # uncomment to set an auto close strategy for the alert
     #alert_strategy {
     #    auto_close = "30m"
     #}
   }

   resource "google_monitoring_alert_policy" "worker_cpu" {
     display_name = "Worker CPU"
     combiner     = "OR"
     conditions {
       display_name = "Worker CPU"
       condition_monitoring_query_language {
         query = join("", [
           "fetch k8s_container",
           "| metric 'kubernetes.io/container/cpu/limit_utilization'",
           "| filter (resource.pod_name =~ 'airflow-worker.*')",
           "| group_by 10m, [value_limit_utilization_mean: mean(value.limit_utilization)]",
           "| every 10m",
           "| group_by [resource.cluster_name],",
           "    [value_limit_utilization_mean_mean: mean(value_limit_utilization_mean)]",
         "| condition val() > 0.8"])
         duration = "120s"
         trigger {
           count = "1"
         }
       }
     }

     # uncomment to set an auto close strategy for the alert
     #alert_strategy {
     #    auto_close = "30m"
     #}
   }

   resource "google_monitoring_alert_policy" "webserver_cpu" {
     display_name = "Web Server CPU"
     combiner     = "OR"
     conditions {
       display_name = "Web Server CPU"
       condition_monitoring_query_language {
         query = join("", [
           "fetch k8s_container",
           "| metric 'kubernetes.io/container/cpu/limit_utilization'",
           "| filter (resource.pod_name =~ 'airflow-webserver.*')",
           "| group_by 10m, [value_limit_utilization_mean: mean(value.limit_utilization)]",
           "| every 10m",
           "| group_by [resource.cluster_name],",
           "    [value_limit_utilization_mean_mean: mean(value_limit_utilization_mean)]",
         "| condition val() > 0.8"])
         duration = "120s"
         trigger {
           count = "1"
         }
       }
     }

     # uncomment to set an auto close strategy for the alert
     #alert_strategy {
     #    auto_close = "30m"
     #}
   }

   resource "google_monitoring_alert_policy" "parsing_time" {
     display_name = "DAG Parsing Time"
     combiner     = "OR"
     conditions {
       display_name = "DAG Parsing Time"
       condition_monitoring_query_language {
         query = join("", [
           "fetch cloud_composer_environment",
           "| metric 'composer.googleapis.com/environment/dag_processing/total_parse_time'",
           "| group_by 5m, [value_total_parse_time_mean: mean(value.total_parse_time)]",
           "| every 5m",
           "| group_by [resource.project_id, resource.environment_name]",
         "| condition val(0) > cast_units(30,\"s\")"])
         duration = "120s"
         trigger {
           count = "1"
         }
       }
     }
     # uncomment to set an auto close strategy for the alert
     #alert_strategy {
     #    auto_close = "30m"
     #}
   }

   resource "google_monitoring_alert_policy" "database_memory" {
     display_name = "Database Memory"
     combiner     = "OR"
     conditions {
       display_name = "Database Memory"
       condition_monitoring_query_language {
         query = join("", [
           "fetch cloud_composer_environment",
           "| metric 'composer.googleapis.com/environment/database/memory/utilization'",
           "| group_by 10m, [value_utilization_mean: mean(value.utilization)]",
           "| every 10m",
           "| group_by [resource.project_id, resource.environment_name]",
         "| condition val() > 0.8"])
         duration = "0s"
         trigger {
           count = "1"
         }
       }
     }
     # uncomment to set an auto close strategy for the alert
     #alert_strategy {
     #    auto_close = "30m"
     #}
   }

   resource "google_monitoring_alert_policy" "scheduler_memory" {
     display_name = "Scheduler Memory"
     combiner     = "OR"
     conditions {
       display_name = "Scheduler Memory"
       condition_monitoring_query_language {
         query = join("", [
           "fetch k8s_container",
           "| metric 'kubernetes.io/container/memory/limit_utilization'",
           "| filter (resource.pod_name =~ 'airflow-scheduler-.*')",
           "| group_by 10m, [value_limit_utilization_mean: mean(value.limit_utilization)]",
           "| every 10m",
           "| group_by [resource.cluster_name],",
           "    [value_limit_utilization_mean_mean: mean(value_limit_utilization_mean)]",
         "| condition val() > 0.8"])
         duration = "0s"
         trigger {
           count = "1"
         }
       }
     }
     documentation {
       content = join("", [
         "Scheduler Memory exceeds a threshold, summed across all schedulers in the environment. ",
       "Add more schedulers OR increase scheduler's memory OR reduce scheduling load (e.g. through lower parsing frequency or lower number of DAGs/tasks running"])
     }
     # uncomment to set an auto close strategy for the alert
     #alert_strategy {
     #    auto_close = "30m"
     #}
   }

   resource "google_monitoring_alert_policy" "worker_memory" {
     display_name = "Worker Memory"
     combiner     = "OR"
     conditions {
       display_name = "Worker Memory"
       condition_monitoring_query_language {
         query = join("", [
           "fetch k8s_container",
           "| metric 'kubernetes.io/container/memory/limit_utilization'",
           "| filter (resource.pod_name =~ 'airflow-worker.*')",
           "| group_by 10m, [value_limit_utilization_mean: mean(value.limit_utilization)]",
           "| every 10m",
           "| group_by [resource.cluster_name],",
           "    [value_limit_utilization_mean_mean: mean(value_limit_utilization_mean)]",
         "| condition val() > 0.8"])
         duration = "0s"
         trigger {
           count = "1"
         }
       }
     }
     # uncomment to set an auto close strategy for the alert
     #alert_strategy {
     #    auto_close = "30m"
     #}
   }

   resource "google_monitoring_alert_policy" "webserver_memory" {
     display_name = "Web Server Memory"
     combiner     = "OR"
     conditions {
       display_name = "Web Server Memory"
       condition_monitoring_query_language {
         query = join("", [
           "fetch k8s_container",
           "| metric 'kubernetes.io/container/memory/limit_utilization'",
           "| filter (resource.pod_name =~ 'airflow-webserver.*')",
           "| group_by 10m, [value_limit_utilization_mean: mean(value.limit_utilization)]",
           "| every 10m",
           "| group_by [resource.cluster_name],",
           "    [value_limit_utilization_mean_mean: mean(value_limit_utilization_mean)]",
         "| condition val() > 0.8"])
         duration = "0s"
         trigger {
           count = "1"
         }
       }
     }
     # uncomment to set an auto close strategy for the alert
     #alert_strategy {
     #    auto_close = "30m"
     #}
   }

   resource "google_monitoring_alert_policy" "scheduled_tasks_percentage" {
     display_name = "Scheduled Tasks Percentage"
     combiner     = "OR"
     conditions {
       display_name = "Scheduled Tasks Percentage"
       condition_monitoring_query_language {
         query = join("", [
           "fetch cloud_composer_environment",
           "| metric 'composer.googleapis.com/environment/unfinished_task_instances'",
           "| align mean_aligner(10m)",
           "| every(10m)",
           "| window(10m)",
           "| filter_ratio_by [resource.project_id, resource.environment_name], metric.state = 'scheduled'",
         "| condition val() > 0.80"])
         duration = "300s"
         trigger {
           count = "1"
         }
       }
     }
     # uncomment to set an auto close strategy for the alert
     #alert_strategy {
     #    auto_close = "30m"
     #}
   }

   resource "google_monitoring_alert_policy" "queued_tasks_percentage" {
     display_name = "Queued Tasks Percentage"
     combiner     = "OR"
     conditions {
       display_name = "Queued Tasks Percentage"
       condition_monitoring_query_language {
         query = join("", [
           "fetch cloud_composer_environment",
           "| metric 'composer.googleapis.com/environment/unfinished_task_instances'",
           "| align mean_aligner(10m)",
           "| every(10m)",
           "| window(10m)",
           "| filter_ratio_by [resource.project_id, resource.environment_name], metric.state = 'queued'",
           "| group_by [resource.project_id, resource.environment_name]",
         "| condition val() > 0.95"])
         duration = "300s"
         trigger {
           count = "1"
         }
       }
     }
     # uncomment to set an auto close strategy for the alert
     #alert_strategy {
     #    auto_close = "30m"
     #}
   }

   resource "google_monitoring_alert_policy" "queued_or_scheduled_tasks_percentage" {
     display_name = "Queued or Scheduled Tasks Percentage"
     combiner     = "OR"
     conditions {
       display_name = "Queued or Scheduled Tasks Percentage"
       condition_monitoring_query_language {
         query = join("", [
           "fetch cloud_composer_environment",
           "| metric 'composer.googleapis.com/environment/unfinished_task_instances'",
           "| align mean_aligner(10m)",
           "| every(10m)",
           "| window(10m)",
           "| filter_ratio_by [resource.project_id, resource.environment_name], or(metric.state = 'queued', metric.state = 'scheduled' )",
           "| group_by [resource.project_id, resource.environment_name]",
         "| condition val() > 0.80"])
         duration = "120s"
         trigger {
           count = "1"
         }
       }
     }
     # uncomment to set an auto close strategy for the alert
     #alert_strategy {
     #    auto_close = "30m"
     #}
   }


   resource "google_monitoring_alert_policy" "workers_above_minimum" {
     display_name = "Workers above minimum (negative = missing workers)"
     combiner     = "OR"
     conditions {
       display_name = "Workers above minimum"
       condition_monitoring_query_language {
         query = join("", [
           "fetch cloud_composer_environment",
           "| { metric 'composer.googleapis.com/environment/num_celery_workers'",
           "| group_by 5m, [value_num_celery_workers_mean: mean(value.num_celery_workers)]",
           "| every 5m",
           "; metric 'composer.googleapis.com/environment/worker/min_workers'",
           "| group_by 5m, [value_min_workers_mean: mean(value.min_workers)]",
           "| every 5m }",
           "| outer_join 0",
           "| sub",
           "| group_by [resource.project_id, resource.environment_name]",
         "| condition val() < 0"])
         duration = "0s"
         trigger {
           count = "1"
         }
       }
     }
     # uncomment to set an auto close strategy for the alert
     #alert_strategy {
     #    auto_close = "30m"
     #}
   }

   resource "google_monitoring_alert_policy" "pod_evictions" {
     display_name = "Worker pod evictions"
     combiner     = "OR"
     conditions {
       display_name = "Worker pod evictions"
       condition_monitoring_query_language {
         query = join("", [
           "fetch cloud_composer_environment",
           "| metric 'composer.googleapis.com/environment/worker/pod_eviction_count'",
           "| align delta(1m)",
           "| every 1m",
           "| group_by [resource.project_id, resource.environment_name]",
         "| condition val() > 0"])
         duration = "60s"
         trigger {
           count = "1"
         }
       }
     }
     # uncomment to set an auto close strategy for the alert
     #alert_strategy {
     #    auto_close = "30m"
     #}
   }

   resource "google_monitoring_alert_policy" "scheduler_errors" {
     display_name = "Scheduler Errors"
     combiner     = "OR"
     conditions {
       display_name = "Scheduler Errors"
       condition_monitoring_query_language {
         query = join("", [
           "fetch cloud_composer_environment",
           "| metric 'logging.googleapis.com/log_entry_count'",
           "| filter (metric.log == 'airflow-scheduler' && metric.severity == 'ERROR')",
           "| group_by 5m,",
           "    [value_log_entry_count_aggregate: aggregate(value.log_entry_count)]",
           "| every 5m",
           "| group_by [resource.project_id, resource.environment_name],",
           "    [value_log_entry_count_aggregate_max: max(value_log_entry_count_aggregate)]",
         "| condition val() > 50"])
         duration = "300s"
         trigger {
           count = "1"
         }
       }
     }
     # uncomment to set an auto close strategy for the alert
     #alert_strategy {
     #    auto_close = "30m"
     #}
   }

   resource "google_monitoring_alert_policy" "worker_errors" {
     display_name = "Worker Errors"
     combiner     = "OR"
     conditions {
       display_name = "Worker Errors"
       condition_monitoring_query_language {
         query = join("", [
           "fetch cloud_composer_environment",
           "| metric 'logging.googleapis.com/log_entry_count'",
           "| filter (metric.log == 'airflow-worker' && metric.severity == 'ERROR')",
           "| group_by 5m,",
           "    [value_log_entry_count_aggregate: aggregate(value.log_entry_count)]",
           "| every 5m",
           "| group_by [resource.project_id, resource.environment_name],",
           "    [value_log_entry_count_aggregate_max: max(value_log_entry_count_aggregate)]",
         "| condition val() > 50"])
         duration = "300s"
         trigger {
           count = "1"
         }
       }
     }
     # uncomment to set an auto close strategy for the alert
     #alert_strategy {
     #    auto_close = "30m"
     #}
   }

   resource "google_monitoring_alert_policy" "webserver_errors" {
     display_name = "Web Server Errors"
     combiner     = "OR"
     conditions {
       display_name = "Web Server Errors"
       condition_monitoring_query_language {
         query = join("", [
           "fetch cloud_composer_environment",
           "| metric 'logging.googleapis.com/log_entry_count'",
           "| filter (metric.log == 'airflow-webserver' && metric.severity == 'ERROR')",
           "| group_by 5m,",
           "    [value_log_entry_count_aggregate: aggregate(value.log_entry_count)]",
           "| every 5m",
           "| group_by [resource.project_id, resource.environment_name],",
           "    [value_log_entry_count_aggregate_max: max(value_log_entry_count_aggregate)]",
         "| condition val() > 50"])
         duration = "300s"
         trigger {
           count = "1"
         }
       }
     }
     # uncomment to set an auto close strategy for the alert
     #alert_strategy {
     #    auto_close = "30m"
     #}
   }

   resource "google_monitoring_alert_policy" "other_errors" {
     display_name = "Other Errors"
     combiner     = "OR"
     conditions {
       display_name = "Other Errors"
       condition_monitoring_query_language {
         query = join("", [
           "fetch cloud_composer_environment",
           "| metric 'logging.googleapis.com/log_entry_count'",
           "| filter",
           "    (metric.log !~ 'airflow-scheduler|airflow-worker|airflow-webserver'",
           "     && metric.severity == 'ERROR')",
           "| group_by 5m, [value_log_entry_count_max: max(value.log_entry_count)]",
           "| every 5m",
           "| group_by [resource.project_id, resource.environment_name],",
           "    [value_log_entry_count_max_aggregate: aggregate(value_log_entry_count_max)]",
         "| condition val() > 10"])
         duration = "300s"
         trigger {
           count = "1"
         }
       }
     }
     # uncomment to set an auto close strategy for the alert
     #alert_strategy {
     #    auto_close = "30m"
     #}
   }


   #######################################################
   #
   # Create Monitoring Dashboard
   #
   ########################################################


   resource "google_monitoring_dashboard" "Composer_Dashboard" {
     dashboard_json = <<EOF
   {
     "category": "CUSTOM",
     "displayName": "Cloud Composer - Monitoring Platform",
     "mosaicLayout": {
       "columns": 12,
       "tiles": [
         {
           "height": 1,
           "widget": {
             "text": {
               "content": "",
               "format": "MARKDOWN"
             },
             "title": "Health"
           },
           "width": 12,
           "xPos": 0,
           "yPos": 0
         },
         {
           "height": 4,
           "widget": {
             "alertChart": {
               "name": "${google_monitoring_alert_policy.environment_health.name}"
             }
           },
           "width": 6,
           "xPos": 0,
           "yPos": 1
         },
         {
           "height": 4,
           "widget": {
             "alertChart": {
               "name": "${google_monitoring_alert_policy.database_health.name}"
             }
           },
           "width": 6,
           "xPos": 6,
           "yPos": 1
         },
         {
           "height": 4,
           "widget": {
             "alertChart": {
               "name": "${google_monitoring_alert_policy.webserver_health.name}"
             }
           },
           "width": 6,
           "xPos": 0,
           "yPos": 5
         },
         {
           "height": 4,
           "widget": {
             "alertChart": {
               "name": "${google_monitoring_alert_policy.scheduler_heartbeat.name}"
             }
           },
           "width": 6,
           "xPos": 6,
           "yPos": 5
         },
         {
           "height": 1,
           "widget": {
             "text": {
               "content": "",
               "format": "RAW"
             },
             "title": "Airflow Task Execution and DAG Parsing"
           },
           "width": 12,
           "xPos": 0,
           "yPos": 9
         },
         {
           "height": 4,
           "widget": {
             "alertChart": {
               "name": "${google_monitoring_alert_policy.scheduled_tasks_percentage.name}"
             }
           },
           "width": 6,
           "xPos": 0,
           "yPos": 10
         },
         {
           "height": 4,
           "widget": {
             "alertChart": {
               "name": "${google_monitoring_alert_policy.queued_tasks_percentage.name}"
             }
           },
           "width": 6,
           "xPos": 6,
           "yPos": 10
         },
         {
           "height": 4,
           "widget": {
             "alertChart": {
               "name": "${google_monitoring_alert_policy.queued_or_scheduled_tasks_percentage.name}"
             }
           },
           "width": 6,
           "xPos": 0,
           "yPos": 14
         },
         {
           "height": 4,
           "widget": {
             "alertChart": {
               "name": "${google_monitoring_alert_policy.parsing_time.name}"
             }
           },
           "width": 6,
           "xPos": 6,
           "yPos": 14
         },
         {
           "height": 1,
           "widget": {
             "text": {
               "content": "",
               "format": "RAW"
             },
             "title": "Workers presence"
           },
           "width": 12,
           "xPos": 0,
           "yPos": 18
         },
         {
           "height": 4,
           "widget": {
             "alertChart": {
               "name": "${google_monitoring_alert_policy.workers_above_minimum.name}"
             }
           },
           "width": 6,
           "xPos": 0,
           "yPos": 19
         },
         {
           "height": 4,
           "widget": {
             "alertChart": {
               "name": "${google_monitoring_alert_policy.pod_evictions.name}"
             }
           },
           "width": 6,
           "xPos": 6,
           "yPos": 19
         },
         {
           "height": 1,
           "widget": {
             "text": {
               "content": "",
               "format": "RAW"
             },
             "title": "CPU Utilization"
           },
           "width": 12,
           "xPos": 0,
           "yPos": 23
         },
         {
           "height": 4,
           "widget": {
             "alertChart": {
               "name": "${google_monitoring_alert_policy.database_cpu.name}"
             }
           },
           "width": 6,
           "xPos": 0,
           "yPos": 24
         },
         {
           "height": 4,
           "widget": {
             "alertChart": {
               "name": "${google_monitoring_alert_policy.scheduler_cpu.name}"
             }
           },
           "width": 6,
           "xPos": 6,
           "yPos": 24
         },
         {
           "height": 4,
           "widget": {
             "alertChart": {
               "name": "${google_monitoring_alert_policy.worker_cpu.name}"
             }
           },
           "width": 6,
           "xPos": 0,
           "yPos": 28
         },
         {
           "height": 4,
           "widget": {
             "alertChart": {
               "name": "${google_monitoring_alert_policy.webserver_cpu.name}"
             }
           },
           "width": 6,
           "xPos": 6,
           "yPos": 28
         },

         {
           "height": 1,
           "widget": {
             "text": {
               "content": "",
               "format": "RAW"
             },
             "title": "Memory Utilization"
           },
           "width": 12,
           "xPos": 0,
           "yPos": 32
         },
         {
           "height": 4,
           "widget": {
             "alertChart": {
               "name": "${google_monitoring_alert_policy.database_memory.name}"
             }
           },
           "width": 6,
           "xPos": 0,
           "yPos": 33
         },
         {
           "height": 4,
           "widget": {
             "alertChart": {
               "name": "${google_monitoring_alert_policy.scheduler_memory.name}"
             }
           },
           "width": 6,
           "xPos": 6,
           "yPos": 33
         },
         {
           "height": 4,
           "widget": {
             "alertChart": {
               "name": "${google_monitoring_alert_policy.worker_memory.name}"
             }
           },
           "width": 6,
           "xPos": 0,
           "yPos": 37
         },
         {
           "height": 4,
           "widget": {
             "alertChart": {
               "name": "${google_monitoring_alert_policy.webserver_memory.name}"
             }
           },
           "width": 6,
           "xPos": 6,
           "yPos": 37
         },
         {
           "height": 1,
           "widget": {
             "text": {
               "content": "",
               "format": "RAW"
             },
             "title": "Airflow component errors"
           },
           "width": 12,
           "xPos": 0,
           "yPos": 41
         },
         {
           "height": 4,
           "widget": {
             "alertChart": {
               "name": "${google_monitoring_alert_policy.scheduler_errors.name}"
             }
           },
           "width": 6,
           "xPos": 0,
           "yPos": 42
         },
         {
           "height": 4,
           "widget": {
             "alertChart": {
               "name": "${google_monitoring_alert_policy.worker_errors.name}"
             }
           },
           "width": 6,
           "xPos": 6,
           "yPos": 42
         },
               {
           "height": 4,
           "widget": {
             "alertChart": {
               "name": "${google_monitoring_alert_policy.webserver_errors.name}"
             }
           },
           "width": 6,
           "xPos": 0,
           "yPos": 48
         },
         {
           "height": 4,
           "widget": {
             "alertChart": {
               "name": "${google_monitoring_alert_policy.other_errors.name}"
             }
           },
           "width": 6,
           "xPos": 6,
           "yPos": 48
         },
         {
           "height": 1,
           "widget": {
             "text": {
               "content": "",
               "format": "RAW"
             },
             "title": "Task errors"
           },
           "width": 12,
           "xPos": 0,
           "yPos": 52
         }
       ]
     }
   }
   EOF
   }

4. Edita el bloque "google_monitoring_monitored_project" resource:

   1. Sustituye la lista de proyectos del bloque for_each por tus proyectos monitorizados.
   2. Sustituye "YOUR_MONITORING_PROJECT" en metrics_scope por el nombre de tu proyecto de monitorización.

5. Revisa la configuración y comprueba que los recursos que Terraform va a crear o actualizar se ajustan a tus expectativas. Haz las correcciones necesarias.

   terraform plan


6. Aplica la configuración de Terraform ejecutando el siguiente comando e introduciendo "yes" en la petición:

   terraform apply


7. En la consola de tu Google Cloud proyecto de monitorización, ve a la página Panel de monitorización:

   Ve al panel de control Monitoring.

8. Busca el panel de control personalizado llamado Cloud Composer - Monitoring Platform en la pestaña Personalizado.

Siguientes pasos

• Monitorizar entornos
