在对性能进行调优时，请一次只更改一个变量。如果您在运行之间更改多个变量，则无法确定哪个变量改进了性能。事实上，多个更改可能会相互抵消，因此您不会观察到适当更改带来的好处。如果数据库服务器利用率过高，请尝试改用配备更多 vCPU 的机器，同时保持负载不变。如果数据库服务器利用率过低，请尝试增加负载，同时保持 CPU 配置不变。
在部署应用时，您可能需要考虑典型的高流量 Web 应用，以便更好地了解跨可用区延迟时间的影响。应用有一个负载均衡器，用于将请求发送到部署在多个可用区中的多个 Web 服务器，以实现高可用性。由于跨可用区延迟时间存在差异，延迟时间可能会因处理请求的 Web 服务器而异。

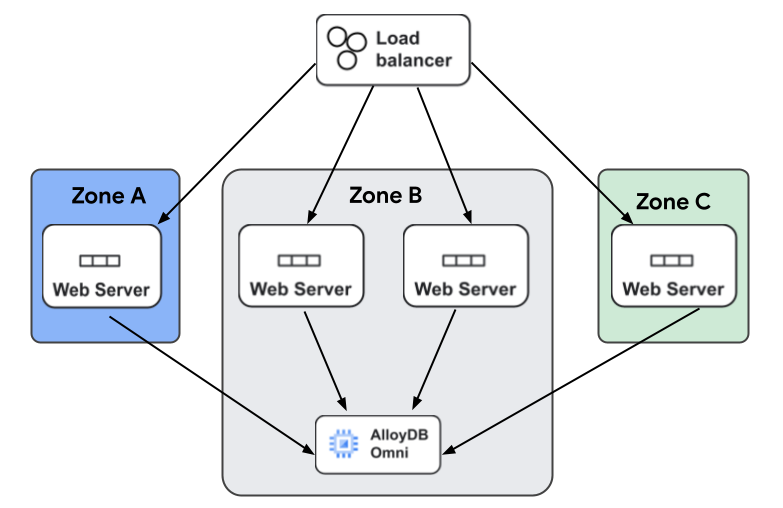

下图展示了使用 AlloyDB Omni 的 Web 应用的典型架构。客户端请求由负载均衡器处理，它会将每个请求转发到众多 Web 服务器中的某一个。Web 服务器全部连接到 AlloyDB Omni。某些服务器位于与 AlloyDB Omni 运行位置不同的可用区中，在发出数据库请求时会遇到更长的延迟时间。
图 1：典型 Web 应用架构的图示。我们预计可用区 B 中的 Web 服务器向数据库发出请求时的延迟时间会更短，因为它们与 AlloyDB Omni 数据库位于同一可用区中。
资源监控
如需优化数据库系统的性能，您需要监控数据库系统和使用数据库系统的客户端系统的资源使用情况。通过监控这两个系统，您可以确保客户端系统提供足够的工作负载，以便在数据库系统中获得有意义的测量结果。监控您所测试的系统的资源利用率至关重要。监控您用于驱动工作负载的客户端系统的资源利用率同样重要。例如，如果您想确定数据库系统在用尽 CPU 资源之前可以支持的客户端数量上限，则需要足够的客户端系统来生成用尽数据库系统中所有 CPU 资源所需的工作负载。如果生成负载的客户端机器本身没有足够的 CPU，您将无法充分驱动数据库系统。
