画像に含まれるセンシティブデータを秘匿化する

機密データの保護を使用すると、画像内の機密データを削除できます。infoType 検出器と Cloud Vision を使用すると、機密データの保護で画像に含まれるテキストを調べて、テキスト内の機密データを検出し、一致する機密データを不透明な長方形で隠したものを含む画像を返します。

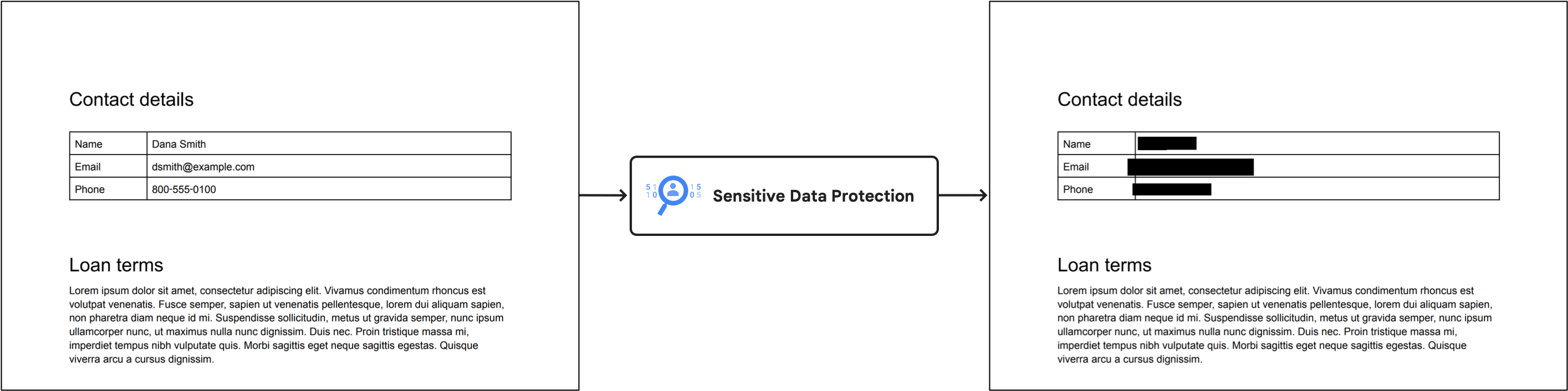

たとえば、次の「前」と「後」の画像について考えてみましょう。元の画像は、紙のドキュメントをスキャンして生成された一般的な画像ファイルの例です。この例では、内容に応じて色が異なる長方形を使用して、米国社会保障番号、メールアドレス、電話番号を秘匿化するように、機密データの保護は構成されています。

画像秘匿化前のスキャン画像
画像秘匿化後のスキャン画像

制限事項と考慮事項

画像に含まれるコンテンツを秘匿化する場合は、次の点を考慮してください。

サポートされているファイル形式

機密データの保護では、JPEG、BMP、PNG など、多くの画像タイプの機密データを秘匿化できます。詳細については、サポートされているファイル形式をご覧ください。

SVG、PDF、XLSX、PPTX、DOCX ファイルでの内容の秘匿化はサポートされていません。

検出結果の制限

画像に含まれるデータを秘匿化する場合は、検出結果の制限は適用されません。一部のデータのみが秘匿化されるため、予期しない結果または一貫性のない結果が生じる可能性があります。リクエストに FindingLimits を含めると、機密データの保護でエラーが発生します。

準備

Sign in to your Google Cloud account. If you're new to Google Cloud, create an account to evaluate how our products perform in real-world scenarios. New customers also get $300 in free credits to run, test, and deploy workloads.

In the Google Cloud console, on the project selector page, select or create a Google Cloud project.

Go to project selector

Make sure that billing is enabled for your Google Cloud project.

Enable the DLP API.

Enable the API

Create a service account:

In the Google Cloud console, go to the Create service account page.
Go to Create service account
Select your project.
In the Service account name field, enter a name. The Google Cloud console fills in the Service account ID field based on this name.

In the Service account description field, enter a description. For example, Service account for quickstart.
Click Create and continue.
Grant the Project > Owner role to the service account.

To grant the role, find the Select a role list, then select Project > Owner.

Note: The Role field affects which resources the service account can access in your project. You can revoke these roles or grant additional roles later. In production environments, do not grant the Owner, Editor, or Viewer roles. Instead, grant a predefined role or custom role that meets your needs.
Click Continue.
Click Done to finish creating the service account.

Do not close your browser window. You will use it in the next step.

Create a service account key:

In the Google Cloud console, click the email address for the service account that you created.
Click Keys.
Click Add key, and then click Create new key.
Click Create. A JSON key file is downloaded to your computer.
Click Close.

Set the environment variable GOOGLE_APPLICATION_CREDENTIALS to the path of the JSON file that contains your credentials. This variable applies only to your current shell session, so if you open a new session, set the variable again.

Example: Linux or macOS

export GOOGLE_APPLICATION_CREDENTIALS="KEY_PATH"

Replace KEY_PATH with the path of the JSON file that contains your credentials.

For example:

export GOOGLE_APPLICATION_CREDENTIALS="/home/user/Downloads/service-account-file.json"

Example: Windows

For PowerShell:

$env:GOOGLE_APPLICATION_CREDENTIALS="KEY_PATH"

Replace KEY_PATH with the path of the JSON file that contains your credentials.

For example:

$env:GOOGLE_APPLICATION_CREDENTIALS="C:\Users\username\Downloads\service-account-file.json"

For command prompt:

set GOOGLE_APPLICATION_CREDENTIALS=KEY_PATH

Replace KEY_PATH with the path of the JSON file that contains your credentials.

Install the Google Cloud CLI.

To initialize the gcloud CLI, run the following command:

gcloud init

In the Google Cloud console, on the project selector page, select or create a Google Cloud project.

Go to project selector

Make sure that billing is enabled for your Google Cloud project.

Enable the DLP API.

Enable the API

Create a service account:

In the Google Cloud console, go to the Create service account page.
Go to Create service account
Select your project.
In the Service account name field, enter a name. The Google Cloud console fills in the Service account ID field based on this name.

In the Service account description field, enter a description. For example, Service account for quickstart.
Click Create and continue.
Grant the Project > Owner role to the service account.

To grant the role, find the Select a role list, then select Project > Owner.

Note: The Role field affects which resources the service account can access in your project. You can revoke these roles or grant additional roles later. In production environments, do not grant the Owner, Editor, or Viewer roles. Instead, grant a predefined role or custom role that meets your needs.
Click Continue.
Click Done to finish creating the service account.

Do not close your browser window. You will use it in the next step.

Create a service account key:

In the Google Cloud console, click the email address for the service account that you created.
Click Keys.
Click Add key, and then click Create new key.
Click Create. A JSON key file is downloaded to your computer.
Click Close.

Example: Linux or macOS

export GOOGLE_APPLICATION_CREDENTIALS="KEY_PATH"

Replace KEY_PATH with the path of the JSON file that contains your credentials.

For example:

export GOOGLE_APPLICATION_CREDENTIALS="/home/user/Downloads/service-account-file.json"

Example: Windows

For PowerShell:

$env:GOOGLE_APPLICATION_CREDENTIALS="KEY_PATH"

Replace KEY_PATH with the path of the JSON file that contains your credentials.

For example:

$env:GOOGLE_APPLICATION_CREDENTIALS="C:\Users\username\Downloads\service-account-file.json"

For command prompt:

set GOOGLE_APPLICATION_CREDENTIALS=KEY_PATH

Replace KEY_PATH with the path of the JSON file that contains your credentials.

Install the Google Cloud CLI.

To initialize the gcloud CLI, run the following command:

gcloud init

画像にあるデフォルトの infoType すべてを秘匿化する

画像にある機密データを秘匿化するには、画像を DLP API の image.redact メソッドに送信します。検索する特定の情報タイプ（infoTypes）を指定しない限り、機密データの保護は最も一般的な infoType を検索します。

画像からデフォルトの infoType を秘匿化するには、次の操作を行います。

画像を base64 文字列としてエンコードします。

Sensitive Data Protection クライアントライブラリのいずれかを使用してこのタスクを実行する場合は、この手順をスキップします。
image.redact メソッドにリクエストを送信します。

デフォルトの infoType を秘匿化する場合は、リクエストに base64 エンコード画像のみが必要です。

たとえば、次の画像について考えてみます。これは、紙のドキュメントをスキャンして生成された一般的な画像ファイルの例です。

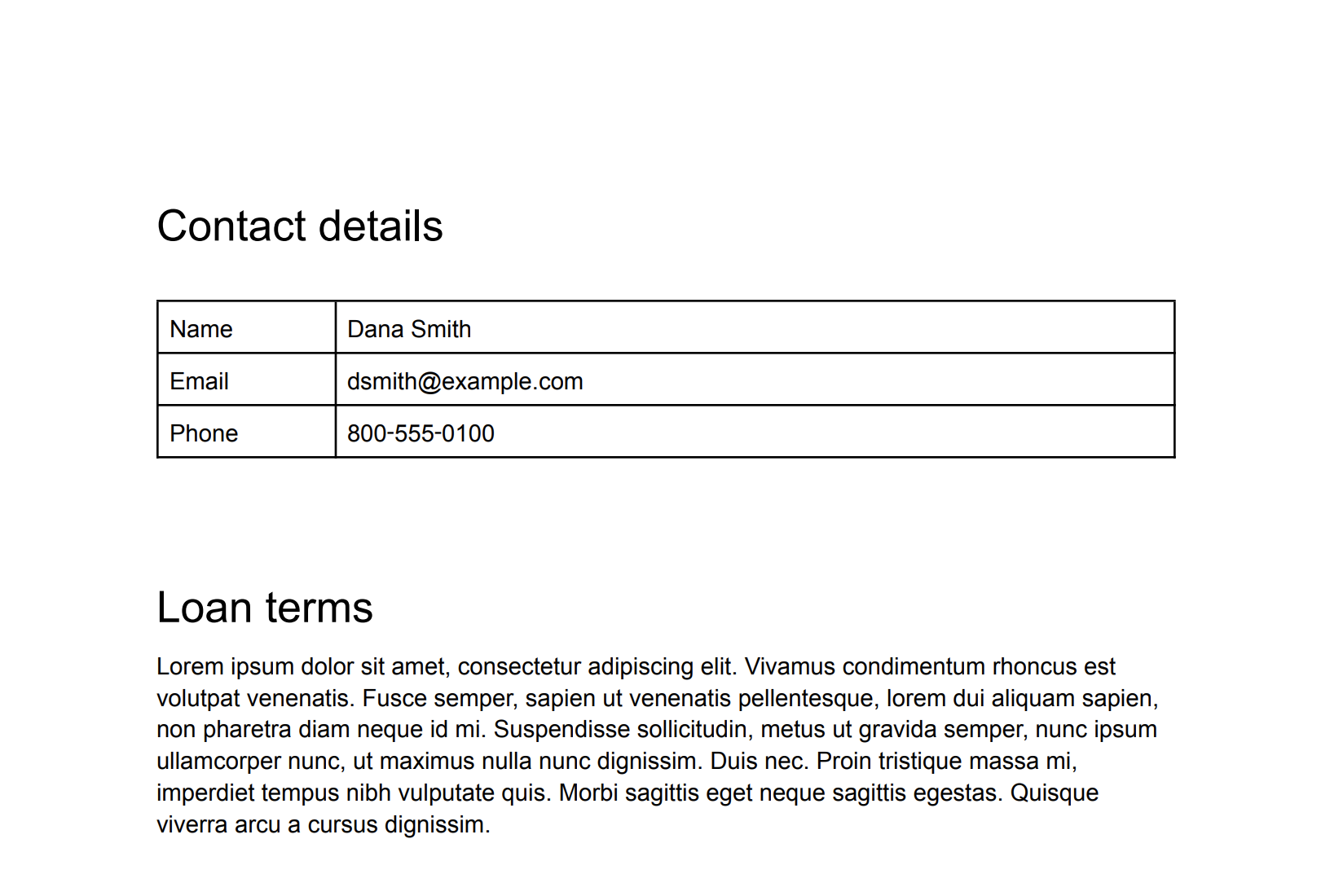

秘匿化されていない元の画像。 — 秘匿化されていない元の画像（クリックして拡大）。

このイメージからデフォルトの infoType を秘匿化するには、次のリクエストを DLP API の image.redact メソッドに送信します。

C#

機密データの保護用のクライアントライブラリをインストールして使用する方法については、機密データの保護のクライアントライブラリをご覧ください。

機密データの保護のために認証するには、アプリケーションのデフォルト認証情報を設定します。詳細については、ローカル開発環境の認証の設定をご覧ください。


using Google.Api.Gax.ResourceNames;
using Google.Cloud.Dlp.V2;
using Google.Protobuf;
using System;
using System.IO;

public class RedactSensitiveDataFromImageUsingDefaultInfoTypes
{
    public static RedactImageResponse RedactImage(
        string projectId,
        string originalImagePath,
        string redactedImagePath)
    {
        // Instantiate the dlp client.
        var dlp = DlpServiceClient.Create();

        // Construct the content item.
        var byteContentItem = new ByteContentItem
        {
            Type = ByteContentItem.Types.BytesType.ImagePng,
            Data = ByteString.FromStream(new FileStream(originalImagePath, FileMode.Open))
        };

        // Construct the Redact request to be sent by the client. Do not specify the type of info to redact.
        var request = new RedactImageRequest
        {
            ParentAsLocationName = new LocationName(projectId, "global"),
            ByteItem = byteContentItem
        };

        // Call the API.
        var response = dlp.RedactImage(request);

        // Inspect the response.
        Console.WriteLine($"Redacted image written to: {redactedImagePath}");

        // Writes redacted image into file
        response.RedactedImage.WriteTo(new FileStream(redactedImagePath, FileMode.Create, FileAccess.Write));

        return response;
    }
}

Go

import (
	"context"
	"fmt"
	"io"
	"os"

	dlp "cloud.google.com/go/dlp/apiv2"
	"cloud.google.com/go/dlp/apiv2/dlppb"
)

// redactImageFileAllInfoTypes redact sensitive data from an image using default infoTypes.
func redactImageFileAllInfoTypes(w io.Writer, projectID, inputPath, outputPath string) error {
	// projectId := "my-project-id"
	// inputPath := "testdata/image.jpg"
	// outputPath := "testdata/test-output-image-file-all-infoType.jpeg"

	ctx := context.Background()

	// Initialize a client once and reuse it to send multiple requests. Clients
	// are safe to use across goroutines. When the client is no longer needed,
	// call the Close method to cleanup its resources.
	client, err := dlp.NewClient(ctx)
	if err != nil {
		return err
	}

	// Closing the client safely cleans up background resources.
	defer client.Close()

	// Read the image file.
	fileBytes, err := os.ReadFile(inputPath)
	if err != nil {
		fmt.Fprintf(w, "os.ReadFile: %v", err)
		return err
	}

	// Specify the content to be redacted.
	byteItem := &dlppb.ByteContentItem{
		Type: dlppb.ByteContentItem_IMAGE_JPEG,
		Data: fileBytes,
	}

	// Construct the Redact request to be sent by the client.
	// Do not specify the type of info to redact.
	req := &dlppb.RedactImageRequest{
		Parent:   fmt.Sprintf("projects/%s/locations/global", projectID),
		ByteItem: byteItem,
	}

	// Send the request.
	resp, err := client.RedactImage(ctx, req)
	if err != nil {
		return err
	}

	// Write the output file.
	if err := os.WriteFile(outputPath, resp.GetRedactedImage(), 0644); err != nil {
		return err
	}
	fmt.Fprintf(w, "Wrote output to %s", outputPath)
	return nil
}

Java


import com.google.cloud.dlp.v2.DlpServiceClient;
import com.google.privacy.dlp.v2.ByteContentItem;
import com.google.privacy.dlp.v2.ByteContentItem.BytesType;
import com.google.privacy.dlp.v2.LocationName;
import com.google.privacy.dlp.v2.RedactImageRequest;
import com.google.privacy.dlp.v2.RedactImageResponse;
import com.google.protobuf.ByteString;
import java.io.FileInputStream;
import java.io.FileOutputStream;
import java.io.IOException;

class RedactImageFileAllInfoTypes {

  public static void main(String[] args) throws IOException {
    // TODO(developer): Replace these variables before running the sample.
    String projectId = "my-project-id";
    String inputPath = "src/test/resources/sensitive-data-image.jpeg";
    String outputPath = "sensitive-data-image-redacted.jpeg";
    redactImageFileAllInfoTypes(projectId, inputPath, outputPath);
  }

  static void redactImageFileAllInfoTypes(String projectId, String inputPath, String outputPath)
      throws IOException {
    // Initialize client that will be used to send requests. This client only needs to be created
    // once, and can be reused for multiple requests. After completing all of your requests, call
    // the "close" method on the client to safely clean up any remaining background resources.
    try (DlpServiceClient dlp = DlpServiceClient.create()) {
      // Specify the content to be redacted.
      ByteString fileBytes = ByteString.readFrom(new FileInputStream(inputPath));
      ByteContentItem byteItem =
          ByteContentItem.newBuilder().setType(BytesType.IMAGE_JPEG).setData(fileBytes).build();

      // Construct the Redact request to be sent by the client.
      // Do not specify the type of info to redact.
      RedactImageRequest request =
          RedactImageRequest.newBuilder()
              .setParent(LocationName.of(projectId, "global").toString())
              .setByteItem(byteItem)
              .build();

      // Use the client to send the API request.
      RedactImageResponse response = dlp.redactImage(request);

      // Parse the response and process results.
      FileOutputStream redacted = new FileOutputStream(outputPath);
      redacted.write(response.getRedactedImage().toByteArray());
      redacted.close();
      System.out.println("Redacted image written to " + outputPath);
    }
  }
}

Node.js

// Imports the Google Cloud Data Loss Prevention library
const DLP = require('@google-cloud/dlp');

// Imports required Node.js libraries
const mime = require('mime');
const fs = require('fs');

// Instantiates a client
const dlp = new DLP.DlpServiceClient();

// The project ID to run the API call under
// const projectId = 'my-project';

// The path to a local file to inspect. Can be a JPG or PNG image file.
// const filepath = 'path/to/image.png';

// The local path to save the resulting image to.
// const outputPath = 'result.png';

async function redactImage() {
  // Specify the content to be redacted.
  const fileTypeConstant =
    ['image/jpeg', 'image/bmp', 'image/png', 'image/svg'].indexOf(
      mime.getType(filepath)
    ) + 1;
  const fileBytes = Buffer.from(fs.readFileSync(filepath)).toString('base64');

  // Construct the Redact request to be sent by the client.
  // Do not specify the type of info to redact.
  const request = {
    parent: `projects/${projectId}/locations/global`,
    byteItem: {
      type: fileTypeConstant,
      data: fileBytes,
    },
  };

  // Use the client to send the API request.
  const [response] = await dlp.redactImage(request);

  // Parse the response and process results.
  const image = response.redactedImage;
  fs.writeFileSync(outputPath, image);
  console.log(`Saved image redaction results to path: ${outputPath}`);
}
redactImage();

PHP

use Google\Cloud\Dlp\V2\ByteContentItem;
use Google\Cloud\Dlp\V2\Client\DlpServiceClient;
use Google\Cloud\Dlp\V2\RedactImageRequest;

/**
 * Redact sensitive data from an image using default infoTypes.
 *
 * @param string $callingProjectId    The project ID to run the API call under.
 * @param string $imagePath           The local filepath of the image to inspect.
 * @param string $outputPath          The local filepath to save the resulting image to.
 */
function redact_image_all_infotypes(
    // TODO(developer): Replace sample parameters before running the code.
    string $callingProjectId,
    string $imagePath = './test/data/test.png',
    string $outputPath = './test/data/redact_image_all_infotypes.png'
): void {
    // Instantiate a client.
    $dlp = new DlpServiceClient();

    // Read image file into a buffer.
    $imageRef = fopen($imagePath, 'rb');
    $imageBytes = fread($imageRef, filesize($imagePath));
    fclose($imageRef);

    // Get the image's content type.
    $typeConstant = (int) array_search(
        mime_content_type($imagePath),
        [false, 'image/jpeg', 'image/bmp', 'image/png', 'image/svg']
    );

    // Create the byte-storing object.
    $byteContent = (new ByteContentItem())
        ->setType($typeConstant)
        ->setData($imageBytes);

    $parent = "projects/$callingProjectId/locations/global";

    // Run request.
    $redactImageRequest = (new RedactImageRequest())
        ->setParent($parent)
        ->setByteItem($byteContent);
    $response = $dlp->redactImage($redactImageRequest);

    // Save result to file.
    file_put_contents($outputPath, $response->getRedactedImage());

    // Print completion message.
    printf('Redacted image saved to %s ' . PHP_EOL, $outputPath);
}

Python

import google.cloud.dlp


def redact_image_all_info_types(
    project: str,
    filename: str,
    output_filename: str,
) -> None:
    """Uses the Data Loss Prevention API to redact protected data in an image.
    Args:
        project: The Google Cloud project id to use as a parent resource.
        filename: The path to the file to inspect.
        output_filename: The path to which the redacted image will be written.
            A full list of info type categories can be fetched from the API.
    Returns:
        None; the response from the API is printed to the terminal.
    """

    # Instantiate a client.
    dlp = google.cloud.dlp_v2.DlpServiceClient()

    # Construct the byte_item, containing the file's byte data.
    with open(filename, mode="rb") as f:
        byte_item = {"type_": google.cloud.dlp_v2.FileType.IMAGE, "data": f.read()}

    # Convert the project id into a full resource id.
    parent = f"projects/{project}"

    # Call the API.
    response = dlp.redact_image(
        request={
            "parent": parent,
            "byte_item": byte_item,
        }
    )

    # Write out the results.
    with open(output_filename, mode="wb") as f:
        f.write(response.redacted_image)
    print(f"Wrote {len(response.redacted_image)} to {output_filename}")

REST

重要: このリクエストを REST API に送信する前に、base64 ユーティリティを使用して画像を ASCII テキストデータにエンコードし、[BASE64-ENCODED-IMAGE] プレースホルダを base64 でエンコードされたテキストに置き換えます。多くの開発環境には、ネイティブの base64 ユーティリティが含まれています。画像ファイルをエンコードする方法は次のとおりです。

Linux: base64 input.jpg > output.txt
macOS: base64 -i input.jpg -o output.txt
Windows: C:> Base64.exe -e input.jpg > output.txt
PowerShell: [Convert]::ToBase64String([IO.File]::ReadAllBytes("./input.jpg")) > output.txt

{
  "byteItem": {
    "data": "[BASE64-ENCODED-IMAGE]",
    "type": "IMAGE_JPEG"
  }
}

機密データの保護は、以下を返します。

    {
      "redactedImage": "[BASE64-ENCODED-IMAGE]"
    }

base64 エンコードされた画像をデコードします。

生成された画像は次のようになります。

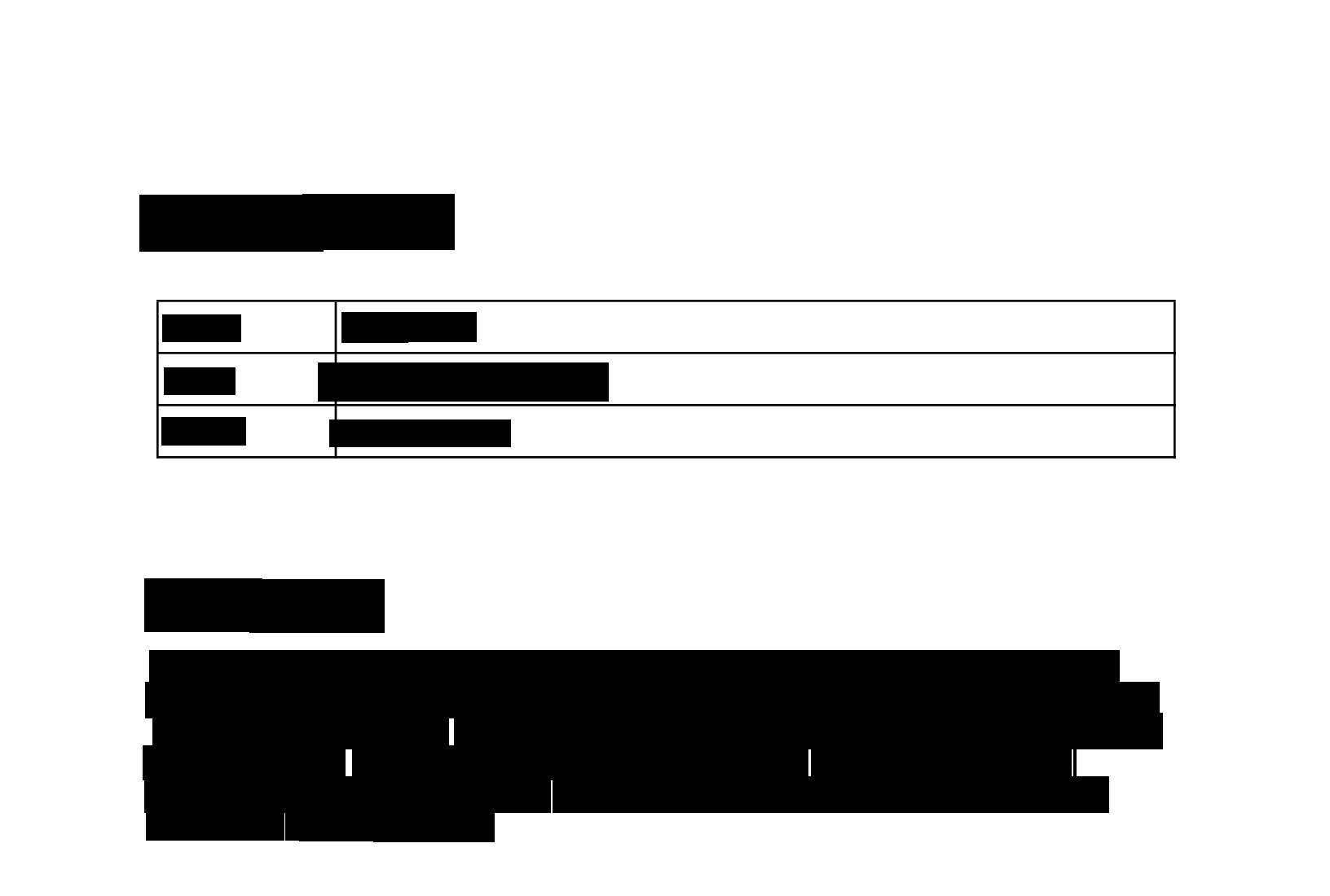

すべての infoType が秘匿化された画像。 — すべての infoType が秘匿化された画像（クリックして拡大）

手書きの社会保障番号、メールアドレス、電話番号が隠されているのに加えて、機密データの保護によって年が秘匿化されていることに注意してください。次のセクションでは、特定の infoType のみを秘匿化する方法を説明します。

ヒント: 結果の画像とともに、秘匿化用のボックスが描画された領域を示すピクセル座標と長さの値のレポートを取得できます。これは、画像検査が返す情報と同じです。この機能を有効にするには、image.redact へのリクエストで includeFindings を true に設定します。

画像にある特定の infoType を秘匿化する

画像にある特定の機密データのみを秘匿化する場合は、対応する組み込みの infoType を指定します。

画像から特定の infoType を秘匿化するには、DLP API の image.redact メソッドにリクエストを送信します。リクエストには以下を含める必要があります。

画像
1 つ以上の infoType 検出器

前のセクションの元の画像について考えてみます。米国社会保障番号、メールアドレス、電話番号のみを削除するには、次の JSON を DLP API の image.redact メソッドに送信します。

C#


using Google.Api.Gax.ResourceNames;
using Google.Cloud.Dlp.V2;
using Google.Protobuf;
using System;
using System.IO;

public class RedactImageWithListedInfotypes
{
    public static RedactImageResponse Redact(string projectId, string originalImagePath, string redactedImagePath)
    {
        var request = new RedactImageRequest
        {
            Parent = new LocationName(projectId, "global").ToString(),
            InspectConfig = new InspectConfig
            {
                MinLikelihood = Likelihood.Likely,
                Limits = new InspectConfig.Types.FindingLimits() { MaxFindingsPerItem = 5 },
                IncludeQuote = true,
                InfoTypes =
                    {
                        new InfoType { Name = "PHONE_NUMBER" },
                        new InfoType { Name = "EMAIL_ADDRESS" }
                    }
            },
            ByteItem = new ByteContentItem
            {
                Type = ByteContentItem.Types.BytesType.ImagePng,
                Data = ByteString.FromStream(new FileStream(originalImagePath, FileMode.Open))
            },
        };

        var client = DlpServiceClient.Create();
        var response = client.RedactImage(request);

        Console.WriteLine($"Extracted text: {response.ExtractedText}");

        // Writes redacted image into file
        response.RedactedImage.WriteTo(new FileStream(redactedImagePath, FileMode.Create, FileAccess.Write));

        return response;
    }
}

Go

import (
	"context"
	"fmt"
	"io"
	"os"

	dlp "cloud.google.com/go/dlp/apiv2"
	"cloud.google.com/go/dlp/apiv2/dlppb"
)

// redactImageFileListedInfoTypes redacts only certain sensitive
// data from an image using infoTypes
func redactImageFileListedInfoTypes(w io.Writer, projectID, inputPath, outputPath string) error {
	// projectId := "my-project-id"
	// inputPath := "testdata/image.jpg"
	// outputPath := "testdata/test-output-image-file-listed-infoTypes-redacted.jpeg"

	ctx := context.Background()

	// Initialize a client once and reuse it to send multiple requests. Clients
	// are safe to use across goroutines. When the client is no longer needed,
	// call the Close method to cleanup its resources.
	client, err := dlp.NewClient(ctx)
	if err != nil {
		return err
	}

	// Closing the client safely cleans up background resources.
	defer client.Close()

	// read the image file
	fileBytes, err := os.ReadFile(inputPath)
	if err != nil {
		return err
	}

	// Specify the content to be redacted.
	byteItem := &dlppb.ByteContentItem{
		Type: dlppb.ByteContentItem_IMAGE_JPEG,
		Data: fileBytes,
	}

	// Specify the types of info necessary to redact.
	// See https://cloud.google.com/dlp/docs/infotypes-reference for complete list of info types
	infoTypes := []*dlppb.InfoType{
		{Name: "US_SOCIAL_SECURITY_NUMBER"},
		{Name: "EMAIL_ADDRESS"},
		{Name: "PHONE_NUMBER"},
	}

	inspectConfig := &dlppb.InspectConfig{
		InfoTypes: infoTypes,
	}

	// Prepare redaction configs.
	var x []*dlppb.RedactImageRequest_ImageRedactionConfig
	for _, v := range infoTypes {
		x = append(x, &dlppb.RedactImageRequest_ImageRedactionConfig{Target: &dlppb.RedactImageRequest_ImageRedactionConfig_InfoType{InfoType: v}})
	}

	// Construct the Inspect request to be sent by the client.
	req := &dlppb.RedactImageRequest{
		Parent:                fmt.Sprintf("projects/%s/locations/global", projectID),
		ByteItem:              byteItem,
		ImageRedactionConfigs: x,
		InspectConfig:         inspectConfig,
	}

	// Send the request.
	resp, err := client.RedactImage(ctx, req)
	if err != nil {
		return err
	}

	// Write the output file.
	if err := os.WriteFile(outputPath, resp.GetRedactedImage(), 0644); err != nil {
		return err
	}
	fmt.Fprintf(w, "Wrote output to %s\n", outputPath)
	return nil
}

Java


import com.google.cloud.dlp.v2.DlpServiceClient;
import com.google.privacy.dlp.v2.ByteContentItem;
import com.google.privacy.dlp.v2.ByteContentItem.BytesType;
import com.google.privacy.dlp.v2.InfoType;
import com.google.privacy.dlp.v2.InspectConfig;
import com.google.privacy.dlp.v2.LocationName;
import com.google.privacy.dlp.v2.RedactImageRequest;
import com.google.privacy.dlp.v2.RedactImageRequest.ImageRedactionConfig;
import com.google.privacy.dlp.v2.RedactImageResponse;
import com.google.protobuf.ByteString;
import java.io.FileInputStream;
import java.io.FileOutputStream;
import java.io.IOException;
import java.util.ArrayList;
import java.util.List;
import java.util.stream.Collectors;

class RedactImageFileListedInfoTypes {

  public static void main(String[] args) throws IOException {
    // TODO(developer): Replace these variables before running the sample.
    String projectId = "my-project-id";
    String inputPath = "src/test/resources/sensitive-data-image.jpeg";
    String outputPath = "sensitive-data-image-redacted.jpeg";
    redactImageFileListedInfoTypes(projectId, inputPath, outputPath);
  }

  static void redactImageFileListedInfoTypes(String projectId, String inputPath, String outputPath)
      throws IOException {
    // Initialize client that will be used to send requests. This client only needs to be created
    // once, and can be reused for multiple requests. After completing all of your requests, call
    // the "close" method on the client to safely clean up any remaining background resources.
    try (DlpServiceClient dlp = DlpServiceClient.create()) {
      // Specify the content to be redacted.
      ByteString fileBytes = ByteString.readFrom(new FileInputStream(inputPath));
      ByteContentItem byteItem =
          ByteContentItem.newBuilder().setType(BytesType.IMAGE_JPEG).setData(fileBytes).build();

      // Specify the types of info necessary to redact.
      List<InfoType> infoTypes = new ArrayList<>();
      // See https://cloud.google.com/dlp/docs/infotypes-reference for complete list of info types
      for (String typeName :
          new String[] {"US_SOCIAL_SECURITY_NUMBER", "EMAIL_ADDRESS", "PHONE_NUMBER"}) {
        infoTypes.add(InfoType.newBuilder().setName(typeName).build());
      }
      InspectConfig inspectConfig = InspectConfig.newBuilder().addAllInfoTypes(infoTypes).build();

      // Prepare redaction configs.
      List<ImageRedactionConfig> imageRedactionConfigs =
          infoTypes.stream()
              .map(infoType -> ImageRedactionConfig.newBuilder().setInfoType(infoType).build())
              .collect(Collectors.toList());

      // Construct the Redact request to be sent by the client.
      RedactImageRequest request =
          RedactImageRequest.newBuilder()
              .setParent(LocationName.of(projectId, "global").toString())
              .setByteItem(byteItem)
              .addAllImageRedactionConfigs(imageRedactionConfigs)
              .setInspectConfig(inspectConfig)
              .build();

      // Use the client to send the API request.
      RedactImageResponse response = dlp.redactImage(request);

      // Parse the response and process results.
      FileOutputStream redacted = new FileOutputStream(outputPath);
      redacted.write(response.getRedactedImage().toByteArray());
      redacted.close();
      System.out.println("Redacted image written to " + outputPath);
    }
  }
}

Node.js

// Imports the Google Cloud Data Loss Prevention library
const DLP = require('@google-cloud/dlp');

// Imports required Node.js libraries
const mime = require('mime');
const fs = require('fs');

// Instantiates a client
const dlp = new DLP.DlpServiceClient();

// The project ID to run the API call under
// const projectId = 'my-project';

// The path to a local file to inspect. Can be a JPG or PNG image file.
// const filepath = 'path/to/image.png';

// The infoTypes of information to redact
// const infoTypes = [{ name: 'EMAIL_ADDRESS' }, { name: 'PHONE_NUMBER' }];

// The local path to save the resulting image to.
// const outputPath = 'result.png';

async function redactImageWithInfoTypes() {
  // Load image
  const fileTypeConstant =
    ['image/jpeg', 'image/bmp', 'image/png', 'image/svg'].indexOf(
      mime.getType(filepath)
    ) + 1;
  const fileBytes = Buffer.from(fs.readFileSync(filepath)).toString('base64');

  // Construct image redaction request
  const request = {
    parent: `projects/${projectId}/locations/global`,
    byteItem: {
      type: fileTypeConstant,
      data: fileBytes,
    },
    inspectConfig: {
      infoTypes: infoTypes,
    },
    imageRedactionConfigs: infoTypes.map(infoType => ({infoType: infoType})),
  };

  // Run image redaction request
  const [response] = await dlp.redactImage(request);
  const image = response.redactedImage;
  fs.writeFileSync(outputPath, image);
  console.log(`Saved image redaction results to path: ${outputPath}`);
}
redactImageWithInfoTypes();

PHP

use Google\Cloud\Dlp\V2\ByteContentItem;
use Google\Cloud\Dlp\V2\Client\DlpServiceClient;
use Google\Cloud\Dlp\V2\InfoType;
use Google\Cloud\Dlp\V2\InspectConfig;
use Google\Cloud\Dlp\V2\RedactImageRequest;
use Google\Cloud\Dlp\V2\RedactImageRequest\ImageRedactionConfig;

/**
 * Redact only certain sensitive data from an image using infoTypes.
 *
 * @param string $callingProjectId    The project ID to run the API call under.
 * @param string $imagePath           The local filepath of the image to redact.
 * @param string $outputPath          The local filepath to save the resulting image to.
 */
function redact_image_listed_infotypes(
    // TODO(developer): Replace sample parameters before running the code.
    string $callingProjectId,
    string $imagePath = './test/data/test.png',
    string $outputPath = './test/data/redact_image_listed_infotypes.png'
): void {
    // Instantiate a client.
    $dlp = new DlpServiceClient();

    // Specify the types of info necessary to redact.
    $infoTypes = [
        (new InfoType())
            ->setName('US_SOCIAL_SECURITY_NUMBER'),
        (new InfoType())
            ->setName('EMAIL_ADDRESS'),
        (new InfoType())
            ->setName('PHONE_NUMBER'),
    ];

    // Create the configuration object.
    $inspectConfig = (new InspectConfig())
        ->setInfoTypes($infoTypes);

    // Read image file into a buffer.
    $imageRef = fopen($imagePath, 'rb');
    $imageBytes = fread($imageRef, filesize($imagePath));
    fclose($imageRef);

    // Get the image's content type.
    $typeConstant = (int) array_search(
        mime_content_type($imagePath),
        [false, 'image/jpeg', 'image/bmp', 'image/png', 'image/svg']
    );

    // Create the byte-storing object.
    $byteContent = (new ByteContentItem())
        ->setType($typeConstant)
        ->setData($imageBytes);

    // Create the image redaction config objects.
    $imageRedactionConfigs = [];
    foreach ($infoTypes as $infoType) {
        $config = (new ImageRedactionConfig())
            ->setInfoType($infoType);
        $imageRedactionConfigs[] = $config;
    }

    $parent = "projects/$callingProjectId/locations/global";

    // Run request.
    $redactImageRequest = (new RedactImageRequest())
        ->setParent($parent)
        ->setInspectConfig($inspectConfig)
        ->setByteItem($byteContent)
        ->setImageRedactionConfigs($imageRedactionConfigs);
    $response = $dlp->redactImage($redactImageRequest);

    // Save result to file.
    file_put_contents($outputPath, $response->getRedactedImage());

    // Print completion message.
    printf('Redacted image saved to %s' . PHP_EOL, $outputPath);
}

Python

import mimetypes
from typing import List, Optional

import google.cloud.dlp


def redact_image_listed_info_types(
    project: str,
    filename: str,
    output_filename: str,
    info_types: List[str],
    min_likelihood: Optional[str] = None,
    mime_type: Optional[str] = None,
) -> None:
    """Uses the Data Loss Prevention API to redact protected data in an image.
    Args:
        project: The Google Cloud project id to use as a parent resource.
        filename: The path to the file to inspect.
        output_filename: The path to which the redacted image will be written.
            A full list of info type categories can be fetched from the API.
        info_types: A list of strings representing info types to look for.
            A full list of info type categories can be fetched from the API.
        min_likelihood: A string representing the minimum likelihood threshold
            that constitutes a match. One of: 'LIKELIHOOD_UNSPECIFIED',
            'VERY_UNLIKELY', 'UNLIKELY', 'POSSIBLE', 'LIKELY', 'VERY_LIKELY'.
        mime_type: The MIME type of the file. If not specified, the type is
            inferred via the Python standard library's mimetypes module.
    Returns:
        None; the response from the API is printed to the terminal.
    """

    # Instantiate a client.
    dlp = google.cloud.dlp_v2.DlpServiceClient()

    # Prepare info_types by converting the list of strings into a list of
    # dictionaries (protos are also accepted).
    info_types = [{"name": info_type} for info_type in info_types]

    # Prepare image_redaction_configs, a list of dictionaries. Each dictionary
    # contains an info_type and optionally the color used for the replacement.
    # The color is omitted in this sample, so the default (black) will be used.
    image_redaction_configs = []
    if info_types is not None:
        for info_type in info_types:
            image_redaction_configs.append({"info_type": info_type})

    # Construct the configuration dictionary. Keys which are None may
    # optionally be omitted entirely.
    inspect_config = {"min_likelihood": min_likelihood, "info_types": info_types}

    # If mime_type is not specified, guess it from the filename.
    if mime_type is None:
        mime_guess = mimetypes.MimeTypes().guess_type(filename)
        mime_type = mime_guess[0] or "application/octet-stream"

    # Select the content type index from the list of supported types.
    # https://github.com/googleapis/googleapis/blob/master/google/privacy/dlp/v2/dlp.proto / message ByteContentItem
    supported_content_types = {
        None: 0,  # "Unspecified" or BYTES_TYPE_UNSPECIFIED
        "image/jpeg": 1,  # IMAGE_JPEG
        "image/bmp": 2,  # IMAGE_BMP
        "image/png": 3,  # IMAGE_PNG
        "image/svg": 4,  # IMAGE_SVG - Adjusted to "image/svg+xml" for correct MIME type
        "text/plain": 5,  # TEXT_UTF8
        # Note: No specific MIME type for general "image", mapping to IMAGE for any image type not specified
        "image": 6,  # IMAGE - Any image type
        "application/msword": 7,  # WORD_DOCUMENT
        "application/pdf": 8,  # PDF
        "application/powerpoint": 9,  # POWERPOINT_DOCUMENT
        "application/msexcel": 10,  # EXCEL_DOCUMENT
        "application/avro": 11,  # AVRO
        "text/csv": 12,  # CSV
        "text/tsv": 13,  # TSV
    }
    content_type_index = supported_content_types.get(mime_type, 0)

    # Construct the byte_item, containing the file's byte data.
    with open(filename, mode="rb") as f:
        byte_item = {"type_": content_type_index, "data": f.read()}

    # Convert the project id into a full resource id.
    parent = f"projects/{project}"

    # Call the API.
    response = dlp.redact_image(
        request={
            "parent": parent,
            "inspect_config": inspect_config,
            "image_redaction_configs": image_redaction_configs,
            "byte_item": byte_item,
        }
    )

    # Write out the results.
    with open(output_filename, mode="wb") as f:
        f.write(response.redacted_image)
    print(f"Wrote {len(response.redacted_image)} to {output_filename}")

REST

重要: このリクエストを送信する前に、base64 ユーティリティを使用して画像を ASCII テキストデータにエンコードし、[BASE64-ENCODED-IMAGE] プレースホルダを base64 エンコードテキストに置き換えます。多くの開発環境には、ネイティブの base64 ユーティリティが含まれています。画像ファイルをエンコードする方法は次のとおりです。

Linux: base64 input.jpg > output.txt
macOS: base64 -i input.jpg -o output.txt
Windows: C:> Base64.exe -e input.jpg > output.txt
PowerShell: [Convert]::ToBase64String([IO.File]::ReadAllBytes("./input.jpg")) > output.txt

    {
      "byteItem": {
        "data": "[BASE64-ENCODED-IMAGE]",
        "type": "IMAGE_JPEG"
      },
      "imageRedactionConfigs": [
        {
          "infoType": {
            "name": "US_SOCIAL_SECURITY_NUMBER"
          }
        },
        {
          "infoType": {
            "name": "EMAIL_ADDRESS"
          }
        },
        {
          "infoType": {
            "name": "PHONE_NUMBER"
          }
        }
      ]
    }

機密データの保護は、以下を返します。

    {
      "redactedImage": "[BASE64-ENCODED-IMAGE]"
    }

base64 エンコードされた画像をデコードします。

生成された画像は次のようになります。

3 つの infoType が秘匿化された画像。 — 3 つの infoType が秘匿化された画像（クリックして拡大）。

何が秘匿化されたかを一目で把握したい場合は、秘匿化された情報を infoType で色分けできます。詳細については、次のセクションをご覧ください。

画像にある infoType を色分けして秘匿化する

infoType で秘匿化する情報を色分けするには、infoType 検出器と RGB 色空間値を組み合わせます。

画像内の秘匿化する infoType を色分けするには、DLP API の image.redact メソッドにリクエストを送信します。リクエストには以下を含める必要があります。

画像
1 つ以上の infoType 検出器。それぞれの検出器には RGB 色空間値を使用して色が割り当てられます。

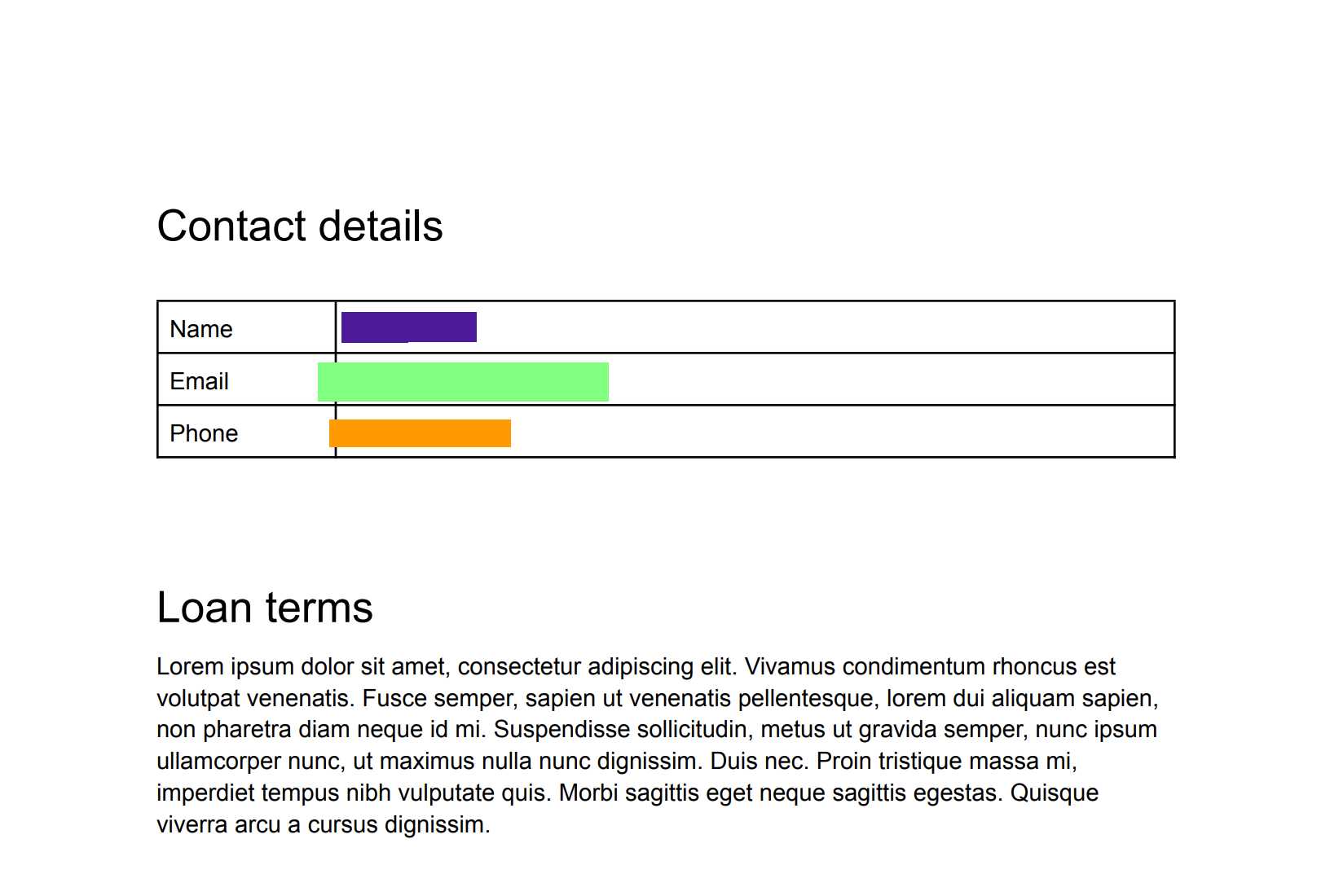

最初のセクションの元の画像について考えてみます。米国社会保障番号を紫色のボックス、メールアドレスを緑色のボックス、電話番号をオレンジ色のボックスで秘匿化するには、次の JSON を DLP API の image.redact メソッドに送信します。

C#


using Google.Api.Gax.ResourceNames;
using Google.Cloud.Dlp.V2;
using Google.Protobuf;
using System;
using System.IO;

public class RedactImageWithColorCodedInfoTypes
{
    public static RedactImageResponse RedactImage(
        string projectId,
        string originalImagePath,
        string redactedImagePath)
    {
        // Instantiate the dlp client.
        var dlp = DlpServiceClient.Create();

        // Construct the content item by providing the image and its type.
        var byteContentItem = new ByteContentItem
        {
            Type = ByteContentItem.Types.BytesType.ImagePng,
            Data = ByteString.FromStream(new FileStream(originalImagePath, FileMode.Open))
        };

        // Define types of info and associate each one with a different color to redact config.
        var ssnRedactionConfig = new RedactImageRequest.Types.ImageRedactionConfig
        {
            InfoType = new InfoType { Name = "US_SOCIAL_SECURITY_NUMBER" },
            RedactionColor = new Color
            {
                Red = 0.3f,
                Green = 0.1f,
                Blue = 0.6f
            }
        };

        var emailRedactionConfig = new RedactImageRequest.Types.ImageRedactionConfig
        {
            InfoType = new InfoType { Name = "EMAIL_ADDRESS" },
            RedactionColor = new Color
            {
                Red = 0.5f,
                Green = 0.5f,
                Blue = 1f
            }
        };

        var phoneRedactionConfig = new RedactImageRequest.Types.ImageRedactionConfig
        {
            InfoType = new InfoType { Name = "PHONE_NUMBER" },
            RedactionColor = new Color
            {
                Red = 1f,
                Green = 0f,
                Blue = 0.6f
            }
        };

        // Construct the Redact request to be sent by the client. Do not specify the type of info to redact.
        var request = new RedactImageRequest
        {
            ParentAsLocationName = new LocationName(projectId, "global"),
            ImageRedactionConfigs = { ssnRedactionConfig, emailRedactionConfig, phoneRedactionConfig },
            ByteItem = byteContentItem
        };

        // Call the API.
        RedactImageResponse response = dlp.RedactImage(request);

        // Writes redacted image into file
        response.RedactedImage.WriteTo(new FileStream(redactedImagePath, FileMode.Create, FileAccess.Write));

        Console.WriteLine($"Redacted image written to: {redactedImagePath}");

        return response;
    }
}

Go

import (
	"context"
	"fmt"
	"io"
	"os"

	dlp "cloud.google.com/go/dlp/apiv2"
	"cloud.google.com/go/dlp/apiv2/dlppb"
)

// redactImageFileColoredInfoTypes redacts data from an image with color-coded infoTypes.
func redactImageFileColoredInfoTypes(w io.Writer, projectID, inputPath, outputPath string) error {
	// projectId := "my-project-id"
	// inputPath := "testdata/image.jpg"
	// outputPath := "testdata/test-output-image-file-colored-infoType.jpeg"

	ctx := context.Background()

	// Initialize a client once and reuse it to send multiple requests. Clients
	// are safe to use across goroutines. When the client is no longer needed,
	// call the Close method to cleanup its resources.
	client, err := dlp.NewClient(ctx)
	if err != nil {
		return err
	}

	// Closing the client safely cleans up background resources.
	defer client.Close()

	// read the image file
	fileBytes, err := os.ReadFile(inputPath)
	if err != nil {
		return err
	}

	// Specify the content to be redacted.
	byteItem := &dlppb.ByteContentItem{
		Type: dlppb.ByteContentItem_IMAGE_JPEG,
		Data: fileBytes,
	}

	// Define types of info to redact associate each one with a different color.
	// See https://cloud.google.com/dlp/docs/infotypes-reference for complete list of info types.

	ssnRedactionConfig := &dlppb.RedactImageRequest_ImageRedactionConfig{
		Target: &dlppb.RedactImageRequest_ImageRedactionConfig_InfoType{
			InfoType: &dlppb.InfoType{
				Name: "US_SOCIAL_SECURITY_NUMBER",
			},
		},
		RedactionColor: &dlppb.Color{
			Red:   0.3,
			Green: 0.1,
			Blue:  0.6,
		},
	}

	emailRedactionConfig := &dlppb.RedactImageRequest_ImageRedactionConfig{
		Target: &dlppb.RedactImageRequest_ImageRedactionConfig_InfoType{
			InfoType: &dlppb.InfoType{
				Name: "EMAIL_ADDRESS",
			},
		},
		RedactionColor: &dlppb.Color{
			Red:   0.5,
			Green: 0.5,
			Blue:  1,
		},
	}

	phoneRedactionConfig := &dlppb.RedactImageRequest_ImageRedactionConfig{
		Target: &dlppb.RedactImageRequest_ImageRedactionConfig_InfoType{
			InfoType: &dlppb.InfoType{
				Name: "PHONE_NUMBER",
			},
		},
		RedactionColor: &dlppb.Color{
			Red:   1,
			Green: 0,
			Blue:  0.6,
		},
	}

	// Construct the Inspect request to be sent by the client.
	req := &dlppb.RedactImageRequest{
		Parent:   fmt.Sprintf("projects/%s/locations/global", projectID),
		ByteItem: byteItem,
		ImageRedactionConfigs: []*dlppb.RedactImageRequest_ImageRedactionConfig{
			emailRedactionConfig,
			phoneRedactionConfig,
			ssnRedactionConfig,
		},
	}

	// Send the request.
	resp, err := client.RedactImage(ctx, req)
	if err != nil {
		return err
	}

	// Write the output file.
	if err := os.WriteFile(outputPath, resp.GetRedactedImage(), 0644); err != nil {
		return err
	}

	fmt.Fprintf(w, "Wrote output to %s", outputPath)
	return nil
}

Java


import com.google.cloud.dlp.v2.DlpServiceClient;
import com.google.privacy.dlp.v2.ByteContentItem;
import com.google.privacy.dlp.v2.ByteContentItem.BytesType;
import com.google.privacy.dlp.v2.Color;
import com.google.privacy.dlp.v2.InfoType;
import com.google.privacy.dlp.v2.InspectConfig;
import com.google.privacy.dlp.v2.LocationName;
import com.google.privacy.dlp.v2.RedactImageRequest;
import com.google.privacy.dlp.v2.RedactImageRequest.ImageRedactionConfig;
import com.google.privacy.dlp.v2.RedactImageResponse;
import com.google.protobuf.ByteString;
import java.io.FileInputStream;
import java.io.FileOutputStream;
import java.io.IOException;
import java.util.Arrays;
import java.util.List;
import java.util.stream.Collectors;

class RedactImageFileColoredInfoTypes {

  public static void main(String[] args) throws IOException {
    // TODO(developer): Replace these variables before running the sample.
    String projectId = "my-project-id";
    String inputPath = "src/test/resources/test.png";
    String outputPath = "redacted.png";
    redactImageFileColoredInfoTypes(projectId, inputPath, outputPath);
  }

  static void redactImageFileColoredInfoTypes(String projectId, String inputPath, String outputPath)
      throws IOException {
    // Initialize client that will be used to send requests. This client only needs to be created
    // once, and can be reused for multiple requests. After completing all of your requests, call
    // the "close" method on the client to safely clean up any remaining background resources.
    try (DlpServiceClient dlp = DlpServiceClient.create()) {
      // Specify the content to be redacted.
      ByteString fileBytes = ByteString.readFrom(new FileInputStream(inputPath));
      ByteContentItem byteItem =
          ByteContentItem.newBuilder().setType(BytesType.IMAGE_JPEG).setData(fileBytes).build();

      // Define types of info to redact associate each one with a different color.
      // See https://cloud.google.com/dlp/docs/infotypes-reference for complete list of info types
      ImageRedactionConfig ssnRedactionConfig =
          ImageRedactionConfig.newBuilder()
              .setInfoType(InfoType.newBuilder().setName("US_SOCIAL_SECURITY_NUMBER").build())
              .setRedactionColor(Color.newBuilder().setRed(.3f).setGreen(.1f).setBlue(.6f).build())
              .build();
      ImageRedactionConfig emailRedactionConfig =
          ImageRedactionConfig.newBuilder()
              .setInfoType(InfoType.newBuilder().setName("EMAIL_ADDRESS").build())
              .setRedactionColor(Color.newBuilder().setRed(.5f).setGreen(.5f).setBlue(1).build())
              .build();
      ImageRedactionConfig phoneRedactionConfig =
          ImageRedactionConfig.newBuilder()
              .setInfoType(InfoType.newBuilder().setName("PHONE_NUMBER").build())
              .setRedactionColor(Color.newBuilder().setRed(1).setGreen(0).setBlue(.6f).build())
              .build();

      // Create collection of all redact configurations.
      List<ImageRedactionConfig> imageRedactionConfigs =
          Arrays.asList(ssnRedactionConfig, emailRedactionConfig, phoneRedactionConfig);

      // List types of info to search for.
      InspectConfig config =
          InspectConfig.newBuilder()
              .addAllInfoTypes(
                  imageRedactionConfigs.stream()
                      .map(ImageRedactionConfig::getInfoType)
                      .collect(Collectors.toList()))
              .build();

      // Construct the Redact request to be sent by the client.
      RedactImageRequest request =
          RedactImageRequest.newBuilder()
              .setParent(LocationName.of(projectId, "global").toString())
              .setByteItem(byteItem)
              .addAllImageRedactionConfigs(imageRedactionConfigs)
              .setInspectConfig(config)
              .build();

      // Use the client to send the API request.
      RedactImageResponse response = dlp.redactImage(request);

      // Parse the response and process results.
      FileOutputStream redacted = new FileOutputStream(outputPath);
      redacted.write(response.getRedactedImage().toByteArray());
      redacted.close();
      System.out.println("Redacted image written to " + outputPath);
    }
  }
}

Node.js

// Imports the Google Cloud Data Loss Prevention library
const DLP = require('@google-cloud/dlp');

// Imports required Node.js libraries
const mime = require('mime');
const fs = require('fs');

// Instantiates a client
const dlp = new DLP.DlpServiceClient();

// The project ID to run the API call under
// const projectId = 'my-project';

// The path to a local file to inspect. Can be a JPG or PNG image file.
// const filepath = 'path/to/image.png';

// The local path to save the resulting image to.
// const outputPath = 'result.png';

async function redactImageColoredInfoType() {
  // Define types of info to redact associate each one with a different color.
  const imageRedactionConfigs = [
    {
      infoType: {name: 'US_SOCIAL_SECURITY_NUMBER'},
      redactionColor: {red: 0.3, green: 0.1, blue: 0.6},
    },
    {
      infoType: {name: 'EMAIL_ADDRESS'},
      redactionColor: {red: 0.5, green: 0.5, blue: 1},
    },
    {
      infoType: {name: 'PHONE_NUMBER'},
      redactionColor: {red: 1, green: 0, blue: 0.6},
    },
  ];

  // Load image
  const fileTypeConstant =
    ['image/jpeg', 'image/bmp', 'image/png', 'image/svg'].indexOf(
      mime.getType(filepath)
    ) + 1;
  const fileBytes = Buffer.from(fs.readFileSync(filepath)).toString('base64');

  // Construct the Redact request to be sent by the client.
  const request = {
    parent: `projects/${projectId}/locations/global`,
    byteItem: {
      type: fileTypeConstant,
      data: fileBytes,
    },
    imageRedactionConfigs: imageRedactionConfigs,
  };

  // Send the request and receive response from the service.
  const [response] = await dlp.redactImage(request);
  const image = response.redactedImage;
  fs.writeFileSync(outputPath, image);
  console.log(`Saved image redaction results to path: ${outputPath}`);
}
redactImageColoredInfoType();

PHP

use Google\Cloud\Dlp\V2\ByteContentItem;
use Google\Cloud\Dlp\V2\Client\DlpServiceClient;
use Google\Cloud\Dlp\V2\Color;
use Google\Cloud\Dlp\V2\InfoType;
use Google\Cloud\Dlp\V2\InspectConfig;
use Google\Cloud\Dlp\V2\RedactImageRequest;
use Google\Cloud\Dlp\V2\RedactImageRequest\ImageRedactionConfig;

/**
 * Redact data from an image with color-coded infoTypes.
 *
 * @param string $callingProjectId    The project ID to run the API call under.
 * @param string $imagePath           The local filepath of the image to inspect.
 * @param string $outputPath          The local filepath to save the resulting image to.
 */
function redact_image_colored_infotypes(
    // TODO(developer): Replace sample parameters before running the code.
    string $callingProjectId,
    string $imagePath = './test/data/test.png',
    string $outputPath = './test/data/sensitive-data-image-redacted-color-coding.png'
): void {
    // Instantiate a client.
    $dlp = new DlpServiceClient();

    // Read image file into a buffer.
    $imageRef = fopen($imagePath, 'rb');
    $imageBytes = fread($imageRef, filesize($imagePath));
    fclose($imageRef);

    // Get the image's content type.
    $typeConstant = (int) array_search(
        mime_content_type($imagePath),
        [false, 'image/jpeg', 'image/bmp', 'image/png', 'image/svg']
    );

    // Create the byte-storing object.
    $byteContent = (new ByteContentItem())
        ->setType($typeConstant)
        ->setData($imageBytes);

    // Define the types of information to redact and associate each one with a different color.
    $ssnInfotype = (new InfoType())
        ->setName('US_SOCIAL_SECURITY_NUMBER');
    $emailInfotype = (new InfoType())
        ->setName('EMAIL_ADDRESS');
    $phoneInfotype = (new InfoType())
        ->setName('PHONE_NUMBER');
    $infotypes = [$ssnInfotype, $emailInfotype, $phoneInfotype];

    $ssnRedactionConfig = (new ImageRedactionConfig())
        ->setInfoType($ssnInfotype)
        ->setRedactionColor((new Color())
            ->setRed(.3)
            ->setGreen(.1)
            ->setBlue(.6));

    $emailRedactionConfig = (new ImageRedactionConfig())
        ->setInfoType($emailInfotype)
        ->setRedactionColor((new Color())
            ->setRed(.5)
            ->setGreen(.5)
            ->setBlue(1));

    $phoneRedactionConfig = (new ImageRedactionConfig())
        ->setInfoType($phoneInfotype)
        ->setRedactionColor((new Color())
            ->setRed(1)
            ->setGreen(0)
            ->setBlue(.6));

    $imageRedactionConfigs = [$ssnRedactionConfig, $emailRedactionConfig, $phoneRedactionConfig];

    // Create the configuration object.
    $inspectConfig = (new InspectConfig())
        ->setInfoTypes($infotypes);
    $parent = "projects/$callingProjectId/locations/global";

    // Run request.
    $redactImageRequest = (new RedactImageRequest())
        ->setParent($parent)
        ->setByteItem($byteContent)
        ->setInspectConfig($inspectConfig)
        ->setImageRedactionConfigs($imageRedactionConfigs);
    $response = $dlp->redactImage($redactImageRequest);

    // Save result to file.
    file_put_contents($outputPath, $response->getRedactedImage());

    // Print completion message.
    printf('Redacted image saved to %s ' . PHP_EOL, $outputPath);
}

Python

import google.cloud.dlp


def redact_image_with_colored_info_types(
    project: str,
    filename: str,
    output_filename: str,
) -> None:
    """Uses the Data Loss Prevention API to redact protected data in an image by
    color coding the infoTypes.
       Args:
           project: The Google Cloud project id to use as a parent resource.
           filename: The path of the image file to inspect.
           output_filename: The path to which the redacted image will be written.
    """

    # Instantiate a client.
    dlp = google.cloud.dlp_v2.DlpServiceClient()

    # Prepare image_redaction_configs, a list of dictionaries. Each dictionary
    # contains an infoType and the color used for the replacement.

    ssn_redaction_config = {
        "info_type": {"name": "US_SOCIAL_SECURITY_NUMBER"},
        "redaction_color": {
            "red": 0.3,
            "green": 0.1,
            "blue": 0.6,
        },
    }

    email_redaction_config = {
        "info_type": {"name": "EMAIL_ADDRESS"},
        "redaction_color": {
            "red": 0.5,
            "green": 0.5,
            "blue": 1.0,
        },
    }

    phone_redaction_config = {
        "info_type": {"name": "PHONE_NUMBER"},
        "redaction_color": {
            "red": 1.0,
            "green": 0.0,
            "blue": 0.6,
        },
    }

    image_redaction_configs = [
        ssn_redaction_config,
        email_redaction_config,
        phone_redaction_config,
    ]

    # Construct the configuration dictionary.
    inspect_config = {"info_types": [_i["info_type"] for _i in image_redaction_configs]}

    # Construct the byte_item, containing the file's byte data.
    with open(filename, mode="rb") as f:
        byte_item = {"type_": "IMAGE", "data": f.read()}

    # Convert the project id into a full resource id.
    parent = f"projects/{project}"

    # Call the API.
    response = dlp.redact_image(
        request={
            "parent": parent,
            "inspect_config": inspect_config,
            "image_redaction_configs": image_redaction_configs,
            "byte_item": byte_item,
        }
    )

    # Write out the results.
    with open(output_filename, mode="wb") as f:
        f.write(response.redacted_image)

    byte_count = len(response.redacted_image)
    print(f"Wrote {byte_count} to {output_filename}")

REST

Linux: base64 input.jpg > output.txt
macOS: base64 -i input.jpg -o output.txt
Windows: C:> Base64.exe -e input.jpg > output.txt
PowerShell: [Convert]::ToBase64String([IO.File]::ReadAllBytes("./input.jpg")) > output.txt

    {
      "byteItem": {
        "data": "[BASE64-ENCODED-IMAGE]",
        "type": "IMAGE_JPEG"
      },
      "imageRedactionConfigs": [
        {
          "infoType": {
            "name": "US_SOCIAL_SECURITY_NUMBER"
          },
          "redactionColor": {
            "red": 0.3,
            "green": 0.1,
            "blue": 0.6
          }
        },
        {
          "infoType": {
            "name": "EMAIL_ADDRESS"
          },
          "redactionColor": {
            "red": 0.5,
            "blue": 0.5,
            "green": 1
          }
        },
        {
          "infoType": {
            "name": "PHONE_NUMBER"
          },
          "redactionColor": {
            "red": 1,
            "blue": 0,
            "green": 0.6
          }
        }
      ]
    }

機密データの保護は、以下を返します。

    {
      "redactedImage": "[BASE64-ENCODED-IMAGE]"
    }

base64 エンコードされた画像をデコードします。

生成された画像は次のようになります。

3 つの infoType が色分けされて秘匿化された画像。 — 3 つの infoType が色分けされて秘匿化された画像（クリックして拡大）。

画像のすべてのテキストを秘匿化する

機密データの保護には、画像内で検出されたすべてのテキストを秘匿化するオプションもあります。

画像内のすべてのテキストを秘匿化するには、DLP API の image.redact メソッドにリクエストを送信します。リクエストには以下を含める必要があります。

画像
redactAllText オプションを true に設定します。

最初のセクションの元の画像について考えてみます。すべてのテキストを秘匿化するには、次の JSON を DLP API の image.redact メソッドに送信します。

C#


using Google.Api.Gax.ResourceNames;
using Google.Cloud.Dlp.V2;
using Google.Protobuf;
using System;
using System.IO;

public class RedactDetectedTextInImage
{
    public static RedactImageResponse RedactTextImage(
        string projectId,
        string originalImagePath,
        string redactedImagePath)
    {
        // Instantiate the dlp client.
        var dlp = DlpServiceClient.Create();

        // Construct the content item by specifying the content to be redacted.
        var byteContentItem = new ByteContentItem
        {
            Type = ByteContentItem.Types.BytesType.ImagePng,
            Data = ByteString.FromStream(new FileStream(originalImagePath, FileMode.Open))
        };

        // Enable redaction of all text.
        var imageRedactionConfig = new RedactImageRequest.Types.ImageRedactionConfig
        {
            RedactAllText = true
        };

        // Construct the Redact request to be sent by the client. Do not specify the type of info to redact.
        var request = new RedactImageRequest
        {
            ParentAsLocationName = new LocationName(projectId, "global"),
            ImageRedactionConfigs = { imageRedactionConfig },
            ByteItem = byteContentItem
        };

        // Call the API.
        var response = dlp.RedactImage(request);

        // Inspect the response.
        Console.WriteLine($"Redacted image written to: {redactedImagePath}");

        // Writes redacted image into file
        response.RedactedImage.WriteTo(new FileStream(redactedImagePath, FileMode.Create, FileAccess.Write));

        return response;
    }
}

Go

import (
	"context"
	"fmt"
	"io"
	"os"

	dlp "cloud.google.com/go/dlp/apiv2"
	"cloud.google.com/go/dlp/apiv2/dlppb"
)

// redactImageFileAllText redacts all detected text in an image
func redactImageFileAllText(w io.Writer, projectID, inputPath, outputPath string) error {
	// projectId := "my-project-id"
	// inputPath := "testdata/image.jpg"
	// outputPath := "testdata/test-output-image-file-all-text.jpeg"
	ctx := context.Background()

	// Initialize a client once and reuse it to send multiple requests. Clients
	// are safe to use across goroutines. When the client is no longer needed,
	// call the Close method to cleanup its resources.
	client, err := dlp.NewClient(ctx)
	if err != nil {
		return err
	}

	// Closing the client safely cleans up background resources.
	defer client.Close()

	// read the image file
	fileBytes, err := os.ReadFile(inputPath)
	if err != nil {
		return err
	}

	// Specify the content to be redacted.
	byteItem := &dlppb.ByteContentItem{
		Type: dlppb.ByteContentItem_IMAGE_JPEG,
		Data: fileBytes,
	}

	// Enable redaction of all text.
	imageRedactConfig := &dlppb.RedactImageRequest_ImageRedactionConfig{
		Target: &dlppb.RedactImageRequest_ImageRedactionConfig_RedactAllText{
			RedactAllText: true,
		},
	}

	// Construct the Redact request to be sent by the client.
	// Do not specify the type of info to redact.
	req := &dlppb.RedactImageRequest{
		Parent:   fmt.Sprintf("projects/%s/locations/global", projectID),
		ByteItem: byteItem,
		ImageRedactionConfigs: []*dlppb.RedactImageRequest_ImageRedactionConfig{
			imageRedactConfig,
		},
	}

	// Send the request.
	resp, err := client.RedactImage(ctx, req)
	if err != nil {
		return err
	}

	// Write the output file.
	if err := os.WriteFile(outputPath, resp.GetRedactedImage(), 0644); err != nil {
		return err
	}
	fmt.Fprintf(w, "Wrote output to %s", outputPath)
	return nil

}

Java


import com.google.cloud.dlp.v2.DlpServiceClient;
import com.google.privacy.dlp.v2.ByteContentItem;
import com.google.privacy.dlp.v2.ByteContentItem.BytesType;
import com.google.privacy.dlp.v2.LocationName;
import com.google.privacy.dlp.v2.RedactImageRequest;
import com.google.privacy.dlp.v2.RedactImageRequest.ImageRedactionConfig;
import com.google.privacy.dlp.v2.RedactImageResponse;
import com.google.protobuf.ByteString;
import java.io.FileInputStream;
import java.io.FileOutputStream;
import java.io.IOException;

class RedactImageFileAllText {

  public static void main(String[] args) throws IOException {
    // TODO(developer): Replace these variables before running the sample.
    String projectId = "my-project-id";
    String inputPath = "src/test/resources/sensitive-data-image.jpeg";
    String outputPath = "sensitive-data-image-redacted.jpeg";
    redactImageFileAllText(projectId, inputPath, outputPath);
  }

  static void redactImageFileAllText(String projectId, String inputPath, String outputPath)
      throws IOException {
    // Initialize client that will be used to send requests. This client only needs to be created
    // once, and can be reused for multiple requests. After completing all of your requests, call
    // the "close" method on the client to safely clean up any remaining background resources.
    try (DlpServiceClient dlp = DlpServiceClient.create()) {
      // Specify the content to be redacted.
      ByteString fileBytes = ByteString.readFrom(new FileInputStream(inputPath));
      ByteContentItem byteItem =
          ByteContentItem.newBuilder().setType(BytesType.IMAGE_JPEG).setData(fileBytes).build();

      // Enable redaction of all text.
      ImageRedactionConfig imageRedactionConfig =
          ImageRedactionConfig.newBuilder().setRedactAllText(true).build();

      // Construct the Redact request to be sent by the client.
      // Do not specify the type of info to redact.
      RedactImageRequest request =
          RedactImageRequest.newBuilder()
              .setParent(LocationName.of(projectId, "global").toString())
              .setByteItem(byteItem)
              .addImageRedactionConfigs(imageRedactionConfig)
              .build();

      // Use the client to send the API request.
      RedactImageResponse response = dlp.redactImage(request);

      // Parse the response and process results.
      FileOutputStream redacted = new FileOutputStream(outputPath);
      redacted.write(response.getRedactedImage().toByteArray());
      redacted.close();
      System.out.println("Redacted image written to " + outputPath);
    }
  }
}

Node.js

// Imports the Google Cloud Data Loss Prevention library
const DLP = require('@google-cloud/dlp');

// Imports required Node.js libraries
const mime = require('mime');
const fs = require('fs');

// Instantiates a client
const dlp = new DLP.DlpServiceClient();

// The project ID to run the API call under
// const projectId = 'my-project';

// The path to a local file to inspect. Can be a JPG or PNG image file.
// const filepath = 'path/to/image.png';

// The local path to save the resulting image to.
// const outputPath = 'result.png';

async function redactImageAllText() {
  // Enable redaction of all text.
  const imageRedactionConfigs = [{redactAllText: true}];

  // Load image
  const fileTypeConstant =
    ['image/jpeg', 'image/bmp', 'image/png', 'image/svg'].indexOf(
      mime.getType(filepath)
    ) + 1;
  const fileBytes = Buffer.from(fs.readFileSync(filepath)).toString('base64');

  // Construct the Redact request to be sent by the client.
  // Do not specify the type of info to redact.
  const request = {
    parent: `projects/${projectId}/locations/global`,
    byteItem: {
      type: fileTypeConstant,
      data: fileBytes,
    },
    imageRedactionConfigs: imageRedactionConfigs,
  };

  // Run image redaction request
  const [response] = await dlp.redactImage(request);

  // Parse the response and process results.
  const image = response.redactedImage;
  fs.writeFileSync(outputPath, image);
  console.log(`Saved image redaction results to path: ${outputPath}`);
}
redactImageAllText();

PHP

use Google\Cloud\Dlp\V2\ByteContentItem;
use Google\Cloud\Dlp\V2\Client\DlpServiceClient;
use Google\Cloud\Dlp\V2\RedactImageRequest;
use Google\Cloud\Dlp\V2\RedactImageRequest\ImageRedactionConfig;

/**
 * Redact all detected text in an image.
 *
 * @param string $callingProjectId    The project ID to run the API call under.
 * @param string $imagePath           The local filepath of the image to redact.
 * @param string $outputPath          The local filepath to save the resulting image to.
 */
function redact_image_all_text(
    // TODO(developer): Replace sample parameters before running the code.
    string $callingProjectId,
    string $imagePath = './test/data/test.png',
    string $outputPath = './test/data/redact_image_all_text.png'
): void {
    // Instantiate a client.
    $dlp = new DlpServiceClient();

    // Read image file into a buffer.
    $imageRef = fopen($imagePath, 'rb');
    $imageBytes = fread($imageRef, filesize($imagePath));
    fclose($imageRef);

    // Get the image's content type.
    $typeConstant = (int) array_search(
        mime_content_type($imagePath),
        [false, 'image/jpeg', 'image/bmp', 'image/png', 'image/svg']
    );

    // Create the byte-storing object.
    $byteContent = (new ByteContentItem())
        ->setType($typeConstant)
        ->setData($imageBytes);

    // Enable redaction of all text.
    $imageRedactionConfig = (new ImageRedactionConfig())
        ->setRedactAllText(true);

    $parent = "projects/$callingProjectId/locations/global";

    // Run request.
    $redactImageRequest = (new RedactImageRequest())
        ->setParent($parent)
        ->setByteItem($byteContent)
        ->setImageRedactionConfigs([$imageRedactionConfig]);
    $response = $dlp->redactImage($redactImageRequest);

    // Save result to file.
    file_put_contents($outputPath, $response->getRedactedImage());

    // Print completion message.
    printf('Redacted image saved to %s' . PHP_EOL, $outputPath);
}

Python

import google.cloud.dlp


def redact_image_all_text(
    project: str,
    filename: str,
    output_filename: str,
) -> None:
    """Uses the Data Loss Prevention API to redact all text in an image.

    Args:
        project: The Google Cloud project id to use as a parent resource.
        filename: The path to the file to inspect.
        output_filename: The path to which the redacted image will be written.

    Returns:
        None; the response from the API is printed to the terminal.
    """

    # Instantiate a client.
    dlp = google.cloud.dlp_v2.DlpServiceClient()

    # Construct the image_redaction_configs, indicating to DLP that all text in
    # the input image should be redacted.
    image_redaction_configs = [{"redact_all_text": True}]

    # Construct the byte_item, containing the file's byte data.
    with open(filename, mode="rb") as f:
        byte_item = {"type_": google.cloud.dlp_v2.FileType.IMAGE, "data": f.read()}

    # Convert the project id into a full resource id.
    parent = f"projects/{project}"

    # Call the API.
    response = dlp.redact_image(
        request={
            "parent": parent,
            "image_redaction_configs": image_redaction_configs,
            "byte_item": byte_item,
        }
    )

    # Write out the results.
    with open(output_filename, mode="wb") as f:
        f.write(response.redacted_image)

    print(
        "Wrote {byte_count} to {filename}".format(
            byte_count=len(response.redacted_image), filename=output_filename
        )
    )

REST

Linux: base64 input.jpg > output.txt
macOS: base64 -i input.jpg -o output.txt
Windows: C:> Base64.exe -e input.jpg > output.txt
PowerShell: [Convert]::ToBase64String([IO.File]::ReadAllBytes("./input.jpg")) > output.txt

    {
      "byteItem": {
        "data": "[BASE64-ENCODED-IMAGE]",
        "type": "IMAGE_JPEG"
      },
      "imageRedactionConfigs": [
        {
          "redactAllText": true
        }
      ]
    }

機密データの保護は、以下を返します。

    {
      "redactedImage": "[BASE64-ENCODED-IMAGE]"
    }

base64 エンコードされた画像をデコードします。

指定した画像と同じ画像が API から返されますが、機密情報を含むと判断されたテキストはすべて秘匿化されます。

生成された画像は次のようになります。

すべてのテキストが秘匿化された画像。 — すべてのテキストが秘匿化された画像（クリックして拡大）。

確率設定を使用したコードの例

この例は、画像にある特定の infoType を秘匿化すると似ています。また、最小尤度を指定する方法も示しています。

C#


using Google.Api.Gax.ResourceNames;
using Google.Cloud.Dlp.V2;
using Google.Protobuf;
using System;
using System.IO;

public class RedactImage
{
    public static RedactImageResponse Redact(string projectId, string originalImagePath, string redactedImagePath)
    {
        var request = new RedactImageRequest
        {
            Parent = new LocationName(projectId, "global").ToString(),
            InspectConfig = new InspectConfig
            {
                MinLikelihood = Likelihood.Likely,
                IncludeQuote = true,
                InfoTypes =
                {
                    new InfoType { Name = "PHONE_NUMBER" },
                    new InfoType { Name = "EMAIL_ADDRESS" },
                    new InfoType { Name = "CREDIT_CARD_NUMBER" }
                }
            },
            ByteItem = new ByteContentItem
            {
                Type = ByteContentItem.Types.BytesType.ImagePng,
                Data = ByteString.FromStream(new FileStream(originalImagePath, FileMode.Open))
            },
        };

        var client = DlpServiceClient.Create();
        var response = client.RedactImage(request);

        Console.WriteLine($"Extracted text: {response.ExtractedText}");

        // Writes redacted image into file
        response.RedactedImage.WriteTo(new FileStream(redactedImagePath, FileMode.Create, FileAccess.Write));

        return response;
    }
}

Go

import (
	"context"
	"fmt"
	"io"
	"os"

	dlp "cloud.google.com/go/dlp/apiv2"
	"cloud.google.com/go/dlp/apiv2/dlppb"
)

// redactImage blacks out the identified portions of the input image (with type bytesType)
// and stores the result in outputPath.
func redactImage(w io.Writer, projectID string, infoTypeNames []string, bytesType dlppb.ByteContentItem_BytesType, inputPath, outputPath string) error {
	// projectID := "my-project-id"
	// infoTypeNames := []string{"US_SOCIAL_SECURITY_NUMBER"}
	// bytesType := dlppb.ByteContentItem_IMAGE_PNG
	// inputPath := /tmp/input
	// outputPath := /tmp/output

	ctx := context.Background()

	client, err := dlp.NewClient(ctx)
	if err != nil {
		return fmt.Errorf("dlp.NewClient: %w", err)
	}
	defer client.Close()

	// Convert the info type strings to a list of InfoTypes.
	var infoTypes []*dlppb.InfoType
	for _, it := range infoTypeNames {
		infoTypes = append(infoTypes, &dlppb.InfoType{Name: it})
	}

	// Convert the info type strings to a list of types to redact in the image.
	var redactInfoTypes []*dlppb.RedactImageRequest_ImageRedactionConfig
	for _, it := range infoTypeNames {
		redactInfoTypes = append(redactInfoTypes, &dlppb.RedactImageRequest_ImageRedactionConfig{
			Target: &dlppb.RedactImageRequest_ImageRedactionConfig_InfoType{
				InfoType: &dlppb.InfoType{Name: it},
			},
		})
	}

	// Read the input file.
	b, err := os.ReadFile(inputPath)
	if err != nil {
		return fmt.Errorf("os.ReadFile: %w", err)
	}

	// Create a configured request.
	req := &dlppb.RedactImageRequest{
		Parent: fmt.Sprintf("projects/%s/locations/global", projectID),
		InspectConfig: &dlppb.InspectConfig{
			InfoTypes:     infoTypes,
			MinLikelihood: dlppb.Likelihood_POSSIBLE,
		},
		// The item to analyze.
		ByteItem: &dlppb.ByteContentItem{
			Type: bytesType,
			Data: b,
		},
		ImageRedactionConfigs: redactInfoTypes,
	}
	// Send the request.
	resp, err := client.RedactImage(ctx, req)
	if err != nil {
		return fmt.Errorf("RedactImage: %w", err)
	}
	// Write the output file.
	if err := os.WriteFile(outputPath, resp.GetRedactedImage(), 0644); err != nil {
		return fmt.Errorf("os.WriteFile: %w", err)
	}
	fmt.Fprintf(w, "Wrote output to %s", outputPath)
	return nil
}

Java


import com.google.cloud.dlp.v2.DlpServiceClient;
import com.google.privacy.dlp.v2.ByteContentItem;
import com.google.privacy.dlp.v2.ByteContentItem.BytesType;
import com.google.privacy.dlp.v2.InfoType;
import com.google.privacy.dlp.v2.InspectConfig;
import com.google.privacy.dlp.v2.Likelihood;
import com.google.privacy.dlp.v2.LocationName;
import com.google.privacy.dlp.v2.RedactImageRequest;
import com.google.privacy.dlp.v2.RedactImageResponse;
import com.google.protobuf.ByteString;
import java.io.FileInputStream;
import java.io.FileOutputStream;
import java.io.IOException;
import java.util.ArrayList;
import java.util.List;

class RedactImageFile {

  public static void main(String[] args) throws IOException {
    // TODO(developer): Replace these variables before running the sample.
    String projectId = "my-project-id";
    String inputPath = "src/test/resources/test.png";
    String outputPath = "redacted.png";
    redactImageFile(projectId, inputPath, outputPath);
  }

  static void redactImageFile(String projectId, String inputPath, String outputPath)
      throws IOException {
    // Initialize client that will be used to send requests. This client only needs to be created
    // once, and can be reused for multiple requests. After completing all of your requests, call
    // the "close" method on the client to safely clean up any remaining background resources.
    try (DlpServiceClient dlp = DlpServiceClient.create()) {
      // Specify the content to be inspected.
      ByteString fileBytes = ByteString.readFrom(new FileInputStream(inputPath));
      ByteContentItem byteItem =
          ByteContentItem.newBuilder().setType(BytesType.IMAGE).setData(fileBytes).build();

      // Specify the type of info and likelihood necessary to redact.
      List<InfoType> infoTypes = new ArrayList<>();
      // See https://cloud.google.com/dlp/docs/infotypes-reference for complete list of info types
      for (String typeName : new String[] {"PHONE_NUMBER", "EMAIL_ADDRESS", "CREDIT_CARD_NUMBER"}) {
        infoTypes.add(InfoType.newBuilder().setName(typeName).build());
      }
      InspectConfig config =
          InspectConfig.newBuilder()
              .addAllInfoTypes(infoTypes)
              .setMinLikelihood(Likelihood.LIKELY)
              .build();

      // Construct the Redact request to be sent by the client.
      RedactImageRequest request =
          RedactImageRequest.newBuilder()
              .setParent(LocationName.of(projectId, "global").toString())
              .setByteItem(byteItem)
              .setInspectConfig(config)
              .build();

      // Use the client to send the API request.
      RedactImageResponse response = dlp.redactImage(request);

      // Parse the response and process results.
      FileOutputStream redacted = new FileOutputStream(outputPath);
      redacted.write(response.getRedactedImage().toByteArray());
      redacted.close();
      System.out.println("Redacted image written to " + outputPath);
    }
  }
}

Node.js

// Imports the Google Cloud Data Loss Prevention library
const DLP = require('@google-cloud/dlp');

// Imports required Node.js libraries
const mime = require('mime');
const fs = require('fs');

// Instantiates a client
const dlp = new DLP.DlpServiceClient();

// The project ID to run the API call under
// const projectId = 'my-project';

// The path to a local file to inspect. Can be a JPG or PNG image file.
// const filepath = 'path/to/image.png';

// The minimum likelihood required before redacting a match
// const minLikelihood = 'LIKELIHOOD_UNSPECIFIED';

// The infoTypes of information to redact
// const infoTypes = [{ name: 'EMAIL_ADDRESS' }, { name: 'PHONE_NUMBER' }];

// The local path to save the resulting image to.
// const outputPath = 'result.png';
async function redactImage() {
  const imageRedactionConfigs = infoTypes.map(infoType => {
    return {infoType: infoType};
  });

  // Load image
  const fileTypeConstant =
    ['image/jpeg', 'image/bmp', 'image/png', 'image/svg'].indexOf(
      mime.getType(filepath)
    ) + 1;
  const fileBytes = Buffer.from(fs.readFileSync(filepath)).toString('base64');

  // Construct image redaction request
  const request = {
    parent: `projects/${projectId}/locations/global`,
    byteItem: {
      type: fileTypeConstant,
      data: fileBytes,
    },
    inspectConfig: {
      minLikelihood: minLikelihood,
      infoTypes: infoTypes,
    },
    imageRedactionConfigs: imageRedactionConfigs,
  };

  // Run image redaction request
  const [response] = await dlp.redactImage(request);
  const image = response.redactedImage;
  fs.writeFileSync(outputPath, image);
  console.log(`Saved image redaction results to path: ${outputPath}`);
}
redactImage();

PHP

use Google\Cloud\Dlp\V2\ByteContentItem;
use Google\Cloud\Dlp\V2\Client\DlpServiceClient;
use Google\Cloud\Dlp\V2\InfoType;
use Google\Cloud\Dlp\V2\InspectConfig;
use Google\Cloud\Dlp\V2\Likelihood;
use Google\Cloud\Dlp\V2\RedactImageRequest;
use Google\Cloud\Dlp\V2\RedactImageRequest\ImageRedactionConfig;

/**
 * Redact sensitive data from an image.
 *
 * @param string $callingProjectId    The project ID to run the API call under
 * @param string $imagePath           The local filepath of the image to inspect
 * @param string $outputPath          The local filepath to save the resulting image to
 */
function redact_image(
    string $callingProjectId,
    string $imagePath,
    string $outputPath
): void {
    // Instantiate a client.
    $dlp = new DlpServiceClient();

    // The infoTypes of information to match
    $phoneNumberInfoType = (new InfoType())
        ->setName('PHONE_NUMBER');
    $infoTypes = [$phoneNumberInfoType];

    // The minimum likelihood required before returning a match
    $minLikelihood = likelihood::LIKELIHOOD_UNSPECIFIED;

    // Whether to include the matching string in the response
    $includeQuote = true;

    // Create the configuration object
    $inspectConfig = (new InspectConfig())
        ->setMinLikelihood($minLikelihood)
        ->setInfoTypes($infoTypes);

    // Read image file into a buffer
    $imageRef = fopen($imagePath, 'rb');
    $imageBytes = fread($imageRef, filesize($imagePath));
    fclose($imageRef);

    // Get the image's content type
    $typeConstant = (int) array_search(
        mime_content_type($imagePath),
        [false, 'image/jpeg', 'image/bmp', 'image/png', 'image/svg']
    );

    // Create the byte-storing object
    $byteContent = (new ByteContentItem())
        ->setType($typeConstant)
        ->setData($imageBytes);

    // Create the image redaction config objects
    $imageRedactionConfigs = [];
    foreach ($infoTypes as $infoType) {
        $config = (new ImageRedactionConfig())
            ->setInfoType($infoType);
        $imageRedactionConfigs[] = $config;
    }

    $parent = "projects/$callingProjectId/locations/global";

    // Run request
    $redactImageRequest = (new RedactImageRequest())
        ->setParent($parent)
        ->setInspectConfig($inspectConfig)
        ->setByteItem($byteContent)
        ->setImageRedactionConfigs($imageRedactionConfigs);
    $response = $dlp->redactImage($redactImageRequest);

    // Save result to file
    file_put_contents($outputPath, $response->getRedactedImage());

    // Print completion message
    print('Redacted image saved to ' . $outputPath . PHP_EOL);
}

Python

import mimetypes
from typing import List

import google.cloud.dlp


def redact_image(
    project: str,
    filename: str,
    output_filename: str,
    info_types: List[str],
    min_likelihood: str = None,
    mime_type: str = None,
) -> None:
    """Uses the Data Loss Prevention API to redact protected data in an image.
    Args:
        project: The Google Cloud project id to use as a parent resource.
        filename: The path to the file to inspect.
        output_filename: The path to which the redacted image will be written.
        info_types: A list of strings representing info types to look for.
            A full list of info type categories can be fetched from the API.
        min_likelihood: A string representing the minimum likelihood threshold
            that constitutes a match. One of: 'LIKELIHOOD_UNSPECIFIED',
            'VERY_UNLIKELY', 'UNLIKELY', 'POSSIBLE', 'LIKELY', 'VERY_LIKELY'.
        mime_type: The MIME type of the file. If not specified, the type is
            inferred via the Python standard library's mimetypes module.
    Returns:
        None; the response from the API is printed to the terminal.
    """

    # Instantiate a client.
    dlp = google.cloud.dlp_v2.DlpServiceClient()

    # Prepare info_types by converting the list of strings into a list of
    # dictionaries (protos are also accepted).
    info_types = [{"name": info_type} for info_type in info_types]

    # Prepare image_redaction_configs, a list of dictionaries. Each dictionary
    # contains an info_type and optionally the color used for the replacement.
    # The color is omitted in this sample, so the default (black) will be used.
    image_redaction_configs = []

    if info_types is not None:
        for info_type in info_types:
            image_redaction_configs.append({"info_type": info_type})

    # Construct the configuration dictionary. Keys which are None may
    # optionally be omitted entirely.
    inspect_config = {
        "min_likelihood": min_likelihood,
        "info_types": info_types,
    }

    # If mime_type is not specified, guess it from the filename.
    if mime_type is None:
        mime_guess = mimetypes.MimeTypes().guess_type(filename)
        mime_type = mime_guess[0] or "application/octet-stream"

    # Select the content type index from the list of supported types.
    # https://github.com/googleapis/googleapis/blob/master/google/privacy/dlp/v2/dlp.proto / message ByteContentItem
    supported_content_types = {
        None: 0,  # "Unspecified" or BYTES_TYPE_UNSPECIFIED
        "image/jpeg": 1,  # IMAGE_JPEG
        "image/bmp": 2,  # IMAGE_BMP
        "image/png": 3,  # IMAGE_PNG
        "image/svg": 4,  # IMAGE_SVG - Adjusted to "image/svg+xml" for correct MIME type
        "text/plain": 5,  # TEXT_UTF8
        # Note: No specific MIME type for general "image", mapping to IMAGE for any image type not specified
        "image": 6,  # IMAGE - Any image type
        "application/msword": 7,  # WORD_DOCUMENT
        "application/pdf": 8,  # PDF
        "application/powerpoint": 9,  # POWERPOINT_DOCUMENT
        "application/msexcel": 10,  # EXCEL_DOCUMENT
        "application/avro": 11,  # AVRO
        "text/csv": 12,  # CSV
        "text/tsv": 13,  # TSV
    }
    content_type_index = supported_content_types.get(mime_type, 0)

    # Construct the byte_item, containing the file's byte data.
    with open(filename, mode="rb") as f:
        byte_item = {"type_": content_type_index, "data": f.read()}

    # Convert the project id into a full resource id.
    parent = f"projects/{project}"

    # Call the API.
    response = dlp.redact_image(
        request={
            "parent": parent,
            "inspect_config": inspect_config,
            "image_redaction_configs": image_redaction_configs,
            "byte_item": byte_item,
        }
    )

    # Write out the results.
    with open(output_filename, mode="wb") as f:
        f.write(response.redacted_image)
    print(
        "Wrote {byte_count} to {filename}".format(
            byte_count=len(response.redacted_image), filename=output_filename
        )
    )

試してみる

image.redact のリファレンスページの API Explorer で、このページの各例を試すことができます。また、独自の画像を使用して試すこともできます。

API Explorer に移動

ヒント: 機密度の高くない素材を使用したテストの場合は、[Google OAuth 2.0] チェックボックスをオフにして、[parent] フィールドに projects/testff と入力します。

画像に含まれるセンシティブ データを秘匿化する

制限事項と考慮事項

サポートされているファイル形式

検出結果の制限

準備

画像にあるデフォルトの infoType すべてを秘匿化する

C#

Go

Java

Node.js

PHP

Python

REST

画像にある特定の infoType を秘匿化する

C#

Go

Java

Node.js

PHP

Python

REST

画像にある infoType を色分けして秘匿化する

C#

Go

Java

Node.js

PHP

Python

REST

画像のすべてのテキストを秘匿化する

C#

Go

Java

Node.js

PHP

Python

REST

確率設定を使用したコードの例

C#

Go

Java

Node.js

PHP

Python

試してみる

次のステップ

画像に含まれるセンシティブデータを秘匿化する
