cat > cloud.conf << EOF
[Global]
auth-url=${OS_AUTH_URL}
username=${OS_USERNAME}
password=${OS_PASSWORD}
region=RegionOne
tenant-name=admin
domain-id=default
# this is for using a self-signed cert if your using a CA then comment this line
# and point to the CA certificate using the "ca-file" arg
tls-Insecure=true
[LoadBalancer]
use-octavia=true
# this is generally the public network on OpenStack
floating-network-id=PUBLIC_NETWORK_ID
# this should be private network subnet where vip is allocated for the ABM nodes
subnet-id=ABM_NETWORK_SUBNET_ID
[BlockStorage]
bs-version=v2
EOF
ABM_NETWORK_SUBNET_ID：這是 OpenStack 部署作業中私人網路的子網路，Google Distributed Cloud 軟體專用 VM 的 IP 會從這個子網路分配。您可以使用類似「在 OpenStack 中取得公用網路的 ID」的指令，從 OpenStack 環境擷取這個 IP。
擷取 abm-ws VM 的公開浮動 IP 位址。
exportOPENSTACK_IPS=$(openstackfloatingiplist--tags=abm_ws_floatingip-fjson)exportFLOATING_IP=$(jq-c'.[]."Floating IP Address"' <<< $OPENSTACK_IPS|tr-d'"')
# make sure the kubectl client is pointing towards your clusterexportKUBECONFIG=~/bmctl-workspace/CLUSTER_NAME/CLUSTER_NAME-kubeconfig
# store the provider configurations as a Kubernetes secret
kubectlcreatesecret-nkube-systemgenericcloud-config--from-file=cloud.conf
安裝 Kubernetes 適用的 OpenStack 雲端服務供應商。
# create the necessary roles for the OpenStack provider
kubectlapply-fhttps://raw.githubusercontent.com/kubernetes/cloud-provider-openstack/master/manifests/controller-manager/cloud-controller-manager-roles.yaml
# create the required role-bindings for the OpenStack provider
kubectlapply-fhttps://raw.githubusercontent.com/kubernetes/cloud-provider-openstack/master/manifests/controller-manager/cloud-controller-manager-role-bindings.yaml
# create the OpenStack controller manager
kubectlapply-fhttps://raw.githubusercontent.com/kubernetes/cloud-provider-openstack/master/manifests/controller-manager/openstack-cloud-controller-manager-ds.yaml

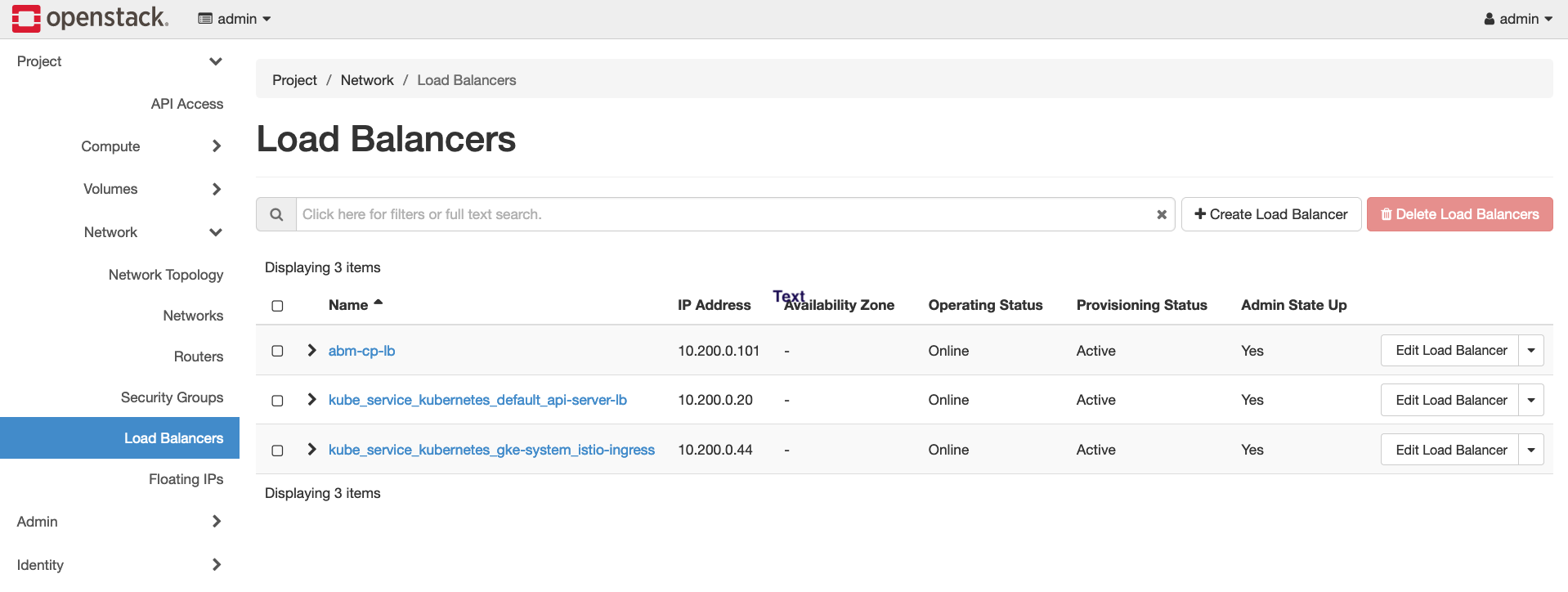

# wait for the external IP to be assigned
kubectlgetserviceapi-server-lb
NAMETYPECLUSTER-IPEXTERNAL-IPPORT(S)AGE
api-server-lbLoadBalancer10.203.77.215172.29.249.15980:32378/TCP4m12s
