Gestionar la respuesta de procesamiento

La respuesta a una solicitud de procesamiento contiene un objeto Document que incluye toda la información que se conoce sobre el documento procesado, incluida toda la información estructurada que Document AI ha podido extraer.

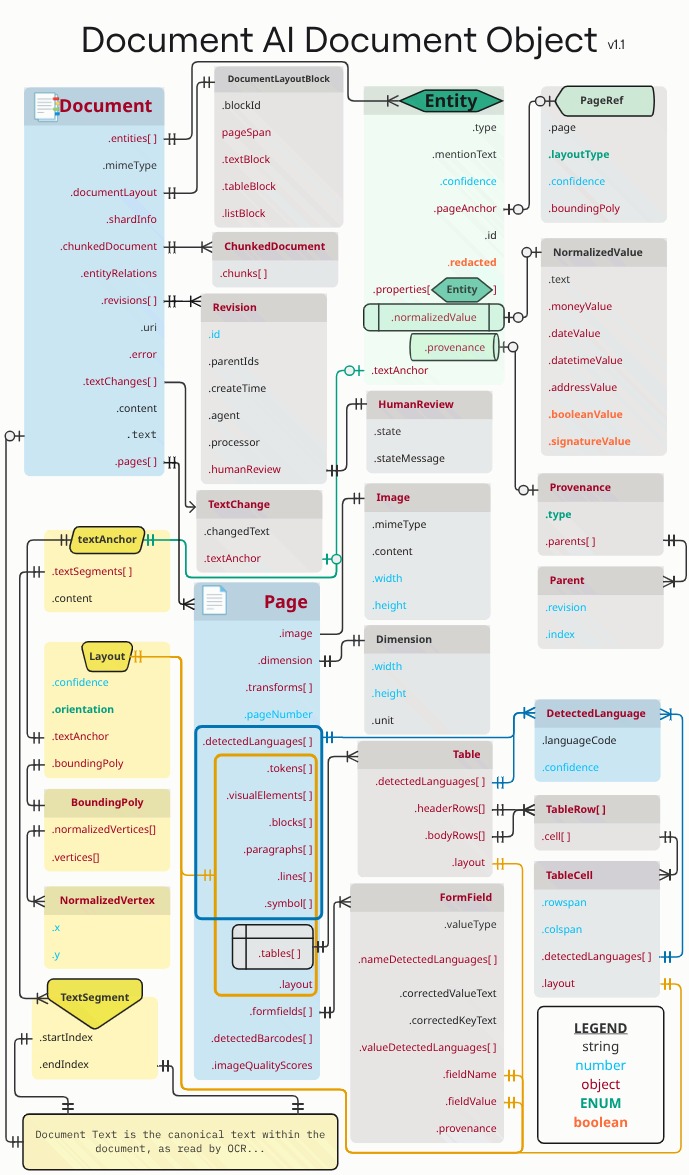

En esta página se explica el diseño del objeto Document mediante documentos de ejemplo y, a continuación, se asignan aspectos de los resultados del OCR a los elementos específicos del JSON del objeto Document. También proporciona bibliotecas de cliente, ejemplos de código y ejemplos de código del SDK de Document AI Toolbox. Estos ejemplos de código usan el procesamiento online, pero el análisis del objeto Document funciona igual en el procesamiento por lotes.

Nota: Este diagrama no incluye todos los campos disponibles. Todos los campos object de este diagrama tienen uno o varios objetos relacionados con sus propios campos.

Los rectángulos y las flechas naranjas y azules representan que al menos un campo de los objetos conectados es .layout o detectedLanguage, respectivamente. El diagrama usa la notación de pata de gallina.

Usa un visor o una utilidad de edición de JSON diseñados específicamente para expandir o contraer elementos. Revisar el JSON sin formato en una utilidad de texto sin formato es ineficiente.

Texto, diseño y niveles de calidad

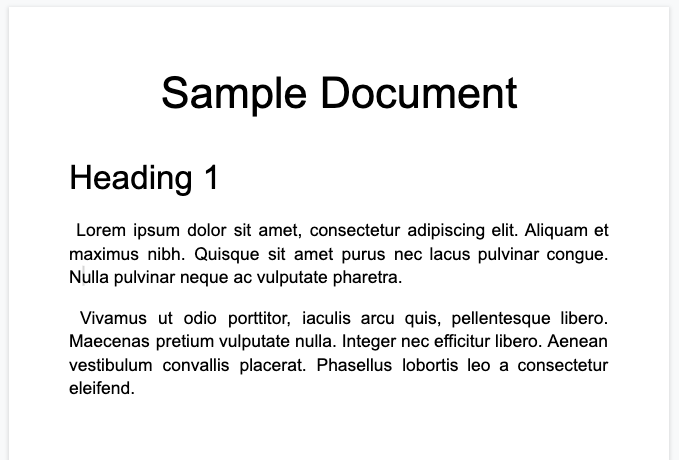

Aquí tienes un documento de texto de ejemplo:

Este es el objeto de documento completo devuelto por el procesador Enterprise Document OCR:

Descargar JSON

Este resultado de OCR también se incluye siempre en el resultado del procesador de Document AI, ya que los procesadores ejecutan el OCR. Utiliza los datos de OCR que ya existen, por lo que puede introducir datos JSON de este tipo en los procesadores de Document AI mediante la opción de documento insertado.

  image=None, # all our samples pass this var
  mime_type="application/json",
  inline_document=document_response # pass OCR output to CDE input - undocumented

Estos son algunos de los campos importantes:

Texto sin formato

El campo text contiene el texto que reconoce Document AI. Este texto no contiene ninguna estructura de diseño que no sean espacios, tabulaciones y saltos de línea. Este es el único campo que almacena la información textual de un documento y sirve como fuente de información veraz del texto del documento. Otros campos pueden hacer referencia a partes del campo de texto por posición (startIndex y endIndex).

  {
    text: "Sample Document\nHeading 1\nLorem ipsum dolor sit amet, ..."
  }

Tamaño de página e idiomas

Cada page del objeto de documento corresponde a una página física del documento de muestra. La salida JSON de ejemplo contiene una página porque es una sola imagen PNG.

Nota: pages[].pageNumber se basa en 1, no en 0. La primera página es la página 1.

  {
    "pages:" [
      {
        "pageNumber": 1,
        "dimension": {
          "width": 679.0,
          "height": 460.0,
          "unit": "pixels"
        },
      }
    ]
  }

• El campo pages[].detectedLanguages[] contiene los idiomas detectados en una página determinada, junto con la puntuación de confianza.

{
  "pages": [
    {
      "detectedLanguages": [
        {
          "confidence": 0.98009938,
          "languageCode": "en"
        },
        {
          "confidence": 0.01990064,
          "languageCode": "und"
        }
      ]
    }
  ]
}

Datos de OCR

El OCR de Document AI detecta texto con varios niveles de granularidad u organización en la página, como bloques de texto, párrafos, tokens y símbolos (el nivel de símbolo es opcional si se configura para que genere datos a nivel de símbolo). Todos estos son miembros del objeto de página.

Cada elemento tiene un layout correspondiente que describe su posición y su texto. Los elementos visuales que no son texto (como las casillas de verificación) también están a nivel de página.

{
  "pages": [
    {
      "paragraphs": [
        {
          "layout": {
            "textAnchor": {
              "textSegments": [
                {
                  "endIndex": "16"
                }
              ]
            },
            "confidence": 0.9939527,
            "boundingPoly": {
              "vertices": [ ... ],
              "normalizedVertices": [ ... ]
            },
            "orientation": "PAGE_UP"
          }
        }
      ]
    }
  ]
}

El texto sin formato se hace referencia en el objeto textAnchor que se indexa en la cadena de texto principal con startIndex y endIndex.

startIndex se puede omitir si la cadena de texto empieza al principio de la cadena de texto principal.

• En el caso de boundingPoly, la esquina superior izquierda de la página es el origen (0,0). Los valores de X positivos están a la derecha y los valores de Y positivos están hacia abajo.

• El objeto vertices usa las mismas coordenadas que la imagen original, mientras que normalizedVertices está en el intervalo [0,1]. Hay una matriz de transformación que indica las medidas de corrección de la inclinación y otros atributos de la normalización de la imagen.

Precaución: Se han omitido los valores de coordenadas cero. Cuando la API detecta un valor de coordenada ("x" o "y") igual a 0, esa coordenada se omite en la respuesta JSON. Por ejemplo, una respuesta con un BoundingPoly alrededor de toda la imagen sería: "normalizedVertices": [{}, {"x": 1}, {"x": 1,"y": 1}, {"y": 1}] o "vertices": [{}, {"x": X_MAX}, {"x": X_MAX,"y": Y_MAX}, {"y": Y_MAX}]

• Para dibujar un boundingPoly, dibuja segmentos de línea de un vértice al siguiente. A continuación, cierra el polígono trazando un segmento de línea desde el último vértice hasta el primero. El elemento orientation del diseño indica si el texto se ha girado en relación con la página.

Para ayudarte a visualizar la estructura del documento, en las siguientes imágenes se dibujan polígonos envolventes de page.paragraphs, page.lines y page.tokens.

Párrafos

Líneas

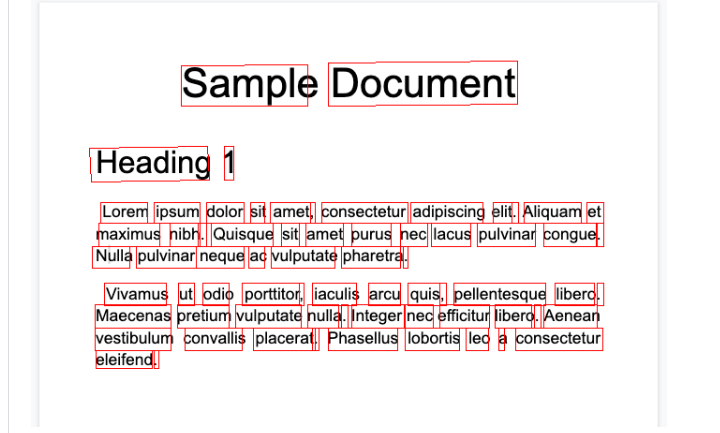

Tokens

Bloques

El procesador Enterprise Document OCR puede evaluar la calidad de un documento en función de su legibilidad.

• Debes definir el campo processOptions.ocrConfig.enableImageQualityScores en true para obtener estos datos en la respuesta de la API.

Esta evaluación de la calidad es un nivel de calidad en [0, 1], donde 1 significa una calidad perfecta. El nivel de calidad se devuelve en el campo Page.imageQualityScores. Todos los defectos detectados se muestran como quality/defect_* y se ordenan de forma descendente según el valor de confianza.

Aquí tienes un PDF que está demasiado oscuro y borroso para leerlo cómodamente:

Descargar PDF

A continuación, se muestra la información sobre la calidad del documento devuelta por el procesador Enterprise Document OCR:

  {
    "pages": [
      {
        "imageQualityScores": {
          "qualityScore": 0.7811847,
          "detectedDefects": [
            {
              "type": "quality/defect_document_cutoff",
              "confidence": 1.0
            },
            {
              "type": "quality/defect_glare",
              "confidence": 0.97849524
            },
            {
              "type": "quality/defect_text_cutoff",
              "confidence": 0.5
            }
          ]
        }
      }
    ]
  }

Códigos de ejemplo

En los siguientes ejemplos de código se muestra cómo enviar una solicitud de procesamiento y, a continuación, leer e imprimir los campos en la terminal:

Java

Para obtener más información, consulta la documentación de referencia de la API Java de Document AI.

Para autenticarte en Document AI, configura las credenciales predeterminadas de la aplicación. Para obtener más información, consulta el artículo Configurar la autenticación en un entorno de desarrollo local.

import com.google.cloud.documentai.v1beta3.Document;
import com.google.cloud.documentai.v1beta3.DocumentProcessorServiceClient;
import com.google.cloud.documentai.v1beta3.DocumentProcessorServiceSettings;
import com.google.cloud.documentai.v1beta3.ProcessRequest;
import com.google.cloud.documentai.v1beta3.ProcessResponse;
import com.google.cloud.documentai.v1beta3.RawDocument;
import com.google.protobuf.ByteString;
import java.io.IOException;
import java.nio.file.Files;
import java.nio.file.Paths;
import java.util.List;
import java.util.concurrent.ExecutionException;
import java.util.concurrent.TimeoutException;

public class ProcessOcrDocument {
  public static void processOcrDocument()
      throws IOException, InterruptedException, ExecutionException, TimeoutException {
    // TODO(developer): Replace these variables before running the sample.
    String projectId = "your-project-id";
    String location = "your-project-location"; // Format is "us" or "eu".
    String processerId = "your-processor-id";
    String filePath = "path/to/input/file.pdf";
    processOcrDocument(projectId, location, processerId, filePath);
  }

  public static void processOcrDocument(
      String projectId, String location, String processorId, String filePath)
      throws IOException, InterruptedException, ExecutionException, TimeoutException {
    // Initialize client that will be used to send requests. This client only needs
    // to be created
    // once, and can be reused for multiple requests. After completing all of your
    // requests, call
    // the "close" method on the client to safely clean up any remaining background
    // resources.
    String endpoint = String.format("%s-documentai.googleapis.com:443", location);
    DocumentProcessorServiceSettings settings =
        DocumentProcessorServiceSettings.newBuilder().setEndpoint(endpoint).build();
    try (DocumentProcessorServiceClient client = DocumentProcessorServiceClient.create(settings)) {
      // The full resource name of the processor, e.g.:
      // projects/project-id/locations/location/processor/processor-id
      // You must create new processors in the Cloud Console first
      String name =
          String.format("projects/%s/locations/%s/processors/%s", projectId, location, processorId);

      // Read the file.
      byte[] imageFileData = Files.readAllBytes(Paths.get(filePath));

      // Convert the image data to a Buffer and base64 encode it.
      ByteString content = ByteString.copyFrom(imageFileData);

      RawDocument document =
          RawDocument.newBuilder().setContent(content).setMimeType("application/pdf").build();

      // Configure the process request.
      ProcessRequest request =
          ProcessRequest.newBuilder().setName(name).setRawDocument(document).build();

      // Recognizes text entities in the PDF document
      ProcessResponse result = client.processDocument(request);
      Document documentResponse = result.getDocument();

      System.out.println("Document processing complete.");

      // Read the text recognition output from the processor
      // For a full list of Document object attributes,
      // please reference this page:
      // https://googleapis.dev/java/google-cloud-document-ai/latest/index.html

      // Get all of the document text as one big string
      String text = documentResponse.getText();
      System.out.printf("Full document text: '%s'\n", escapeNewlines(text));

      // Read the text recognition output from the processor
      List<Document.Page> pages = documentResponse.getPagesList();
      System.out.printf("There are %s page(s) in this document.\n", pages.size());

      for (Document.Page page : pages) {
        System.out.printf("Page %d:\n", page.getPageNumber());
        printPageDimensions(page.getDimension());
        printDetectedLanguages(page.getDetectedLanguagesList());
        printParagraphs(page.getParagraphsList(), text);
        printBlocks(page.getBlocksList(), text);
        printLines(page.getLinesList(), text);
        printTokens(page.getTokensList(), text);
      }
    }
  }

  private static void printPageDimensions(Document.Page.Dimension dimension) {
    String unit = dimension.getUnit();
    System.out.printf("    Width: %.1f %s\n", dimension.getWidth(), unit);
    System.out.printf("    Height: %.1f %s\n", dimension.getHeight(), unit);
  }

  private static void printDetectedLanguages(
      List<Document.Page.DetectedLanguage> detectedLangauges) {
    System.out.println("    Detected languages:");
    for (Document.Page.DetectedLanguage detectedLanguage : detectedLangauges) {
      String languageCode = detectedLanguage.getLanguageCode();
      float confidence = detectedLanguage.getConfidence();
      System.out.printf("        %s (%.2f%%)\n", languageCode, confidence * 100.0);
    }
  }

  private static void printParagraphs(List<Document.Page.Paragraph> paragraphs, String text) {
    System.out.printf("    %d paragraphs detected:\n", paragraphs.size());
    Document.Page.Paragraph firstParagraph = paragraphs.get(0);
    String firstParagraphText = getLayoutText(firstParagraph.getLayout().getTextAnchor(), text);
    System.out.printf("        First paragraph text: %s\n", escapeNewlines(firstParagraphText));
    Document.Page.Paragraph lastParagraph = paragraphs.get(paragraphs.size() - 1);
    String lastParagraphText = getLayoutText(lastParagraph.getLayout().getTextAnchor(), text);
    System.out.printf("        Last paragraph text: %s\n", escapeNewlines(lastParagraphText));
  }

  private static void printBlocks(List<Document.Page.Block> blocks, String text) {
    System.out.printf("    %d blocks detected:\n", blocks.size());
    Document.Page.Block firstBlock = blocks.get(0);
    String firstBlockText = getLayoutText(firstBlock.getLayout().getTextAnchor(), text);
    System.out.printf("        First block text: %s\n", escapeNewlines(firstBlockText));
    Document.Page.Block lastBlock = blocks.get(blocks.size() - 1);
    String lastBlockText = getLayoutText(lastBlock.getLayout().getTextAnchor(), text);
    System.out.printf("        Last block text: %s\n", escapeNewlines(lastBlockText));
  }

  private static void printLines(List<Document.Page.Line> lines, String text) {
    System.out.printf("    %d lines detected:\n", lines.size());
    Document.Page.Line firstLine = lines.get(0);
    String firstLineText = getLayoutText(firstLine.getLayout().getTextAnchor(), text);
    System.out.printf("        First line text: %s\n", escapeNewlines(firstLineText));
    Document.Page.Line lastLine = lines.get(lines.size() - 1);
    String lastLineText = getLayoutText(lastLine.getLayout().getTextAnchor(), text);
    System.out.printf("        Last line text: %s\n", escapeNewlines(lastLineText));
  }

  private static void printTokens(List<Document.Page.Token> tokens, String text) {
    System.out.printf("    %d tokens detected:\n", tokens.size());
    Document.Page.Token firstToken = tokens.get(0);
    String firstTokenText = getLayoutText(firstToken.getLayout().getTextAnchor(), text);
    System.out.printf("        First token text: %s\n", escapeNewlines(firstTokenText));
    Document.Page.Token lastToken = tokens.get(tokens.size() - 1);
    String lastTokenText = getLayoutText(lastToken.getLayout().getTextAnchor(), text);
    System.out.printf("        Last token text: %s\n", escapeNewlines(lastTokenText));
  }

  // Extract shards from the text field
  private static String getLayoutText(Document.TextAnchor textAnchor, String text) {
    if (textAnchor.getTextSegmentsList().size() > 0) {
      int startIdx = (int) textAnchor.getTextSegments(0).getStartIndex();
      int endIdx = (int) textAnchor.getTextSegments(0).getEndIndex();
      return text.substring(startIdx, endIdx);
    }
    return "[NO TEXT]";
  }

  private static String escapeNewlines(String s) {
    return s.replace("\n", "\\n").replace("\r", "\\r");
  }
}

Node.js

Para obtener más información, consulta la documentación de referencia de la API Node.js de Document AI.

Para autenticarte en Document AI, configura las credenciales predeterminadas de la aplicación. Para obtener más información, consulta el artículo Configurar la autenticación en un entorno de desarrollo local.

/**
 * TODO(developer): Uncomment these variables before running the sample.
 */
// const projectId = 'YOUR_PROJECT_ID';
// const location = 'YOUR_PROJECT_LOCATION'; // Format is 'us' or 'eu'
// const processorId = 'YOUR_PROCESSOR_ID'; // Create processor in Cloud Console
// const filePath = '/path/to/local/pdf';

const {DocumentProcessorServiceClient} =
  require('@google-cloud/documentai').v1beta3;

// Instantiates a client
const client = new DocumentProcessorServiceClient();

async function processDocument() {
  // The full resource name of the processor, e.g.:
  // projects/project-id/locations/location/processor/processor-id
  // You must create new processors in the Cloud Console first
  const name = `projects/${projectId}/locations/${location}/processors/${processorId}`;

  // Read the file into memory.
  const fs = require('fs').promises;
  const imageFile = await fs.readFile(filePath);

  // Convert the image data to a Buffer and base64 encode it.
  const encodedImage = Buffer.from(imageFile).toString('base64');

  const request = {
    name,
    rawDocument: {
      content: encodedImage,
      mimeType: 'application/pdf',
    },
  };

  // Recognizes text entities in the PDF document
  const [result] = await client.processDocument(request);

  console.log('Document processing complete.');

  // Read the text recognition output from the processor
  // For a full list of Document object attributes,
  // please reference this page: https://googleapis.dev/nodejs/documentai/latest/index.html
  const {document} = result;
  const {text} = document;

  // Read the text recognition output from the processor
  console.log(`Full document text: ${JSON.stringify(text)}`);
  console.log(`There are ${document.pages.length} page(s) in this document.`);
  for (const page of document.pages) {
    console.log(`Page ${page.pageNumber}`);
    printPageDimensions(page.dimension);
    printDetectedLanguages(page.detectedLanguages);
    printParagraphs(page.paragraphs, text);
    printBlocks(page.blocks, text);
    printLines(page.lines, text);
    printTokens(page.tokens, text);
  }
}

const printPageDimensions = dimension => {
  console.log(`    Width: ${dimension.width}`);
  console.log(`    Height: ${dimension.height}`);
};

const printDetectedLanguages = detectedLanguages => {
  console.log('    Detected languages:');
  for (const lang of detectedLanguages) {
    const code = lang.languageCode;
    const confPercent = lang.confidence * 100;
    console.log(`        ${code} (${confPercent.toFixed(2)}% confidence)`);
  }
};

const printParagraphs = (paragraphs, text) => {
  console.log(`    ${paragraphs.length} paragraphs detected:`);
  const firstParagraphText = getText(paragraphs[0].layout.textAnchor, text);
  console.log(
    `        First paragraph text: ${JSON.stringify(firstParagraphText)}`
  );
  const lastParagraphText = getText(
    paragraphs[paragraphs.length - 1].layout.textAnchor,
    text
  );
  console.log(
    `        Last paragraph text: ${JSON.stringify(lastParagraphText)}`
  );
};

const printBlocks = (blocks, text) => {
  console.log(`    ${blocks.length} blocks detected:`);
  const firstBlockText = getText(blocks[0].layout.textAnchor, text);
  console.log(`        First block text: ${JSON.stringify(firstBlockText)}`);
  const lastBlockText = getText(
    blocks[blocks.length - 1].layout.textAnchor,
    text
  );
  console.log(`        Last block text: ${JSON.stringify(lastBlockText)}`);
};

const printLines = (lines, text) => {
  console.log(`    ${lines.length} lines detected:`);
  const firstLineText = getText(lines[0].layout.textAnchor, text);
  console.log(`        First line text: ${JSON.stringify(firstLineText)}`);
  const lastLineText = getText(
    lines[lines.length - 1].layout.textAnchor,
    text
  );
  console.log(`        Last line text: ${JSON.stringify(lastLineText)}`);
};

const printTokens = (tokens, text) => {
  console.log(`    ${tokens.length} tokens detected:`);
  const firstTokenText = getText(tokens[0].layout.textAnchor, text);
  console.log(`        First token text: ${JSON.stringify(firstTokenText)}`);
  const firstTokenBreakType = tokens[0].detectedBreak.type;
  console.log(`        First token break type: ${firstTokenBreakType}`);
  const lastTokenText = getText(
    tokens[tokens.length - 1].layout.textAnchor,
    text
  );
  console.log(`        Last token text: ${JSON.stringify(lastTokenText)}`);
  const lastTokenBreakType = tokens[tokens.length - 1].detectedBreak.type;
  console.log(`        Last token break type: ${lastTokenBreakType}`);
};

// Extract shards from the text field
const getText = (textAnchor, text) => {
  if (!textAnchor.textSegments || textAnchor.textSegments.length === 0) {
    return '';
  }

  // First shard in document doesn't have startIndex property
  const startIndex = textAnchor.textSegments[0].startIndex || 0;
  const endIndex = textAnchor.textSegments[0].endIndex;

  return text.substring(startIndex, endIndex);
};

Python

Para obtener más información, consulta la documentación de referencia de la API Python de Document AI.

Para autenticarte en Document AI, configura las credenciales predeterminadas de la aplicación. Para obtener más información, consulta el artículo Configurar la autenticación en un entorno de desarrollo local.

from typing import Optional, Sequence

from google.api_core.client_options import ClientOptions
from google.cloud import documentai

# TODO(developer): Uncomment these variables before running the sample.
# project_id = "YOUR_PROJECT_ID"
# location = "YOUR_PROCESSOR_LOCATION" # Format is "us" or "eu"
# processor_id = "YOUR_PROCESSOR_ID" # Create processor before running sample
# processor_version = "rc" # Refer to https://cloud.google.com/document-ai/docs/manage-processor-versions for more information
# file_path = "/path/to/local/pdf"
# mime_type = "application/pdf" # Refer to https://cloud.google.com/document-ai/docs/file-types for supported file types


def process_document_ocr_sample(
    project_id: str,
    location: str,
    processor_id: str,
    processor_version: str,
    file_path: str,
    mime_type: str,
) -> None:
    # Optional: Additional configurations for Document OCR Processor.
    # For more information: https://cloud.google.com/document-ai/docs/enterprise-document-ocr
    process_options = documentai.ProcessOptions(
        ocr_config=documentai.OcrConfig(
            enable_native_pdf_parsing=True,
            enable_image_quality_scores=True,
            enable_symbol=True,
            # OCR Add Ons https://cloud.google.com/document-ai/docs/ocr-add-ons
            premium_features=documentai.OcrConfig.PremiumFeatures(
                compute_style_info=True,
                enable_math_ocr=False,  # Enable to use Math OCR Model
                enable_selection_mark_detection=True,
            ),
        )
    )
    # Online processing request to Document AI
    document = process_document(
        project_id,
        location,
        processor_id,
        processor_version,
        file_path,
        mime_type,
        process_options=process_options,
    )

    text = document.text
    print(f"Full document text: {text}\n")
    print(f"There are {len(document.pages)} page(s) in this document.\n")

    for page in document.pages:
        print(f"Page {page.page_number}:")
        print_page_dimensions(page.dimension)
        print_detected_languages(page.detected_languages)

        print_blocks(page.blocks, text)
        print_paragraphs(page.paragraphs, text)
        print_lines(page.lines, text)
        print_tokens(page.tokens, text)

        if page.symbols:
            print_symbols(page.symbols, text)

        if page.image_quality_scores:
            print_image_quality_scores(page.image_quality_scores)

        if page.visual_elements:
            print_visual_elements(page.visual_elements, text)


def print_page_dimensions(dimension: documentai.Document.Page.Dimension) -> None:
    print(f"    Width: {str(dimension.width)}")
    print(f"    Height: {str(dimension.height)}")


def print_detected_languages(
    detected_languages: Sequence[documentai.Document.Page.DetectedLanguage],
) -> None:
    print("    Detected languages:")
    for lang in detected_languages:
        print(f"        {lang.language_code} ({lang.confidence:.1%} confidence)")


def print_blocks(blocks: Sequence[documentai.Document.Page.Block], text: str) -> None:
    print(f"    {len(blocks)} blocks detected:")
    first_block_text = layout_to_text(blocks[0].layout, text)
    print(f"        First text block: {repr(first_block_text)}")
    last_block_text = layout_to_text(blocks[-1].layout, text)
    print(f"        Last text block: {repr(last_block_text)}")


def print_paragraphs(
    paragraphs: Sequence[documentai.Document.Page.Paragraph], text: str
) -> None:
    print(f"    {len(paragraphs)} paragraphs detected:")
    first_paragraph_text = layout_to_text(paragraphs[0].layout, text)
    print(f"        First paragraph text: {repr(first_paragraph_text)}")
    last_paragraph_text = layout_to_text(paragraphs[-1].layout, text)
    print(f"        Last paragraph text: {repr(last_paragraph_text)}")


def print_lines(lines: Sequence[documentai.Document.Page.Line], text: str) -> None:
    print(f"    {len(lines)} lines detected:")
    first_line_text = layout_to_text(lines[0].layout, text)
    print(f"        First line text: {repr(first_line_text)}")
    last_line_text = layout_to_text(lines[-1].layout, text)
    print(f"        Last line text: {repr(last_line_text)}")


def print_tokens(tokens: Sequence[documentai.Document.Page.Token], text: str) -> None:
    print(f"    {len(tokens)} tokens detected:")
    first_token_text = layout_to_text(tokens[0].layout, text)
    first_token_break_type = tokens[0].detected_break.type_.name
    print(f"        First token text: {repr(first_token_text)}")
    print(f"        First token break type: {repr(first_token_break_type)}")
    if tokens[0].style_info:
        print_style_info(tokens[0].style_info)

    last_token_text = layout_to_text(tokens[-1].layout, text)
    last_token_break_type = tokens[-1].detected_break.type_.name
    print(f"        Last token text: {repr(last_token_text)}")
    print(f"        Last token break type: {repr(last_token_break_type)}")
    if tokens[-1].style_info:
        print_style_info(tokens[-1].style_info)


def print_symbols(
    symbols: Sequence[documentai.Document.Page.Symbol], text: str
) -> None:
    print(f"    {len(symbols)} symbols detected:")
    first_symbol_text = layout_to_text(symbols[0].layout, text)
    print(f"        First symbol text: {repr(first_symbol_text)}")
    last_symbol_text = layout_to_text(symbols[-1].layout, text)
    print(f"        Last symbol text: {repr(last_symbol_text)}")


def print_image_quality_scores(
    image_quality_scores: documentai.Document.Page.ImageQualityScores,
) -> None:
    print(f"    Quality score: {image_quality_scores.quality_score:.1%}")
    print("    Detected defects:")

    for detected_defect in image_quality_scores.detected_defects:
        print(f"        {detected_defect.type_}: {detected_defect.confidence:.1%}")


def print_style_info(style_info: documentai.Document.Page.Token.StyleInfo) -> None:
    """
    Only supported in version `pretrained-ocr-v2.0-2023-06-02`
    """
    print(f"           Font Size: {style_info.font_size}pt")
    print(f"           Font Type: {style_info.font_type}")
    print(f"           Bold: {style_info.bold}")
    print(f"           Italic: {style_info.italic}")
    print(f"           Underlined: {style_info.underlined}")
    print(f"           Handwritten: {style_info.handwritten}")
    print(
        f"           Text Color (RGBa): {style_info.text_color.red}, {style_info.text_color.green}, {style_info.text_color.blue}, {style_info.text_color.alpha}"
    )


def print_visual_elements(
    visual_elements: Sequence[documentai.Document.Page.VisualElement], text: str
) -> None:
    """
    Only supported in version `pretrained-ocr-v2.0-2023-06-02`
    """
    checkboxes = [x for x in visual_elements if "checkbox" in x.type]
    math_symbols = [x for x in visual_elements if x.type == "math_formula"]

    if checkboxes:
        print(f"    {len(checkboxes)} checkboxes detected:")
        print(f"        First checkbox: {repr(checkboxes[0].type)}")
        print(f"        Last checkbox: {repr(checkboxes[-1].type)}")

    if math_symbols:
        print(f"    {len(math_symbols)} math symbols detected:")
        first_math_symbol_text = layout_to_text(math_symbols[0].layout, text)
        print(f"        First math symbol: {repr(first_math_symbol_text)}")




def process_document(
    project_id: str,
    location: str,
    processor_id: str,
    processor_version: str,
    file_path: str,
    mime_type: str,
    process_options: Optional[documentai.ProcessOptions] = None,
) -> documentai.Document:
    # You must set the `api_endpoint` if you use a location other than "us".
    client = documentai.DocumentProcessorServiceClient(
        client_options=ClientOptions(
            api_endpoint=f"{location}-documentai.googleapis.com"
        )
    )

    # The full resource name of the processor version, e.g.:
    # `projects/{project_id}/locations/{location}/processors/{processor_id}/processorVersions/{processor_version_id}`
    # You must create a processor before running this sample.
    name = client.processor_version_path(
        project_id, location, processor_id, processor_version
    )

    # Read the file into memory
    with open(file_path, "rb") as image:
        image_content = image.read()

    # Configure the process request
    request = documentai.ProcessRequest(
        name=name,
        raw_document=documentai.RawDocument(content=image_content, mime_type=mime_type),
        # Only supported for Document OCR processor
        process_options=process_options,
    )

    result = client.process_document(request=request)

    # For a full list of `Document` object attributes, reference this page:
    # https://cloud.google.com/document-ai/docs/reference/rest/v1/Document
    return result.document




def layout_to_text(layout: documentai.Document.Page.Layout, text: str) -> str:
    """
    Document AI identifies text in different parts of the document by their
    offsets in the entirety of the document"s text. This function converts
    offsets to a string.
    """
    # If a text segment spans several lines, it will
    # be stored in different text segments.
    return "".join(
        text[int(segment.start_index) : int(segment.end_index)]
        for segment in layout.text_anchor.text_segments
    )

Formularios y tablas

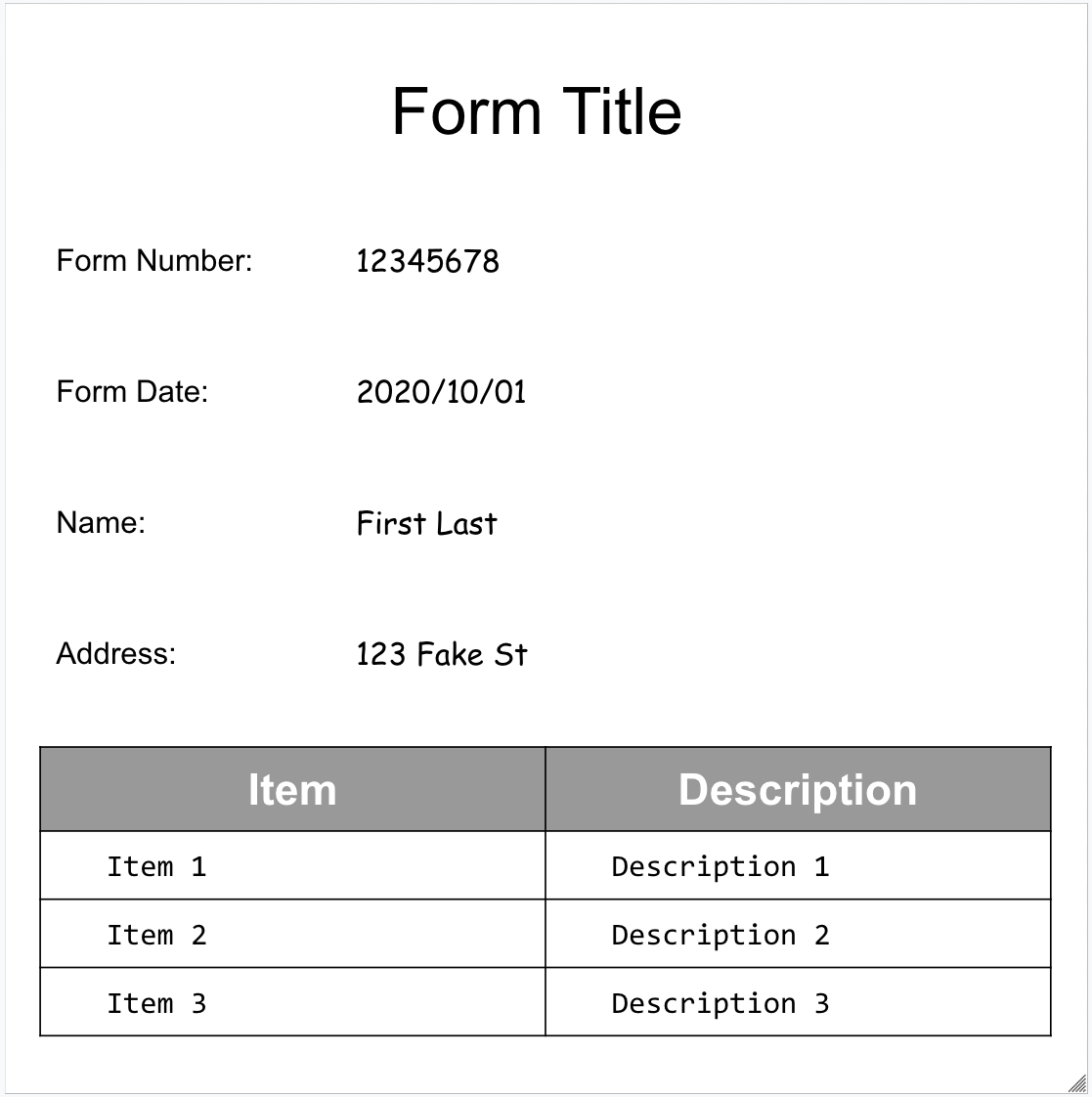

Aquí tienes un formulario de ejemplo:

A continuación se muestra el objeto de documento completo devuelto por Form Parser:

Descargar JSON

Estos son algunos de los campos importantes:

El analizador de formularios puede detectar FormFields en la página. Cada campo de formulario tiene un nombre y un valor. También se denominan pares clave-valor (KVP). Ten en cuenta que los pares clave-valor son diferentes de las entidades (de esquema) de otros extractores:

Se configuran los nombres de las entidades. Las claves de los pares clave-valor son literalmente el texto de la clave del documento.

{
  "pages:" [
    {
      "formFields": [
        {
          "fieldName": { ... },
          "fieldValue": { ... }
        }
      ]
    }
  ]
}

• Document AI también puede detectar Tables en la página.

{
  "pages:" [
    {
      "tables": [
        {
          "layout": { ... },
          "headerRows": [
            {
              "cells": [
                {
                  "layout": { ... },
                  "rowSpan": 1,
                  "colSpan": 1
                },
                {
                  "layout": { ... },
                  "rowSpan": 1,
                  "colSpan": 1
                }
              ]
            }
          ],
          "bodyRows": [
            {
              "cells": [
                {
                  "layout": { ... },
                  "rowSpan": 1,
                  "colSpan": 1
                },
                {
                  "layout": { ... },
                  "rowSpan": 1,
                  "colSpan": 1
                }
              ]
            }
          ]
        }
      ]
    }
  ]
}

La extracción de tablas de Form Parser solo reconoce las tablas convencionales, es decir, las que no tienen celdas que abarcan filas o columnas. Por lo tanto, rowSpan y colSpan siempre son 1.

• A partir de la versión pretrained-form-parser-v2.0-2022-11-10 del procesador, Form Parser también puede reconocer entidades genéricas. Para obtener más información, consulta Analizador de formularios.

• Para ayudarte a visualizar la estructura del documento, en las siguientes imágenes se dibujan polígonos envolventes para page.formFields y page.tables.

• Casillas de verificación en tablas. Form Parser puede digitalizar casillas de verificación de imágenes y PDFs como pares clave-valor. Proporcionar un ejemplo de digitalización de casillas de verificación como par clave-valor.

Fuera de las tablas, las casillas se representan como elementos visuales en el analizador de formularios. Se resaltan los cuadrados con marcas de verificación en la interfaz de usuario y el carácter unicode ✓ en el JSON.

"pages:" [
    {
      "tables": [
        {
          "layout": { ... },
          "headerRows": [
            {
              "cells": [
                {
                  "layout": { ... },
                  "rowSpan": 1,
                  "colSpan": 1
                },
                {
                  "layout": { ... },
                  "rowSpan": 1,
                  "colSpan": 1
                }
              ]
            }
          ],
          "bodyRows": [
            {
              "cells": [
                {
                  "layout": { ... },
                  "rowSpan": 1,
                  "colSpan": 1
                },
                {
                  "layout": { ... },
                  "rowSpan": 1,
                  "colSpan": 1
                }
              ]
            }
          ]
        }
      ]
    }
  ]
}

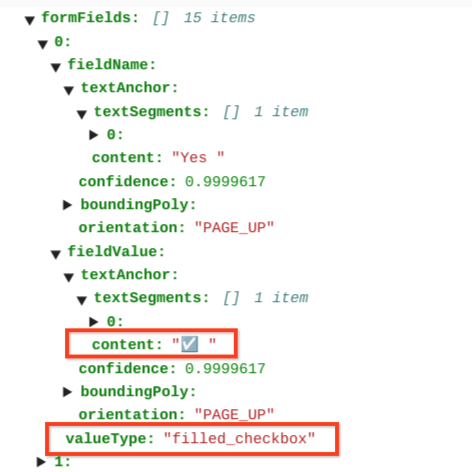

En las tablas, las casillas de verificación aparecen como caracteres Unicode, como ✓ (marcada) o ☐ (desmarcada).

Las casillas marcadas tienen el valor filled_checkbox: under pages > x > formFields > x > fieldValue > valueType.. Las casillas sin marcar tienen el valor unfilled_checkbox.

Los campos de contenido muestran el valor del contenido de la casilla, resaltado con ✓, en la ruta pages>formFields>x>fieldValue>textAnchor>content.

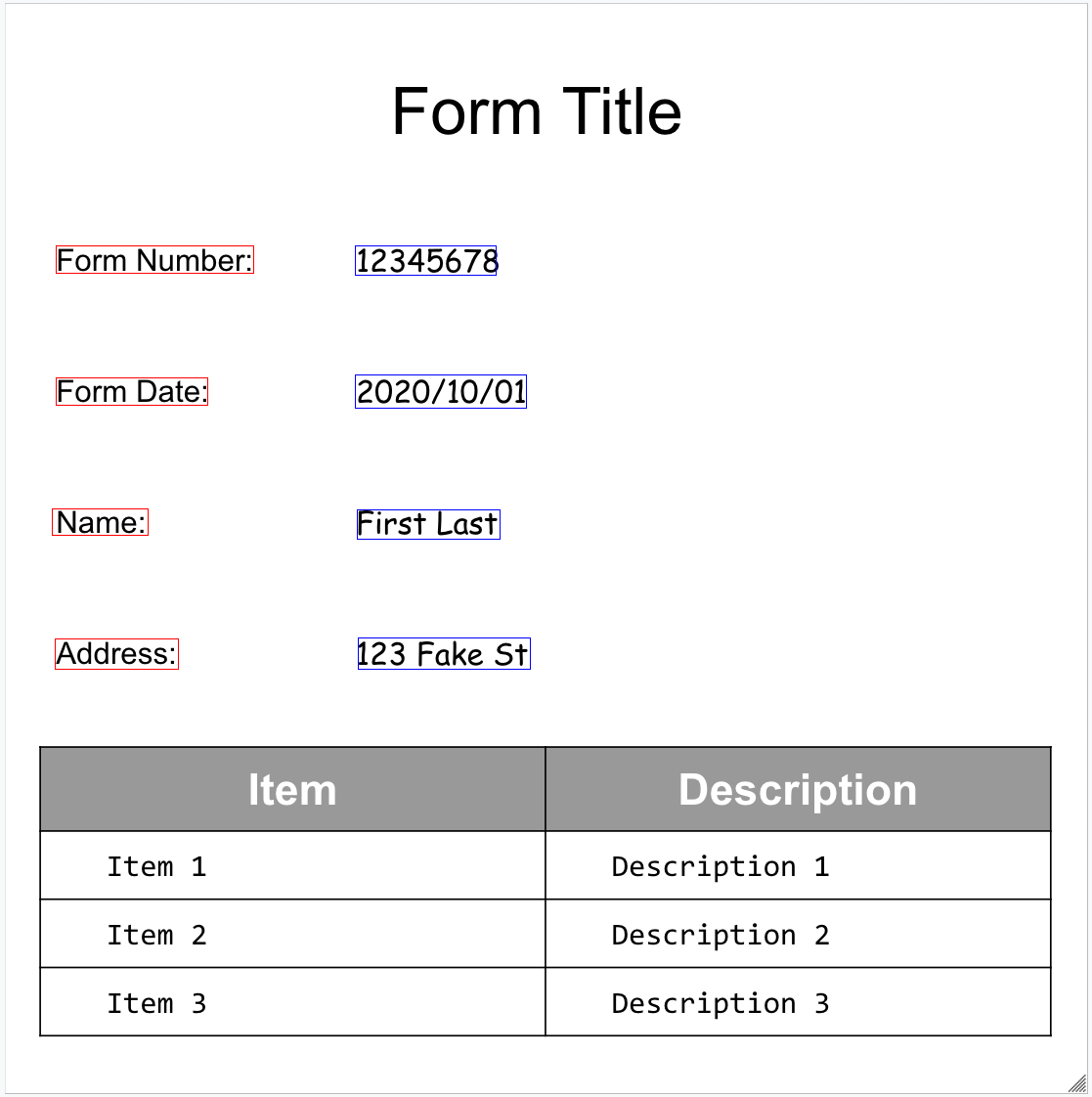

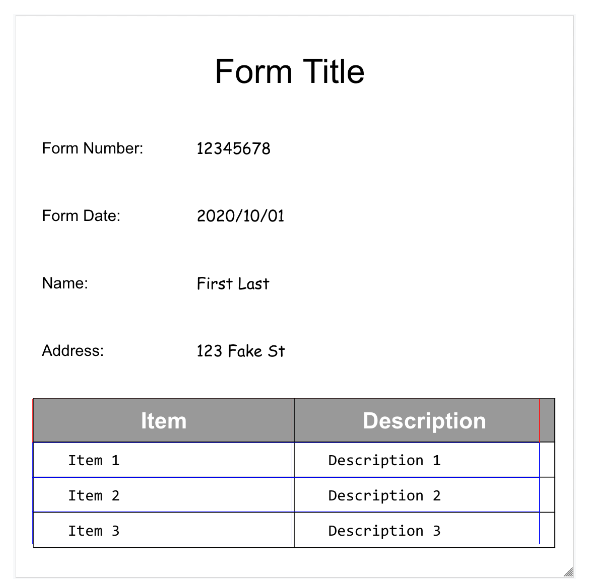

Para ayudarte a visualizar la estructura del documento, en las siguientes imágenes se dibujan polígonos de contorno para page.formFields y page.tables.

Campos del formulario

Tablas

Códigos de ejemplo

En los siguientes ejemplos de código se muestra cómo enviar una solicitud de procesamiento y, a continuación, leer e imprimir los campos en la terminal:

Java

Para obtener más información, consulta la documentación de referencia de la API Java de Document AI.

Para autenticarte en Document AI, configura las credenciales predeterminadas de la aplicación. Para obtener más información, consulta el artículo Configurar la autenticación en un entorno de desarrollo local.

import com.google.cloud.documentai.v1beta3.Document;
import com.google.cloud.documentai.v1beta3.DocumentProcessorServiceClient;
import com.google.cloud.documentai.v1beta3.DocumentProcessorServiceSettings;
import com.google.cloud.documentai.v1beta3.ProcessRequest;
import com.google.cloud.documentai.v1beta3.ProcessResponse;
import com.google.cloud.documentai.v1beta3.RawDocument;
import com.google.protobuf.ByteString;
import java.io.IOException;
import java.nio.file.Files;
import java.nio.file.Paths;
import java.util.List;
import java.util.concurrent.ExecutionException;
import java.util.concurrent.TimeoutException;

public class ProcessFormDocument {
  public static void processFormDocument()
      throws IOException, InterruptedException, ExecutionException, TimeoutException {
    // TODO(developer): Replace these variables before running the sample.
    String projectId = "your-project-id";
    String location = "your-project-location"; // Format is "us" or "eu".
    String processerId = "your-processor-id";
    String filePath = "path/to/input/file.pdf";
    processFormDocument(projectId, location, processerId, filePath);
  }

  public static void processFormDocument(
      String projectId, String location, String processorId, String filePath)
      throws IOException, InterruptedException, ExecutionException, TimeoutException {
    // Initialize client that will be used to send requests. This client only needs
    // to be created
    // once, and can be reused for multiple requests. After completing all of your
    // requests, call
    // the "close" method on the client to safely clean up any remaining background
    // resources.
    String endpoint = String.format("%s-documentai.googleapis.com:443", location);
    DocumentProcessorServiceSettings settings =
        DocumentProcessorServiceSettings.newBuilder().setEndpoint(endpoint).build();
    try (DocumentProcessorServiceClient client = DocumentProcessorServiceClient.create(settings)) {
      // The full resource name of the processor, e.g.:
      // projects/project-id/locations/location/processor/processor-id
      // You must create new processors in the Cloud Console first
      String name =
          String.format("projects/%s/locations/%s/processors/%s", projectId, location, processorId);

      // Read the file.
      byte[] imageFileData = Files.readAllBytes(Paths.get(filePath));

      // Convert the image data to a Buffer and base64 encode it.
      ByteString content = ByteString.copyFrom(imageFileData);

      RawDocument document =
          RawDocument.newBuilder().setContent(content).setMimeType("application/pdf").build();

      // Configure the process request.
      ProcessRequest request =
          ProcessRequest.newBuilder().setName(name).setRawDocument(document).build();

      // Recognizes text entities in the PDF document
      ProcessResponse result = client.processDocument(request);
      Document documentResponse = result.getDocument();

      System.out.println("Document processing complete.");

      // Read the text recognition output from the processor
      // For a full list of Document object attributes,
      // please reference this page:
      // https://googleapis.dev/java/google-cloud-document-ai/latest/index.html

      // Get all of the document text as one big string
      String text = documentResponse.getText();
      System.out.printf("Full document text: '%s'\n", removeNewlines(text));

      // Read the text recognition output from the processor
      List<Document.Page> pages = documentResponse.getPagesList();
      System.out.printf("There are %s page(s) in this document.\n", pages.size());

      for (Document.Page page : pages) {
        System.out.printf("\n\n**** Page %d ****\n", page.getPageNumber());

        List<Document.Page.Table> tables = page.getTablesList();
        System.out.printf("Found %d table(s):\n", tables.size());
        for (Document.Page.Table table : tables) {
          printTableInfo(table, text);
        }

        List<Document.Page.FormField> formFields = page.getFormFieldsList();
        System.out.printf("Found %d form fields:\n", formFields.size());
        for (Document.Page.FormField formField : formFields) {
          String fieldName = getLayoutText(formField.getFieldName().getTextAnchor(), text);
          String fieldValue = getLayoutText(formField.getFieldValue().getTextAnchor(), text);
          System.out.printf(
              "    * '%s': '%s'\n", removeNewlines(fieldName), removeNewlines(fieldValue));
        }
      }
    }
  }

  private static void printTableInfo(Document.Page.Table table, String text) {
    Document.Page.Table.TableRow firstBodyRow = table.getBodyRows(0);
    int columnCount = firstBodyRow.getCellsCount();
    System.out.printf(
        "    Table with %d columns and %d rows:\n", columnCount, table.getBodyRowsCount());

    Document.Page.Table.TableRow headerRow = table.getHeaderRows(0);
    StringBuilder headerRowText = new StringBuilder();
    for (Document.Page.Table.TableCell cell : headerRow.getCellsList()) {
      String columnName = getLayoutText(cell.getLayout().getTextAnchor(), text);
      headerRowText.append(String.format("%s | ", removeNewlines(columnName)));
    }
    headerRowText.setLength(headerRowText.length() - 3);
    System.out.printf("        Collumns: %s\n", headerRowText.toString());

    StringBuilder firstRowText = new StringBuilder();
    for (Document.Page.Table.TableCell cell : firstBodyRow.getCellsList()) {
      String cellText = getLayoutText(cell.getLayout().getTextAnchor(), text);
      firstRowText.append(String.format("%s | ", removeNewlines(cellText)));
    }
    firstRowText.setLength(firstRowText.length() - 3);
    System.out.printf("        First row data: %s\n", firstRowText.toString());
  }

  // Extract shards from the text field
  private static String getLayoutText(Document.TextAnchor textAnchor, String text) {
    if (textAnchor.getTextSegmentsList().size() > 0) {
      int startIdx = (int) textAnchor.getTextSegments(0).getStartIndex();
      int endIdx = (int) textAnchor.getTextSegments(0).getEndIndex();
      return text.substring(startIdx, endIdx);
    }
    return "[NO TEXT]";
  }

  private static String removeNewlines(String s) {
    return s.replace("\n", "").replace("\r", "");
  }
}

Node.js

Para obtener más información, consulta la documentación de referencia de la API Node.js de Document AI.

Para autenticarte en Document AI, configura las credenciales predeterminadas de la aplicación. Para obtener más información, consulta el artículo Configurar la autenticación en un entorno de desarrollo local.

/**
 * TODO(developer): Uncomment these variables before running the sample.
 */
// const projectId = 'YOUR_PROJECT_ID';
// const location = 'YOUR_PROJECT_LOCATION'; // Format is 'us' or 'eu'
// const processorId = 'YOUR_PROCESSOR_ID'; // Create processor in Cloud Console
// const filePath = '/path/to/local/pdf';

const {DocumentProcessorServiceClient} =
  require('@google-cloud/documentai').v1beta3;

// Instantiates a client
const client = new DocumentProcessorServiceClient();

async function processDocument() {
  // The full resource name of the processor, e.g.:
  // projects/project-id/locations/location/processor/processor-id
  // You must create new processors in the Cloud Console first
  const name = `projects/${projectId}/locations/${location}/processors/${processorId}`;

  // Read the file into memory.
  const fs = require('fs').promises;
  const imageFile = await fs.readFile(filePath);

  // Convert the image data to a Buffer and base64 encode it.
  const encodedImage = Buffer.from(imageFile).toString('base64');

  const request = {
    name,
    rawDocument: {
      content: encodedImage,
      mimeType: 'application/pdf',
    },
  };

  // Recognizes text entities in the PDF document
  const [result] = await client.processDocument(request);

  console.log('Document processing complete.');

  // Read the table and form fields output from the processor
  // The form processor also contains OCR data. For more information
  // on how to parse OCR data please see the OCR sample.
  // For a full list of Document object attributes,
  // please reference this page: https://googleapis.dev/nodejs/documentai/latest/index.html
  const {document} = result;
  const {text} = document;
  console.log(`Full document text: ${JSON.stringify(text)}`);
  console.log(`There are ${document.pages.length} page(s) in this document.`);

  for (const page of document.pages) {
    console.log(`\n\n**** Page ${page.pageNumber} ****`);

    console.log(`Found ${page.tables.length} table(s):`);
    for (const table of page.tables) {
      const numCollumns = table.headerRows[0].cells.length;
      const numRows = table.bodyRows.length;
      console.log(`Table with ${numCollumns} columns and ${numRows} rows:`);
      printTableInfo(table, text);
    }
    console.log(`Found ${page.formFields.length} form field(s):`);
    for (const field of page.formFields) {
      const fieldName = getText(field.fieldName.textAnchor, text);
      const fieldValue = getText(field.fieldValue.textAnchor, text);
      console.log(
        `\t* ${JSON.stringify(fieldName)}: ${JSON.stringify(fieldValue)}`
      );
    }
  }
}

const printTableInfo = (table, text) => {
  // Print header row
  let headerRowText = '';
  for (const headerCell of table.headerRows[0].cells) {
    const headerCellText = getText(headerCell.layout.textAnchor, text);
    headerRowText += `${JSON.stringify(headerCellText.trim())} | `;
  }
  console.log(
    `Collumns: ${headerRowText.substring(0, headerRowText.length - 3)}`
  );
  // Print first body row
  let bodyRowText = '';
  for (const bodyCell of table.bodyRows[0].cells) {
    const bodyCellText = getText(bodyCell.layout.textAnchor, text);
    bodyRowText += `${JSON.stringify(bodyCellText.trim())} | `;
  }
  console.log(
    `First row data: ${bodyRowText.substring(0, bodyRowText.length - 3)}`
  );
};

// Extract shards from the text field
const getText = (textAnchor, text) => {
  if (!textAnchor.textSegments || textAnchor.textSegments.length === 0) {
    return '';
  }

  // First shard in document doesn't have startIndex property
  const startIndex = textAnchor.textSegments[0].startIndex || 0;
  const endIndex = textAnchor.textSegments[0].endIndex;

  return text.substring(startIndex, endIndex);
};

Python

Para obtener más información, consulta la documentación de referencia de la API Python de Document AI.

Para autenticarte en Document AI, configura las credenciales predeterminadas de la aplicación. Para obtener más información, consulta el artículo Configurar la autenticación en un entorno de desarrollo local.

from typing import Optional, Sequence

from google.api_core.client_options import ClientOptions
from google.cloud import documentai

# TODO(developer): Uncomment these variables before running the sample.
# project_id = "YOUR_PROJECT_ID"
# location = "YOUR_PROCESSOR_LOCATION" # Format is "us" or "eu"
# processor_id = "YOUR_PROCESSOR_ID" # Create processor before running sample
# processor_version = "rc" # Refer to https://cloud.google.com/document-ai/docs/manage-processor-versions for more information
# file_path = "/path/to/local/pdf"
# mime_type = "application/pdf" # Refer to https://cloud.google.com/document-ai/docs/file-types for supported file types


def process_document_form_sample(
    project_id: str,
    location: str,
    processor_id: str,
    processor_version: str,
    file_path: str,
    mime_type: str,
) -> documentai.Document:
    # Online processing request to Document AI
    document = process_document(
        project_id, location, processor_id, processor_version, file_path, mime_type
    )

    # Read the table and form fields output from the processor
    # The form processor also contains OCR data. For more information
    # on how to parse OCR data please see the OCR sample.

    text = document.text
    print(f"Full document text: {repr(text)}\n")
    print(f"There are {len(document.pages)} page(s) in this document.")

    # Read the form fields and tables output from the processor
    for page in document.pages:
        print(f"\n\n**** Page {page.page_number} ****")

        print(f"\nFound {len(page.tables)} table(s):")
        for table in page.tables:
            num_columns = len(table.header_rows[0].cells)
            num_rows = len(table.body_rows)
            print(f"Table with {num_columns} columns and {num_rows} rows:")

            # Print header rows
            print("Columns:")
            print_table_rows(table.header_rows, text)
            # Print body rows
            print("Table body data:")
            print_table_rows(table.body_rows, text)

        print(f"\nFound {len(page.form_fields)} form field(s):")
        for field in page.form_fields:
            name = layout_to_text(field.field_name, text)
            value = layout_to_text(field.field_value, text)
            print(f"    * {repr(name.strip())}: {repr(value.strip())}")

    # Supported in version `pretrained-form-parser-v2.0-2022-11-10` and later.
    # For more information: https://cloud.google.com/document-ai/docs/form-parser
    if document.entities:
        print(f"Found {len(document.entities)} generic entities:")
        for entity in document.entities:
            print_entity(entity)
            # Print Nested Entities
            for prop in entity.properties:
                print_entity(prop)

    return document


def print_table_rows(
    table_rows: Sequence[documentai.Document.Page.Table.TableRow], text: str
) -> None:
    for table_row in table_rows:
        row_text = ""
        for cell in table_row.cells:
            cell_text = layout_to_text(cell.layout, text)
            row_text += f"{repr(cell_text.strip())} | "
        print(row_text)




def print_entity(entity: documentai.Document.Entity) -> None:
    # Fields detected. For a full list of fields for each processor see
    # the processor documentation:
    # https://cloud.google.com/document-ai/docs/processors-list
    key = entity.type_

    # Some other value formats in addition to text are available
    # e.g. dates: `entity.normalized_value.date_value.year`
    text_value = entity.text_anchor.content or entity.mention_text
    confidence = entity.confidence
    normalized_value = entity.normalized_value.text
    print(f"    * {repr(key)}: {repr(text_value)} ({confidence:.1%} confident)")

    if normalized_value:
        print(f"    * Normalized Value: {repr(normalized_value)}")




def process_document(
    project_id: str,
    location: str,
    processor_id: str,
    processor_version: str,
    file_path: str,
    mime_type: str,
    process_options: Optional[documentai.ProcessOptions] = None,
) -> documentai.Document:
    # You must set the `api_endpoint` if you use a location other than "us".
    client = documentai.DocumentProcessorServiceClient(
        client_options=ClientOptions(
            api_endpoint=f"{location}-documentai.googleapis.com"
        )
    )

    # The full resource name of the processor version, e.g.:
    # `projects/{project_id}/locations/{location}/processors/{processor_id}/processorVersions/{processor_version_id}`
    # You must create a processor before running this sample.
    name = client.processor_version_path(
        project_id, location, processor_id, processor_version
    )

    # Read the file into memory
    with open(file_path, "rb") as image:
        image_content = image.read()

    # Configure the process request
    request = documentai.ProcessRequest(
        name=name,
        raw_document=documentai.RawDocument(content=image_content, mime_type=mime_type),
        # Only supported for Document OCR processor
        process_options=process_options,
    )

    result = client.process_document(request=request)

    # For a full list of `Document` object attributes, reference this page:
    # https://cloud.google.com/document-ai/docs/reference/rest/v1/Document
    return result.document




def layout_to_text(layout: documentai.Document.Page.Layout, text: str) -> str:
    """
    Document AI identifies text in different parts of the document by their
    offsets in the entirety of the document"s text. This function converts
    offsets to a string.
    """
    # If a text segment spans several lines, it will
    # be stored in different text segments.
    return "".join(
        text[int(segment.start_index) : int(segment.end_index)]
        for segment in layout.text_anchor.text_segments
    )

Entidades, entidades anidadas y valores normalizados

Muchos de los procesadores especializados extraen datos estructurados basados en un esquema bien definido. Por ejemplo, el analizador de facturas detecta campos específicos, como invoice_date y supplier_name. Aquí tienes una factura de muestra:

Aquí tienes el objeto de documento completo devuelto por el analizador de facturas:

Descargar JSON

Estos son algunos de los elementos importantes del objeto document:

• Campos detectados: Entities contiene los campos que el procesador ha podido detectar. Por ejemplo, invoice_date:

  {
   "entities": [
      {
        "textAnchor": {
          "textSegments": [
            {
              "startIndex": "14",
              "endIndex": "24"
            }
          ],
          "content": "2020/01/01"
        },
        "type": "invoice_date",
        "confidence": 0.9938466,
        "pageAnchor": { ... },
        "id": "2",
        "normalizedValue": {
          "text": "2020-01-01",
          "dateValue": {
            "year": 2020,
            "month": 1,
            "day": 1
          }
        }
      }
    ]
  }


  En algunos campos, el procesador también normaliza el valor. En este ejemplo, la fecha se ha normalizado de 2020/01/01 a 2020-01-01.

• Normalización: en muchos campos específicos admitidos, el procesador también normaliza el valor y devuelve un entity. El campo normalizedValue se añade al campo extraído sin procesar que se obtiene a través del textAnchor de cada entidad. Por lo tanto, normaliza el texto literal, lo que a menudo divide el valor de texto en subcampos. Por ejemplo, la fecha 1 de septiembre del 2024 se representaría de la siguiente manera:

  normalizedValue": {
    "text": "2020-09-01",
    "dateValue": {
      "year": 2024,
      "month": 9,
      "day": 1
  }

En este ejemplo, la fecha se ha normalizado de 2020/01/01 a 2020-01-01, un formato estandarizado para reducir el posprocesamiento y permitir la conversión al formato elegido.

Nota: Las fechas y las monedas se normalizan. Dependen del análisis de la información de la ubicación del documento. Por ejemplo, en EE. UU. se usa el formato mm/dd/aaaa, en lugar de dd/mm/aaaa.

Las direcciones también se normalizan a menudo, lo que desglosa los elementos de la dirección en campos individuales. Los números se normalizan con un número entero o de coma flotante como normalizedValue.

• Enriquecimiento: algunos procesadores y campos también admiten el enriquecimiento. Por ejemplo, el supplier_name original del documento Google Singapore se ha normalizado con respecto a Enterprise Knowledge Graph y ahora es Google Asia Pacific, Singapore. También puedes observar que, como el gráfico de conocimiento empresarial contiene información sobre Google, Document AI infiere el supplier_address aunque no esté presente en el documento de muestra.

Nota: Enterprise Knowledge Graph, que se usa para enriquecer la información, se esfuerza por ser preciso, pero no se puede garantizar que sea perfecto.

  {
    "entities": [
      {
        "textAnchor": {
          "textSegments": [ ... ],
          "content": "Google Singapore"
        },
        "type": "supplier_name",
        "confidence": 0.39170802,
        "pageAnchor": { ... },
        "id": "12",
        "normalizedValue": {
          "text": "Google Asia Pacific, Singapore"
        }
      },
      {
        "type": "supplier_address",
        "id": "17",
        "normalizedValue": {
          "text": "70 Pasir Panjang Rd #03-71 Mapletree Business City II Singapore 117371",
          "addressValue": {
            "regionCode": "SG",
            "languageCode": "en-US",
            "postalCode": "117371",
            "addressLines": [
              "70 Pasir Panjang Rd",
              "#03-71 Mapletree Business City II"
            ]
          }
        }
      }
    ]
  }

• Campos anidados: para crear un esquema anidado (campos), primero debes declarar una entidad como principal y, a continuación, crear entidades secundarias en la principal. La respuesta de análisis del elemento principal incluye los campos secundarios en el elemento properties del campo principal. En el siguiente ejemplo, line_item es un campo principal que tiene dos campos secundarios: line_item/description y line_item/quantity.

  {
    "entities": [
      {
        "textAnchor": { ... },
        "type": "line_item",
        "confidence": 1.0,
        "pageAnchor": { ... },
        "id": "19",
        "properties": [
          {
            "textAnchor": {
              "textSegments": [ ... ],
              "content": "Tool A"
            },
            "type": "line_item/description",
            "confidence": 0.3461604,
            "pageAnchor": { ... },
            "id": "20"
          },
          {
            "textAnchor": {
              "textSegments": [ ... ],
              "content": "500"
            },
            "type": "line_item/quantity",
            "confidence": 0.8077843,
            "pageAnchor": { ... },
            "id": "21",
            "normalizedValue": {
              "text": "500"
            }
          }
        ]
      }
    ]
  }


Nota: Es posible que el campo secundario no incluya el nombre de su elemento superior. Por convención, algunos procesadores preentrenados prefijan el campo secundario con {parent}/, por ejemplo, line_item/description y line_item/quantity, pero no todos los procesadores siguen esa convención.

Los siguientes analizadores sí lo hacen:

• Extraer (extractor personalizado)
• Versión antigua
  • Analizador de extractos bancarios
  • Análisis de gastos
  • Análisis de facturas
  • Analizador de nóminas
  • Analizador de formularios W‐2

Códigos de ejemplo

En los siguientes ejemplos de código se muestra cómo enviar una solicitud de procesamiento y, a continuación, leer e imprimir los campos de un procesador especializado en la terminal:

Java

Para obtener más información, consulta la documentación de referencia de la API Java de Document AI.

Para autenticarte en Document AI, configura las credenciales predeterminadas de la aplicación. Para obtener más información, consulta el artículo Configurar la autenticación en un entorno de desarrollo local.

import com.google.cloud.documentai.v1beta3.Document;
import com.google.cloud.documentai.v1beta3.DocumentProcessorServiceClient;
import com.google.cloud.documentai.v1beta3.DocumentProcessorServiceSettings;
import com.google.cloud.documentai.v1beta3.ProcessRequest;
import com.google.cloud.documentai.v1beta3.ProcessResponse;
import com.google.cloud.documentai.v1beta3.RawDocument;
import com.google.protobuf.ByteString;
import java.io.IOException;
import java.nio.file.Files;
import java.nio.file.Paths;
import java.util.concurrent.ExecutionException;
import java.util.concurrent.TimeoutException;

public class ProcessSpecializedDocument {
  public static void processSpecializedDocument()
      throws IOException, InterruptedException, ExecutionException, TimeoutException {
    // TODO(developer): Replace these variables before running the sample.
    String projectId = "your-project-id";
    String location = "your-project-location"; // Format is "us" or "eu".
    String processerId = "your-processor-id";
    String filePath = "path/to/input/file.pdf";
    processSpecializedDocument(projectId, location, processerId, filePath);
  }

  public static void processSpecializedDocument(
      String projectId, String location, String processorId, String filePath)
      throws IOException, InterruptedException, ExecutionException, TimeoutException {
    // Initialize client that will be used to send requests. This client only needs
    // to be created
    // once, and can be reused for multiple requests. After completing all of your
    // requests, call
    // the "close" method on the client to safely clean up any remaining background
    // resources.
    String endpoint = String.format("%s-documentai.googleapis.com:443", location);
    DocumentProcessorServiceSettings settings =
        DocumentProcessorServiceSettings.newBuilder().setEndpoint(endpoint).build();
    try (DocumentProcessorServiceClient client = DocumentProcessorServiceClient.create(settings)) {
      // The full resource name of the processor, e.g.:
      // projects/project-id/locations/location/processor/processor-id
      // You must create new processors in the Cloud Console first
      String name =
          String.format("projects/%s/locations/%s/processors/%s", projectId, location, processorId);

      // Read the file.
      byte[] imageFileData = Files.readAllBytes(Paths.get(filePath));

      // Convert the image data to a Buffer and base64 encode it.
      ByteString content = ByteString.copyFrom(imageFileData);

      RawDocument document =
          RawDocument.newBuilder().setContent(content).setMimeType("application/pdf").build();

      // Configure the process request.
      ProcessRequest request =
          ProcessRequest.newBuilder().setName(name).setRawDocument(document).build();

      // Recognizes text entities in the PDF document
      ProcessResponse result = client.processDocument(request);
      Document documentResponse = result.getDocument();

      System.out.println("Document processing complete.");

      // Read fields specificly from the specalized US drivers license processor:
      // https://cloud.google.com/document-ai/docs/processors-list#processor_us-driver-license-parser
      // retriving data from other specalized processors follow a similar pattern.
      // For a complete list of processors see:
      // https://cloud.google.com/document-ai/docs/processors-list
      //
      // OCR and other data is also present in the quality processor's response.
      // Please see the OCR and other samples for how to parse other data in the
      // response.
      for (Document.Entity entity : documentResponse.getEntitiesList()) {
        // Fields detected. For a full list of fields for each processor see
        // the processor documentation:
        // https://cloud.google.com/document-ai/docs/processors-list
        String entityType = entity.getType();
        // some other value formats in addition to text are availible
        // e.g. dates: `entity.getNormalizedValue().getDateValue().getYear()`
        // check for normilized value with `entity.hasNormalizedValue()`
        String entityTextValue = escapeNewlines(entity.getTextAnchor().getContent());
        float entityConfidence = entity.getConfidence();
        System.out.printf(
            "    * %s: %s (%.2f%% confident)\n",
            entityType, entityTextValue, entityConfidence * 100.0);
      }
    }
  }

  private static String escapeNewlines(String s) {
    return s.replace("\n", "\\n").replace("\r", "\\r");
  }
}

Node.js

Para obtener más información, consulta la documentación de referencia de la API Node.js de Document AI.

Para autenticarte en Document AI, configura las credenciales predeterminadas de la aplicación. Para obtener más información, consulta el artículo Configurar la autenticación en un entorno de desarrollo local.

/**
 * TODO(developer): Uncomment these variables before running the sample.
 */
// const projectId = 'YOUR_PROJECT_ID';
// const location = 'YOUR_PROJECT_LOCATION'; // Format is 'us' or 'eu'
// const processorId = 'YOUR_PROCESSOR_ID'; // Create processor in Cloud Console
// const filePath = '/path/to/local/pdf';

const {DocumentProcessorServiceClient} =
  require('@google-cloud/documentai').v1beta3;

// Instantiates a client
const client = new DocumentProcessorServiceClient();

async function processDocument() {
  // The full resource name of the processor, e.g.:
  // projects/project-id/locations/location/processor/processor-id
  // You must create new processors in the Cloud Console first
  const name = `projects/${projectId}/locations/${location}/processors/${processorId}`;

  // Read the file into memory.
  const fs = require('fs').promises;
  const imageFile = await fs.readFile(filePath);

  // Convert the image data to a Buffer and base64 encode it.
  const encodedImage = Buffer.from(imageFile).toString('base64');

  const request = {
    name,
    rawDocument: {
      content: encodedImage,
      mimeType: 'application/pdf',
    },
  };

  // Recognizes text entities in the PDF document
  const [result] = await client.processDocument(request);

  console.log('Document processing complete.');

  // Read fields specificly from the specalized US drivers license processor:
  // https://cloud.google.com/document-ai/docs/processors-list#processor_us-driver-license-parser
  // retriving data from other specalized processors follow a similar pattern.
  // For a complete list of processors see:
  // https://cloud.google.com/document-ai/docs/processors-list
  //
  // OCR and other data is also present in the quality processor's response.
  // Please see the OCR and other samples for how to parse other data in the
  // response.
  const {document} = result;
  for (const entity of document.entities) {
    // Fields detected. For a full list of fields for each processor see
    // the processor documentation:
    // https://cloud.google.com/document-ai/docs/processors-list
    const key = entity.type;
    // some other value formats in addition to text are availible
    // e.g. dates: `entity.normalizedValue.dateValue.year`
    const textValue =
      entity.textAnchor !== null ? entity.textAnchor.content : '';
    const conf = entity.confidence * 100;
    console.log(
      `* ${JSON.stringify(key)}: ${JSON.stringify(textValue)}(${conf.toFixed(
        2
      )}% confident)`
    );
  }
}

Python

Para obtener más información, consulta la documentación de referencia de la API Python de Document AI.

Para autenticarte en Document AI, configura las credenciales predeterminadas de la aplicación. Para obtener más información, consulta el artículo Configurar la autenticación en un entorno de desarrollo local.

from typing import Optional, Sequence

from google.api_core.client_options import ClientOptions
from google.cloud import documentai

# TODO(developer): Uncomment these variables before running the sample.
# project_id = "YOUR_PROJECT_ID"
# location = "YOUR_PROCESSOR_LOCATION" # Format is "us" or "eu"
# processor_id = "YOUR_PROCESSOR_ID" # Create processor before running sample
# processor_version = "rc" # Refer to https://cloud.google.com/document-ai/docs/manage-processor-versions for more information
# file_path = "/path/to/local/pdf"
# mime_type = "application/pdf" # Refer to https://cloud.google.com/document-ai/docs/file-types for supported file types


def process_document_entity_extraction_sample(
    project_id: str,
    location: str,
    processor_id: str,
    processor_version: str,
    file_path: str,
    mime_type: str,
) -> None:
    # Online processing request to Document AI
    document = process_document(
        project_id, location, processor_id, processor_version, file_path, mime_type
    )

    # Print extracted entities from entity extraction processor output.
    # For a complete list of processors see:
    # https://cloud.google.com/document-ai/docs/processors-list
    #
    # OCR and other data is also present in the processor's response.
    # Refer to the OCR samples for how to parse other data in the response.

    print(f"Found {len(document.entities)} entities:")
    for entity in document.entities:
        print_entity(entity)
        # Print Nested Entities (if any)
        for prop in entity.properties:
            print_entity(prop)




def print_entity(entity: documentai.Document.Entity) -> None:
    # Fields detected. For a full list of fields for each processor see
    # the processor documentation:
    # https://cloud.google.com/document-ai/docs/processors-list
    key = entity.type_

    # Some other value formats in addition to text are available
    # e.g. dates: `entity.normalized_value.date_value.year`
    text_value = entity.text_anchor.content or entity.mention_text
    confidence = entity.confidence
    normalized_value = entity.normalized_value.text
    print(f"    * {repr(key)}: {repr(text_value)} ({confidence:.1%} confident)")

    if normalized_value:
        print(f"    * Normalized Value: {repr(normalized_value)}")




def process_document(
    project_id: str,
    location: str,
    processor_id: str,
    processor_version: str,
    file_path: str,
    mime_type: str,
    process_options: Optional[documentai.ProcessOptions] = None,
) -> documentai.Document:
    # You must set the `api_endpoint` if you use a location other than "us".
    client = documentai.DocumentProcessorServiceClient(
        client_options=ClientOptions(
            api_endpoint=f"{location}-documentai.googleapis.com"
        )
    )

    # The full resource name of the processor version, e.g.:
    # `projects/{project_id}/locations/{location}/processors/{processor_id}/processorVersions/{processor_version_id}`
    # You must create a processor before running this sample.
    name = client.processor_version_path(
        project_id, location, processor_id, processor_version
    )

    # Read the file into memory
    with open(file_path, "rb") as image:
        image_content = image.read()

    # Configure the process request
    request = documentai.ProcessRequest(
        name=name,
        raw_document=documentai.RawDocument(content=image_content, mime_type=mime_type),
        # Only supported for Document OCR processor
        process_options=process_options,
    )

    result = client.process_document(request=request)

    # For a full list of `Document` object attributes, reference this page:
    # https://cloud.google.com/document-ai/docs/reference/rest/v1/Document
    return result.document

Extractor de documentos personalizado

El procesador Extractor de documentos personalizado puede extraer entidades personalizadas de documentos que no tengan un procesador preentrenado disponible. Para ello, puedes entrenar un modelo personalizado o usar modelos fundacionales de IA generativa para extraer entidades con nombre sin necesidad de entrenamiento. Para obtener más información, consulta el artículo Crear un extractor de documentos personalizado en la consola.

• Si entrenas un modelo personalizado, el procesador se puede usar exactamente igual que un procesador de extracción de entidades preentrenado.
• Si usas un modelo fundacional, puedes crear una versión de procesador para extraer entidades específicas de cada solicitud o configurarlo en función de cada solicitud.

Para obtener información sobre la estructura de salida, consulta Entidades, entidades anidadas y valores normalizados.

Códigos de ejemplo

Si usas un modelo personalizado o has creado una versión de procesador con un modelo base, utiliza los ejemplos de código de extracción de entidades.

En el siguiente código de ejemplo se muestra cómo configurar entidades específicas para un extractor de documentos personalizado de un modelo básico por solicitud e imprimir las entidades extraídas:

Python

Para obtener más información, consulta la documentación de referencia de la API Python de Document AI.

Para autenticarte en Document AI, configura las credenciales predeterminadas de la aplicación. Para obtener más información, consulta el artículo Configurar la autenticación en un entorno de desarrollo local.

from typing import Optional, Sequence

from google.api_core.client_options import ClientOptions
from google.cloud import documentai

# TODO(developer): Uncomment these variables before running the sample.
# project_id = "YOUR_PROJECT_ID"
# location = "YOUR_PROCESSOR_LOCATION" # Format is "us" or "eu"
# processor_id = "YOUR_PROCESSOR_ID" # Create processor before running sample
# processor_version = "rc" # Refer to https://cloud.google.com/document-ai/docs/manage-processor-versions for more information
# file_path = "/path/to/local/pdf"
# mime_type = "application/pdf" # Refer to https://cloud.google.com/document-ai/docs/file-types for supported file types




def process_document_custom_extractor_sample(
    project_id: str,
    location: str,
    processor_id: str,
    processor_version: str,
    file_path: str,
    mime_type: str,
) -> None:
    # Entities to extract from Foundation Model CDE
    properties = [
        documentai.DocumentSchema.EntityType.Property(
            name="invoice_id",
            value_type="string",
            occurrence_type=documentai.DocumentSchema.EntityType.Property.OccurrenceType.REQUIRED_ONCE,
        ),
        documentai.DocumentSchema.EntityType.Property(
            name="notes",
            value_type="string",
            occurrence_type=documentai.DocumentSchema.EntityType.Property.OccurrenceType.OPTIONAL_MULTIPLE,
        ),
        documentai.DocumentSchema.EntityType.Property(
            name="terms",
            value_type="string",
            occurrence_type=documentai.DocumentSchema.EntityType.Property.OccurrenceType.OPTIONAL_MULTIPLE,
        ),
    ]
    # Optional: For Generative AI processors, request different fields than the
    # schema for a processor version
    process_options = documentai.ProcessOptions(
        schema_override=documentai.DocumentSchema(
            display_name="CDE Schema",
            description="Document Schema for the CDE Processor",
            entity_types=[
                documentai.DocumentSchema.EntityType(
                    name="custom_extraction_document_type",
                    base_types=["document"],
                    properties=properties,
                )
            ],
        )
    )

    # Online processing request to Document AI
    document = process_document(
        project_id,
        location,
        processor_id,
        processor_version,
        file_path,
        mime_type,
        process_options=process_options,
    )

    for entity in document.entities:
        print_entity(entity)
        # Print Nested Entities (if any)
        for prop in entity.properties:
            print_entity(prop)




def print_entity(entity: documentai.Document.Entity) -> None:
    # Fields detected. For a full list of fields for each processor see
    # the processor documentation:
    # https://cloud.google.com/document-ai/docs/processors-list
    key = entity.type_

    # Some other value formats in addition to text are available
    # e.g. dates: `entity.normalized_value.date_value.year`
    text_value = entity.text_anchor.content or entity.mention_text
    confidence = entity.confidence
    normalized_value = entity.normalized_value.text
    print(f"    * {repr(key)}: {repr(text_value)} ({confidence:.1%} confident)")

    if normalized_value:
        print(f"    * Normalized Value: {repr(normalized_value)}")




def process_document(
    project_id: str,
    location: str,
    processor_id: str,
    processor_version: str,
    file_path: str,
    mime_type: str,
    process_options: Optional[documentai.ProcessOptions] = None,
) -> documentai.Document:
    # You must set the `api_endpoint` if you use a location other than "us".
    client = documentai.DocumentProcessorServiceClient(
        client_options=ClientOptions(
            api_endpoint=f"{location}-documentai.googleapis.com"
        )
    )

    # The full resource name of the processor version, e.g.:
    # `projects/{project_id}/locations/{location}/processors/{processor_id}/processorVersions/{processor_version_id}`
    # You must create a processor before running this sample.
    name = client.processor_version_path(
        project_id, location, processor_id, processor_version
    )

    # Read the file into memory
    with open(file_path, "rb") as image:
        image_content = image.read()

    # Configure the process request
    request = documentai.ProcessRequest(
        name=name,
        raw_document=documentai.RawDocument(content=image_content, mime_type=mime_type),
        # Only supported for Document OCR processor
        process_options=process_options,
    )

    result = client.process_document(request=request)

    # For a full list of `Document` object attributes, reference this page:
    # https://cloud.google.com/document-ai/docs/reference/rest/v1/Document
    return result.document

Creación de resúmenes

El procesador Summarizer usa modelos básicos de IA generativa para resumir el texto extraído de un documento. La longitud y el formato de la respuesta se pueden personalizar de las siguientes formas:

• Longitud
  • BRIEF: un breve resumen de una o dos frases
  • MODERATE: un resumen de un párrafo
  • COMPREHENSIVE: la opción más larga disponible
• Formato
  • PARAGRAPH: salida en párrafos
  • BULLETS: salida en viñetas

Puedes crear una versión del procesador para una duración y un formato específicos, o bien configurarla por solicitud.

El texto resumido aparece en Document.entities.normalizedValue.text. Puedes consultar un archivo JSON de salida de ejemplo completo en Ejemplo de salida de procesador.

Para obtener más información, consulta Crear un resumidor de documentos en la consola.

Códigos de ejemplo

En el siguiente ejemplo de código se muestra cómo configurar una longitud y un formato específicos en una solicitud de procesamiento e imprimir el texto resumido:

Python

Para obtener más información, consulta la documentación de referencia de la API Python de Document AI.

Para autenticarte en Document AI, configura las credenciales predeterminadas de la aplicación. Para obtener más información, consulta el artículo Configurar la autenticación en un entorno de desarrollo local.

from typing import Optional

from google.api_core.client_options import ClientOptions
from google.cloud import documentai_v1beta3 as documentai


# TODO(developer): Uncomment these variables before running the sample.
# project_id = "YOUR_PROJECT_ID"
# location = "YOUR_PROCESSOR_LOCATION" # Format is "us" or "eu"
# processor_id = "YOUR_PROCESSOR_ID" # Create processor before running sample
# processor_version = "rc" # Refer to https://cloud.google.com/document-ai/docs/manage-processor-versions for more information
# file_path = "/path/to/local/pdf"
# mime_type = "application/pdf" # Refer to https://cloud.google.com/document-ai/docs/file-types for supported file types

def process_document_summarizer_sample(
    project_id: str,
    location: str,
    processor_id: str,
    processor_version: str,
    file_path: str,
    mime_type: str,
) -> None:
    # For supported options, refer to:
    # https://cloud.google.com/document-ai/docs/reference/rest/v1beta3/projects.locations.processors.processorVersions#summaryoptions
    summary_options = documentai.SummaryOptions(
        length=documentai.SummaryOptions.Length.BRIEF,
        format=documentai.SummaryOptions.Format.BULLETS,
    )

    properties = [
        documentai.DocumentSchema.EntityType.Property(
            name="summary",
            value_type="string",
            occurrence_type=documentai.DocumentSchema.EntityType.Property.OccurrenceType.REQUIRED_ONCE,
            property_metadata=documentai.PropertyMetadata(
                field_extraction_metadata=documentai.FieldExtractionMetadata(
                    summary_options=summary_options
                )
            ),
        )
    ]

    # Optional: Request specific summarization format other than the default
    # for the processor version.
    process_options = documentai.ProcessOptions(
        schema_override=documentai.DocumentSchema(
            entity_types=[
                documentai.DocumentSchema.EntityType(
                    name="summary_document_type",
                    base_types=["document"],
                    properties=properties,
                )
            ]
        )
    )

    # Online processing request to Document AI
    document = process_document(
        project_id,
        location,
        processor_id,
        processor_version,
        file_path,
        mime_type,
        process_options=process_options,
    )

    for entity in document.entities:
        print_entity(entity)
        # Print Nested Entities (if any)
        for prop in entity.properties:
            print_entity(prop)


def print_entity(entity: documentai.Document.Entity) -> None:
    # Fields detected. For a full list of fields for each processor see
    # the processor documentation:
    # https://cloud.google.com/document-ai/docs/processors-list
    key = entity.type_

    # Some other value formats in addition to text are availible
    # e.g. dates: `entity.normalized_value.date_value.year`
    text_value = entity.text_anchor.content
    confidence = entity.confidence
    normalized_value = entity.normalized_value.text
    print(f"    * {repr(key)}: {repr(text_value)}({confidence:.1%} confident)")

    if normalized_value:
        print(f"    * Normalized Value: {repr(normalized_value)}")


def process_document(
    project_id: str,
    location: str,
    processor_id: str,
    processor_version: str,
    file_path: str,
    mime_type: str,
    process_options: Optional[documentai.ProcessOptions] = None,
) -> documentai.Document:
    # You must set the `api_endpoint` if you use a location other than "us".
    client = documentai.DocumentProcessorServiceClient(
        client_options=ClientOptions(
            api_endpoint=f"{location}-documentai.googleapis.com"
        )
    )

    # The full resource name of the processor version, e.g.:
    # `projects/{project_id}/locations/{location}/processors/{processor_id}/processorVersions/{processor_version_id}`
    # You must create a processor before running this sample.
    name = client.processor_version_path(
        project_id, location, processor_id, processor_version
    )

    # Read the file into memory
    with open(file_path, "rb") as image:
        image_content = image.read()

    # Configure the process request
    request = documentai.ProcessRequest(
        name=name,
        raw_document=documentai.RawDocument(content=image_content, mime_type=mime_type),
        # Only supported for Document OCR processor
        process_options=process_options,
    )

    result = client.process_document(request=request)

    # For a full list of `Document` object attributes, reference this page:
    # https://cloud.google.com/document-ai/docs/reference/rest/v1/Document
    return result.document

División y clasificación

Aquí tienes un PDF compuesto de 10 páginas que contiene diferentes tipos de documentos y formularios:

Descargar PDF

A continuación se muestra el objeto de documento completo devuelto por el clasificador y separador de documentos de préstamo:

Descargar JSON

Cada documento que detecta el separador se representa mediante un entity. Por ejemplo:

  {
    "entities": [
      {
        "textAnchor": {
          "textSegments": [
            {
              "startIndex": "13936",
              "endIndex": "21108"
            }
          ]
        },
        "type": "1040se_2020",
        "confidence": 0.76257163,
        "pageAnchor": {
          "pageRefs": [
            {
              "page": "6"
            },
            {
              "page": "7"
            }
          ]
        }
      }
    ]
  }

• Entity.pageAnchor indica que este documento tiene 2 páginas. Ten en cuenta que pageRefs[].page se basa en cero y es el índice del campo document.pages[].

  Precaución: Se han omitido los valores pageRefs[].page iguales a cero. Cuando la API detecta el valor "0" en una página, se omite esa coordenada en la respuesta JSON. Por ejemplo, una respuesta de las dos primeras páginas de un documento sería: "pageRefs": [{}, {"page": "1"}]

• Entity.type especifica que este documento es un formulario 1040 del Anexo SE. Para ver una lista completa de los tipos de documentos que se pueden identificar, consulta Tipos de documentos identificados en la documentación del procesador.

Para obtener más información, consulta Comportamiento de los separadores de documentos.

Códigos de ejemplo

Los divisores identifican los límites de las páginas, pero no dividen el documento de entrada. Puedes usar Document AI Toolbox para dividir físicamente un archivo PDF usando los límites de las páginas. En los siguientes ejemplos de código se imprimen los intervalos de páginas sin dividir el PDF:

Java

Para obtener más información, consulta la documentación de referencia de la API Java de Document AI.

Para autenticarte en Document AI, configura las credenciales predeterminadas de la aplicación. Para obtener más información, consulta el artículo Configurar la autenticación en un entorno de desarrollo local.

import com.google.cloud.documentai.v1beta3.Document;
import com.google.cloud.documentai.v1beta3.DocumentProcessorServiceClient;
import com.google.cloud.documentai.v1beta3.DocumentProcessorServiceSettings;
import com.google.cloud.documentai.v1beta3.ProcessRequest;
import com.google.cloud.documentai.v1beta3.ProcessResponse;
import com.google.cloud.documentai.v1beta3.RawDocument;
import com.google.protobuf.ByteString;
import java.io.IOException;
import java.nio.file.Files;
import java.nio.file.Paths;
import java.util.List;
import java.util.concurrent.ExecutionException;
import java.util.concurrent.TimeoutException;

public class ProcessSplitterDocument {
  public static void processSplitterDocument()
      throws IOException, InterruptedException, ExecutionException, TimeoutException {
    // TODO(developer): Replace these variables before running the sample.
    String projectId = "your-project-id";
    String location = "your-project-location"; // Format is "us" or "eu".
    String processerId = "your-processor-id";
    String filePath = "path/to/input/file.pdf";
    processSplitterDocument(projectId, location, processerId, filePath);
  }

  public static void processSplitterDocument(
      String projectId, String location, String processorId, String filePath)
      throws IOException, InterruptedException, ExecutionException, TimeoutException {
    // Initialize client that will be used to send requests. This client only needs
    // to be created
    // once, and can be reused for multiple requests. After completing all of your
    // requests, call
    // the "close" method on the client to safely clean up any remaining background
    // resources.
    String endpoint = String.format("%s-documentai.googleapis.com:443", location);
    DocumentProcessorServiceSettings settings =
        DocumentProcessorServiceSettings.newBuilder().setEndpoint(endpoint).build();
    try (DocumentProcessorServiceClient client = DocumentProcessorServiceClient.create(settings)) {
      // The full resource name of the processor, e.g.:
      // projects/project-id/locations/location/processor/processor-id
      // You must create new processors in the Cloud Console first
      String name =
          String.format("projects/%s/locations/%s/processors/%s", projectId, location, processorId);

      // Read the file.
      byte[] imageFileData = Files.readAllBytes(Paths.get(filePath));

      // Convert the image data to a Buffer and base64 encode it.
      ByteString content = ByteString.copyFrom(imageFileData);

      RawDocument document =
          RawDocument.newBuilder().setContent(content).setMimeType("application/pdf").build();

      // Configure the process request.
      ProcessRequest request =
          ProcessRequest.newBuilder().setName(name).setRawDocument(document).build();

      // Recognizes text entities in the PDF document
      ProcessResponse result = client.processDocument(request);
      Document documentResponse = result.getDocument();

      System.out.println("Document processing complete.");

      // Read the splitter output from the document splitter processor:
      // https://cloud.google.com/document-ai/docs/processors-list#processor_doc-splitter
      // This processor only provides text for the document and information on how
      // to split the document on logical boundaries. To identify and extract text,
      // form elements, and entities please see other processors like the OCR, form,
      // and specalized processors.
      List<Document.Entity> entities = documentResponse.getEntitiesList();
      System.out.printf("Found %d subdocuments:\n", entities.size());
      for (Document.Entity entity : entities) {
        float entityConfidence = entity.getConfidence();
        String pagesRangeText = pageRefsToString(entity.getPageAnchor().getPageRefsList());
        String subdocumentType = entity.getType();
        if (subdocumentType.isEmpty()) {
          System.out.printf(
              "%.2f%% confident that %s a subdocument.\n", entityConfidence * 100, pagesRangeText);
        } else {
          System.out.printf(
              "%.2f%% confident that %s a '%s' subdocument.\n",
              entityConfidence * 100, pagesRangeText, subdocumentType);
        }
      }
    }
  }

  // Converts page reference(s) to a string describing the page or page range.
  private static String pageRefsToString(List<Document.PageAnchor.PageRef> pageRefs) {
    if (pageRefs.size() == 1) {
      return String.format("page %d is", pageRefs.get(0).getPage() + 1);
    } else {
      long start = pageRefs.get(0).getPage() + 1;
      long end = pageRefs.get(1).getPage() + 1;
      return String.format("pages %d to %d are", start, end);
    }
  }
}

Node.js

Para obtener más información, consulta la documentación de referencia de la API Node.js de Document AI.

Para autenticarte en Document AI, configura las credenciales predeterminadas de la aplicación. Para obtener más información, consulta el artículo Configurar la autenticación en un entorno de desarrollo local.

/**
 * TODO(developer): Uncomment these variables before running the sample.
 */
// const projectId = 'YOUR_PROJECT_ID';
// const location = 'YOUR_PROJECT_LOCATION'; // Format is 'us' or 'eu'
// const processorId = 'YOUR_PROCESSOR_ID'; // Create processor in Cloud Console
// const filePath = '/path/to/local/pdf';

const {DocumentProcessorServiceClient} =
  require('@google-cloud/documentai').v1beta3;

// Instantiates a client
const client = new DocumentProcessorServiceClient();

async function processDocument() {
  // The full resource name of the processor, e.g.:
  // projects/project-id/locations/location/processor/processor-id
  // You must create new processors in the Cloud Console first
  const name = `projects/${projectId}/locations/${location}/processors/${processorId}`;

  // Read the file into memory.
  const fs = require('fs').promises;
  const imageFile = await fs.readFile(filePath);

  // Convert the image data to a Buffer and base64 encode it.
  const encodedImage = Buffer.from(imageFile).toString('base64');

  const request = {
    name,
    rawDocument: {
      content: encodedImage,
      mimeType: 'application/pdf',
    },
  };

  // Recognizes text entities in the PDF document
  const [result] = await client.processDocument(request);

  console.log('Document processing complete.');

  // Read fields specificly from the specalized US drivers license processor:
  // https://cloud.google.com/document-ai/docs/processors-list#processor_us-driver-license-parser
  // retriving data from other specalized processors follow a similar pattern.
  // For a complete list of processors see:
  // https://cloud.google.com/document-ai/docs/processors-list
  //
  // OCR and other data is also present in the quality processor's response.
  // Please see the OCR and other samples for how to parse other data in the
  // response.
  const {document} = result;
  console.log(`Found ${document.entities.length} subdocuments:`);
  for (const entity of document.entities) {
    const conf = entity.confidence * 100;
    const pagesRange = pageRefsToRange(entity.pageAnchor.pageRefs);
    if (entity.type !== '') {
      console.log(
        `${conf.toFixed(2)}% confident that ${pagesRange} a "${
          entity.type
        }" subdocument.`
      );
    } else {
      console.log(
        `${conf.toFixed(2)}% confident that ${pagesRange} a subdocument.`
      );
    }
  }
}

// Converts a page ref to a string describing the page or page range.
const pageRefsToRange = pageRefs => {
  if (pageRefs.length === 1) {
    const num = parseInt(pageRefs[0].page) + 1 || 1;
    return `page ${num} is`;
  } else {
    const start = parseInt(pageRefs[0].page) + 1 || 1;
    const end = parseInt(pageRefs[1].page) + 1;
    return `pages ${start} to ${end} are`;
  }
};

Python

Para obtener más información, consulta la documentación de referencia de la API Python de Document AI.

Para autenticarte en Document AI, configura las credenciales predeterminadas de la aplicación. Para obtener más información, consulta el artículo Configurar la autenticación en un entorno de desarrollo local.

from typing import Optional, Sequence

from google.api_core.client_options import ClientOptions
from google.cloud import documentai

# TODO(developer): Uncomment these variables before running the sample.
# project_id = "YOUR_PROJECT_ID"
# location = "YOUR_PROCESSOR_LOCATION" # Format is "us" or "eu"
# processor_id = "YOUR_PROCESSOR_ID" # Create processor before running sample
# processor_version = "rc" # Refer to https://cloud.google.com/document-ai/docs/manage-processor-versions for more information
# file_path = "/path/to/local/pdf"
# mime_type = "application/pdf" # Refer to https://cloud.google.com/document-ai/docs/file-types for supported file types


def process_document_splitter_sample(
    project_id: str,
    location: str,
    processor_id: str,
    processor_version: str,
    file_path: str,
    mime_type: str,
) -> None:
    # Online processing request to Document AI
    document = process_document(
        project_id, location, processor_id, processor_version, file_path, mime_type
    )

    # Read the splitter output from a document splitter/classifier processor:
    # e.g. https://cloud.google.com/document-ai/docs/processors-list#processor_procurement-document-splitter
    # This processor only provides text for the document and information on how
    # to split the document on logical boundaries. To identify and extract text,
    # form elements, and entities please see other processors like the OCR, form,
    # and specalized processors.

    print(f"Found {len(document.entities)} subdocuments:")
    for entity in document.entities:
        conf_percent = f"{entity.confidence:.1%}"
        pages_range = page_refs_to_string(entity.page_anchor.page_refs)

        # Print subdocument type information, if available
        if entity.type_:
            print(
                f"{conf_percent} confident that {pages_range} a '{entity.type_}' subdocument."
            )
        else:
            print(f"{conf_percent} confident that {pages_range} a subdocument.")


def page_refs_to_string(
    page_refs: Sequence[documentai.Document.PageAnchor.PageRef],
) -> str:
    """Converts a page ref to a string describing the page or page range."""
    pages = [str(int(page_ref.page) + 1) for page_ref in page_refs]
    if len(pages) == 1:
        return f"page {pages[0]} is"
    else:
        return f"pages {', '.join(pages)} are"




def process_document(
    project_id: str,
    location: str,
    processor_id: str,
    processor_version: str,
    file_path: str,
    mime_type: str,
    process_options: Optional[documentai.ProcessOptions] = None,
) -> documentai.Document:
    # You must set the `api_endpoint` if you use a location other than "us".
    client = documentai.DocumentProcessorServiceClient(
        client_options=ClientOptions(
            api_endpoint=f"{location}-documentai.googleapis.com"
        )
    )

    # The full resource name of the processor version, e.g.:
    # `projects/{project_id}/locations/{location}/processors/{processor_id}/processorVersions/{processor_version_id}`
    # You must create a processor before running this sample.
    name = client.processor_version_path(
        project_id, location, processor_id, processor_version
    )

    # Read the file into memory
    with open(file_path, "rb") as image:
        image_content = image.read()

    # Configure the process request
    request = documentai.ProcessRequest(
        name=name,
        raw_document=documentai.RawDocument(content=image_content, mime_type=mime_type),
        # Only supported for Document OCR processor
        process_options=process_options,
    )

    result = client.process_document(request=request)

    # For a full list of `Document` object attributes, reference this page:
    # https://cloud.google.com/document-ai/docs/reference/rest/v1/Document
    return result.document

En el siguiente código de ejemplo se usa Document AI Toolbox para dividir un archivo PDF usando los límites de página de un Document procesado.

Python

Para obtener más información, consulta la documentación de referencia de la API Python de Document AI.

Para autenticarte en Document AI, configura las credenciales predeterminadas de la aplicación. Para obtener más información, consulta el artículo Configurar la autenticación en un entorno de desarrollo local.

from google.cloud.documentai_toolbox import document

# TODO(developer): Uncomment these variables before running the sample.
# Given a local document.proto or sharded document.proto from a splitter/classifier in path
# document_path = "path/to/local/document.json"
# pdf_path = "path/to/local/document.pdf"
# output_path = "resources/output/"


def split_pdf_sample(document_path: str, pdf_path: str, output_path: str) -> None:
    wrapped_document = document.Document.from_document_path(document_path=document_path)

    output_files = wrapped_document.split_pdf(
        pdf_path=pdf_path, output_path=output_path
    )

    print("Document Successfully Split")
    for output_file in output_files:
        print(output_file)

Caja de herramientas de Document AI

Experimental

Esta biblioteca está sujeta a los "Términos de las Ofertas de Acceso Previo a la Disponibilidad General" de la sección Términos Generales de los Servicios de los Términos Específicos de los Servicios. Las bibliotecas previas a la disponibilidad general están disponibles tal cual y pueden tener una compatibilidad y asistencia limitadas. Para obtener más información, consulta las descripciones de las fases de lanzamiento.

Document AI Toolbox es un SDK para Python que proporciona funciones de utilidad para gestionar, manipular y extraer información de la respuesta del documento. Crea un objeto de documento "envoltorio" a partir de una respuesta de documento procesado de archivos JSON en Cloud Storage, archivos JSON locales o la salida directamente del método process_document().

Puede realizar las siguientes acciones:

• Combina archivos JSON Document fragmentados del procesamiento por lotes en un solo documento "envuelto".
• Exporta los fragmentos como un archivo Document unificado.
• Obtener el resultado de Document de:
  • Cloud Storage
  • BatchProcessMetadata
  • Operation name
• Accede al texto de Pages, Lines, Paragraphs, FormFields y Tables sin gestionar información Layout.
• Busca un Pages que contenga una cadena de destino o que coincida con una expresión regular.
• Busca FormFields por su nombre.
• Buscar Entities por tipo.
• Convierte Tables en un dataframe de Pandas o en un archivo CSV.
• Inserta Entities y FormFields en una tabla de BigQuery.
• Dividir un archivo PDF en función de la salida de un procesador de división o clasificación.
• Extrae la imagen Entities de los Document cuadros delimitadores.
• Convertir Documents a formatos de uso habitual y viceversa:
  • API Cloud Vision AnnotateFileResponse
  • hOCR
  • Formatos de procesamiento de documentos de terceros
  Nota: Cuando importes documentos y conviertas sus anotaciones al formato de Document AI, se clasificarán como Labeled en la consola Google Cloud .
• Crea lotes de documentos para procesarlos desde una carpeta de Cloud Storage.

Códigos de ejemplo

En los siguientes ejemplos de código se muestra cómo usar Document AI Toolbox.

Guía de inicio rápido

from typing import Optional

from google.cloud import documentai
from google.cloud.documentai_toolbox import document, gcs_utilities

# TODO(developer): Uncomment these variables before running the sample.
# Given a Document JSON or sharded Document JSON in path gs://bucket/path/to/folder
# gcs_bucket_name = "bucket"
# gcs_prefix = "path/to/folder"

# Or, given a Document JSON in path gs://bucket/path/to/folder/document.json
# gcs_uri = "gs://bucket/path/to/folder/document.json"

# Or, given a Document JSON in path local/path/to/folder/document.json
# document_path = "local/path/to/folder/document.json"

# Or, given a Document object from Document AI
# documentai_document = documentai.Document()

# Or, given a BatchProcessMetadata object from Document AI
# operation = client.batch_process_documents(request)
# operation.result(timeout=timeout)
# batch_process_metadata = documentai.BatchProcessMetadata(operation.metadata)

# Or, given a BatchProcessOperation name from Document AI
# batch_process_operation = "projects/project_id/locations/location/operations/operation_id"


def quickstart_sample(
    gcs_bucket_name: Optional[str] = None,
    gcs_prefix: Optional[str] = None,
    gcs_uri: Optional[str] = None,
    document_path: Optional[str] = None,
    documentai_document: Optional[documentai.Document] = None,
    batch_process_metadata: Optional[documentai.BatchProcessMetadata] = None,
    batch_process_operation: Optional[str] = None,
) -> document.Document:
    if gcs_bucket_name and gcs_prefix:
        # Load from Google Cloud Storage Directory
        print("Document structure in Cloud Storage")
        gcs_utilities.print_gcs_document_tree(
            gcs_bucket_name=gcs_bucket_name, gcs_prefix=gcs_prefix
        )

        wrapped_document = document.Document.from_gcs(
            gcs_bucket_name=gcs_bucket_name, gcs_prefix=gcs_prefix
        )
    elif gcs_uri:
        # Load a single Document from a Google Cloud Storage URI
        wrapped_document = document.Document.from_gcs_uri(gcs_uri=gcs_uri)
    elif document_path:
        # Load from local `Document` JSON file
        wrapped_document = document.Document.from_document_path(document_path)
    elif documentai_document:
        # Load from `documentai.Document` object
        wrapped_document = document.Document.from_documentai_document(
            documentai_document
        )
    elif batch_process_metadata:
        # Load Documents from `BatchProcessMetadata` object
        wrapped_documents = document.Document.from_batch_process_metadata(
            metadata=batch_process_metadata
        )
        wrapped_document = wrapped_documents[0]
    elif batch_process_operation:
        wrapped_documents = document.Document.from_batch_process_operation(
            location="us", operation_name=batch_process_operation
        )
        wrapped_document = wrapped_documents[0]
    else:
        raise ValueError("No document source provided.")

    # For all properties and methods, refer to:
    # https://cloud.google.com/python/docs/reference/documentai-toolbox/latest/google.cloud.documentai_toolbox.wrappers.document.Document

    print("Document Successfully Loaded!")
    print(f"\t Number of Pages: {len(wrapped_document.pages)}")
    print(f"\t Number of Entities: {len(wrapped_document.entities)}")

    for page in wrapped_document.pages:
        print(f"Page {page.page_number}")
        for block in page.blocks:
            print(block.text)
        for paragraph in page.paragraphs:
            print(paragraph.text)
        for line in page.lines:
            print(line.text)
        for token in page.tokens:
            print(token.text)

        # Only supported with Form Parser processor
        # https://cloud.google.com/document-ai/docs/form-parser
        for form_field in page.form_fields:
            print(f"{form_field.field_name} : {form_field.field_value}")

        # Only supported with Enterprise Document OCR version `pretrained-ocr-v2.0-2023-06-02`
        # https://cloud.google.com/document-ai/docs/process-documents-ocr#enable_symbols
        for symbol in page.symbols:
            print(symbol.text)

        # Only supported with Enterprise Document OCR version `pretrained-ocr-v2.0-2023-06-02`
        # https://cloud.google.com/document-ai/docs/process-documents-ocr#math_ocr
        for math_formula in page.math_formulas:
            print(math_formula.text)

    # Only supported with Entity Extraction processors
    # https://cloud.google.com/document-ai/docs/processors-list
    for entity in wrapped_document.entities:
        print(f"{entity.type_} : {entity.mention_text}")
        if entity.normalized_text:
            print(f"\tNormalized Text: {entity.normalized_text}")

    # Only supported with Layout Parser
    for chunk in wrapped_document.chunks:
        print(f"Chunk {chunk.chunk_id}: {chunk.content}")

    for block in wrapped_document.document_layout_blocks:
        print(f"Document Layout Block {block.block_id}")

        if block.text_block:
            print(f"{block.text_block.type_}: {block.text_block.text}")
        if block.list_block:
            print(f"{block.list_block.type_}: {block.list_block.list_entries}")
        if block.table_block:
            print(block.table_block.header_rows, block.table_block.body_rows)

Tablas

from google.cloud.documentai_toolbox import document

# TODO(developer): Uncomment these variables before running the sample.
# Given a local document.proto or sharded document.proto in path
# document_path = "path/to/local/document.json"
# output_file_prefix = "output/table"


def table_sample(document_path: str, output_file_prefix: str) -> None:
    wrapped_document = document.Document.from_document_path(document_path=document_path)

    print("Tables in Document")
    for page in wrapped_document.pages:
        for table_index, table in enumerate(page.tables):
            # Convert table to Pandas Dataframe
            # Refer to https://pandas.pydata.org/docs/reference/frame.html for all supported methods
            df = table.to_dataframe()
            print(df)

            output_filename = f"{output_file_prefix}-{page.page_number}-{table_index}"

            # Write Dataframe to CSV file
            df.to_csv(f"{output_filename}.csv", index=False)

            # Write Dataframe to HTML file
            df.to_html(f"{output_filename}.html", index=False)

            # Write Dataframe to Markdown file
            df.to_markdown(f"{output_filename}.md", index=False)

Exportación a BigQuery

from google.cloud.documentai_toolbox import document

# TODO(developer): Uncomment these variables before running the sample.
# Given a document.proto or sharded document.proto in path gs://bucket/path/to/folder
# gcs_bucket_name = "bucket"
# gcs_prefix = "path/to/folder"
# dataset_name = "test_dataset"
# table_name = "test_table"
# project_id = "YOUR_PROJECT_ID"


def entities_to_bigquery_sample(
    gcs_bucket_name: str,
    gcs_prefix: str,
    dataset_name: str,
    table_name: str,
    project_id: str,
) -> None:
    wrapped_document = document.Document.from_gcs(
        gcs_bucket_name=gcs_bucket_name, gcs_prefix=gcs_prefix
    )

    job = wrapped_document.entities_to_bigquery(
        dataset_name=dataset_name, table_name=table_name, project_id=project_id
    )

    # Also supported:
    # job = wrapped_document.form_fields_to_bigquery(
    #     dataset_name=dataset_name, table_name=table_name, project_id=project_id
    # )

    print("Document entities loaded into BigQuery")
    print(f"Job ID: {job.job_id}")
    print(f"Table: {job.destination.path}")

PDF dividido

from google.cloud.documentai_toolbox import document

# TODO(developer): Uncomment these variables before running the sample.
# Given a local document.proto or sharded document.proto from a splitter/classifier in path
# document_path = "path/to/local/document.json"
# pdf_path = "path/to/local/document.pdf"
# output_path = "resources/output/"


def split_pdf_sample(document_path: str, pdf_path: str, output_path: str) -> None:
    wrapped_document = document.Document.from_document_path(document_path=document_path)

    output_files = wrapped_document.split_pdf(
        pdf_path=pdf_path, output_path=output_path
    )

    print("Document Successfully Split")
    for output_file in output_files:
        print(output_file)

Extracción de imágenes

from google.cloud.documentai_toolbox import document

# TODO(developer): Uncomment these variables before running the sample.
# Given a local document.proto or sharded document.proto from an identity processor in path
# document_path = "path/to/local/document.json"
# output_path = "resources/output/"
# output_file_prefix = "exported_photo"
# output_file_extension = "png"


def export_images_sample(
    document_path: str,
    output_path: str,
    output_file_prefix: str,
    output_file_extension: str,
) -> None:
    wrapped_document = document.Document.from_document_path(document_path=document_path)

    output_files = wrapped_document.export_images(
        output_path=output_path,
        output_file_prefix=output_file_prefix,
        output_file_extension=output_file_extension,
    )
    print("Images Successfully Exported")
    for output_file in output_files:
        print(output_file)

Conversión de visión

from google.cloud.documentai_toolbox import document

# TODO(developer): Uncomment these variables before running the sample.
# Given a document.proto or sharded document.proto in path gs://bucket/path/to/folder
# gcs_bucket_name = "bucket"
# gcs_prefix = "path/to/folder"


def convert_document_to_vision_sample(
    gcs_bucket_name: str,
    gcs_prefix: str,
) -> None:
    wrapped_document = document.Document.from_gcs(
        gcs_bucket_name=gcs_bucket_name, gcs_prefix=gcs_prefix
    )

    # Converting wrapped_document to vision AnnotateFileResponse
    annotate_file_response = (
        wrapped_document.convert_document_to_annotate_file_response()
    )

    print("Document converted to AnnotateFileResponse!")
    print(
        f"Number of Pages : {len(annotate_file_response.responses[0].full_text_annotation.pages)}"
    )

Conversión hOCR

from google.cloud.documentai_toolbox import document

# TODO(developer): Uncomment these variables before running the sample.
# Given a document.proto or sharded document.proto in path gs://bucket/path/to/folder
# document_path = "path/to/local/document.json"
# document_title = "your-document-title"


def convert_document_to_hocr_sample(document_path: str, document_title: str) -> str:
    wrapped_document = document.Document.from_document_path(document_path=document_path)

    # Converting wrapped_document to hOCR format
    hocr_string = wrapped_document.export_hocr_str(title=document_title)

    print("Document converted to hOCR!")
    return hocr_string

Conversión de terceros

from google.cloud.documentai_toolbox import converter

# TODO(developer): Uncomment these variables before running the sample.
# This sample will convert external annotations to the Document.json format used by Document AI Workbench for training.
# To process this the external annotation must have these type of objects:
#       1) Type
#       2) Text
#       3) Bounding Box (bounding boxes must be 1 of the 3 optional types)
#
# This is the bare minimum requirement to convert the annotations but for better accuracy you will need to also have:
#       1) Document width & height
#
# Bounding Box Types:
#   Type 1:
#       bounding_box:[{"x":1,"y":2},{"x":2,"y":2},{"x":2,"y":3},{"x":1,"y":3}]
#   Type 2:
#       bounding_box:{ "Width": 1, "Height": 1, "Left": 1, "Top": 1}
#   Type 3:
#       bounding_box: [1,2,2,2,2,3,1,3]
#
#   Note: If these types are not sufficient you can propose a feature request or contribute the new type and conversion functionality.
#
# Given a folders in gcs_input_path with the following structure :
#
# gs://path/to/input/folder
#   ├──test_annotations.json
#   ├──test_config.json
#   └──test.pdf
#
# An example of the config is in sample-converter-configs/Azure/form-config.json
#
# location = "us",
# processor_id = "my_processor_id"
# gcs_input_path = "gs://path/to/input/folder"
# gcs_output_path = "gs://path/to/input/folder"


def convert_external_annotations_sample(
    location: str,
    processor_id: str,
    project_id: str,
    gcs_input_path: str,
    gcs_output_path: str,
) -> None:
    converter.convert_from_config(
        project_id=project_id,
        location=location,
        processor_id=processor_id,
        gcs_input_path=gcs_input_path,
        gcs_output_path=gcs_output_path,
    )

Lotes de documentos

from google.cloud import documentai
from google.cloud.documentai_toolbox import gcs_utilities

# TODO(developer): Uncomment these variables before running the sample.
# Given unprocessed documents in path gs://bucket/path/to/folder
# gcs_bucket_name = "bucket"
# gcs_prefix = "path/to/folder"
# batch_size = 50


def create_batches_sample(
    gcs_bucket_name: str,
    gcs_prefix: str,
    batch_size: int = 50,
) -> None:
    # Creating batches of documents for processing
    batches = gcs_utilities.create_batches(
        gcs_bucket_name=gcs_bucket_name, gcs_prefix=gcs_prefix, batch_size=batch_size
    )

    print(f"{len(batches)} batch(es) created.")
    for batch in batches:
        print(f"{len(batch.gcs_documents.documents)} files in batch.")
        print(batch.gcs_documents.documents)

        # Use as input for batch_process_documents()
        # Refer to https://cloud.google.com/document-ai/docs/send-request
        # for how to send a batch processing request
        request = documentai.BatchProcessRequest(
            name="processor_name", input_documents=batch
        )
        print(request)

Combinar fragmentos de documentos

from google.cloud import documentai
from google.cloud.documentai_toolbox import document

# TODO(developer): Uncomment these variables before running the sample.
# Given a document.proto or sharded document.proto in path gs://bucket/path/to/folder
# gcs_bucket_name = "bucket"
# gcs_prefix = "path/to/folder"
# output_file_name = "path/to/folder/file.json"


def merge_document_shards_sample(
    gcs_bucket_name: str, gcs_prefix: str, output_file_name: str
) -> None:
    wrapped_document = document.Document.from_gcs(
        gcs_bucket_name=gcs_bucket_name, gcs_prefix=gcs_prefix
    )

    merged_document = wrapped_document.to_merged_documentai_document()

    with open(output_file_name, "w") as f:
        f.write(documentai.Document.to_json(merged_document))

    print(f"Document with {len(wrapped_document.shards)} shards successfully merged.")
