Copiar versiones de procesador y conjuntos de datos entre proyectos

En esta página se indican los pasos para copiar versiones de procesadores entrenados de Document AI de un proyecto a otro, junto con el esquema del conjunto de datos y las muestras del procesador de origen al de destino. Estos pasos automatizan el proceso de importar la versión del procesador, desplegarla y definirla como la versión predeterminada en el proyecto de destino.

Antes de empezar

Obtén un Google Cloud ID de proyecto.
Tener el ID del procesador de Document AI.
Tener Cloud Storage.
Usa Python: cuaderno de Jupyter (Vertex AI).
Necesita permisos para dar acceso a la cuenta de servicio en los proyectos de origen y de destino.

Procedimiento paso a paso

El procedimiento se describe en los siguientes pasos.

Paso 1: Identifica la cuenta de servicio asociada a Vertex AI Notebook

!gcloud config list account

Resultado:

[core]
account = example@automl-project.iam.gserviceaccount.com

Your active configuration is: [default]

Paso 2: Concede los permisos necesarios a la cuenta de servicio

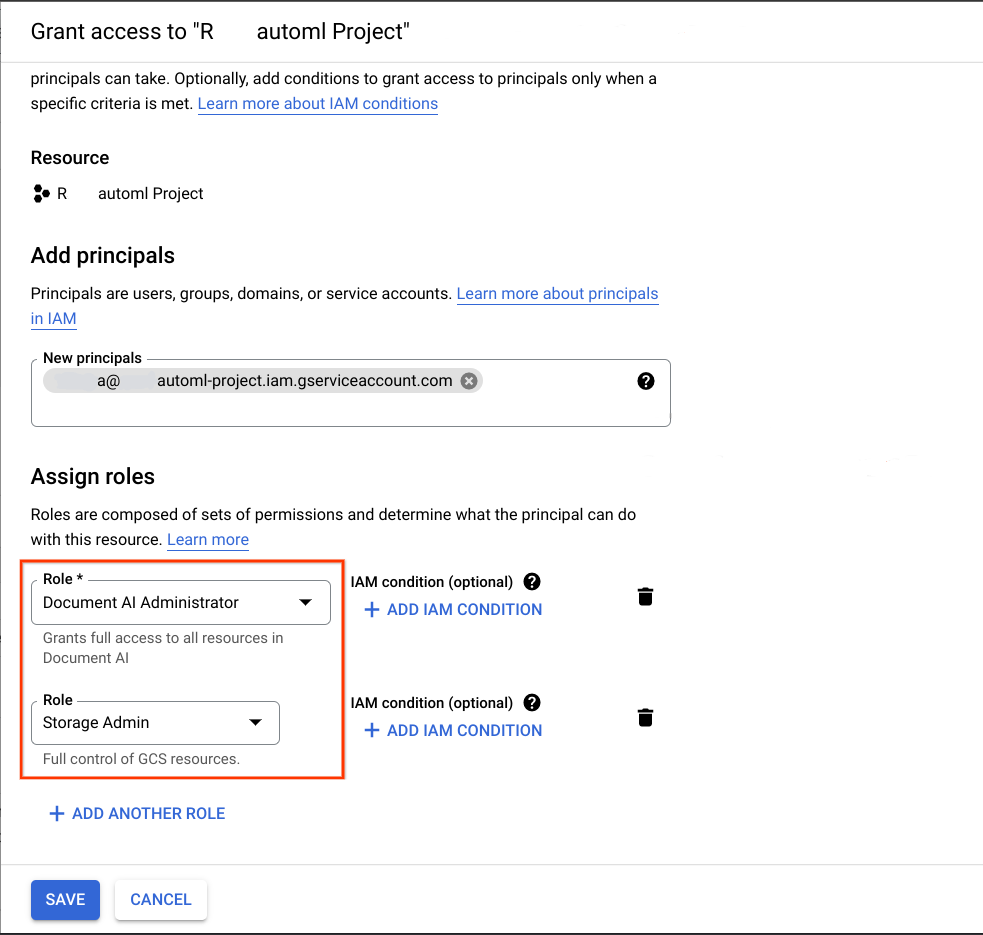

En el Google Cloud proyecto que será el destino de la migración, añade la cuenta de servicio que has obtenido en el paso anterior como principal y asigna los dos roles siguientes:

Administrador de Document AI
Administrador de Storage

Consulta más información en los artículos Asignar roles a cuentas de servicio y Claves de cifrado gestionadas por el cliente (CMEK).

processor-version-migrate-1

Para que la migración funcione, la cuenta de servicio usada para ejecutar este cuaderno debe tener lo siguiente:

Roles en los proyectos de origen y de destino para crear el segmento del conjunto de datos (o crearlo si no existe) y permisos de lectura y escritura para todos los objetos.
Rol Editor de Document AI en el proyecto de origen, tal como se describe en Importar una versión de procesador.

Descarga una clave JSON de la cuenta de servicio para poder autenticarte y autorizarte como cuenta de servicio. Para obtener más información, consulta el artículo Claves de cuentas de servicio.

Ve a la cuenta de servicio.
Selecciona la cuenta de servicio que vaya a realizar esta tarea.
Ve a la pestaña Claves, haz clic en Add Key y, a continuación, selecciona Crear clave.
Selecciona el tipo de clave (preferiblemente JSON).
Haz clic en Create y descarga el archivo en una ruta específica.
Actualiza la ruta en la variable service_account_key del siguiente fragmento.

service_account_key='path_to_sa_key.json'

from google.oauth2 import service_account
from google.cloud import storage

# Authenticate the service account
credentials = service_account.Credentials.from_service_account_file(
    service_account_key
)

# pass this credentials variable to all client initializations
# storage_client = storage.Client(credentials=credentials)
# docai_client = documentai.DocumentProcessorServiceClient(credentials=credentials)

Paso 3: Importa bibliotecas

import time
from pathlib import Path
from typing import Optional, Tuple
from google.cloud.documentai_v1beta3.services.document_service import pagers
from google.api_core.client_options import ClientOptions
from google.api_core.operation import Operation
from google.cloud import documentai_v1beta3 as documentai
from google.cloud import storage
from tqdm import tqdm

Paso 4: Introduce los detalles

source_project_id proporciona el ID del proyecto de origen.
source_location: proporciona la ubicación del procesador de origen (us o eu).
source_processor_id proporcione el ID del procesador de Document AI. Google Cloud
source_processor_version_to_import: proporcione el ID de la versión del procesador de Document AI de la versión entrenada. Google Cloud
migrate_dataset: proporcione el valor True o False. Si quiere migrar el conjunto de datos del procesador de origen al de destino, proporcione el valor True. De lo contrario, proporcione el valor False. El valor predeterminado es False.
source_exported_gcs_path proporciona la ruta de Cloud Storage para almacenar archivos JSON.
destination_project_id indica el ID del proyecto de destino.
destination_processor_id proporcione el ID del procesador de Document AI, ya sea "" o processor_id, del proyecto de destino. Google Cloud

source_project_id = "source-project-id"
source_location = "processor-location"
source_processor_id = "source-processor-id"
source_processor_version_to_import = "source-processor-version-id"
migrate_dataset = False  # Either True or False
source_exported_gcs_path = (
    "gs://bucket/path/to/export_dataset/"
)
destination_project_id = "< destination-project-id >"
# Give an empty string if you wish to create a new processor
destination_processor_id = ""

Paso 5: Ejecuta el código

import time
from pathlib import Path
from typing import Optional, Tuple
from google.cloud.documentai_v1beta3.services.document_service import pagers
from google.api_core.client_options import ClientOptions
from google.api_core.operation import Operation
from google.cloud import documentai_v1beta3 as documentai
from google.cloud import storage
from tqdm import tqdm

source_project_id = "source-project-id"
source_location = "processor-location"
source_processor_id = "source-processor-id"
source_processor_version_to_import = "source-processor-version-id"
migrate_dataset = False # Either True or False
source_exported_gcs_path = (
    "gs://bucket/path/to/export_dataset/"
)
destination_project_id = "< destination-project-id >"
# Give empty string if you wish to create a new processor
destination_processor_id = ""

exported_bucket_name = source_exported_gcs_path.split("/")[2]
exported_bucket_path_prefix = "/".join(source_exported_gcs_path.split("/")[3:])
destination_location = source_location

def sample_get_processor(project_id: str, processor_id: str, location: str)->Tuple[str, str]:
    """
    This function returns Processor Display Name and Type of Processor from source project

    Args:
        project_id (str): Project ID
        processor_id (str): Document AI Processor ID
        location (str): Processor Location

    Returns:
        Tuple[str, str]: Returns Processor Display name and type
    """
    client = documentai.DocumentProcessorServiceClient()
    print(
        f"Fetching processor({processor_id}) details from source project ({project_id})"
    )
    name = f"projects/{project_id}/locations/{location}/processors/{processor_id}"
    request = documentai.GetProcessorRequest(
        name=name,
    )
    response = client.get_processor(request=request)
    print(f"Processor Name: {response.name}")
    print(f"Processor Display Name: {response.display_name}")
    print(f"Processor Type: {response.type_}")
    return response.display_name, response.type_

def sample_create_processor(project_id: str, location: str, display_name: str, processor_type: str)->documentai.Processor:
    """It will create Processor in Destination project

    Args:
        project_id (str): Project ID
        location (str): Location fo processor
        display_name (str): Processor Display Name
        processor_type (str): Google Cloud Document AI Processor type

    Returns:
        documentai.Processor: Returns details abouts newly created processor
    """

    client = documentai.DocumentProcessorServiceClient()
    request = documentai.CreateProcessorRequest(
        parent=f"projects/{project_id}/locations/{location}",
        processor={
            "type_": processor_type,
            "display_name": display_name,
        },
    )
    print(f"Creating Processor in project: {project_id} in location: {location}")
    print(f"Display Name: {display_name} & Processor Type: {processor_type}")
    res = client.create_processor(request=request)
    return res

def initialize_dataset(project_id: str, processor_id: str, location: str)-> Operation:
    """It will configure dataset for target processor in destination project

    Args:
        project_id (str): Project ID
        processor_id (str): DocuemntAI Processor ID
        location (str): Processor Location

    Returns:
        Operation: An object representing a long-running operation
    """

    # opts = ClientOptions(api_endpoint=f"{location}-documentai.googleapis.com")
    client = documentai.DocumentServiceClient()  # client_options=opts
    dataset = documentai.types.Dataset(
        name=f"projects/{project_id}/locations/{location}/processors/{processor_id}/dataset",
        state=3,
        unmanaged_dataset_config={},
        spanner_indexing_config={},
    )
    request = documentai.types.UpdateDatasetRequest(dataset=dataset)
    print(
        f"Configuring Dataset in  project: {project_id} for processor: {processor_id}"
    )
    response = client.update_dataset(request=request)
    return response

def get_dataset_schema(project_id: str, processor_id: str, location: str)->documentai.DatasetSchema:
    """It helps to fetch processor schema

    Args:
        project_id (str): Project ID
        processor_id (str): DocumentAI Processor ID
        location (str): Processor Location

    Returns:
        documentai.DatasetSchema: Return deails about Processor Dataset Schema
    """

    # Create a client
    processor_name = (
        f"projects/{project_id}/locations/{location}/processors/{processor_id}"
    )
    client = documentai.DocumentServiceClient()
    request = documentai.GetDatasetSchemaRequest(
        name=processor_name + "/dataset/datasetSchema"
    )
    # Make the request
    print(f"Fetching schema from source processor: {processor_id}")
    response = client.get_dataset_schema(request=request)
    return response

def upload_dataset_schema(schema: documentai.DatasetSchema)->documentai.DatasetSchema:
    """It helps to update the schema in destination processor

    Args:
        schema (documentai.DatasetSchema): Document AI Processor Schema details & Metadata

    Returns:
        documentai.DatasetSchema: Returns Dataset Schema object
    """

    client = documentai.DocumentServiceClient()
    request = documentai.UpdateDatasetSchemaRequest(dataset_schema=schema)
    print("Updating Schema in destination processor")
    res = client.update_dataset_schema(request=request)
    return res

def store_document_as_json(document: str, bucket_name: str, file_name: str)->None:
    """It helps to upload data to Cloud Storage and stores as a blob

    Args:
        document (str): Processor response in json string format
        bucket_name (str): Cloud Storage bucket name
        file_name (str): Cloud Storage blob uri
    """

    print(f"\tUploading file to Cloud Storage gs://{bucket_name}/{file_name}")
    storage_client = storage.Client()
    process_result_bucket = storage_client.get_bucket(bucket_name)
    document_blob = storage.Blob(
        name=str(Path(file_name)), bucket=process_result_bucket
    )
    document_blob.upload_from_string(document, content_type="application/json")

def list_documents(project_id: str, location: str, processor: str, page_size: Optional[int]=100, page_token: Optional[str]="")->pagers.ListDocumentsPager:
    """This function helps to list the samples present in processor dataset

    Args:
        project_id (str): Project ID
        location (str): Processor Location
        processor (str): DocumentAI Processor ID
        page_size (Optional[int], optional): The maximum number of documents to return. Defaults to 100.
        page_token (Optional[str], optional): A page token, received from a previous ListDocuments call. Defaults to "".

    Returns:
        pagers.ListDocumentsPager: Returns all details about documents present in Processor Dataset
    """
    client = documentai.DocumentServiceClient()
    dataset = (
        f"projects/{project_id}/locations/{location}/processors/{processor}/dataset"
    )
    request = documentai.types.ListDocumentsRequest(
        dataset=dataset,
        page_token=page_token,
        page_size=page_size,
        return_total_size=True,
    )
    print(f"Listingll  documents/Samples present in processor: {processor}")
    operation = client.list_documents(request)
    return operation

def get_document(project_id: str, location: str, processor: str, doc_id: documentai.DocumentId)->documentai.GetDocumentResponse:
    """It will fetch data for individual sample/document present in dataset

    Args:
        project_id (str): Project ID
        location (str): Processor Location
        processor (str): Document AI Processor ID
        doc_id (documentai.DocumentId): Document identifier

    Returns:
        documentai.GetDocumentResponse: Returns data related to doc_id
    """

    client = documentai.DocumentServiceClient()
    dataset = (
        f"projects/{project_id}/locations/{location}/processors/{processor}/dataset"
    )
    request = documentai.GetDocumentRequest(dataset=dataset, document_id=doc_id)
    operation = client.get_document(request)
    return operation

def import_documents(project_id: str, processor_id: str, location: str, gcs_path: str)->Operation:
    """It helps to import samples/docuemnts from Cloud Storage path to processor via API call

    Args:
        project_id (str): Project ID
        processor_id (str): Document AI Processor ID
        location (str): Processor Location
        gcs_path (str): Cloud Storage path uri prefix

    Returns:
        Operation: An object representing a long-running operation
    """

    client = documentai.DocumentServiceClient()
    dataset = (
        f"projects/{project_id}/locations/{location}/processors/{processor_id}/dataset"
    )
    request = documentai.ImportDocumentsRequest(
        dataset=dataset,
        batch_documents_import_configs=[
            {
                "dataset_split": "DATASET_SPLIT_TRAIN",
                "batch_input_config": {
                    "gcs_prefix": {"gcs_uri_prefix": gcs_path + "train/"}
                },
            },
            {
                "dataset_split": "DATASET_SPLIT_TEST",
                "batch_input_config": {
                    "gcs_prefix": {"gcs_uri_prefix": gcs_path + "test/"}
                },
            },
            {
                "dataset_split": "DATASET_SPLIT_UNASSIGNED",
                "batch_input_config": {
                    "gcs_prefix": {"gcs_uri_prefix": gcs_path + "unassigned/"}
                },
            },
        ],
    )
    print(
        f"Importing Documents/samples from {gcs_path} to corresponding tran_test_unassigned sections"
    )
    response = client.import_documents(request=request)
    return response

def import_processor_version(source_processor_version_name: str, destination_processor_name: str)->Operation:
    """It helps to import processor version from source processor to destanation processor

    Args:
        source_processor_version_name (str): source processor name in this format projects/{project}/locations/{location}/processors/{processor}
        destination_processor_name (str): destination processor name in this format projects/{project}/locations/{location}/processors/{processor}

    Returns:
        Operation: An object representing a long-running operation
    """

    from google.cloud import documentai_v1beta3

    # provide the source version(to copy) processor details in the following format
    client = documentai_v1beta3.DocumentProcessorServiceClient()
    # provide the new processor name in the parent variable in format 'projects/{project_number}/locations/{location}/processors/{new_processor_id}'
    import google.cloud.documentai_v1beta3 as documentai

    op_import_version_req = (
        documentai.types.document_processor_service.ImportProcessorVersionRequest(
            processor_version_source=source_processor_version_name,
            parent=destination_processor_name,
        )
    )

    print("Importing processor from source to destination")
    print(f"\tSource: {source_processor_version_name}")
    print(f"\tDestination: {destination_processor_name}")
    # copying the processor
    operation = client.import_processor_version(request=op_import_version_req)
    print(operation.metadata)
    print("Waitin for operation to complete...")
    operation.result()
    return operation

def deploy_and_set_default_processor_version(
    project_id: str, location: str, processor_id: str, processor_version_id: str
)->None:
    """It helps to deploy to imported processor version and set it as default version

    Args:
        project_id (str): Project ID
        location (str): Processor Location
        processor_id (str): Document AI Processor ID
        processor_version_id (str): Document AI Processor Version ID
    """

    # Construct the resource name of the processor version
    processor_name = (
        f"projects/{project_id}/locations/{location}/processors/{processor_id}"
    )
    default_processor_version_name = f"projects/{project_id}/locations/{location}/processors/{processor_id}/processorVersions/{processor_version_id}"

    # Initialize the Document AI client
    client_options = ClientOptions(api_endpoint=f"{location}-documentai.googleapis.com")
    client = documentai.DocumentProcessorServiceClient(client_options=client_options)

    # Deploy the processor version
    operation = client.deploy_processor_version(name=default_processor_version_name)
    print(f"Deploying processor version: {operation.operation.name}")
    print("Waiting for operation to complete...")
    result = operation.result()
    print("Processor version deployed")
    # Set the deployed version as the default version
    request = documentai.SetDefaultProcessorVersionRequest(
        processor=processor_name,
        default_processor_version=default_processor_version_name,
    )
    operation = client.set_default_processor_version(request=request)
    print(f"Setting default processor version: {operation.operation.name}")
    operation.result()
    print(f"Default processor version set {default_processor_version_name}")

def main(destination_processor_id: str, migrate_dataset: bool = False)->None:
    """Entry function to perform Processor Migration from Source Project to Destination project

    Args:
        destination_processor_id (str): Either empty string or processor id in desination project
    """
    # Checking processor id of destination project
    if destination_processor_id == "":
        # Fetching Processor Display Name and Type of Processor from source project
        display_name, processor_type = sample_get_processor(
            source_project_id, source_processor_id, source_location
        )
        # Creating Processor in Destination project
        des_processor = sample_create_processor(
            destination_project_id, destination_location, display_name, processor_type
        )
        print(des_processor)
        destination_processor_id = des_processor.name.split("/")[-1]
        # configuring dataset for target processor in destination project
        r = initialize_dataset(
            destination_project_id, destination_processor_id, destination_location
        )
    # fetching processor schema from source processor
    exported_schema = get_dataset_schema(
        source_project_id, source_processor_id, source_location
    )
    exported_schema.name = f"projects/{destination_project_id}/locations/{destination_location}/processors/{destination_processor_id}/dataset/datasetSchema"
    # Copying schema from source processor to desination processor
    import_schema = upload_dataset_schema(exported_schema)
    if migrate_dataset == True: # to migrate dataset from source to destination processor
        print("Migrating Dataset from source to destination processor")
        # Fetching/listing the samples/JSONs present in source processor dataset
        results = list_documents(source_project_id, source_location, source_processor_id)
        document_list = results.document_metadata
        while len(document_list) != results.total_size:
            page_token = results.next_page_token
            results = list_documents(
                source_project_id,
                source_location,
                source_processor_id,
                page_token=page_token,
            )
            document_list.extend(results.document_metadata)
        print("Exporting Dataset...")
        for doc in tqdm(document_list):
            doc_id = doc.document_id
            split_type = doc.dataset_type
            if split_type == 3:
                split = "unassigned"
            elif split_type == 2:
                split = "test"
            elif split_type == 1:
                split = "train"
            else:
                split = "unknown"
            file_name = doc.display_name
            # fetching/downloading data for individual sample/document present in dataset
            res = get_document(
                source_project_id, source_location, source_processor_id, doc_id
            )
            output_file_name = (
                f"{exported_bucket_path_prefix.strip('/')}/{split}/{file_name}.json"
            )
            # Converting Document AI Proto object to JSON string
            json_data = documentai.Document.to_json(res.document)
            # Uploading JSON data to specified Cloud Storage path
            store_document_as_json(json_data, exported_bucket_name, output_file_name)

        print(f"Importing dataset to {destination_processor_id}")
        gcs_path = source_exported_gcs_path.strip("/") + "/"
        project = destination_project_id
        location = destination_location
        processor = destination_processor_id
        # importing samples/docuemnts from Cloud Storage path to destination processor
        res = import_documents(project, processor, location, gcs_path)
        print(f"Waiting for {len(document_list)*1.5} seconds")
        time.sleep(len(document_list) * 1.5)
    else:
        print("\tSkipping Dataset Migration actions like, exporting source dataset to Cloud Storage and importing dataset to destination processor")

    # Checking for source processor version, if id provided then it will be imported to destination processor
    if source_processor_version_to_import != "":
        print(f"Importing Processor Version {source_processor_version_to_import}")
        source_version = f"projects/{source_project_id}/locations/{source_location}/processors/{source_processor_id}/processorVersions/{source_processor_version_to_import}"
        destination_version = f"projects/{destination_project_id}/locations/{destination_location}/processors/{destination_processor_id}"
        # source_version = f"projects/{source_project_id}/locations/us/processors/a82fc086440d7ea1/processorVersions/f1eeed93aad5e317"  # Data for testing
        # Importing processor version from source processor to destanation processor
        operation = import_processor_version(source_version, destination_version)
        name = operation.metadata.common_metadata.resource
        destination_processor_version_id = name.split("/")[-1]
        # deploying newly imported processor version and set it as default version in desination project
        deploy_and_set_default_processor_version(
            destination_project_id,
            destination_location,
            destination_processor_id,
            destination_processor_version_id,
        )

main(destination_processor_id, migrate_dataset)
print("Process Completed!!!")

Paso 6: Comprueba los detalles de la salida

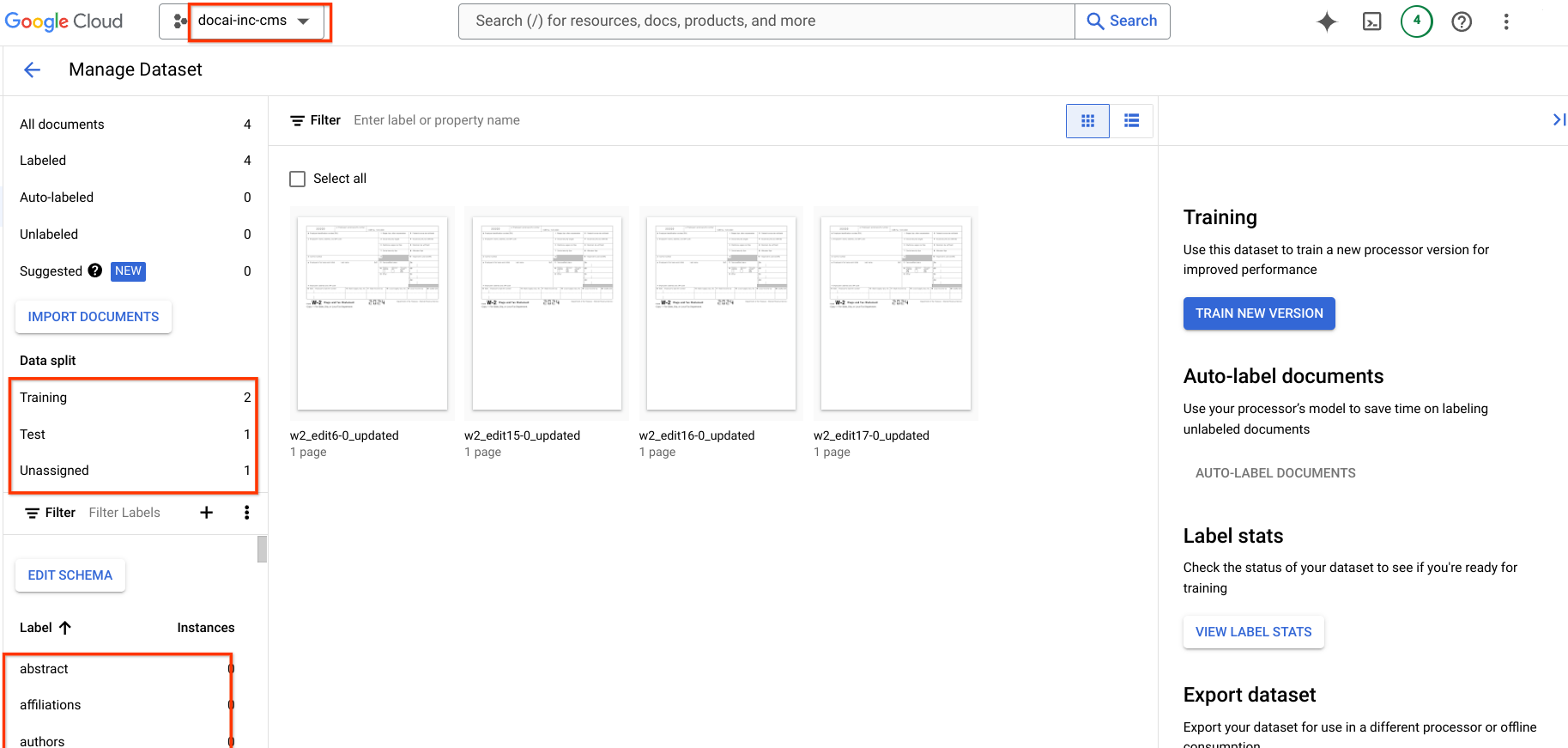

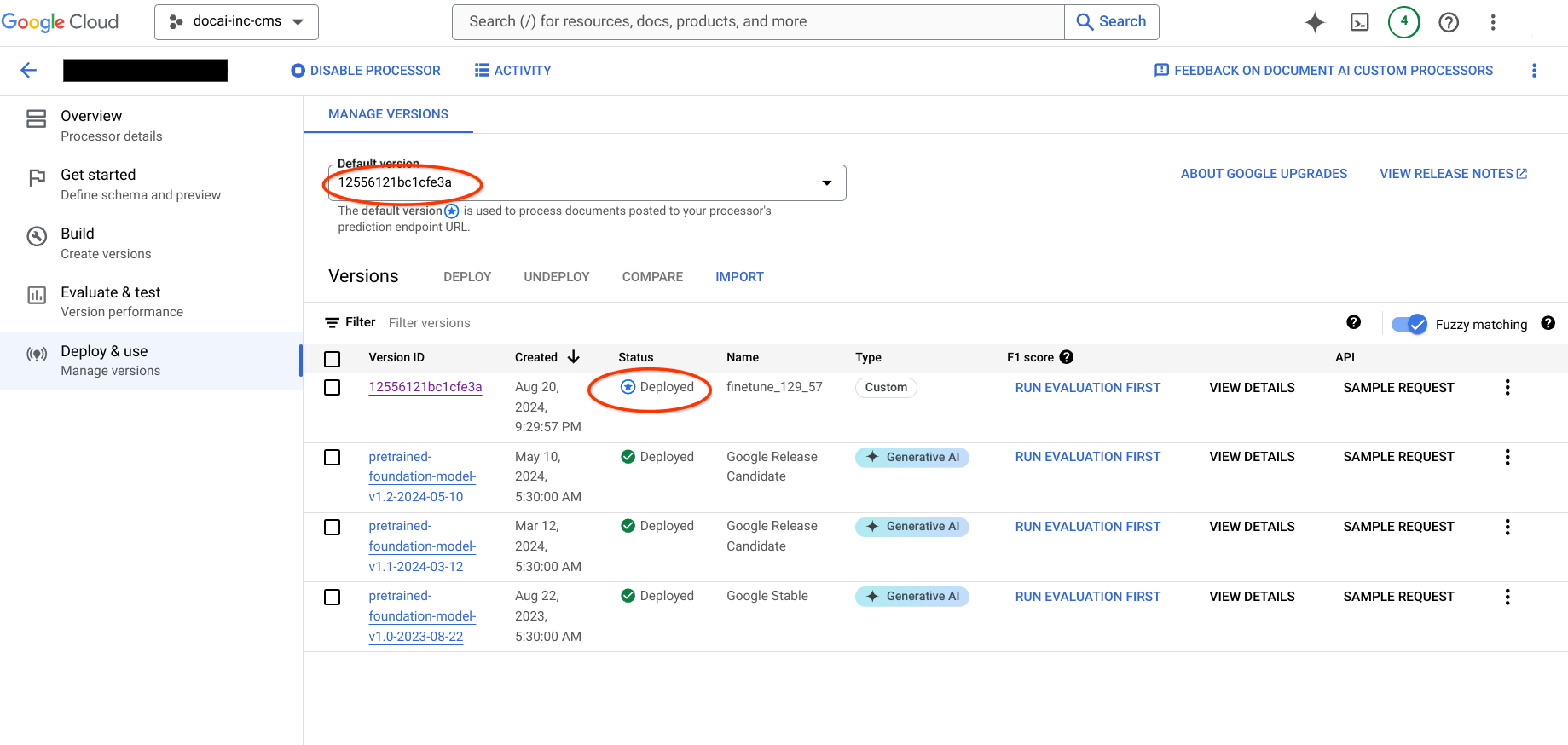

Ve al proyecto de destino y comprueba que se ha creado el procesador, que el conjunto de datos está disponible y que la nueva versión del procesador es la predeterminada.

processor-version-migrate-3

processor-version-migrate-4

Gestionar versiones de procesadores

Copiar versiones de procesador y conjuntos de datos entre proyectos Organízate con las colecciones Guarda y clasifica el contenido según tus preferencias.
