이 페이지에서는 Cortex Framework Data Foundation 내에서 Dun & Bradstreet (D&B) 환경, 사회, 거버넌스 (ESG) 데이터를 기존 SAP 공급업체 실적 데이터와 통합하는 방법을 설명합니다.
Cortex Framework는 데이터 소스의 데이터를 BigQuery를 통한 Dataflow 파이프라인과 통합하는 반면 Cloud Composer는 이러한 Dataflow 파이프라인을 예약하고 모니터링하여 SAP 운영 데이터에서 유용한 정보를 얻습니다.
비즈니스에서 공급업체의 ESG 실적을 파악해야 할 필요성이 점점 커지고 있습니다. 이 통합을 통해 공급업체의 환경 영향, 사회적 책임, 지배구조 관행에 대한 유용한 정보를 얻을 수 있습니다.
D&B ESG 데이터를 Cortex Framework와 연결하면 원자재 공급업체의 ESG 실적을 업계 동종업체와 비교하고, 온실가스 배출량을 측정 및 관리하며, 환경 규정 준수 및 우수한 기업 거버넌스에 대한 노력을 입증할 수 있습니다.
데이터 모델
이 섹션에서는 항목 관계 다이어그램 (ERD)을 사용하여 Dun and Bradstreet (D&B) 데이터 모델을 설명합니다.

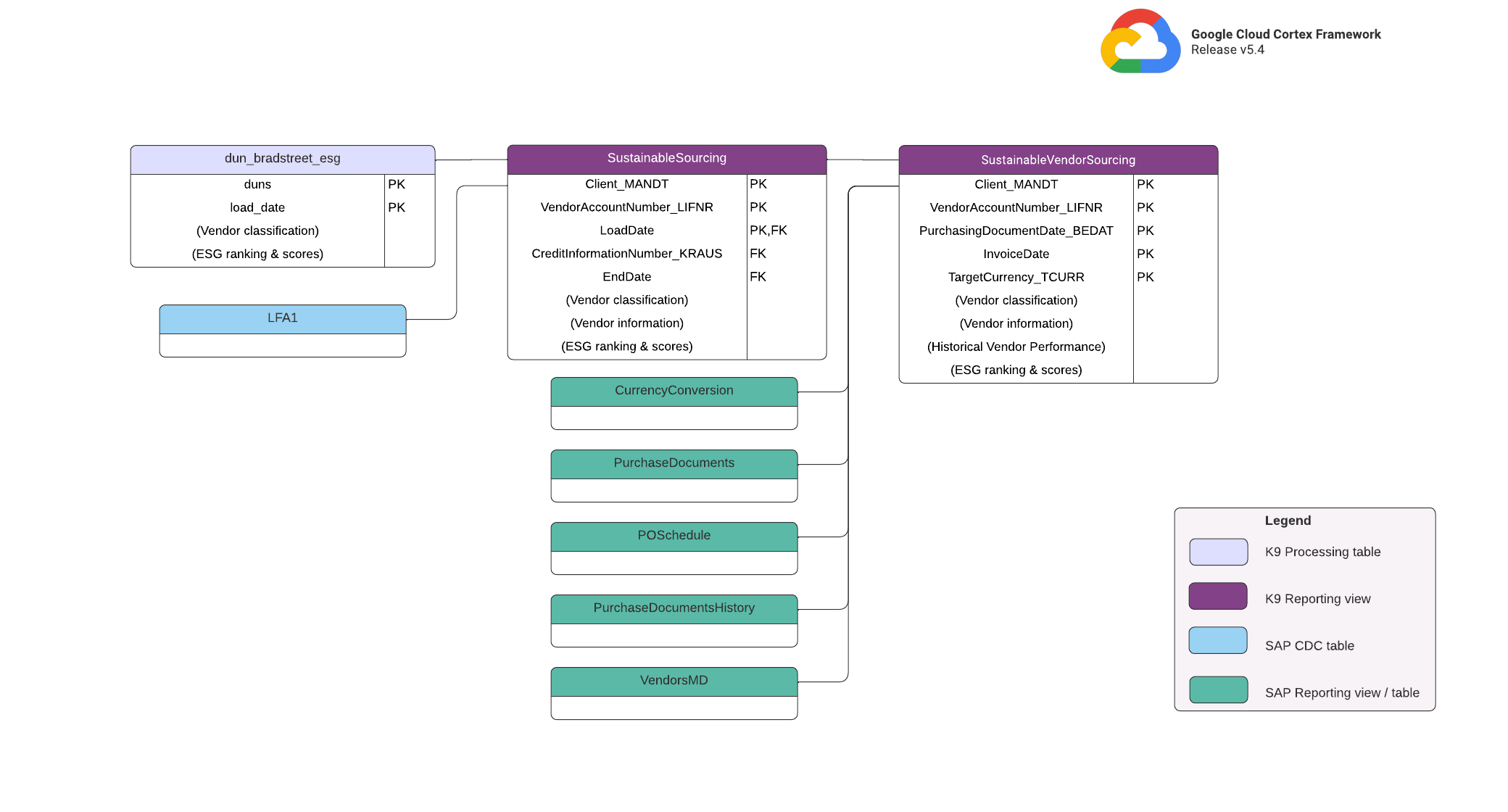

그림 2 Dun & Bradstreet (D&B): 항목 관계 다이어그램
보고 보기
이 모듈에는 K9 Reporting 데이터 세트 (보라색 객체)에 두 가지 BigQuery 뷰가 제공됩니다.
SustainableSourcing는 각 공급업체에 대한 ESG 통계를 제공합니다.
SustainableVendorSourcing는 ESG 통계와 함께 공급업체 실적 통계를 제공합니다.
