Easy HPC clusters on GCP with Slurm

High performance and technical computing is all about scale and speed. Many applications, such as drug discovery and genomics, financial services and image processing require access to a large and diverse set of computing resources on demand. With more and faster computing power, you can convert an idea into a discovery, a hypothesis into a cure or an inspiration into a product. Google Cloud provides the HPC community with on-demand access to large amounts of high-performance resources with Compute Engine. But a challenge remains: how do you harness these powerful resources to execute your HPC jobs quickly, and seamlessly augment an existing HPC cluster with Compute Engine capacity?

To help with this problem, we teamed up with SchedMD to release a preview of tools that makes it easier to launch the Slurm workload manager on Compute Engine, and to expand your existing cluster when you need extra resources. This integration was built by the experts at SchedMD in accordance with Slurm best practices. Slurm is a leading open-source HPC workload manager used often in the TOP500 supercomputers around the world.


With this integration, you can easily launch an auto-scaled Slurm cluster on Compute Engine. The cluster auto-scales according to job requirements and queue depth. Once the Slurm cloud cluster is setup, you can also use Slurm to federate jobs from your on-premises cluster to the Slurm cluster running in Compute Engine. With your HPC cluster in the cloud, you can give each researcher, team or job a dedicated, tailor-fit set of elastic resources so they can focus on solving their problems rather than waiting in queues.


Let’s walk through launching a Slurm cluster on Compute Engine.

Step 1: Grab the Cloud Deployment Manager scripts from SchedMD’s Github repository. Review the included README.md for more information. You may want to customize the deployment manager scripts for your needs. Many cluster parameters can be configured in the included slurm-cluster.yaml file.

At a minimum, you need to edit slurm-cluster.yaml to specify your full GCP account name (i.e. “myuser@mydomain.com”) in default_users.

Step 2: Run the following command from the Cloud Shell or your local terminal with gcloud command installed:

  gcloud deployment-manager deployments create slurm --config
slurm-cluster.yaml

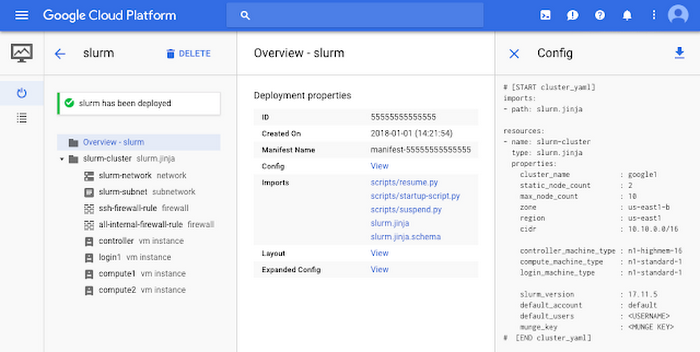

Then, navigate to the Deployment Manager section of the developer console and observe that your deployment is successful.


Step 3: If you navigate to the Compute Engine section of the developer console, you’ll see that Deployment Manager created a number of VM instances for you, among them a Slurm login node. After the VMs are provisioned, Slurm will be installed and configured on the VMs. You can now SSH into the login node by clicking the SSH button in the console or by running gcloud compute ssh google1-controller --zone=us-west1-a (Note: You may need to change the instance name and/or zone if you modified these fields in the slurm-cluster.yaml file).

Once you’ve logged in, you may see a notification informing you that Slurm is still being installed. Please wait for a second notification that installation is complete, and reconnect to the instance to complete the installation. If there is no notification then the installation has already completed.

Once installation is complete you can interact with Slurm and submit jobs as usual using sbatch. For example, copy the sample script below into a new file called slurm-sample1.sh:


  #!/bin/bash
#
#SBATCH --job-name=hostname_sleep_sample
#SBATCH --output=out_%j.txt
#
#SBATCH --nodes=2
srun hostname
sleep 60

Then, submit it with:

  sbatch slurm-sample1.sh

You can then observe the job being distributed to the compute nodes using the sinfo and squeue commands. Notice how if the submitted job requires more resources than initially deployed, new instances will be automatically created, up to the maximum specified in slurm-cluster.yaml. To try this, set #SBATCH --nodes=4 and resubmit the job. Once the ephemeral compute instances are idle for a period of time specified, they'll be deprovisioned.

Note that for your convenience the deployment manager scripts set up NFS as part of the deployment. You may specify another NFS server, such as Google Cloud Filestore, which exists outside of the deployment to support home folders and application data persisting through multiple cluster deployments.

Check out the Slurm Auto-Scaling Cluster

https://codelabs.developers.google.com/codelabs/hpc-slurm-on-gcp

and Slurm Federation Codelabs and the Slurm quick start guide for more info on getting started. See the Github repository’s included README for more information, or contact SchedMD.
