Jib builds containers without using a Dockerfile or requiring a Docker installation. You can use Jib in the Jib plugins for Maven or Gradle, or you can use the Jib Java library.
What does Jib do?
Jib handles all steps of packaging your application into a container image. You don't need to know best practices for creating Dockerfiles or have Docker installed.

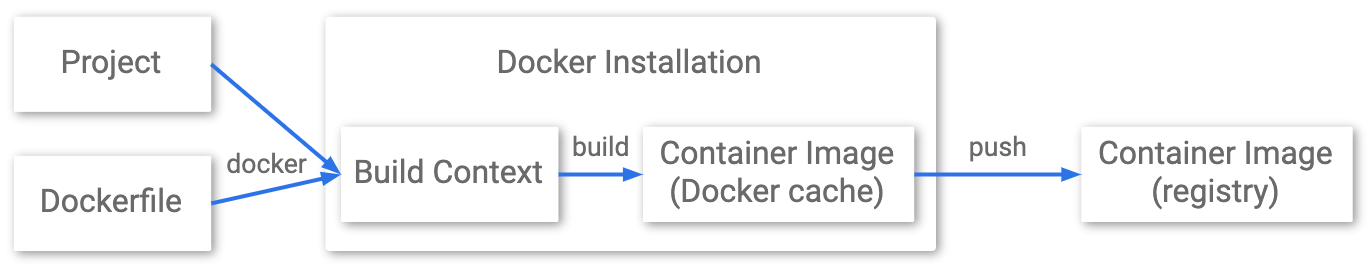

Docker build flow:
![Diagram showing the stages from
project to Container Registry using Docker.](https://cloud.google.com/java/images/docker_build_flow.png?authuser=9)

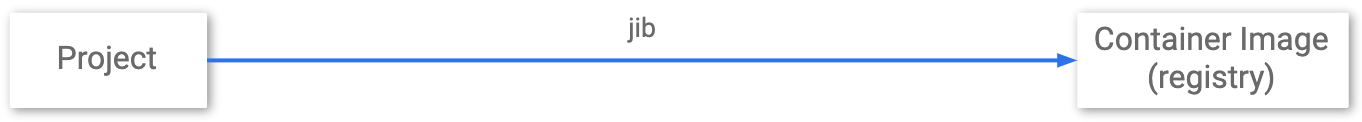

Jib build flow:
![Diagram showing no intermediary
stages from project to container registry using Jib.](https://cloud.google.com/java/images/jib_build_flow.png?authuser=9)
Jib organizes your application into distinct layers; dependencies, resources, and classes; and utilizes Docker image layer caching to keep builds fast by only rebuilding changes. Jib's layer organization and small base image keeps overall image size small which improves performance and portability.
Before you begin
- Sign in to your Google Cloud account. If you're new to Google Cloud, create an account to evaluate how our products perform in real-world scenarios. New customers also get $300 in free credits to run, test, and deploy workloads.
-
In the Google Cloud console, on the project selector page, select or create a Google Cloud project.
-
Make sure that billing is enabled for your Google Cloud project.
-
In the Google Cloud console, on the project selector page, select or create a Google Cloud project.
-
Make sure that billing is enabled for your Google Cloud project.
-
Enable the Container Registry API.
- If you don't have Java, download, install, and configure it.
- Install Maven 3.5 or newer.
- Install and initialize the Google Cloud CLI.
- Authenticate to Container Registry, using the Google Cloud CLI as a
Docker credential helper:
gcloud auth configure-docker
Optionally, refer to Jib configuration documentation for other ways of authenticating.
Building using Jib
Select an existing project and navigate to the source folder or clone the sample with the following command:
git clone https://github.com/GoogleCloudPlatform/java-docs-samples.git cd java-docs-samples/run/helloworld
Add the plugin to your
pom.xml
:<plugin> <groupId>com.google.cloud.tools</groupId> <artifactId>jib-maven-plugin</artifactId> <version>2.8.0</version> <configuration> <to> <image>gcr.io/PROJECT/IMAGE</image> </to> </configuration> </plugin>
Replace
- PROJECT with your Google Cloud project ID.
- IMAGE with your image name.
If you don't want to modify your
pom.xml
, you can use the command:mvn compile com.google.cloud.tools:jib-maven-plugin:3.1.1:build \ -Djib.from.image=eclipse-temurin \ -Djib.to.image=gcr.io/PROJECT/IMAGE
Build and push the image to a container registry:
mvn compile jib:build
You can verify success by viewing your container in your Container Registry.
Optionally, if you have Docker installed, you can build to your local Docker installation, so you can inspect or run the image as any other local container:
mvn compile jib:dockerBuild
Additional customizations
You can customize your Jib builds in similar ways to Dockerfiles, such as adding environment variables and selecting a base image.
Add environment variables
You can add environment variables to your build similar to the ENV
instruction
in a Dockerfile, as follows:
<plugin>
<groupId>com.google.cloud.tools</groupId>
<artifactId>jib-maven-plugin</artifactId>
<version>2.8.0</version>
<configuration>
<to>
<image>gcr.io/PROJECT/IMAGE</image>
</to>
<container>
<environment>
<ENV_VAR>VALUE</ENV_VAR>
</environment>
</container>
</configuration>
</plugin>
Replace
- PROJECT with your Google Cloud project ID.
- IMAGE with your image name.
- ENV_VAR with
NAME
. - VALUE with the desired value.
Now your application will respond with Hello <var>VALUE</var>!
Change the base image
The base image is equivalent to the FROM
instructions in a Dockerfile. The
base image can be updated by changing the field from.image
.
If you would like to include a shell for debugging, set the base image to
alpine:3
or openjdk:VERSION
(if Java is needed).
In order to add system packages, you will have to create a base image with those packages installed. Refer to Building containers for more information.
<plugin>
<groupId>com.google.cloud.tools</groupId>
<artifactId>jib-maven-plugin</artifactId>
<version>2.8.0</version>
<configuration>
<from>
<image>gcr.io/PROJECT/BASE_IMAGE</image>
</from>
<to>
<image>gcr.io/PROJECT/IMAGE_NAME</image>
</to>
</configuration>
</plugin>
Try updating the from.image
field to another Java base image, such as
openjdk:8-alpine
.
Customizing other Java aspects
Jib supports Java runtime configurations that may be needed to run your application. For more customizations, see Extended Usage.
Shipping the code
Setting up gcloud defaults
To configure gcloud with defaults for your Cloud Run service:
Set your default project:
gcloud config set project PROJECT_ID
Replace PROJECT_ID with the name of the project you created for this tutorial.
Configure gcloud for your chosen region:
gcloud config set run/region REGION
Replace REGION with the supported Cloud Run region of your choice.
Cloud Run locations
Cloud Run is regional, which means the infrastructure that
runs your Cloud Run services is located in a specific region and is
managed by Google to be redundantly available across
all the zones within that region.
Meeting your latency, availability, or durability requirements are primary
factors for selecting the region where your Cloud Run services are run.
You can generally select the region nearest to your users but you should consider
the location of the other Google Cloud
products that are used by your Cloud Run service.
Using Google Cloud products together across multiple locations can affect
your service's latency as well as cost.
Cloud Run is available in the following regions:
Subject to Tier 1 pricing
asia-east1
(Taiwan)asia-northeast1
(Tokyo)asia-northeast2
(Osaka)europe-north1
(Finland)Low CO2
europe-southwest1
(Madrid)Low CO2
europe-west1
(Belgium)Low CO2
europe-west4
(Netherlands)Low CO2
europe-west8
(Milan)europe-west9
(Paris)Low CO2
me-west1
(Tel Aviv)us-central1
(Iowa)Low CO2
us-east1
(South Carolina)us-east4
(Northern Virginia)us-east5
(Columbus)us-south1
(Dallas)Low CO2
us-west1
(Oregon)Low CO2
Subject to Tier 2 pricing
africa-south1
(Johannesburg)asia-east2
(Hong Kong)asia-northeast3
(Seoul, South Korea)asia-southeast1
(Singapore)asia-southeast2
(Jakarta)asia-south1
(Mumbai, India)asia-south2
(Delhi, India)australia-southeast1
(Sydney)australia-southeast2
(Melbourne)europe-central2
(Warsaw, Poland)europe-west10
(Berlin)Low CO2
europe-west12
(Turin)europe-west2
(London, UK)Low CO2
europe-west3
(Frankfurt, Germany)Low CO2
europe-west6
(Zurich, Switzerland)Low CO2
me-central1
(Doha)me-central2
(Dammam)northamerica-northeast1
(Montreal)Low CO2
northamerica-northeast2
(Toronto)Low CO2
southamerica-east1
(Sao Paulo, Brazil)Low CO2
southamerica-west1
(Santiago, Chile)Low CO2
us-west2
(Los Angeles)us-west3
(Salt Lake City)us-west4
(Las Vegas)
If you already created a Cloud Run service, you can view the region in the Cloud Run dashboard in the Google Cloud console.
Deploy to Cloud Run
Deploy your container from Container Registry using the gcloud CLI to Cloud Run or Knative serving.
Deploy the container image using the following command:
gcloud run deploy SERVICE-NAME \ --image gcr.io/PROJECT/IMAGE \ --platform managed
Replace
- SERVICE-NAME with your chosen service name.
- PROJECT with your Google Cloud project ID.
- IMAGE with your image name.
Notice that the container image is deployed to the service and region (Cloud Run) or cluster (Knative serving) that you configured previously under Setting up gcloud.
If deploying to Cloud Run, you will be prompted to allow
unauthenticated invocations. If you want immediate access to your service,
respond y
, "Yes" to the "allow unauthenticated" prompt. If your service is
private and requests must include authentication, respond n
, "No" to the
"allow unauthenticated" prompt.
If your service is public, use the URL displayed after a successful deployment
to visit your deployed container. If your service is private, use the following
curl
command to invoke your service:
curl -H "Authorization: Bearer $(gcloud auth print-identity-token)" SERVICE_URL
If deployed to Knative serving, see Accessing your deployed service.
Clean up
If you created a new project for this tutorial, delete the project. If you used an existing project and wish to keep it without the changes added in this tutorial, delete resources created for the tutorial.
Deleting the project
The easiest way to eliminate billing is to delete the project that you created for the tutorial.
To delete the project:
- In the Google Cloud console, go to the Manage resources page.
- In the project list, select the project that you want to delete, and then click Delete.
- In the dialog, type the project ID, and then click Shut down to delete the project.
Deleting tutorial resources
Delete the Cloud Run service you deployed in this tutorial:
gcloud run services delete SERVICE-NAME
Where SERVICE-NAME is your chosen service name.
You can also delete Cloud Run services from the Google Cloud console.
Remove the gcloud default region configuration you added during tutorial setup:
gcloud config unset run/region
Remove the project configuration:
gcloud config unset project
What's next
- To learn more about the contract your containers must respect to be deployed to Cloud Run, see Container contract.
- To automate the builds and deployments of your Cloud Run services using Cloud Build Triggers, set up Continuous deployment.
- To learn more about using and customizing Jib, see Jib's GitHub Repository.
