Think Fast: Time Between Disclosure, Patch Release and Vulnerability Exploitation — Intelligence for Vulnerability Management, Part Two

Written by: Kathleen Metrick, Jared Semrau, Shambavi Sadayappan

One of the critical strategic and tactical roles that cyber threat intelligence (CTI) plays is in the tracking, analysis, and prioritization of software vulnerabilities that could potentially put an organization’s data, employees and customers at risk. In this four-part blog series, FireEye Mandiant Threat Intelligence highlights the value of CTI in enabling vulnerability management, and unveils new research into the latest threats, trends and recommendations. Check out our first post on zero-day vulnerabilities.

Attackers are in a constant race to exploit newly discovered vulnerabilities before defenders have a chance to respond. FireEye Mandiant Threat Intelligence research into vulnerabilities exploited in 2018 and 2019 suggests that the majority of exploitation in the wild occurs before patch issuance or within a few days of a patch becoming available.

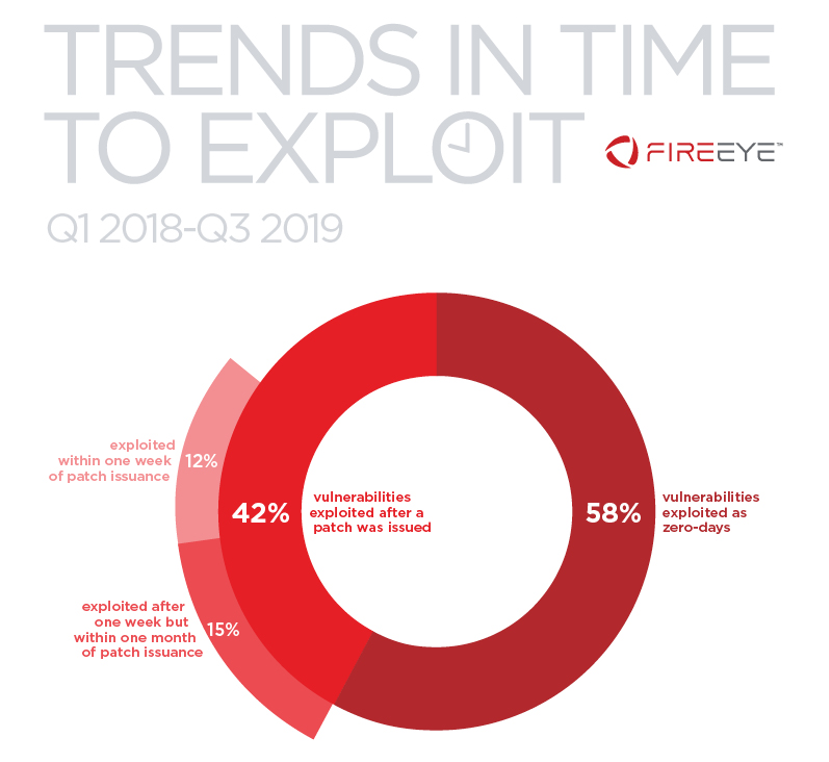

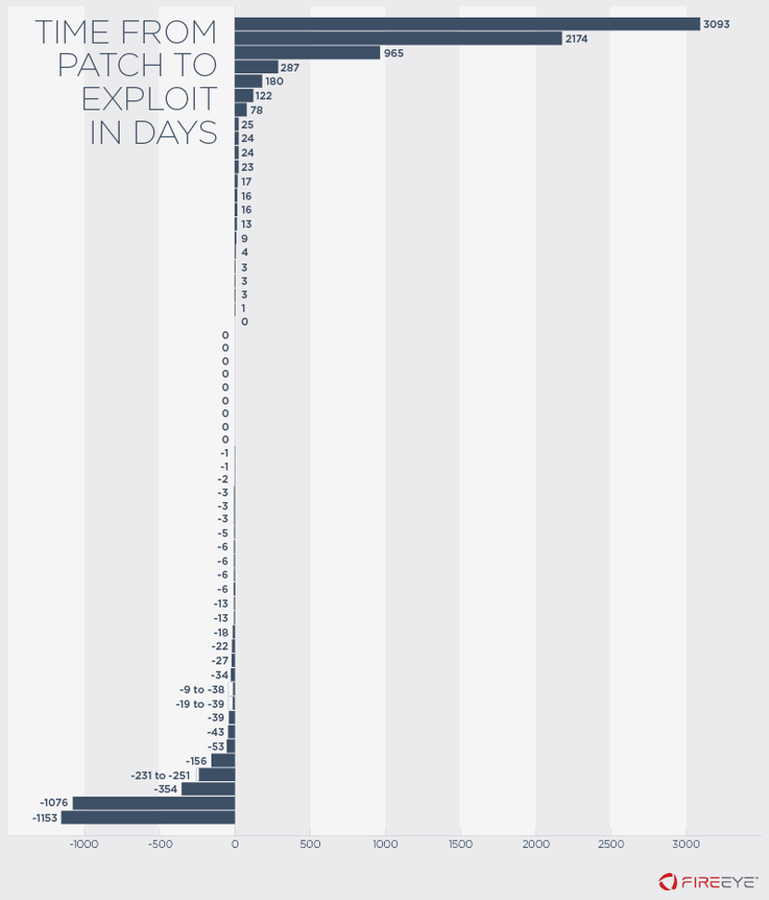

FireEye Mandiant Threat Intelligence analyzed 60 vulnerabilities that were either exploited or assigned a CVE number between Q1 2018 to Q3 2019. The majority of vulnerabilities were exploited as zero-days – before a patch was available. More than a quarter were exploited within one month after the patch date. Figure 2 illustrates the number of days between when a patch was made available and the first observed exploitation date for each vulnerability.

We believe these numbers to be conservative estimates, as we relied on the first reported exploitation of a vulnerability linked to a specific date. Frequently, first exploitation dates are not publicly disclosed. It is also likely that in some cases exploitation occurred without being discovered before researchers recorded exploitation attached to a certain date.

­Time Between Disclosure and Patch Release

The average time between disclosure and patch availability was approximately 9 days. This average is slightly inflated by vulnerabilities such as CVE-2019-0863, a Microsoft Windows server vulnerability, which was disclosed in December 2018 and not patched until 5 months later in May 2019. The majority of these vulnerabilities, however, were patched quickly after disclosure. In 59% of cases, a patch was released on the same day the vulnerability was disclosed. These metrics, in combination with the observed swiftness of adversary exploitation activity, highlight the importance of responsible disclosure, as it may provide defenders with the slim window needed to successfully patch vulnerable systems.

Exploitation After Patch Release

While the majority of the observed vulnerabilities were zero-days, 42 percent of vulnerabilities were exploited after a patch had been released. For these non-zero-day vulnerabilities, there was a very small window (often only hours or a few days) between when the patch was released and the first observed instance of attacker exploitation. Table 1 provides some insight into the race between attackers attempting to exploit vulnerable software and organizations attempting to deploy the patch.

Table 1: Exploitation timing for patched vulnerabilities ranges from within hours of patch issuance to years after initial disclosure

Case Studies

We continue to observe espionage and financially motivated groups quickly leveraging publicly disclosed vulnerabilities in their operations. The following examples demonstrate the speed with which sophisticated groups are able to incorporate vulnerabilities into their toolsets following public disclosure and the fact that multiple disparate groups have repeatedly leveraged the same vulnerabilities in independent campaigns. Successful operations by these types of groups are likely to have a high potential impact.

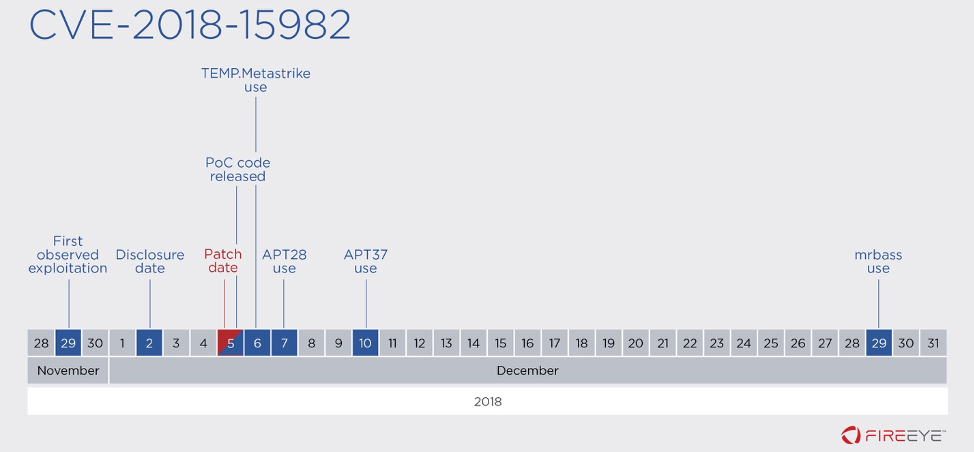

CVE-2018-15982: A use after free vulnerability in a file package in Adobe Flash Player 31.0.0.153 and earlier that, when exploited, allows an attacker to remotely execute arbitrary code. This vulnerability was exploited by espionage groups—Russia's APT28 and North Korea's APT37—as well as TEMP.MetaStrike and other financially motivated attackers.

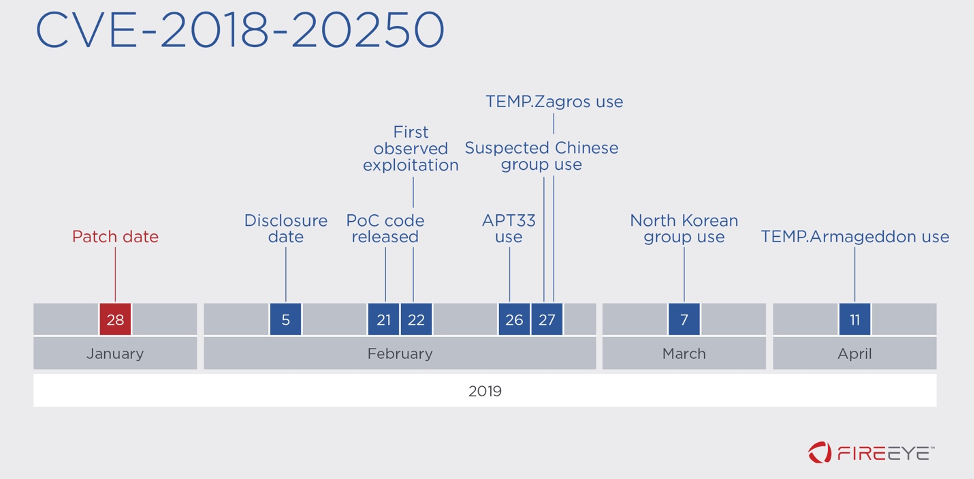

CVE-2018-20250: A path traversal vulnerability exists within the ACE format in the archiver tool WinRAR versions 5.61 and earlier that, when exploited, allows an attacker to locally execute arbitrary code. This vulnerability was exploited by multiple espionage groups, including Chinese, North Korean, and Russian, groups, as well as Iranian groups APT33 and TEMP.Zagros.

CVE-2018-4878: A use after free vulnerability exists within the DRMManager’s “initialize” call in Adobe Flash Player 28.0.0.137 and earlier that, when exploited, allows an attacker to remotely execute arbitrary code. Mandiant Intelligence confirmed that North Korea’s APT37 exploited this vulnerability as a zero-day as early as September 3, 2017. Within 8 days of disclosure, we observed Russia’s APT28 also leverage this vulnerability, with financially motivated attackers and North Korea’s TEMP.Hermit also using within approximately a month of disclosure.

Availability of PoC or Exploit Code

The availability of POC or exploit code on its own does not always increase the probability or speed of exploitation. However, we believe that POC code likely hastens exploitation attempts for vulnerabilities that do not require user interaction. For vulnerabilities that have already been exploited, the subsequent introduction of publicly available exploit or POC code indicates malicious actor interest and makes exploitation accessible to a wider range of attackers. There were a number of cases in which certain vulnerabilities were exploited on a large scale within 48 hours of PoC or exploit code availability (Table 2).

Table 2: Vulnerabilities exploited within two days of either PoC or exploit code being made publicly available, Q1 2018–Q3 2019

Trends by Targeted Products

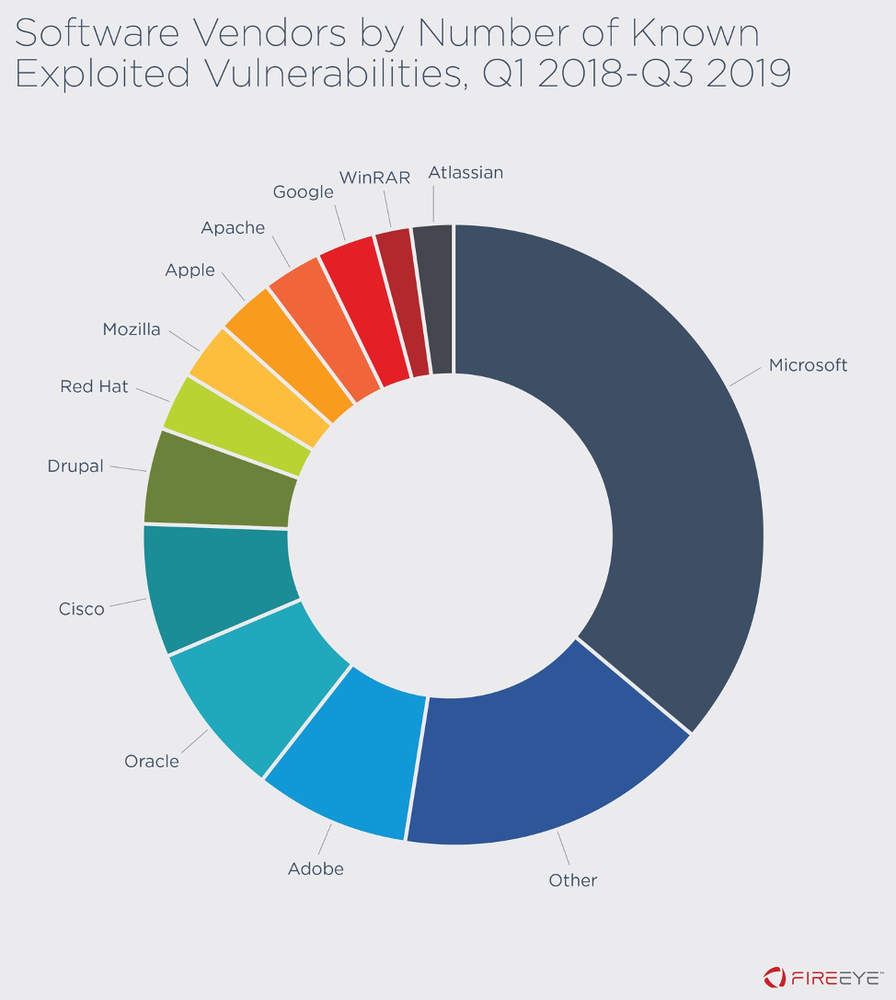

FireEye judges that malicious actors are likely to most frequently leverage vulnerabilities based on a variety of factors that influence the utility of different vulnerabilities to their specific operations. For instance, we believe that attackers are most likely to target the most widely used products (see Figure 6). Attackers almost certainly also consider the cost and availability of an exploit for a specific vulnerability, the perceived success rate based on the delivery method, security measures introduced by vendors, and user awareness around certain products.

The majority of observed vulnerabilities were for Microsoft products, likely due to the ubiquity of Microsoft offerings. In particular, vulnerabilities in software such as Microsoft Office Suite may be appealing to malicious actors based on the utility of email attached documents as initial infection vectors in phishing campaigns.

Outlook and Implications

The speed with which attackers exploit patched vulnerabilities emphasizes the importance of patching as quickly as possible. With the sheer quantity of vulnerabilities disclosed each year, however, it can be difficult for organizations with limited resources and business constraints to implement an effective strategy for prioritizing the most dangerous vulnerabilities. In upcoming blog posts, FireEye Mandiant Threat Intelligence describes our approach to vulnerability risk rating as well as strategies for making informed and realistic patch management decisions in more detail.

We recommend using this exploitation trend information to better prioritize patching schedules in combination with other factors, such as known active threats to an organization's industry and geopolitical context, the availability of exploit and PoC code, commonly impacted vendors, and how widely software is deployed in an organization's environment may help to mitigate the risk of a large portion of malicious activity.
