CARBANAK Week Part Two: Continuing the CARBANAK Source Code Analysis

April 23, 2019

Written by: Michael Bailey, James T. Bennett


Update (April 30): Following the release of our four-part CARBANAK Week blog series, many readers have found places to make the data shared in these posts actionable. We have updated this post to include some of this information.

In the previous installment, we wrote about how string hashing was used in CARBANAK to manage Windows API resolution throughout the entire codebase. But the authors used this same string hashing algorithm for another task as well. In this installment, we’ll pick up where we left off and write about CARBANAK’s antivirus (AV) detection, AV evasion, authorship artifacts, exploits, secrets, and network-based indicators (Part Three and Part Four are now available).

Antivirus Evasions

Source code unquestionably accelerates analysis of string hashes. For example, the function AVDetect in AV.cpp iterates processes to detect AV by process name hash as shown in Figure 1.

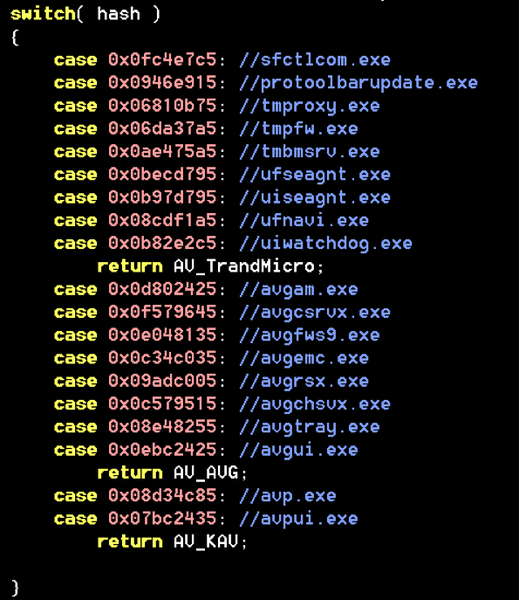

Figure 1: Antivirus detection by process name hash

What does CARBANAK do with this information? It evades AV according to what is installed. Figure 2 shows the code for an AVG evasion that the authors disabled by commenting it out. Based on this, it appears as if the AVG evasion was retired, but FLARE team member Ryan Warns confirmed in November 2017 that it still worked with one minor tweak. FLARE disclosed this to AVG immediately upon confirming it. Avast indicates that after our disclosure, they updated the affected DLL to ignore DLL_PROCESS_DETACH and leave its hooks in place.

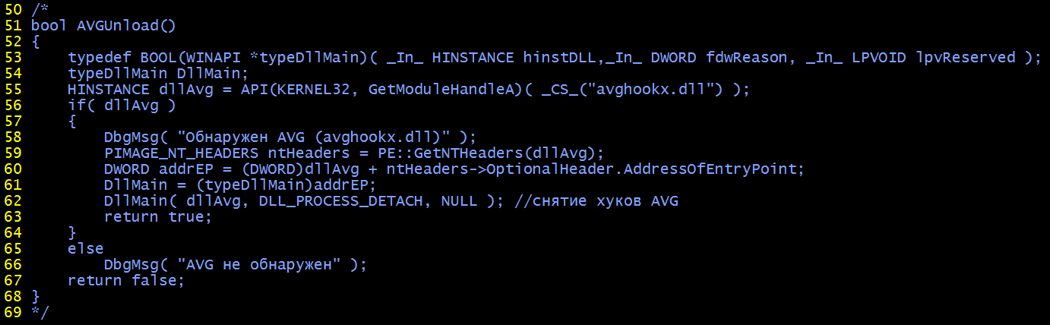

Figure 2: Commented out source code to unload AVG user-space hooks

In November of 2017, FLARE also disclosed an evasion for Trend Micro’s detection of process injection that remained active in the CARBANAK source code. The evasion mirrors a technique used in Carberp that replaces remote heap allocation and a call to CreateRemoteThread with memory mapping and queueing of an asynchronous procedure call via QueueUserAPC. Following our disclosure, Trend Micro indicated that they had updated their behavior monitoring rules and released OfficeScan XG SP1 in December 2017 with a new “Aggressive Event” detection feature that covers this behavior.

Author Characterization

Having source code could pose unique opportunities to learn about the individuals behind the keyboard. To that end, I searched for artifacts in the source code dump that might point to individuals. I found the most information in Visual Studio solution files. Most of these referenced drive O: as the source root, but I did find the following host paths:

  • C:\Users\hakurei reimu\AppData\Local\Temp
  • C:\Users\Igor\AppData\Local\Temp
  • E:\Projects\progs\Petrosjan\WndRec\...
  • E:\Projects\progs\sbu\WndRec\...

Unfortunately, these data points don’t yield many answers. If they are observed in later artifacts, connections might be inferred, but as of this writing, not much else is known about the authors.

Source Code Survey

The CARBANAK source code contained numerous exploits, previous C2 hosts, passwords, and key material. I decided to comprehensively search these out and determine if they led to any new conclusions or corroborated any previous observations.


I wanted to know if the CARBANAK authors wielded any exploits that were not publicly disclosed. To the contrary, I found all the exploits to be well-documented. Table 1 breaks out the escalation code I reviewed from the CARBANAK source code dump.


Name CVE Notes
PathRec 2013-3660 Exploit proof of concept (poc) from May 2013
Sdrop 2013-3660 Exploit poc from June 2013
NDProxy 2013-5065 NDProxy.sys exploit originally authored by secniu
UACBypass   UAC bypass by DLL hijacking found in Carberp
COM   UAC bypass by disabling elevation prompts and dialogs via the IFileOperation COM interface
CVE-2014-4113 2014-4113 Win32k.sys exploit derived from code that can be found online
BlackEnergy2   AppCompat shim-based UAC bypass
EUDC 2010-4398 UAC bypass by EUDC exploitation

Table 1: Exploits for elevation found in CARBANAK source code

The CARBANAK source code also contains code copied wholesale from Mimikatz including the sekurlsa module for dumping passwords from lsass.exe and Terminal Services patching code to allow multiple remote desktop protocol connections.


My analysis included an audit of passwords and key material found in the source code and accompanying binaries. Although many of these were used for debug versions, I curated them for reference in case a need might arise to guess future passwords based on passwords used in the source code. Table 2 shows recovered passwords used for RC2-encrypted communications and other purposes along with the corresponding name in the source code and their status as they were encountered (active in source code, commented out, or compiled into a binary).


Credential Identifier Per Source Code Password Status
ADMIN_PASSWORD 1He9Psa7LzB1wiRn Active
ADMIN_PASSWORD 1234567812345678 Commented out
ADMIN_PASSWORD cbvhX3tJ0k8HwnMy Active
ADMIN_PASSWORD 1234567812345678 Commented out
N/A 1234567812345678 Compiled

Table 2: Passwords found in CARBANAK source code and binaries

I found an encrypted server certificate in a debug directory. This seemed like it could provide a new network-based indicator to definitively tie operations together or catch new activity. It was trivial to brute force this container by adapting a publicly available code sample of X509 handling in C# to cycle through passwords in a popular password list. The password was found in less than 1 second because it was the single-character password “1”. The certificate turns out to be for testing, hence the weak password. The certificate is shown in Figure 3, with details in Table 3.

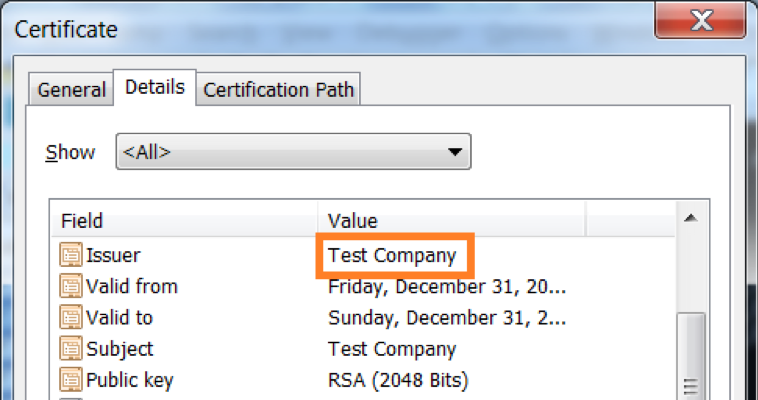

Figure 3: Test Company certificate


Parameter Value
Subject CN=Test Company
Issuer CN=Test Company
Serial Number 834C6C3985506D8740FB56D26E385E8A
Not Before 12/31/2004 5:00:00 PM
Not After 12/31/2017 5:00:00 PM
Thumbprint 0BCBD1C184809164A9E83F308AD6FF4DBAFDA22C
Signature Algorithm sha1RSA(
Public Key

Algorithm: RSA

Length: 2048

Key Blob:

30 82 01 0a 02 82 01 01 00 e4 66 7f d2 e1 01 53

f9 6d 26 a6 62 45 8b a8 71 ea 81 9a e6 12 d4 1c

6f 78 67 6d 7e 95 bb 3a c5 c0 2c da ce 48 ca db

29 ab 10 c3 83 4e 51 01 76 29 56 53 65 32 64 f2

c7 84 96 0f b0 31 0b 09 a3 b9 12 63 09 be a8 4b

3b 21 f6 2e bf 0c c1 f3 e4 ed e2 19 6e ca 78 68

69 be 56 3c 1c 0e a7 78 c7 b8 34 75 29 a1 8d cc

5d e9 0d b3 95 39 02 13 8e 64 ed 2b 90 2c 3f d5

e3 e2 7e f2 d2 d1 96 15 6e c9 97 eb 97 b9 0e b3

be bc c3 1b 1e e1 0e 1c 35 73 f4 0f d9 c3 69 89

87 43 61 c9 9e 50 77 a2 83 e4 85 ce 5a d6 af 72

a9 7b 27 c5 f3 62 8d e7 79 92 c3 9b f7 96 ed 5c

37 48 0a 97 ee f7 76 69 a2 b9 25 38 06 25 7d 8a

e4 94 b2 bb 28 4a 4b 5d c5 32 0d be 8e 7c 51 82

a7 9e d9 2c 8e 6b d8 c7 19 4c 2e 93 8d 2d 50 b4

e0 a4 ed c1 65 a4 a1 ba bf c7 bf 2c ec 28 83 f4

86 f2 88 5c c4 24 8b ce 1d 02 03 01 00 01

Parameters: 05 00

Private Key

Key Store: User

Provider Name: Microsoft Strong Cryptographic Provider

Provider type: 1

Key Spec: Exchange

Key Container Name: c9d7c4a9-2745-4e7f-b816-8c20831d6dae

Unique Key Container Name: 5158a0636a32ccdadf155686da582ccc_2bb69b91-e898-4d33-bbcf-fbae2b6309f1

Hardware Device: False

Removable: False

Protected: False

Table 3: Test Company certificate details

Here is a pivot shared by @mrdavi51 demonstrating how this self-signed certificate is still hosted on several IPs.

FireEye has observed the certificate most recently being served on the following IPs (Table 4):


IP Hostname Last Seen vds2.system-host[.]net 2019-04-26T14:49:12 customer.clientshostname[.]com 2019-04-24T07:44:30   2019-04-24T04:33:52   2018-11-15T10:27:07 vds9992.hyperhost[.]name 2019-04-27T13:24:36   2019-04-27T13:24:36

Table 4: Recent Test Company certificate use

While these IPs have not been observed in any CARBANAK activity, this may be an indication of a common developer or a shared toolkit used for testing various malware. Several of these IPs have been observed hosting Cobalt Strike BEACON payloads and METERPRETER listeners. Virtual Private Server (VPS) IPs may change hands frequently and additional malicious activity hosted on these IPs, even in close time proximity, may not be associated with the same users.

I also parsed an unprotected private key from the source code dump. Figure 4 and Table 5 show the private key parameters at a glance and in detail, respectively.

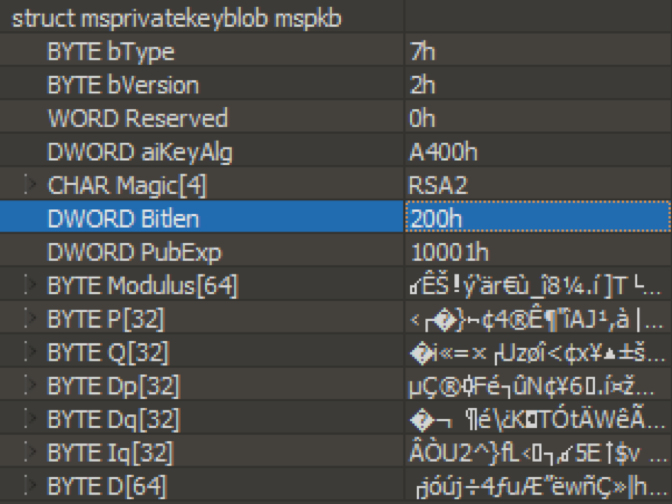

Figure 4: Parsed 512-bit private key


Field Value
bType 7
bVersion 2
aiKeyAlg 0xA400 (CALG_RSA_KEYX) – RSA public key exchange algorithm
Magic RSA2
Bitlen 512
PubExp 65537

0B CA 8A 13 FD 91 E4 72 80 F9 5F EE 38 BC 2E ED

20 5D 54 03 02 AE D6 90 4B 6A 6F AE 7E 06 3E 8C

EA A8 15 46 9F 3E 14 20 86 43 6F 87 BF AE 47 C8

57 F5 1F D0 B7 27 42 0E D1 51 37 65 16 E4 93 CB


8B 01 8F 7D 1D A2 34 AE CA B6 22 EE 41 4A B9 2C

E0 05 FA D0 35 B2 BF 9C E6 7C 6E 65 AC AE 17 EA


81 69 AB 3D D7 01 55 7A F8 EE 3C A2 78 A5 1E B1

9A 3B 83 EC 2F F1 F7 13 D8 1A B3 DE DF 24 A1 DE


B5 C7 AE 0F 46 E9 02 FB 4E A2 A5 36 7F 2E ED A4

9E 2B 0E 57 F3 DB 11 66 13 5E 01 94 13 34 10 CB


81 AC 0D 20 14 E9 5C BF 4B 08 54 D3 74 C4 57 EA

C3 9D 66 C9 2E 0A 19 EA C1 A3 78 30 44 52 B2 9F


C2 D2 55 32 5E 7D 66 4C 8B 7F 02 82 0B 35 45 18

24 76 09 2B 56 71 C6 63 C4 C5 87 AD ED 51 DA 2ª


01 6A F3 FA 6A F7 34 83 75 C6 94 EB 77 F1 C7 BB

7C 68 28 70 4D FB 6A 67 03 AE E2 D8 8B E9 E8 E0

2A 0F FB 39 13 BD 1B 46 6A D9 98 EA A6 3E 63 A8

2F A3 BD B3 E5 D6 85 98 4D 1C 06 2A AD 76 07 49

Table 5: Private key parameters

I found a value named PUBLIC_KEY defined in a configuration header, with comments indicating it was for debugging purposes. The parsed values are shown in Table 6.


Field Value
bType 6
bVersion 2
aiKeyAlg 0xA400 (CALG_RSA_KEYX) – RSA public key exchange algorithm
Magic RSA1
Bitlen 512
PubExp 65537

0B CA 8A 13 FD 91 E4 72 80 F9 5F EE 38 BC 2E ED

20 5D 54 03 02 AE D6 90 4B 6A 6F AE 7E 06 3E 8C

EA A8 15 46 9F 3E 14 20 86 43 6F 87 BF AE 47 C8

57 F5 1F D0 B7 27 42 0E D1 51 37 65 16 E4 93 CB

Table 6: Key parameters for PUBLIC_KEY defined in configuration header

Network Based Indicators

The source code and binaries contained multiple Network-Based Indicators (NBIs) having significant overlap with CARBANAK backdoor activity and FIN7 operations previously observed and documented by FireEye. Table 7 shows these indicators along with the associated FireEye public documentation. This includes the status of each NBI as it was encountered (active in source code, commented out, or compiled into a binary). Domain names are de-fanged to prevent accidental resolution or interaction by browsers, chat clients, etc.


NBI Status Threat Group Association
comixed[.]org Commented out Earlier CARBANAK activity
194.146.180[.]40 Commented out Earlier CARBANAK activity
aaaabbbbccccc[.]org Active
stats10-google[.]com Commented out FIN7
192.168.0[.]100:700 Active
80.84.49[.]50:443 Commented out
52.11.125[.]44:443 Commented out
85.25.84[.]223 Commented out
qwqreererwere[.]com Active
akamai-technologies[.]org Commented out Earlier CARBANAK activity
192.168.0[.]100:700 Active
37.1.212[.]100:700 Commented out
188.138.98[.]105:710 Commented out Earlier CARBANAK activity
hhklhlkhkjhjkjk[.]org Compiled
192.168.0[.]100:700 Compiled
aaa.stage.4463714.news.meteonovosti[.]info Compiled DNS infrastructure overlap with later FIN7 associated POWERSOURCE activity
193.203.48[.]23:800 Active Earlier CARBANAK activity

Table 7: NBIs and prevously observed activity

Four of these TCP endpoints (80.84.49[.]50:443, 52.11.125[.]44:443, 85.25.84[.]223, and 37.1.212[.]100:700) were new to me, although some have been documented elsewhere.


Our analysis of this source code dump confirmed it was CARBANAK and turned up a few new and interesting data points. We were able to notify vendors about disclosures that specifically targeted their security suites. The previously documented NBIs, Windows API function resolution, backdoor command hash values, usage of Windows cabinet file APIs, and other artifacts associated with CARBANAK all match, and as they say, if the shoe fits, wear it. Interestingly though, the project itself isn’t called CARBANAK or even Anunak as the information security community has come to call it based on the string artifacts found within the malware. The authors mainly refer to the malware as “bot” in the Visual Studio project, filenames, source code comments, output binaries, user interfaces, and manuals.

The breadth and depth of this analysis was a departure from the usual requests we receive on the FLARE team. The journey included learning some Russian, searching through a hundred thousand of lines of code for new information, and analyzing a few dozen binaries. In the end, I’m thankful I had the opportunity to take this request.

In the next post, Tom Bennett takes the reins to provide a retrospective on his and Barry Vengerik’s previous analysis in light of the source code. Part Four of CARBANAK Week is available as well.
