This page shows you how to set up an HTTP-to-HTTPS redirect for the global external HTTP(S) load balancer (classic). This page is for a global external HTTP(S) load balancer (classic) only. If you use a load balancer in a different mode, see one of the following pages:
This example demonstrates how to use URL redirects to redirect all requests from port 80 (HTTP) to port 443 (HTTPS).
HTTPS uses TLS (SSL) to encrypt HTTP requests and responses, making it
safer and more secure. A website that uses HTTPS has
https:// in the beginning
of its URL instead of
For new HTTPS load balancers
If you're creating a new HTTPS load balancer, you can use the Google Cloud Cloud console to set up an HTTP-to-HTTPS redirect.
While creating the HTTPS load balancer's frontend, use the following steps:
- In the Google Cloud console, go to the load balancer's configuration page.
- Click Frontend configuration.
- Under Protocol, select HTTPS (includes HTTP/2).
- Under IP address, select a reserved IP address.
- Click the Enable HTTP to HTTPS Redirect checkbox to create the redirect.
You must select the HTTPS protocol and use a reserved IP address (not ephemeral) to be able to select the checkbox.
Depending on your backend type, use the Cloud console instructions from one of the following guides to complete this setup:
- Compute Engine backend
- Backend bucket
- Cloud Run, App Engine, or Cloud Functions backend
- External backend
Setting the Enable HTTP to HTTPS Redirect checkbox automatically creates an
additional partial HTTP load balancer consisting of a URL map, a forwarding
rule, and a target HTTP proxy. This partial HTTP load balancer uses the same IP
address as your HTTPS load balancer and redirects HTTP requests to your load
balancer's HTTPS frontend. It uses
301 Moved Permanently as the default
redirect response code.
After the HTTPS load balancer is created, you can see the partial HTTP load balancer in the list of load balancers, with a -redirect suffix. Test your setup by using the steps in Testing the HTTP-to-HTTPS redirect.
For existing load balancers
If you already have an external HTTPS load balancer (called here LB1) that is serving HTTPS traffic on port 443, you must create a partial external HTTP load balancer (called here LB2) with the following setup:
- The same frontend IP address used by LB1
- A redirect configured in the URL map
This partial HTTP load balancer uses the same IP address as your HTTPS load balancer and redirects HTTP requests to your load balancer's HTTPS frontend.
This architecture is shown in the following diagram.
Redirecting traffic to your HTTPS load balancer
After you have verified that your external HTTPS load balancer (LB1) is working, you can create the partial external HTTP load balancer (LB2) with its frontend configured to redirect traffic to LB1.
This example uses the 301 response code. You can instead use a different response code.
To configure the redirect with
gcloud, you must import a YAML file and make
sure that your target HTTP proxy points to the URL map that redirects
traffic. If you're using the Cloud console, this is handled for you.
Regional external HTTP(S) load balancers aren't supported in the Cloud console.
ConsoleStart the configuration
- In the Google Cloud console, go to the Load balancing page.
- Under HTTP(S) load balancing, click Start configuration.
- Under Internet facing or internal only, select From Internet to my VMs.
- Under Global or regional, select Global HTTP(S) Load Balancer (classic).
- For the Name of the load balancer, enter something like
- Keep the window open to continue.
- Skip the Backend Configuration section.
- In the left column of the page, click Host and path rules.
- Select Advanced host and path rule (URL redirect, URL rewrite).
- Under Action, select Redirect the client to different host/path.
- Leave the Prefix redirect field blank.
- Under Path redirect, select Prefix redirect.
- Leave the Path value field blank.
- Under Redirect response code, select 301 - Moved Permanently.
- Under HTTPS redirect, select Enable.
- Click Done.
- Keep the load balancer configuration page open to continue.
- On the load balancer configuration page, click Frontend configuration.
- Set Protocol to HTTP.
- Set IP address to the *same* IP address that you use for your HTTPS load balancer.
- Ensure that Port is set to 80 to allow HTTP traffic.
- Click Done.
- Keep the window open to continue. Review the configuration
- In the left panel, click Review and finalize.
- Compare your settings to what you intended to create.
- If everything looks correct, click Create.

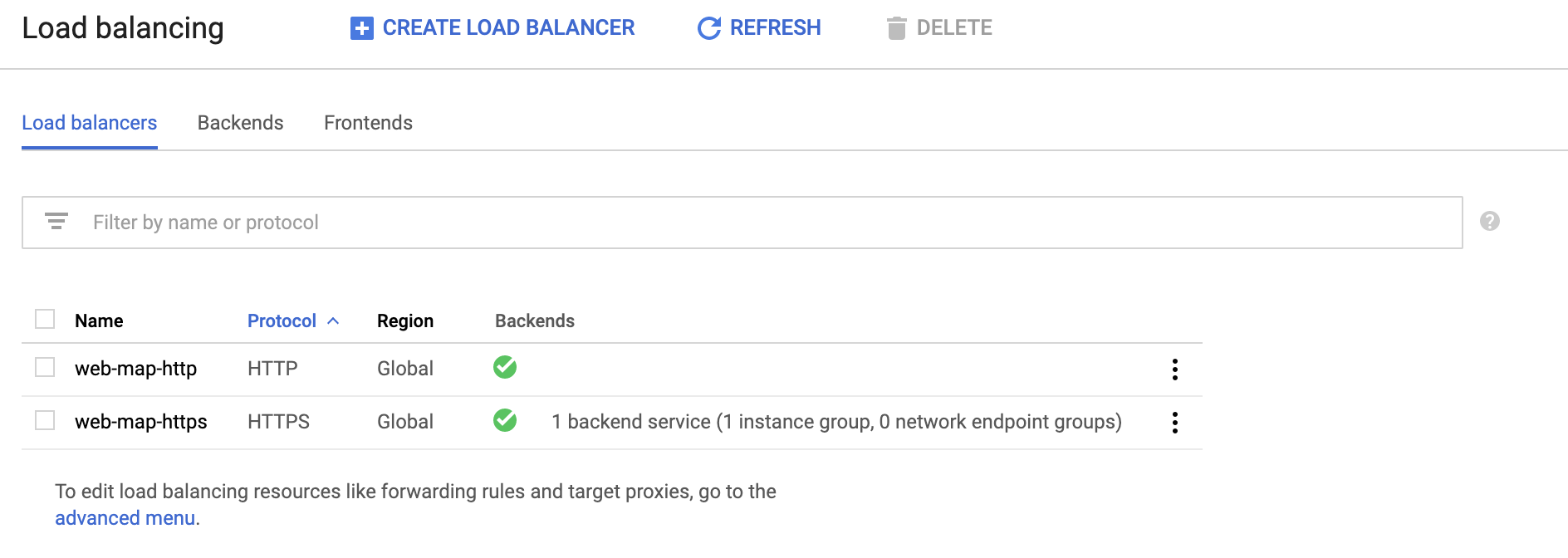

When you are finished, the Cloud console displays two load balancers, as follows.
The Cloud console displays information about your
web-map-http load balancer as follows.
- Create a YAML file
/tmp/web-map-http.yaml. This example uses MOVED_PERMANENTLY_DEFAULT as the response code.
- Validate the URL map.
- Create the HTTP load balancer's URL map by importing the YAML
file. The name for this URL map is
- Verify that the URL map is updated. Your HTTP load balancer's URL map should look something like this:
- Create a new target HTTP proxy or update an existing target HTTP proxy,
web-map-httpas the URL map.
- Create a forwarding rule to route incoming requests to
the proxy. The
lb-ipv4-1, which is the same IP address used for the external HTTPS load balancer.
kind: compute#urlMap name: web-map-http defaultUrlRedirect: redirectResponseCode: MOVED_PERMANENTLY_DEFAULT httpsRedirect: True tests: - description: Test with no query parameters host: example.com path: /test/ expectedOutputUrl: https://example.com/test/ expectedRedirectResponseCode: 301 - description: Test with query parameters host: example.com path: /test/?parameter1=value1¶meter2=value2 expectedOutputUrl: https://example.com/test/?parameter1=value1¶meter2=value2 expectedRedirectResponseCode: 301
gcloud compute url-maps validate --source /tmp/web-map-http.yaml
If the tests pass and the command outputs a success message, save the changes to the URL map.
gcloud compute url-maps import web-map-http \ --source /tmp/web-map-http.yaml \ --global
If you are updating an existing URL map, the following prompt appears:
Url Map [web-map-http] will be overwritten. Do you want to continue (Y/n)?
To continue, press Y.
gcloud compute url-maps describe web-map-http
creationTimestamp: '2020-03-23T10:53:44.976-07:00' defaultUrlRedirect: httpsRedirect: true redirectResponseCode: MOVED_PERMANENTLY_DEFAULT fingerprint: 3A5N_RLrED8= id: '2020316695093397831' kind: compute#urlMap name: web-map-http selfLink: https://www.googleapis.com/compute/v1/projects/PROJECT_ID/global/urlMaps/web-map-http
gcloud compute target-http-proxies create http-lb-proxy \ --url-map=web-map-http \ --globalOR
gcloud compute target-http-proxies update http-lb-proxy \ --url-map=web-map-http \ --global
gcloud compute forwarding-rules create http-content-rule \ --load-balancing-scheme=EXTERNAL \ --network-tier=PREMIUM \ --address=lb-ipv4-1 \ --global \ --target-http-proxy=http-lb-proxy \ --ports=80
Adding a custom header
Optionally, add the HTTP
header to your HTTPS load balancer's backend service, as follows:
- Header name:
- Header value:
max-age=31536000; includeSubDomains; preload
This setting sends the custom header to the client so that the next time the client tries to access the URL through HTTP, the browser does the redirect.
To add the custom header to the backend service configuration, use the
gcloud compute backend-services update BACKEND_SERVICE_NAME_LB1 \ --global \ --custom-response-header='Strict-Transport-Security:max-age=31536000; includeSubDomains; preload'
For more information, see Creating custom headers.
Testing the HTTP-to-HTTPS redirect
Note the reserved IP address that you are using for both load balancers.
gcloud compute addresses describe lb-ipv4-1 \ --format="get(address)" \ --global
In this example, assume that the reserved IP address is
http://188.8.131.52/ URL redirects to
After a few minutes have passed, you can test this by running the following
curl -v http://hostname.com
* Connected to 184.108.40.206 (220.127.116.11) port 80 (#0) > GET / HTTP/1.1 > Host: hostname.com > User-Agent: curl/7.64.0 > Accept: */* > < HTTP/1.1 301 Moved Permanently < Cache-Control: private < Content-Type: text/html; charset=UTF-8 < Referrer-Policy: no-referrer < Location: https://hostname.com < Content-Length: 220 < Date: Fri, 30 Jul 2021 21:32:25 GMT < <HTML><HEAD><meta http-equiv="content-type" content="text/html;charset=utf-8"> <TITLE>301 Moved</TITLE></HEAD><BODY> <H1>301 Moved</H1> The document has moved <A HREF="https://hostname.com">here</A>. </BODY></HTML> * Connection #0 to host hostname.com left intact
To use Terraform, see the HTTP-to-HTTPS redirect tab.
For GKE, see the HTTP-to-HTTPS redirects in the GKE documentation.
For internal HTTP(S) load balancers, see Setting up HTTP-to-HTTPS redirect for internal HTTP(S) load balancers.
For other types of redirects, see URL redirects.
