Verifying attestations

This topic shows you how to verify attestations for Cloud HSM keys, which are always stored in a hardware security module (HSM).

Overview

In cryptography, an attestation is a machine-readable, programmatically provable statement that a piece of software makes about itself. Attestations are an important component of trusted computing, and may be required for compliance reasons.

To view and verify the attestations, you request a cryptographically-signed attestation statement from the HSM, along with the certificate chains used to sign it. The attestation statement is produced by the HSM hardware, and signed by certificates owned by Google and by the HSM manufacturer.

After downloading the attestation statement and the certificate chains, you can check its attributes or verify the validity of the attestation using the certificate chains.

The attestation script is an open source Python script developed by Google. You can view the source code for the script to learn more about the attestation format and how verification works, or as a model for a customized solution.

The examples in this topic are designed for Linux environments, including the Cloud Shell. To follow along on macOS or Windows clients, you may need to make modifications.

Before you begin

Verifying the attestation

The attestation verification process can either be performed automatically through the Google Cloud Console, or manually by downloading the attestation bundle and attestation verification script and running it locally or in the Cloud Shell.

Verifying attestations through the Cloud Console

You can verify the attestation through the Cloud Console, which will open a Cloud Shell and pre-populate it with the code snippets needed to perform the entire attestation verification process.

  1. Go to the Cryptographic Key Rings page in the Cloud Console.

    Go to the Cryptographic Key Rings page

  2. Select the key ring that contains the key you want to attest, then select the key.

  3. Click More for the key version you want to attest, and select Verify attestation.

  4. In the Verify attestation dialog, click Open gcloud CLI. This will open the Cloud Shell and pre-populate it with the code snippet needed to go through the entire verification process.

  5. Inspect the pre-populated code snippet in the Cloud Shell. The snippet downloads the attestation verification script and its dependencies, runs the gcloud commands to download the attestation and certificate chains, and then runs the script to verify the attestation.

  6. Run the code snippet to verify the attestation.

Verifying the attestation manually

The attestation, certificate chains, and attestation verification script need to be downloaded before manually verifying the attestation.

  1. Download the attestation and certificate chains.

    Console

    1. Go to the Cryptographic Key Rings page in the Cloud Console.

      Go to the Cryptographic Key Rings page

    2. Select the key ring that contains the key you want to attest, then select the key.

    3. Click More for the key version you want to attest, and select Verify attestation.

    4. In the Verify attestation dialog, click Download Attestation Bundle. This will download a zip file containing the attestation and certificate chains.

    5. Extract the attestation and certificate chains from the attestation bundle.

    gcloud

    1. Click Activate Cloud Shell at the top of the console window.

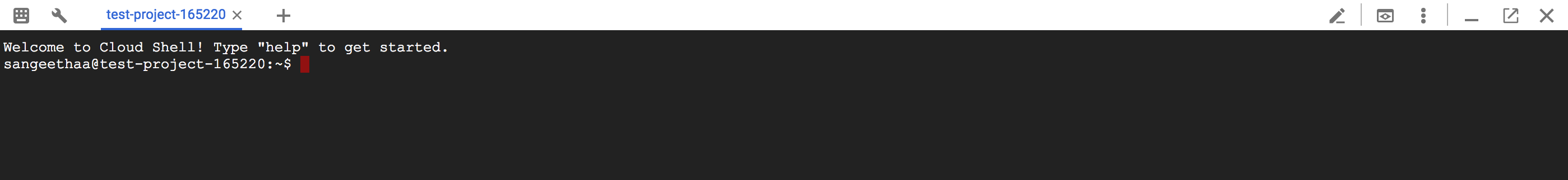

      Activate Cloud Shell A Cloud Shell session opens inside a new frame at the bottom of the console and displays a command-line prompt. It can take a few seconds for the shell session to be initialized.

      Cloud Shell session

    2. At the Cloud Shell command-line prompt, use the gcloud kms keys versions describe command to retrieve the attestation for the key that you want to attest. The --attestation-file flag specifies the path and filename destination for the retrieved attestation.

      gcloud kms keys versions describe key-version \
       --key key-name \
       --location location \
       --keyring keyring-name \
       --attestation-file [attestation-file] \

    3. At the Cloud Shell command-line prompt, use the gcloud kms keys versions get-certificate-chain command to retrieve the certificate chains for the key that you want to attest. The --output-file flag specifies the path and filename destination for the retrieved certificates.

      gcloud kms keys versions get-certificate-chain key-version \
       --key key-name \
       --location location \
       --keyring keyring-name \
       --output-file [certificates-file] \

  2. Download the script for verifying attestations and its prerequisites, and go through the documentation for the script to verify the attestation in the attestation file using the certificates in the certificates file.

Verifying the attestation using certificate bundles

Certificate bundles were used to verify attestation before certificate chains were introduced for each key version. We recommend following the instructions above to verify the attestation using certificate chains as we plan to deprecate the certificate bundles in Q4 2022.

  1. Download the certificate bundle that leads up Google's root certificate.

    curl -O https://www.gstatic.com/cloudhsm/cloud-kms-prod-[location]-google.pem

  2. Download the certificate bundle that leads up to the HSM manufacturer's root certificate.

    curl -O https://www.gstatic.com/cloudhsm/cloud-kms-prod-[location]-cavium.pem

  3. Download the attestation.

    Console

    1. Go to the Cryptographic Key Rings page in the Cloud Console.

      Go to the Cryptographic Key Rings page

    2. Select the key ring that contains the key you want to attest, then select the key.

    3. Click More for the key version you want to attest, and select Get attestation.

    4. In the Get attestation dialog, click Download. The attestation file is downloaded to your local system.

      The format for the name of the attestation file is [keyring-name]-[key-name]-[key-version]-[attestation-format]-attestation.dat. Each portion of the file name is separated by a hyphen. For that reason, placeholder text is surrounded by square bracket ([ and ]) characters.

    gcloud

    1. Click Activate Cloud Shell at the top of the console window.

      Activate Cloud Shell A Cloud Shell session opens inside a new frame at the bottom of the console and displays a command-line prompt. It can take a few seconds for the shell session to be initialized.

      Cloud Shell session

    2. At the Cloud Shell command-line prompt, use the gcloud kms keys versions describe command to retrieve the attestation for the key that you want to attest. The --attestation-file flag specifies the path and filename destination for the retrieved attestation.

      gcloud kms keys versions describe key-version \
       --key key-name \
       --location location \
       --keyring keyring-name \
       --attestation-file [attestation-file] \

  4. Download the script for verifying attestations with certificate bundles and its prerequisites, and go through the documentation for the script to verify the attestation in the attestation file with both of the certificate bundles.

Parsing the attestation's values

The HSM manufacturer's documentation includes full instructions for using their scripts to parse an attestation's values and verify the public key for an asymmetric key pair. The attestation will need to be decompressed with the following command before it can be parsed.

  • Uncompress the compressed attestation.

    gzip -d < compressed_attestation.dat > attestation.dat


These links go directly to specific instructions from the HSM manufacturer:

The instructions for parsing the attestation's value include a reference of general fields in the attestation, not specific to HSM keys in Cloud HSM.

The following sections illustrate how to verify information about your keys that is specific to Cloud HSM.

Verify the key's version ID

You can verify whether the SHA-256 hash of the key version resource ID is present in the attestation. The key's resource name is part of the 0x0102 field or key ID field in the attestation file. The key ID is composed of two concatenated SHA-256 hash digests in hex format. The second one should match the key's resource name.

  1. Get the key version resource ID for the key version. You can use the Cloud Console to get the key version resource ID or you can run the following command:

    gcloud kms keys versions list \
       --location location \
       --keyring key-ring-name \
       --key key-name

  2. At the command line, assign resource_name to the key version resource ID that you just retrieved.

    RESOURCE_NAME="projects/project-id/locations/location/keyRings/key-ring-name/cryptoKeys/key-name/cryptoKeyVersions/key-version"

  3. Since the parse script dumps all attestation fields in hex format, the key ID would have been formatted into hex format twice. (Once while creating the keyID, the other while parsing the attestation). To verify that the resource name matches with the key ID, convert the resource name to a SHA-256 hex digest, revert one hex conversion of the key ID in the attestation file, and compare the two.

    RESOURCE_NAME_HEX="$(echo -n ${RESOURCE_NAME} | openssl dgst -sha256 -hex | awk '{print $2}')"

  4. The parse script dumps all attestation fields in hex format, and the key ID is internally hex-encoded a second time. Set the KEYID_HEX environment variable to the value of the key ID with one layer of hex-encoding decoded:

    KEYID_HEX=$(grep -m 1 0x0102 /path/to/parsed/attestation.dat | awk '{print $2}' | xxd -p -r)

  5. Compare the values of RESOURCE_NAME_HEX and KEYID_HEX as strings:

    test  ${RESOURCE_NAME_HEX} == ${KEYID_HEX:(-64)} || echo "Values don't match"


    If the values match, no output is returned and the command exits with code 0.

Verify other properties of the key

You can view various key properties, which correspond to fields in the PKCS #11 standard. Use the following examples as guides to verify other properties of the key.

  • Whether a key is extractable is stored in the 0x0102 field of the parsed output. To determine whether a key is extractable, examine the 0x0162 field. A value of \x01 is true and a value of \x00 is false.

    Cloud HSM keys are not extractable.

    grep '0x0162:' /path/to/parsed/attestation.dat

  • How the key got into the HSM (whether it was created directly or imported) is stored in the 0x0163 field. If the key was created locally on the HSM, the field is set to \x01. An imported key's field is set to \x00.

    You can infer a few pieces of information from how the key came to be on the HSM. If the key was created in Cloud HSM, that means the key has never been stored unencrypted outside of an HSM. If the key was imported, then the import mechanism guarantees that the key is protected at transit during the import process, and within Cloud HSM afterward.

    grep '0x0163:' /path/to/parsed/attestation.dat

  • A key's type is stored in the 0x0100 field. Key types are documented in the PCKS#11 standard with prefix CKK_*. For example, an AES key has a type of \x1f.

    grep '0x0100:' /path/to/parsed/attestation.dat


Additional information

You verify an attestation to determine whether a key version was created inside an HSM.
