What Data Pipeline Architecture should I use?

February 10, 2023
https://storage.googleapis.com/gweb-cloudblog-publish/images/da_2022_Ax1JWDQ.max-2500x2500.jpg
Patrick Alexander

Customer Engineer

There are numerous design patterns that can be implemented when processing data in the cloud; read on to get an overview of data pipeline architectures you can use today.

Try Google Cloud

Start building on Google Cloud with $300 in free credits and 20+ always free products.

Free trial

Data is essential to any application and is used in the design of an efficient pipeline for delivery and management of information throughout an organization. Generally, define a data pipeline when you need to process data during its life cycle. The pipeline can start where data is generated and stored in any format. The pipeline can end with data being analyzed, used as business information, stored in a data warehouse, or processed in a machine learning model.

https://storage.googleapis.com/gweb-cloudblog-publish/images/1_Data_Pipeline_Architecture.max-1100x1100.jpg

Data is extracted, processed, and transformed in multiple steps depending on the downstream system requirements. Any processing and transformational steps are defined in a data pipeline. Depending on the requirements, the pipelines can be as simple as one step or as complex as multiple transformational and processing steps.

How to choose a design pattern?

When selecting a data pipeline design pattern, there are different design elements that must be considered. These design elements include the following:

  • Select data source formats.

  • Select which stacks to use.

  • Select data transformation tools.

  • Choose between Extract Transform Load (ETL), Extract Load Transform (ELT), or Extract Transform Load Transform (ETLT).

  • Determine how changed data is managed.

  • Determine how changes are captured.

Data sources can have a variety of data types. Knowing the technology stack and tool sets that we use is also a key element of the pipeline build process. Enterprise environments come with the challenges that require using multiple and complicated techniques to capture the changed data and to merge with the target data.

I mentioned that most of the time the downstream systems define the requirements for a pipeline and how these processes can be interconnected. The processing steps and sequences of the data flow are the major factors affecting pipeline design. Each step might include one or more data inputs, and the outputs might include one or more stages. The processing between input and output might include simple or complex transformational steps. I highly recommend keeping the design simple and modular to ensure that you clearly understand the steps and transformation taking place. Also, keeping your pipeline design simple and modular makes it easier for a team of developers to implement development and deployment cycles. It also makes debugging and troubleshooting the pipeline easier when issues occur.

The major components of a pipeline Include:

  • Source data

  • Processing

  • Target storage

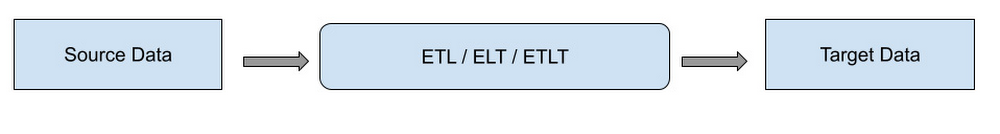

Source data can be the transaction application, the files collected from users, and data extracted from an external API. Processing of the source data can be as simple as one step copying or as complex as multiple transformations and joining with other data sources. The target data warehousing system might require the processed data that is the result of the transformation (such as a data type change or data extraction), and lookup and updates from other systems. A simple data pipeline might be created by copying data from source to target without any changes. A complex data pipeline might include multiple transformation steps, lookup, updates, KPI calculations, and data storage into several targets for different reasons.

https://storage.googleapis.com/gweb-cloudblog-publish/images/2_Data_Pipeline_Architecture.max-1000x1000.jpg

Source data can be presented in multiple formats. Each will need a proper architecture and tools to process and transform. There can be multiple data types required in a typical data pipeline that might be in any of the following formats:

  • Batch Data: A file with tabular information (CSV, JSON, AVRO, PARQUET and …) where the data is collected according to a defined threshold or frequency with conventional batch processing or micro-batch processing. Modern applications tend to generate continuous data. For this reason, micro-batch processing is a preferred design to collect the data from sources.

  • Transactions Data: Application data such as RDBMS (relational data), NoSQL, Big Data.

  • Stream Data:  Real-time applications that use Kafka, Google Pub/Sub, Azure Stream Analytics, or Amazon Stream Data. Streaming data applications can communicate in real time and exchange messages to meet the requirements. In Enterprise architecture design, the real time and stream processing is a very important component of design.

  • Flat file - PDFs or other non-tabular formats that contain data for processing. For example, medical or legal documents that can be used to extract information.

Target data is defined based on the requirements and the downstream processing needs. It’s common to build target data to satisfy the need for multiple systems. In the Data Lake concept, the data is processed and stored in a way that Analytics systems can get insight while the AI/ML process can use the data to build predictive models.

Architectures and examples

Multiple architecture designs are covered that show how the source data is extracted and transformed to the target. The goal is to clever the general approaches, and it's important to remember that each use case can be very different and unique to the customer and need special consideration.

The data pipeline architecture can be broken down into Logical and Platform levels. The logical design describes how the data is processed and transformed from the source into the target. The platform design focuses on implementation and tooling that each environment needs, and this depends on the provider and tooling available in the platform. Google Cloud, Azure, or Amazon have different toolsets for the transformation while the goal of the logical design remains the same (data transform) no matter which provider is used.

Here is a logical design of a Data Warehousing pipeline:

https://storage.googleapis.com/gweb-cloudblog-publish/images/3_Data_Pipeline_Architecture.max-1100x1100.jpg

Here is the logical design for a Data Lake pipeline:

https://storage.googleapis.com/gweb-cloudblog-publish/images/4_Data_Pipeline_Architecture.max-1100x1100.jpg

Depending on the downstream requirements, the generic architecture designs can be implemented with more details to address several use cases.

The Platform implementations can vary depending on the toolset selection and development skills. What follows are a few examples of Google Cloud implementations for the common data pipeline architectures.

A Batch ETL Pipeline in Google Cloud - The Source might be files that need to be ingested into the analytics Business Intelligence (BI) engine. The Cloud Storage is the data transfer medium inside Google Cloud and then Dataflow is used to load the data into the target BigQuery storage. The simplicity of this approach makes this pattern reusable and effective in simple transformational processes. On the other hand, if we need to build a complex pipeline, then this approach isn’t going to be efficient and effective.

https://storage.googleapis.com/gweb-cloudblog-publish/images/5_Data_Pipeline_Architecture_1.max-2000x2000.jpg

A Data Analytics Pipeline is a complex process that has both batch and stream data ingestion pipelines. The processing is complex and multiple tools and services are used to transform the data into warehousing and an AL/ML access point for further processing. Enterprise solutions for data analytics are complex and require multiple steps to process the data. The complexity of the design can add to the project timeline and cost but in order to achieve the business objectives, carefully review and build each component.

https://storage.googleapis.com/gweb-cloudblog-publish/images/6_Data_Pipeline_Architecture.max-2200x2200.jpg

Machine learning data pipeline in Google Cloud is a comprehensive design that allows customers to utilize all Google Cloud native services to build and process a machine learning process. For more information, see Creating a machine learning pipeline.

https://storage.googleapis.com/gweb-cloudblog-publish/images/7_Data_Pipeline_Architecture.max-2200x2200.jpg
Google Cloud platform diagrams are created by Google Cloud Developer Architecture.

How to choose a data pipeline architecture?

There are multiple approaches to designing and implementing data pipelines. The key is to choose the design that meets your requirements. There are new technologies emerging that are providing more robust and faster implementations for data pipelines. Google Big Lake is a new service that introduces a new approach on data ingestion. BigLake is a storage engine that unifies data warehouses by enabling BigQuery and open source frameworks such as Spark to access data with fine-grained access control. BigLake provides accelerated query performance across multi-cloud storage and open formats such as Apache Iceberg.

The other major factor in deciding the proper data pipeline architecture is the cost. Building a cost-effective solution is a major factor in deciding the design. Usually, streaming and real-time data processing pipelines are more expensive to build and run compared to using batch models. There are times that the budget runs the decision on which design to choose and how to build the platform. Knowing the details on each component and being able to do cost analysis of the solution ahead of time is important in choosing the right architecture design for your solution. Google Cloud provides a cost calculator that can be used in these cases.

Do you really need real-time analytics or will a near real-time system be sufficient? This can resolve the design decision for the streaming pipeline. Are you building cloud native solutions or migrating an existing one from on-premises? All of these questions are important in designing a proper architecture for our data pipeline.

Don’t ignore the data volume when designing a data pipeline. The scalability of the design and services used in the platform is another very important factor to consider when designing and implementing a solution. Big Data is growing more and building capacity for processing. Storing the data is a key element to data pipeline architecture. In reality, there are many variables that can help with proper platform design. The data volume and velocity or data flow rates can be very important factors.

If you are planning to build a data pipeline for a data science project, then you might consider all data sources that the ML Model requires for future engineering. The data cleansing process is mostly a big part of the data engineering team which must have adequate and sufficient transformational toolsets. Data science projects are dealing with large data sets, which will require planning for storage. Depending on how the ML Model is utilized, either real-time or batch processing must serve the users.

What Next?

Big Data and the growth of the data in general are posing new challenges for data architects and always challenging the requirements for data architecture. A constant increase of data variety, data formats, and data sources is a challenge as well. Businesses are realizing the value of the data and are automating more processes and demanding real-time access to the analytics and decision making information. This is becoming a challenge to take into consideration all variables for a scalable performance system. The data pipeline must be strong, flexible, and reliable. The data quality must be trusted by all users. Data privacy is one of the most important factors in any design consideration. I’ll cover these concepts in my next article.

I highly recommend following Google Cloud quickstart and tutorials as the next steps to learn more about the Google Cloud and experience hands-on practice.

Stay tuned. Thank you for reading. Have a question or want to chat? Find me on Twitter or LinkedIn.
